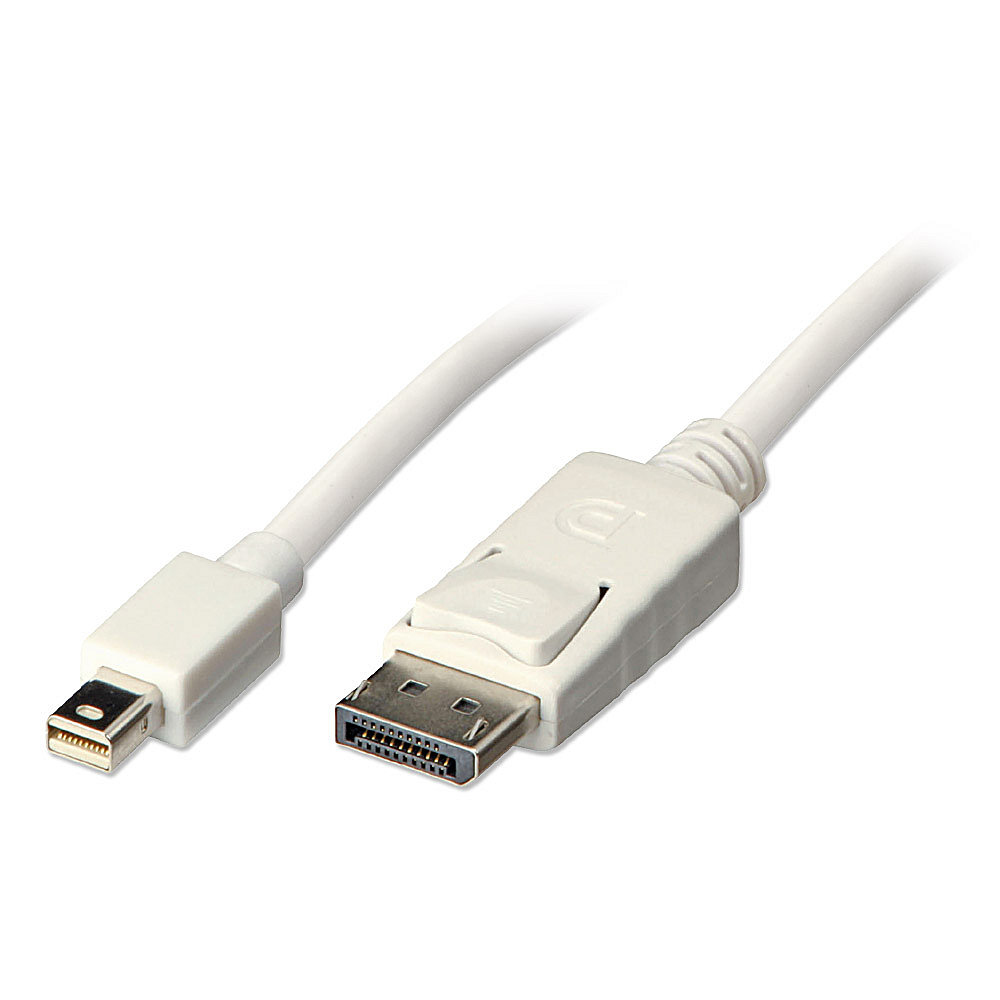

Product Details
Introduction
DisplayPort 1.2_x000D_
HD 2160p compatible_x000D_
_x000D_
Full support for high definition video, multi-channel digital audio and DPCP_x000D_
24K gold plated connector pins_x000D_
Supports resolutions up to 2560 x 1600 and 2160p_x000D_
Supports 8 channel, uncompressed 24bit audio_x000D_
Bandwidth: 2.7Gbps per lane (total10.8Gbps)_x000D_
DisplayPort compliance certified_x000D_
Color: White_x000D_
10 year warranty_x000D_
_x000D_
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
DisplayPort version
1.2
Maximum resolution
3840 x 2160 pixels
Supported graphics resolutions
2560 x 1600 (WQXGA),3840 x 2160
Supported video modes
1600p,2160p
DisplayPort Content Protection (DPCP)
Y
Cable length
3 m
Connector 1
Mini DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
White
Data transfer rate
10.8 Gbit/s
Channels quantity
8 channels
Cable type
Round cable
Information
| Part Number: | 41058 |
