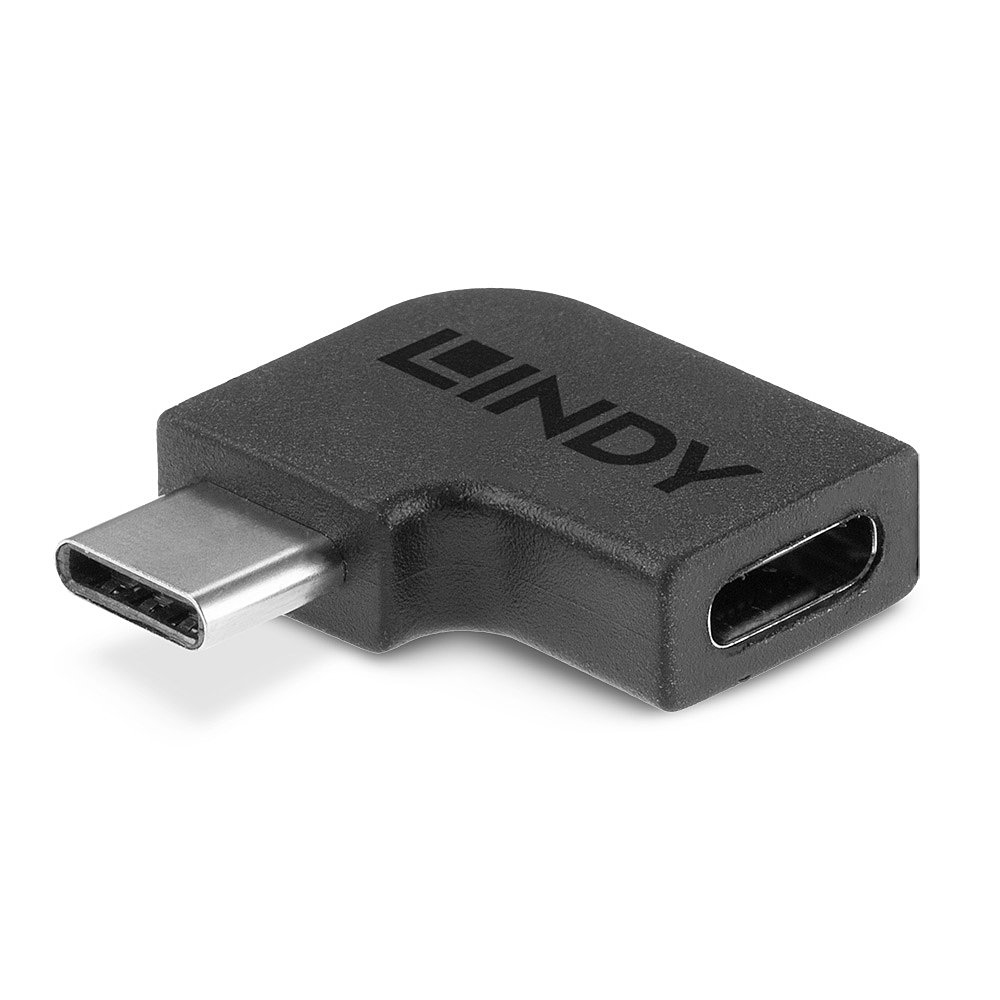

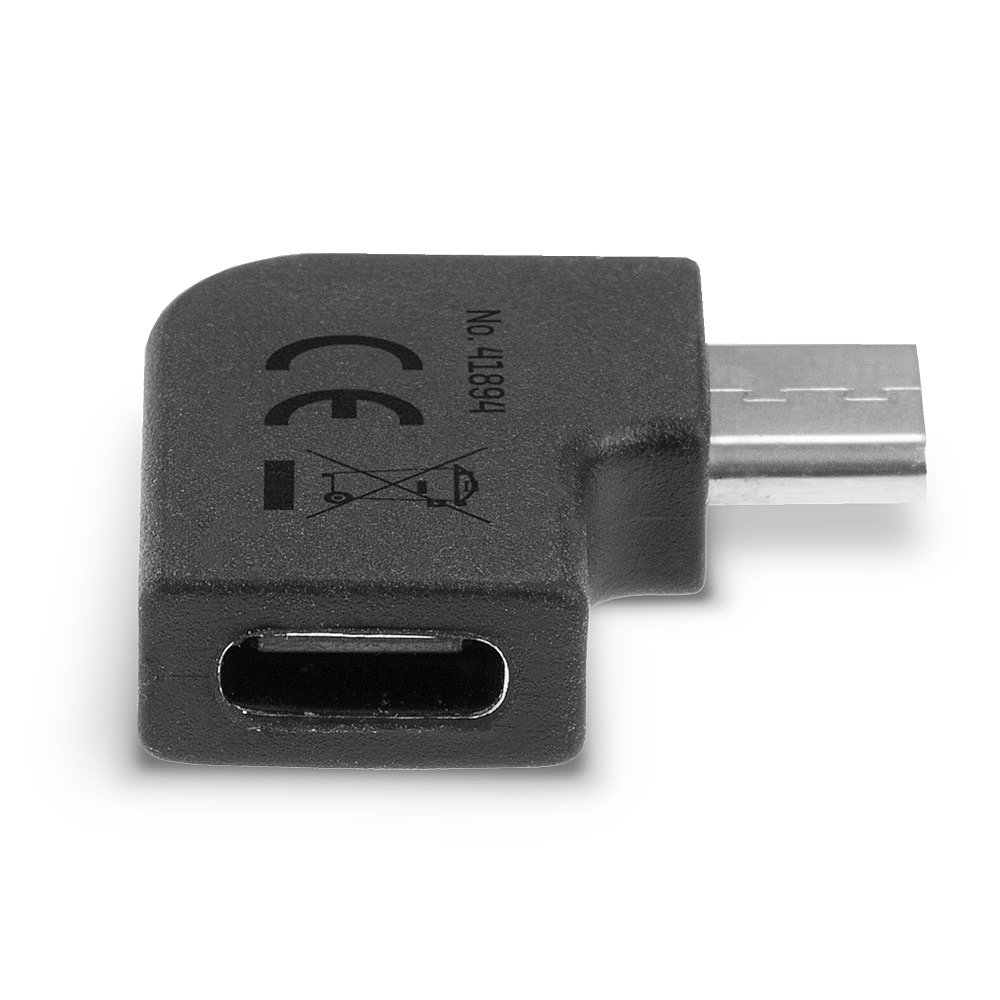

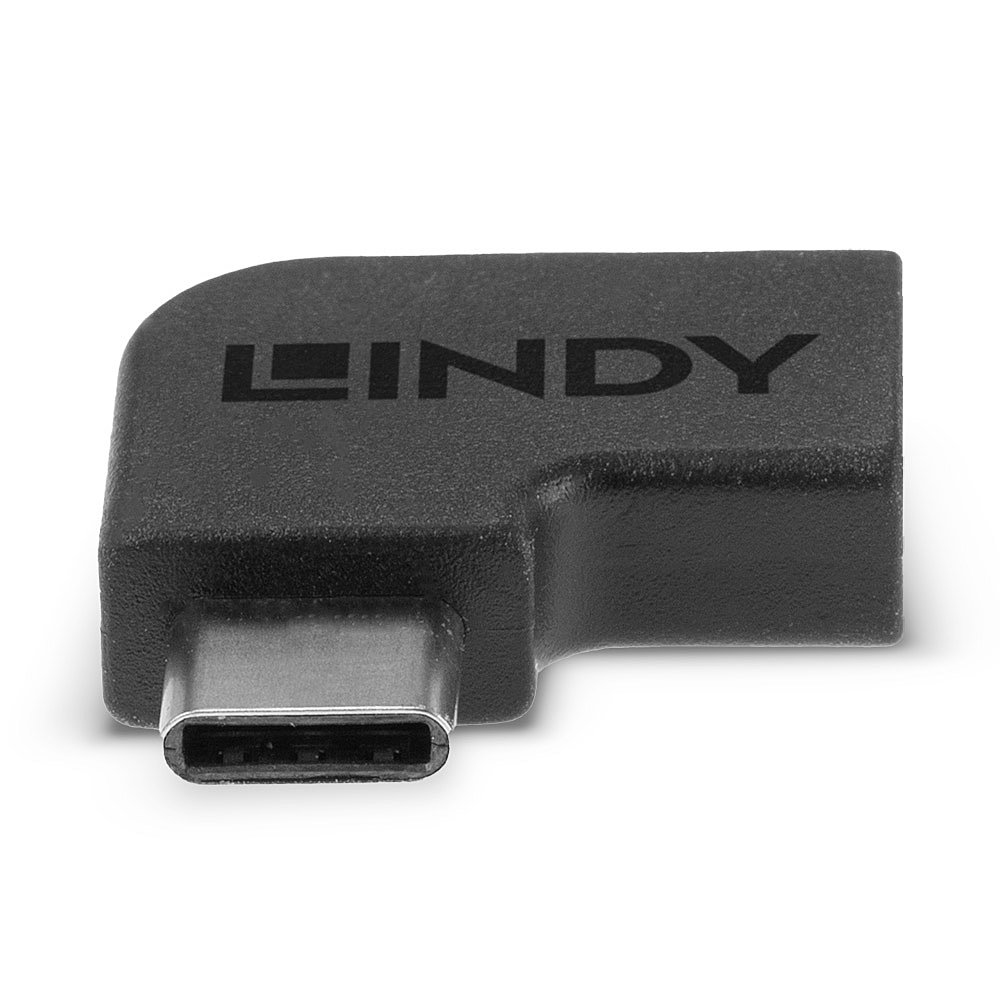

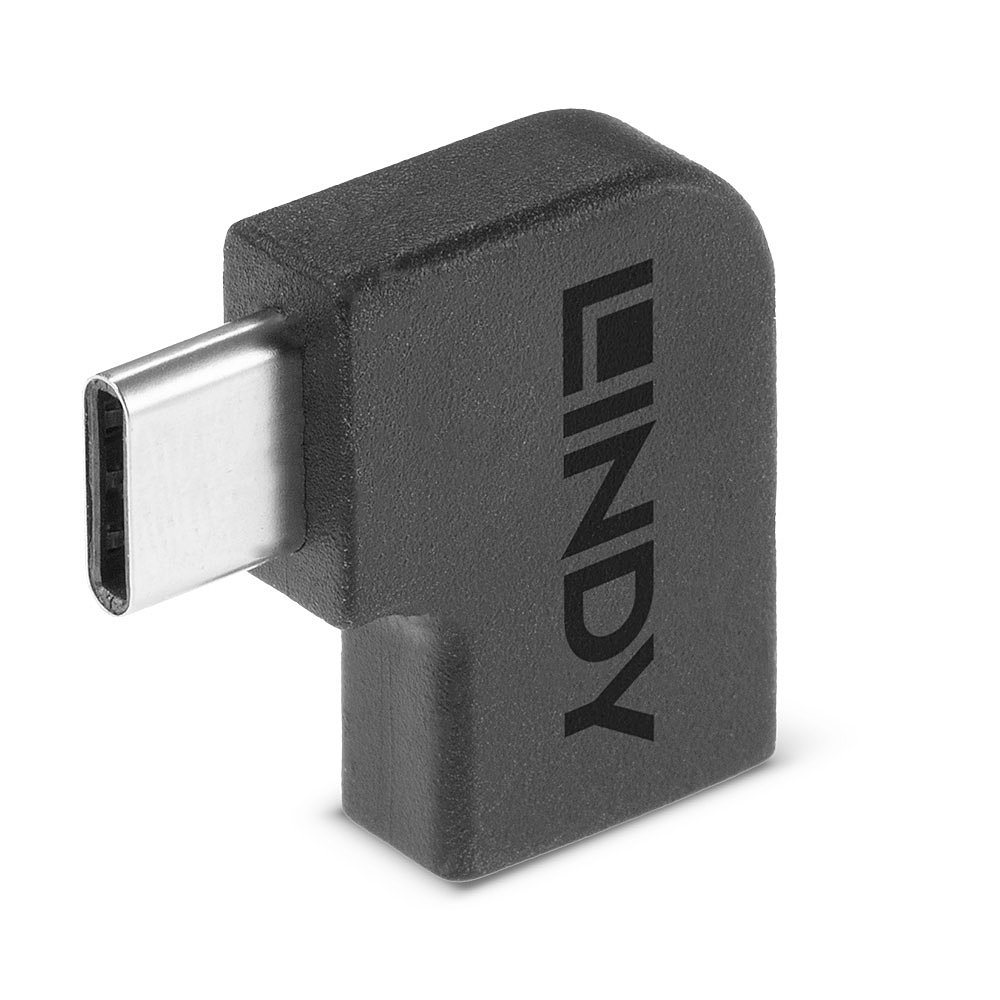

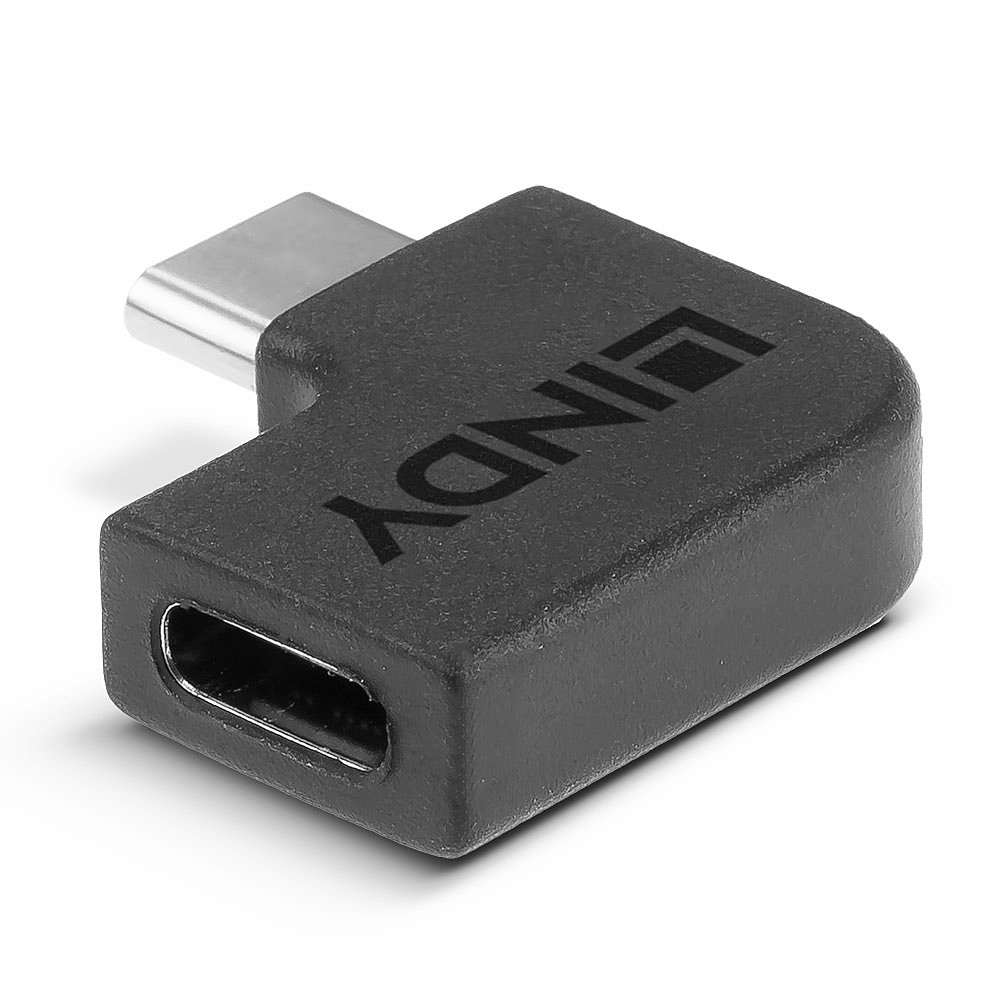

LINDY USB 3.2 Type C To C Adapter 90 Degrees

£3.44

Part Number: 41894
Delivery: 1 - 2 days

Product Details

Introduction

Connects a USB Type C cable to a USB Type C device with recessed ports or within limited spaces_x000D_
Angled 90° left/right - can be used as a strain relief for chargers and USB-C converters_x000D_
Robust PVC housing, nickel connectors and gold plated contacts_x000D_
Supports data transfer speeds up to SuperSpeed USB 20Gbps  (USB 3.2 Gen 2x2)_x000D_
10 year warranty_x000D_
_x000D_
USB adapters allow users to connect different USB interfaces to a device that uses a differing USB port._x000D_
_x000D_
The Lindy USB 3.2 Type C to C 90° Adapter is a compact solution that allows users to connect a USB Type C cable to a USB Type C device with recessed or hard to reach ports. This adapter allows for a 90° connection to the left or right of the device. It is ideal to use as a strain relief for chargers and USB-C converters._x000D_
_x000D_
Data transfer speeds up to 20Gbps are supported for the quick and effortless transfer of large data volumes._x000D_

Technical details

Compliance certificates REACH, RoHS

Ports & interfaces

Connector 1 USB 3.2 Type C
Connector 2 USB 3.2 Type C
Connector 1 gender Male
Connector 2 gender Female
Connector 1 form factor Angled
Connector 2 form factor Straight
Connector contacts plating Nickel/Gold
Connector 1 shielding Copper foil
Connector 2 shielding Copper foil

Performance

Product colour Black
Housing material Polyvinyl chloride (PVC)
Data transfer rate 20 Gbit/s

Operational conditions

Operating temperature (T-T) -10 - 80 °C
Storage temperature (T-T) -20 - 85 °C

Sustainability

Sustainability certificates REACH, RoHS

Weight & dimensions

Width 24.6 mm
Depth 23 mm
Height 6.3 mm

Packaging data

Package type Polybag

Information

Part Number: 41894
