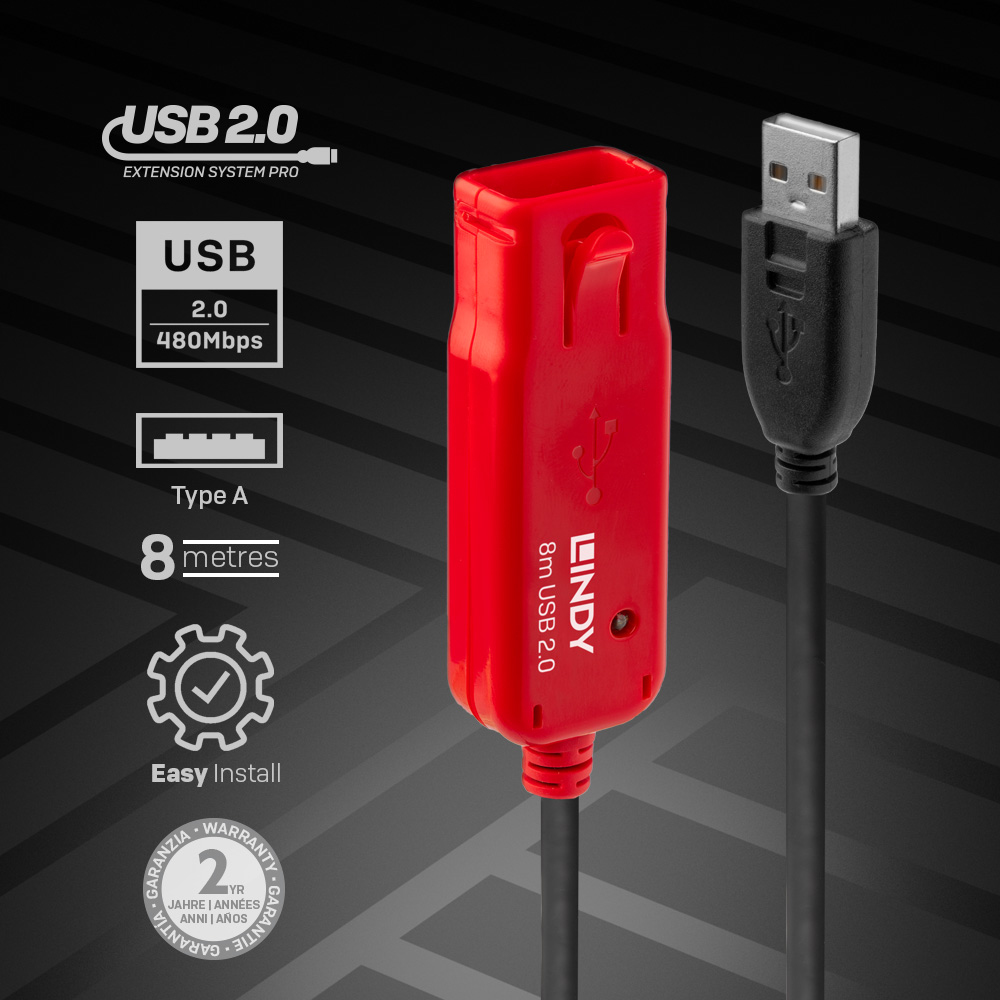

LINDY USB 2.0 Active Extension Cable Pro 8m

LINDY USB 2.0 Active Extension Cable Pro 8m

£26.72 (incl. VAT)

Qty:

Add to basket

Part Number:	42780
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

High performance, active cable that provides an extended 8m connection between a computer and USB 2.0 device_x000D_
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m_x000D_
Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps_x000D_
Easy to use – connects to the device’s existing USB cable (2m maximum)_x000D_
2 year warranty_x000D_
_x000D_
The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably._x000D_
_x000D_

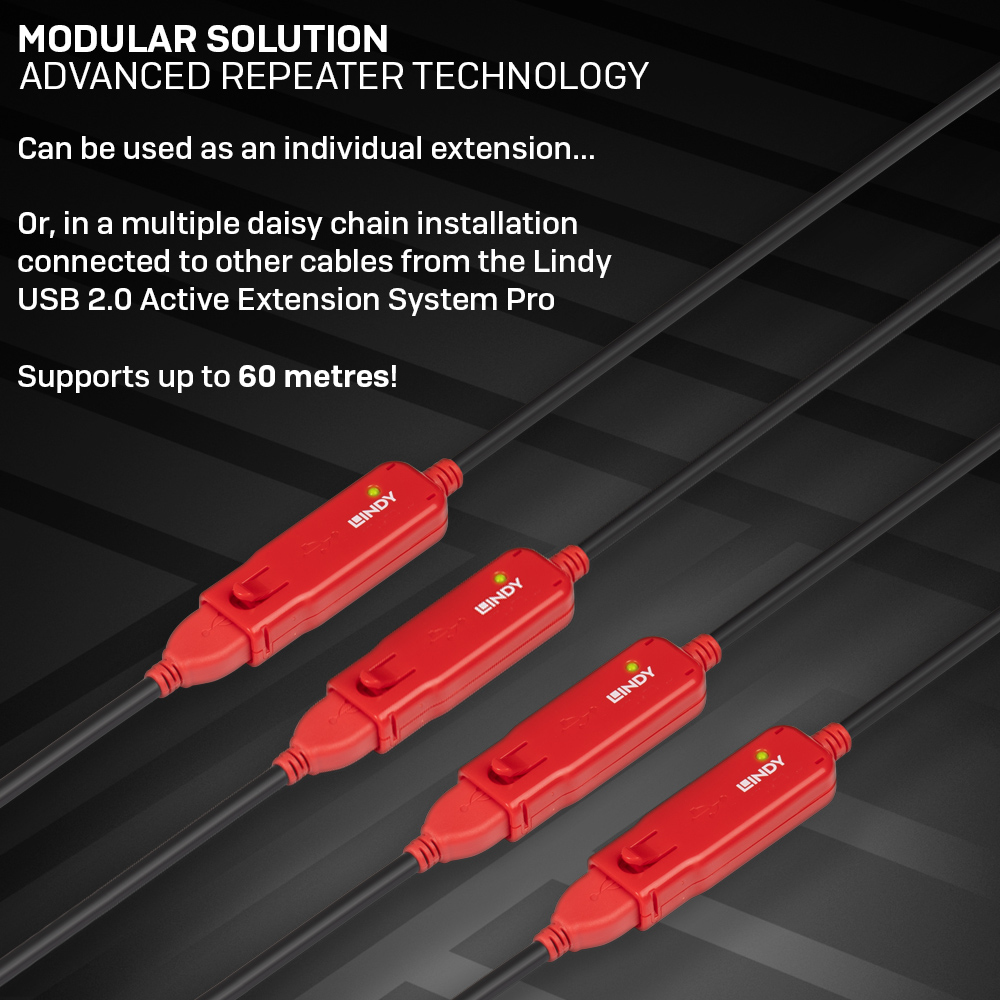

This 8m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m._x000D_
_x000D_
The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system._x000D_
_x000D_
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments._x000D_
_x000D_

Features

USB version USB 2.0

Connector 1 USB A

Connector 2 USB A

Connector 1 gender Male

Connector 2 gender Female

Connector 1 form factor Straight

Connector 2 form factor Straight

AWG wire size 26/20

Connector material Gold/Nickel

Contact material Brass

Connector contacts plating Gold

Cable jacket material Polyvinyl chloride (PVC)

Conductor material Tinned copper

Connector shielding Yes

Connector shield material Aluminium

Connector housing material Plastic

Maximum data transfer rate 480 Mbit/s

Cable type Round cable

Product colour Black

Transmission medium Twisted pair

Nominal attenuation (0.064 MHz, -0.08 dB) (0.256MHz, -0.11 dB) (0.512MHz, -0.13 dB) (0.772 MHz, -0.15 dB) (1 MHz, -0.2 dB) (4 MHz, -0.39 dB) (8 MHz, -0.57 dB) (12 MHz, -0.76 dB) (24 MHz, -0.95 dB) (48 MHz, -1.35dB) (96 MHz, -1.9 dB) (200 MHz, -3.2 dB) (400 MHz, -5.8 dB)

Certification CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Weight & dimensions

Cable length 8 m

Cable diameter 5 mm

Weight 280 g

Bend radius (min) 2.6 cm

Connector 1 dimensions (WxDxH) 15 x 43 x 8 mm

Connector 2 dimensions (WxDxH) 20 x 64 x 13 mm

Cable length 8 m

Weight 280 g

Packaging data

Package type Box

Package width 238 mm

Package depth 66 mm

Package height 202 mm

Package weight 440 g

Quantity per pack 1 pc(s)

Package width 238 mm

Package depth 66 mm

Package height 202 mm

Package weight 440 g

Package type Box

Packaging content

Quantity per pack 1 pc(s)

Manual Yes

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -20 - 60 °C

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -20 - 60 °C

Certificates

Certification CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Logistics data

Harmonized System (HS) code 85044095

Design

Product colour Black

Other features

Cable type Round cable
