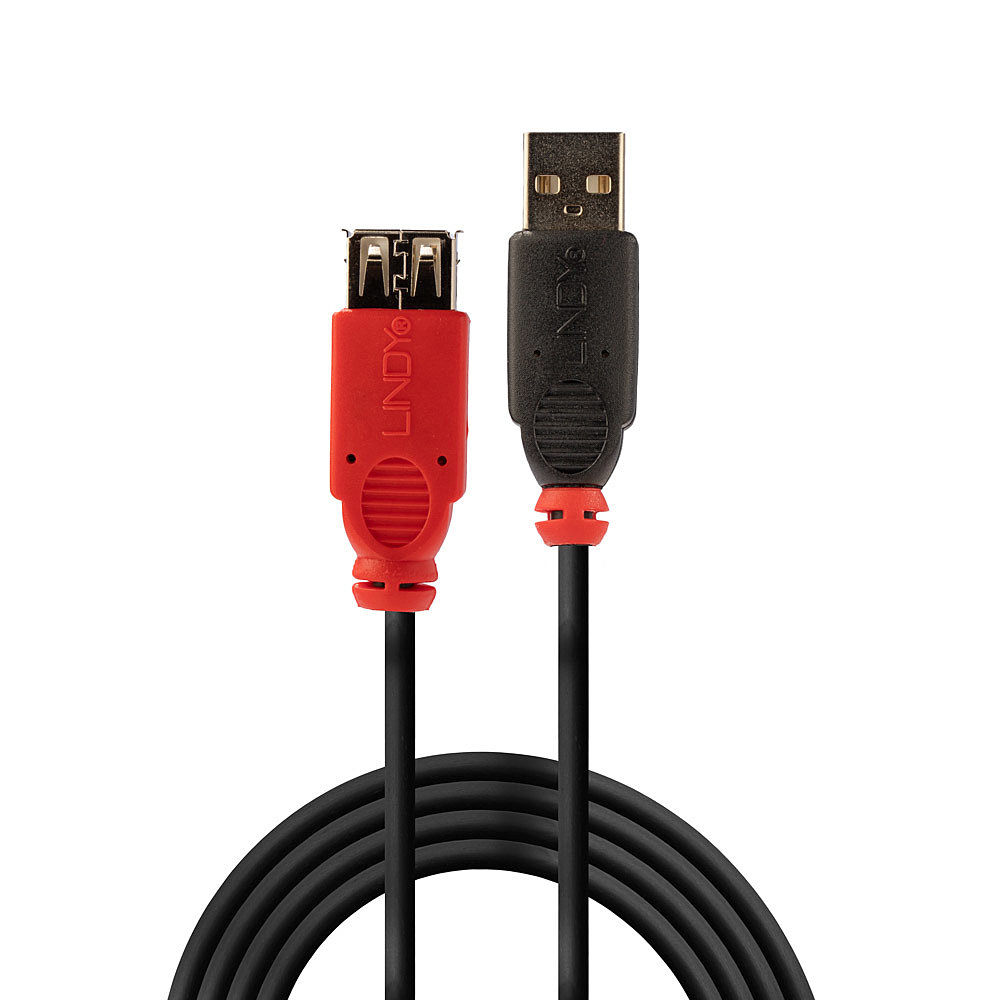

LINDY USB 2.0 Slimline Active Extension Cable 5m

LINDY USB 2.0 Slimline Active Extension Cable 5m

£12.53 (incl. VAT)

Qty:

Add to basket

Part Number:	42817
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

5 metre USB 2.0 Active Extension Repeater Lead_x000D_
Supports transfer rates up to 480Mbps_x000D_
For even greater distances simply connect up to 5 cables in series_x000D_
Plug & Play_x000D_
2 year warranty_x000D_
_x000D_
The Lindy USB 2.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps. With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m._x000D_
_x000D_
The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers. _x000D_
_x000D_

Features

Maximum data transfer rate 0.48 Gbit/s

Cable length 5 m

USB version USB 2.0

Connector 1 USB A

Connector 2 USB A

Connector 1 gender Male

Connector 2 gender Female

Connector 1 form factor Straight

Connector 2 form factor Straight

AWG wire size 24/28

Connector material Nickel

Contact material Brass

Connector contacts plating Gold

Cable jacket material Polyvinyl chloride (PVC)

Conductor material Tinned copper

Connector shielding Y

Connector shield material Aluminium

Connector housing material Plastic

Maximum data transfer rate 480 Mbit/s

Product colour Black

Plug and Play Y

Cable type Round cable

Transmission medium Twisted pair

Nominal attenuation 24AWG: 93.25Ohm/km 28AWG: 237.25Ohm/km

Certification CE, UKCA, FCC, RoHS & REACH

Technical details

Harmonized System (HS) code 84733080

Weight & dimensions

Cable diameter 4.8 mm

Bend radius (min) 4.8 cm

Connector 1 dimensions (WxDxH) 15 x 40 x 6 mm

Connector 2 dimensions (WxDxH) 15 x 45 x 8 mm

Weight 180 g

Packaging data

Quantity per pack 1 pc(s)

Package width 214 mm

Package depth 146 mm

Package height 38 mm

Package weight 200 g

Package type Blister

Other features

Operating temperature (T-T) 0 - 70 °C

Storage temperature (T-T) -10 - 80 °C

Information

Part Number:

42817
