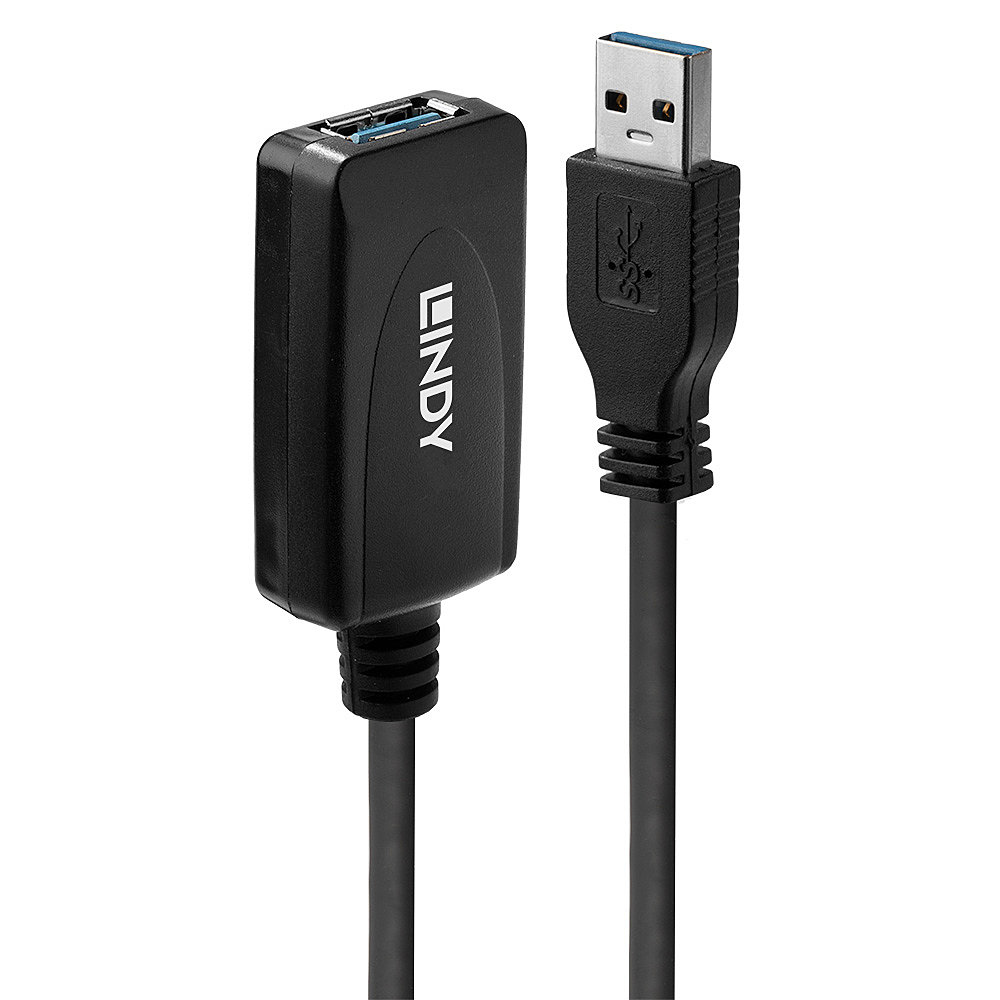

LINDY USB 3.0 Active Extension Cable 5m

£22.11

Part Number: 43155
Delivery: 1 - 2 days

Product Details

Introduction

5 metre USB 3.0 Active Extension Repeater Lead_x000D_
Supports transfer rates up to 5Gbps_x000D_
For even greater distances simply connect 2 cables in series_x000D_
Plug & Play_x000D_
2 year warranty_x000D_
_x000D_
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together._x000D_
_x000D_
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios._x000D_
_x000D_
Information about USB 3.0, 3.1 & 3.2_x000D_
_x000D_
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface._x000D_
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps._x000D_
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps._x000D_
_x000D_

Features

Maximum data transfer rate 5 Gbit/s
Cable length 5 m
USB version USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1 USB A
Connector 2 USB A
Connector 1 gender Male
Connector 2 gender Female
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 28/24
Connector material Gold
Contact material Brass
Connector contacts plating Gold
Cable jacket material Polyvinyl chloride (PVC)
Conductor material Tinned copper
Connector shielding Y
Connector shield material Aluminium
Connector housing material Plastic
Maximum data transfer rate 5000 Mbit/s
Product colour Black
Cable type Round cable
Transmission medium Twisted pair
Nominal attenuation 1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz
Certification CE, UKCA, FCC, RoHS, REACH

Technical details

Harmonized System (HS) code 84733080

Weight & dimensions

Cable diameter 5.5 mm
Bend radius (min) 5.5 cm
Connector 1 dimensions (WxDxH) 16 x 48 x 6 mm
Connector 2 dimensions (WxDxH) 24 x 46 x 12 mm
Weight 220 g

Packaging data

Quantity per pack 1 pc(s)
Package width 237 mm
Package depth 60 mm
Package height 138 mm
Package weight 289 g
Package type Blister

Other features

Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) 0 - 70 °C

Information

Part Number: 43155
