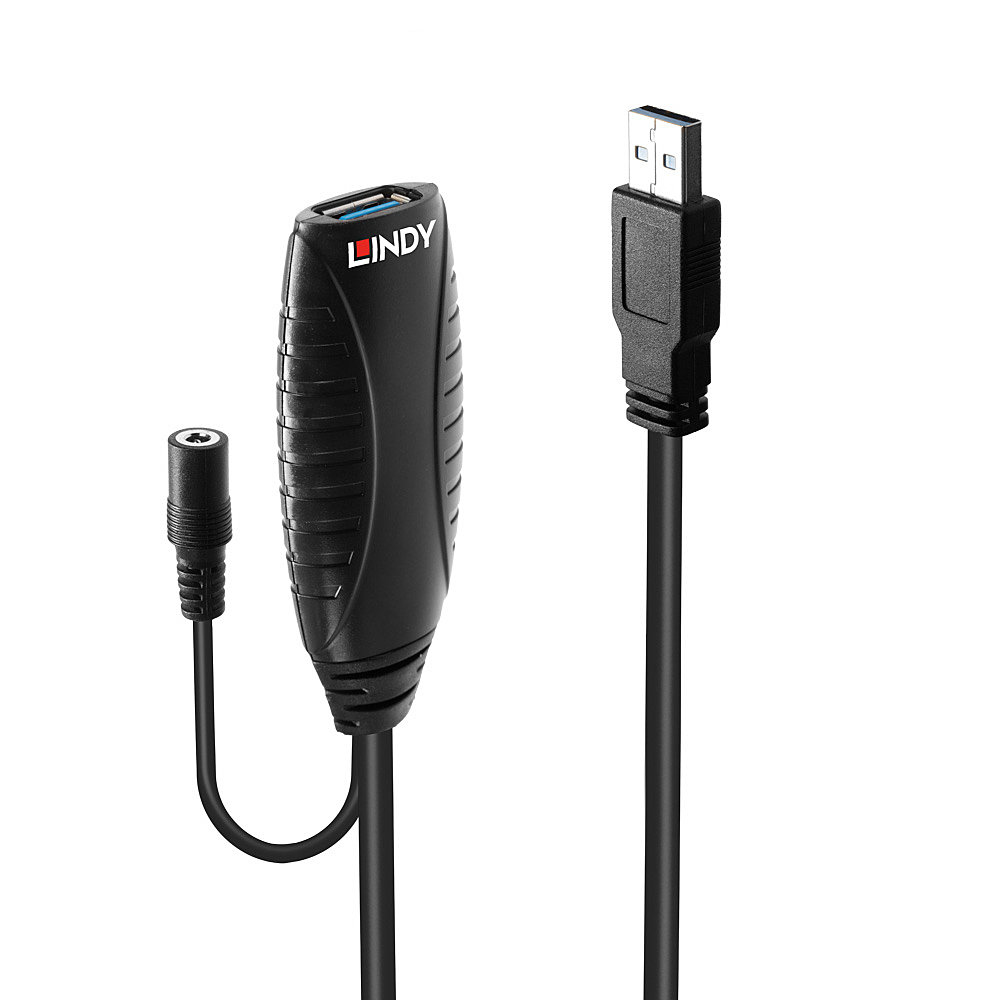

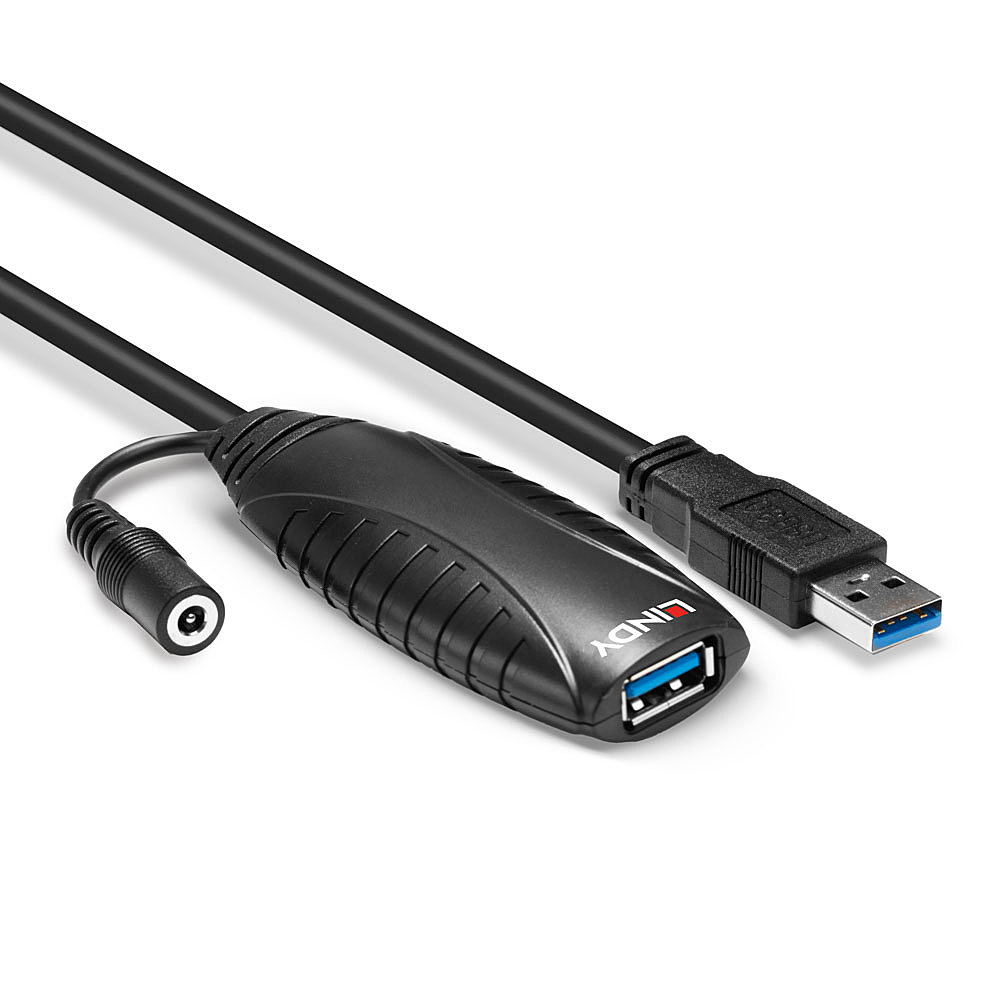

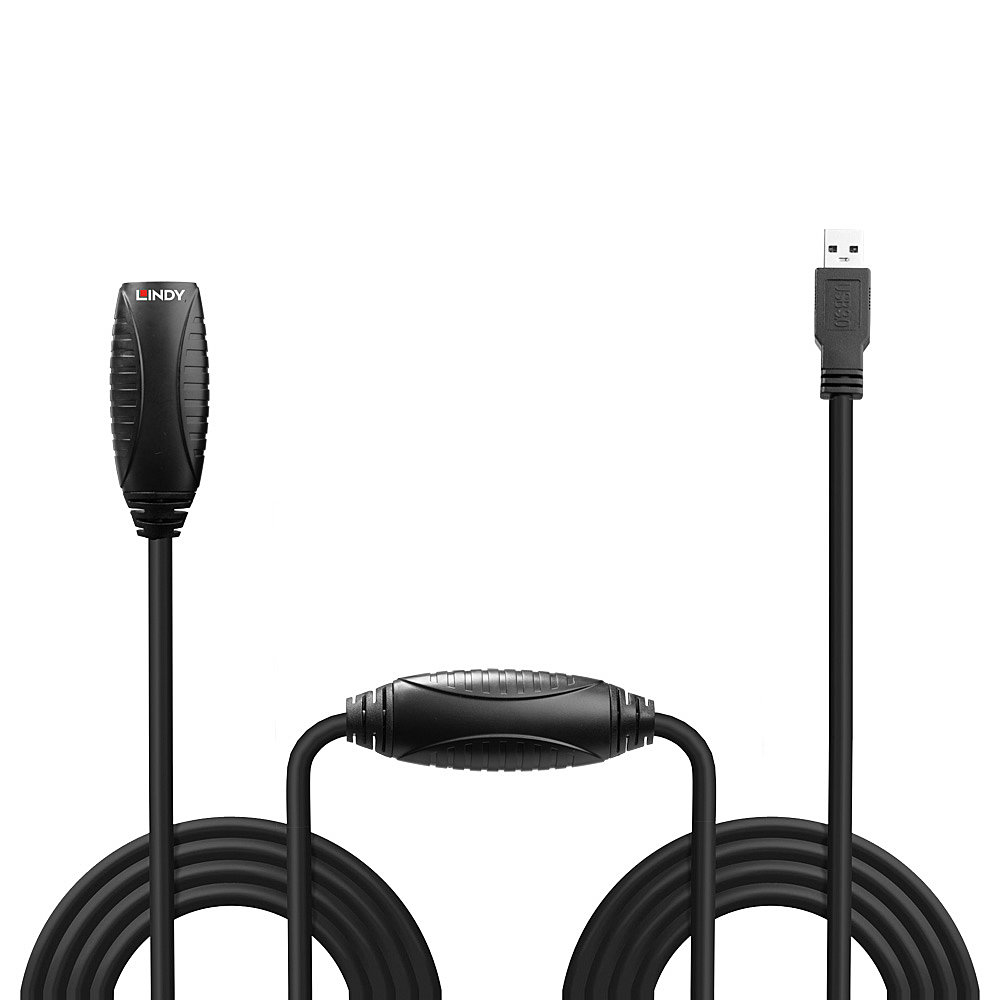

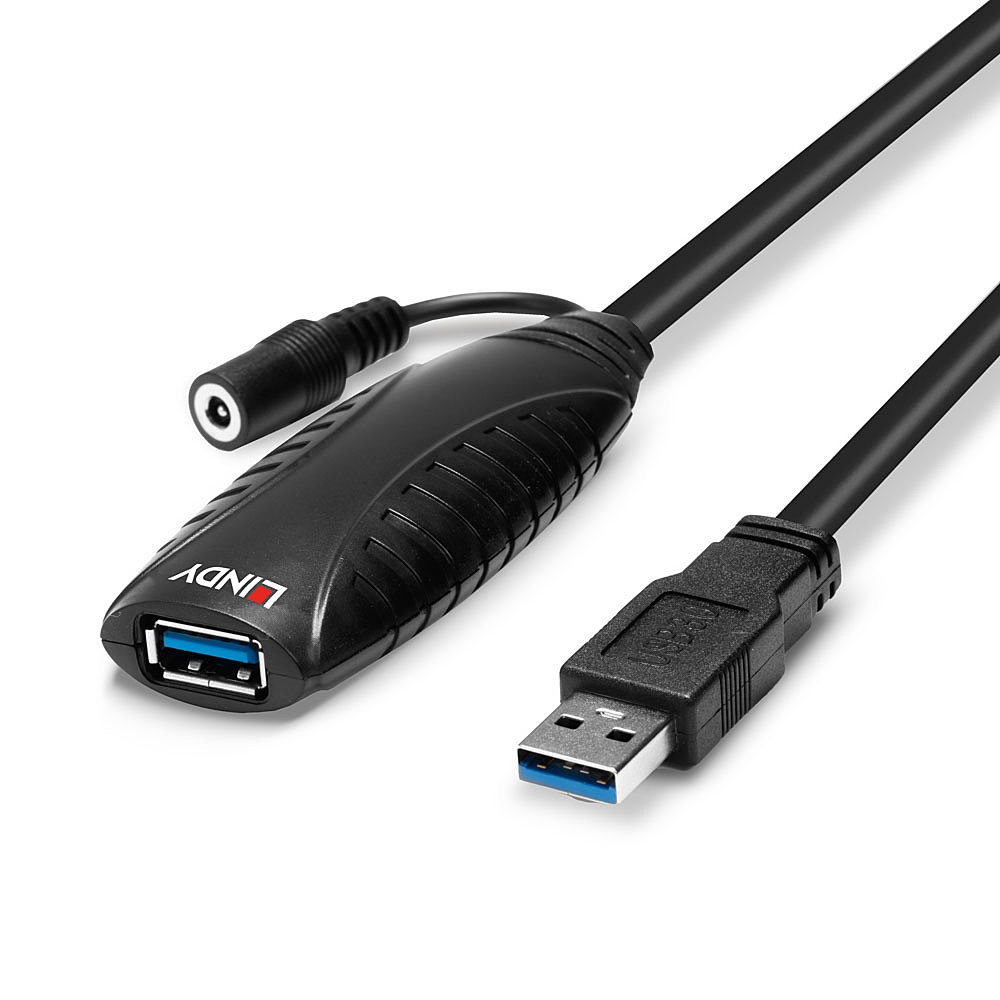

LINDY USB3.0 Active Extension Cable - USB-a Male - USB-a Female - 10m

£38.65

Part Number: 43156
Delivery: 1 - 2 days

Product Details

Introduction

10 metre USB 3.0 Active Extension Repeater Lead_x000D_
Supports transfer rates up to 5Gbps_x000D_
For even greater distances simply connect 2 cables in series_x000D_
Plug & Play_x000D_
2 year warranty_x000D_
_x000D_
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 10m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 20m._x000D_
_x000D_
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users. The USB active extension cable also features a DC socket for connecting an external power supply (5V 2A, not included) when using USB peripherals which have higher power requirements._x000D_
_x000D_
Information about USB 3.0, 3.1 & 3.2_x000D_
_x000D_
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface._x000D_
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps._x000D_
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps._x000D_
_x000D_

Features

Maximum data transfer rate 5 Gbit/s
Cable length 10 m
USB version USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1 USB A
Connector 2 USB A
Connector 1 gender Male
Connector 2 gender Female
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 28/28/22
Connector material Nickel
Contact material Copper
Connector contacts plating Gold
Cable jacket material Polyvinyl chloride (PVC)
Conductor material Tinned copper
Connector shielding Y
Connector shield material Aluminium
Connector housing material Plastic
Maximum data transfer rate 5000 Mbit/s
Product colour Black
Plug and Play Y
Cable type Round cable
Transmission medium Twisted pair
Nominal attenuation (100 MHz, -1.5 dB) (1.25 GHz, -5.0 dB) (2.5 GHz, -7.5 dB) (7.5 GHz, -25 dB)
Certification CE, UKCA, FCC, RoHS, REACH

Technical details

Harmonized System (HS) code 84733080

Power

Power note 3.5/1.35mm DC

Weight & dimensions

Cable diameter 6 mm
Bend radius (min) 6 cm
Connector 1 dimensions (WxDxH) 16 x 37 x 9.8 mm
Connector 2 dimensions (WxDxH) 32 x 85 x 10 mm
Weight 515 g

Packaging data

Quantity per pack 1 pc(s)
Package width 140 mm
Package depth 90 mm
Package height 150 mm
Package weight 600 g
Package type Box

Other features

Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -20 - 70 °C

Information

Part Number: 43156
