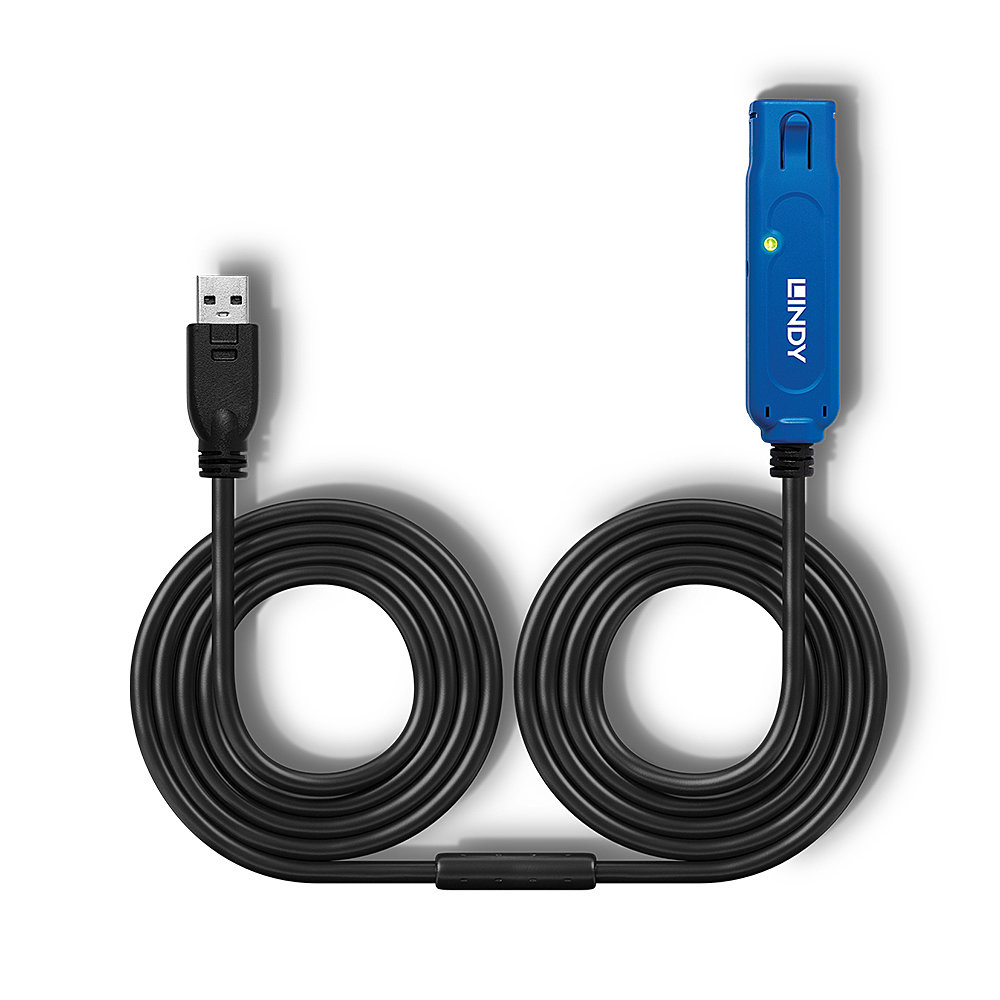

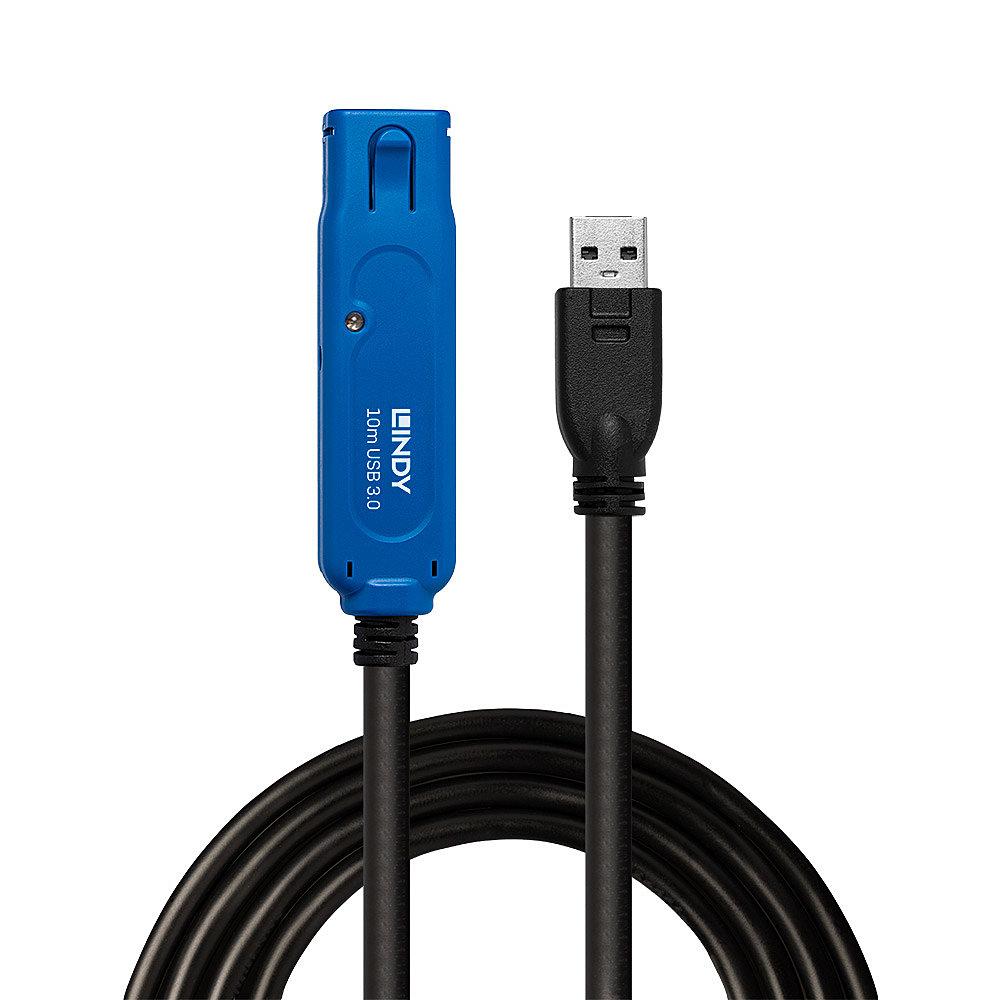

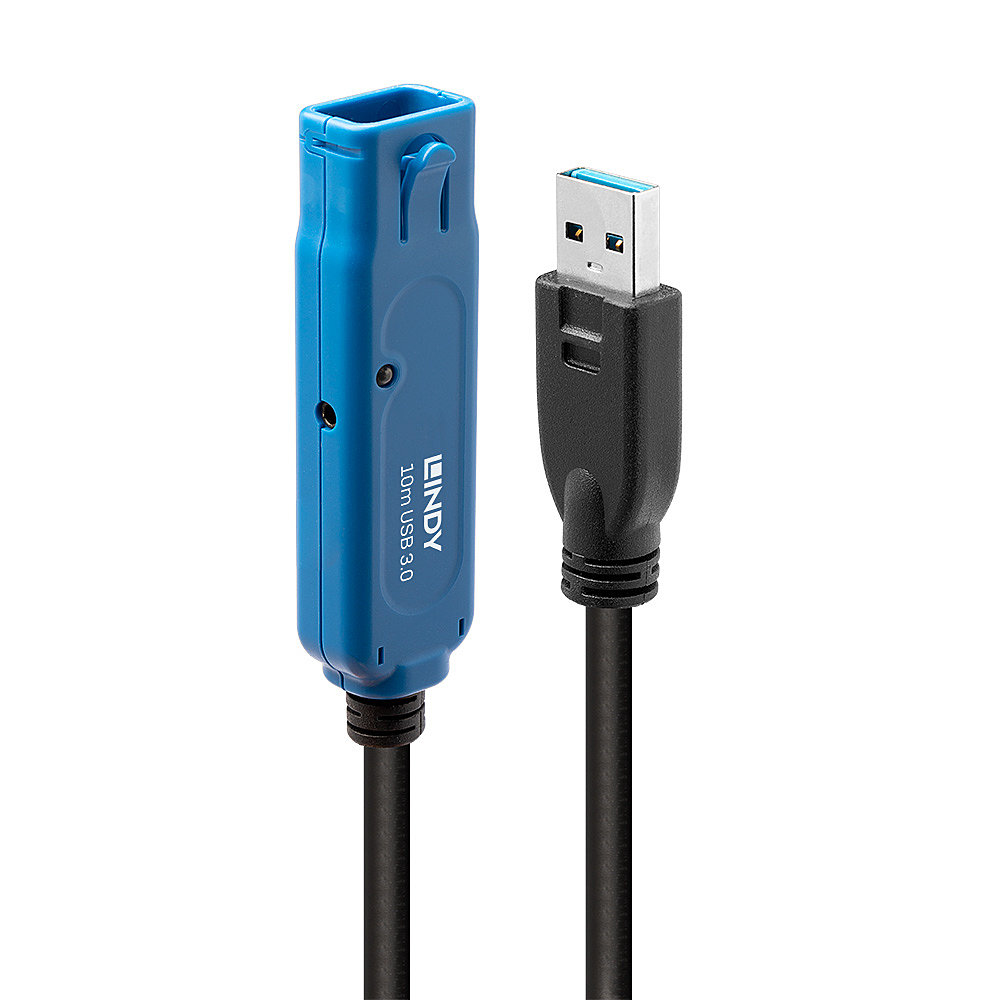

LINDY Active Extension Cable - USB3.0 - Type A Male / Type A Female - 10m

£74.99

Part Number: 43157
Delivery: 1 - 2 days

Product Details

Introduction

High performance, active cable that provides an extended 10m connection between a computer and USB 3.0 device_x000D_
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of about 40m (depending on the cable configurations used)_x000D_
Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps_x000D_
Easy to use – connects to the device’s existing USB cable (5m maximum)_x000D_
2 year warranty_x000D_
_x000D_
The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably._x000D_
_x000D_
This 10m extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used)._x000D_
_x000D_
Please note that only the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229) can be connected directly to your computer. If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229). Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any of the three parts of the Extension Pro System. If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension._x000D_
_x000D_

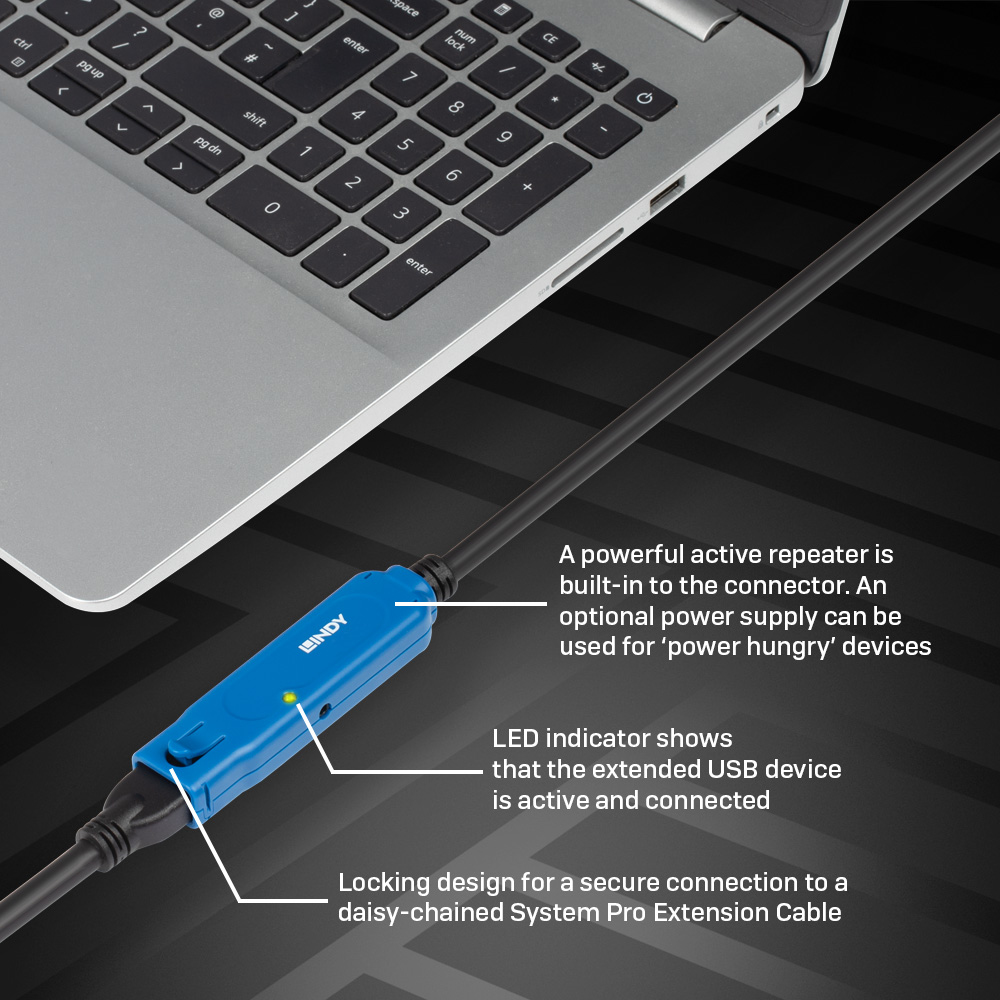

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments._x000D_
_x000D_
Information about USB 3.0, 3.1 & 3.2_x000D_
_x000D_
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface._x000D_
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps._x000D_
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps._x000D_
_x000D_

Features

Maximum data transfer rate 5 Gbit/s
Cable length 10 m
USB version USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1 USB A
Connector 2 USB A
Connector 1 gender Male
Connector 2 gender Female
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 24/24/20
Connector material Nickel
Contact material Brass
Connector contacts plating Gold
Cable jacket material Polyvinyl chloride (PVC)
Conductor material Tinned copper
Connector shielding Y
Connector shield material Aluminium
Connector housing material Plastic
Maximum data transfer rate 5000 Mbit/s
Product colour Black
Cable type Round cable
Transmission medium Twisted pair
Nominal attenuation 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
Certification CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Technical details

Harmonized System (HS) code 84733080

Power

Power note 2.5/0.7mm DC

Weight & dimensions

Cable diameter 7 mm
Bend radius (min) 3.6 cm
Connector 1 dimensions (WxDxH) 15 x 49 x 8 mm
Connector 2 dimensions (WxDxH) 20 x 80 x 13 mm
Weight 750 g

Packaging data

Quantity per pack 1 pc(s)
Package width 240 mm
Package depth 70 mm
Package height 200 mm
Package weight 900 g
Package type Box

Packaging content

Manual Y

Other features

Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
