Introduction

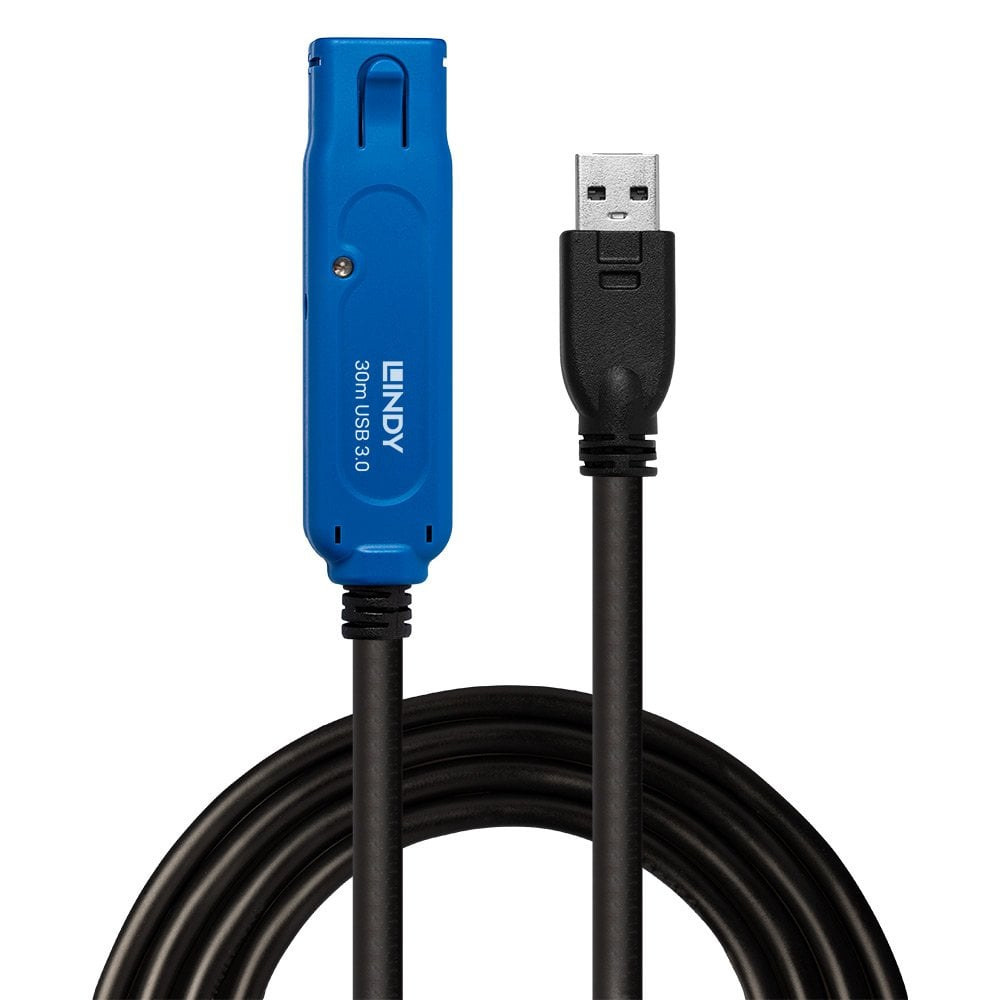

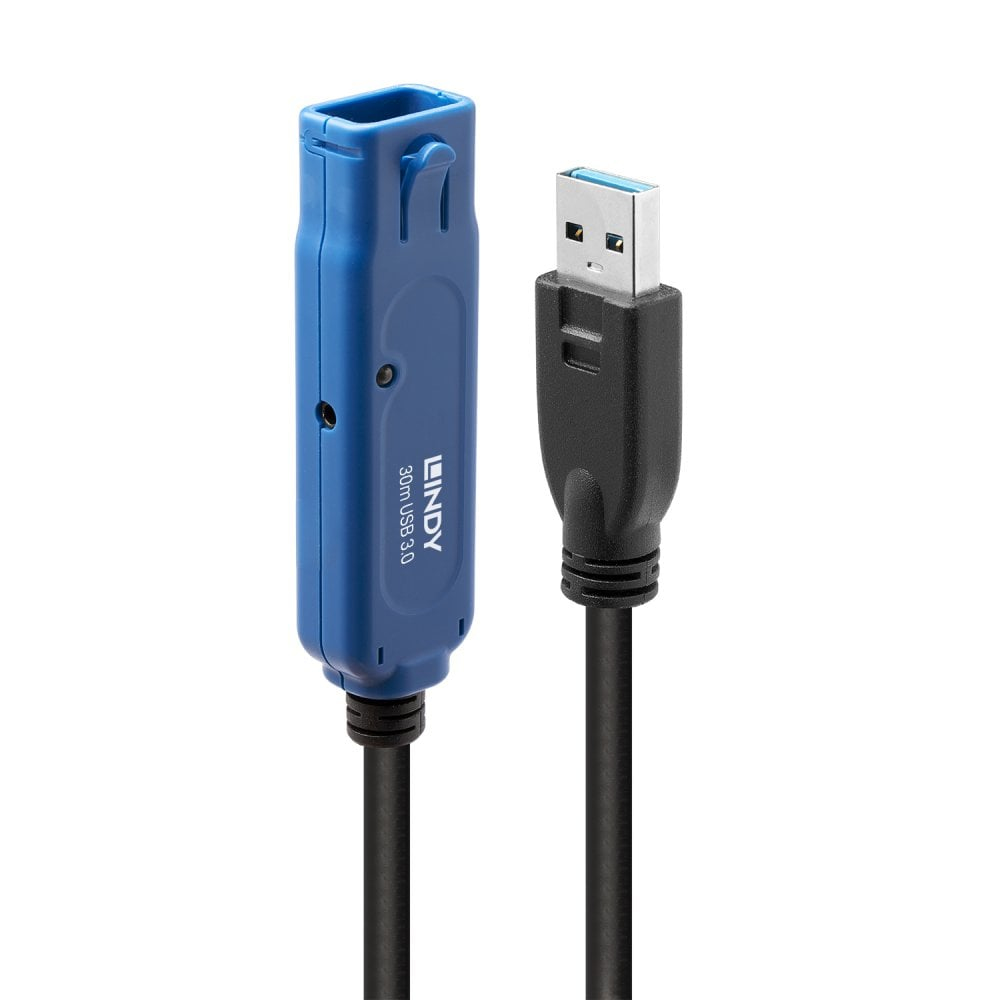

The Lindy 30m USB 3.0 Active Extension Cable Pro is a high-performance cable that allows a computer to connect to USB 3.0 SuperSpeed peripherals over long distances. It supports data transfer speeds of up to 5Gbps, making it ideal for quickly and reliably transferring large amounts of data.

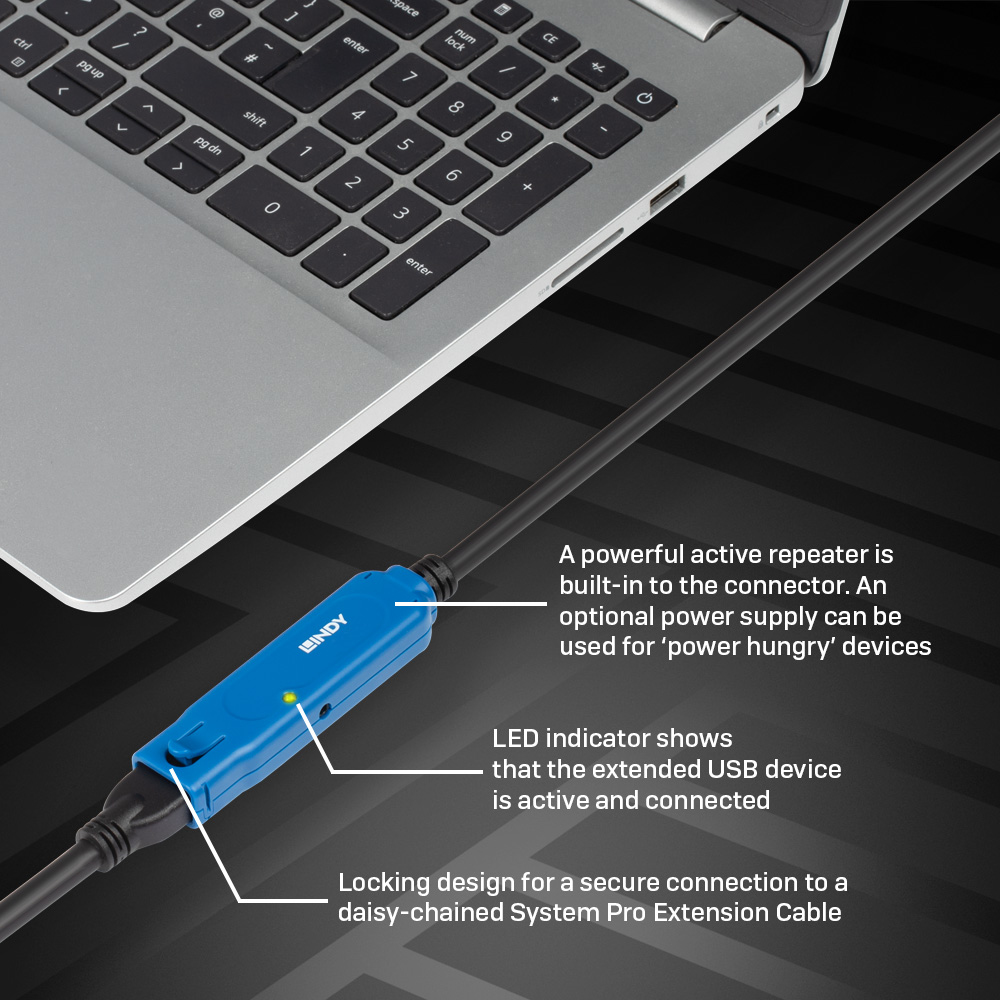

The cable incorporates proven active technology and locking connectors to ensure reliable signal integrity, even in demanding environments.

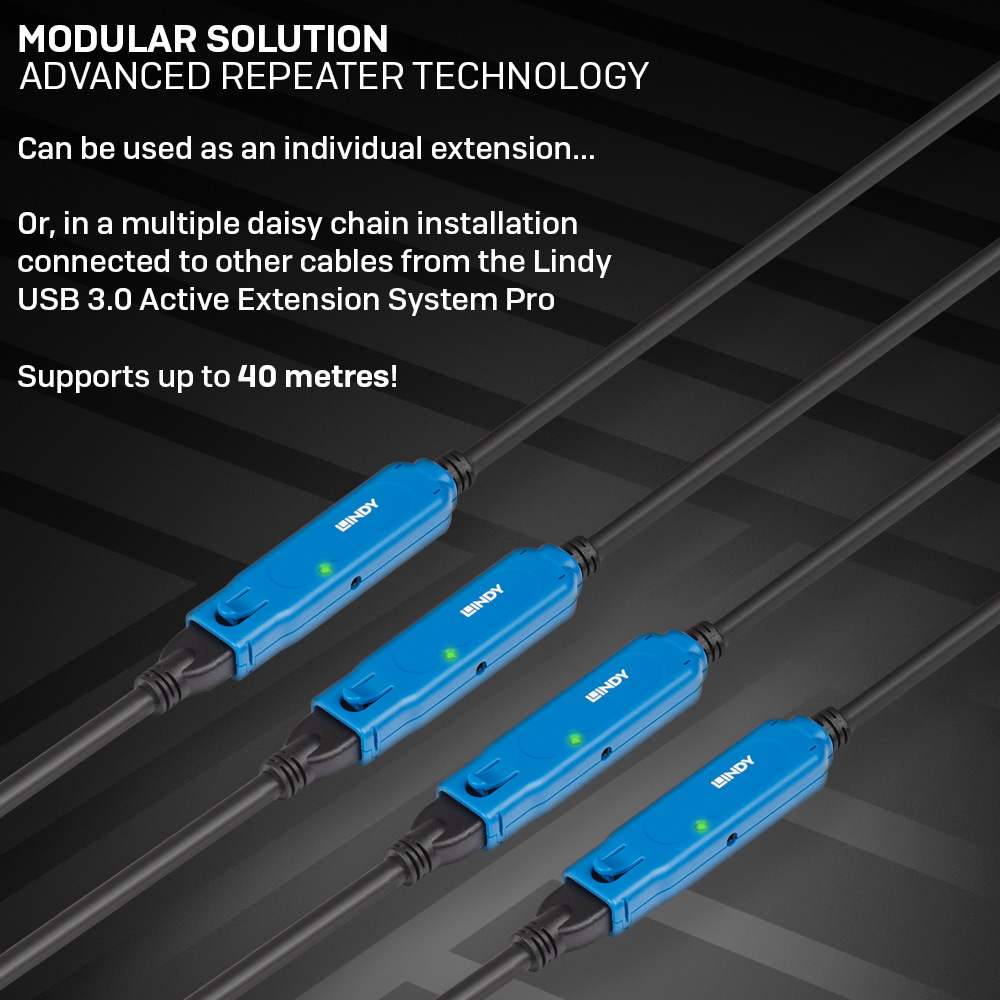

This 30m extension cable can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that combines multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).

Using this cable as part of the USB 3.0 Active Extension System Pro
If you would like to use this cable as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.

The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.

The final part of the extension can be any cable or hub from the Extension System Pro range.

If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit (No. 43159) with its power supply as the final part of the extension.

Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

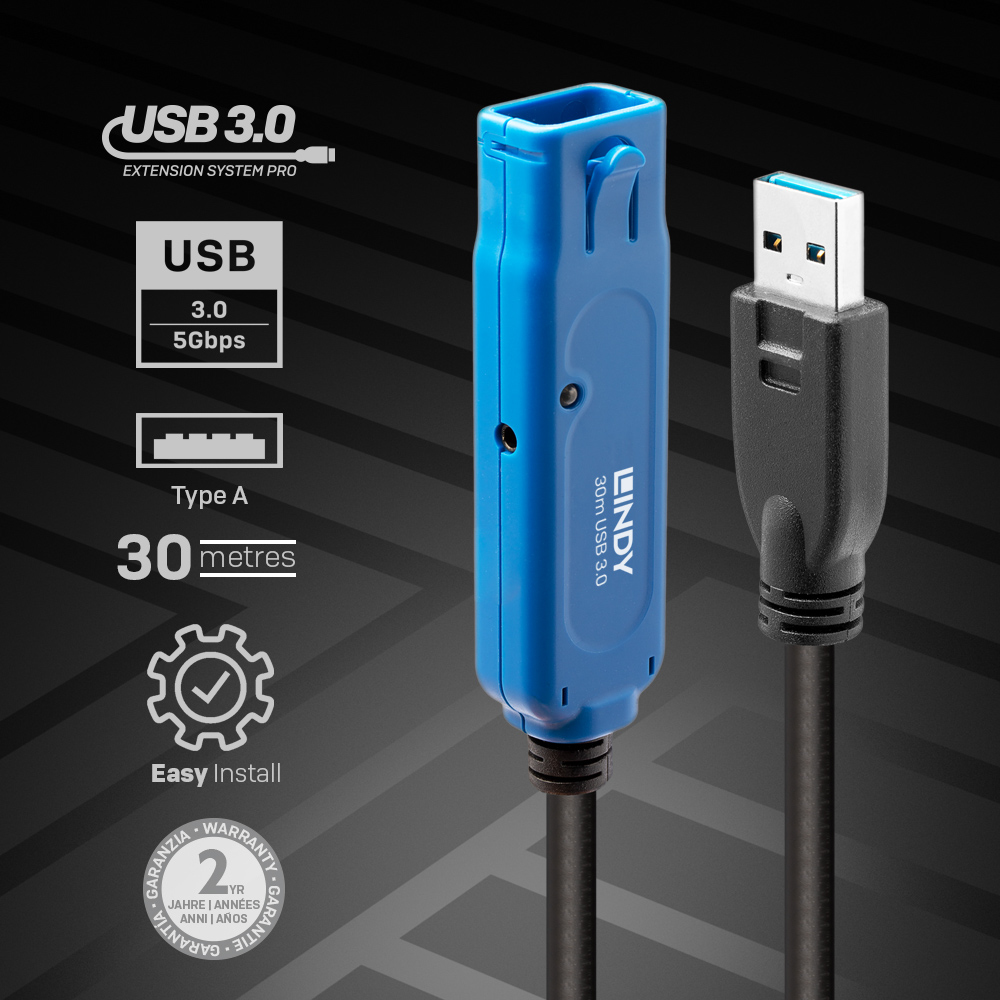

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Features

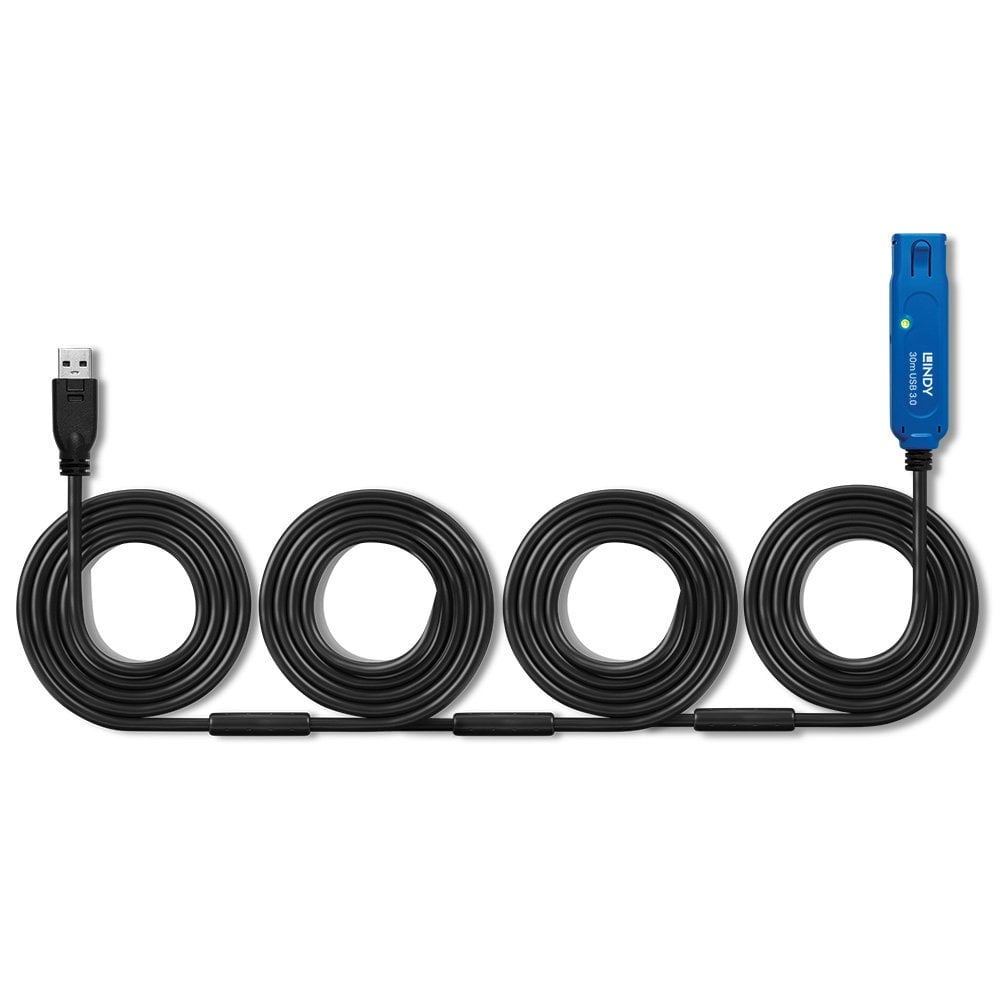

Cable length 30 m

USB version USB 3.2 Gen 1 (3.1 Gen 1)

Connector 1 USB A

Connector 2 USB A

Connector 1 gender Male

Connector 2 gender Female

Connector 1 form factor Straight

Connector 2 form factor Straight

AWG wire size 24/24/20

Connector material Nickel

Contact material Brass

Connector contacts plating Gold

Cable jacket material Polyvinyl chloride (PVC)

Conductor material Tinned copper

Connector housing material Plastic

Maximum data transfer rate 5000 Mbit/s

Product colour Black, Blue

Plug and Play Y

Cable type Round cable

Transmission medium Twisted pair

Nominal attenuation 0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.76dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB

Certification California Proposition 65

Maximum data transfer rate 5 Gbit/s

Weight & dimensions

Cable diameter 7 mm

Bend radius (min) 3.6 cm

Connector 1 dimensions (WxDxH) 15 x 49 x 8 mm

Connector 2 dimensions (WxDxH) 20 x 80 x 13 mm

Packaging data

Quantity per pack 1 pc(s)

Package type Carton

Sustainability

Sustainability certificates CE, Federal Communications Commission (FCC), REACH, RoHS

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -20 - 60 °C

Technical details

Warranty period 2 year(s)

Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS
