Product Details
Introduction

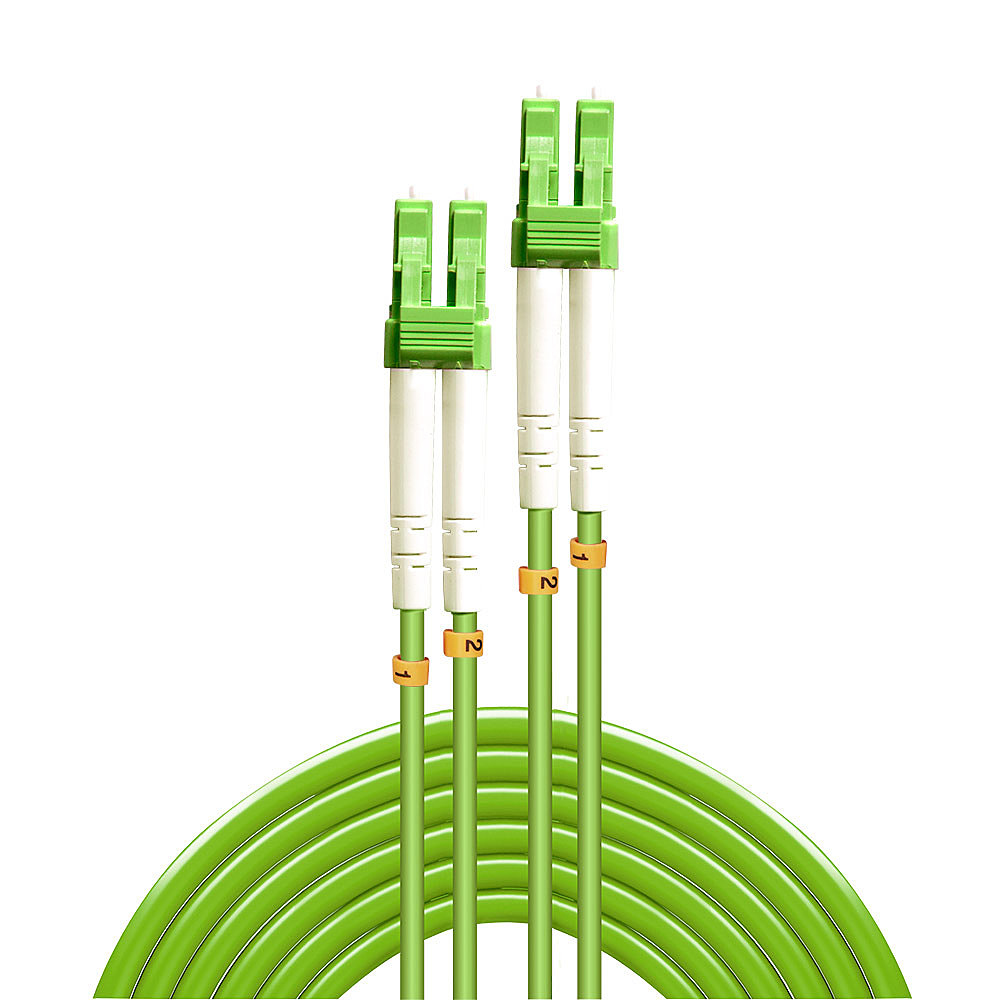

2 x LC Male to 2 x LC Male_x000D_
Twin Zip, Multimode 50/125µm fibre _x000D_
Total immunity to electrical and electromagnetic interference (EMI)_x000D_
4mm OD, LSZH cable_x000D_
10 Year Warranty_x000D_
_x000D_
Lindy Multimode fibre optic patch cables are ideal for use in telecoms and for high speed data connections, suitable for use with today’s increasing demand for bandwidth._x000D_
_x000D_
The fibre optic connection ensure low signal loss and high reliability; the connectors are compatible with all standard fibre optic equipment._x000D_
_x000D_
OM5 fibre optic cables are available in lengths from 1m to 20m._x000D_
_x000D_
Packaging data
Package type
Polybag
Package width
259 mm
Package depth
236 mm
Package height
20 mm
Quantity per pack
1 pc(s)
Logistics data
Products per master (outer) case
80 pc(s)
Other features
Connector(s)
LC Male to LC Male
Technical details
Compliance certificates
REACH, RoHS
Sustainability certificates
REACH, RoHS
Features
Harmonized System (HS) code
85447000
Cable length
5 m
Connector 1
2x LC
Connector 2
2x LC
Connector 1 gender
Male
Connector 2 gender
Male
Fibre optic type
OM5
Product colour
Green
Full duplex
Y
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Wavelengths supported
850,953,1300 nm
Data transfer rate
100 Gbit/s
Jacket material
Low smoke zero halogen (LSZH)
Certification
UL
Operational conditions
Operating temperature (T-T)
-40 - 85 °C
Storage temperature (T-T)
-40 - 85 °C
Weight & dimensions
Cable diameter
4 mm
Bending radius
7.5 mm
Information
| Part Number: | 46313 |
