Introduction

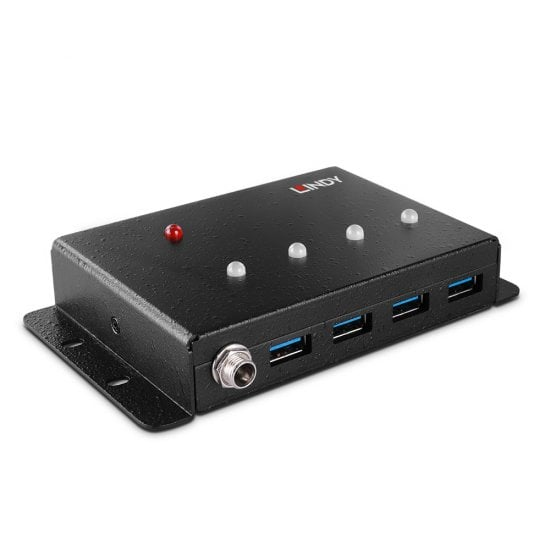

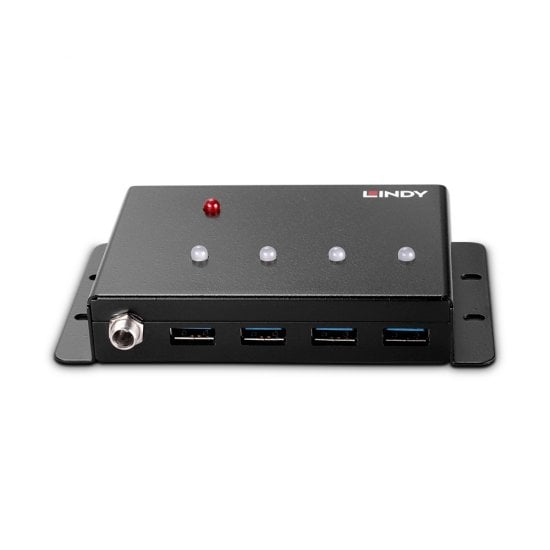

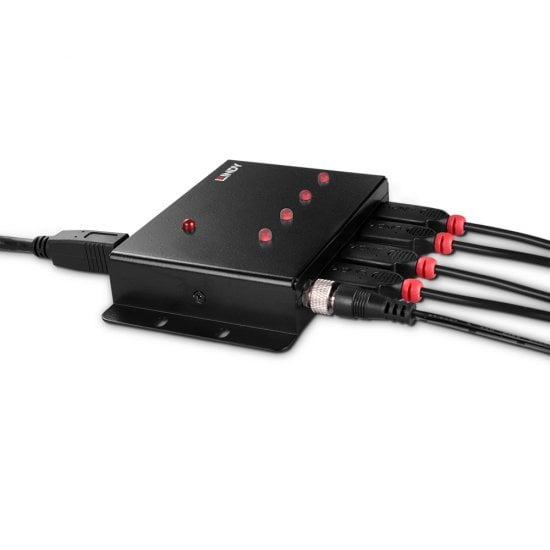

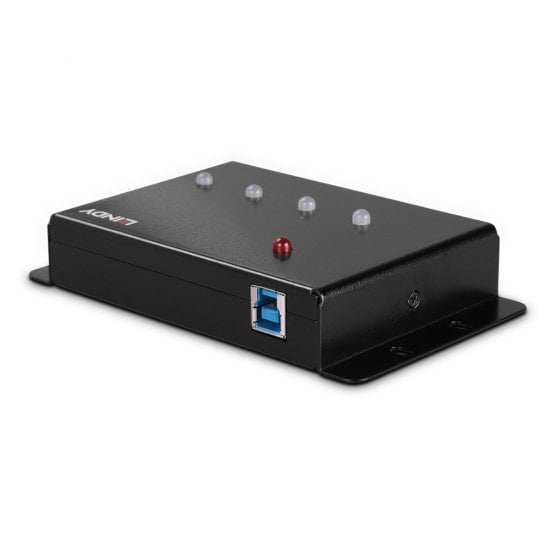

The Lindy 4 Port USB 3.0 Metal Hub has been designed to provide reliable performance in demanding operational environments. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.
With robust metal housing and integrated mounting brackets this Hub is the ideal solution for use in industrial environments.
Backwards compatibility with USB 2.0/1.1/1.0 means the hub can simultaneously support older USB peripherals or systems that lack USB 3.0 capabilities, extending their lifetime and giving a greater return on investment. The hub also supports MTT technology which guarantees highest possible throughput speed for USB 1.1 devices.

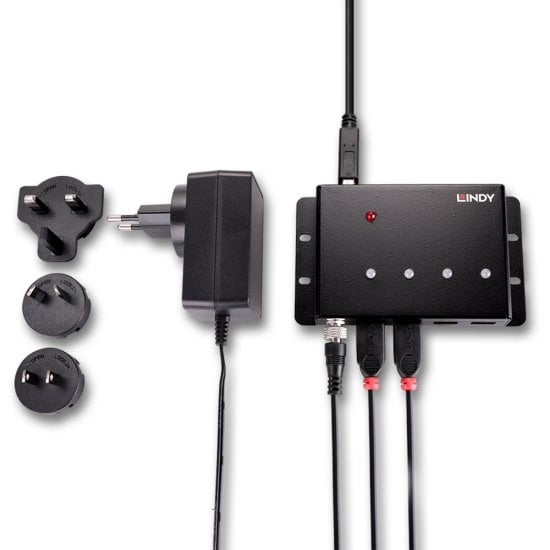

Each port features individual short circuit protection, while the included power supply ensures secure and uninterrupted electricity supply.
Ports & interfaces
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ports quantity
4
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
DC-in jack
Yes
Features
Data transfer rate
5000 Mbit/s
Product colour
Black
Housing material
Metal
LED indicators
Yes
Cable type
Round cable
Cable length
0.8 m
Certification
CE, UKCA, FCC, RoHS & REACH, California Proposition 65
Performance
Card reader integrated
No
Product colour
Black
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
LED indicators
Yes
Housing material
Metal
Certification
CE, UKCA, FCC, RoHS & REACH, California Proposition 65
Power
Power supply type
DC
Power supply type
DC
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Maximum operating temperature
50 °C
Operating temperature (T-T)
0 - 50 °C
Operating temperature (T-T)
-20 - 60 °F
Operating relative humidity (H-H)
0 - 90%
Minimum operating temperature
0 °C
Weight & dimensions
Width
125 mm
Depth
74.6 mm
Height
22 mm
Weight
256 g
Width
125 mm
Depth
74.6 mm
Height
22 mm
Weight
256 g
Sustainability
Sustainability compliance
Yes
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Packaging data
Quantity per pack
1 pc(s)
Package width
260 mm
Package depth
180 mm
Package height
70 mm
Package weight
650 g
Package type
Box
Quantity per pack
1 pc(s)
Package width
260 mm
Package depth
180 mm
Package height
70 mm
Package weight
650 g
Packaging content
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Other features
Cable length
0.8 m
Cable type
Round cable
Maximum operating temperature
50 °C
