LINDY USB-c Mini Docking Station Dst-mini Xt 810 - Dual Display 8k - 100w Pass-through Charging

LINDY USB-c Mini Docking Station Dst-mini Xt 810 - Dual Display 8k - 100w Pass-through Charging

£87.96 (incl. VAT)

Qty:

Add to basket

Part Number:	43392
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.

This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD and Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI.

The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.**

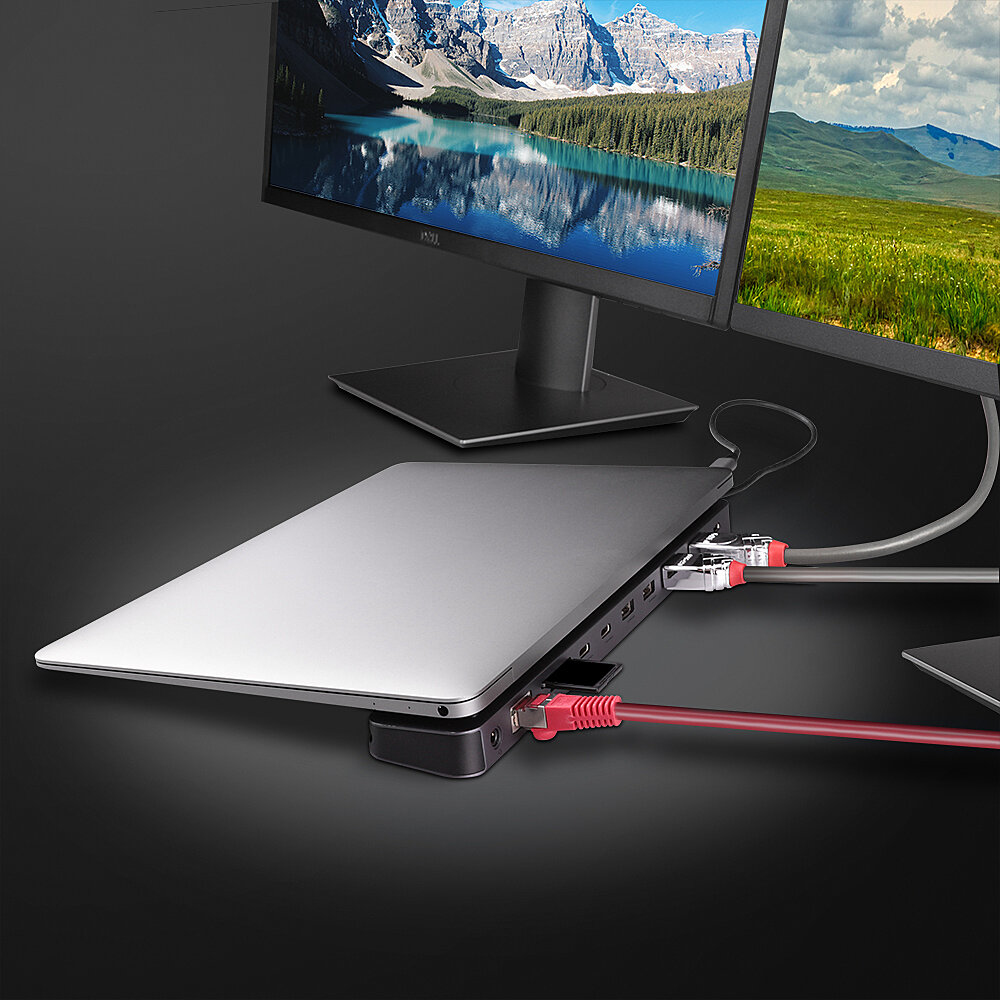

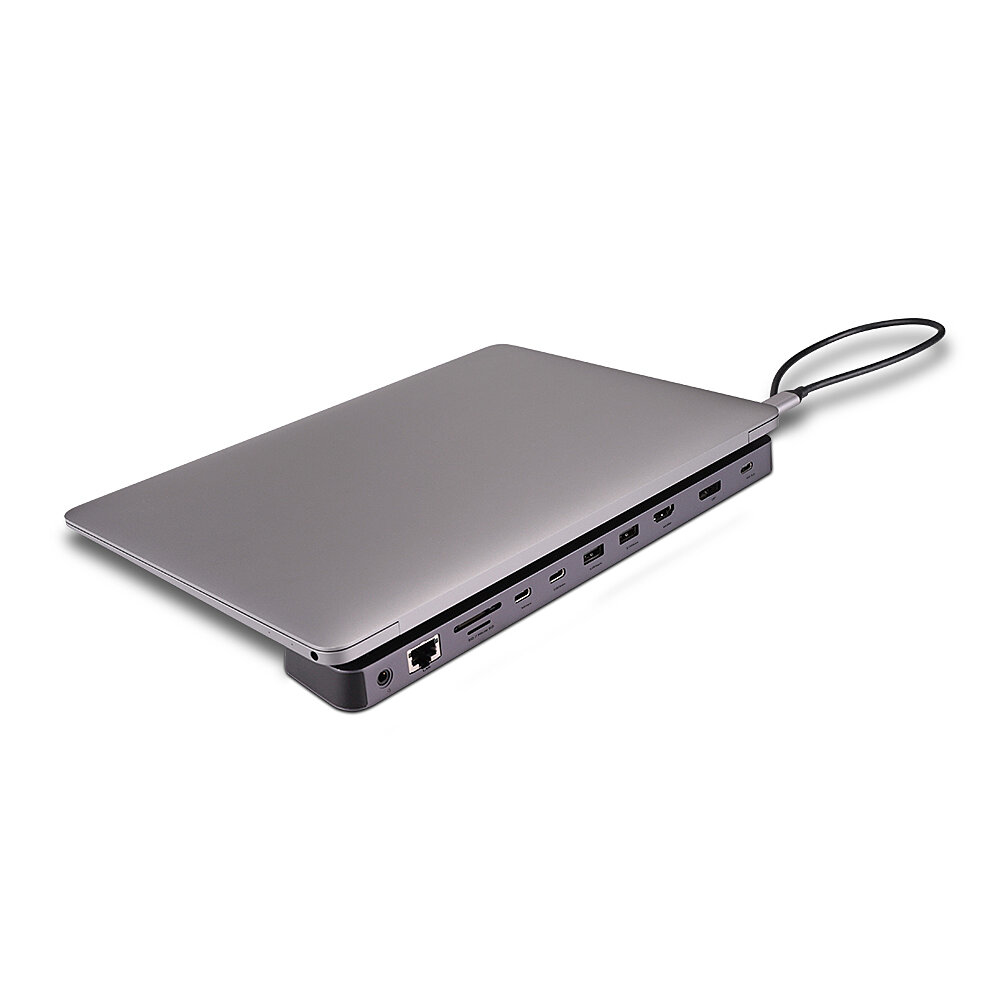

This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host devices. DST-Mini XT 801 comes in a stylish aluminium case and is optimally designed to place the laptop on it with rubber feet at the top and bottom to ensure a secure hold.It is designed to improve ergonomics and assist with the heat dissipation from notebooks by creating more space for the fans to operate.

*Please note that macOS does not support MST.

** Please note that the Docking Station requires 15W for its own operation.

Ports & interfaces

Connectivity technology Docking

Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2

USB Power Delivery (USB PD) Yes

USB Power Delivery revision 3.0

USB Power Delivery up to 100 W

HDMI ports quantity 1

HDMI version 2.1

DisplayPorts quantity 1

DisplayPort version 1.4a

Combo headphone/mic port Yes

Headphone outputs 1

Headphone connectivity 3.5 mm

HDCP Yes

HDCP version 1.4/2.2

USB Type-C DisplayPort Alternate Mode Yes

Network

Ethernet LAN Yes

Ethernet LAN (RJ-45) ports 1

Ethernet LAN data rates 10,100,1000 Mbit/s

Wake-on-LAN ready Yes

Performance

Card reader integrated Yes

Compatible memory cards MicroSD (TransFlash), SD

Data transfer rate 10 Gbit/s

Maximum digital resolution 7680 x 4320 pixels

Number of displays supported 2

Maximum refresh rate 120 Hz

Product colour Anthracite

Plug and Play Yes

Housing material Aluminium

Certification CE, FCC, REACH & RoHS, CP65

Power

Power source type USB

Power connector USB Type-C

Power supply 15 W

USB cable length 0.36 m

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -10 - 70 °C

Operating relative humidity (H-H) 0 - 85%

Sustainability

Sustainability compliance Yes

Weight & dimensions

Width 270 mm

Depth 45 mm

Height 16 mm

Weight 224 g

Packaging data

Quantity per pack 1 pc(s)

Package width 365 mm

Package depth 93 mm

Package height 35 mm

Package weight 330 g

Packaging content

Manual Yes

Technical details

Warranty period 2 year(s)

Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS
