Product Details
Introduction

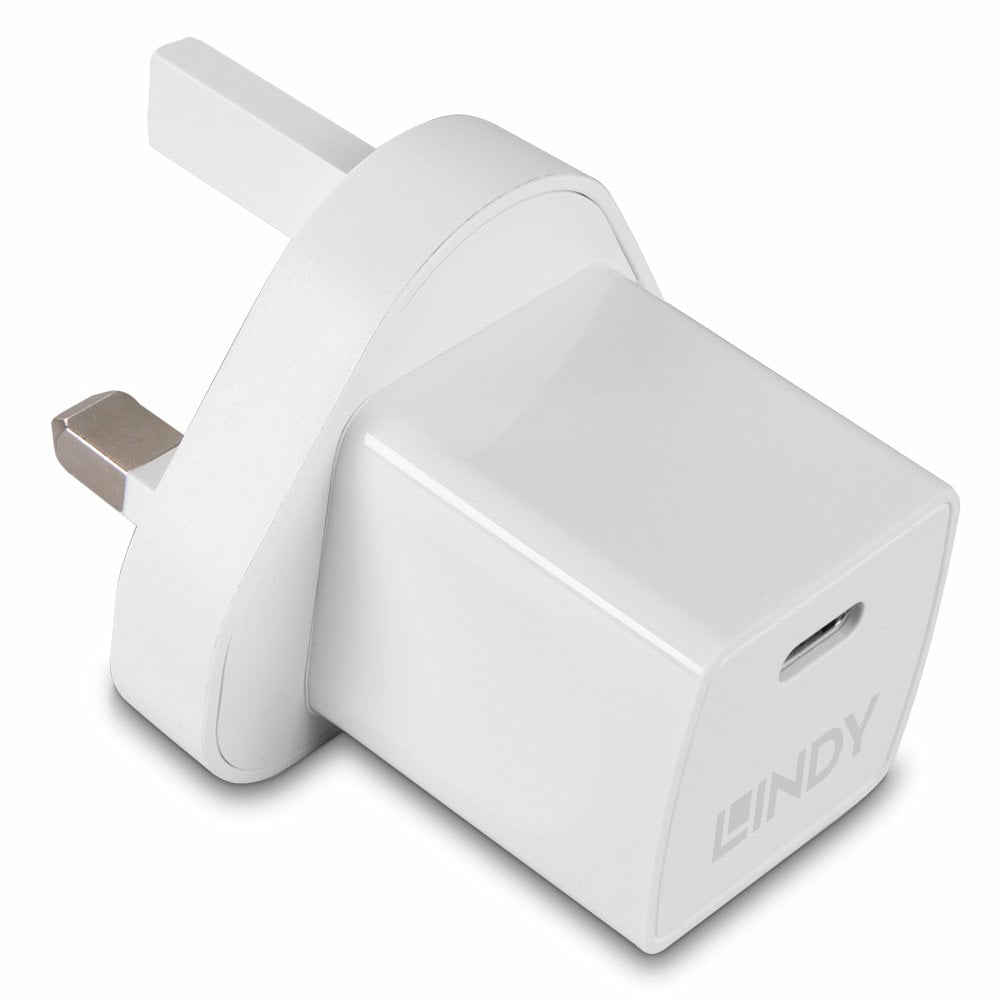

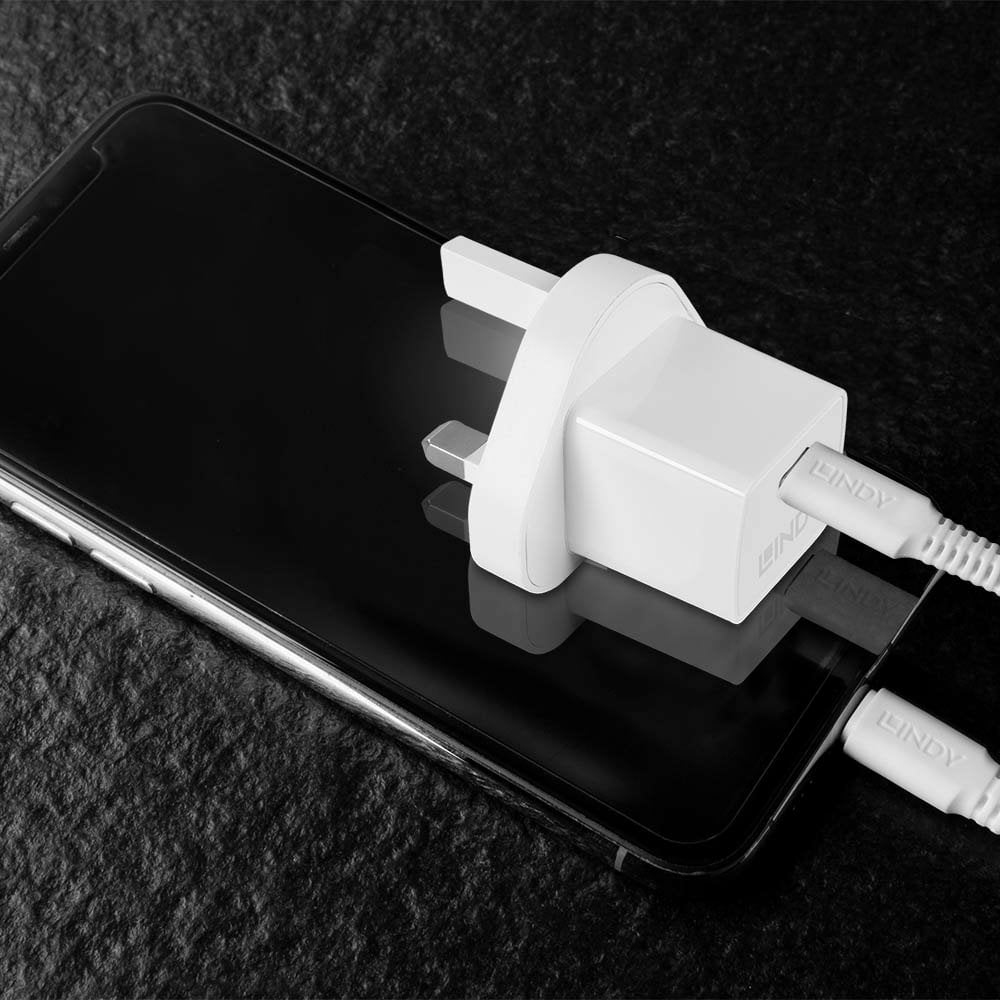

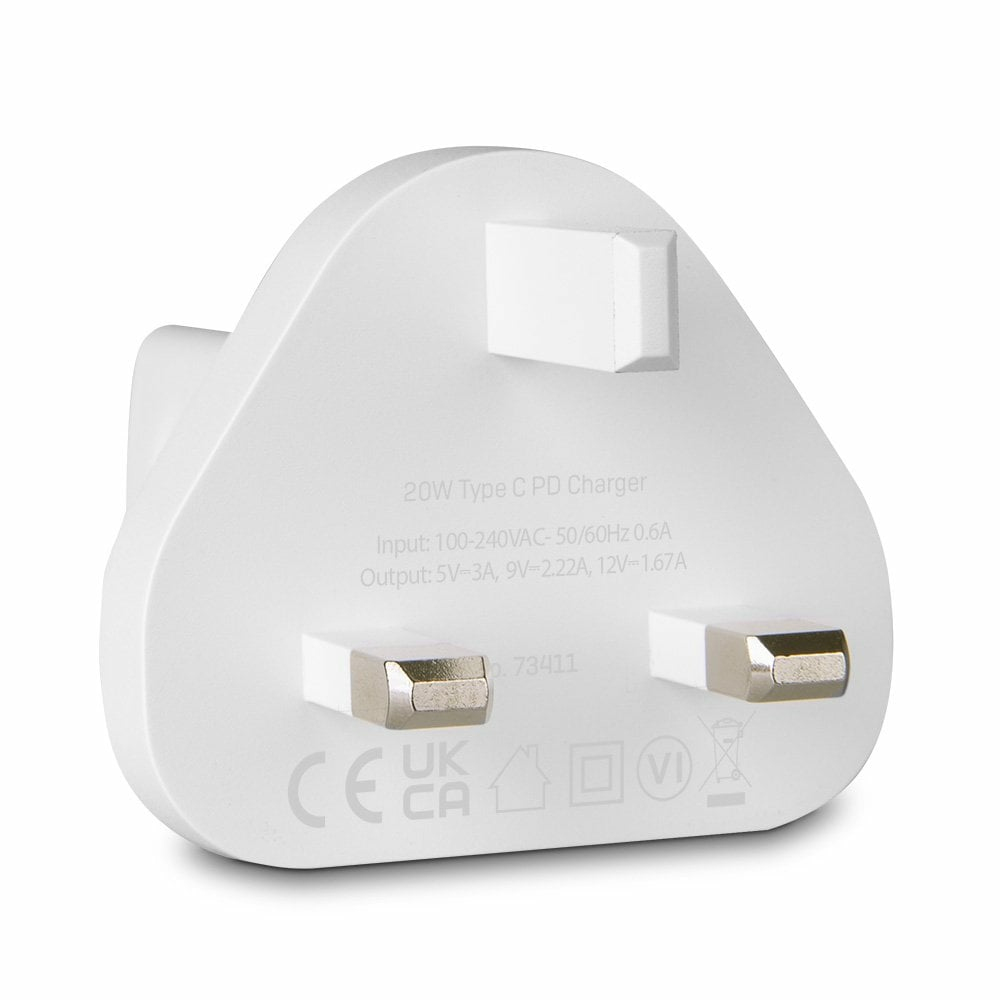

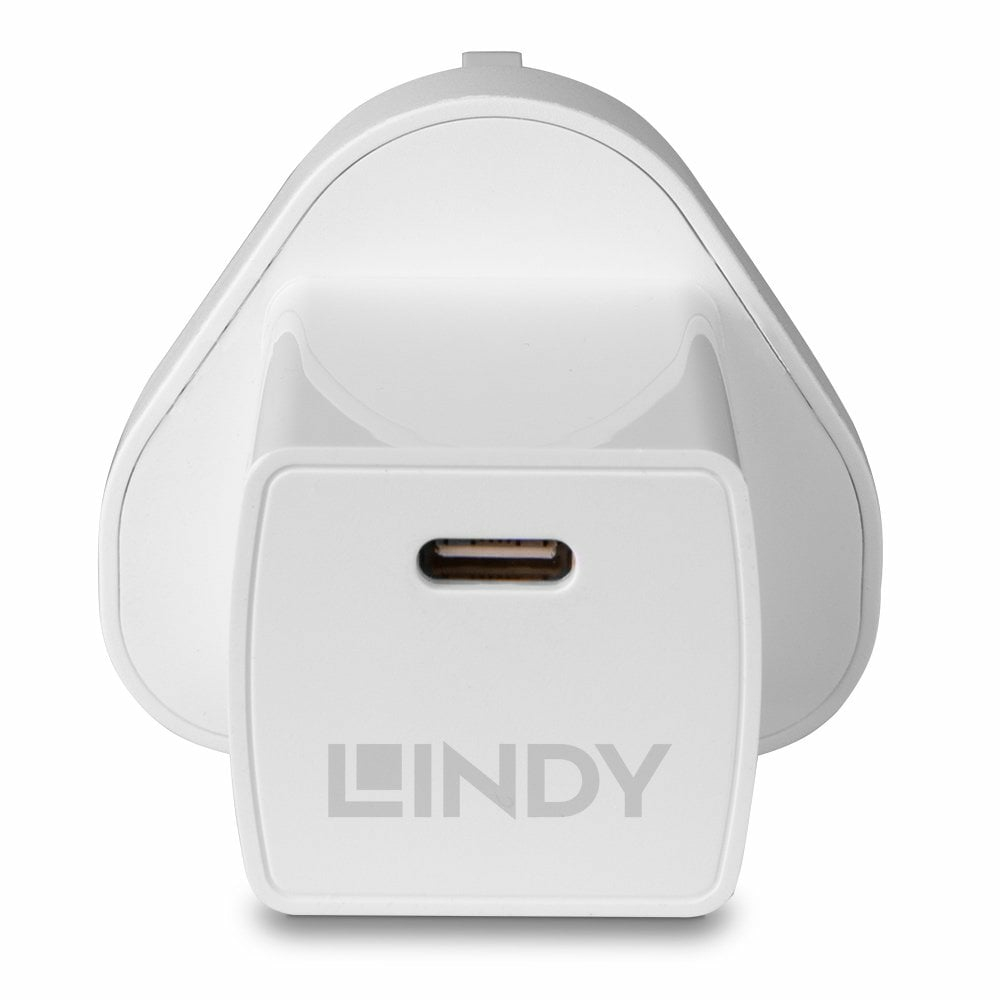

The Lindy 20W USB Type C PD Charger is a compact, efficient solution for charging many devices. It provides fast charging for USB Type C PD and PPS-enabled devices. Thanks to the small design the charger can easily be carried and is always available when power is needed.
Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 20W, connected devices can be provided with faster charging than what is possible from a standard Type C charger supplied with many devices.
For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.
Performance
Charger compatibility
Universal
Power source type
AC
USB Type-C ports quantity
1
Fast charging
Yes
Fast charging technology
GaN, Power Delivery 3.0
Charger type
Indoor
Number of simultaneously connected devices (max)
1
USB Power Delivery
Yes
USB Power Delivery revision
3.0
Power protection features
Over current, Over voltage, Overheating, Short circuit
Design
Product colour
White
Housing material
Polyvinyl chloride (PVC)
Connector material
Copper
Gallium nitride (GaN) transistors
Yes
Power
Input voltage
100 - 240 V
Input frequency
50 - 60 Hz
Input current
0.5 A
Maximum power
20 W
Maximum output voltage
12 V
Minimum output voltage
5 V
Output voltage accuracy (±)
5%
Output current (5V)
3 A
Output current (9V)
2.22 A
Output current (12V)
1.67 A
Power consumption (no load)
0.075 W
Average active efficiency
5V 83.37%, 9V 87.32%,12V 86.40%
Efficiency at low load (10%)
Yes
Compatible power plug types
UK
Weight & dimensions
Width
28 mm
Depth
31 mm
Height
29.6 mm
Weight
40 g
Packaging data
Quantity per pack
1 pc(s)
Package type
Box
Package width
80 mm
Package depth
100 mm
Package height
45 mm
Package weight
60 g
Operational conditions
Operating temperature (T-T)
0 - 25 °C
Storage temperature (T-T)
-20 - 80 °C
Operating relative humidity (H-H)
0 - 90%
Packaging content
Manual
Yes
Technical details
Sustainability compliance
Yes
Sustainability certificates
CE, ErP, REACH, RoHS, UKCA
Information
| Part Number: | 73411 |
