Introduction

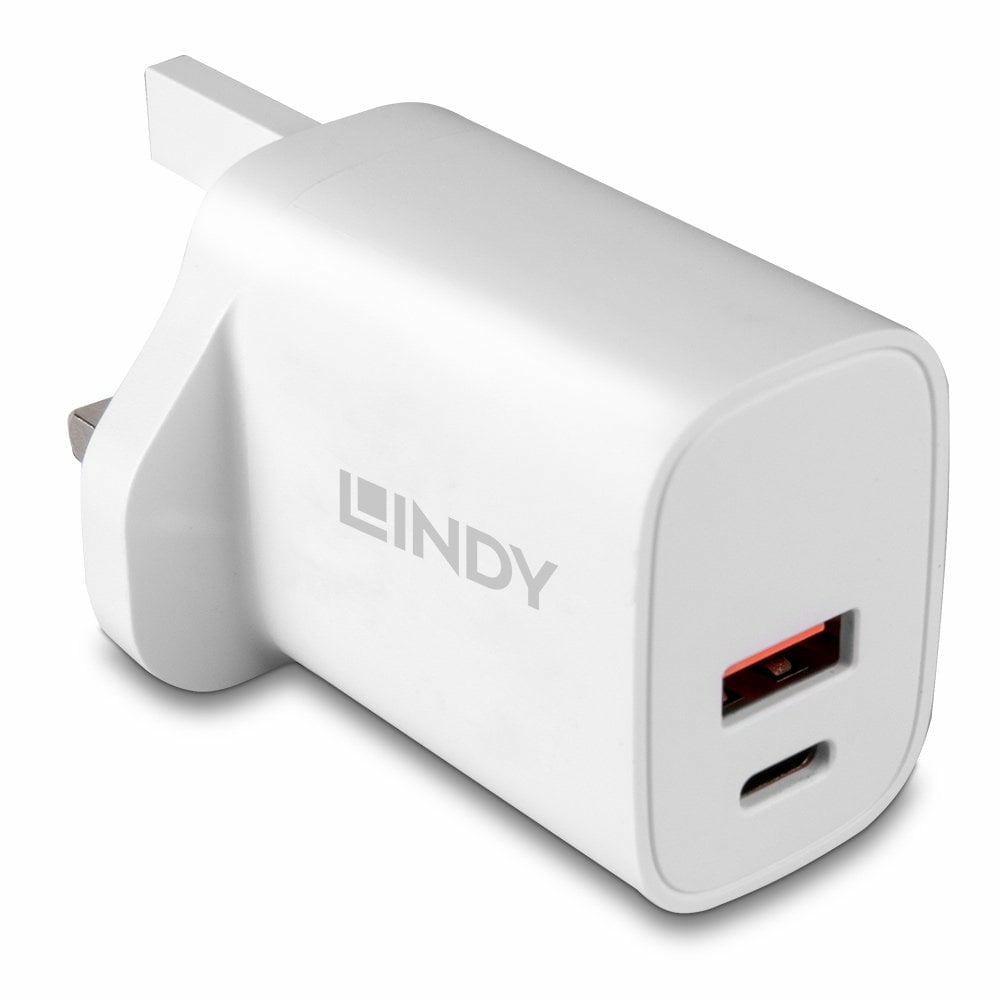

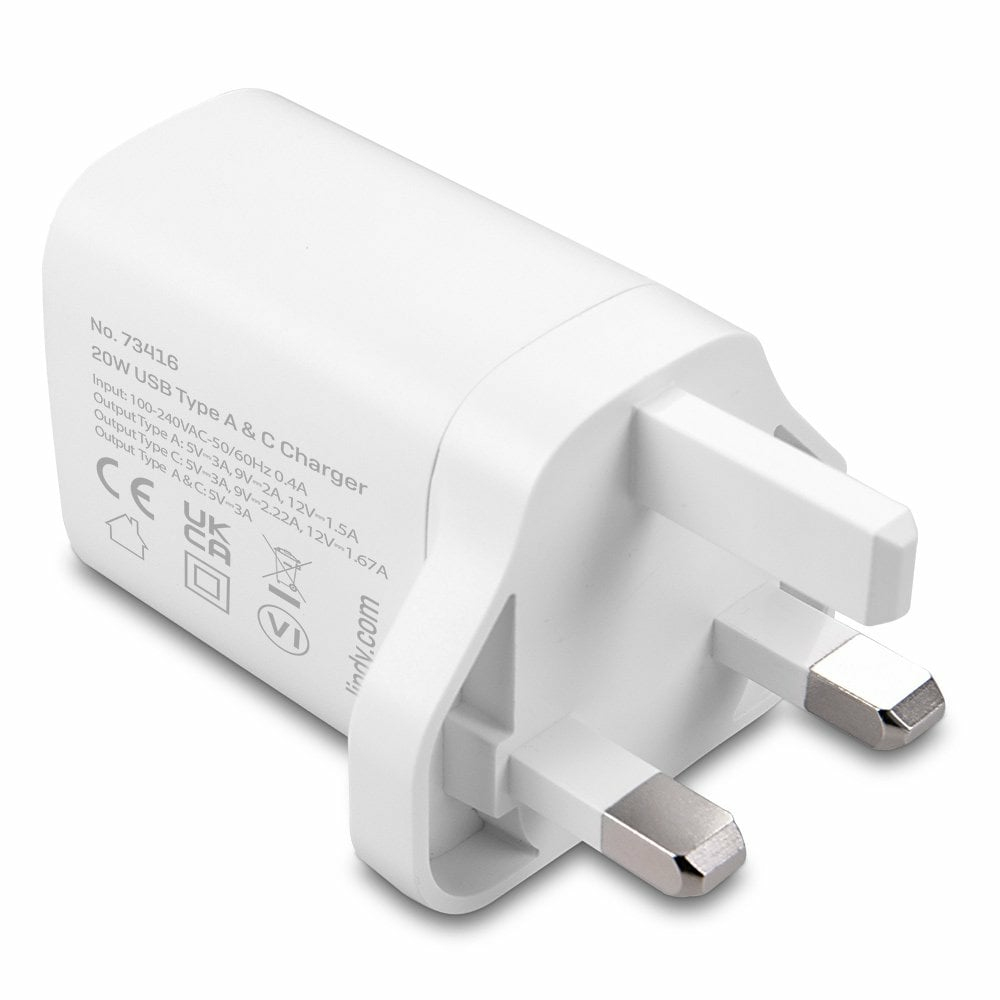

The Lindy 20W USB Type A & C Charger can charge two USB devices simultaneously. 20W Power Delivery are supported by the USB Type C port while the USB Type A port provides fast charging with up to 18W. When both ports are used in parallel a maximum power of 15W will be provided.
Thanks to its compact design it can easily be carried and is always available when power is needed.
For safe charging the device includes overvoltage, overcurrent, overtemperature and short-circuit protection. As this charger is rated at Level 6 for efficiency, it also meets the highest current level of energy efficiency standards.
Performance
Charger compatibility
Universal
Power source type
AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB Type-C ports quantity
1
Fast charging
Yes
Fast charging technology
Power Delivery 3.0
Charger type
Indoor
Number of simultaneously connected devices (max)
2
USB Power Delivery
Yes
USB Power Delivery revision
3.0
Power protection features
Over current, Overheating, Over voltage, Short circuit
Design
Product colour
White
Housing material
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Connector material
Copper
Power
Input voltage
100 - 240 V
Input frequency
50 - 60 Hz
Input current
0.4 A
Maximum power
20 W
Maximum output voltage
12 V
Minimum output voltage
5 V
Output voltage accuracy (±)
5%
Output current (5V)
3 A
Output current (9V)
2.22 A
Output current (12V)
1.67 A
Power consumption (no load)
0.1 W
Average active efficiency
5V 82.12%, 12V 86.35%
Efficiency at low load (10%)
Yes
Compatible power plug types
UK
Weight & dimensions
Width
51.1 mm
Depth
28.8 mm
Height
41.1 mm
Weight
620 g
Packaging data
Package type
Box
Package width
81 mm
Package depth
120 mm
Package height
46 mm
Package weight
930 g
Operational conditions
Operating temperature (T-T)
0 - 25 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 70%
Storage relative humidity (H-H)
0 - 80%
Packaging content
Manual
Yes
Technical details
Sustainability compliance
Yes
Sustainability certificates
CE, REACH, RoHS, UKCA
Information
| Part Number: | 73416 |
