Introduction

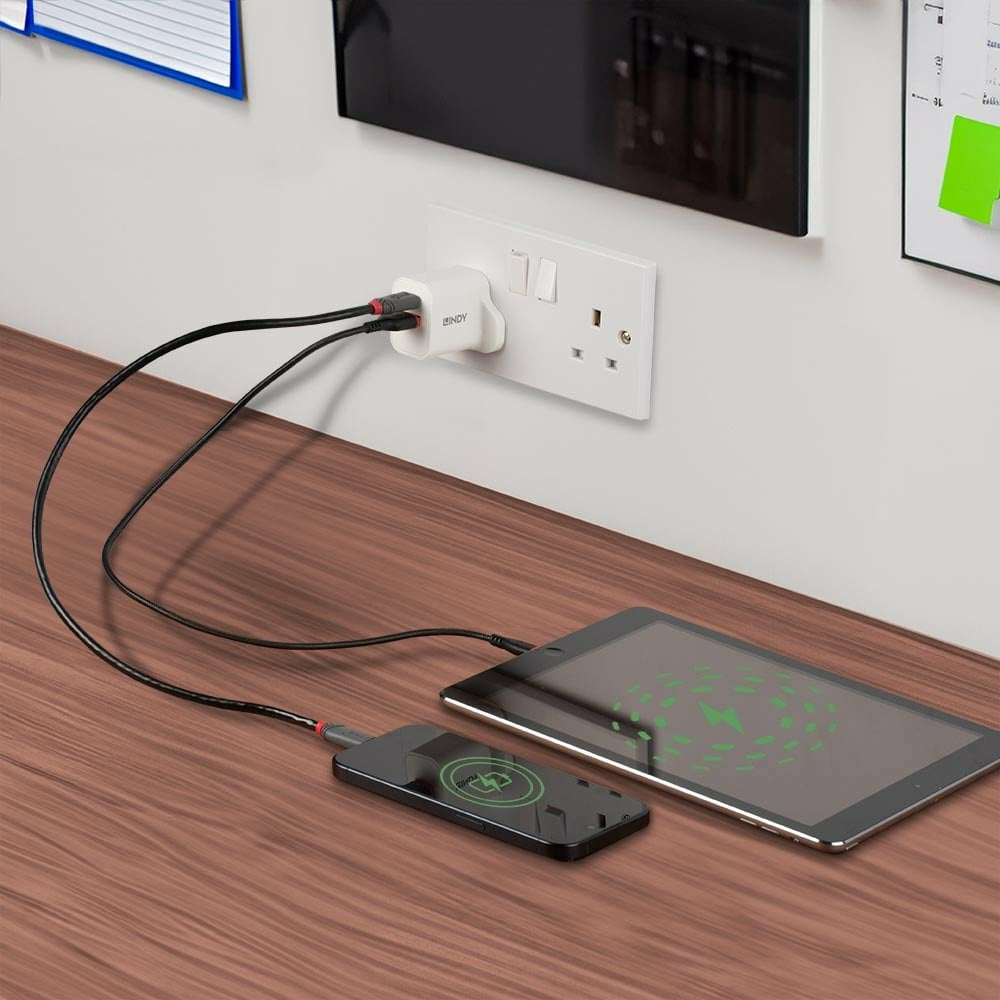

The Lindy 30W USB Type A & C PD Charger can charge two devices simultaneously. 30W Power Delivery are supported by the USB Type C port while the USB Type A port provides fast charging with up to 18W. When both ports are used in parallel a maximum power of 15W will be provided.

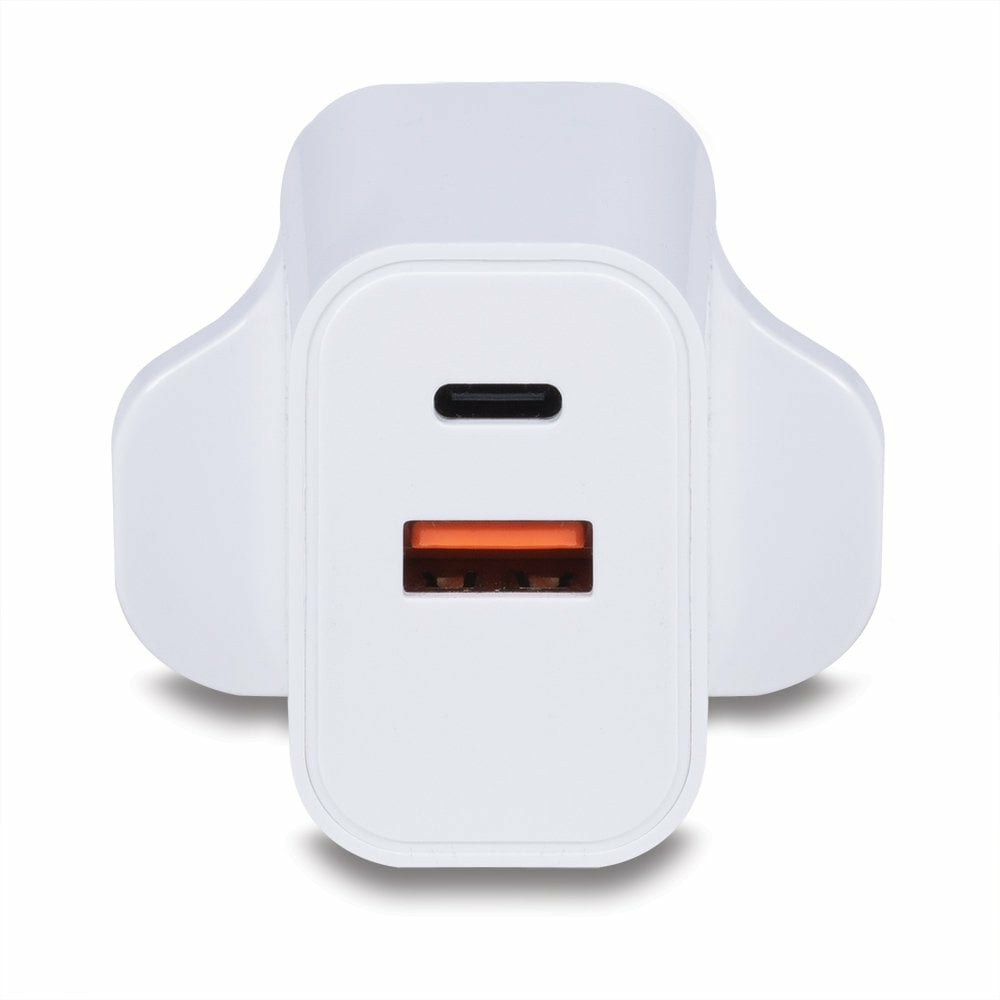

Featuring both a USB Type C female and a USB Type A female port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 30W, connected devices can be provided with faster charging than what is possible from a standard Type C or A charger supplied with many devices.
For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection. As this charger is rated at Level 6 for efficiency, it also meets the highest current level of energy efficiency standards.
Performance
Charger compatibility
Universal
Power source type
AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB Type-C ports quantity
1
Fast charging
Yes
Fast charging technology
Power Delivery 3.0
Charger type
Indoor
Number of simultaneously connected devices (max)
2
USB Power Delivery
Yes
USB Power Delivery revision
3.0
Power protection features
Over current, Overheating, Over voltage, Short circuit
Design
Product colour
White
Housing material
Polyvinyl chloride (PVC)
Connector material
Copper
Power
Input voltage
100 - 240 V
Input frequency
50 - 60 Hz
Input current
0.6 A
Maximum power
30 W
Maximum output voltage
20 V
Minimum output voltage
5 V
Output voltage accuracy (±)
5%
Output current (5V)
3 A
Output current (9V)
3 A
Output current (12V)
2.5 A
Output current (15V)
2 A
Output current (20V)
1.5 A
Power consumption (no load)
0.1 W
Average active efficiency
81.38%
Efficiency at low load (10%)
Yes
Compatible power plug types
UK
Weight & dimensions
Width
26.8 mm
Depth
85.3 mm
Height
41.6 mm
Weight
40 g
Packaging data
Package type
Box
Package width
80 mm
Package depth
100 mm
Package height
45 mm
Package weight
60 g
Operational conditions
Operating temperature (T-T)
0 - 25 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
20 - 90%
Packaging content
Technical details
Sustainability compliance
Yes
Sustainability certificates
CE, ErP, REACH, RoHS, UKCA
