Product Details
Introduction

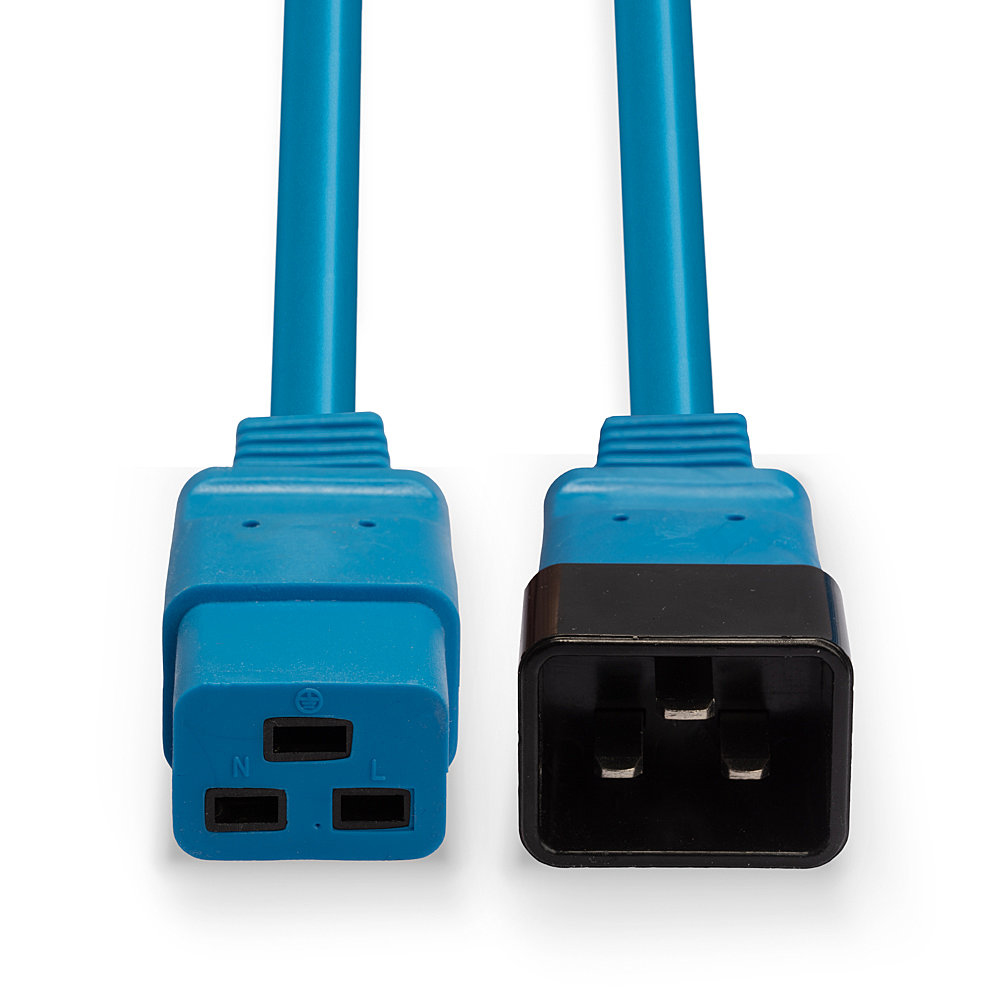

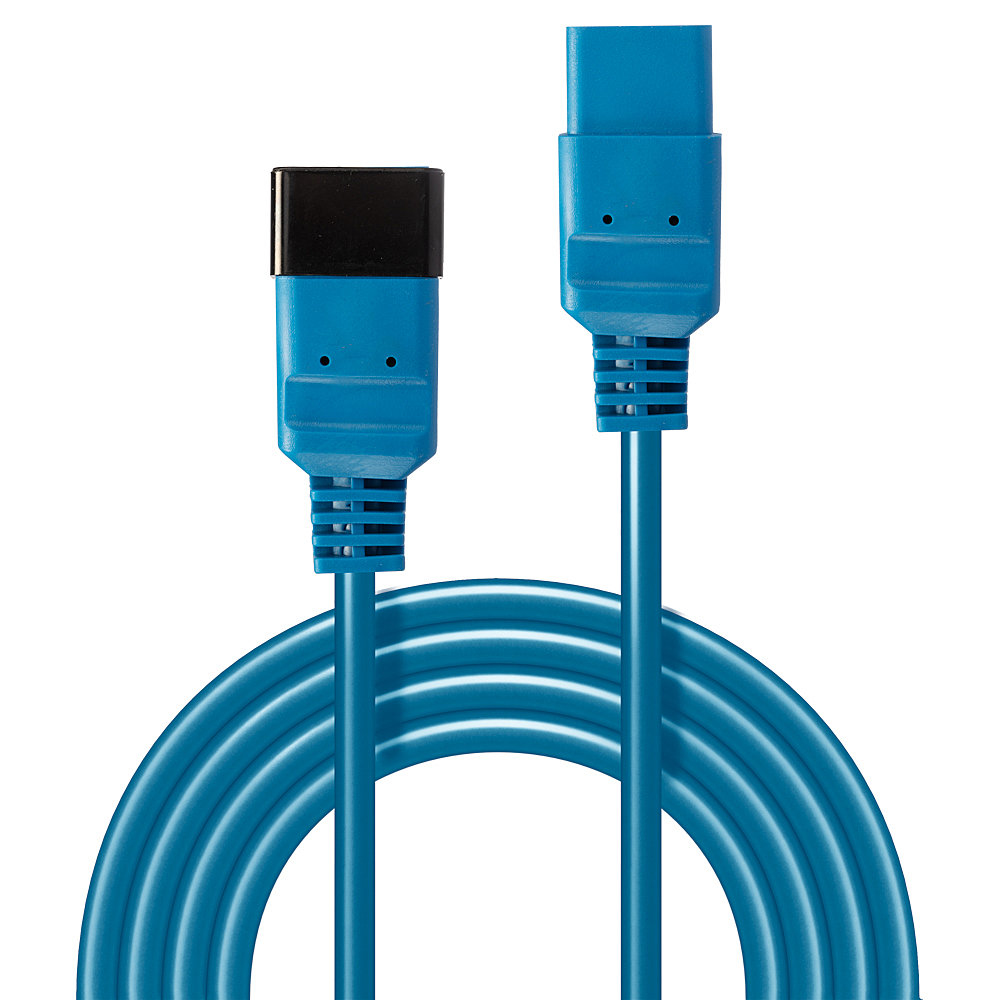

Connector A: IEC C19_x000D_
Connector B: IEC C20_x000D_
Cable type: H05-VVF 3G * 1.50mm²_x000D_
Colour: Blue_x000D_
10 year warranty_x000D_
_x000D_
Lindy Power Extension Cables are high quality, reliable power delivery connections for use in a wide variety of professional and home environments. These cables are perfect for use in offices, control rooms, digital signage and home theatre setups._x000D_
_x000D_
High temperature resistance from -10°C to 70°C during operation allows these cables to be used in non air-conditioned areas._x000D_
_x000D_
Please note: Only for the use in dry areas._x000D_
_x000D_
Available in lengths of 1m, 2m, 3m._x000D_
_x000D_
Certificates
Compliance certificates
CE, REACH, RoHS
Packaging data
Package type
Polybag
Package width
259 mm
Package depth
236 mm
Package height
40 mm
Quantity per pack
1 pc(s)
Technical details
Housing material
Polyvinyl chloride (PVC)
Proposition 65
Yes
Connector(s)
IEC C19 to IEC C20
Harmonized System (HS) code
84733080
Logistics data
Products per master (outer) case
30 pc(s)
Features
Connector contacts plating
Nickel
Jacket material
Polyvinyl chloride (PVC)
Product colour
Blue
Connector 1 gender
Male
Connector 2 gender
Female
Cable length
3 m
Connector 1
C19 coupler
Connector 2
C20 coupler
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Conductor cross section
1.5 mm²
Plug and Play
Y
Number of cable cores
3
Core size
1.5 mm²
Weight & dimensions
Width
31.3 mm
Depth
79 mm
Power
Input voltage
250 V
Input current
16 A
Operational conditions
Operating temperature (T-T)
-10 - 70 °C
Storage temperature (T-T)
-25 - 70 °C
Information
| Part Number: | 30122 |
