Product Details
Introduction

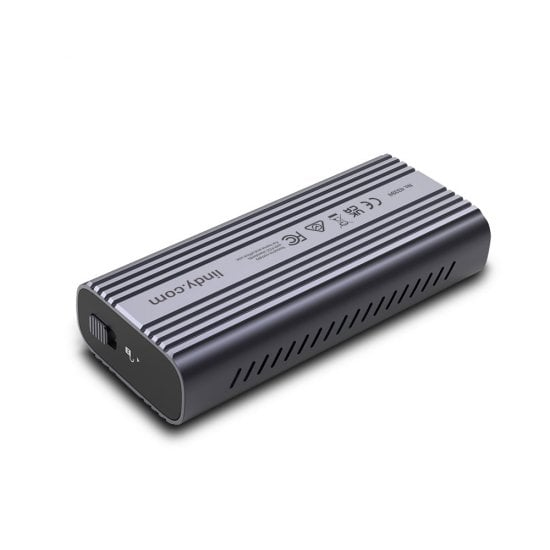

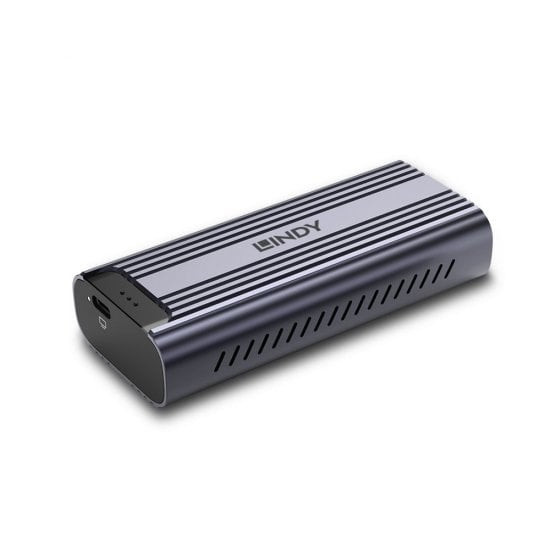

The Lindy USB4 NVMe M.2 SSD Enclosure allows the user to install a PCIe/NVMe based M.2 SSD as an external drive to USB4 or Thunderbolt 3/4 hosts like laptops or PCs. Support for the USB4 standard guarantees extremely fast data transfer rates up to 40Gbps.*

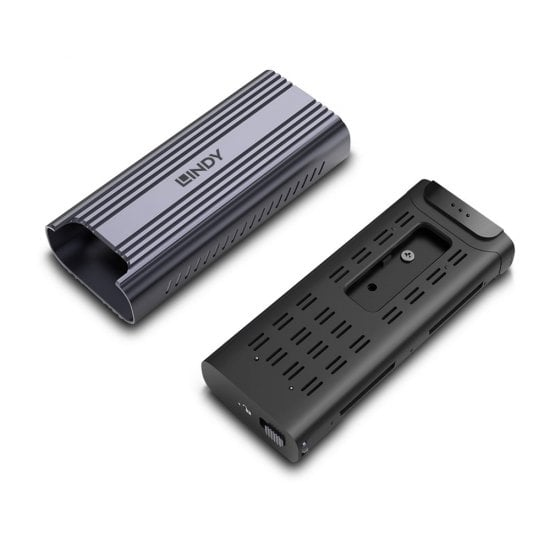

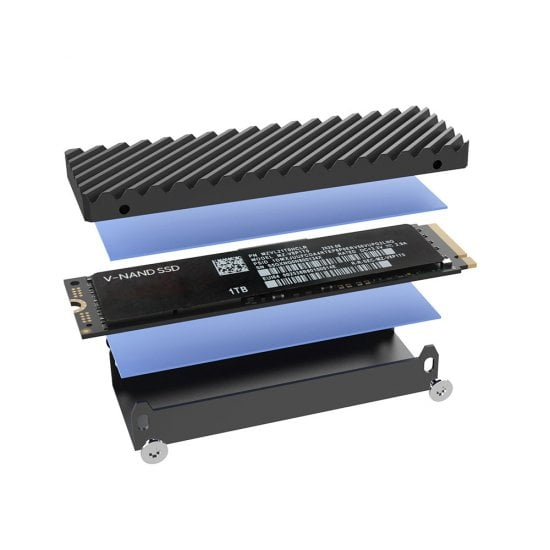

This Lindy enclosure is compatible with PCIe/NVMe based M.2 SSDs with M key or B + M key in 42, 60 and 80mm lengths. The Aluminium housing with Aluminium heatsink ensures excellent heat dissipation and a suitable operating temperature. The tool-free design makes installation very easy.
* Please note that 40Gbps full support is only possible with a USB4, Thunderbolt 3 or 4 host controller.
Storage
Number of storage drives supported
1
Storage drive size
M.2
Supported storage drive interfaces
PCI Express
Installed storage drive type
SSD
Ports & interfaces
USB connectivity
Yes
USB connector type
USB Type-C
Packaging content
Package type
Box
Screws included
Yes
Screwdriver included
Yes
Manual
Yes
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS
Design
Product type
SSD enclosure
Product colour
Grey
Material
Aluminium
Certification
CE, FCC, RoHS & REACH, CP65
Performance
Data transfer rate
40 Gbit/s
Chipset
ASM2464PD
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
107 mm
Depth
47 mm
Height
24 mm
Weight
88 g
Cable length
0.15 m
Package width
180 mm
Package depth
105 mm
Package height
30 mm
Package weight
200 g
Information
| Part Number: | 43394 |
