Introduction

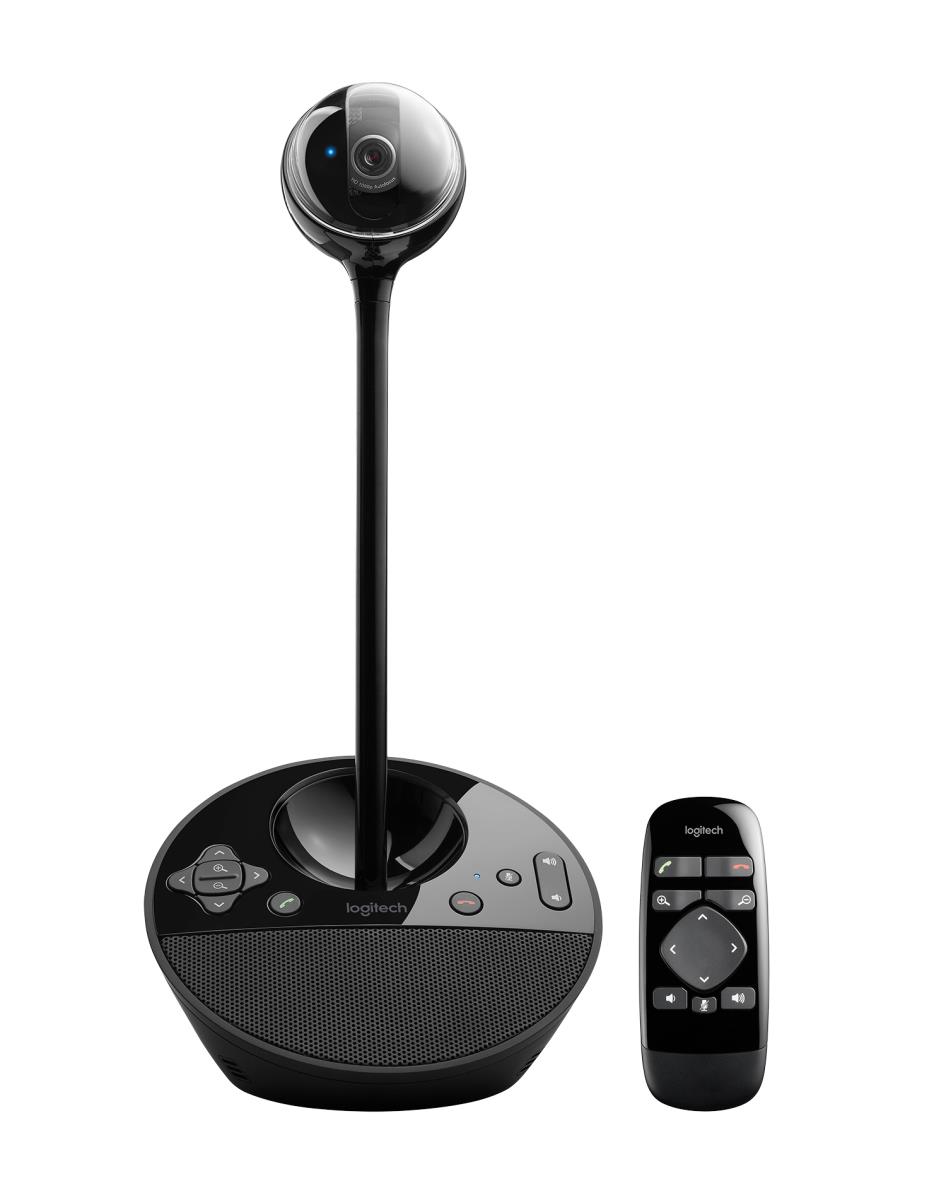

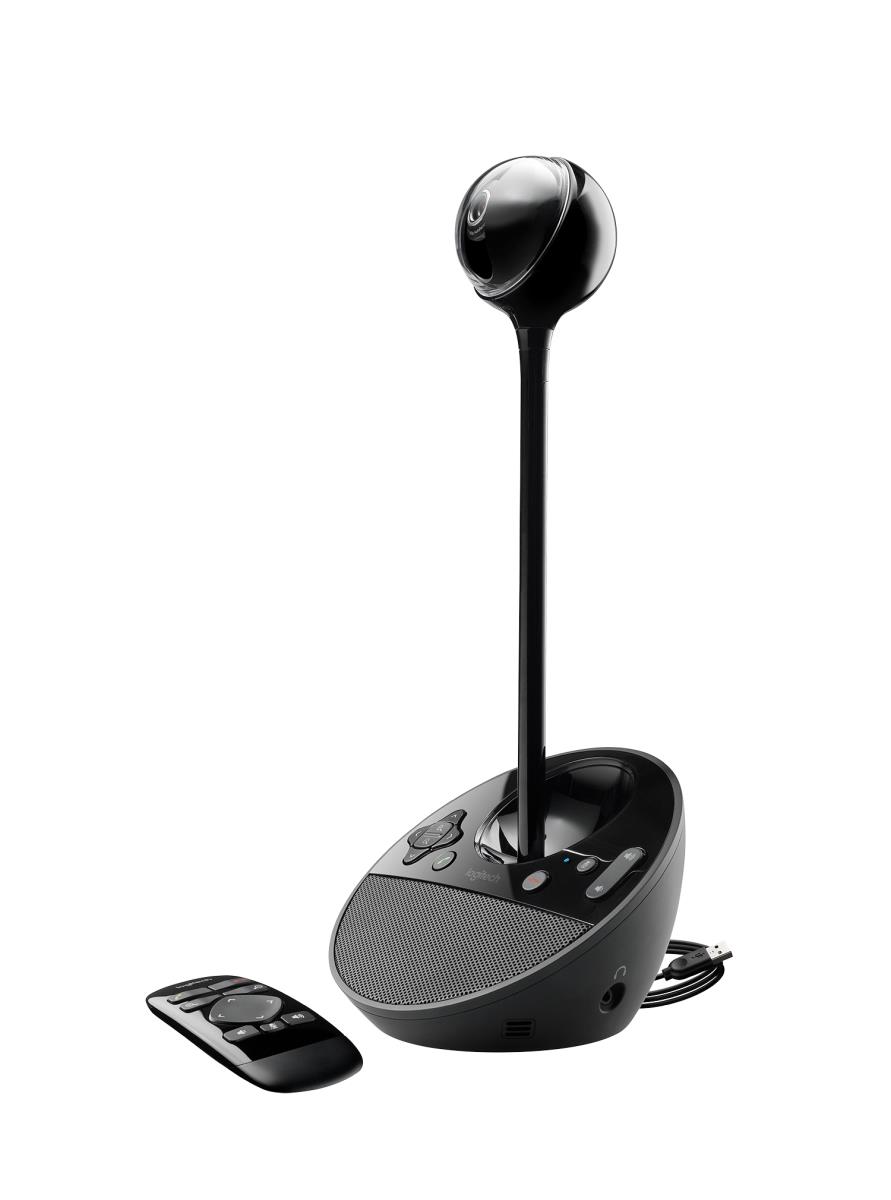

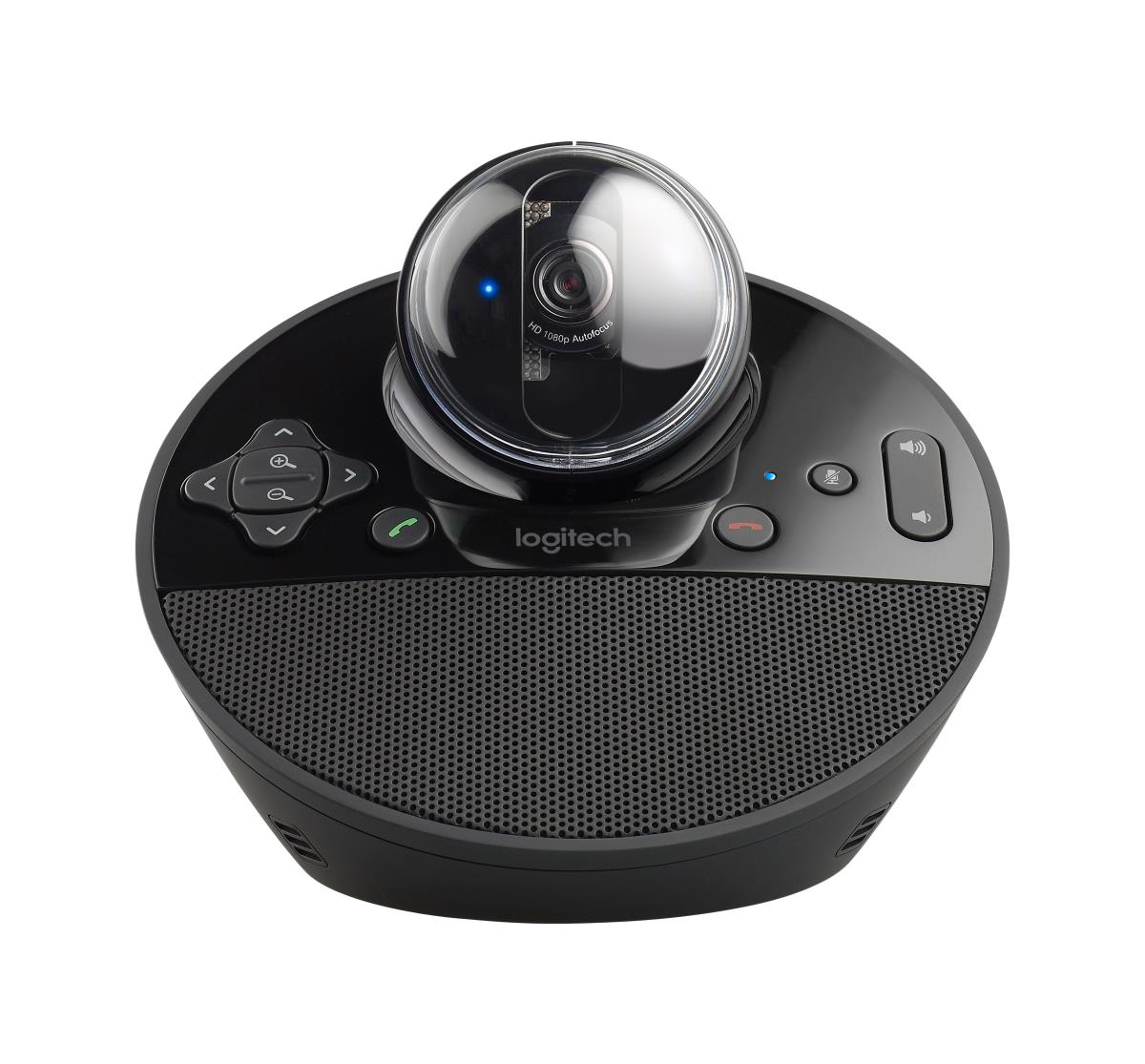

The amazingly simple and affordable Logitech ConferenceCam combines professional HD video and superior speakerphone audio to enable small group video conferencing. With a 78-degree field of view, a 180-degree video pan and a full-duplex speakerphone, the ConferenceCam is perfect for enabling groups to have video meetings in conference rooms, offices and collaboration areas. Now small teams don't have to compete for those overbooked video meeting rooms or huddle around a single PC just to have a video meeting.

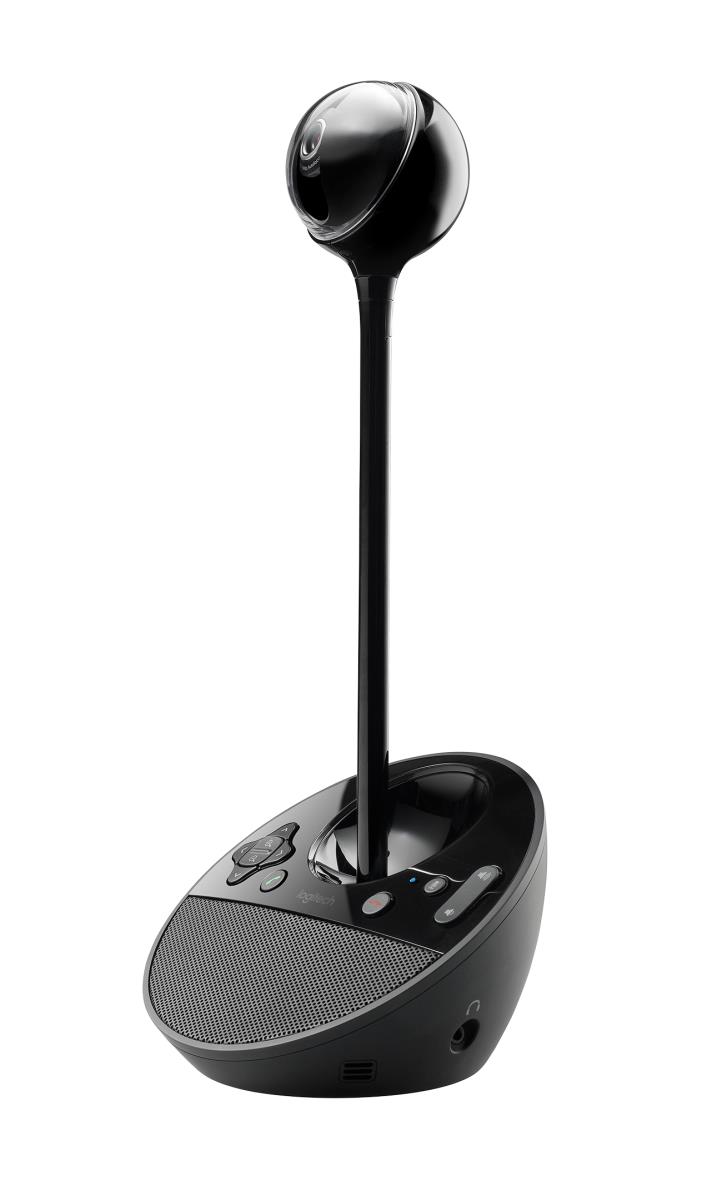

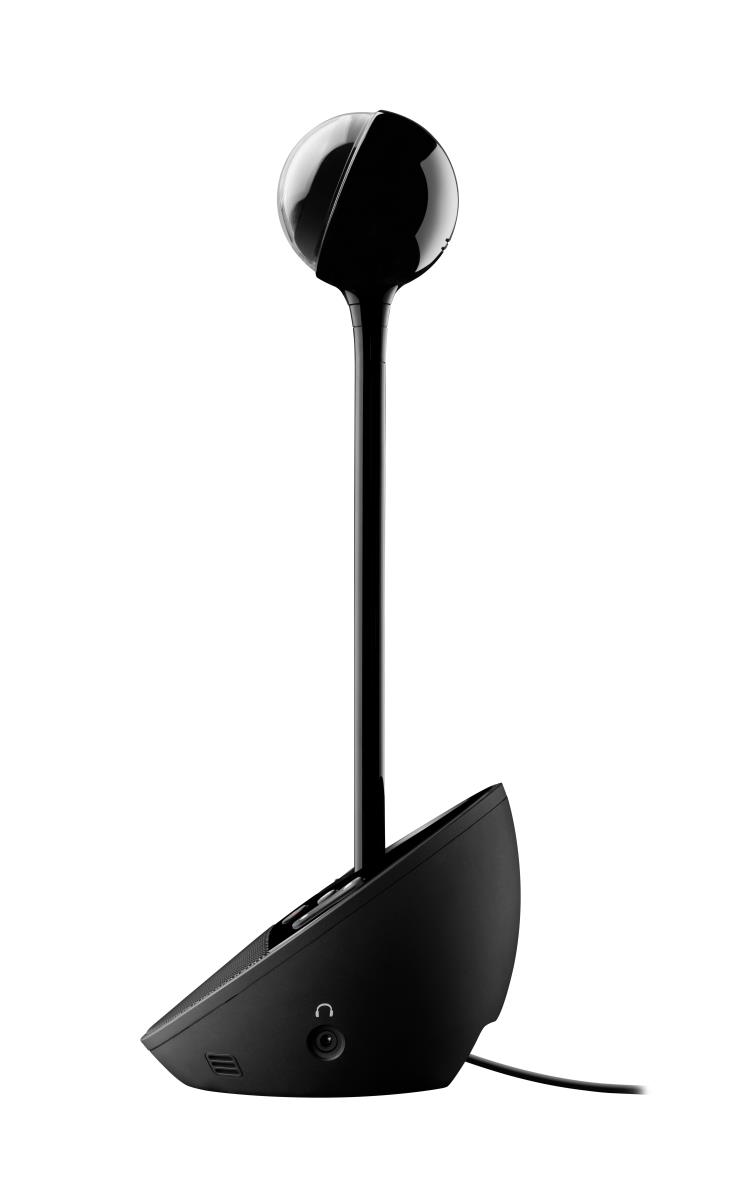

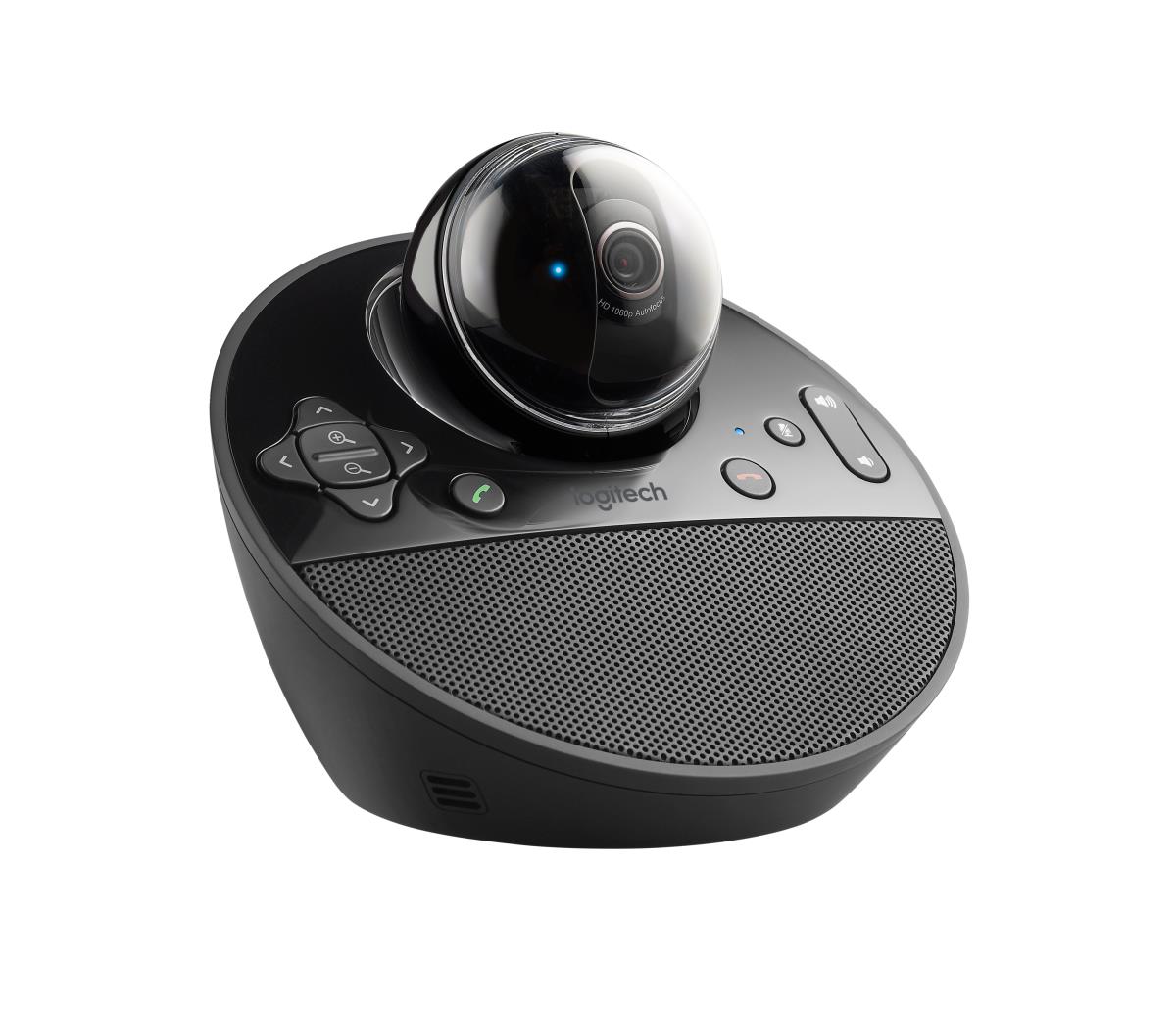

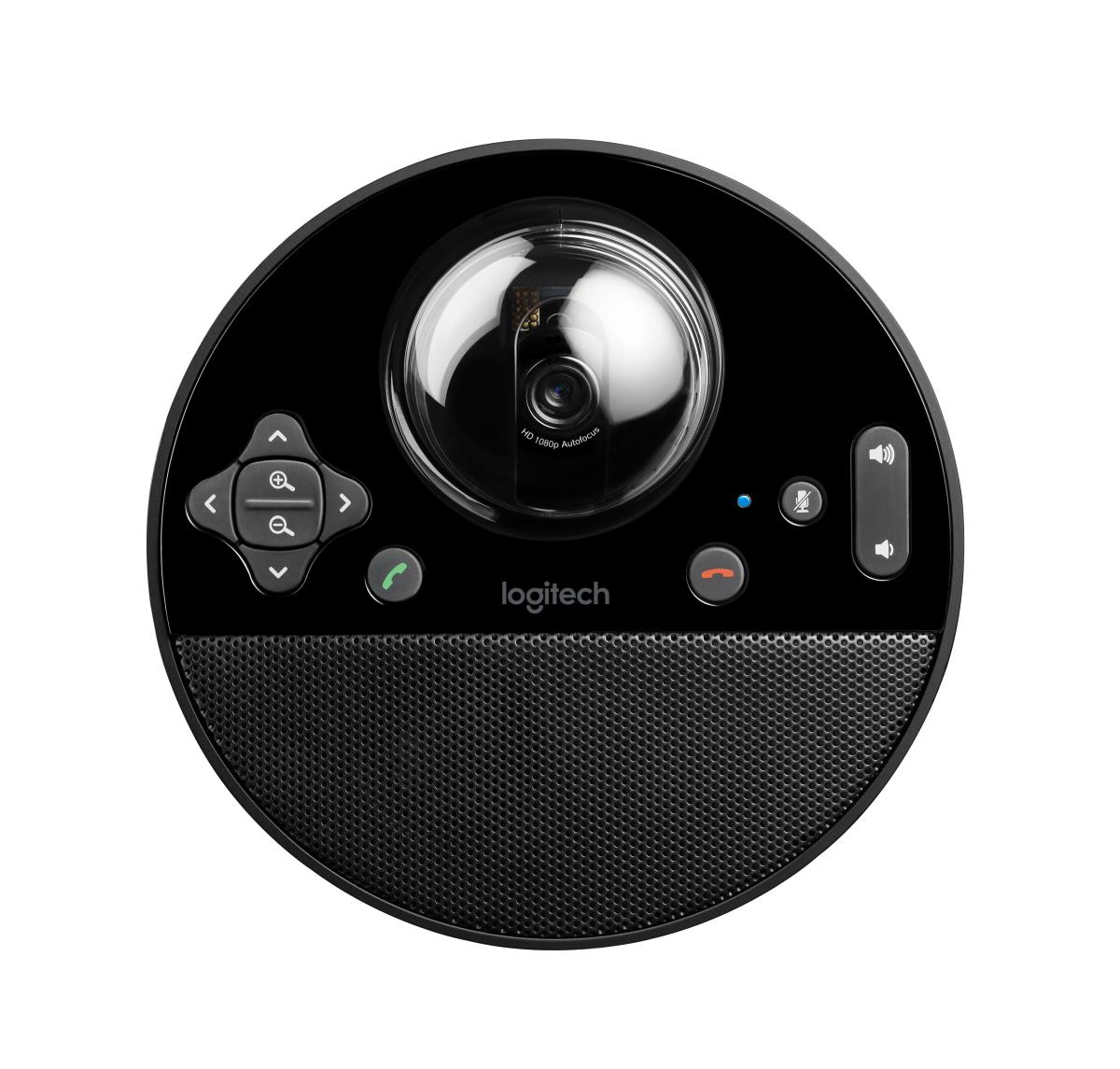

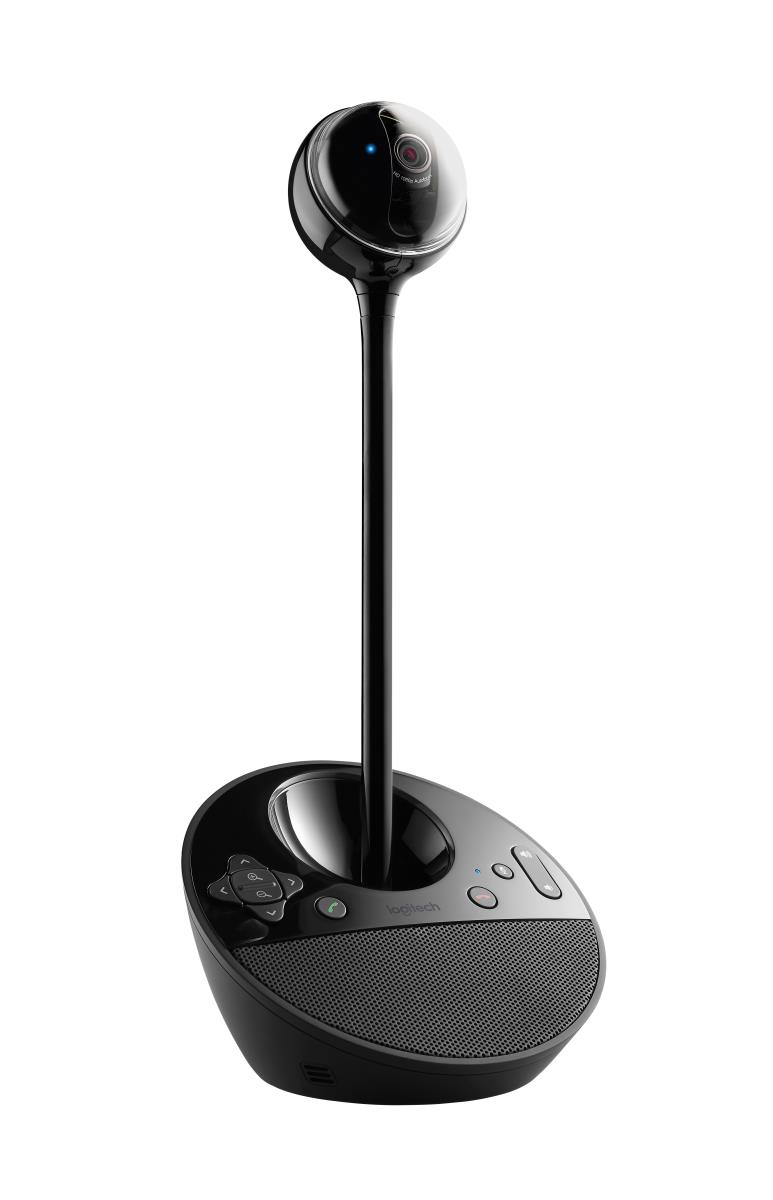

On-unit controls and the included remote control allow users to pan, tilt and zoom the camera, and quickly answer/hangup calls, adjust the volume and mute the mic. The camera height extender and 8-foot USB cable allow users to adjust camera height and distance for the most flattering video angles so they can make the best impression during meetings.
The ConferenceCam quickly connects via USB and works with most desktop video and UC applications including MicrosoftT LyncŪ and SkypeT.
Small group video conferencing has truly arrived - everywhere.
Performance
Product colour
Black
Pan range
0 - 180°
Tilt angle range
0 - 55°
PTZ control
Yes
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
30 fps
Full HD
Y
Supported video modes
1080p
Video formats supported
H.264
Photo feature
N
Auto focus
Y
Zoom capability
Y
Viewing angle, horizontal
70.42°
Viewing angle, vertical
43.3°
System requirements
Minimum system requirements
UVC mode (No software installation required):
Windows XP, Windows Vista or Windows 7
Mac OS X 10.6 and above
Microsoft Lync, Microsoft Office 365/Lync Online, Skype
Video
HD type
Full HD
Maximum video resolution
1920 x 1080 pixels
Supported video modes
720p, 1080p
Maximum frame rate
30 fps
Video formats supported
H.264
Resolution at capture speed
1920x1080@30fps
Audio
Built-in speaker(s)
Yes
Microphone pick-up range
2.4 m
Camera
Zoom capability
Yes
Digital zoom
1.2x
Field of view (FOV) angle
78°
Horizontal field of view
70.42°
Vertical field of view
43.3°
Microphone
Sound pressure level (max)
80 dB
Features
Logistics data
Master (outer) case gross weight
4.87 kg
Master (outer) case length
365 mm
Master (outer) case width
184 mm
Master (outer) case height
265 mm
Harmonized System (HS) code
85258900
Master (outer) case width
184 mm
Master (outer) case length
365 mm
Master (outer) case height
265 mm
Master (outer) case gross weight
4.87 kg
Computer system
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Other operating systems supported
ChromeOS
Power
Power source type
AC
Battery technology
Lithium
Battery capacity
210 mAh
Number of batteries supported
1
Weight & dimensions
Width
150 mm
Depth
104 mm
Height
154 mm
Weight
568 g
Package width
177 mm
Package depth
173 mm
Package height
124 mm
Package weight
1.14 kg
Width
150 mm
Depth
104 mm
Height
154 mm
Weight
568 g
Packaging content
Cables included
AC
Power cable length
2.4 m
Remote control included
Yes
Quick start guide
Yes
Packaging content

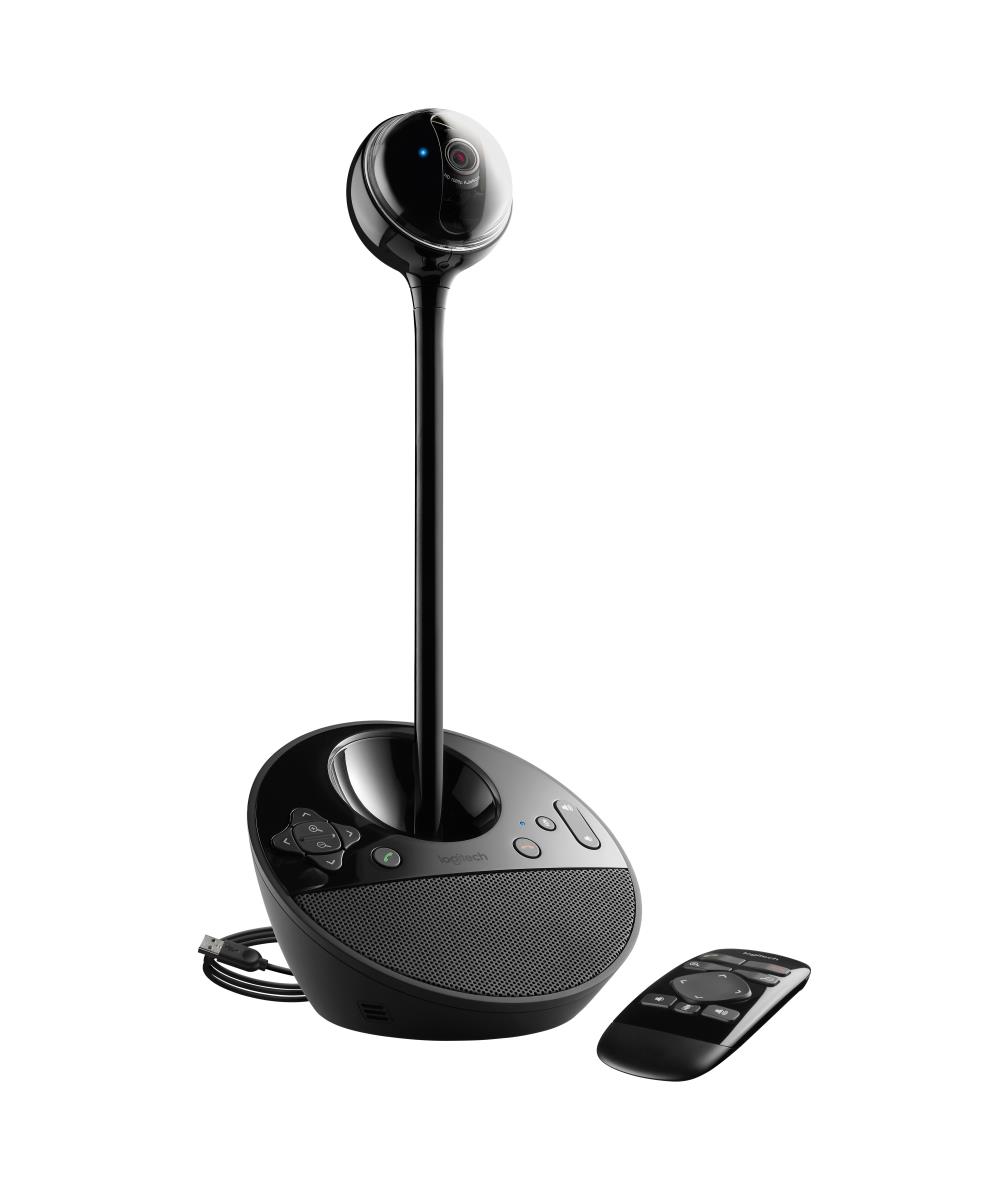

BCC950 ConferenceCam base and attached USB cable Camera extender stem Webcam head Power cable Quick start guide Remote control
Desktop stand
Y
Design
Built-in microphone
Y
Interface
USB 2.0
Product colour
Black
Mounting type
Stand
Built-in flash
N
USB powered
Y
Software
Windows operating systems supported
Y
Mac operating systems supported
Y
Linux operating systems supported
Y
Other operating systems supported
Chrome
Packaging data
Package width
177 mm
Package depth
173 mm
Package height
124 mm
Package weight
1.14 kg
Other features
Lens system
Carl Zeiss
Battery operated
Y
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
210 mAh
Number of batteries supported
1
