Product Details
Introduction
The purchase of a one-year Logitech extended warranty along with the purchase of Rally adds one additional year to the original Logitech manufacturer's two-year guarantee and is intended to ensure that your Logitech hardware is free from defects in material and workmanship.
This extended guarantee helps to protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
Performance
Pan speed
70 °/sec
Tripod mounting supported
Yes
Number of persons
10 person(s)
Product colour
Black
Product type
Group video conferencing system
Pan range
-90 - 90°
Tilt speed
70 °/sec
Tilt angle range
-90 - 50°
PTZ control
Y
Audio
Frequency range
300 - 10000 Hz
Output level
95/100 dB
Noise reduction
Yes
Sample rates
0 - 48 kHz
Echo cancellation
Y
Microphone pick-up range
4.5 m
Ports & interfaces
USB connector type
USB Type-A, USB Type-B, USB Type-C
HDMI ports quantity
4
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Ethernet LAN (RJ-45) ports
3
DC-in jack
Y
Line-in
Y
Camera
Zoom capability
Yes
Focus adjustment
Auto
Digital zoom
15x
Number of camera presets
3
Microphone
Microphone colour
Black
Microphone direction type
Omnidirectional
Sound pressure level (max)
95 dB
Number of microphone arrays
1
Microphone sensitivity
-27 dB
Microphone frequency
90 - 16000 Hz
Microphone mute
Y
Number of microphones
4
Features
Telepresence
No
Cable lock slot
Y
Cable lock slot type
Kensington
Computer system
Windows operating systems supported
Yes
Mac operating systems supported
MacOS
Other operating systems supported
ChromeOS
Packaging content
External interface module included
Yes
Power cable length
1.5 m
Networking cable length
5 m
HDMI cable length
2 m
AC adapter included
Yes
Camera included
Yes
Microphone included
Yes
Quick start guide
Yes
Packaging content

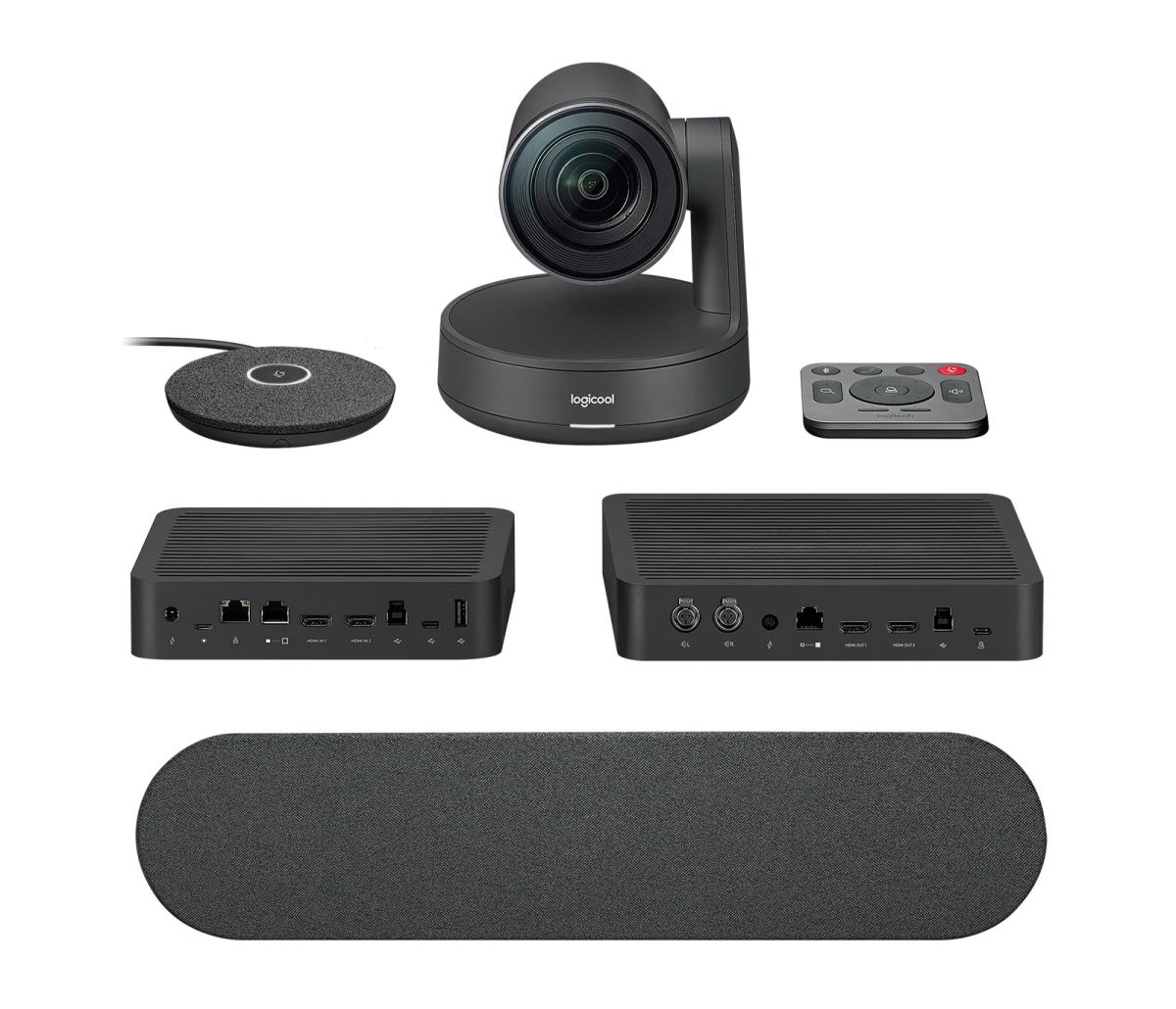

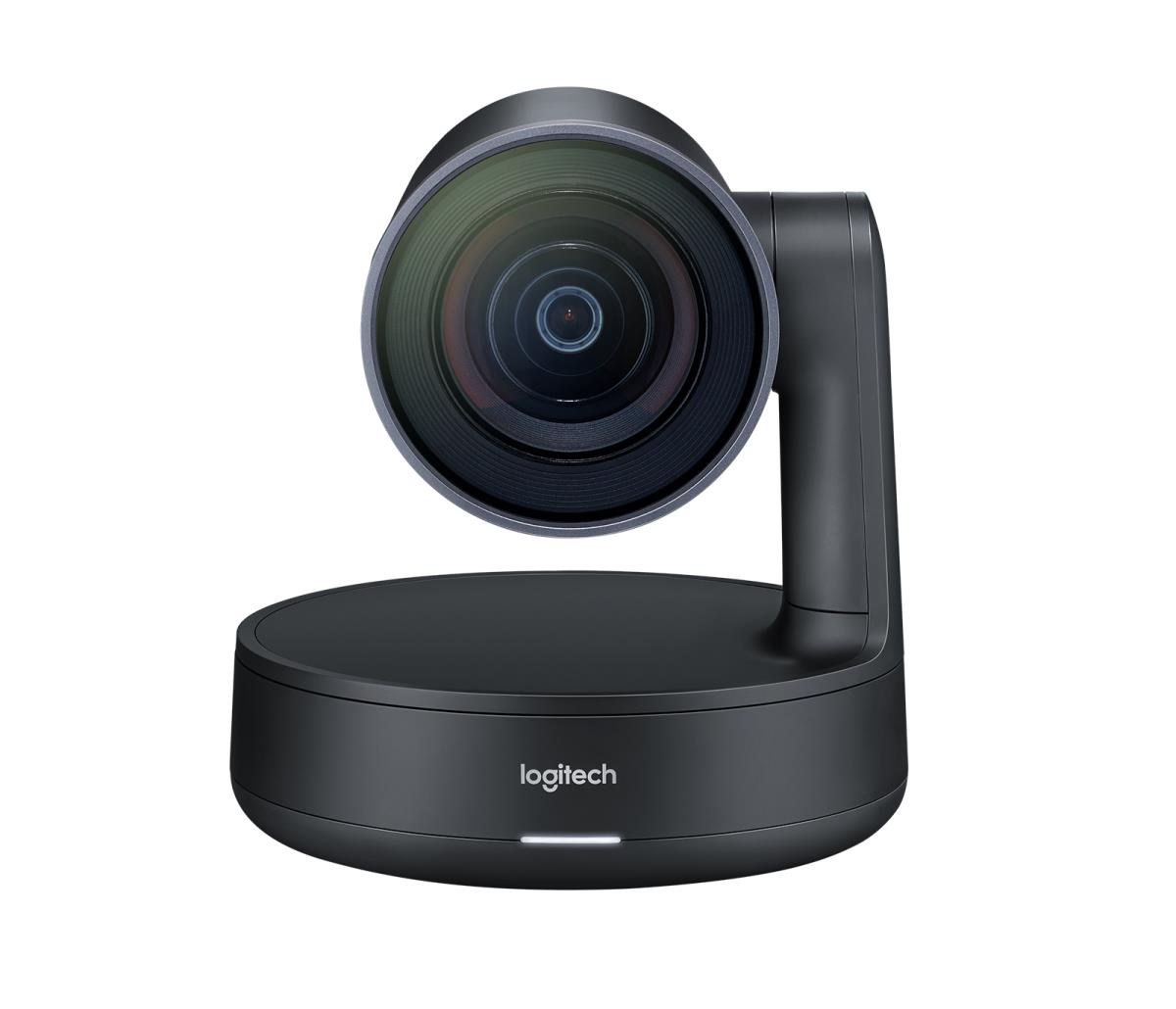

Rally camera
Rally display hub
Rally table hub
Rally speaker (x1)
Rally mic pod (x1)
Remote control
USB Type C to USB Type C
USB Type A to USB Type B
CAT6A Ethernet cable
HDMI Type A (x2)
A/C cables (x2)
Power supplies (x2)
Documentation
2-year manufacturer’s guarantee
Batteries included
Yes
Cables included
AUX, HDMI, LAN (RJ-45), USB
Speaker included
Y
Remote control included
Y
System requirements
Minimum system requirements
– Windows 7, Windows 8.1 or Windows 10
– macOS 10.10 or higher
– Chrome OS
Resolutions higher than 1080p
– Windows 8.1 or higher or macOS 10.10 or higher
– USB 3.0 port and Type C cable
– Compatible software
Technical details
Harmonized System (HS) code
85176990
Video
HD type
4K Ultra HD
Supported video modes
720p,1080p,1440p
Maximum frame rate
60 fps
Interface module
Interface module HDMI input ports quantity
2
Interface module HDMI output ports quantity
2
Network
Ethernet LAN
Y
Logistics data
Master (outer) case gross weight
9.5 kg
Master (outer) case length
348 mm
Master (outer) case width
240 mm
Master (outer) case height
736 mm
Battery
Battery capacity (Watt-hours)
0.675 Wh
Power
Power source type
AC
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
220 mAh
Number of batteries supported
2
Weight & dimensions
Microphone dimensions (WxHxD)
102 x 102 x 21 mm
Speaker dimensions (WxDxH)
449 x 80 x 103 mm
Camera dimensions (WxDxH)
152 x 152 x 182.5 mm
Package width
275 mm
Package depth
700 mm
Package height
220 mm
Package weight
8.53 kg
Information
| Part Number: | 960-001237 |
