Introduction

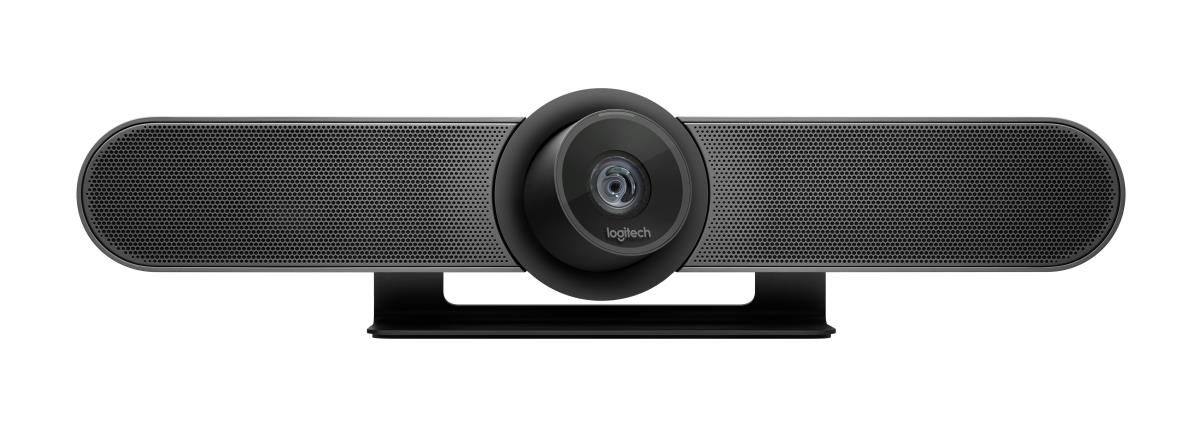

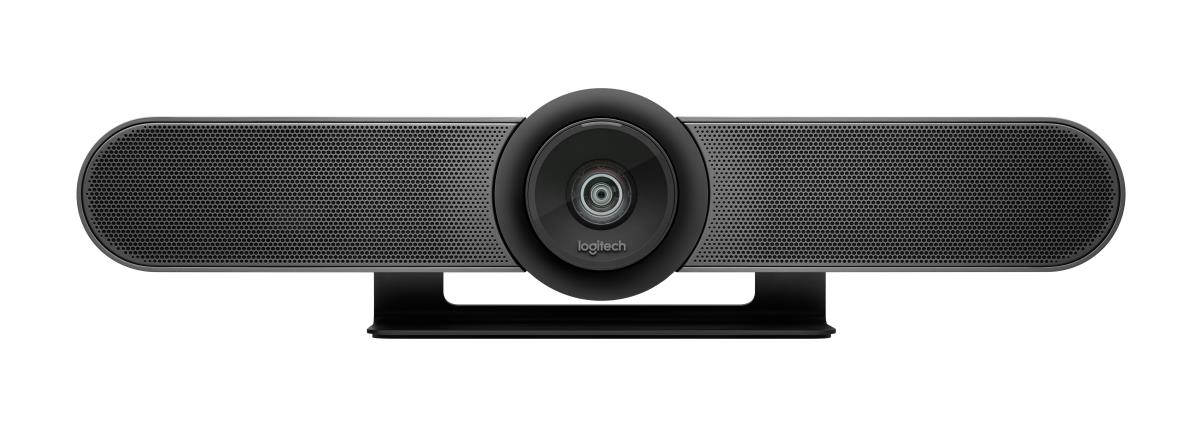

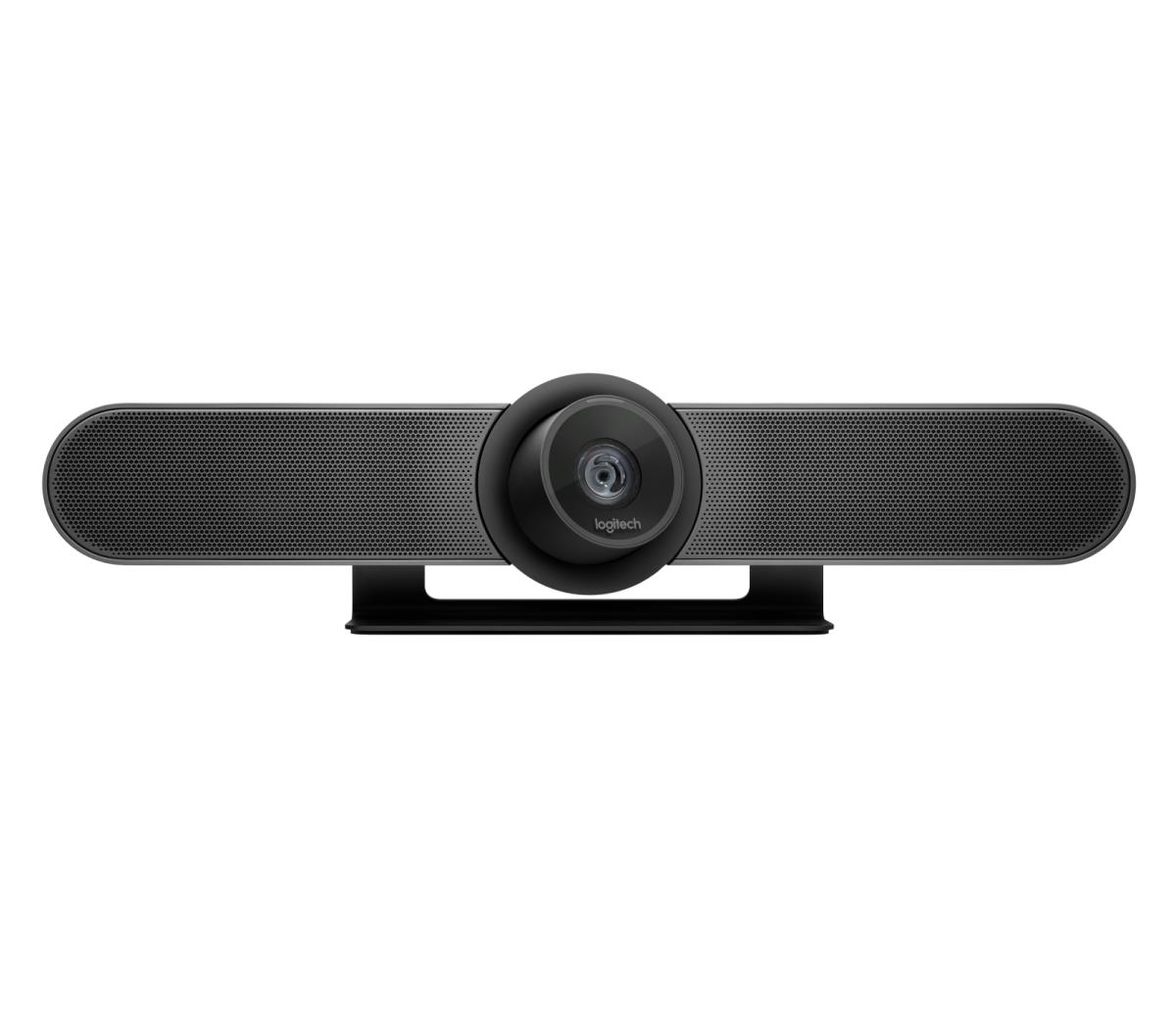

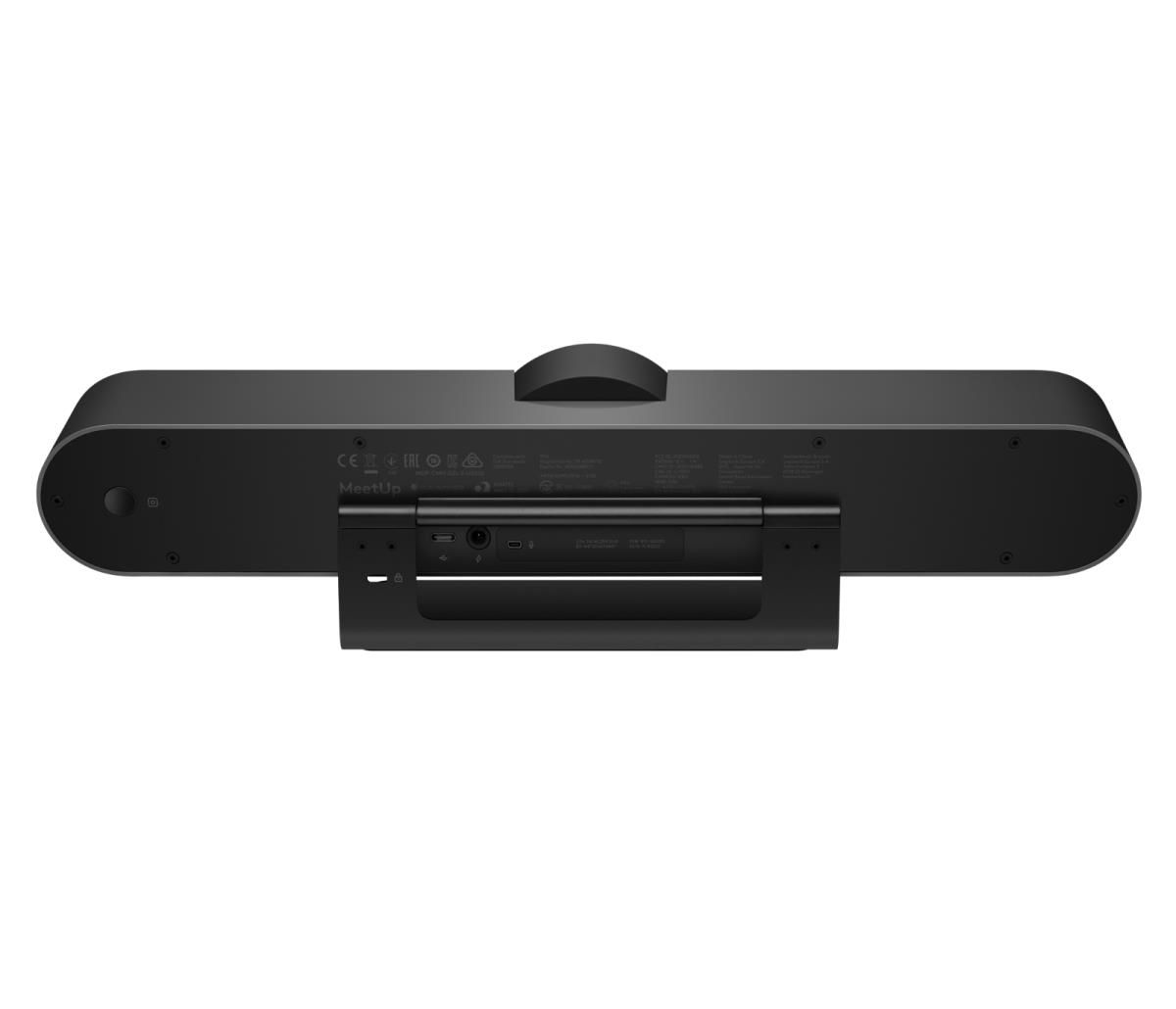

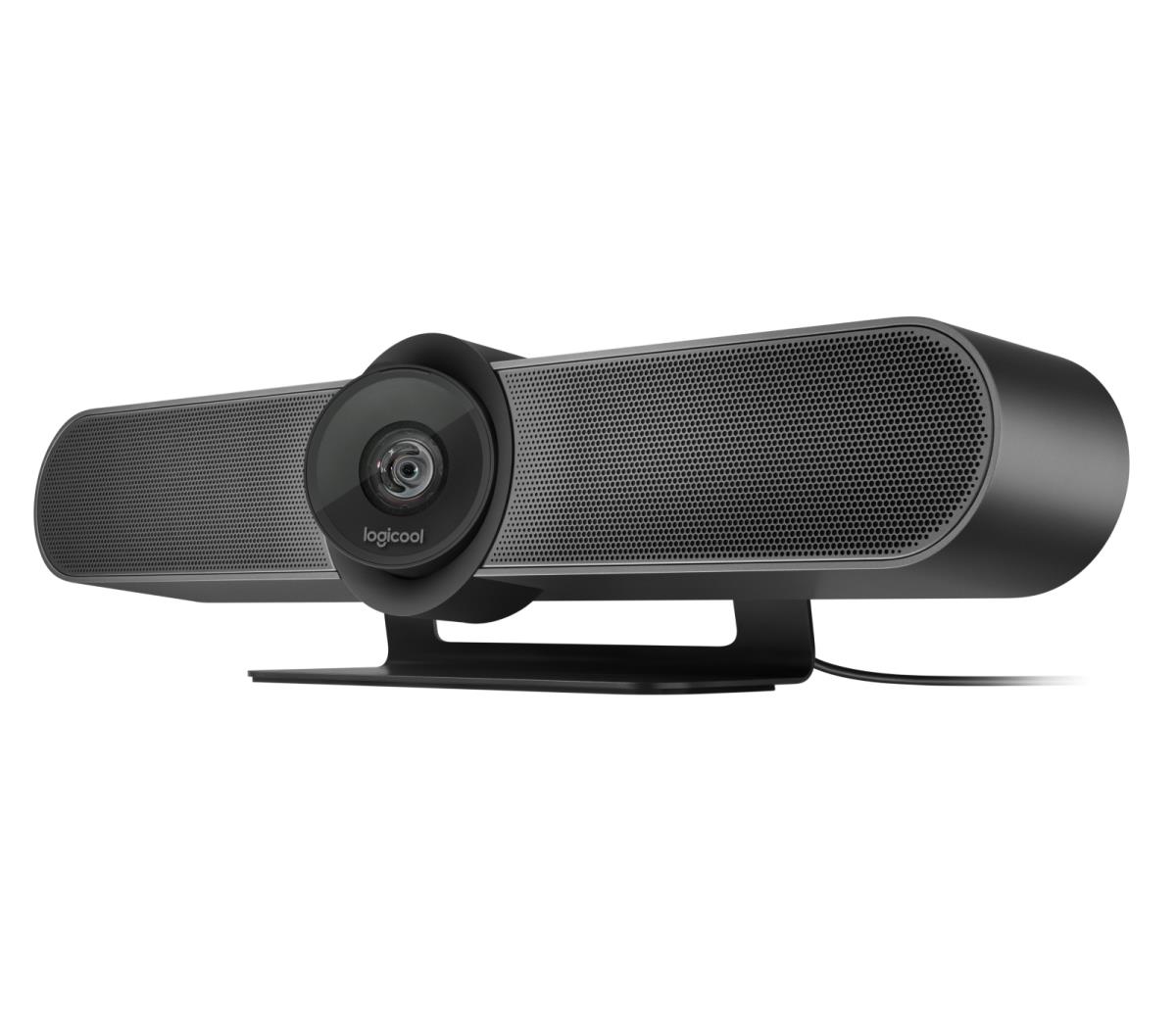

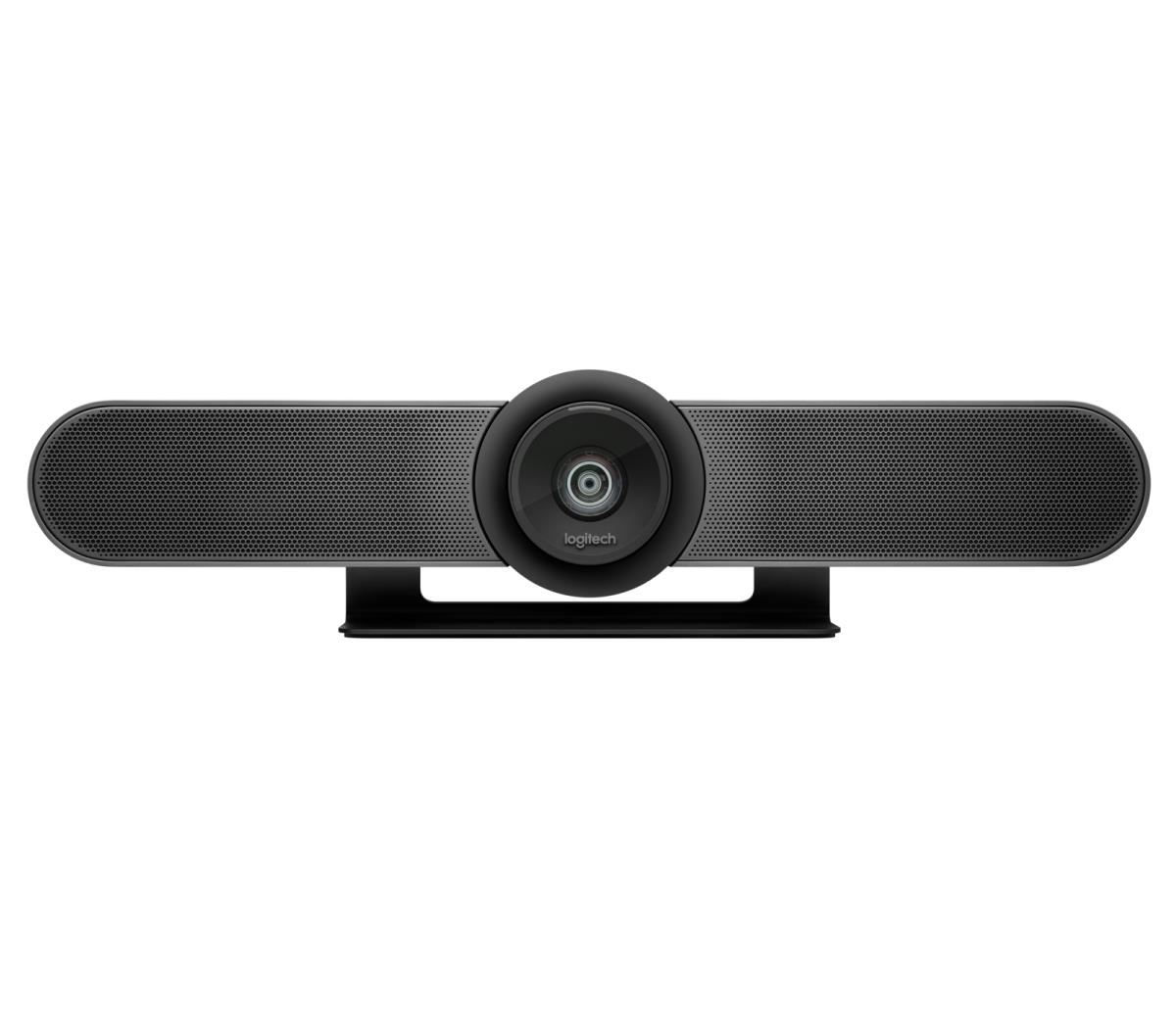

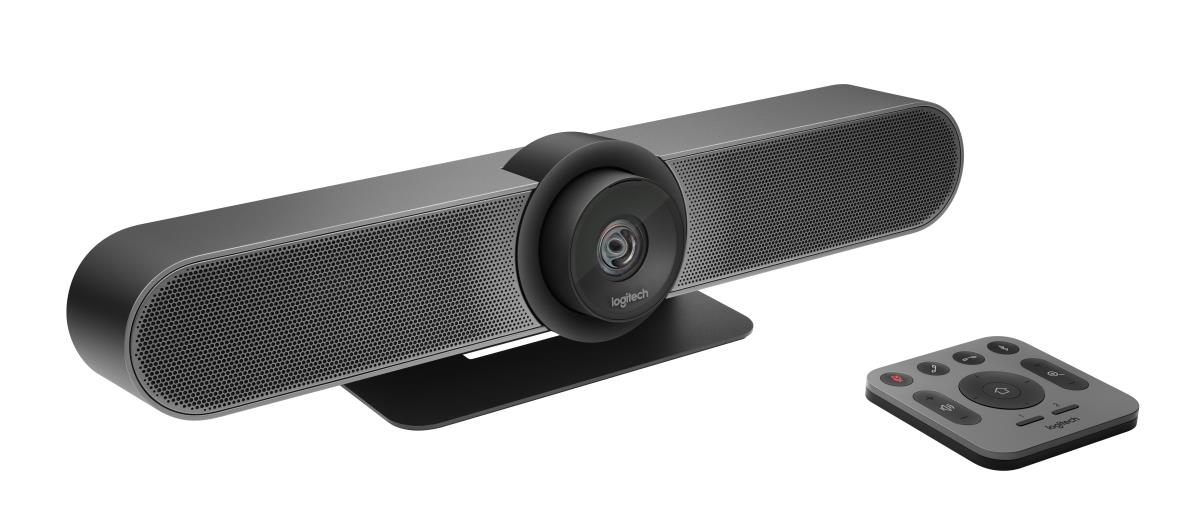

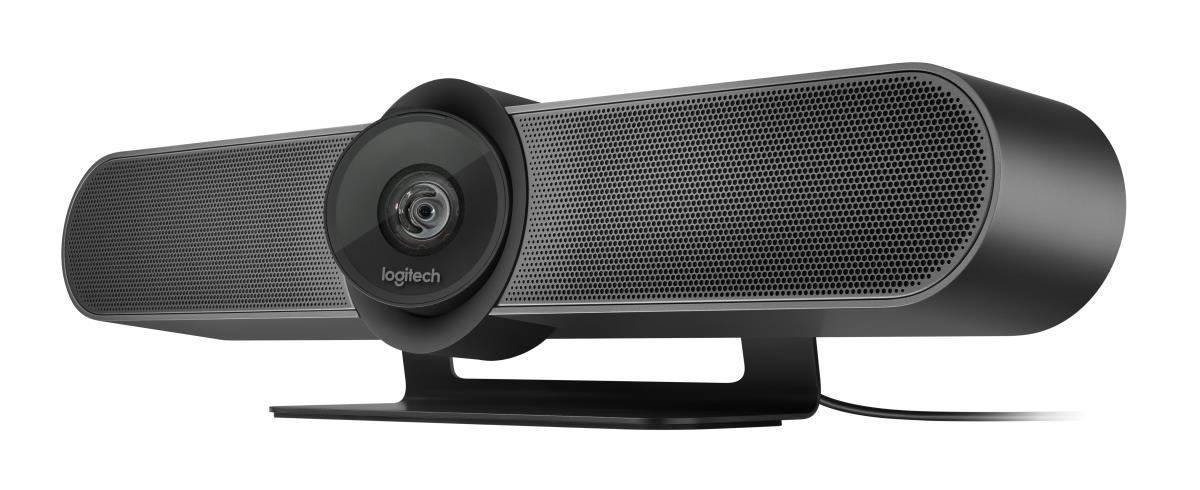

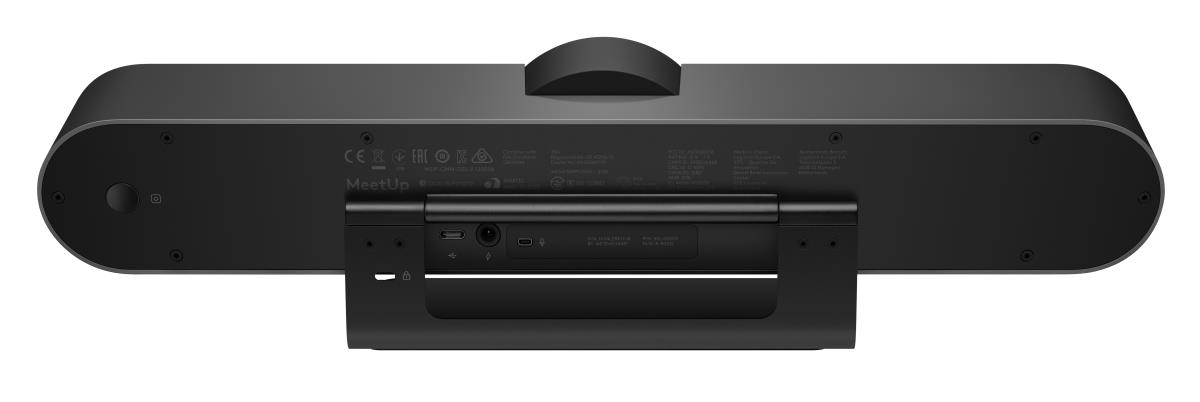

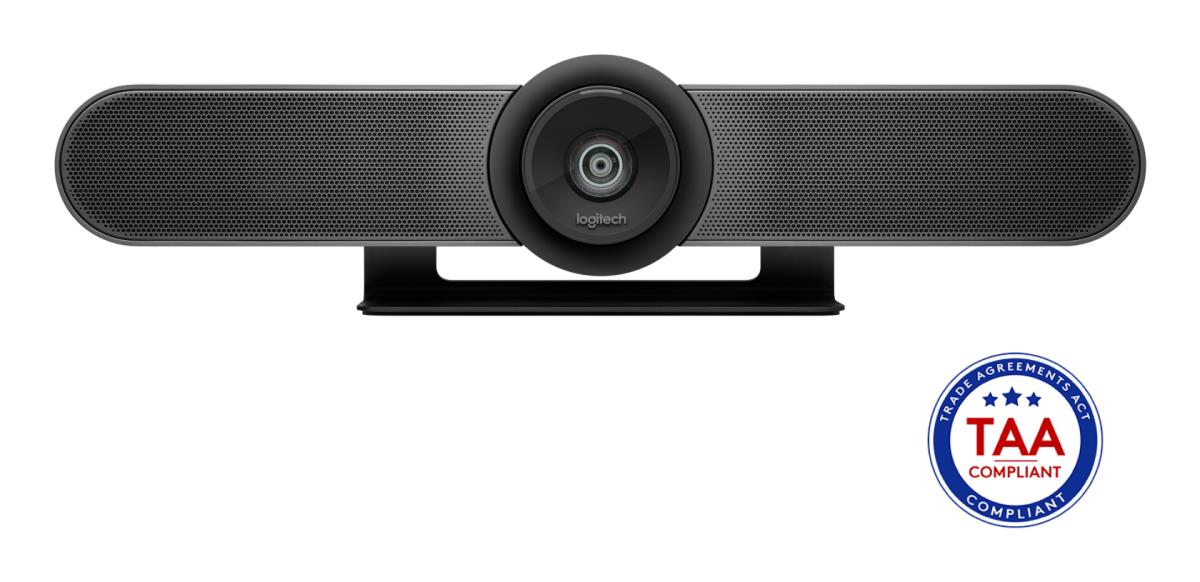

MeetUp is Logitech’s premier ConferenceCam designed for small conference rooms and huddle rooms. With a room capturing, super-wide 120° field of view, MeetUp makes every seat at the table clearly visible. Motorized pan/tilt widens FOV even further: up to 175°. A low-distortion Logitech-engineered lens, UltraHD 4K optics, and three camera presets deliver remarkable video quality and further enhance face-to-face collaboration.
MeetUp’s integrated audio is optimized for huddle room acoustics and delivers an exceptional sound experience. Three horizontally-aimed beamforming mics and a custom-tuned speaker help ensure your meetings sound as great as they look. Humans have evolved to associate human voices with their visible images. MeetUp’s front-of-room audio provides an intuitive and coherent listening experience.
With a compact all-in-one design that minimizes cable clutter, MeetUp is USB plug-and-play and simply works right out of the box with any video conferencing software application and cloud service—including the ones you already use.
Performance
Bluetooth
Yes
Product colour
Black
PTZ control
Yes
Bluetooth
Y
Video
HD type
4K Ultra HD
Maximum video resolution
3840 x 2160 pixels
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Maximum frame rate
30 fps
Resolution at capture speed
1280x720@30fps, 1920x1080@30fps, 3840x2160@30fps
HD type
4K Ultra HD
Maximum video resolution
3840 x 2160 pixels
Maximum frame rate
30 fps
Resolution at capture speed
1920x1080@30fps,3840x2160@30fps
Supported video modes
720p,1080p,2160p
Supported graphics resolutions
1280 x 720 (HD 720),1920 x 1080 (HD 1080),3840 x 2160
Audio
Built-in speaker(s)
Yes
Audio beamforming
Yes
Noise reduction
Yes
Echo cancellation
Yes
Built-in microphone
Y
Built-in speaker(s)
Y
Camera
Field of view (FOV) angle
120°
Number of camera presets
3
Field of view (FOV) angle
120°
Number of camera presets
3
PTZ control
Y
Microphone
Microphone sensitivity
-27 dB
Logistics data
Master (outer) case gross weight
5.1 kg
Master (outer) case length
275 mm
Master (outer) case width
208 mm
Master (outer) case height
485 mm
Harmonized System (HS) code
85258900
Master (outer) case gross weight
5.3 kg
Master (outer) case length
275 mm
Master (outer) case width
208 mm
Master (outer) case height
485 mm
Battery
Battery capacity
0.675 Wh
Battery capacity (Watt-hours)
0.675 Wh
Computer system
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Other operating systems supported
ChromeOS
System requirements
Minimum system requirements
2.4 GHz Intel® Core 2 Duo processor
2 GB RAM or more
USB 2.0 port (USB 3.0 required for 4k video)
Windows operating systems supported
Y
Mac operating systems supported
Y
Power
Power source type
Battery
Battery technology
Lithium
Battery capacity
220 mAh
Number of batteries supported
1
Power source type
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
220 mAh
Number of batteries supported
2
Weight & dimensions

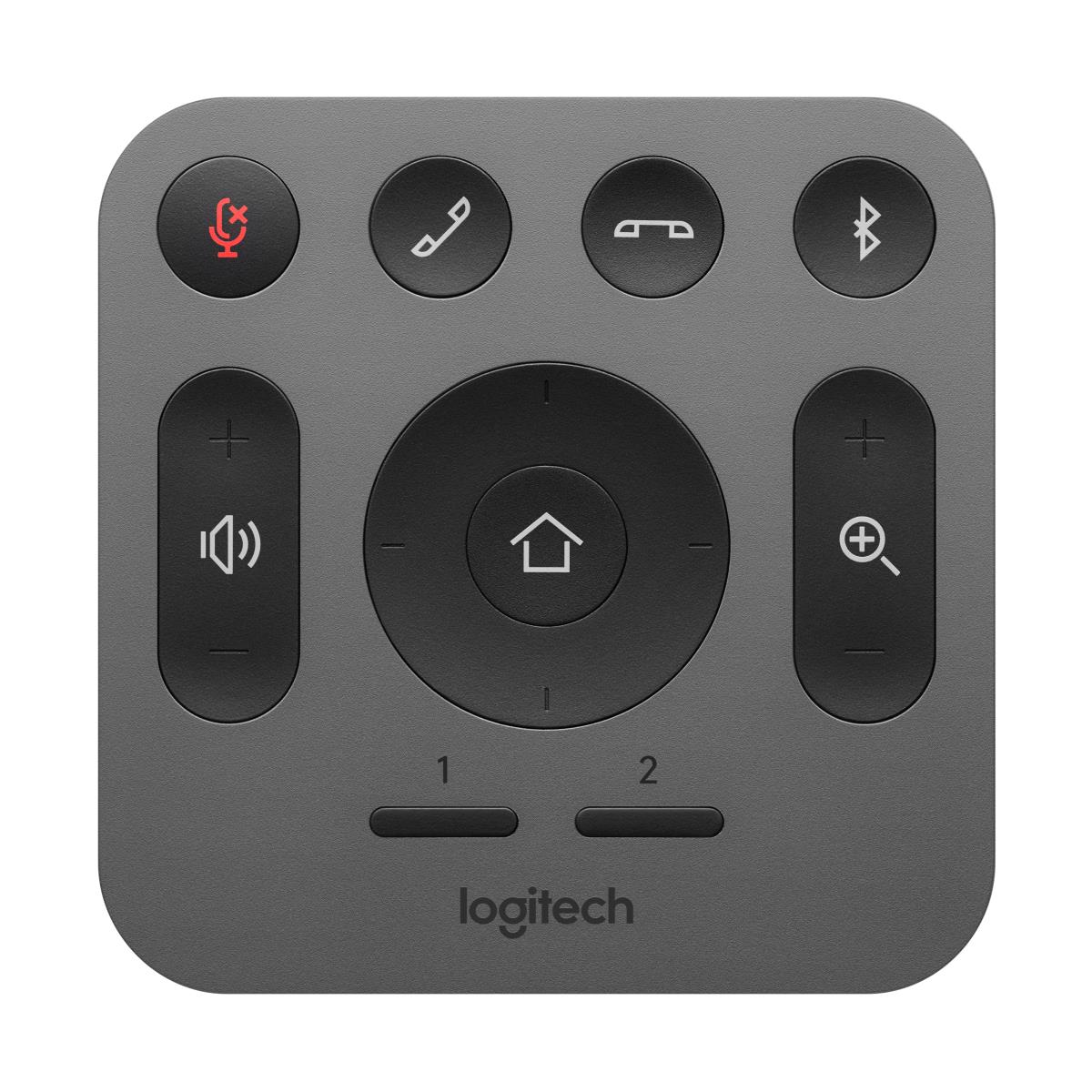

Remote control dimensions (W x H x D)
83 x 10 x 83 mm
Remote control weight
72 g
Width
400 mm
Depth
85 mm
Height
104 mm
Weight
1.04 kg
Package width
125 mm
Package depth
470 mm
Package height
199 mm
Package weight
2.36 kg
Remote control dimensions (W x H x D)
83 x 10 x 83 mm
Width
400 mm
Depth
85 mm
Height
104 mm
Weight
1.04 kg
Packaging content
Cables included
USB
Mounting kit
Yes
Remote control included
Yes
Batteries included
Yes
Quick start guide
Yes
Packaging content
MeetUp ConferenceCam Remote control USB 2.0 cable: 5 m Power supply Wall mount and hardware User documentation
Remote control included
Y
Cables included
USB
Quick start guide
Y
Mounting kit
Y
Design
Packaging data
Package width
125 mm
Package depth
470 mm
Package height
199 mm
Package weight
2.54 kg
