Introduction

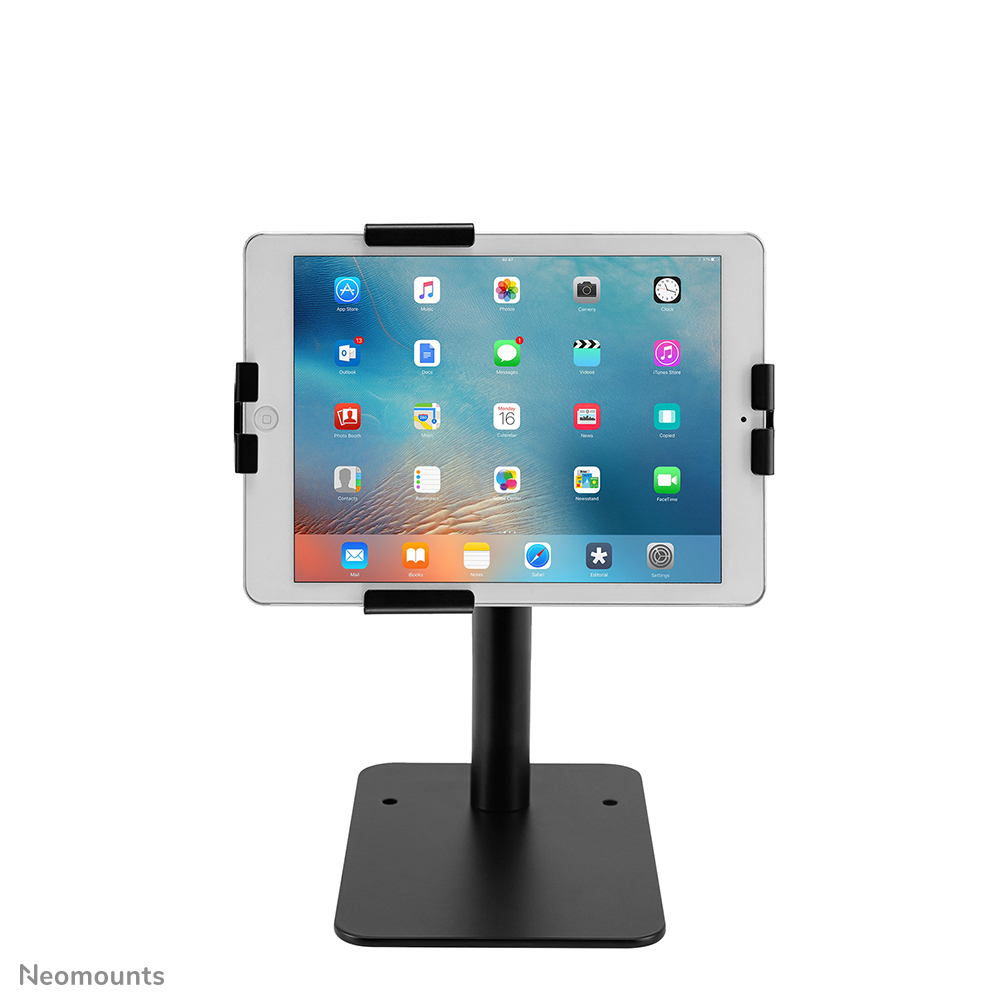

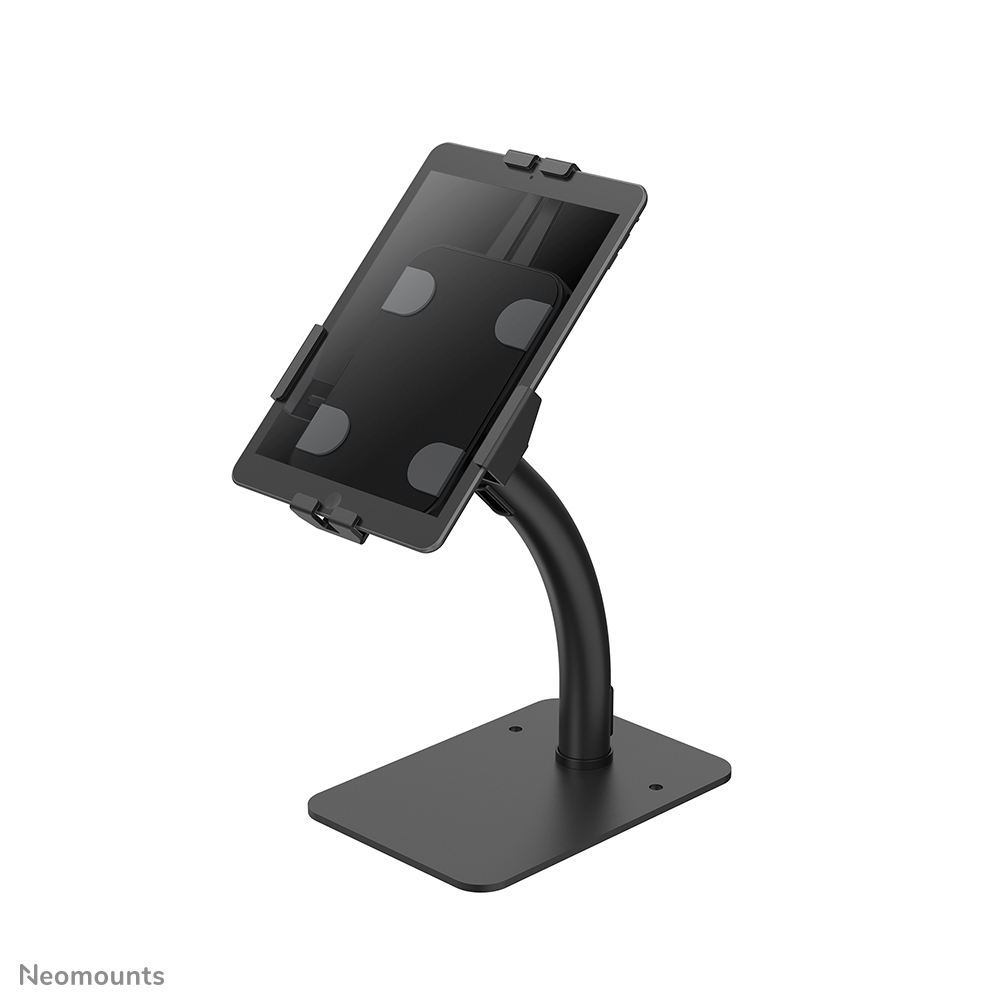

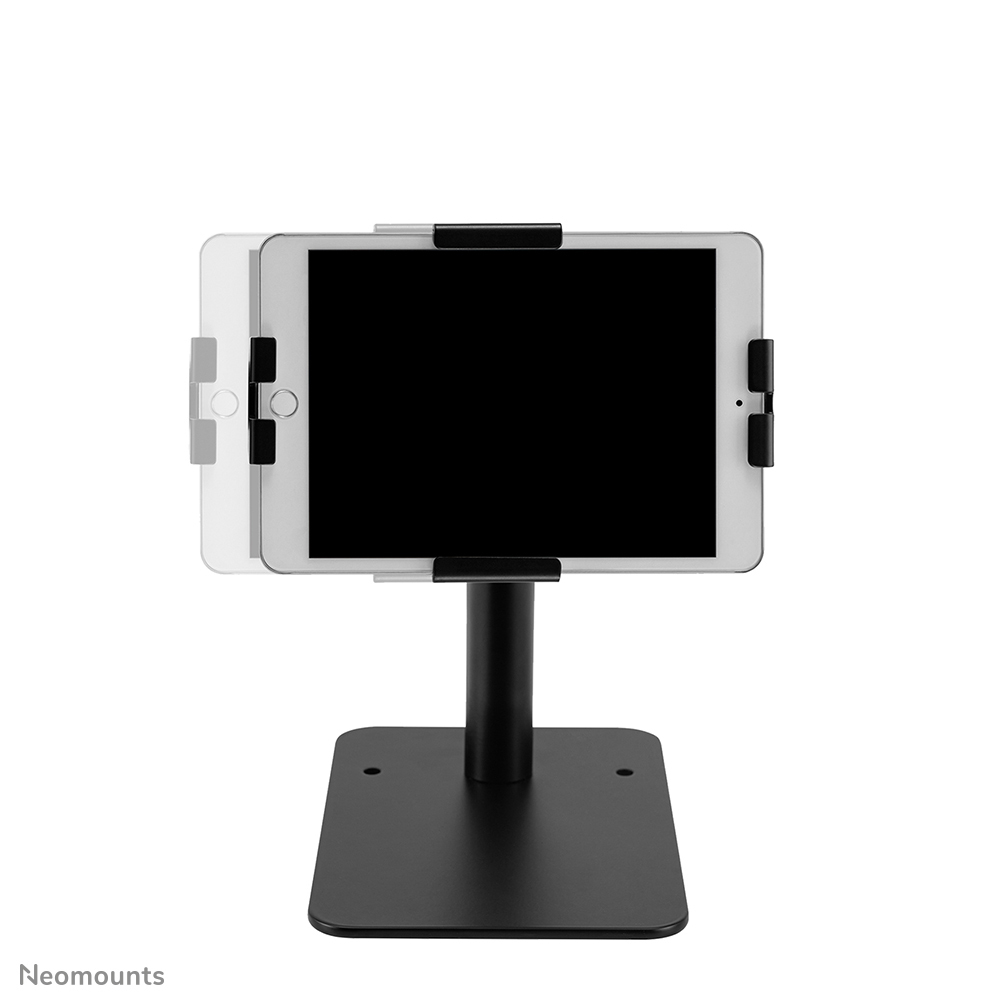

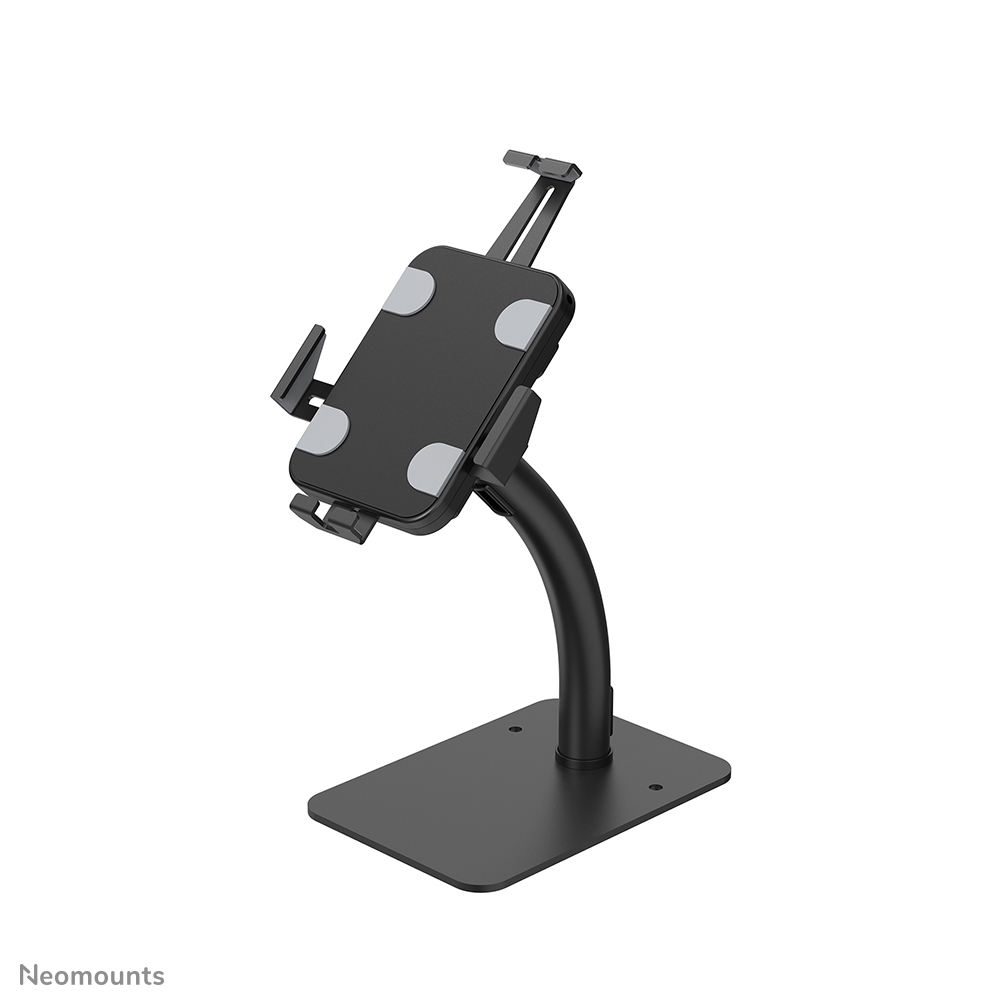

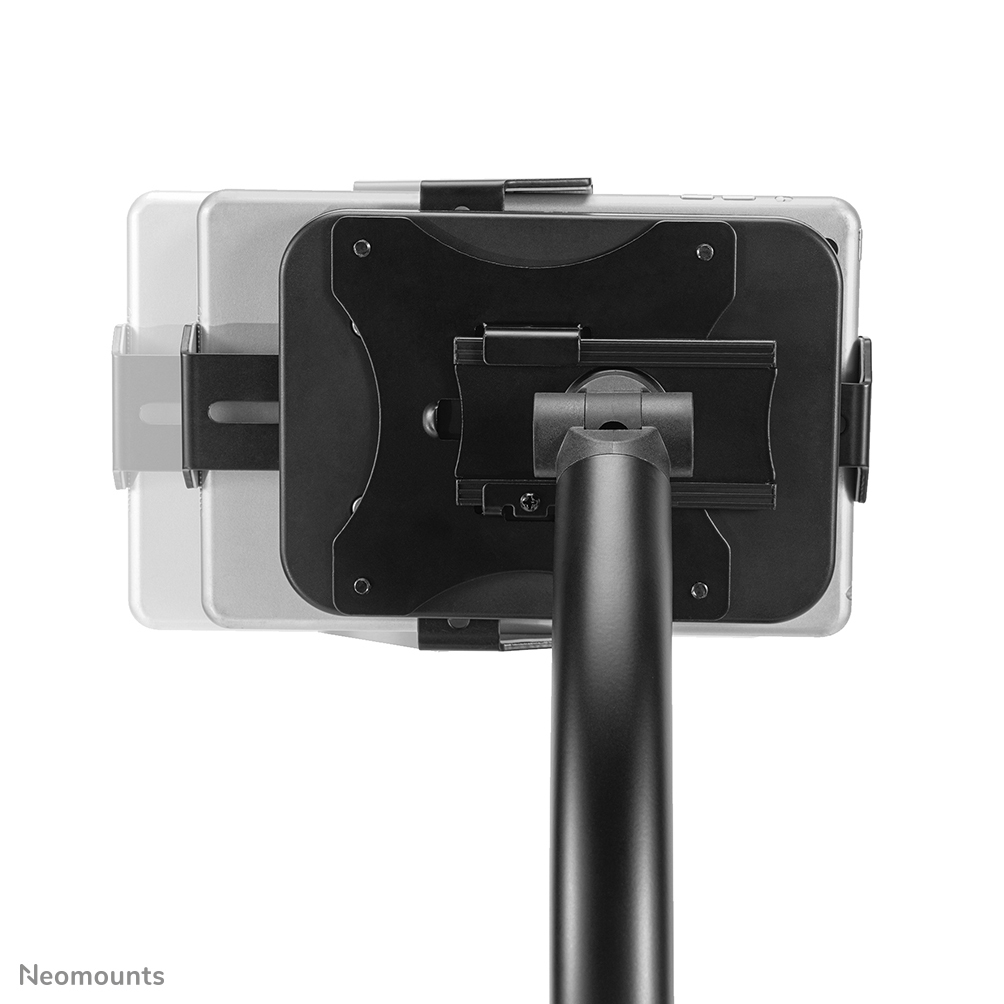

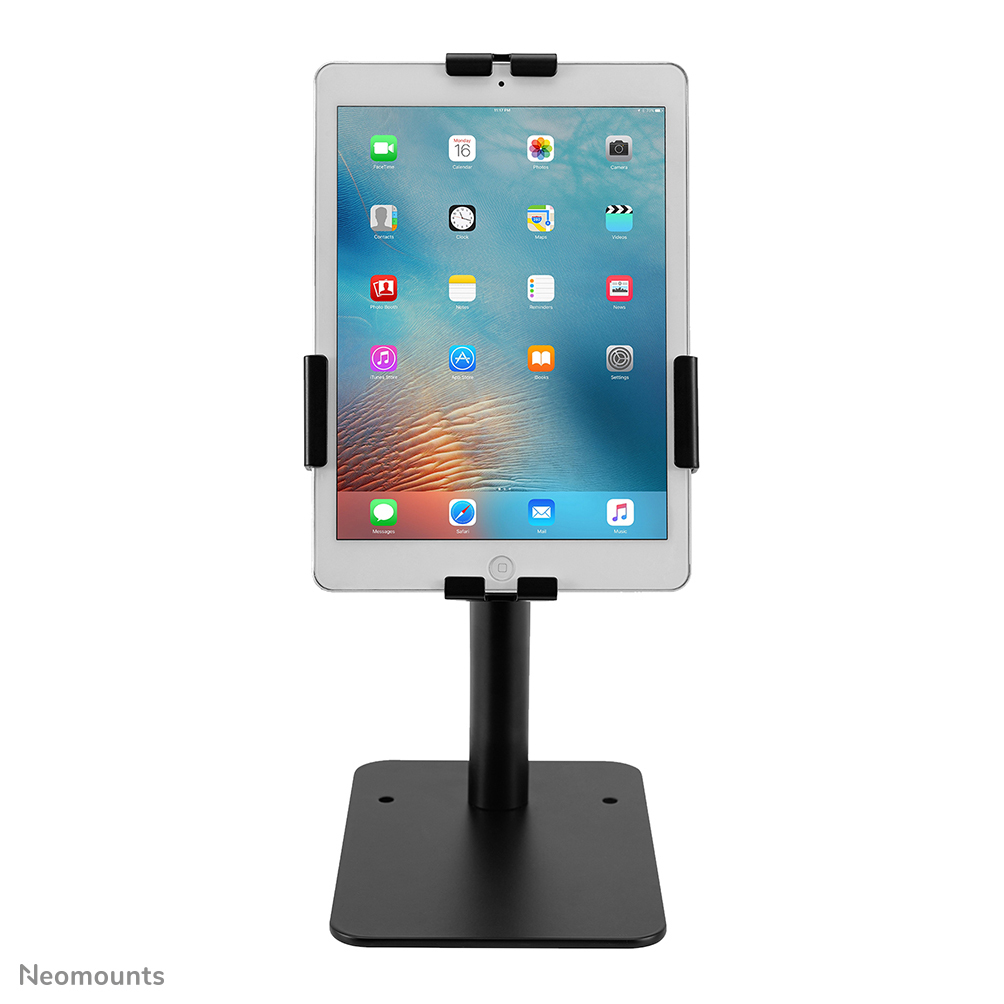

The Neomounts by Newstar DS15-625BL1 is a countertop tablet holder that can rotate 360° to easily switch between portrait and landscape orientation. Additionally, the tablet holder can be tilted +20°/-110° for comfortable viewing. Using the sliding rail at the back, the tablet can be perfectly aligned in the centre of the holder.

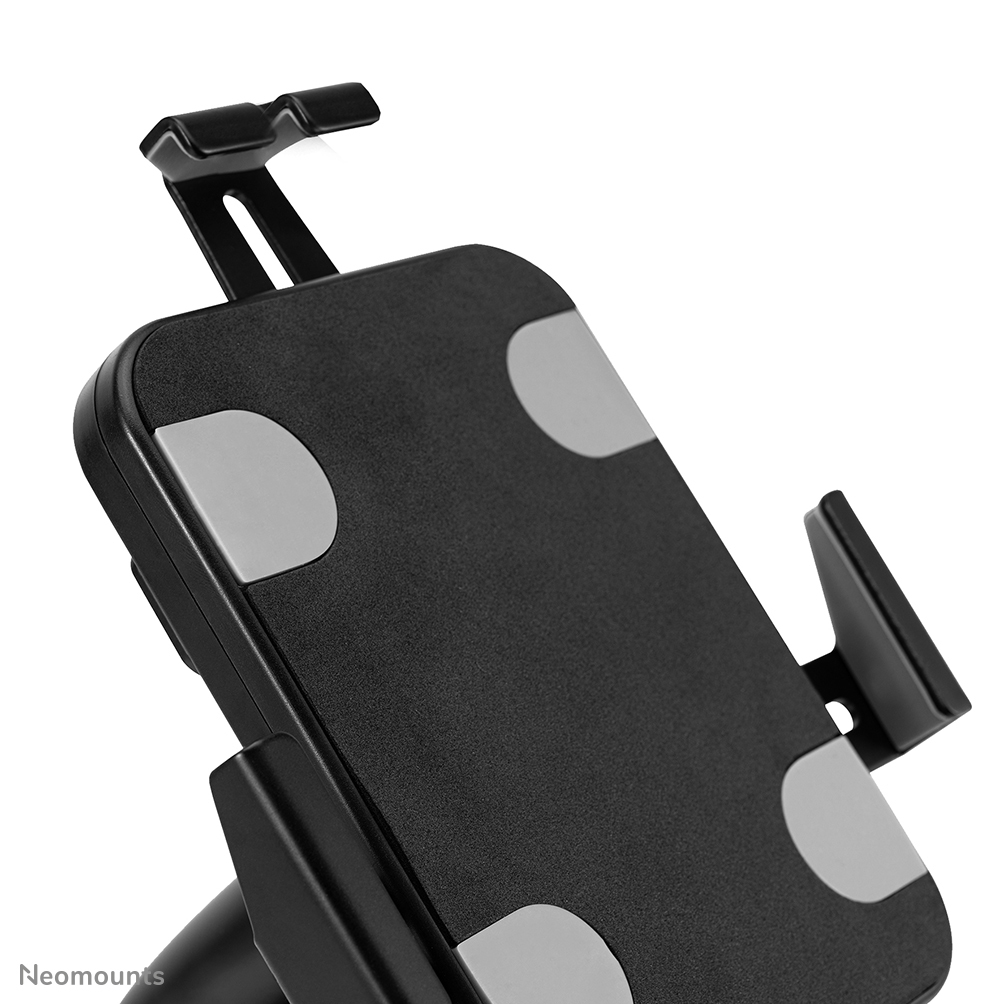

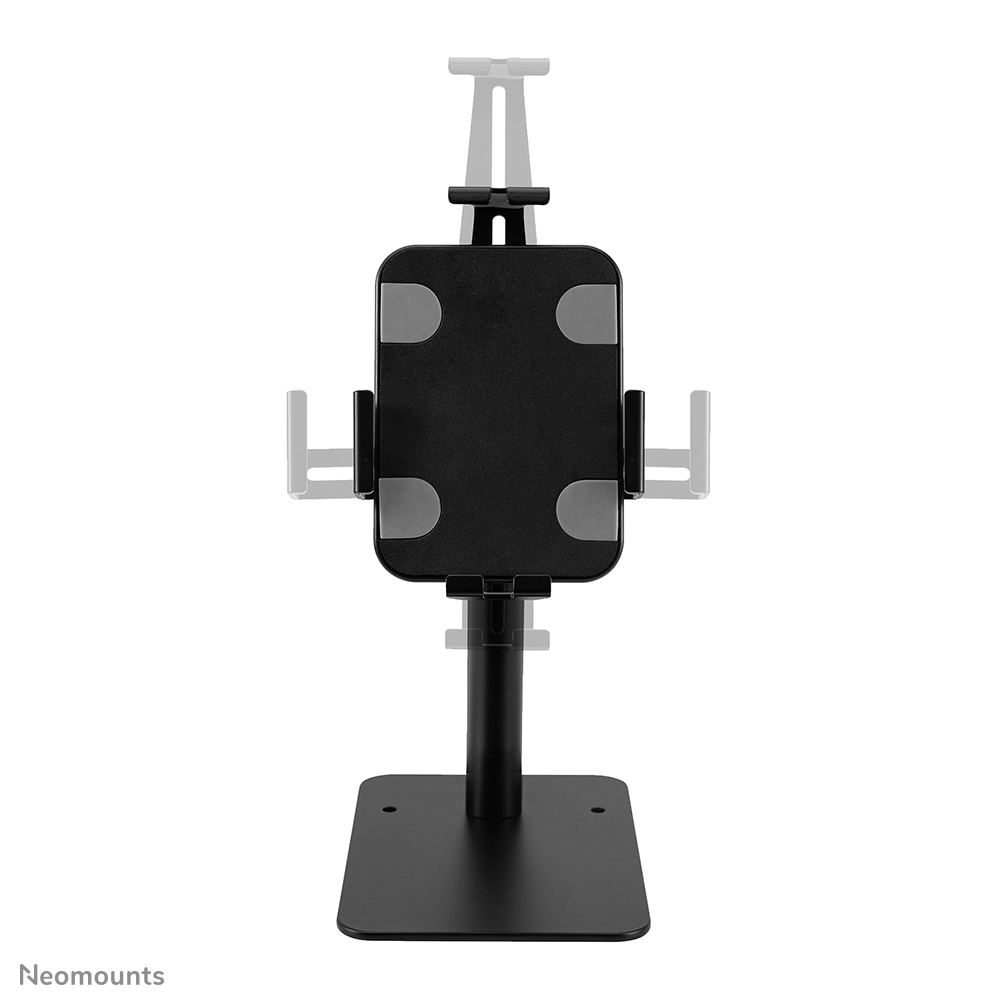

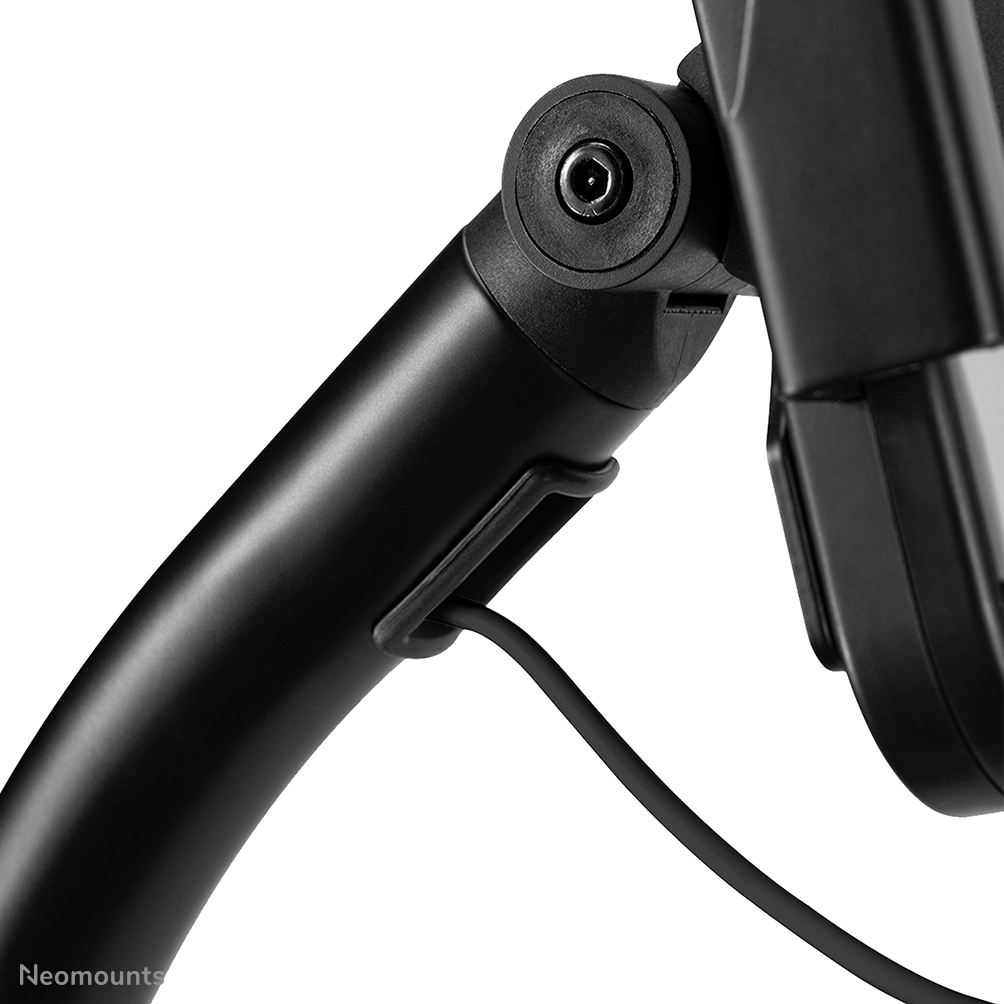

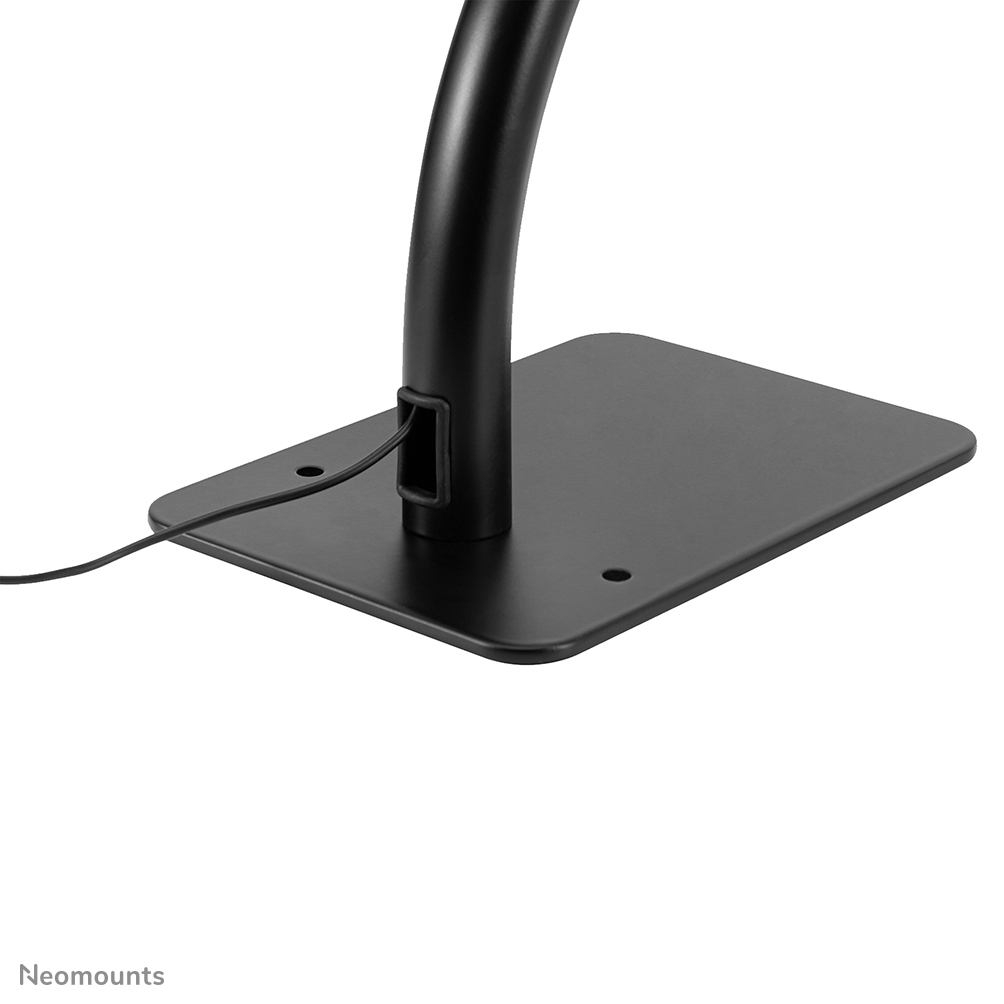

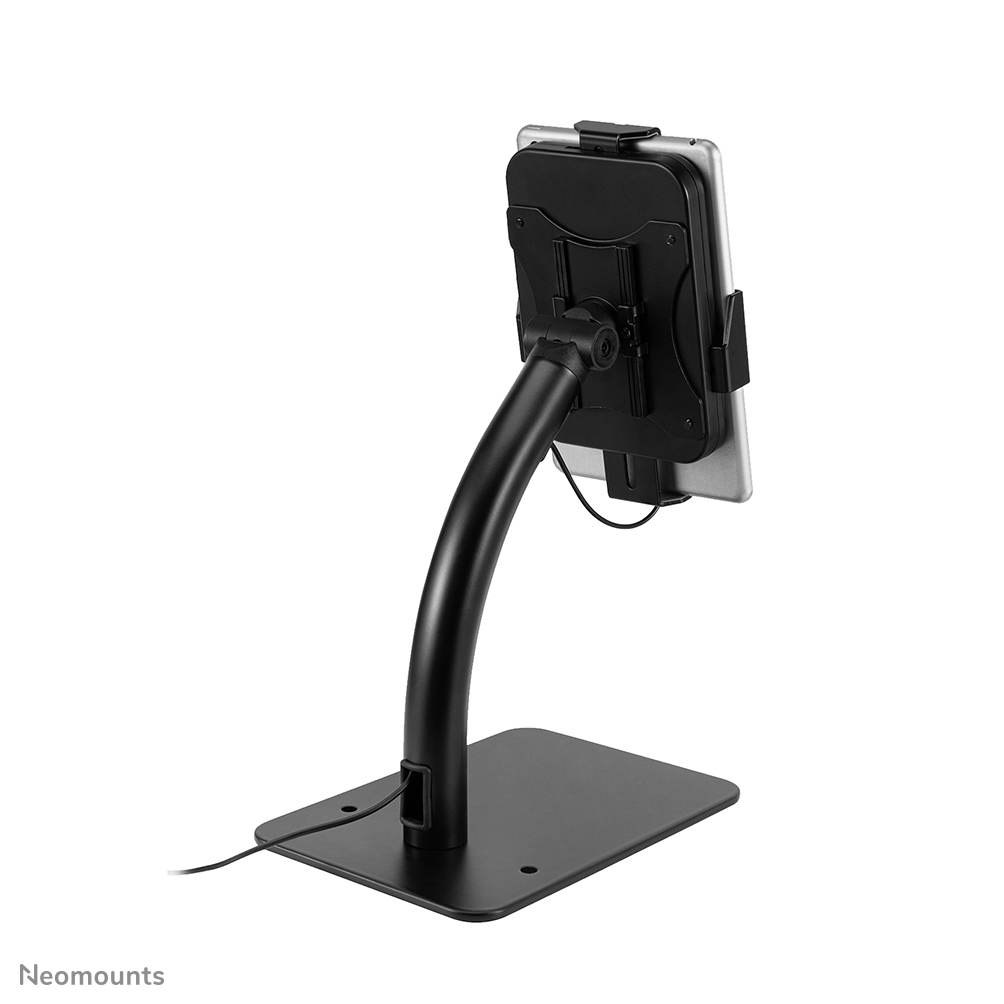

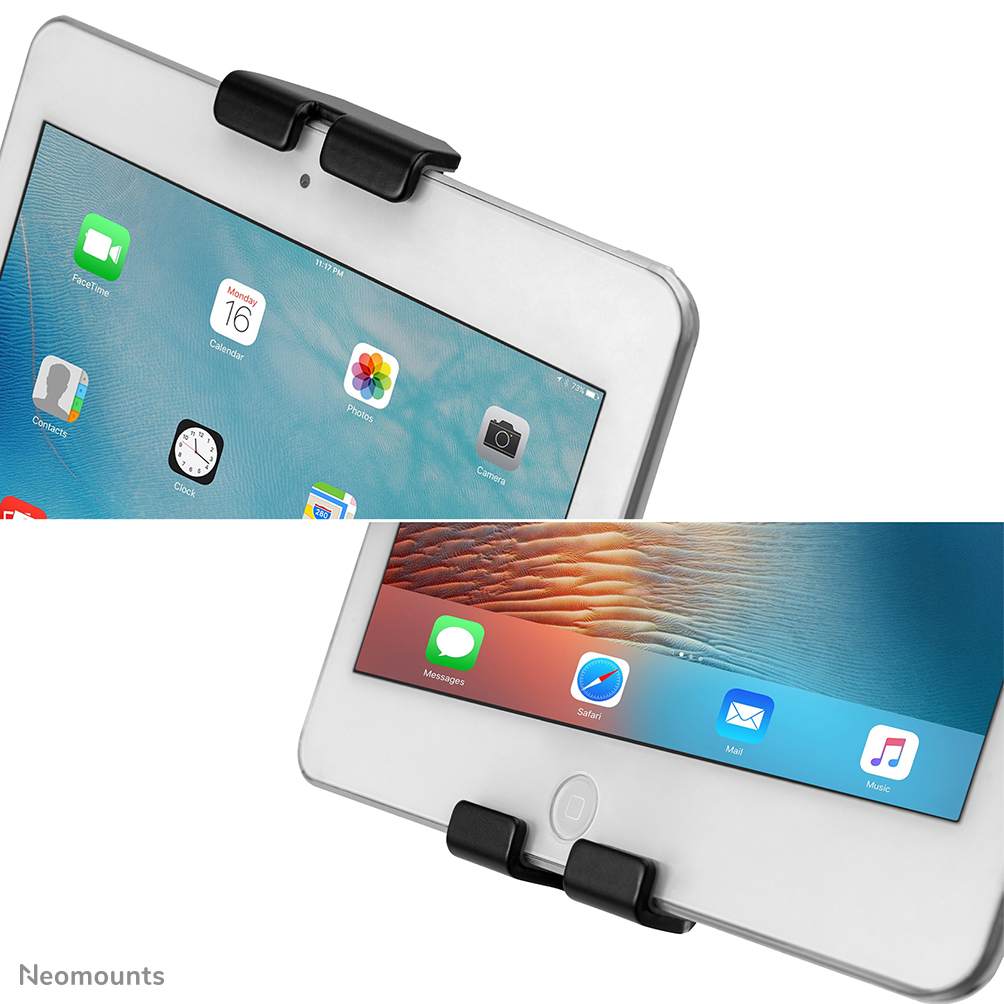

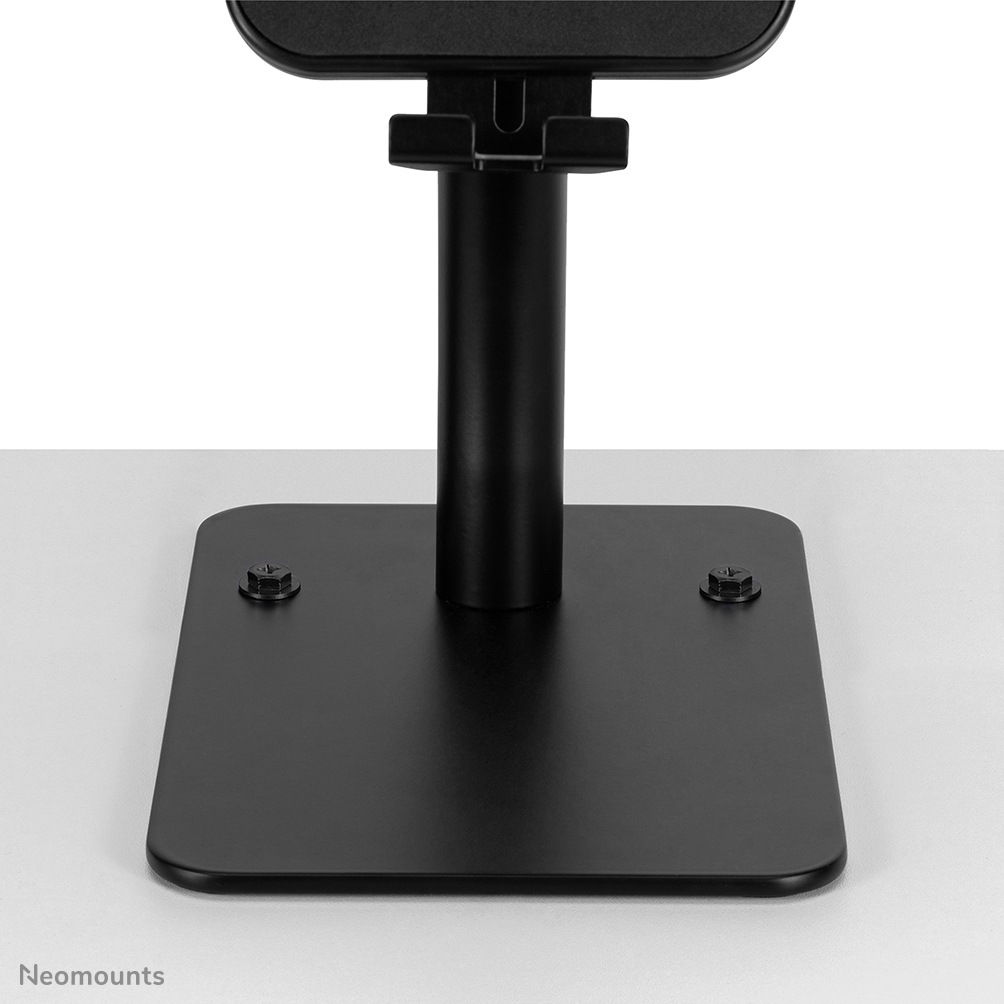

The tablet holder features an anti-theft lock and a bolt-down base for extra security. Anti-skid pads protect the tablet from any scratches, while the height and width adjustable clamps ensure safe and solid placement of the device. The upper part has a cut-out for the tablet's camera. Cables can be neatly routed via the internal cable management system. The DS15-625BL1 is suitable for tablets with a thickness of 0-8,5 mm.
Features
Minimum screen size
20.1 cm (7.9")
Maximum screen size
27.9 cm (11")
Product colour
Black
Material
Steel
Tilt angle range
-110 - 20°
Angle of rotation
360°
Maximum weight capacity
1 kg
Mounting type
Desk
Cable management
Yes
Tilt adjustment
Yes
Height adjustment
Yes
Rotating
Yes
Mounting
Stand
Country of origin
China

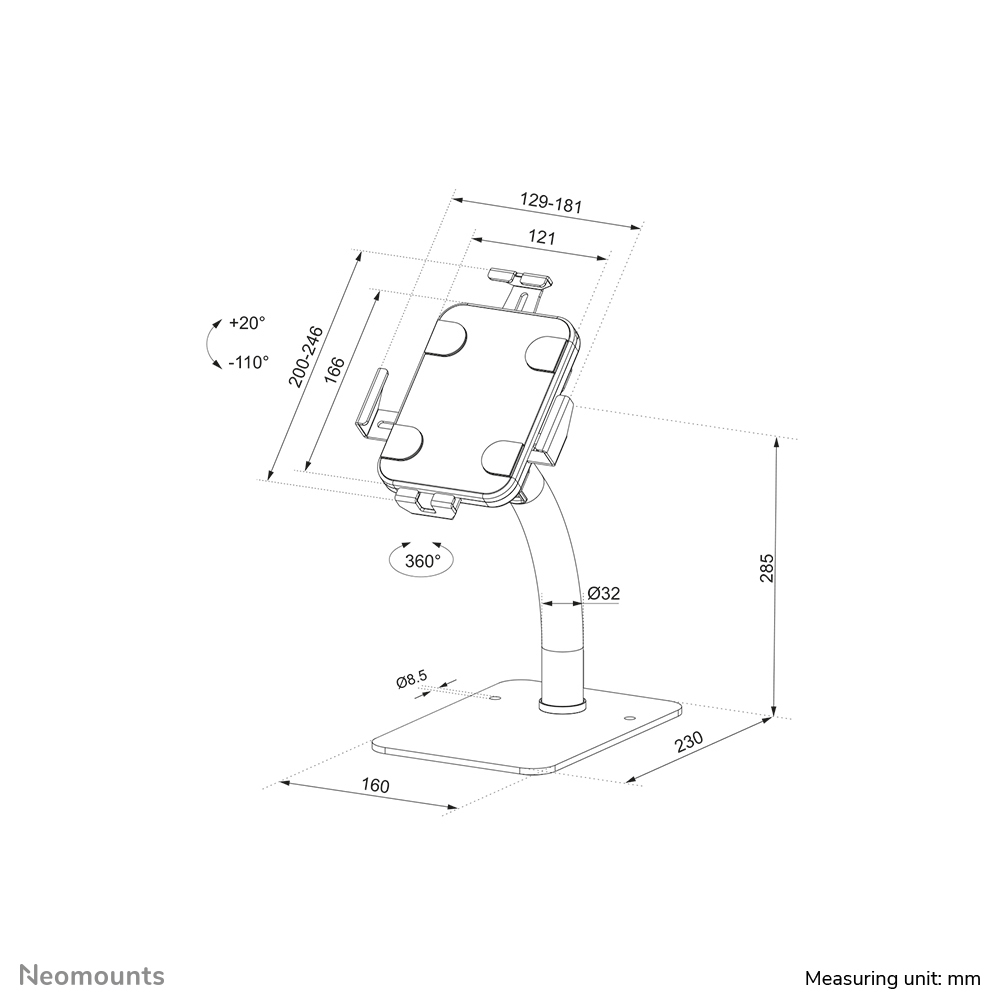

Weight & dimensions
Width
160 mm
Depth
230 mm
Height
415 mm
Weight
2.27 kg
Weight
2.27 kg
Width
160 mm
Depth
230 mm
Height
415 mm
Weight (max)
1 kg
Packaging data
Package width
175 mm
Package depth
107 mm
Package height
388 mm
Package weight
3.2 kg
Package weight
3.2 kg
Quantity per pack
1 pc(s)
Package net weight
3.2 kg
Package width
175 mm
Package depth
107 mm
Package height
388 mm
Packaging content
Quantity per pack
1 pc(s)
Technical details
Warranty period
5 year(s)
Adjustable
Y
Mounting
Freestanding
Warranty period
5 year(s)
Lockable

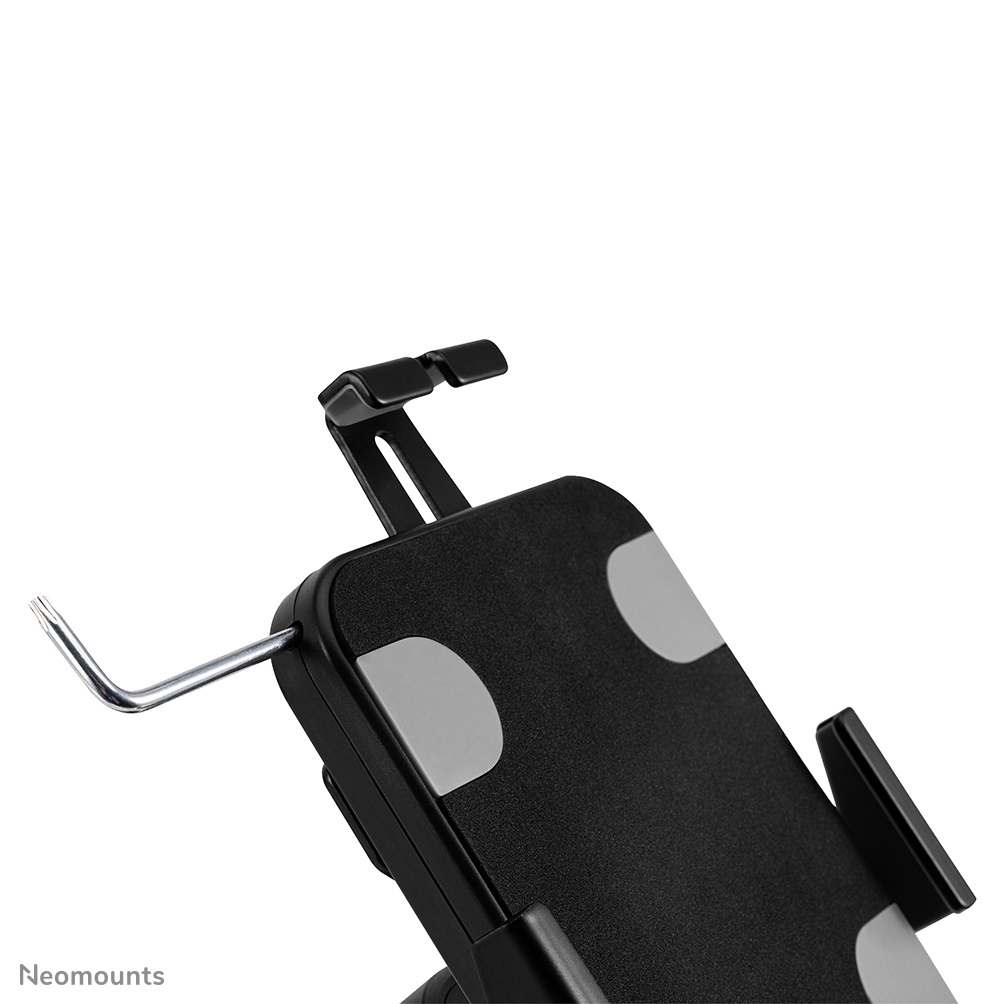

Security screw included
Logistics data
Harmonized System (HS) code
7326909890
Products per master (outer) case
6 pc(s)
Master (outer) case gross weight
19 kg
Master (outer) case length
235 mm
Master (outer) case width
405 mm
Master (outer) case height
545 mm
Products per pallet (EU)
150 pc(s)
Harmonized System (HS) code
HS7326909890
Products per pallet (EU)
150 pc(s)
Master (outer) case width
405 mm
Master (outer) case length
235 mm
Master (outer) case height
545 mm
Products per master (outer) case
6 pc(s)
Master (outer) case gross weight
19 kg
Design
Type
Passive holder
Mobile device type
Tablet/UMPC
Proper use
Desk, Indoor
Material
Steel
Device mount type
Clamp mount
Product colour
Black
Orientation
Horizontal/Vertical
Country of origin
China
Number of displays supported
1
Tilt adjustment
Yes
Rotating
Yes
Ergonomics
Tilt angle range
-110 - 20°
Pivot angle
0 - 360°
Angle of rotation
360°
Maximum device depth
8.5 mm
Height adjustment
Y
Adjustable width
Y
Minimum screen size
20.1 cm (7.9")
Maximum screen size
27.9 cm (11")
Cable management
Y
Protection features
Scratch resistant
Other features
Mounting kit
Y
Maximum weight capacity
1 kg
Mounting type
Desk
Product type
Countertop tablet holder
