Introduction

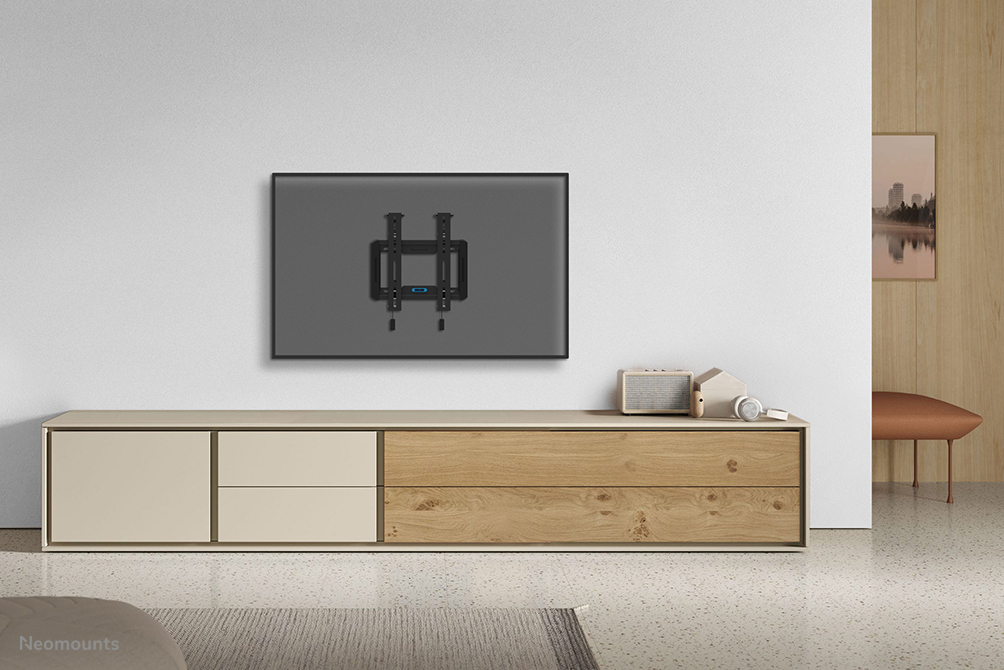

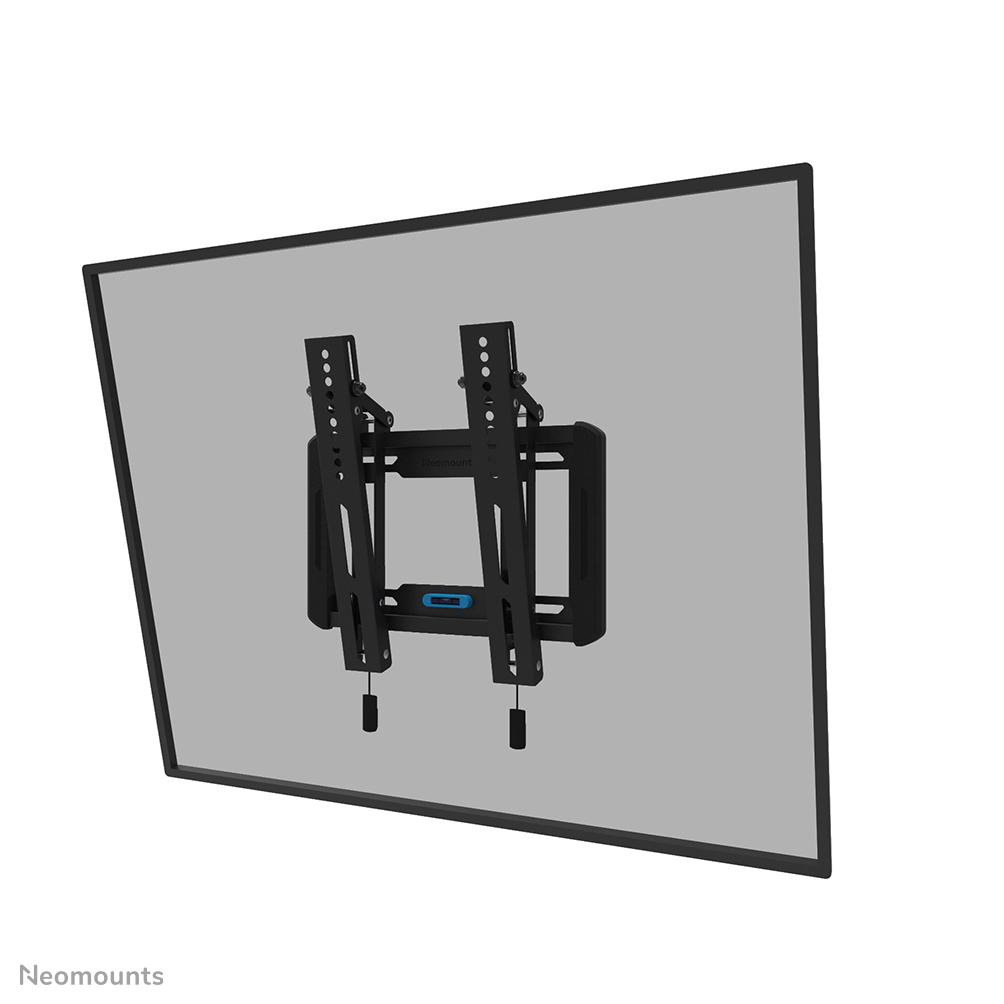

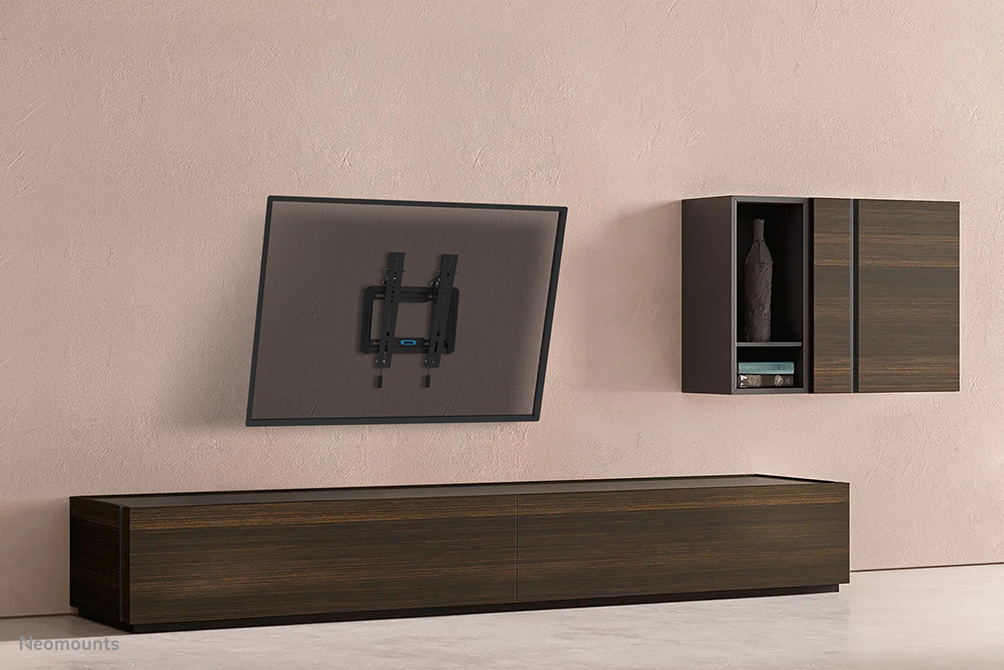

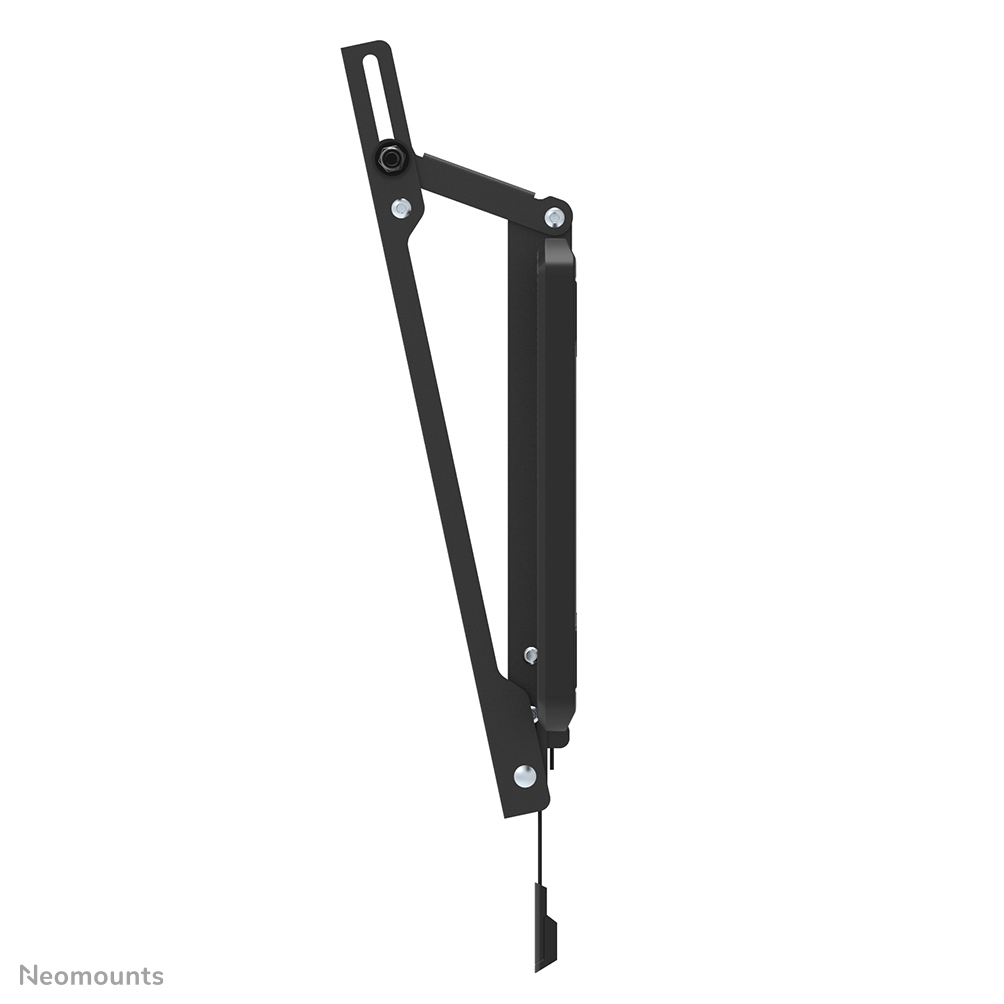

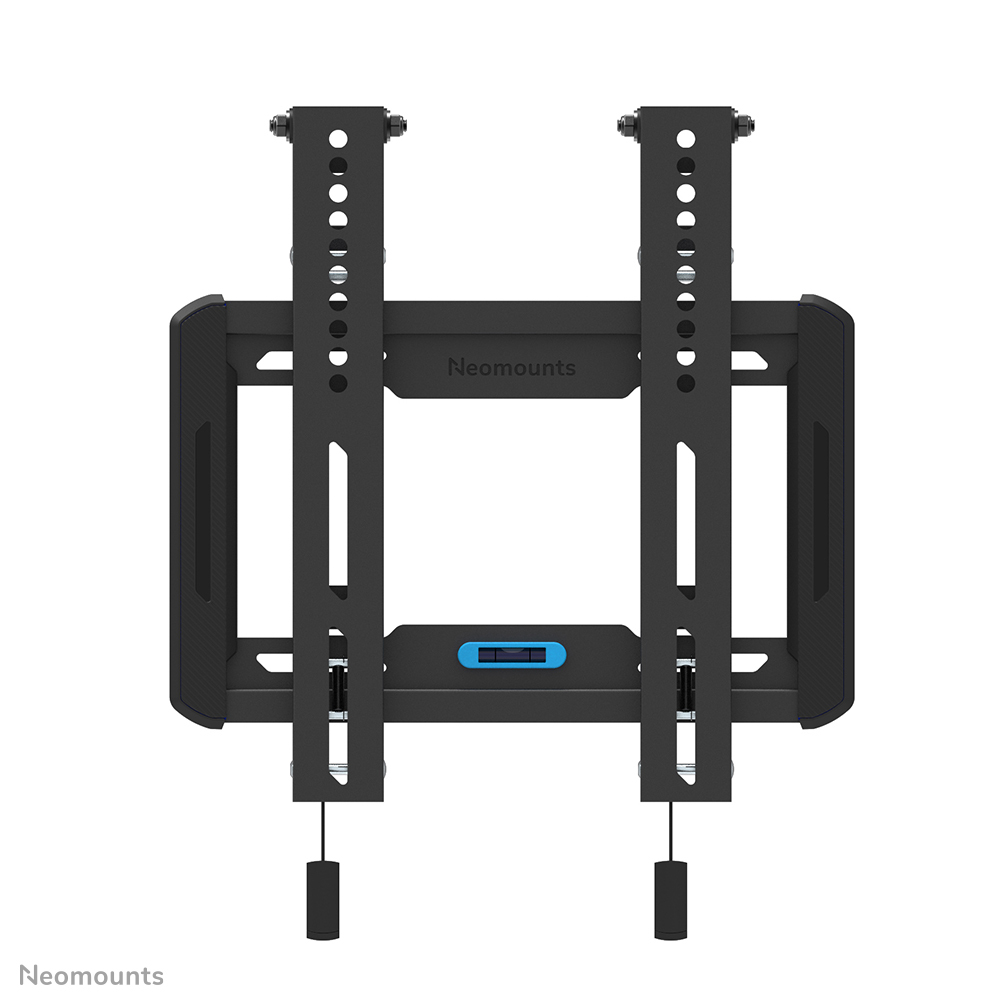

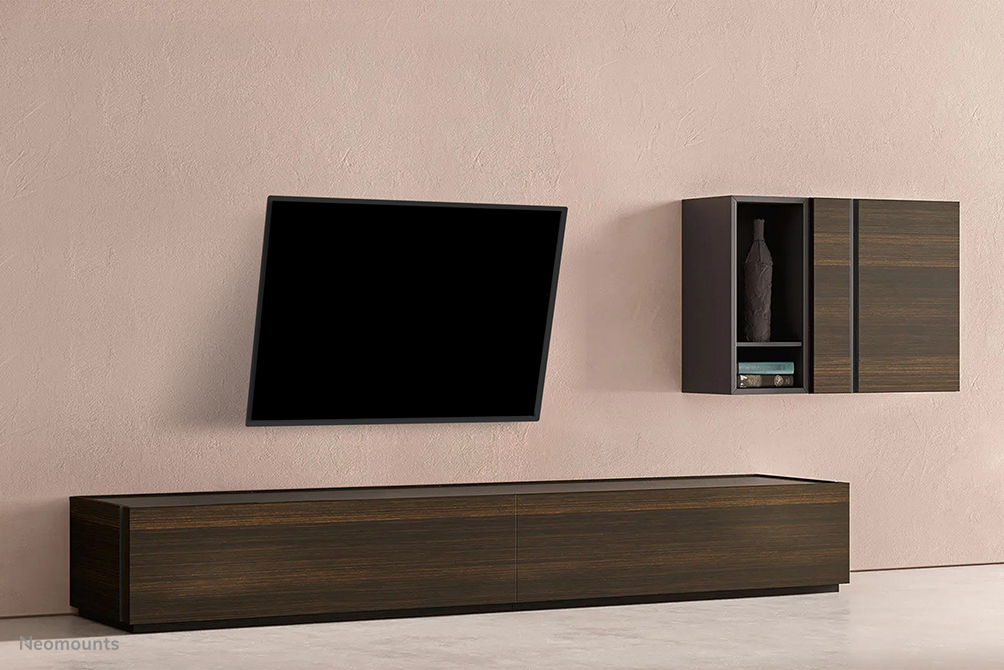

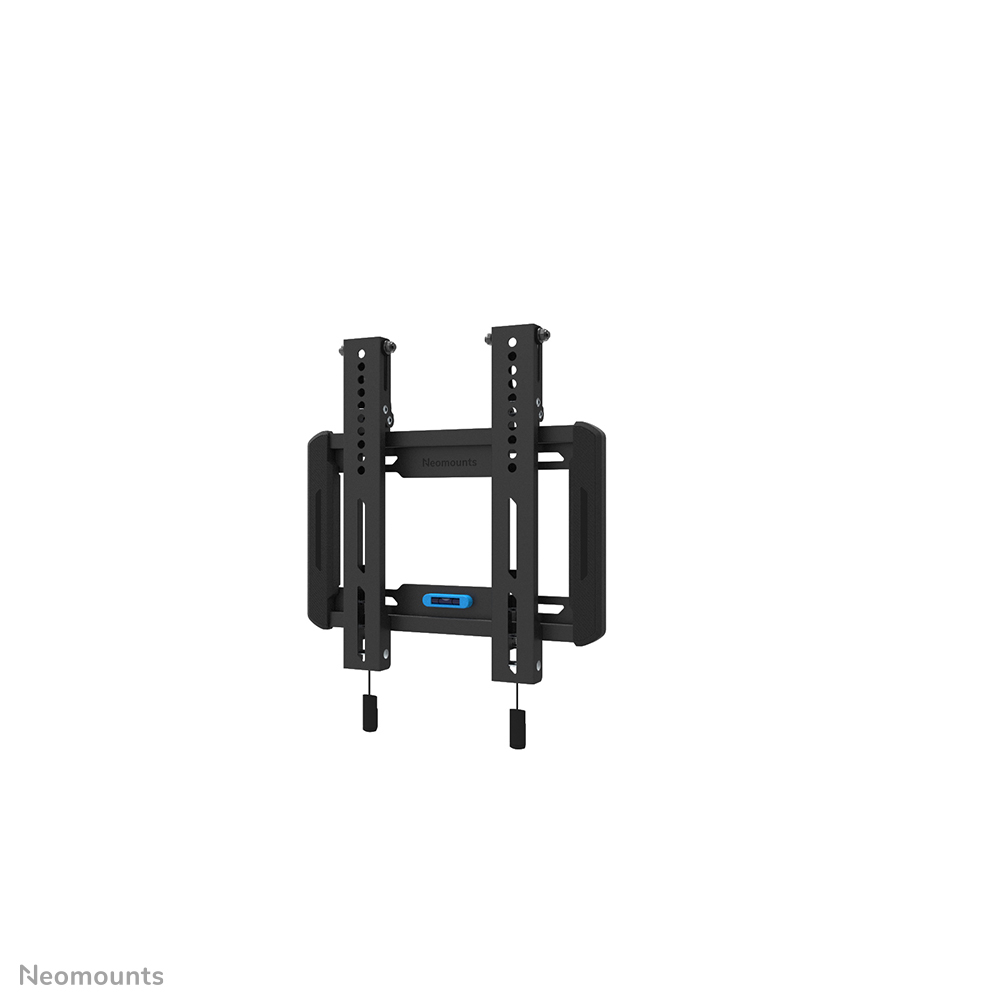

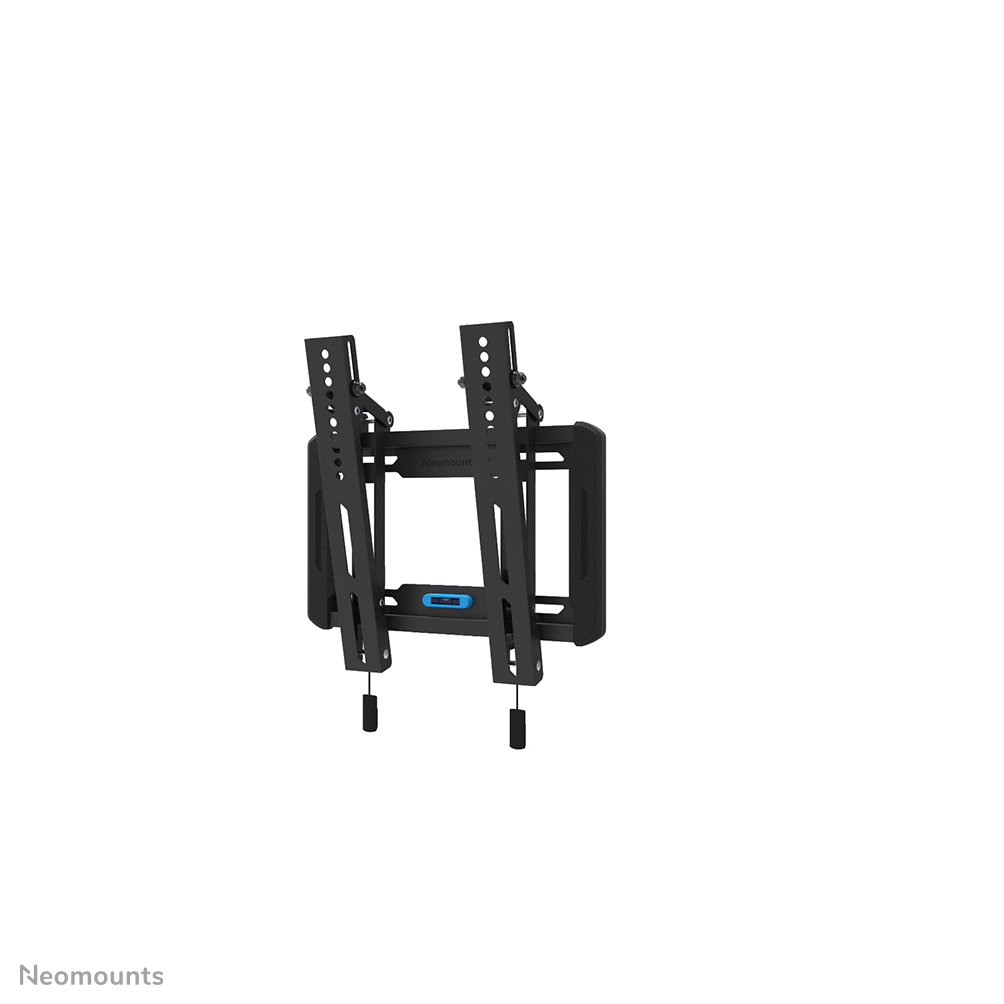

The Neomounts by Newstar WL35-550BL12 is a tiltable wall mount for flat screens up to 55" with a maximum weight capacity of 45 kg. The versatile tilt (12°) technology allows you to create the optimum viewing angle.

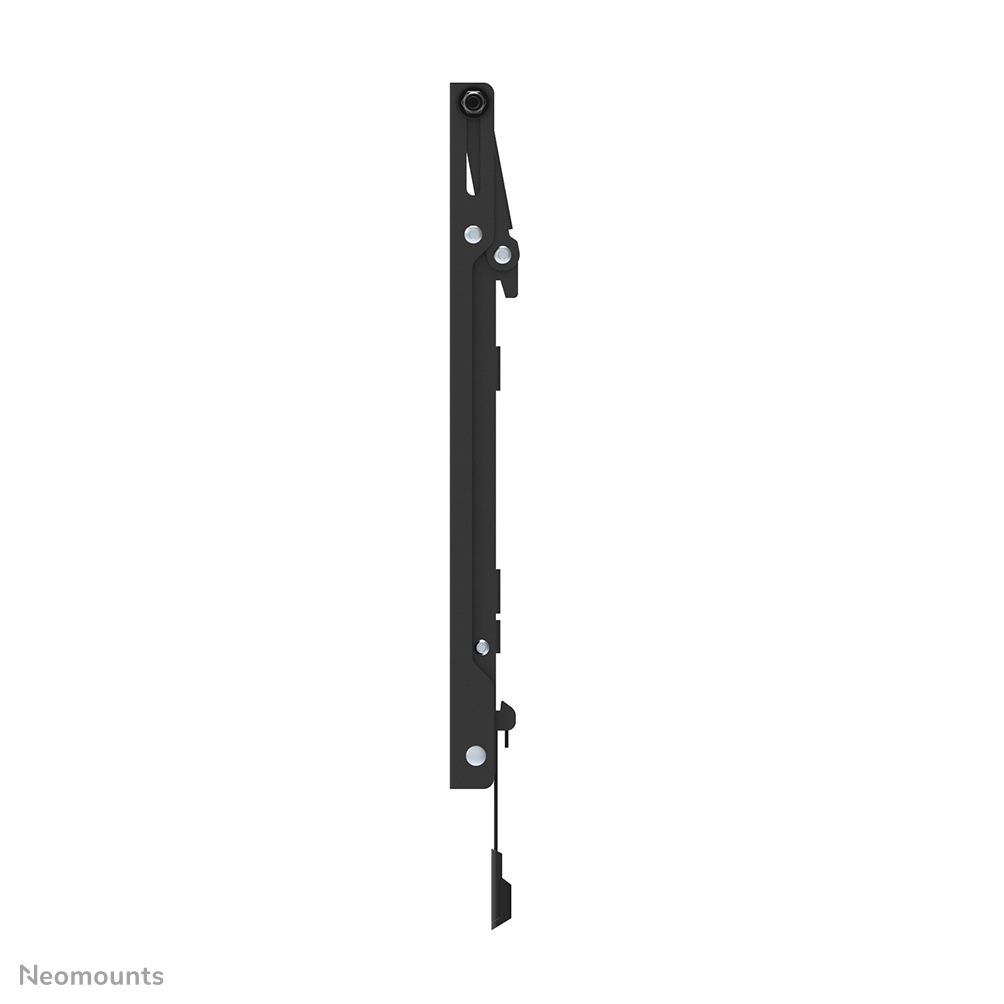

The WL35-550BL12 has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 75x75 to 200x200 mm.

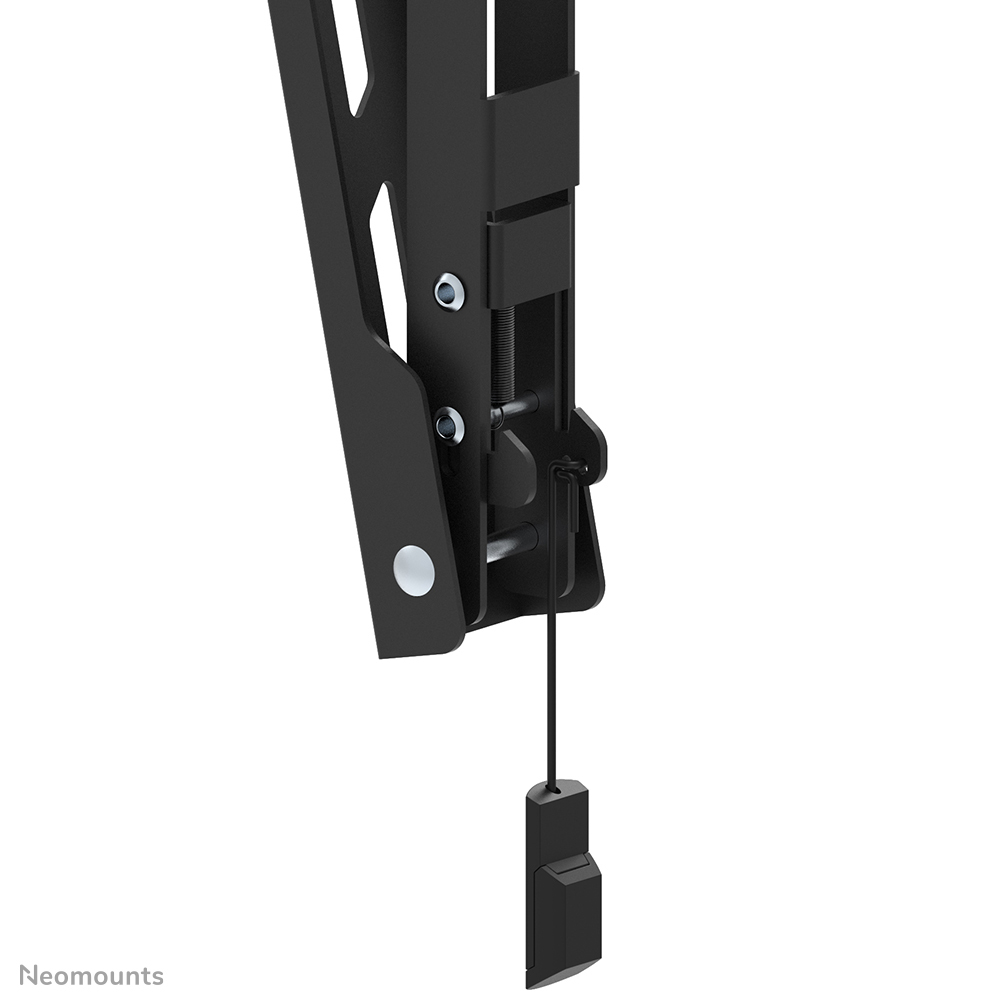

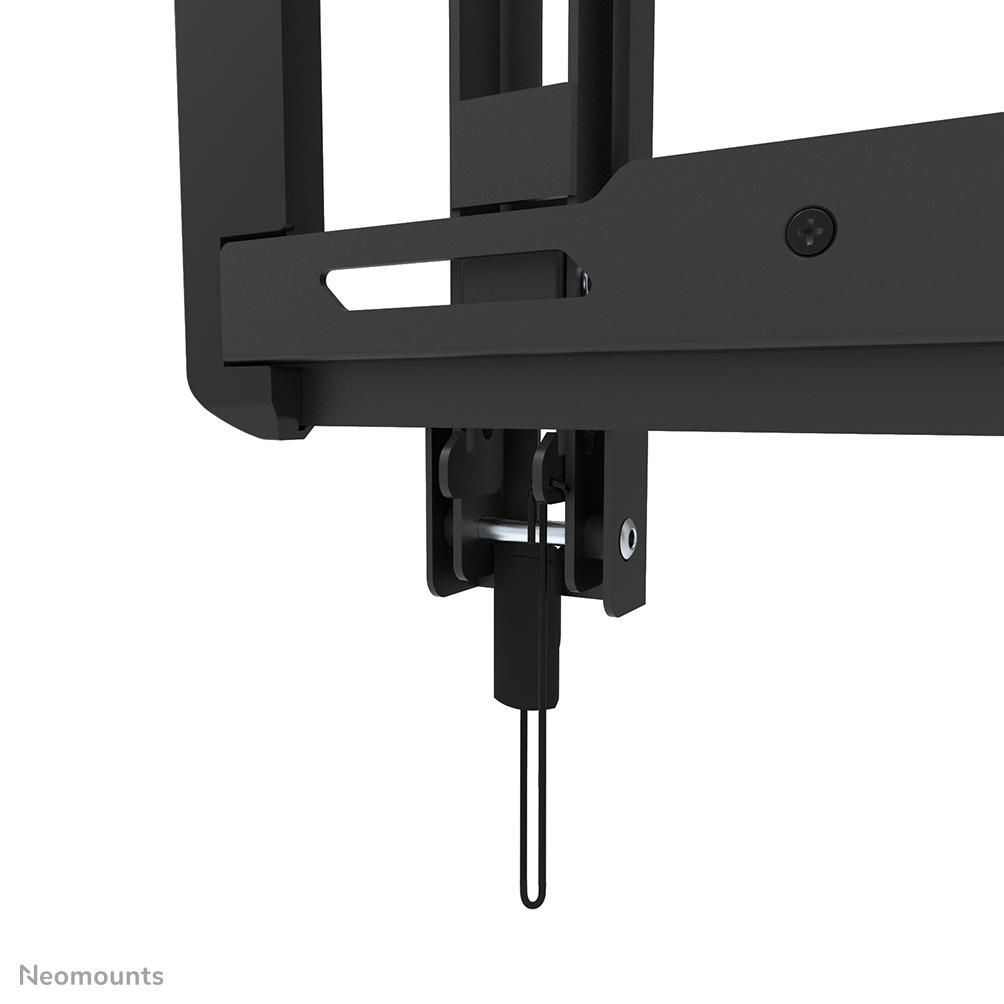

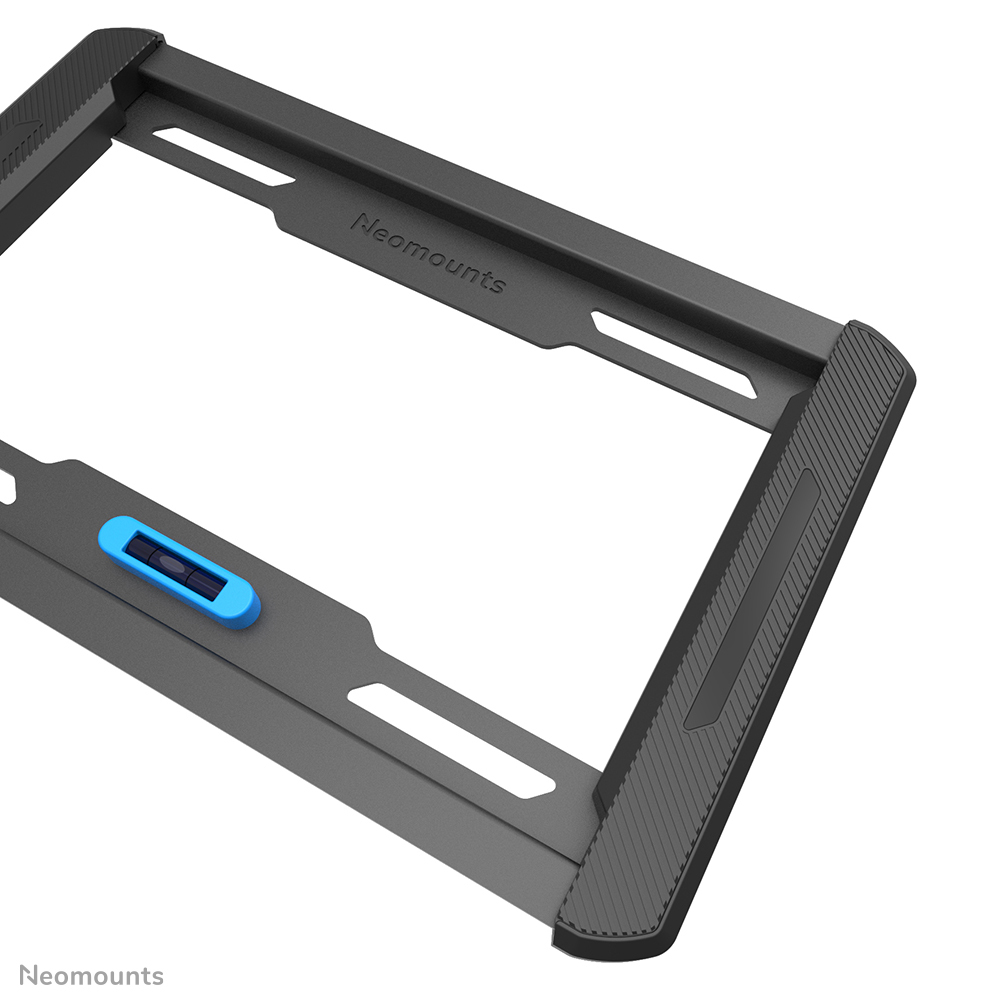

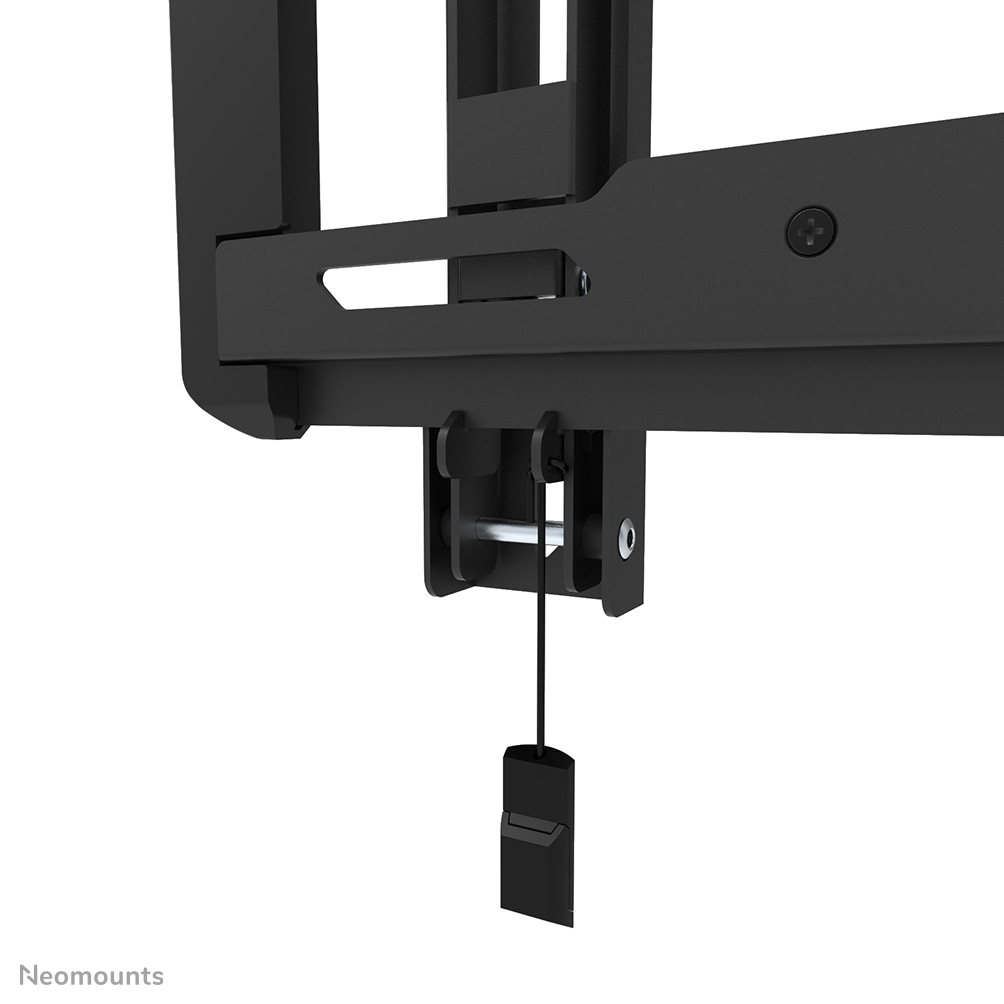

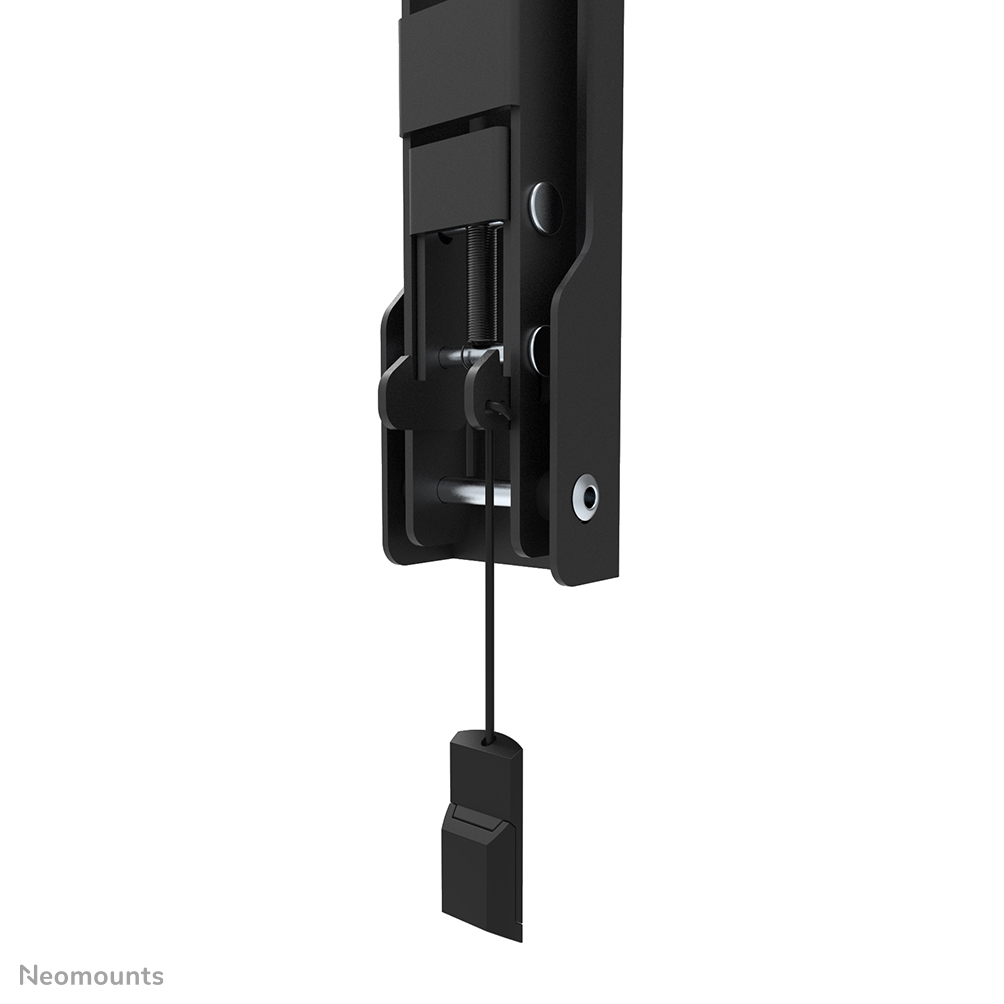

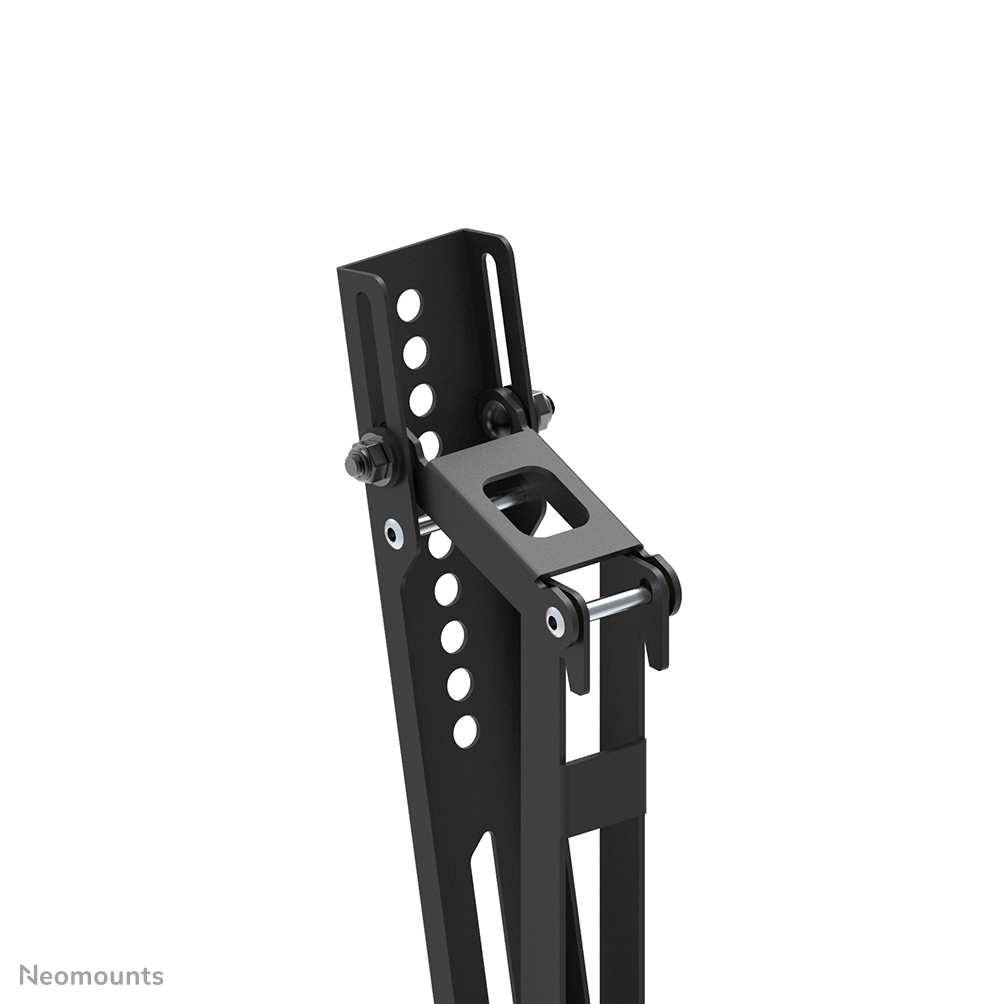

The mount features a nifty magnetic pull %26 release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull %26 release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.
Mounting
Maximum weight capacity (per display)
40 kg
Minimum screen size
61 cm (24")
Maximum weight capacity
45 kg
Maximum screen size
139.7 cm (55")
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
200 x 200 mm
Panel mounting interface
75 x 75,75 x 100,75 x 200,100 x 100,100 x 150,100 x 200,100 x 75,120 x 120,200 x 100,200 x 200
Number of displays supported
1
Mounting type
Wall

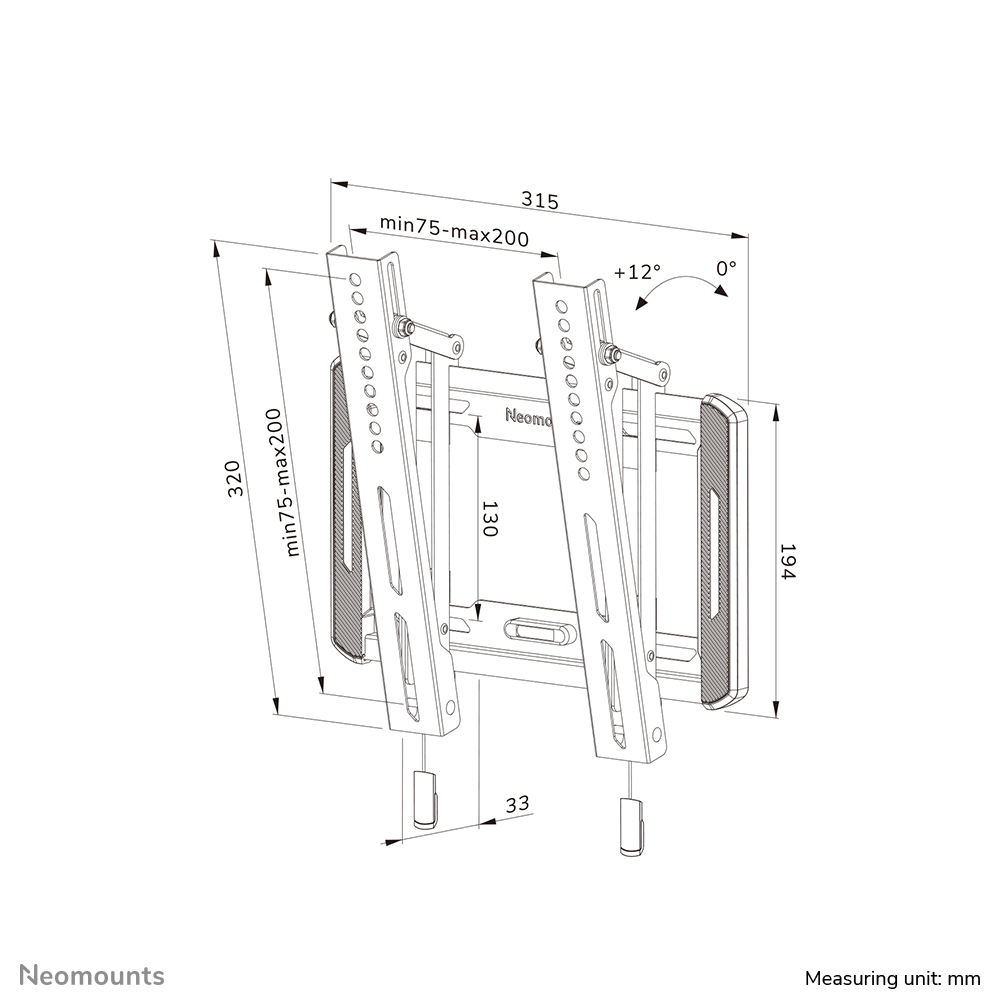

Weight & dimensions
Depth (max)
3.3 cm
Weight
1.45 kg
Width
315 mm
Depth
36 mm
Height
320 mm
Packaging data
Package weight
2 kg
Package width
342 mm
Package depth
208 mm
Package height
58 mm
Ergonomics
Tilt adjustment
Yes
Height adjustment
N
Tilt angle range
0 - 12°
Distance to the wall (max)
3.3 cm
Design
Housing material
Steel
Product colour
Black
Technical details
Lockable
Not lockable
Package net weight
2 kg
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case gross weight
16.5 kg
Master (outer) case width
492 mm
Master (outer) case length
357 mm
Master (outer) case height
230 mm
Master (outer) case net weight
12.2 kg
Products per master (outer) case
8 pc(s)
Harmonized System (HS) code
HS83025000
Products per pallet (EU)
224 pc(s)
Other features
Country of origin
China
Information
| Part Number: | WL35-550BL12 |
