Introduction

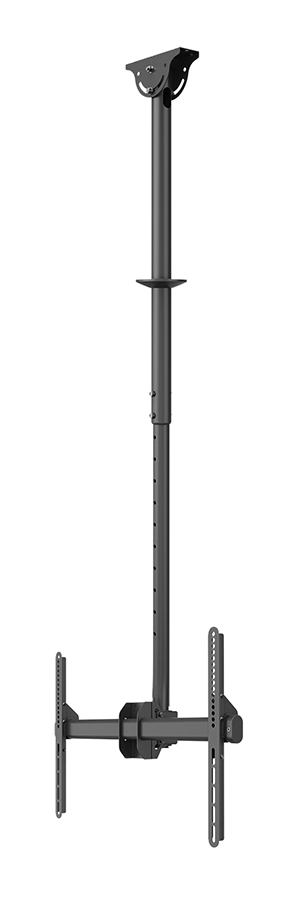

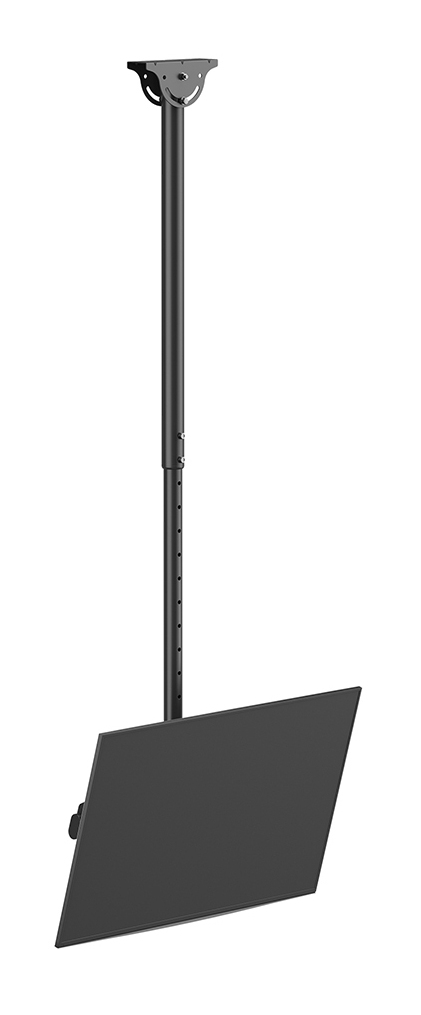

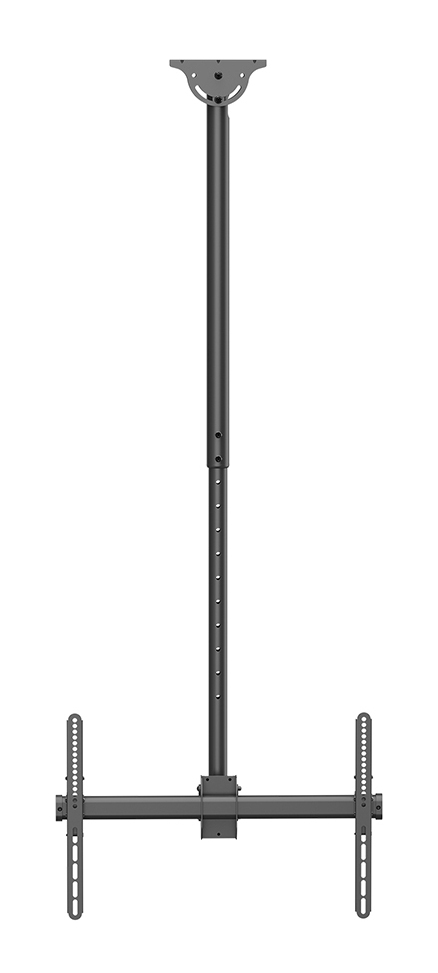

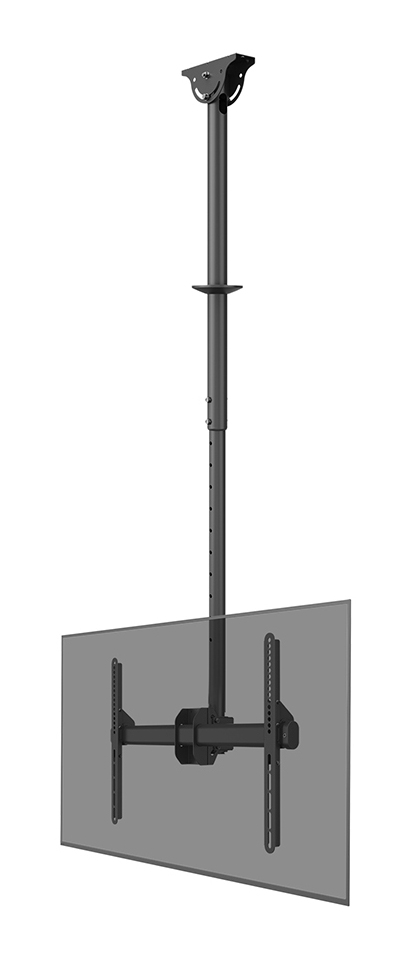

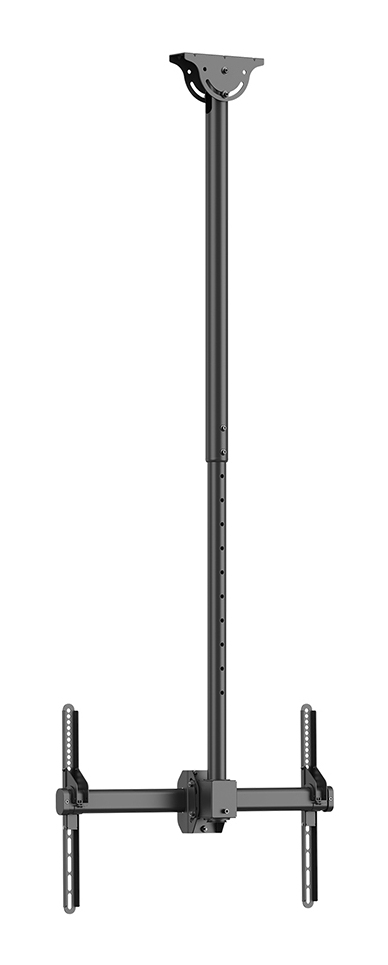

The Neomounts CL35-440BL16L is a full motion ceiling mount for flat screens up to 70". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation.

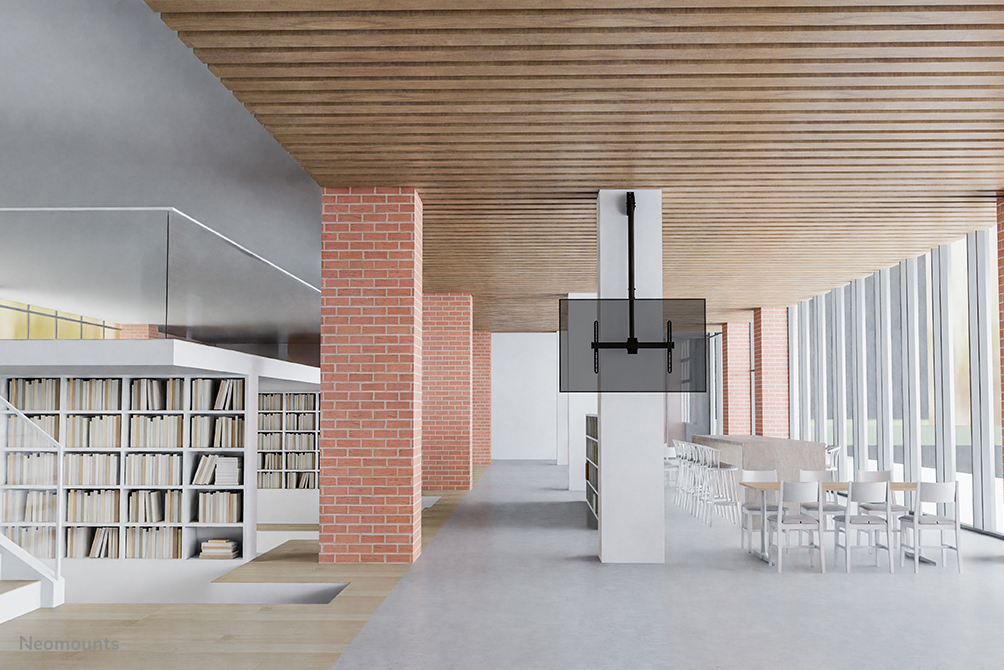

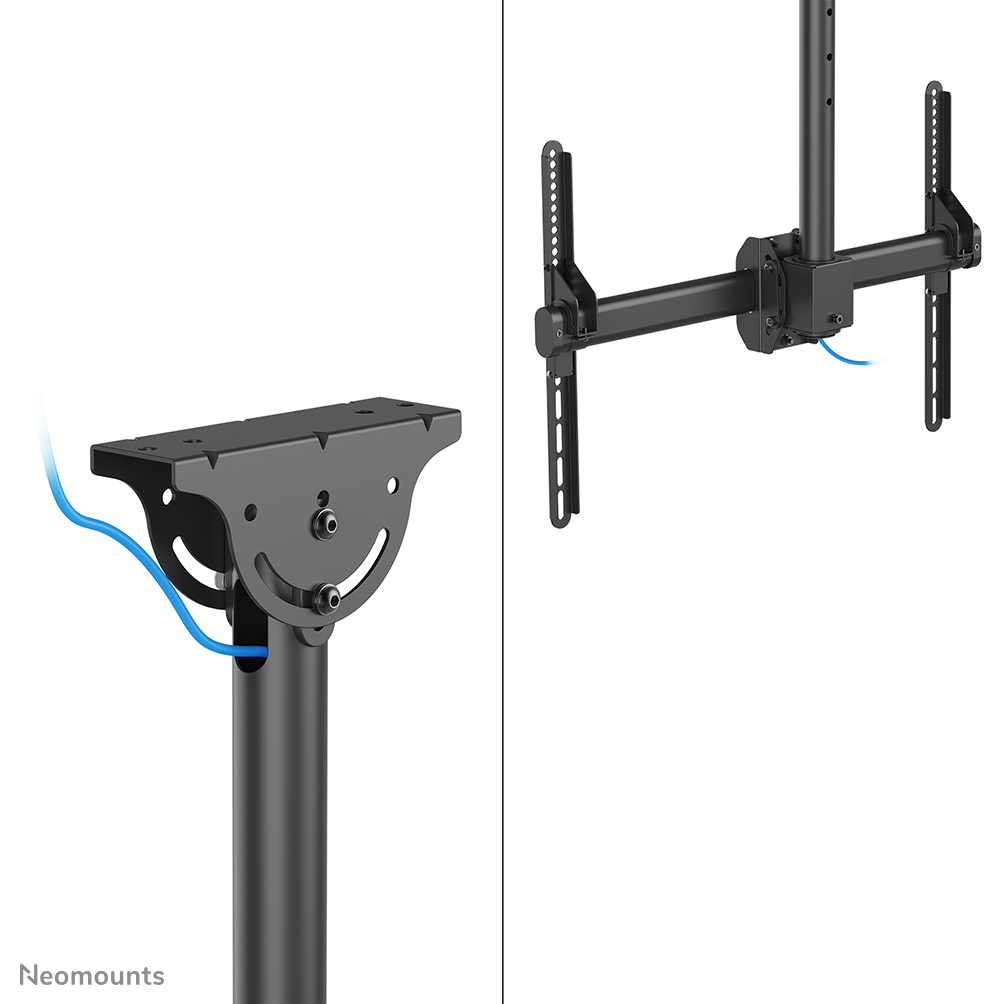

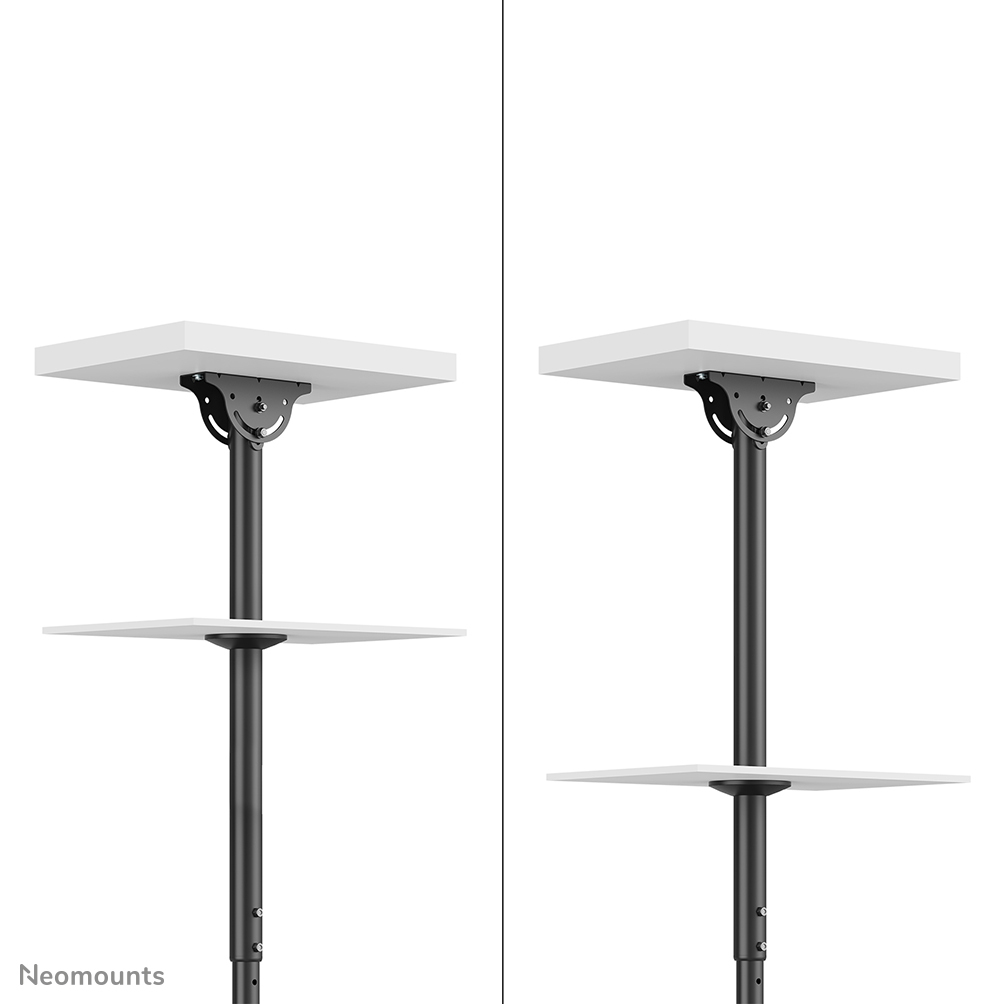

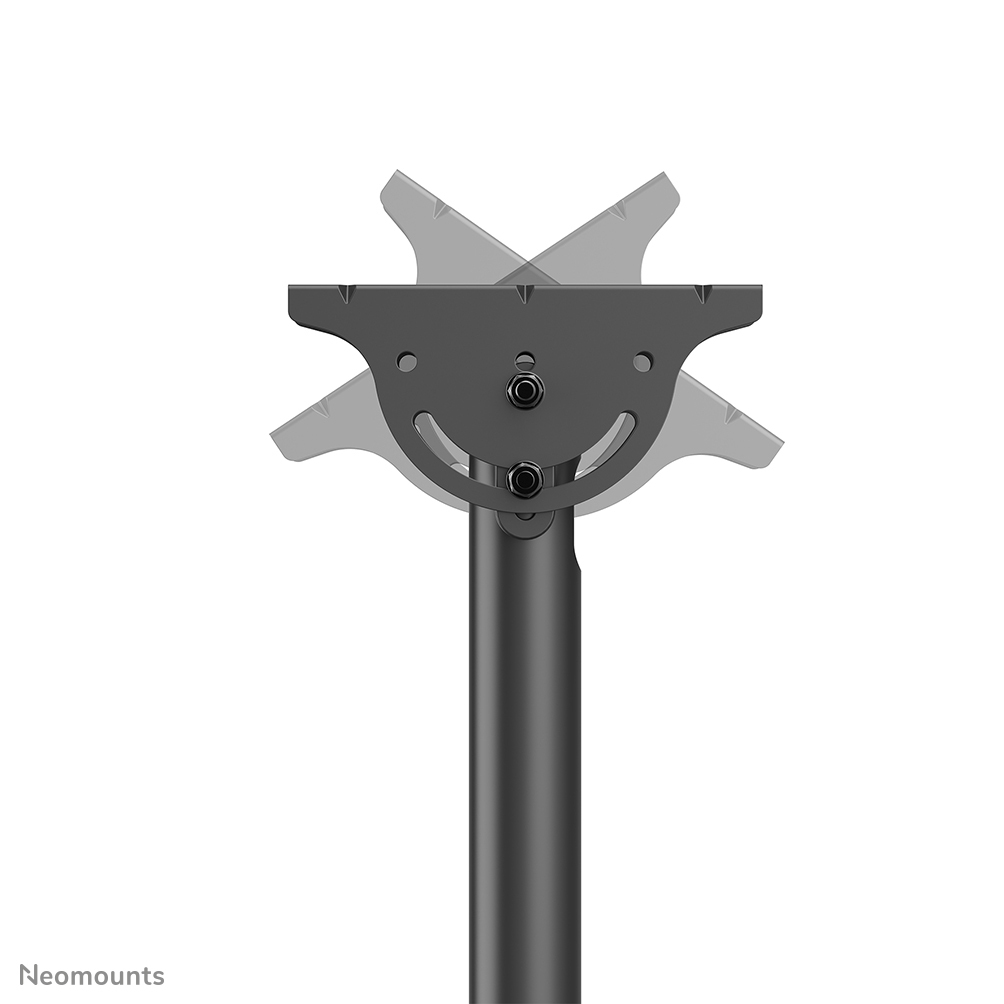

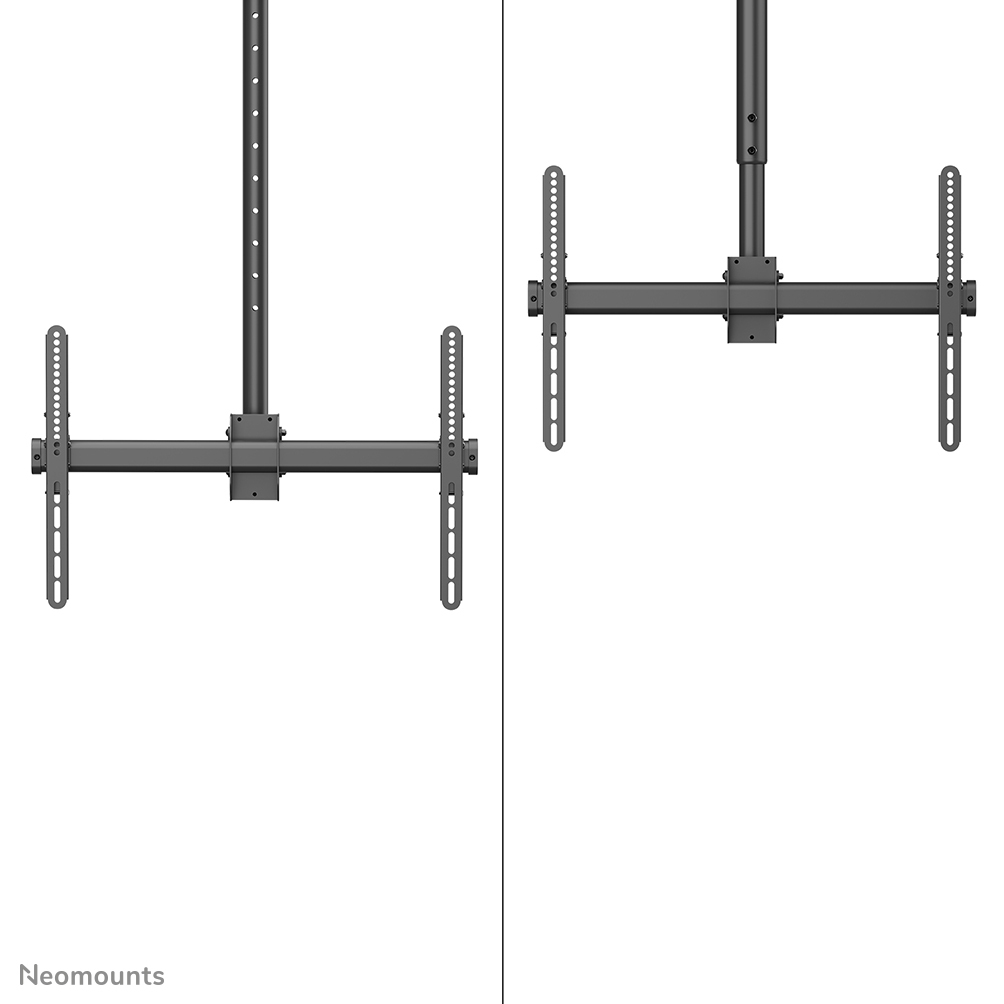

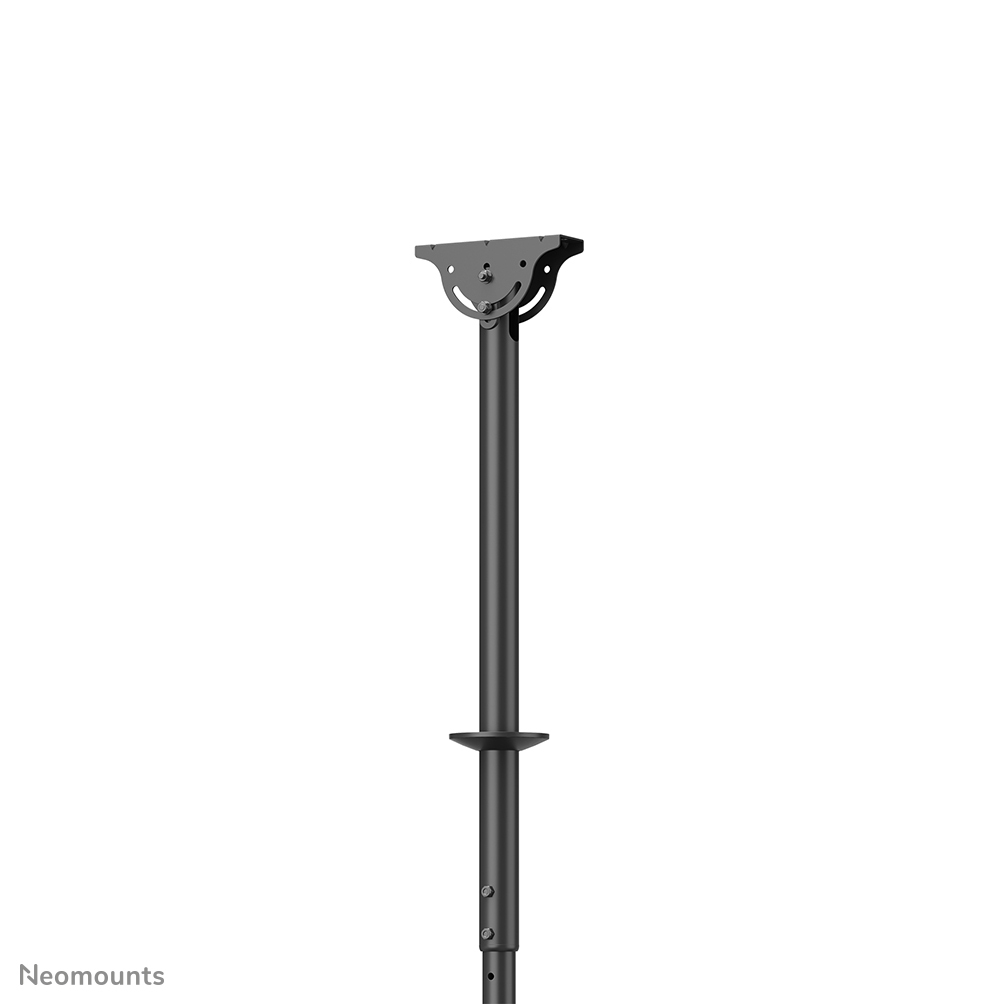

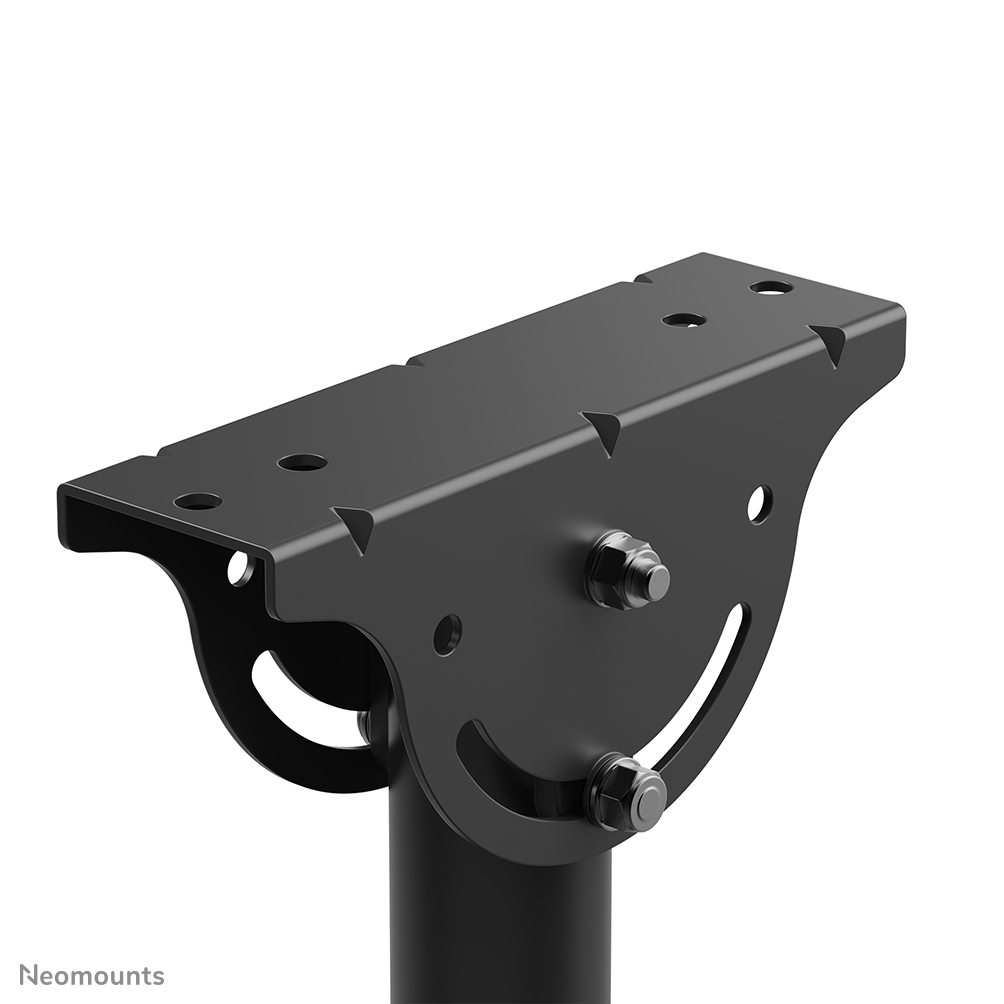

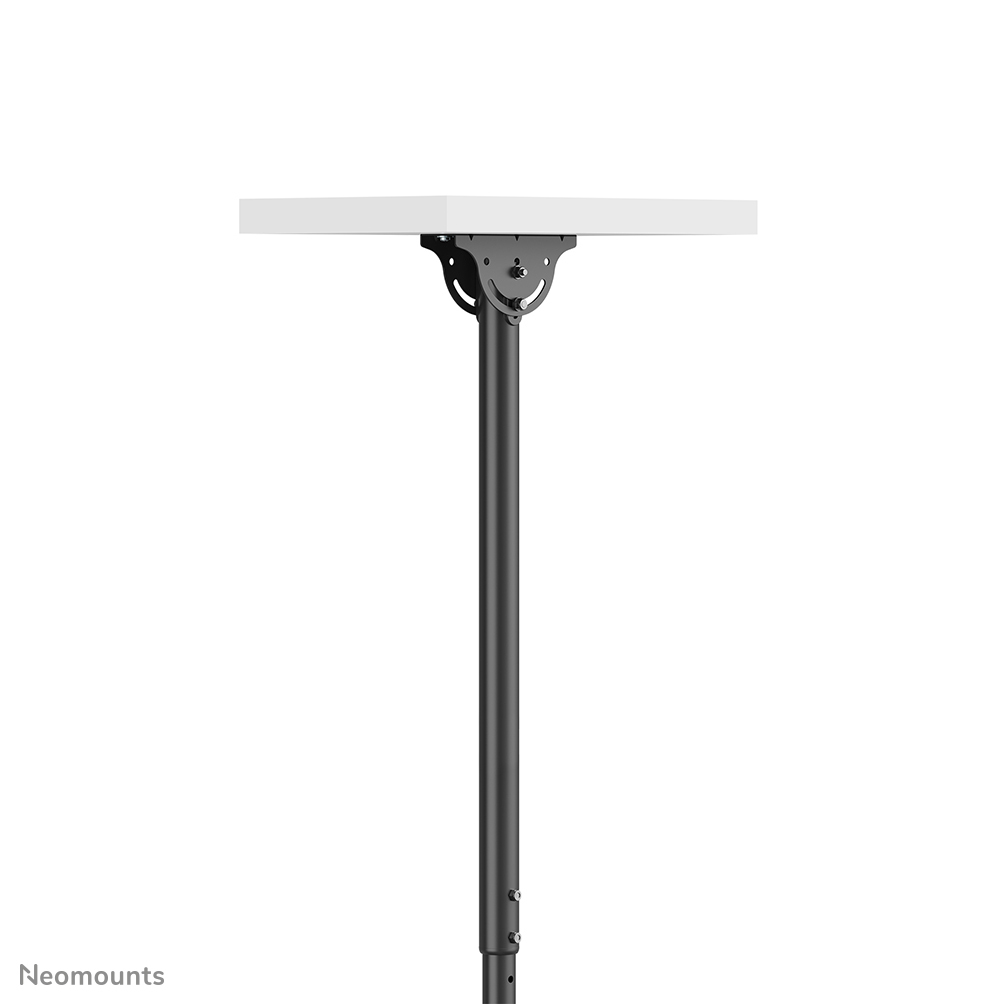

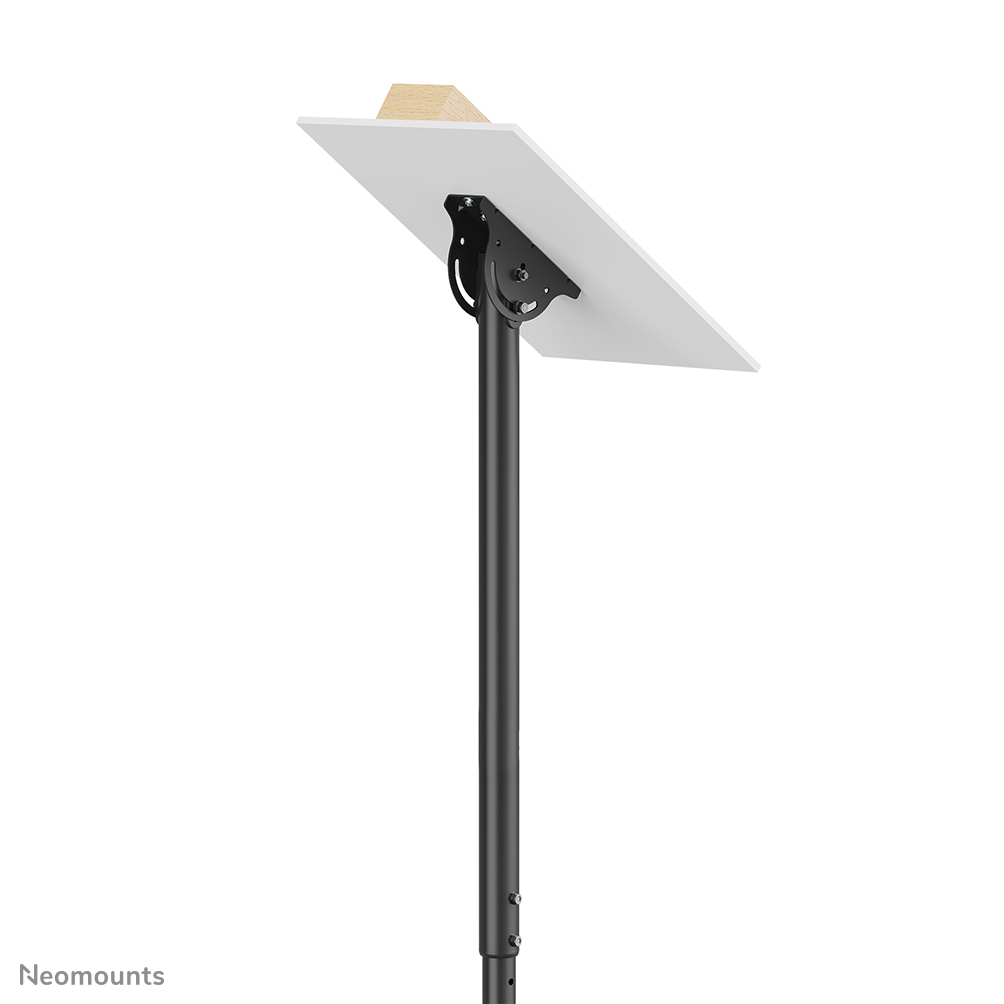

The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The CL35-440BL16L is suitable for screens that meet VESA hole pattern 150x200 to 600x400 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.

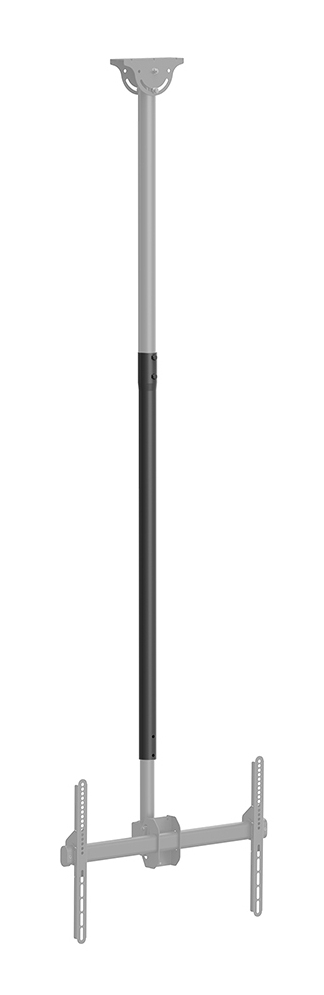

* The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107,5 cm.
Mounting
Minimum screen size
94 cm (37")
Maximum weight capacity
50 kg
Maximum screen size
177.8 cm (70")
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
600 x 400 mm
Panel mounting interface
200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,350 x 350,400 x 200
Number of displays supported
1
Mounting type
Ceiling
Maximum weight capacity (per display)
50 kg
Ergonomics
Height adjustment
Yes
Height adjustment type
Manual
Height adjustment range
1060 - 1560 mm
Tilt adjustment
Yes

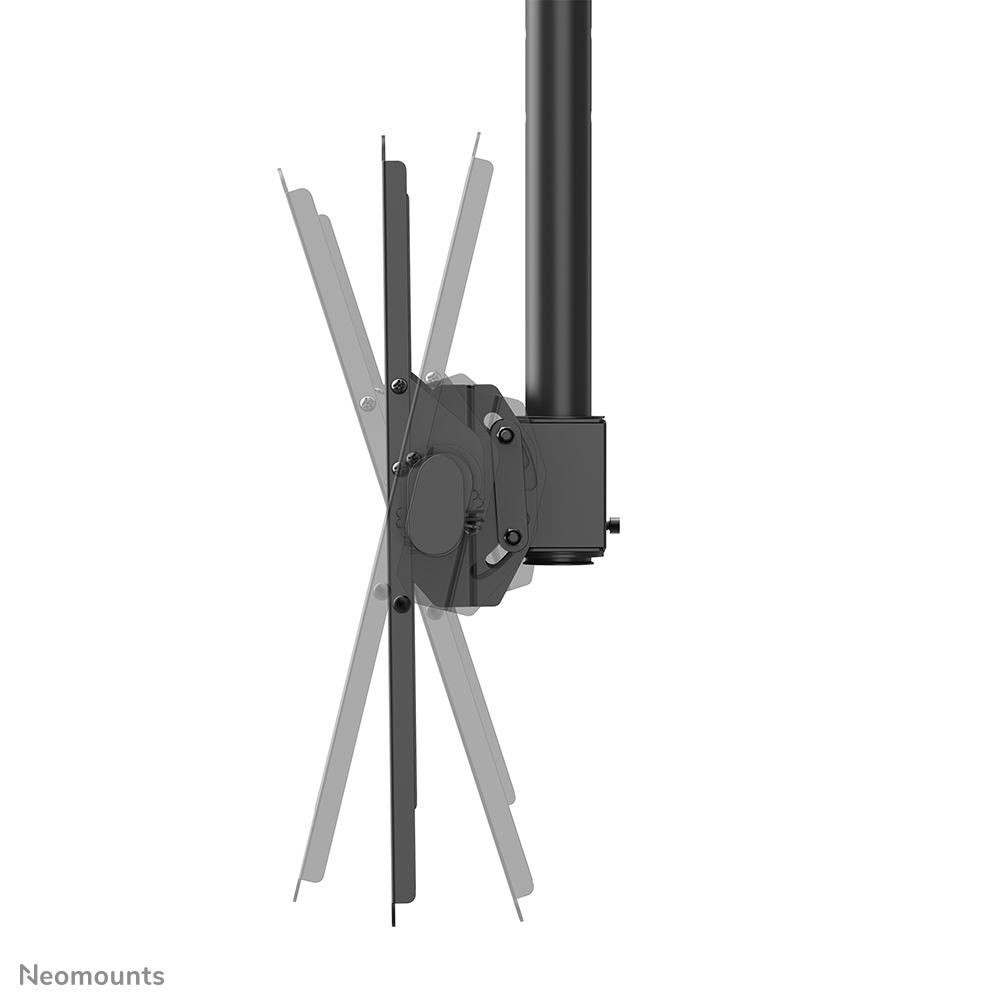

Tilt angle range
-25 - 0°
Swivelling
Yes

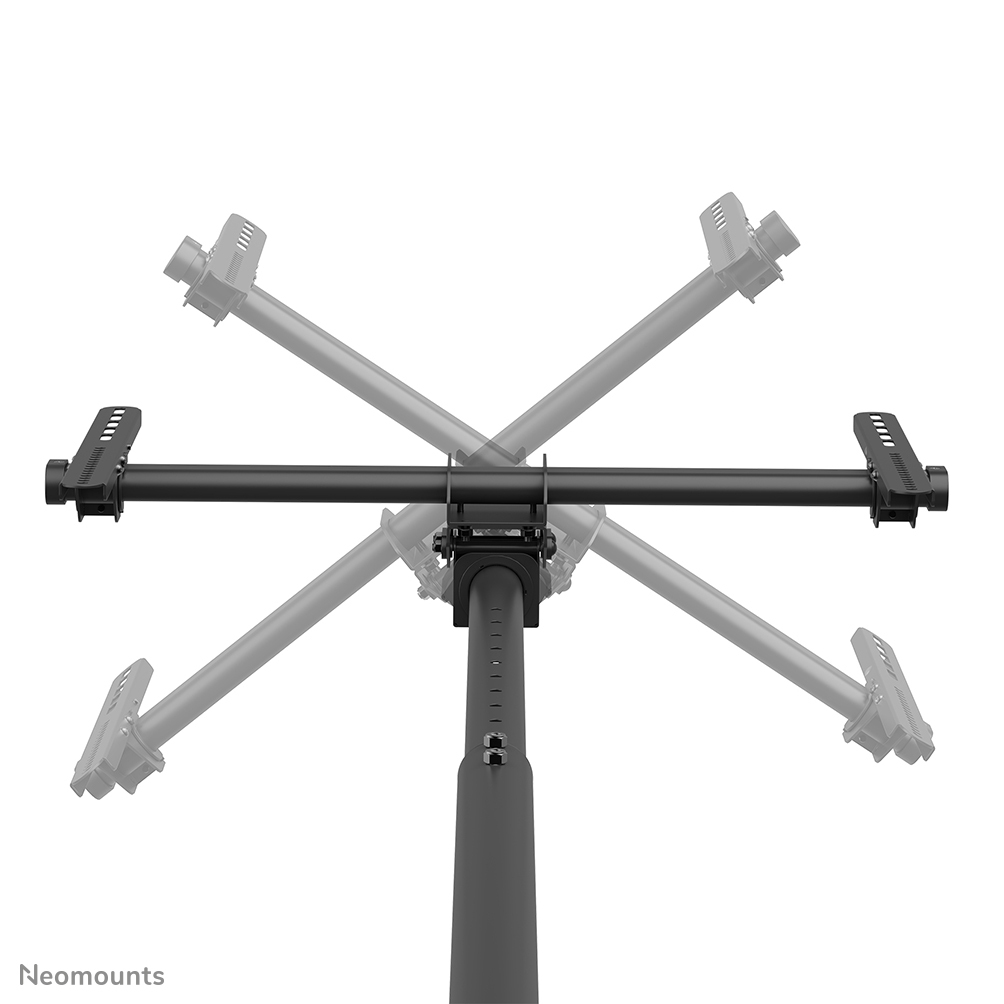

Swivel angle range
-180 - 180°
Rotating
Yes
Angle of rotation
6°
Cable management
Yes

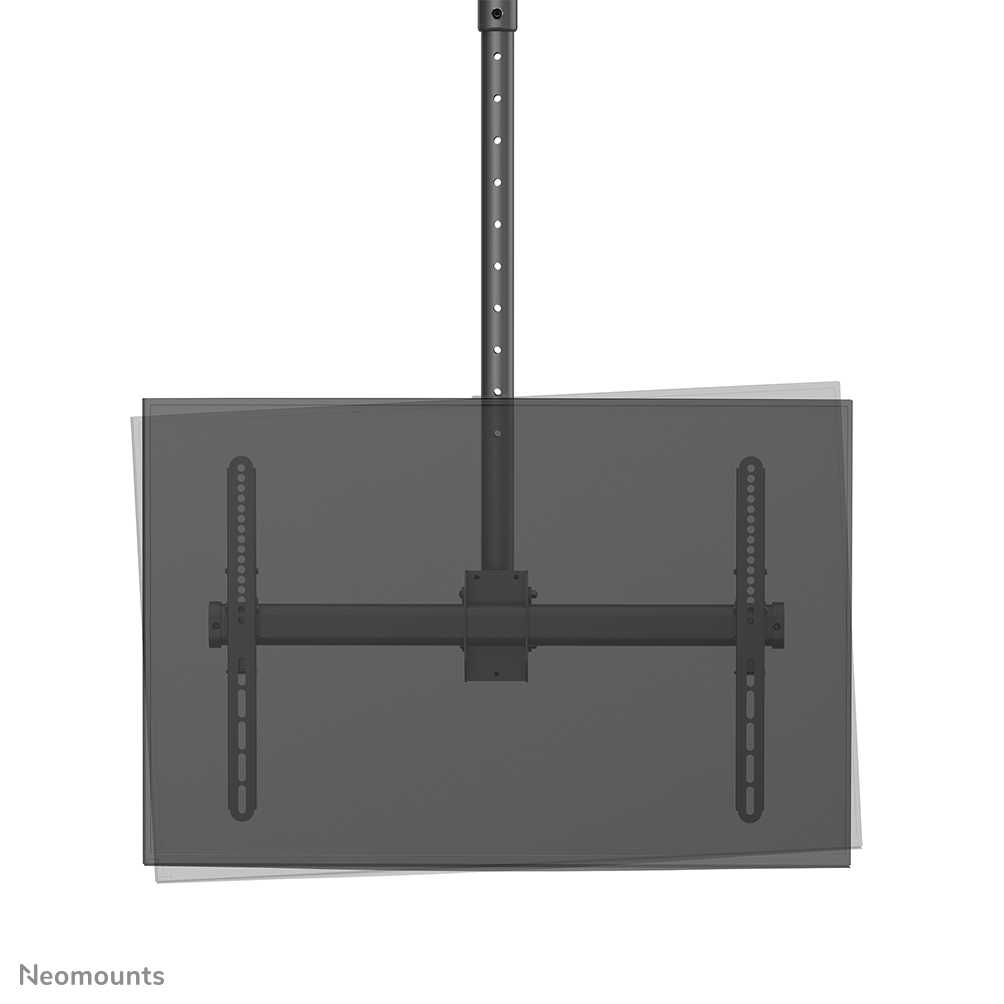

Pivot angle
-3 - 3°
Design
Product colour
Black
Housing material
Steel
Technical details
Country of origin
China
Warranty period
5 year(s)
Lockable
Not lockable

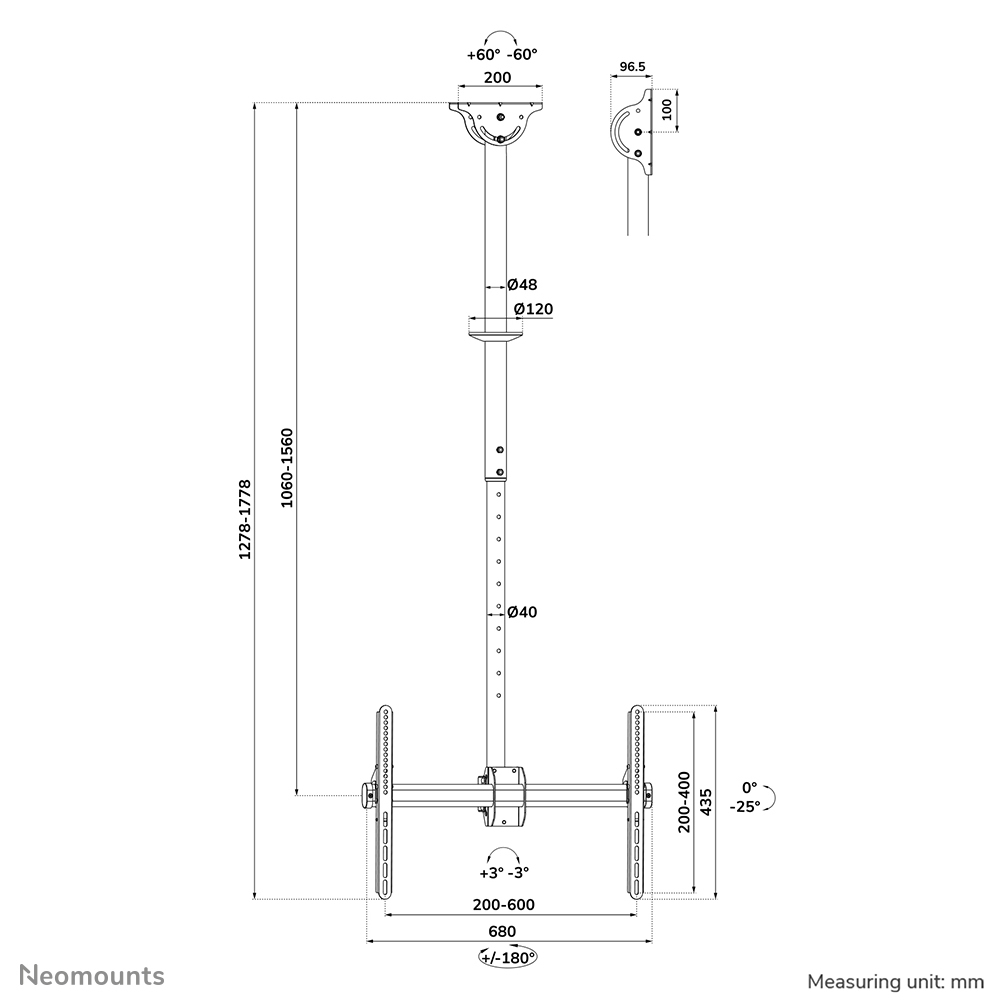

Weight & dimensions
Width
680 mm
Depth
138 mm
Depth (max)
13.8 cm
Height
1780 mm
Weight
6.36 kg
Packaging data
Package width
310 mm
Package depth
145 mm
Package height
935 mm
Package weight
7.8 kg
Logistics data
Master (outer) case width
330 mm
Master (outer) case length
310 mm
Master (outer) case height
955 mm
Master (outer) case gross weight
166 g
Master (outer) case net weight
156 g
Products per master (outer) case
2 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
20 pc(s)
