Introduction

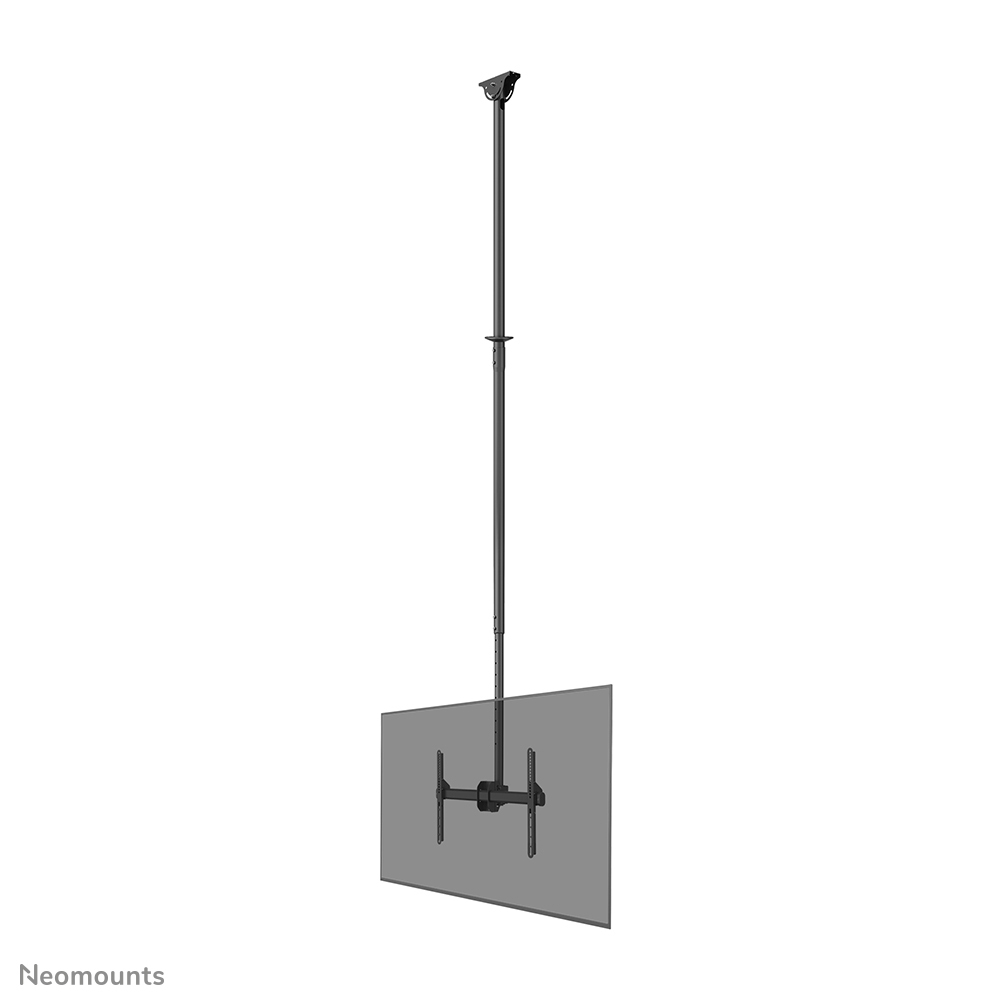

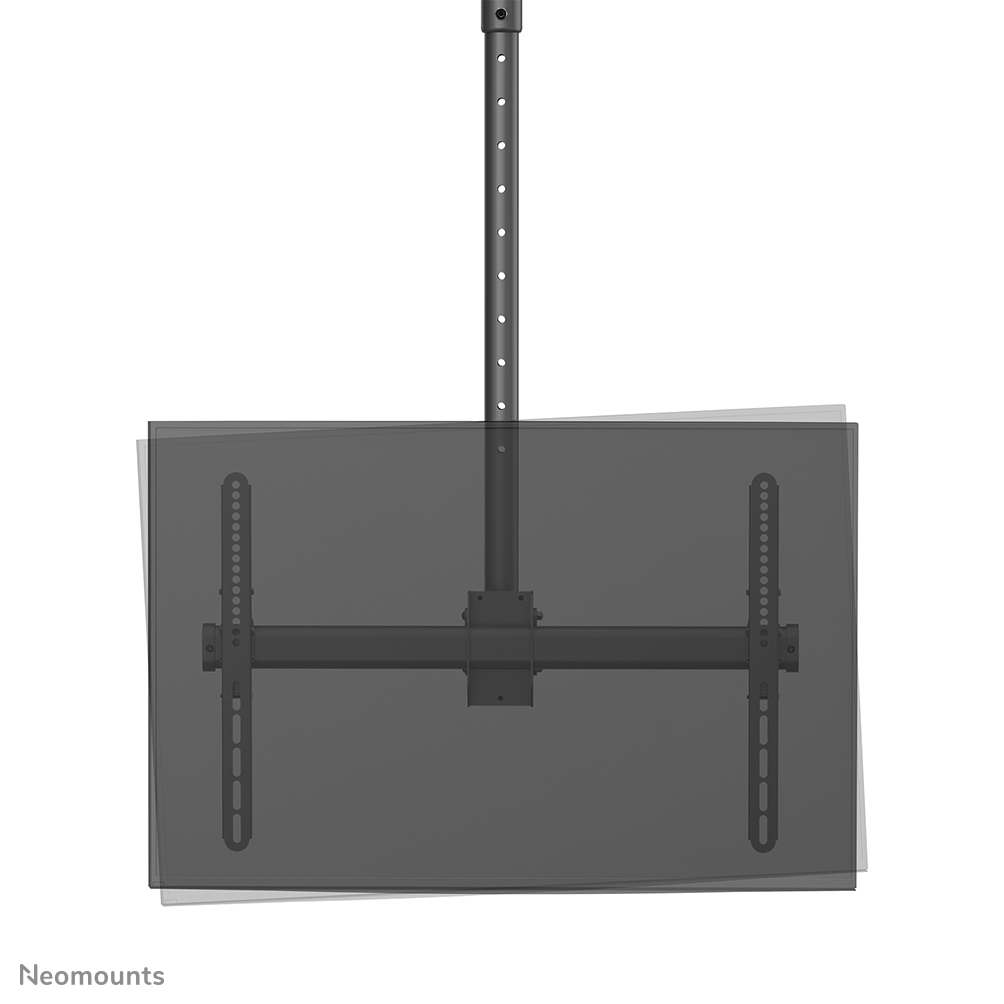

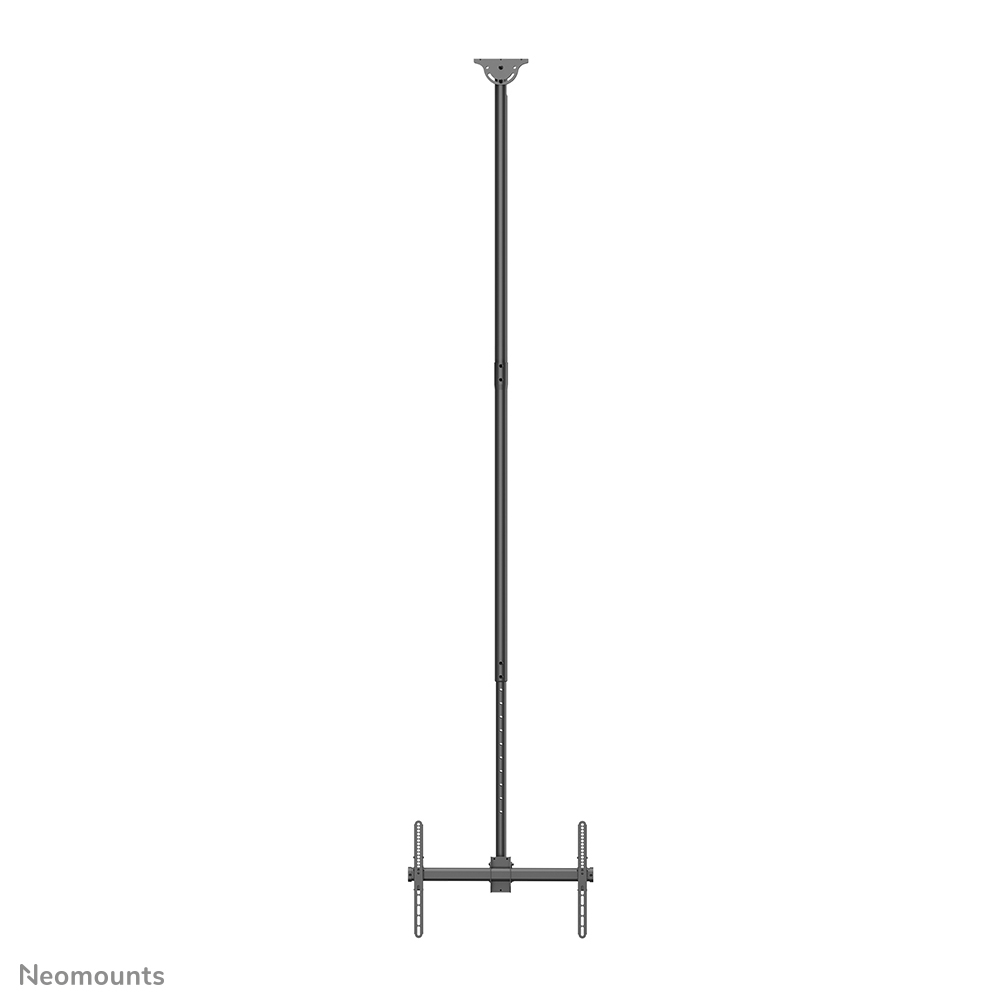

The Neomounts CL35-440BL16XL is an ultra-long full motion ceiling mount for flat screens up to 70". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation.

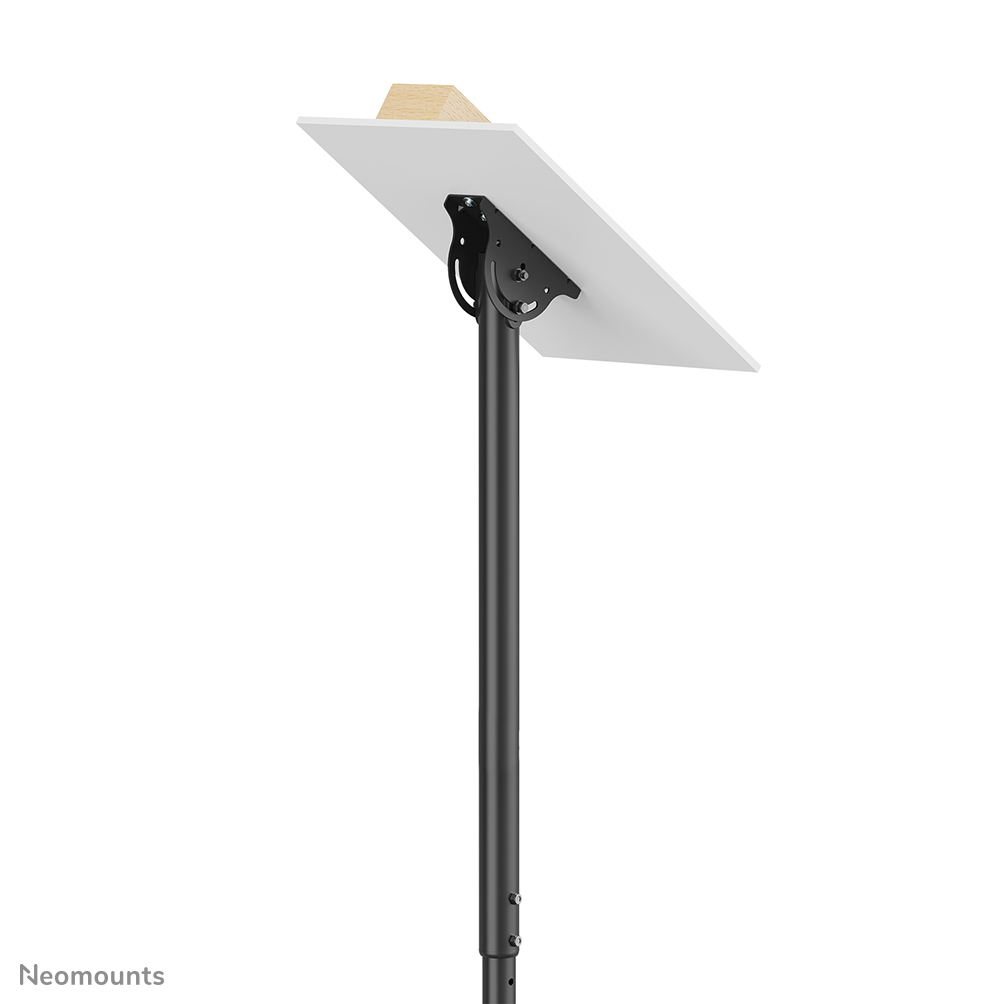

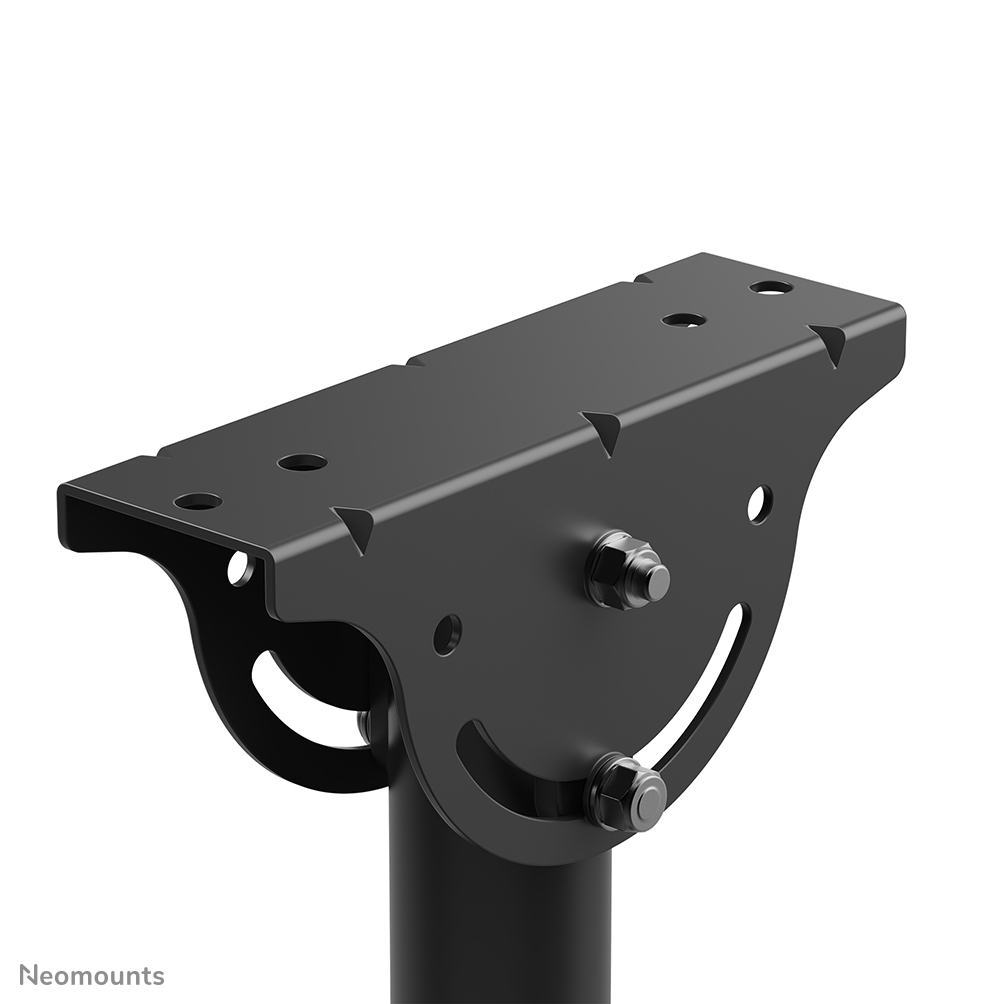

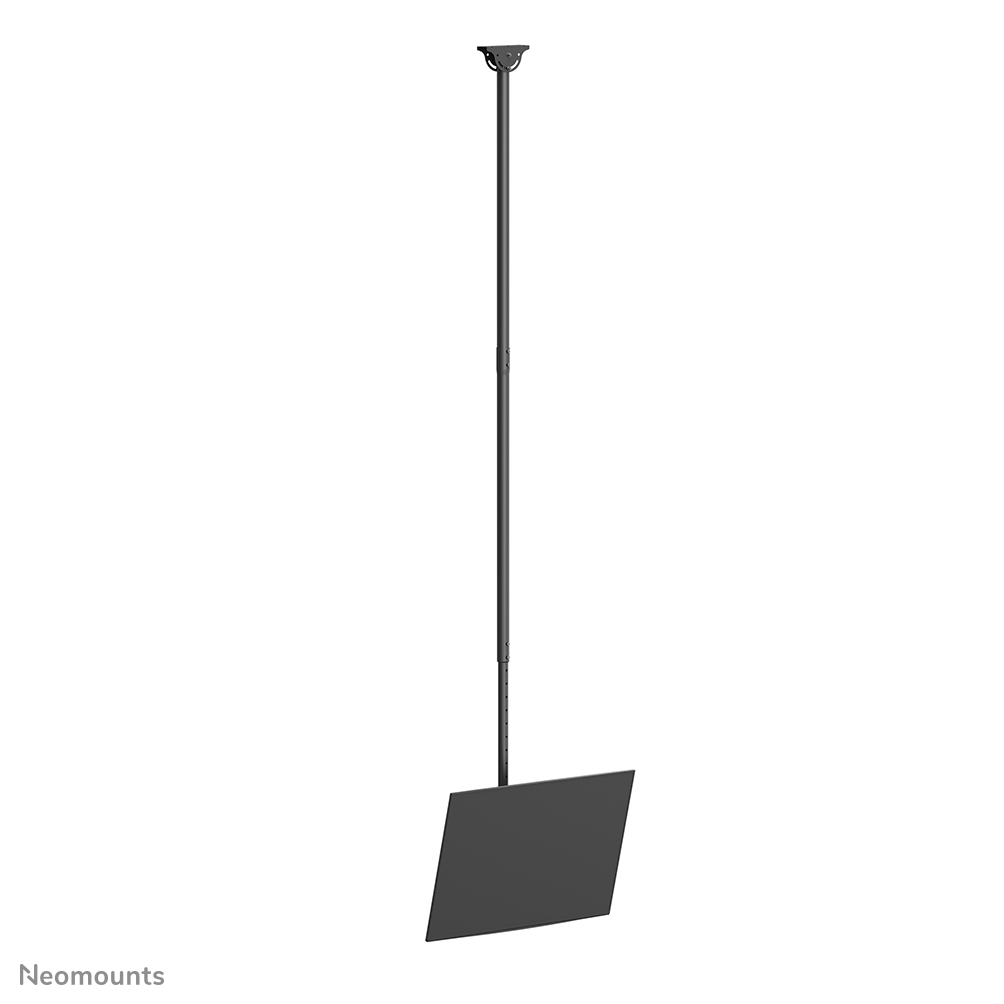

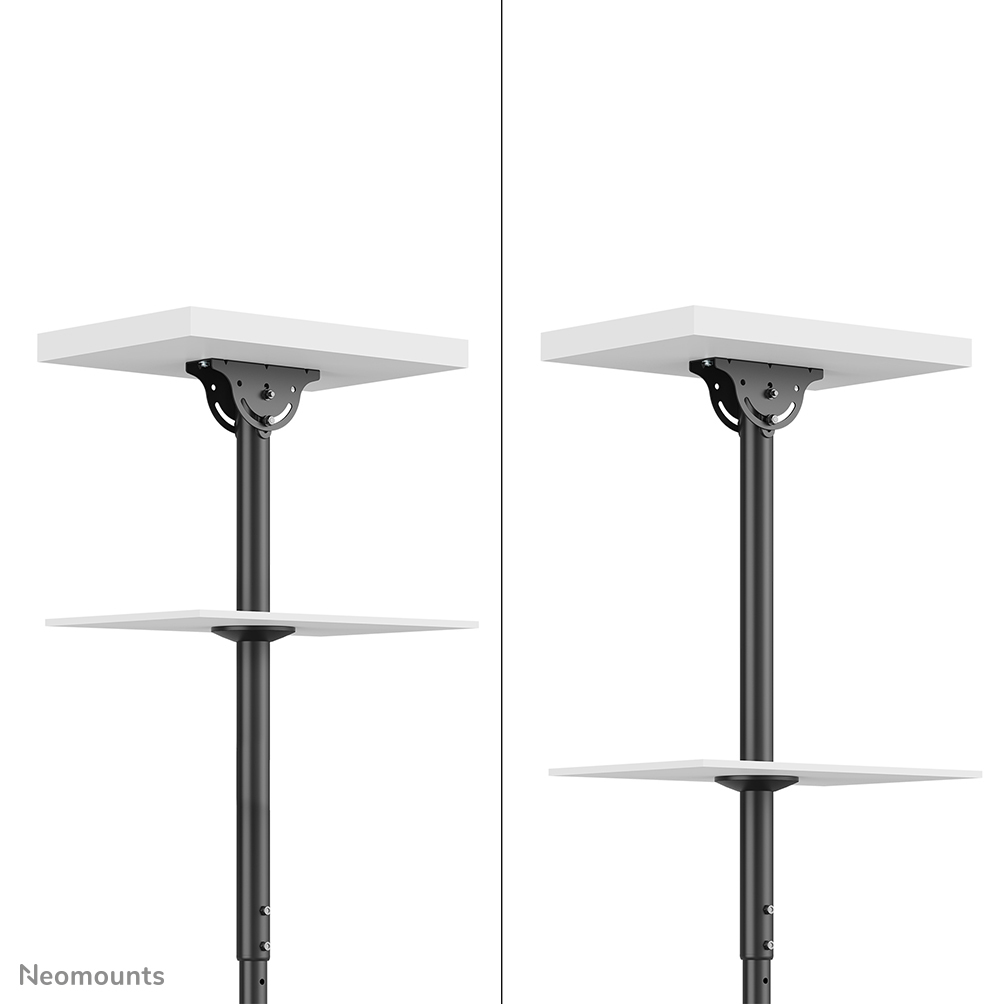

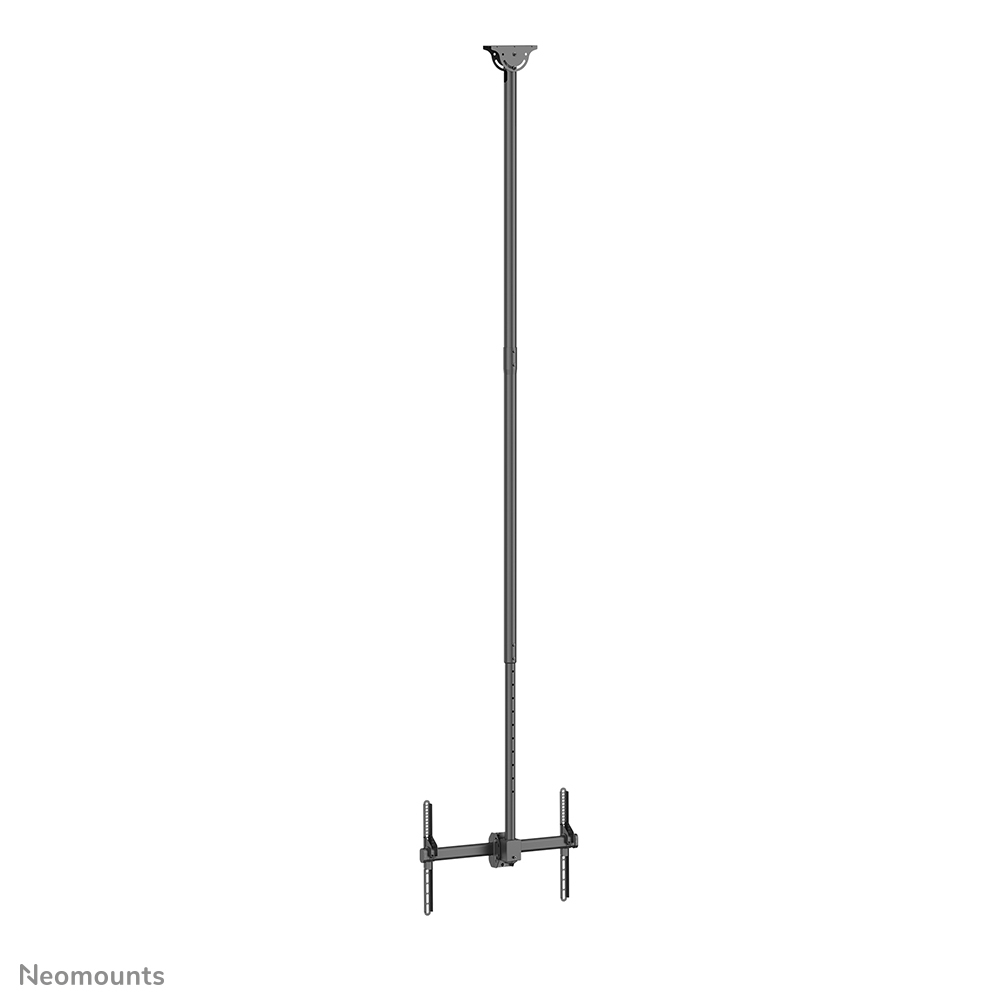

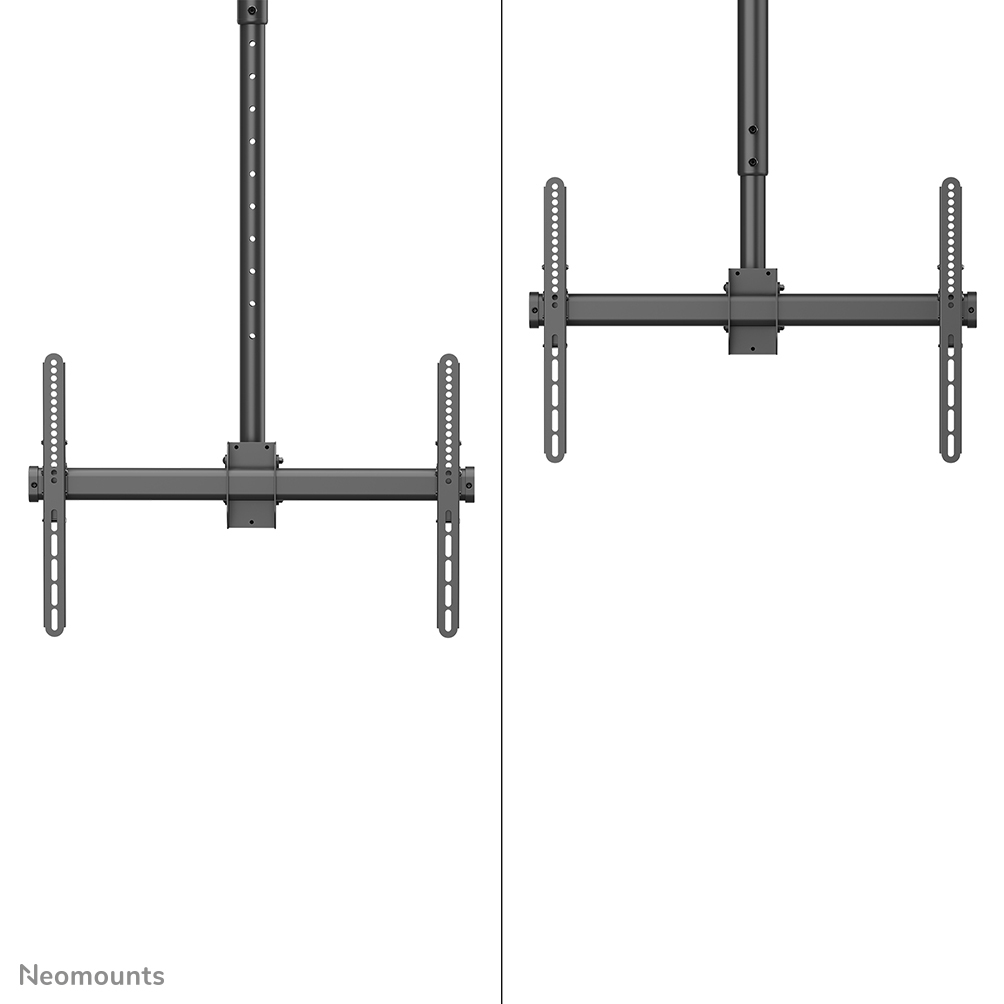

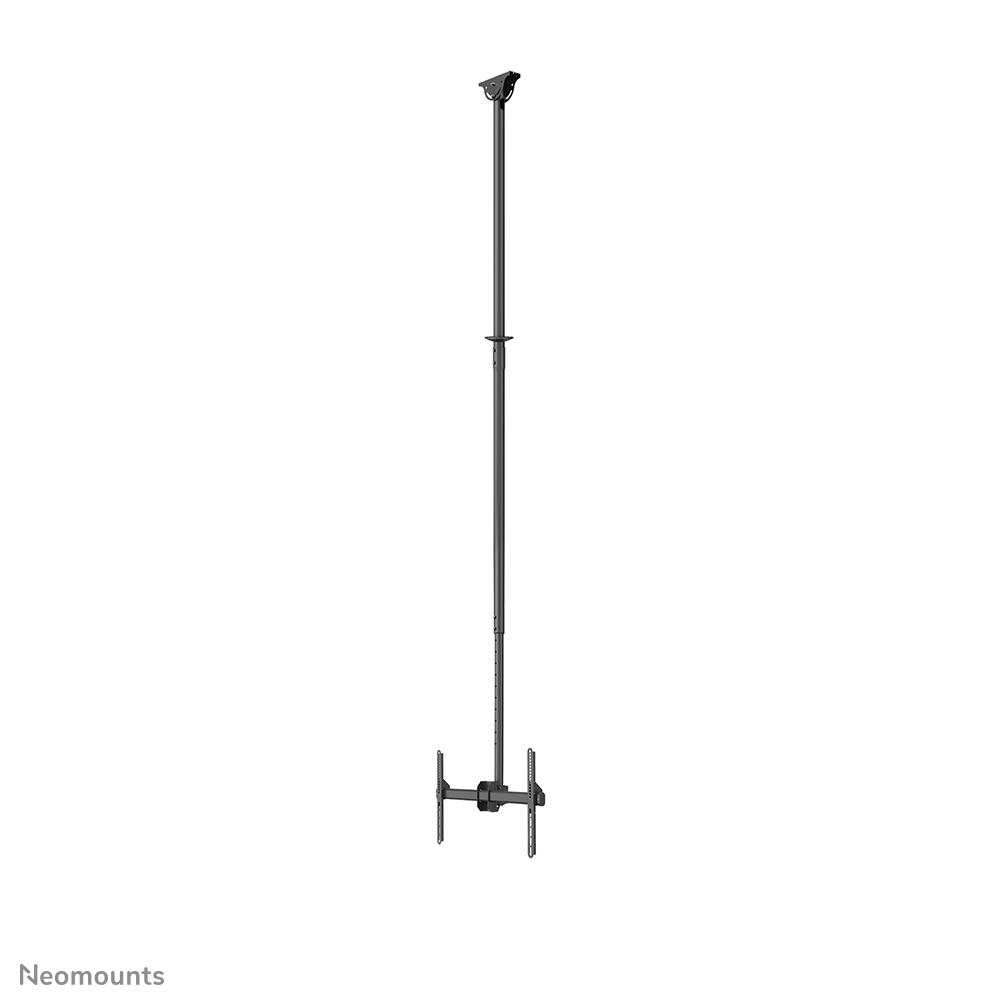

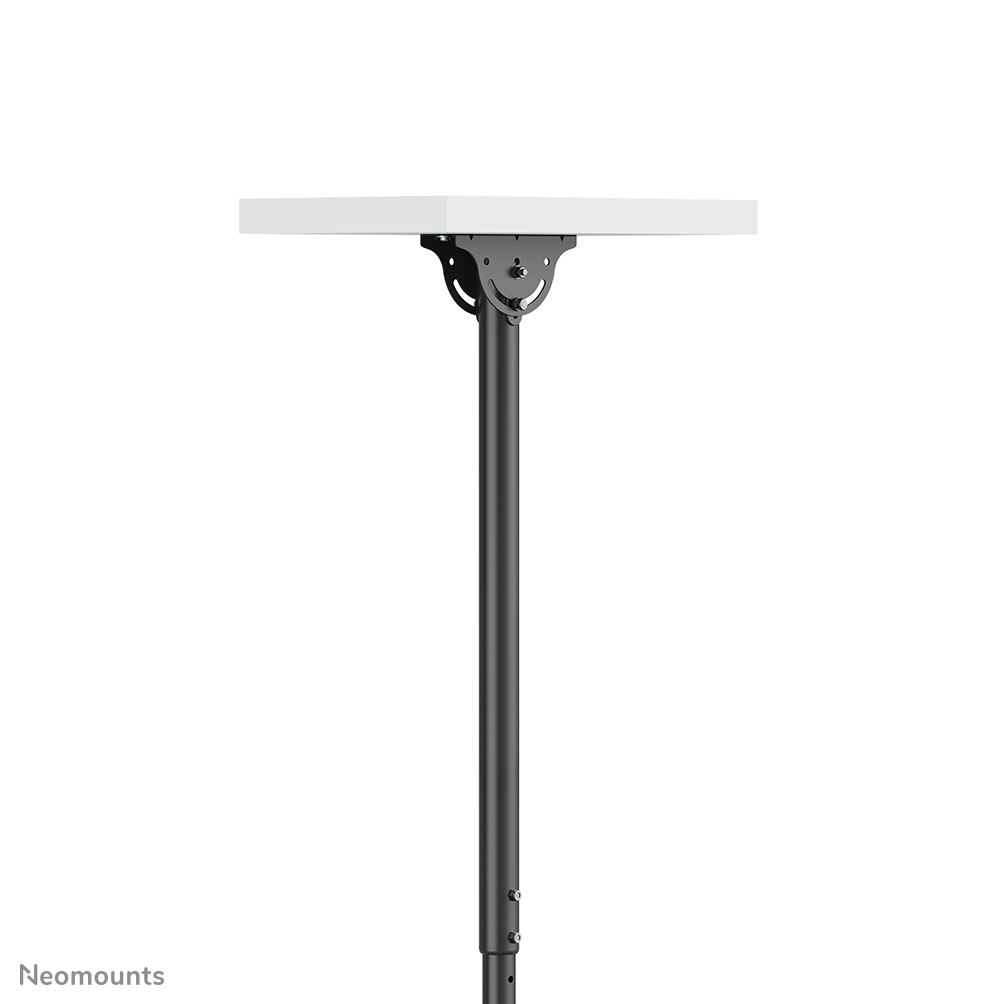

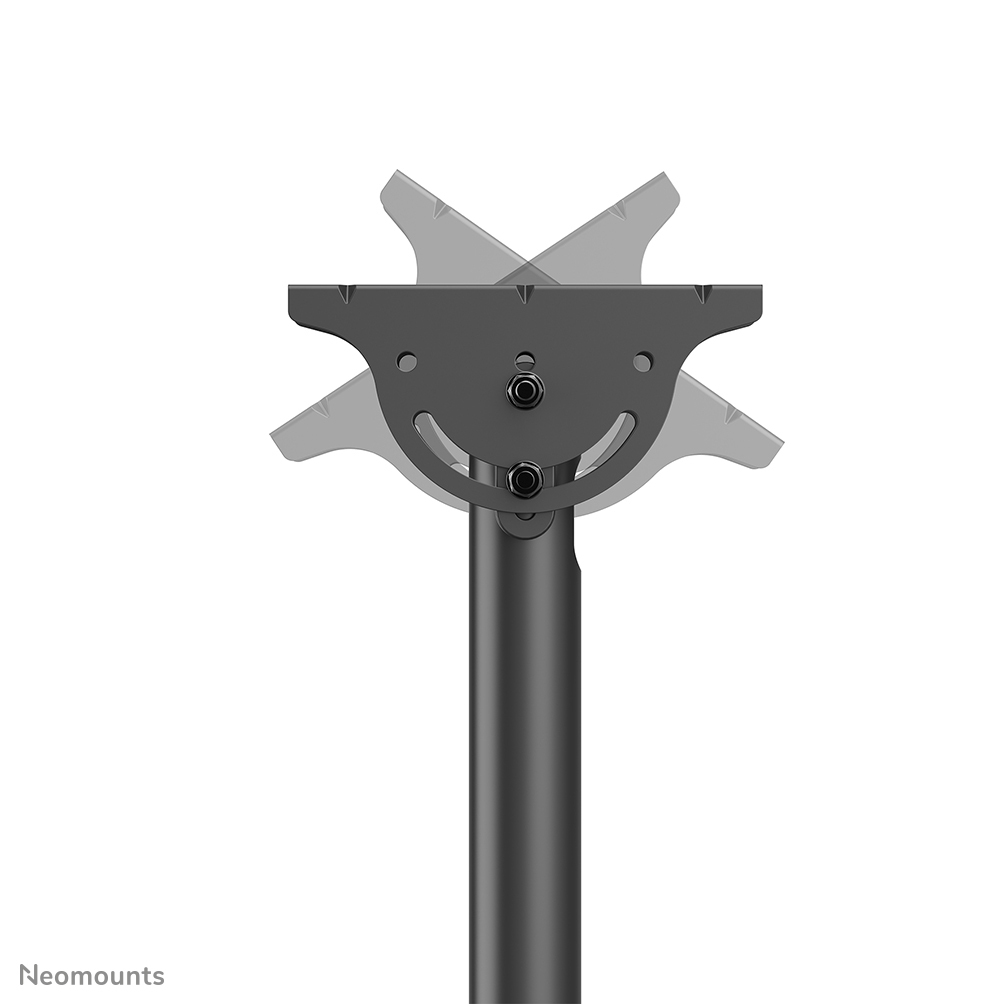

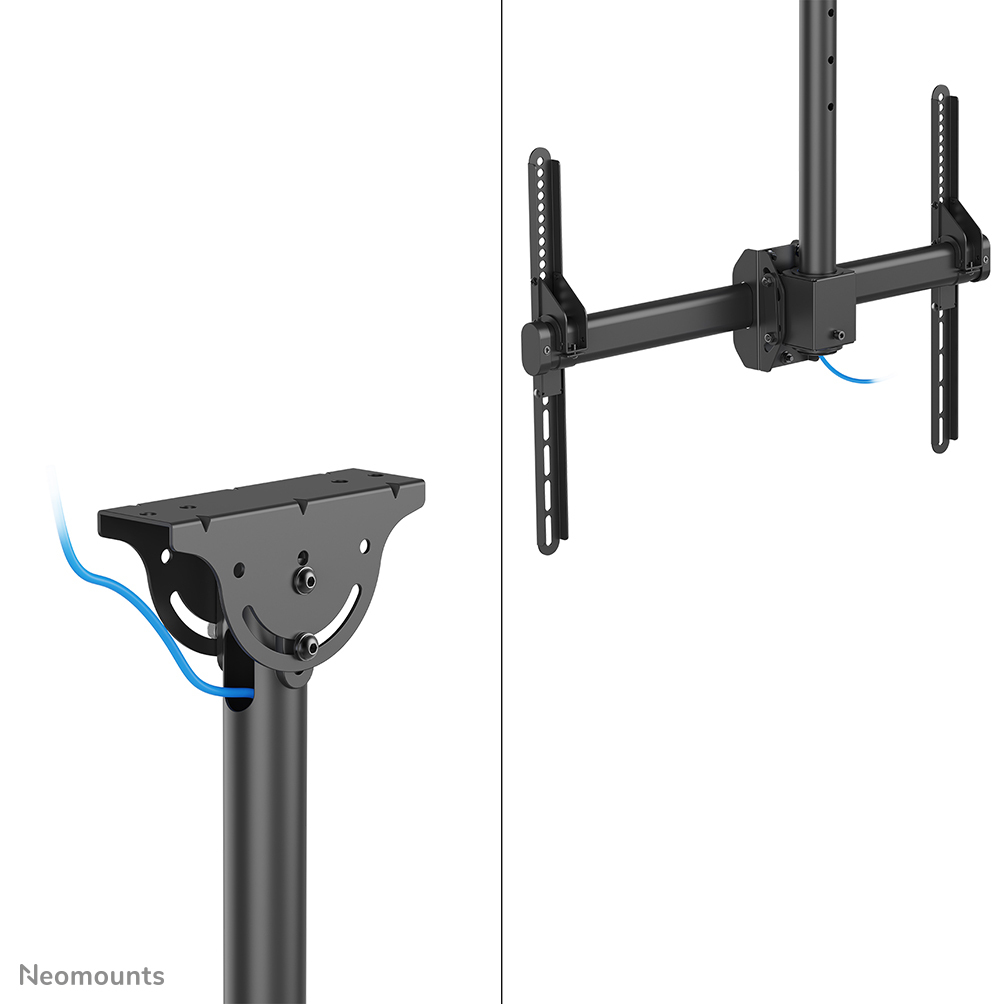

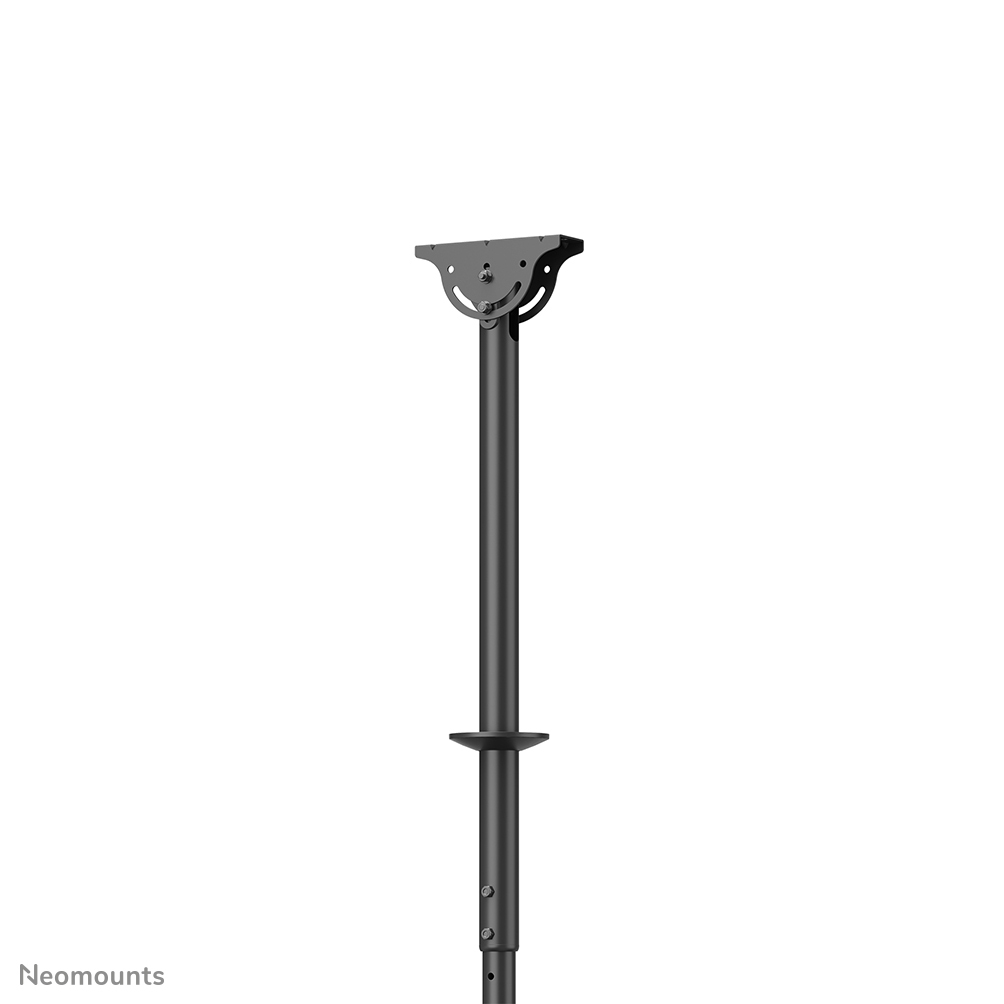

The ceiling mount has an extra-long pole, that can be easily adjusted in height from 250 to 300 cm* and has a weight capacity of 50 kg. The CL35-440BL16XL is suitable for screens that meet VESA hole pattern 150x200 to 600x400 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.

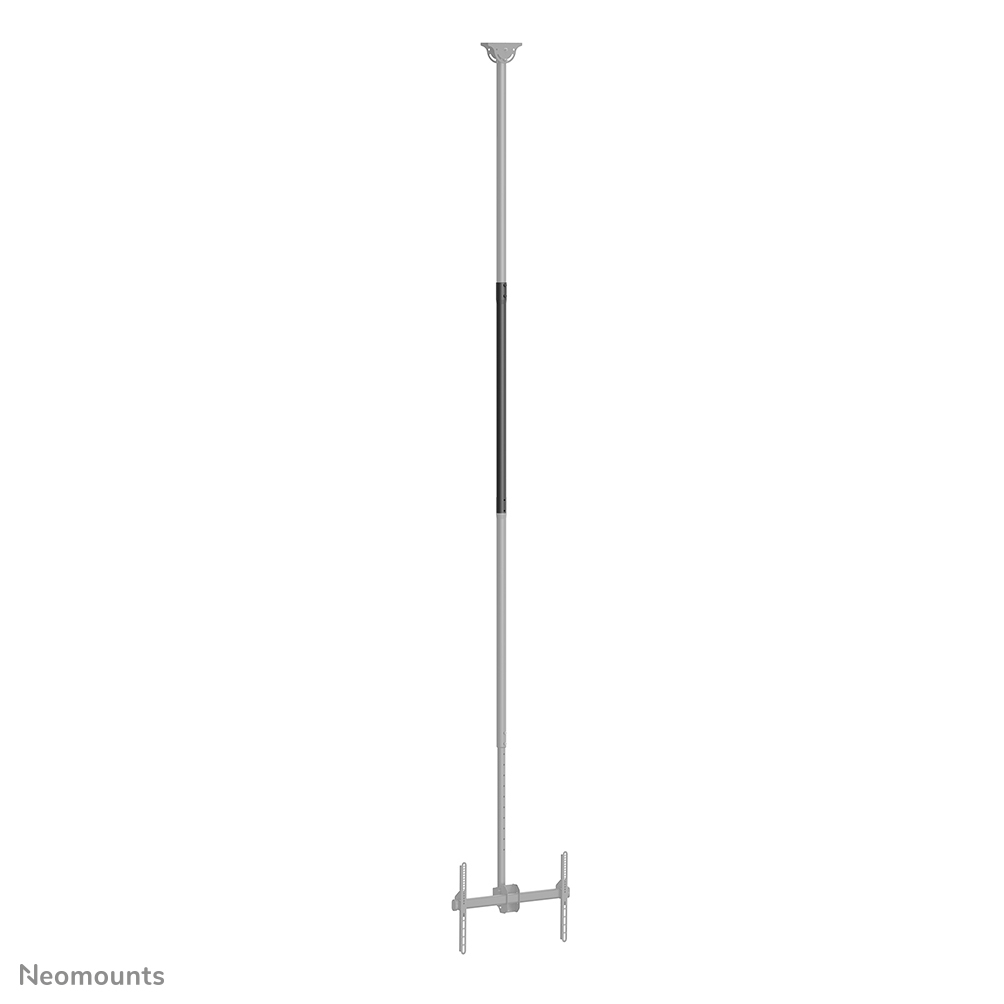

* The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107,5 cm.
Mounting
Minimum screen size
94 cm (37")
Maximum weight capacity
50 kg
Maximum screen size
177.8 cm (70")
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
600 x 400 mm
Panel mounting interface
200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,350 x 350,400 x 200
Number of displays supported
1
Mounting type
Ceiling
Maximum weight capacity (per display)
50 kg
Ergonomics
Height adjustment
Yes
Height adjustment type
Manual
Height adjustment range
2500 - 3000 mm
Tilt adjustment
Yes

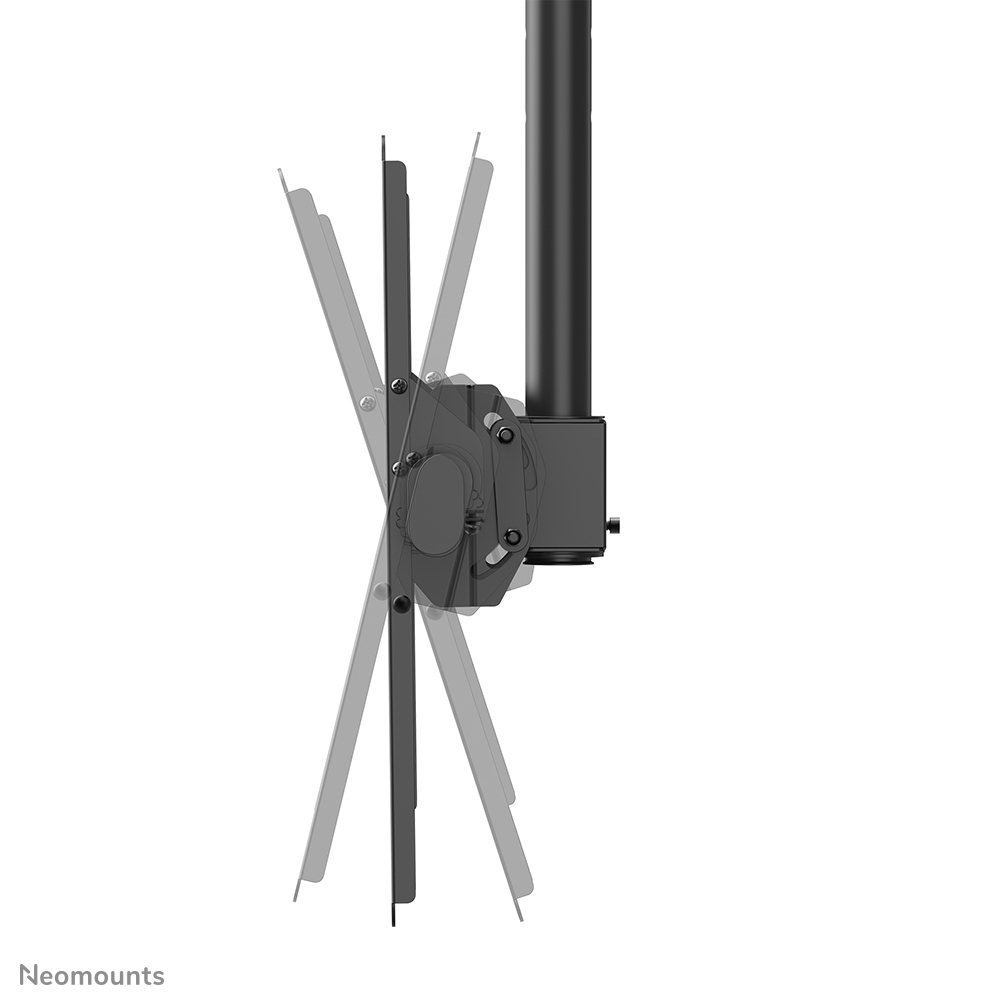

Tilt angle range
-25 - 0°
Swivelling
Yes

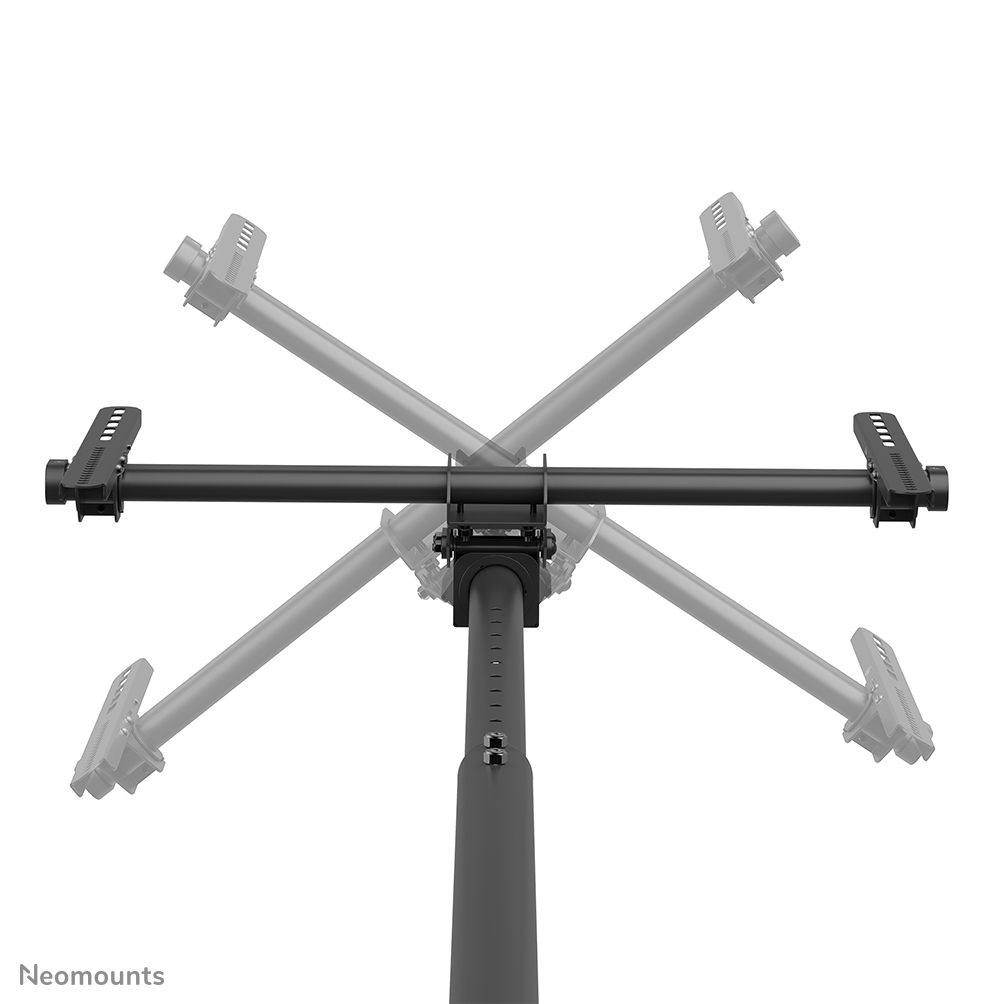

Swivel angle range
-180 - 180°
Rotating
Yes
Angle of rotation
6°
Cable management
Yes
Pivot angle
-3 - 3°
Design
Product colour
Black
Housing material
Steel
Technical details
Country of origin
China
Warranty period
5 year(s)
Lockable
Not lockable

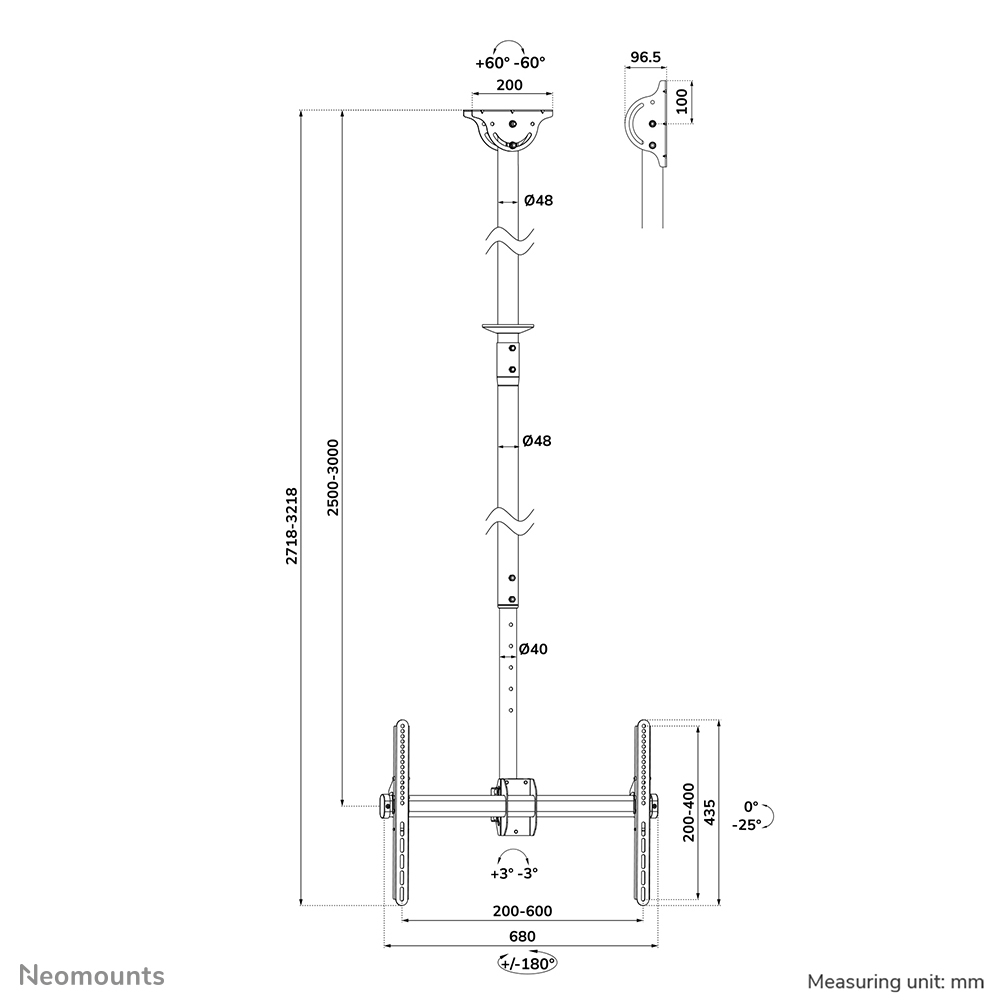

Weight & dimensions
Width
680 mm
Depth
138 mm
Depth (max)
13.8 cm
Height
3220 mm
Weight
8.72 kg
Packaging data
Package width
320 mm
Package depth
115 mm
Package height
1270 mm
Package weight
10.2 kg
Logistics data
Master (outer) case width
320 mm
Master (outer) case length
115 mm
Master (outer) case height
1270 mm
Master (outer) case gross weight
102 g
Master (outer) case net weight
102 g
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
34 pc(s)
