Introduction

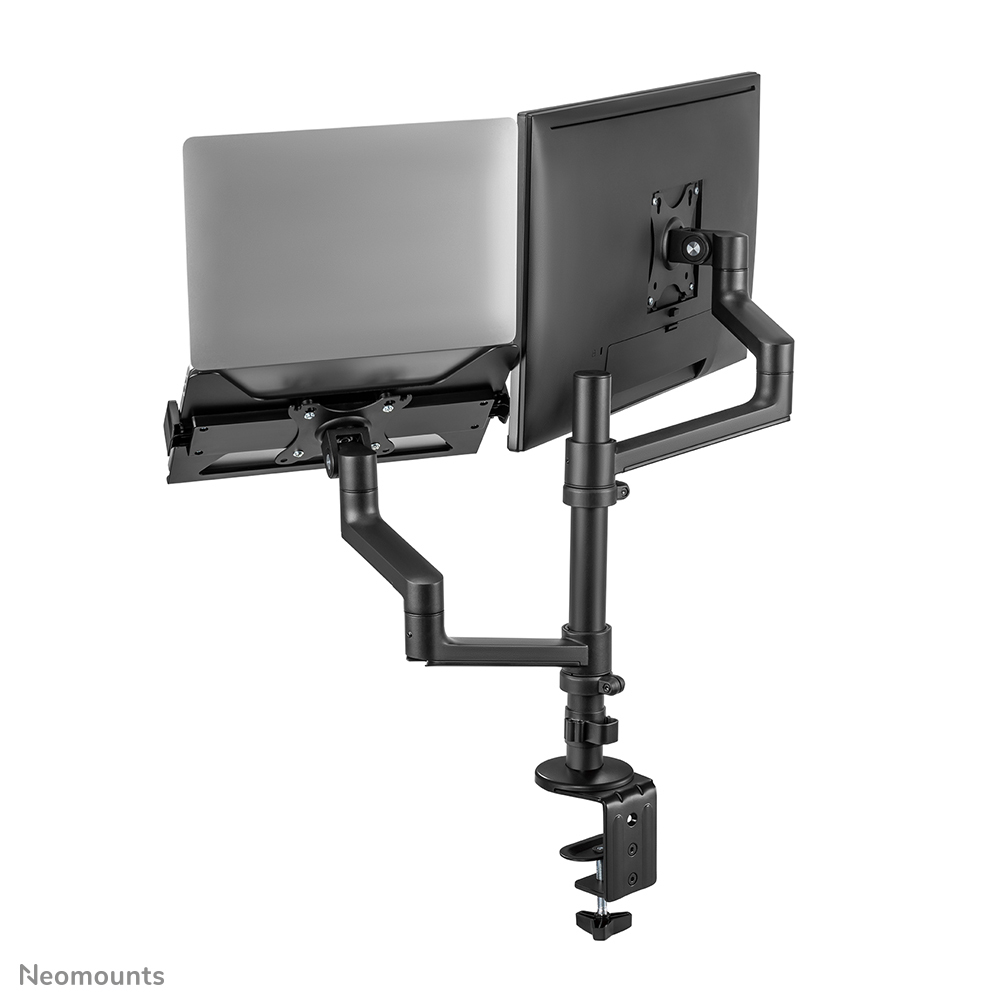

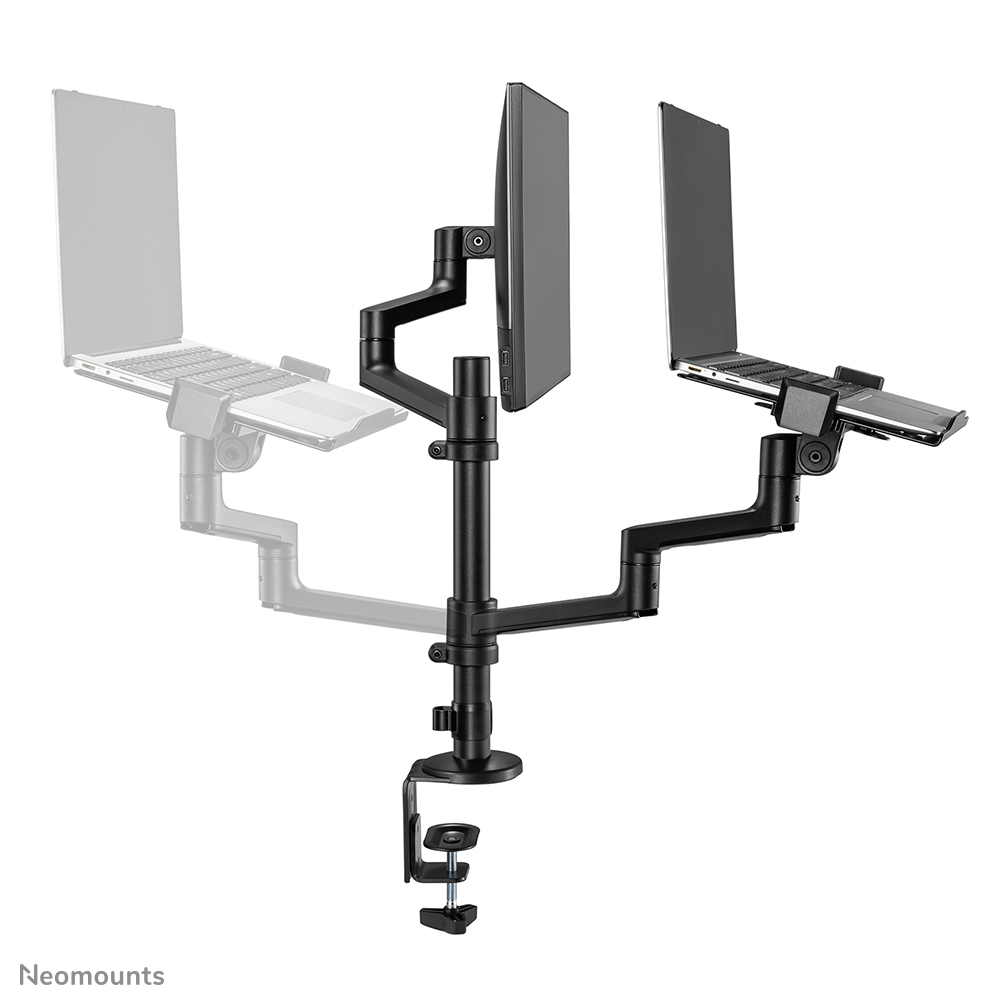

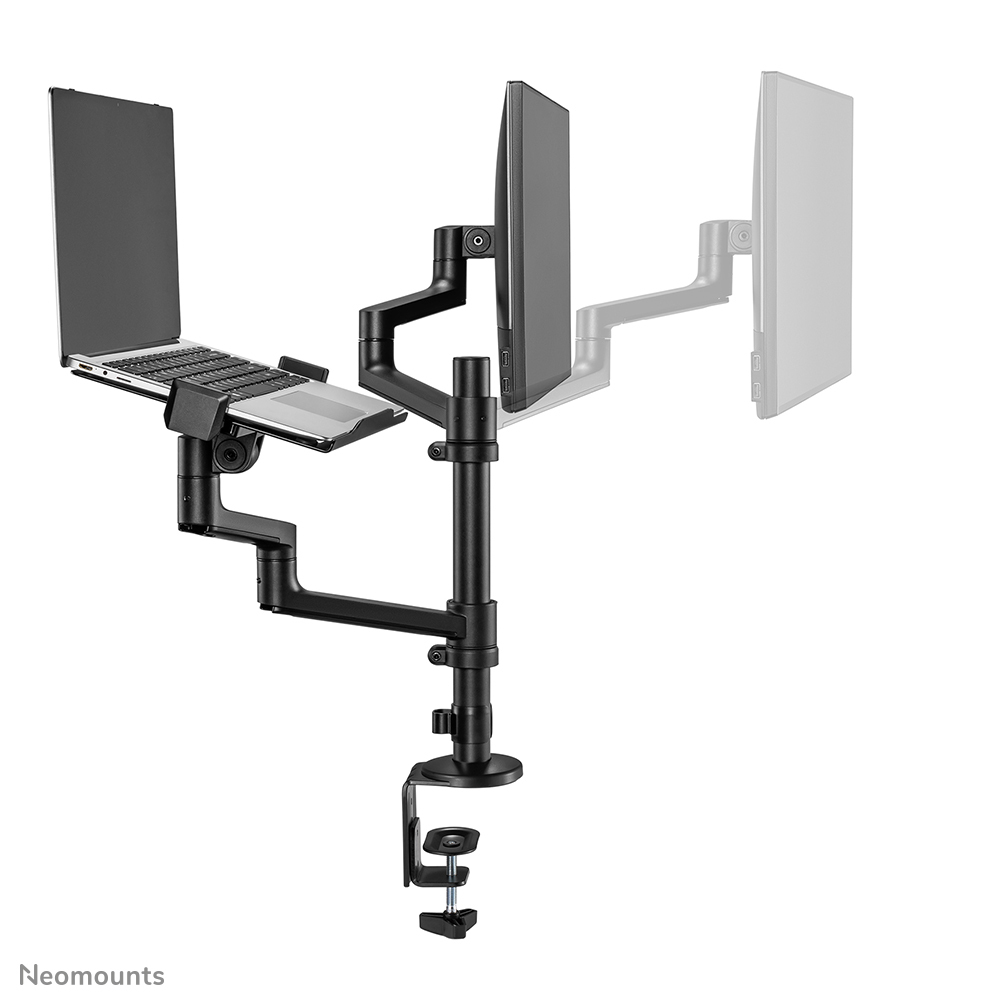

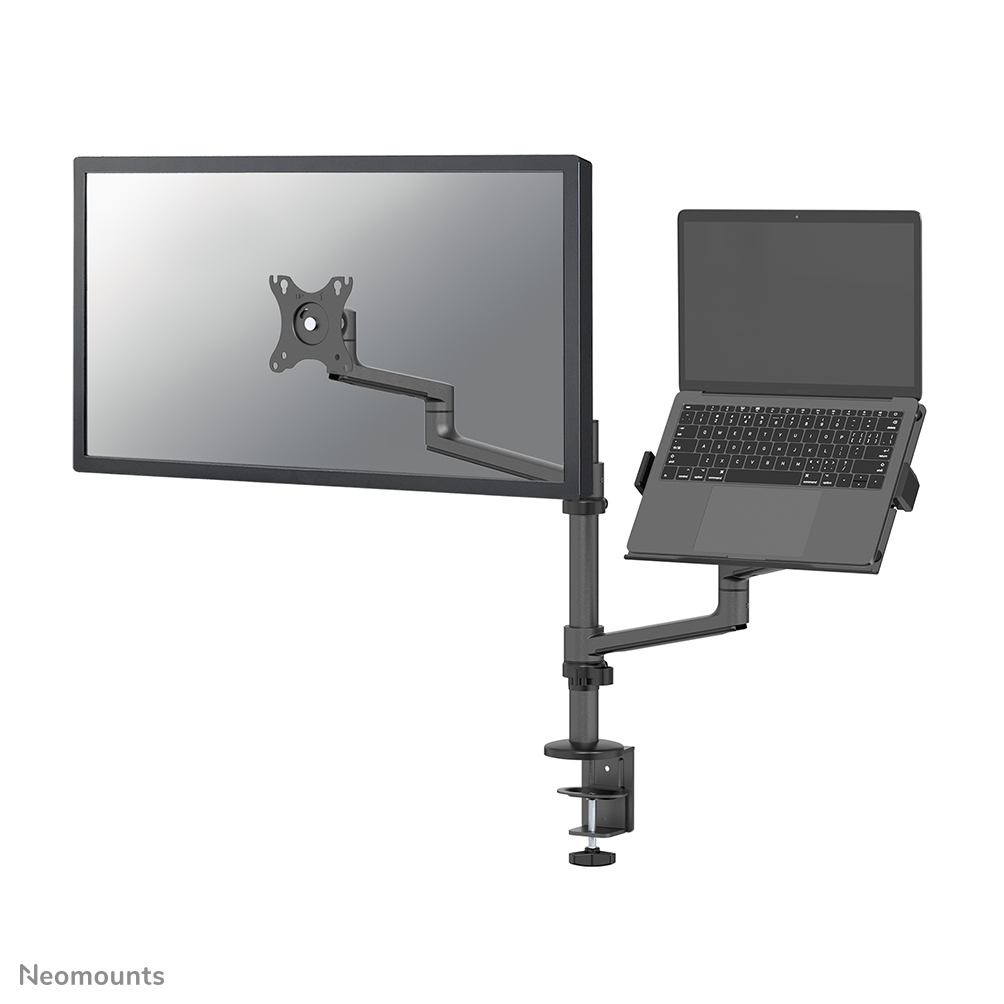

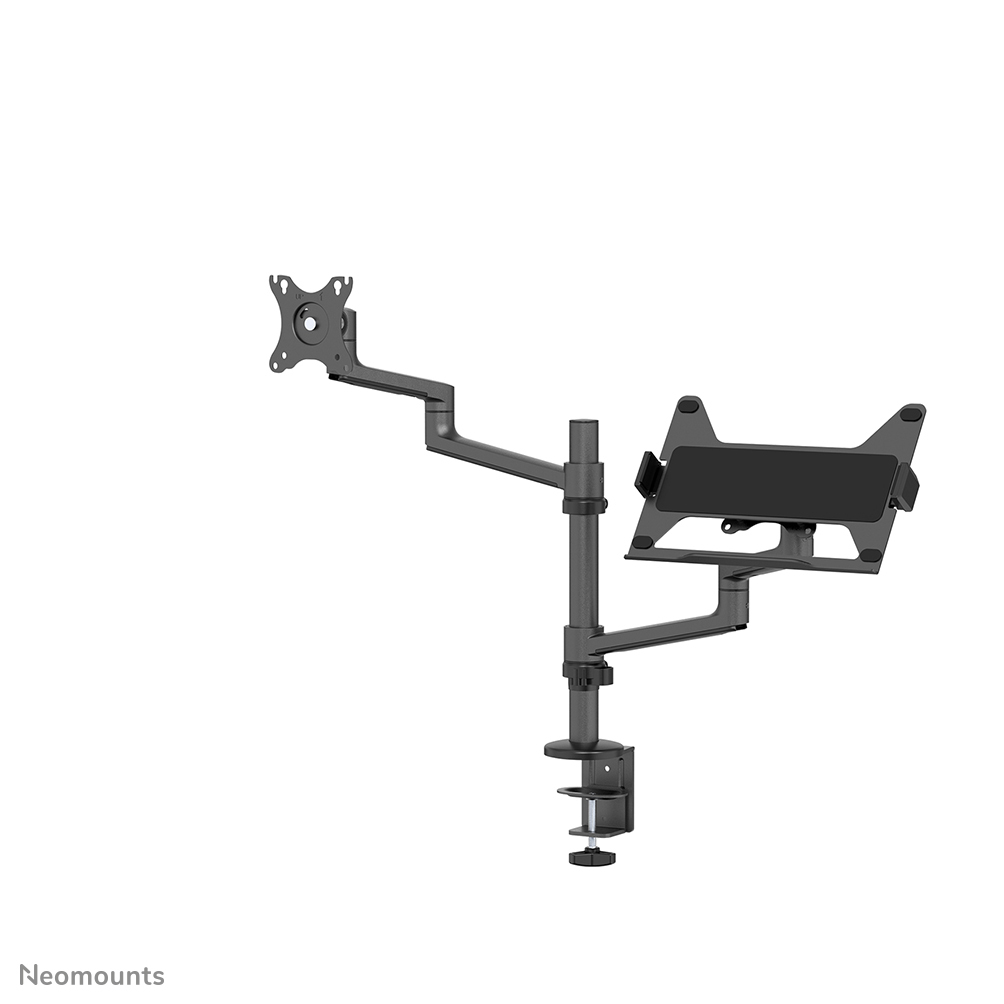

The Neomounts by Newstar DS20-425BL2 is a full motion desk mount for screens up to 27" and laptops up to 17,3" with a maximum weight capacity of respectively 8 and 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your screen and laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

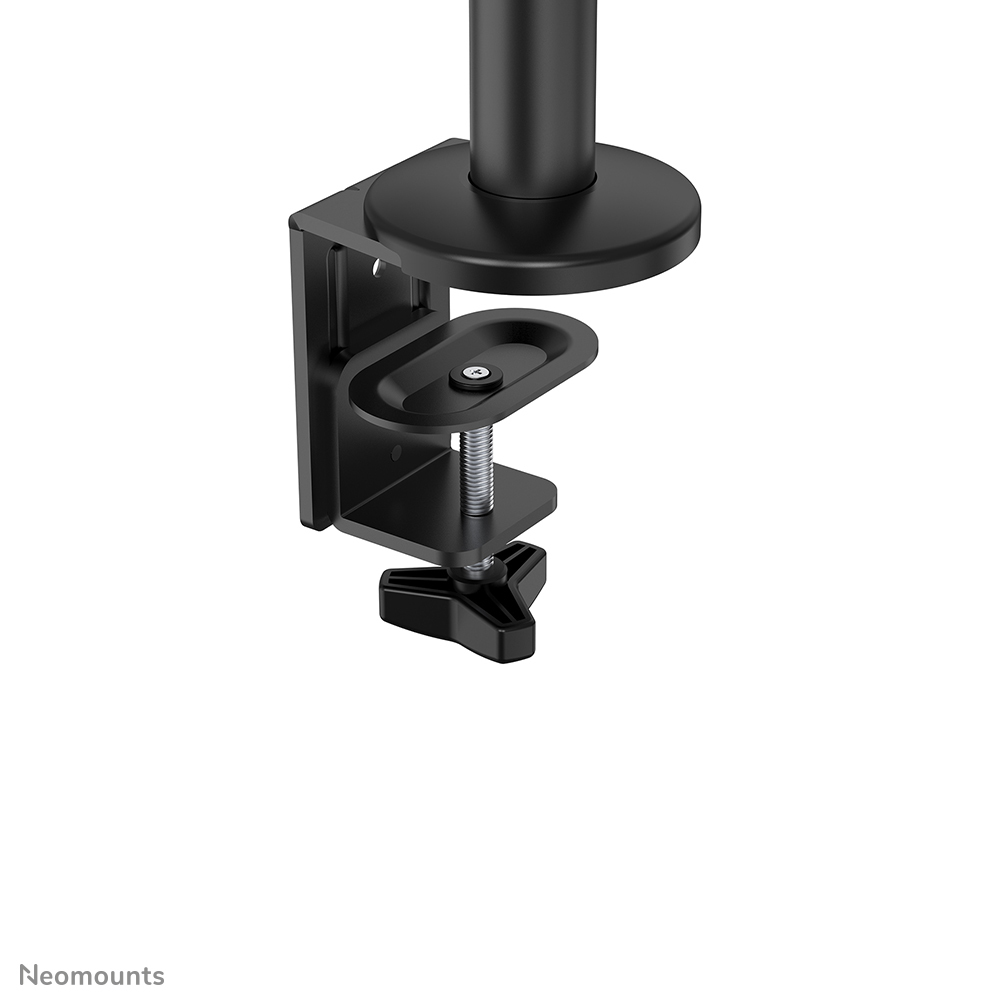

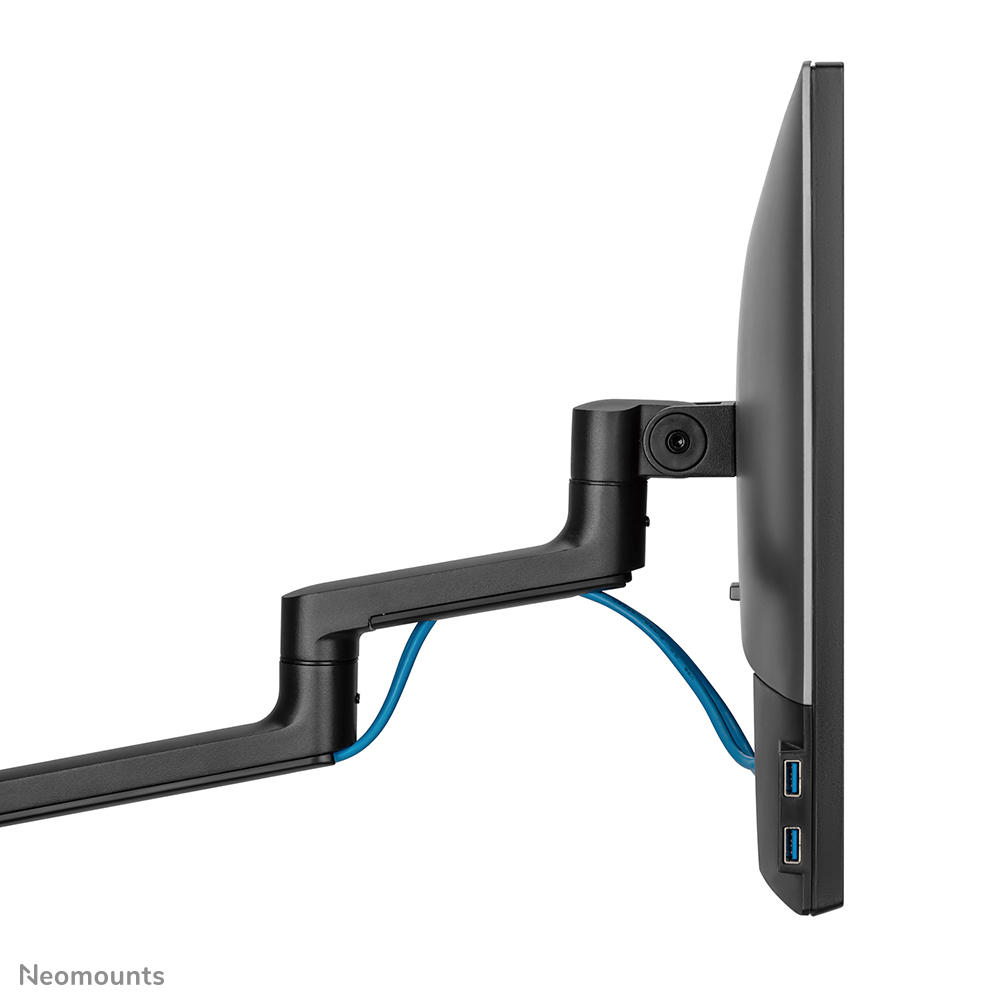

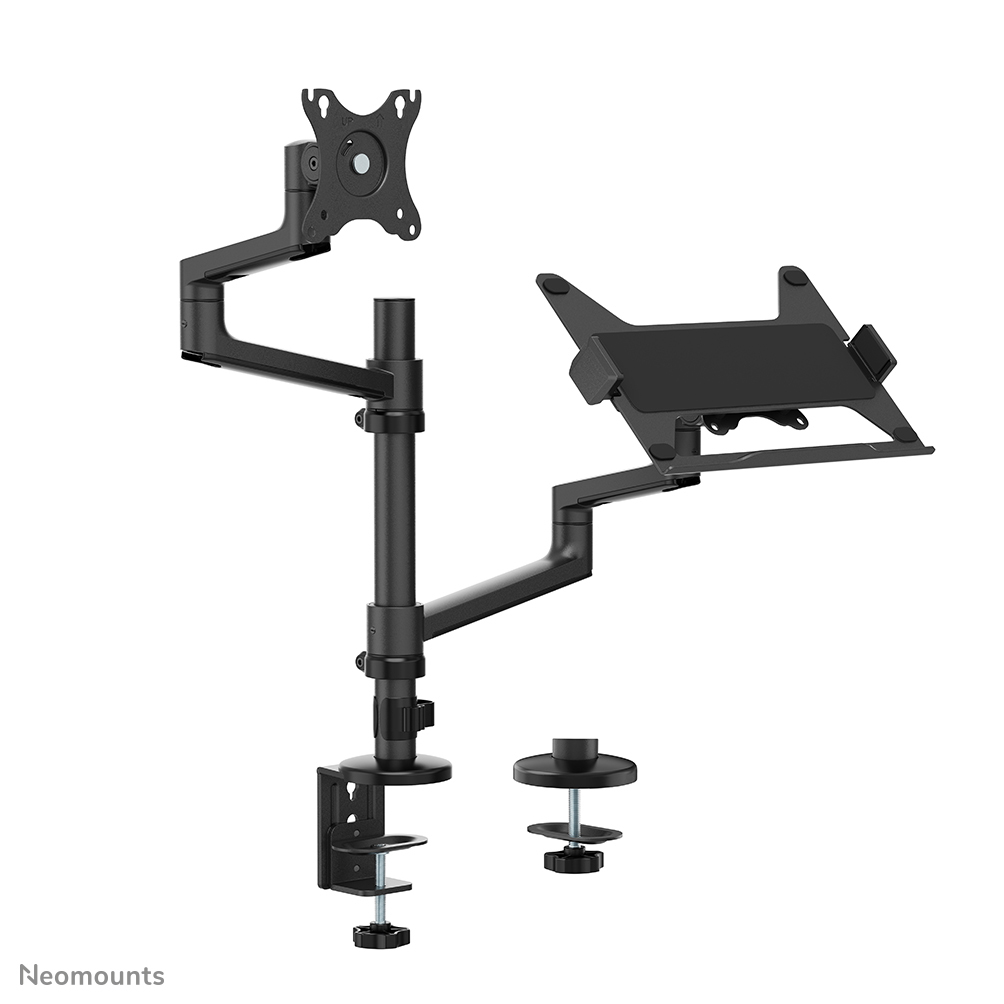

Due to the short T-Rex® upper arms, only minimal depth is required when placed near a wall or separation panel. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS20-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the DS20-425BL2 is 100% plastic free and entirely made from cardboard and paper.
Mounting
Maximum weight capacity
8 kg
Minimum screen size
43.2 cm (17")
Number of displays supported
1
Maximum weight capacity (per display)
8 kg
Maximum screen size
68.6 cm (27")
Mounting
Clamp/Grommet
Mounting type
Desk
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Panel mounting interface
100 x 100,75 x 75 mm
Desk thickness (min)
1 cm
Desk thickness (max)
8 cm
Distance to the wall (min)
16.2 cm
Distance to the wall (max)
49.4 cm
Ergonomics
Height adjustment
Yes
Height adjustment range
275 - 555 mm
Adjustable depth
Yes
Depth adjustment range
66 - 398 mm
Width adjustment
33.2 cm
Tilt angle range
-30 - 90°
Swivel angle range
-90 - 90°
Rotating
Yes
Angle of rotation
360°
Cable management
Yes
Adjustable
Y
Height adjustment
Y
Height adjustment range
27.5 - 55.5 mm
Width adjustment range
0 - 33.2 mm
Adjustable depth
Y
Depth adjustment range
6.6 - 39.8 mm
Swivel angle range
-30 - 90°
Tilt angle range
-30 - 90°
Rotating
Y
Angle of rotation
360°
Distance to the wall (max)
49.4 cm
Distance to the wall (min)
16.2 cm
VESA mounting
Y
Panel mounting interface
100 x 100 mm
Cable management
Y
Design
Housing material
Steel
Product colour
Black
Product type
Notebook & monitor arm
Product colour
Black
Material
Steel
Minimum notebook screen size compatibility
29.5 cm (11.6")
Maximum notebook screen size compatibility
43.9 cm (17.3")
Maximum monitor screen size compatibility
68.6 cm (27")
Number of devices supported
2
Maximum weight capacity
8 kg
Mounting
Clamp/Grommet
Weight & dimensions

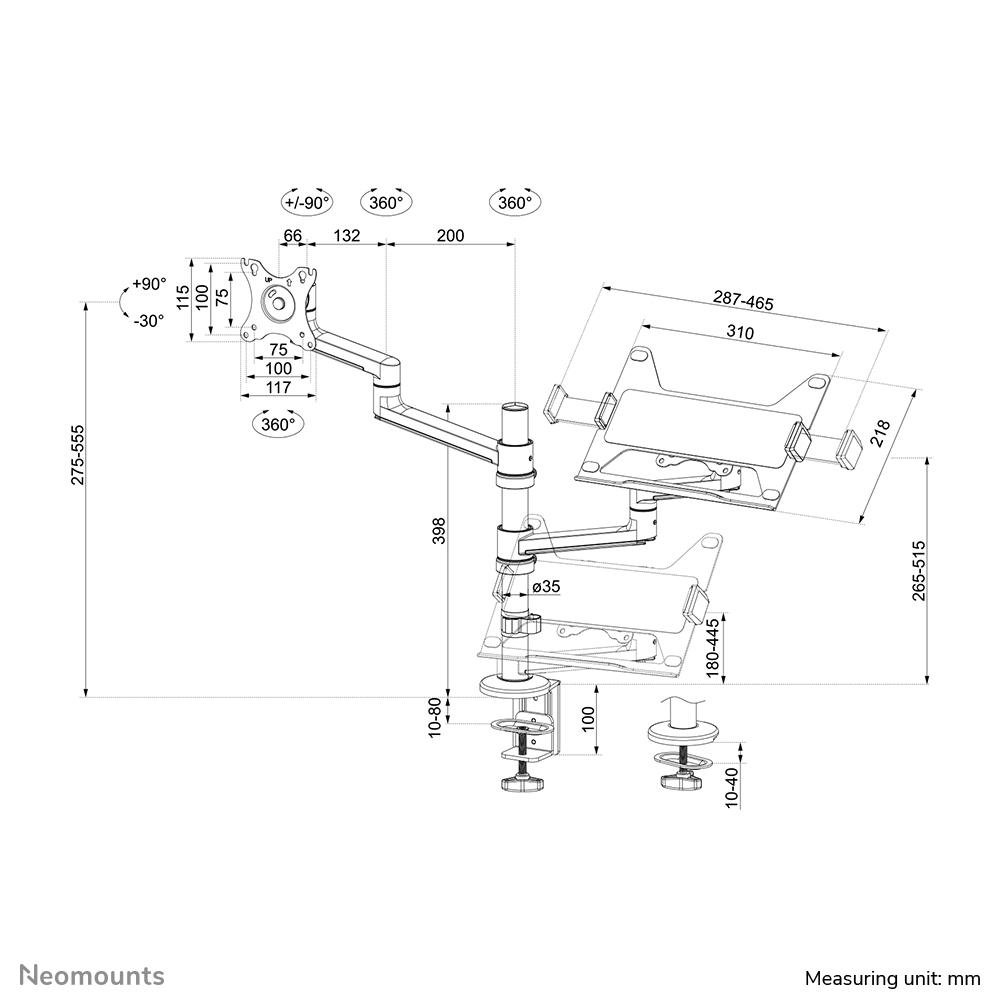

Width
966 mm
Depth
494 mm
Height
611 mm
Width
966 mm
Depth
494 mm
Height
611 mm
Weight
4.55 kg
Weight
4.55 kg
Desk thickness (max)
8 cm
Desk thickness (min)
1 cm
Packaging data
Package net weight
5.5 kg
Package width
233 mm
Package depth
150 mm
Package height
442 mm
Package type
Box
Package weight
5.5 kg
Package width
233 mm
Package depth
150 mm
Package height
442 mm
Package net weight
5.5 kg
Package weight
5.5 kg
Package type
Box
Other features
Adjustable
Yes
Width adjustment range
0 - 332 mm
VESA mounting
Yes
Number of displays supported
1
Technical details
Product type
Notebook & monitor arm
Mounting type
Desk
Country of origin
China
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
473 mm
Master (outer) case height
465 mm
Master (outer) case gross weight
17.1 kg
Products per master (outer) case
3 pc(s)
Country of origin
China
Master (outer) case net weight
13.7 kg
Harmonized System (HS) code
7326909890
Products per pallet (EU)
63 pc(s)
Master (outer) case width
250 mm
Master (outer) case length
473 mm
Master (outer) case height
465 mm
Products per master (outer) case
3 pc(s)
Master (outer) case net weight
13.7 kg
Harmonized System (HS) code
HS7326909890
Products per pallet (EU)
63 pc(s)
Master (outer) case gross weight
17.1 kg
