Introduction

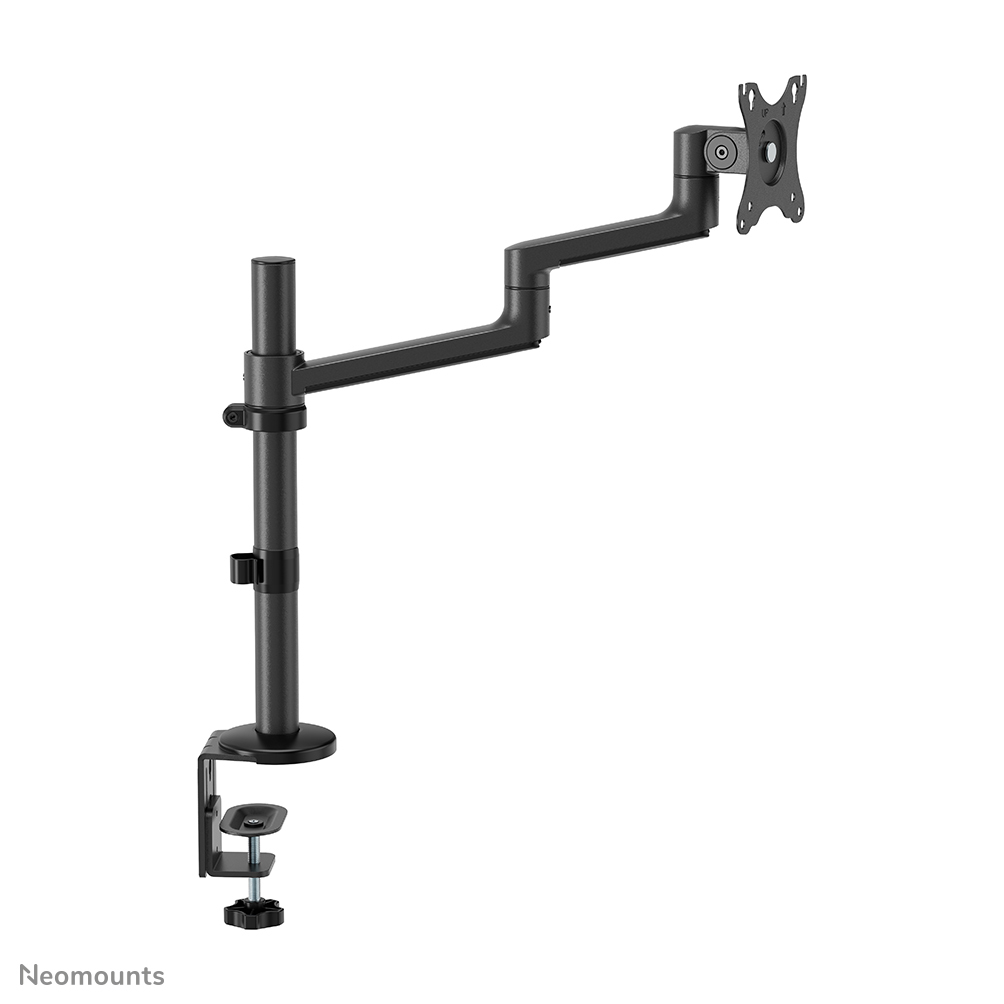

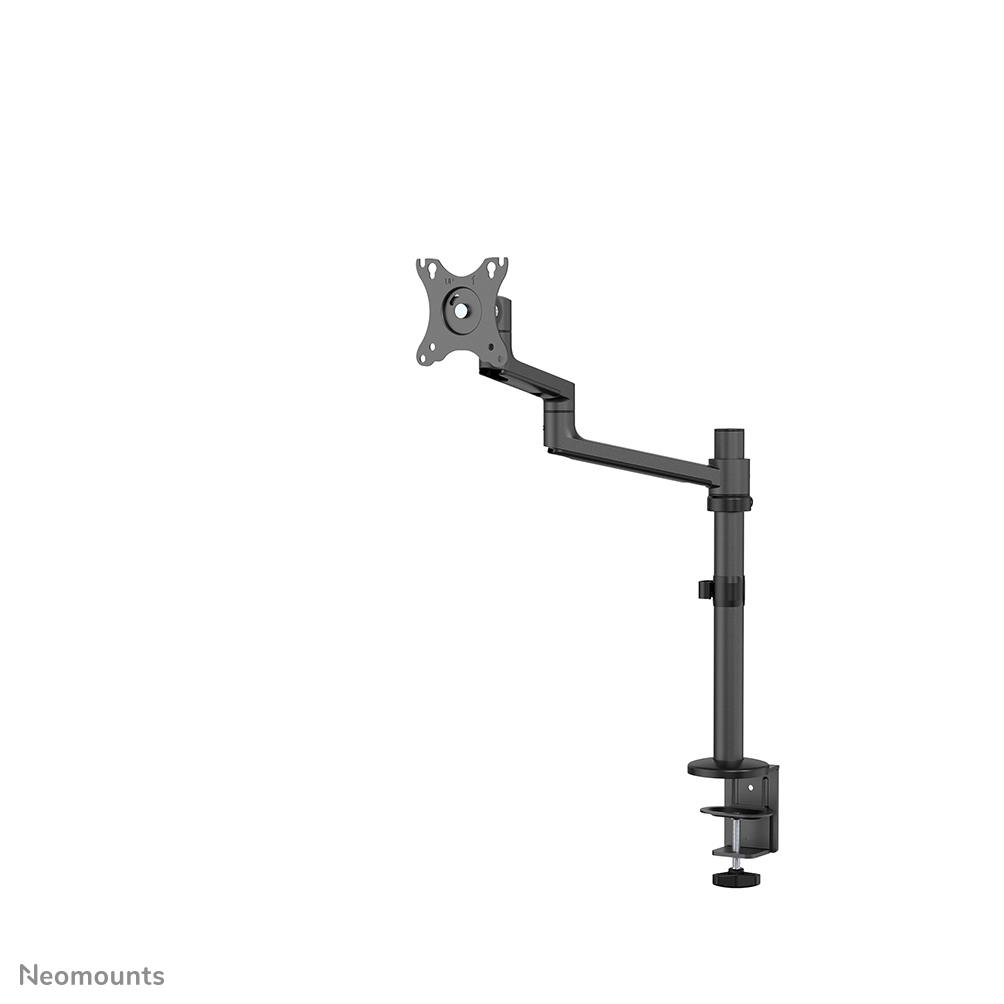

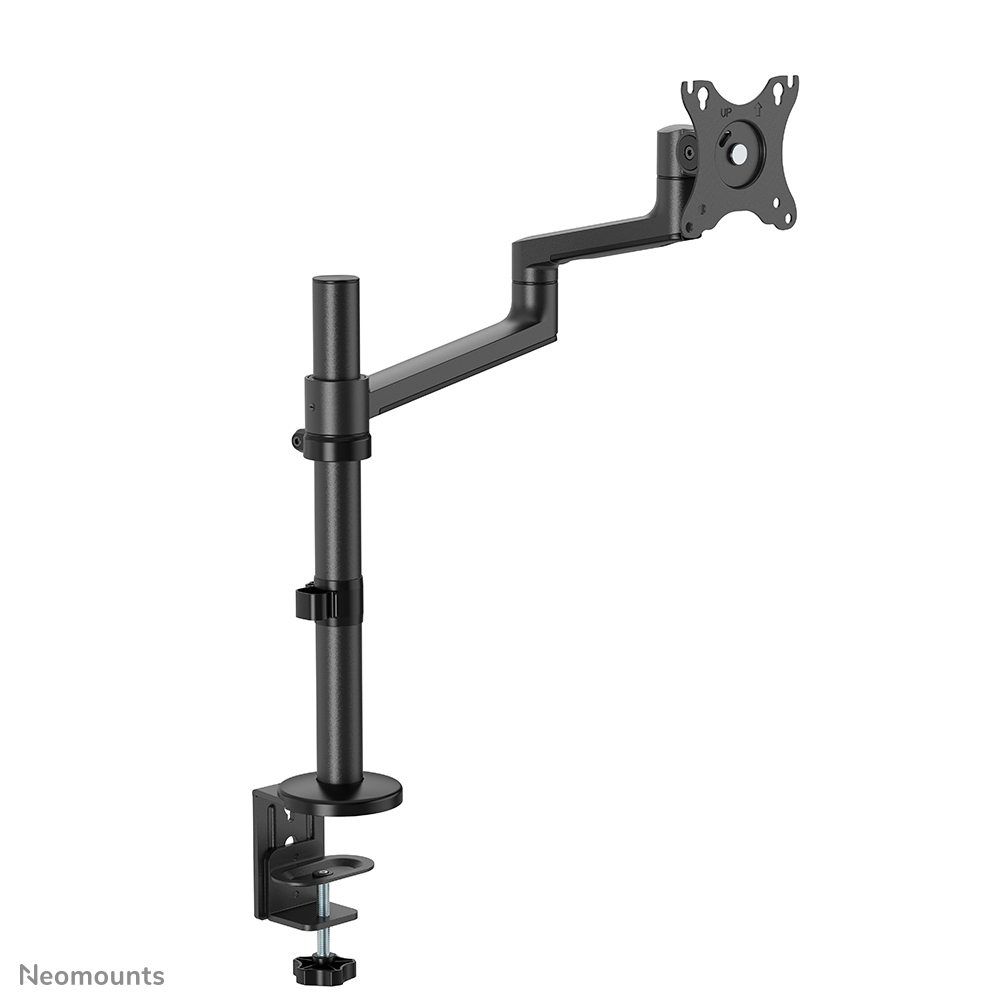

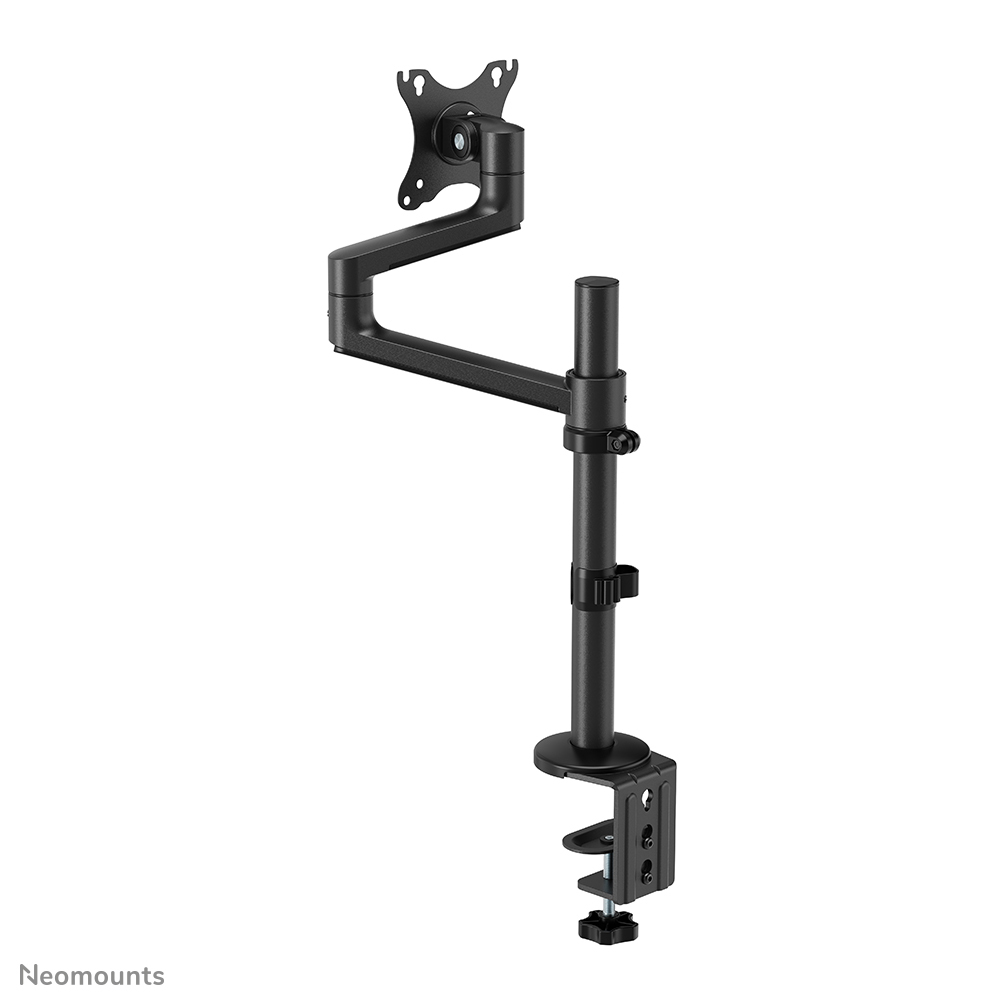

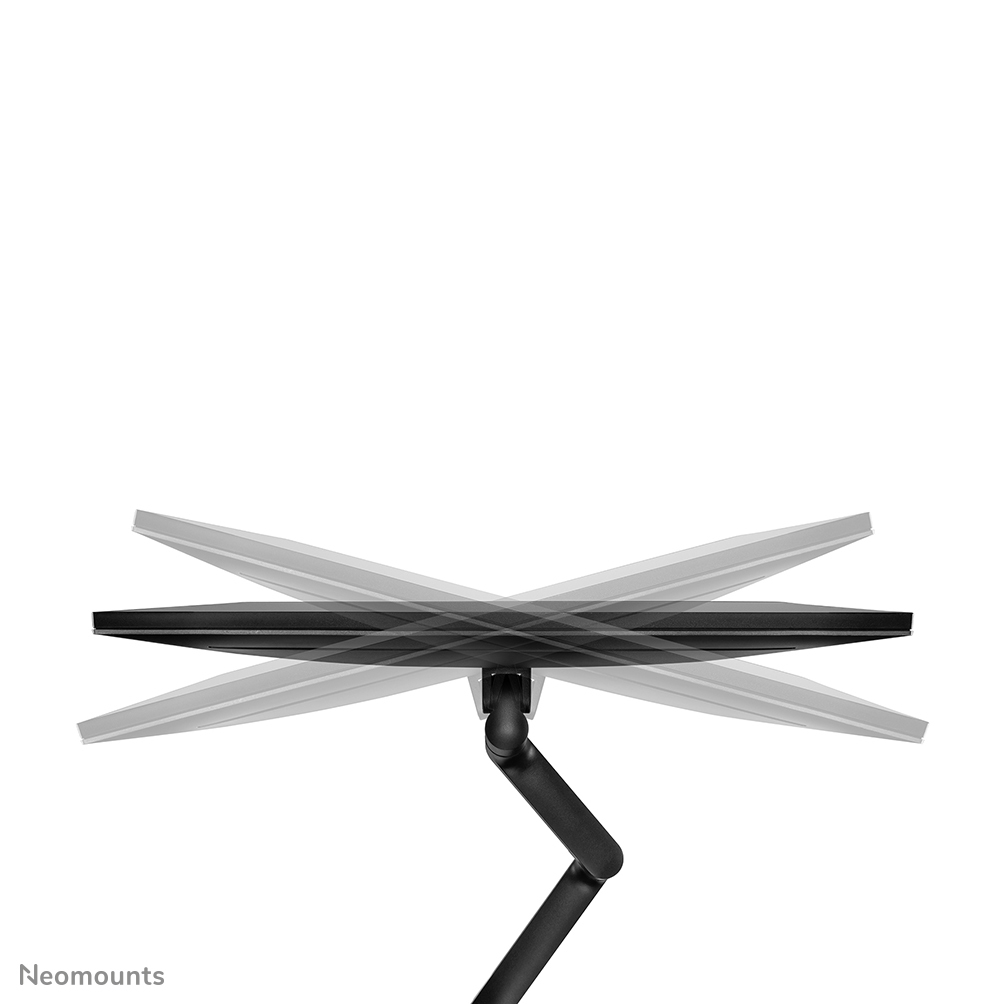

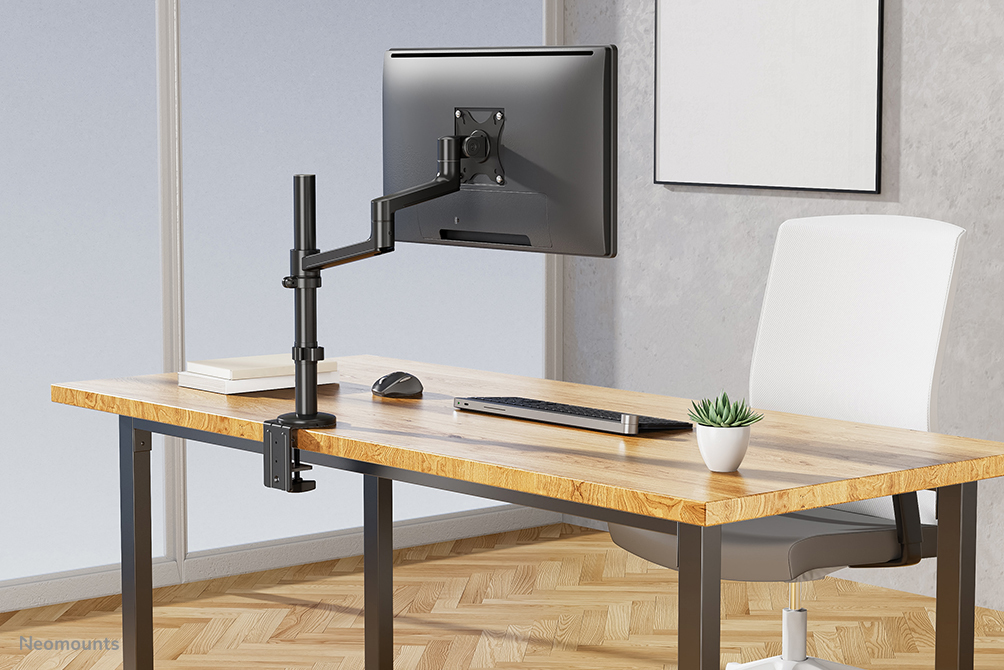

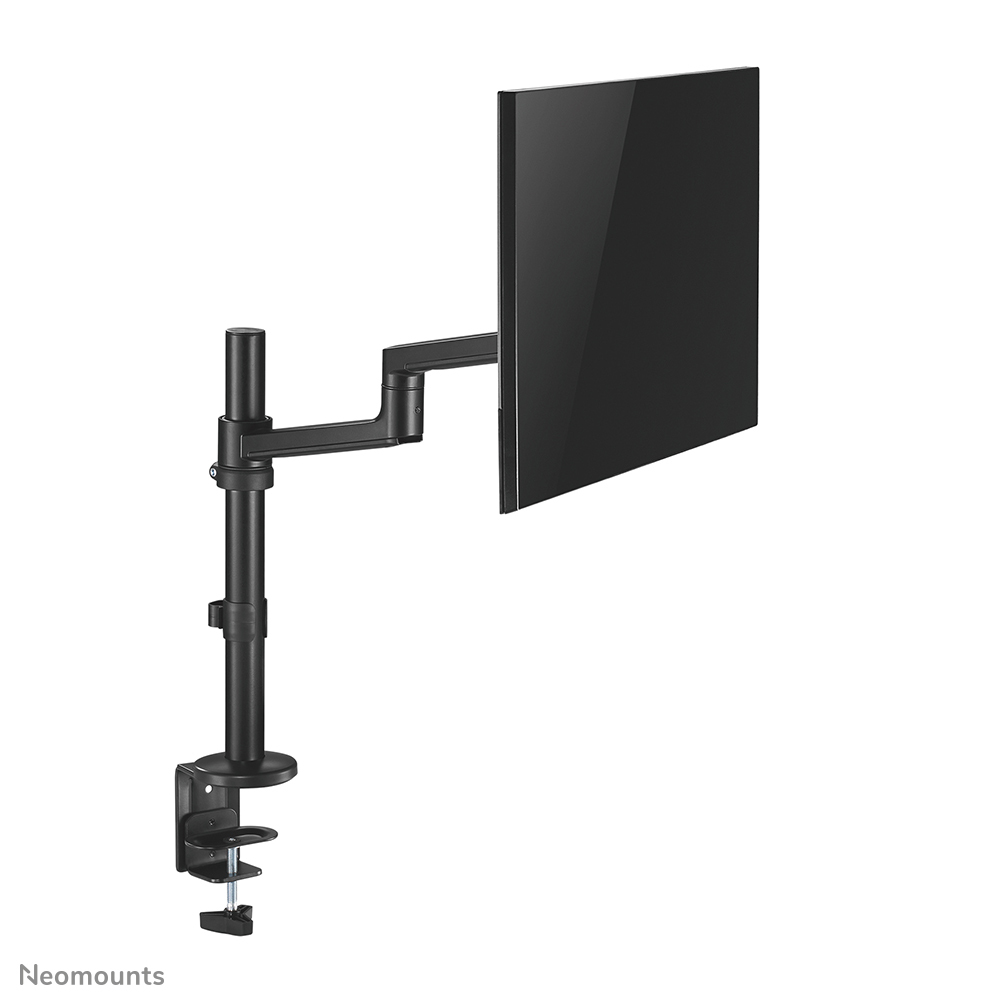

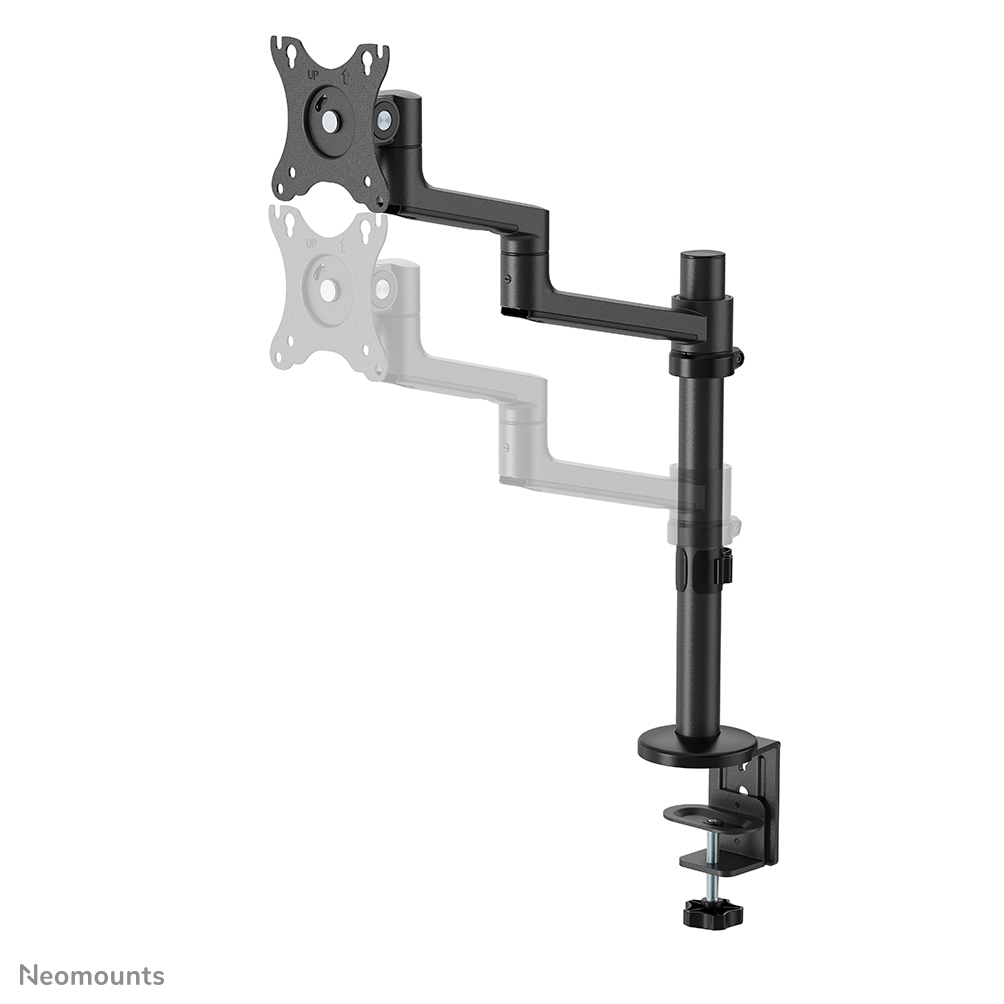

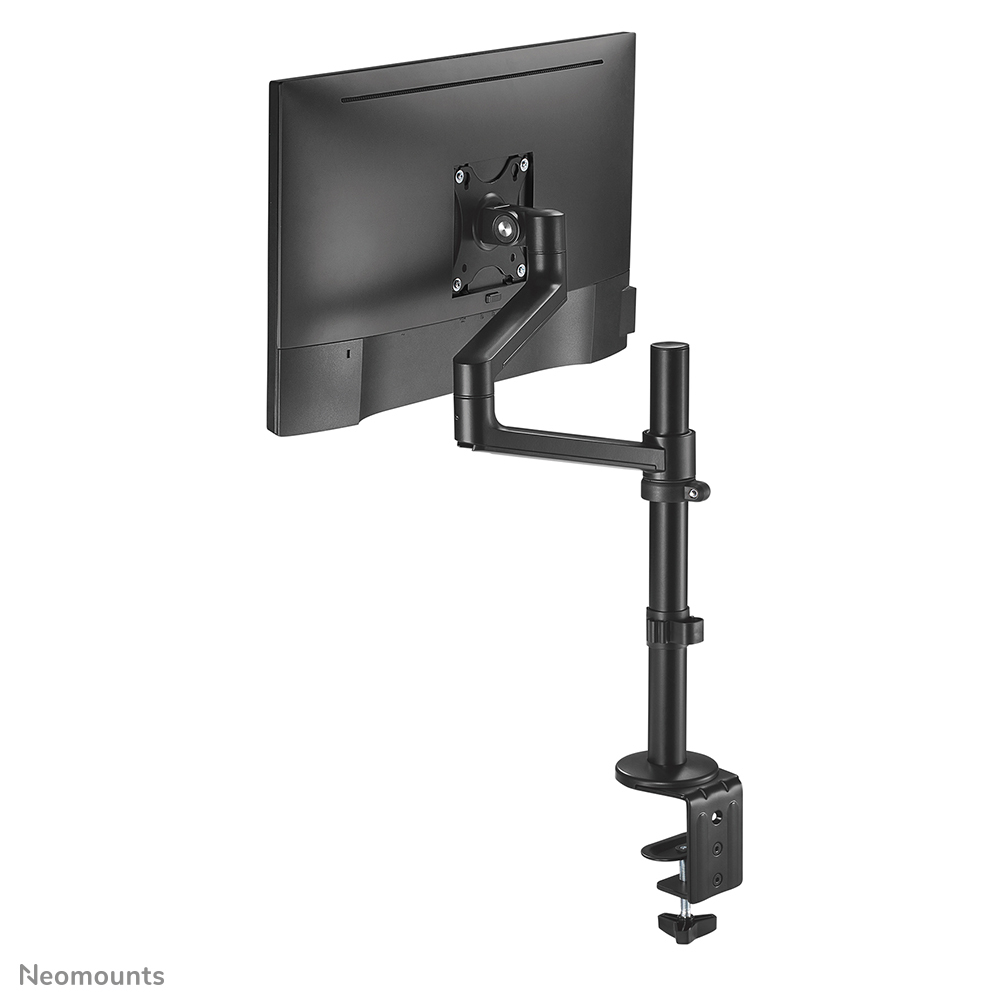

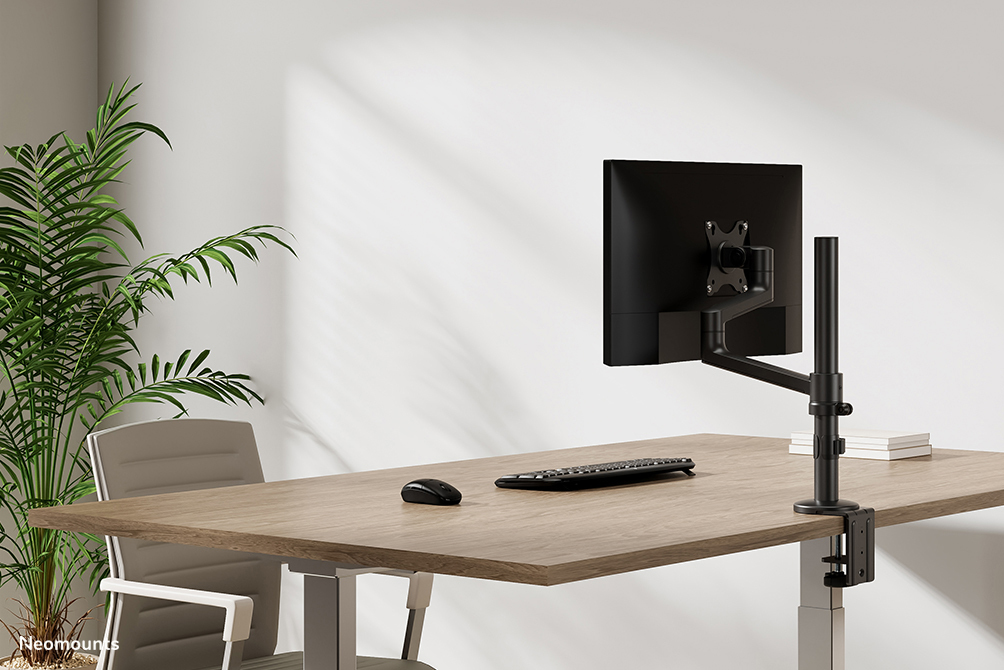

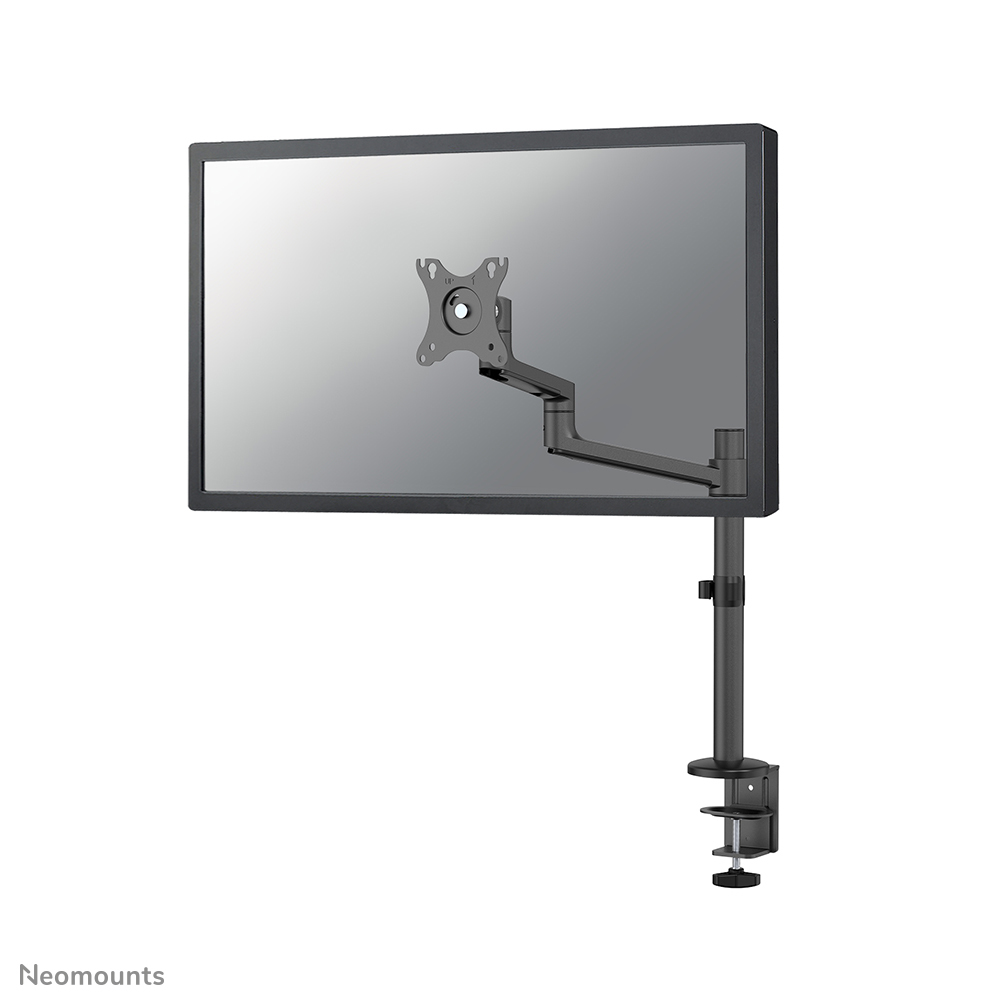

The Neomounts by Newstar DS60-425BL1 is a full motion desk mount for screens up to 27" with a maximum weight capacity of 8 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screen. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

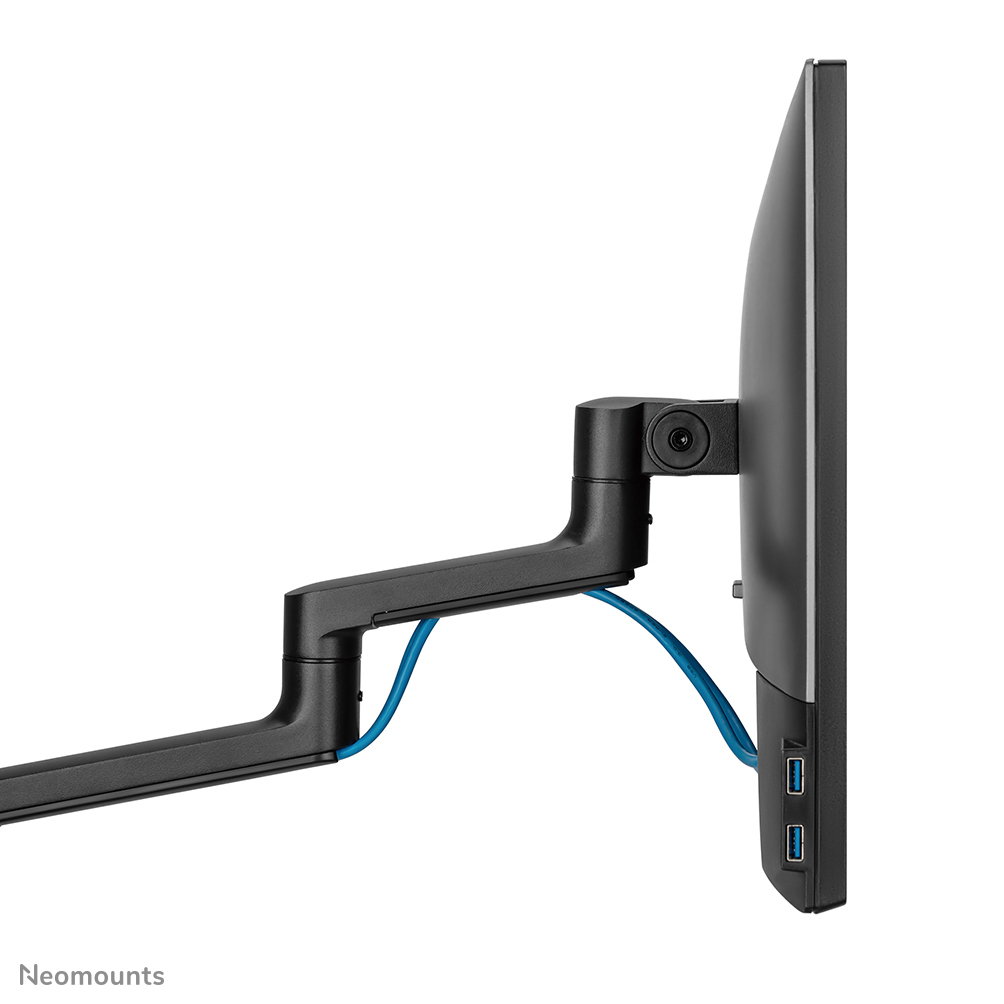

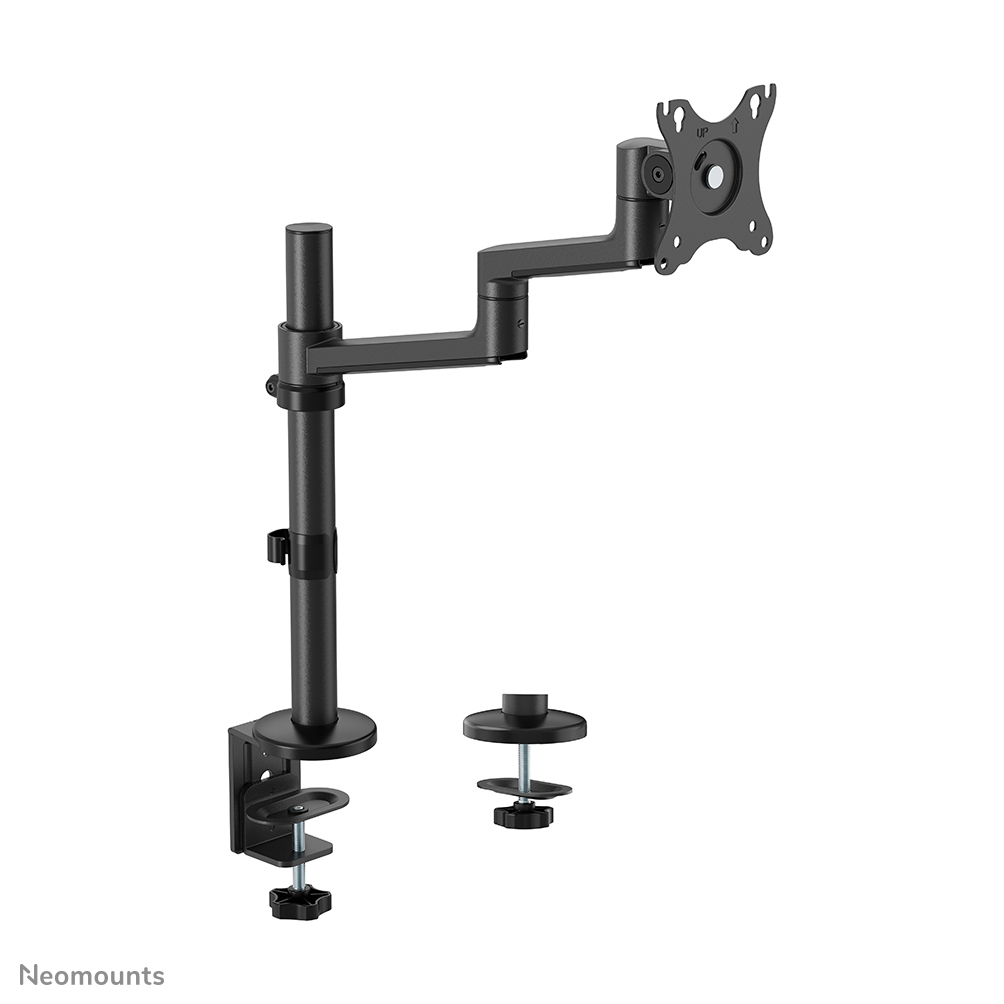

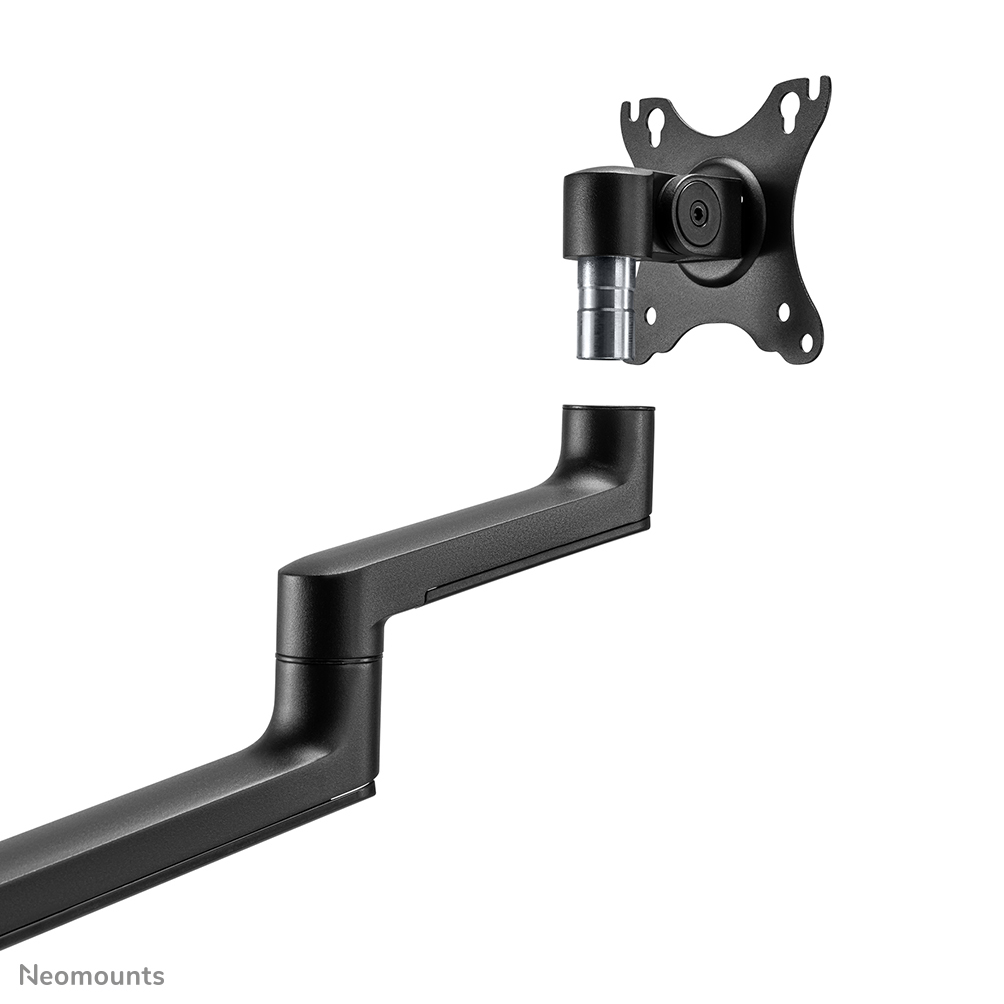

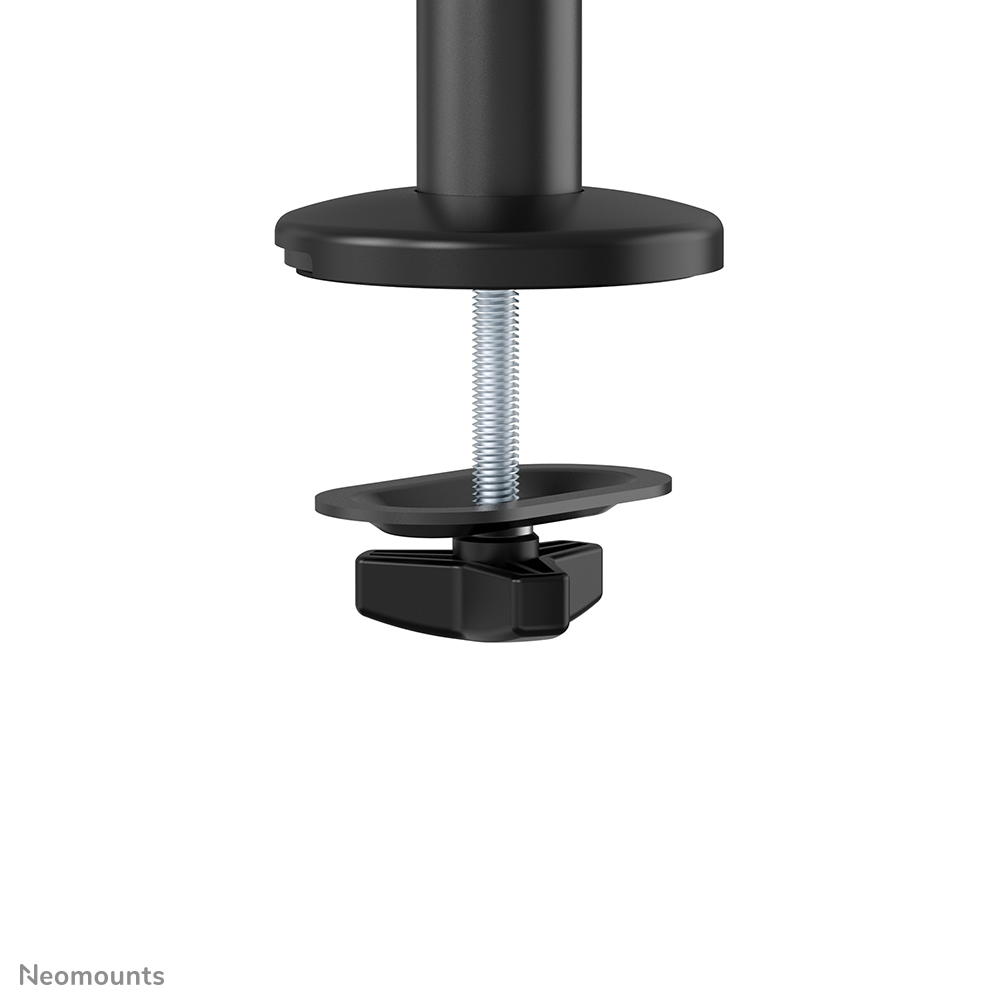

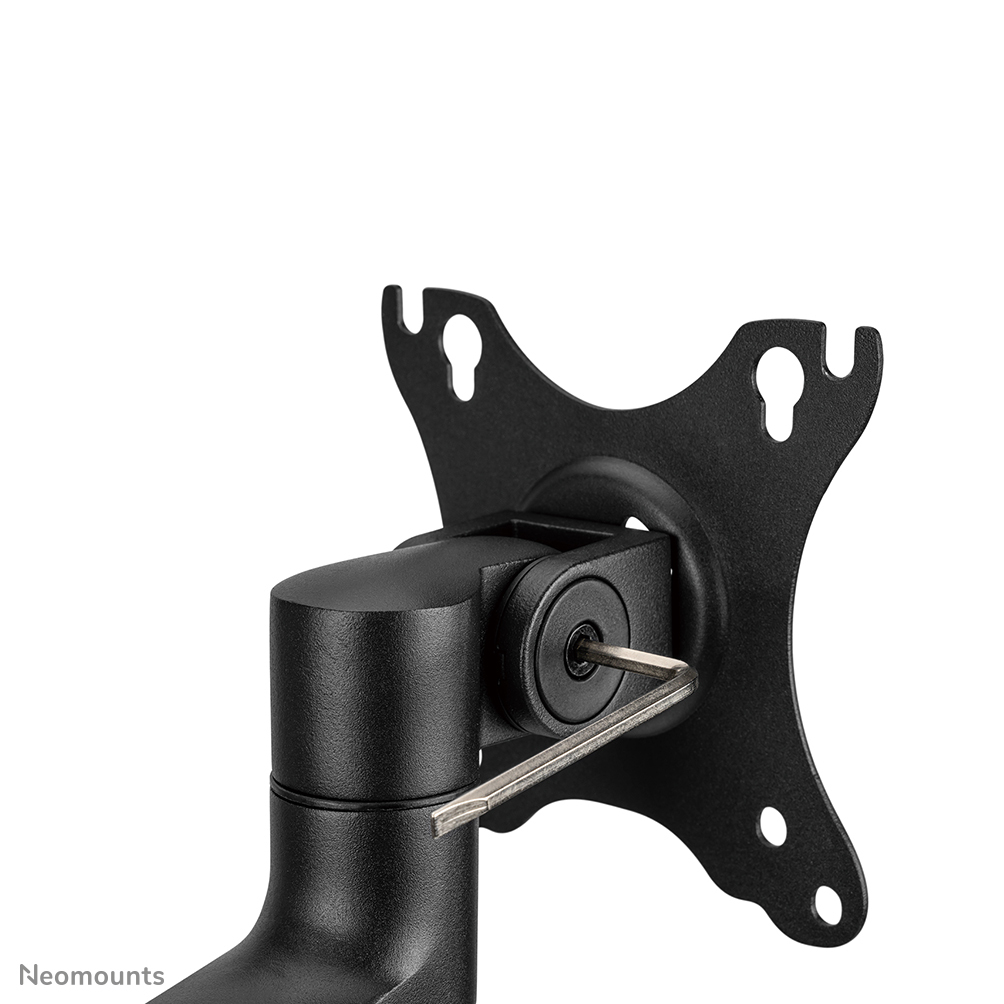

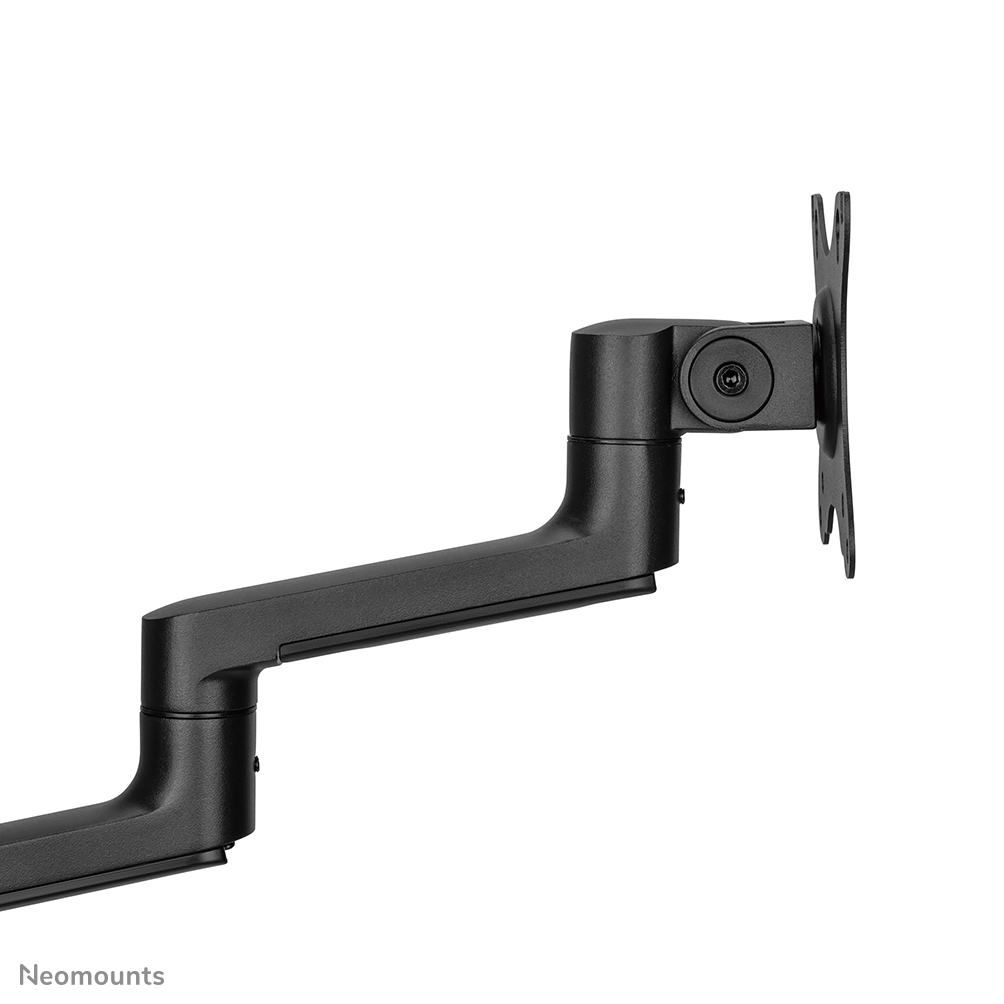

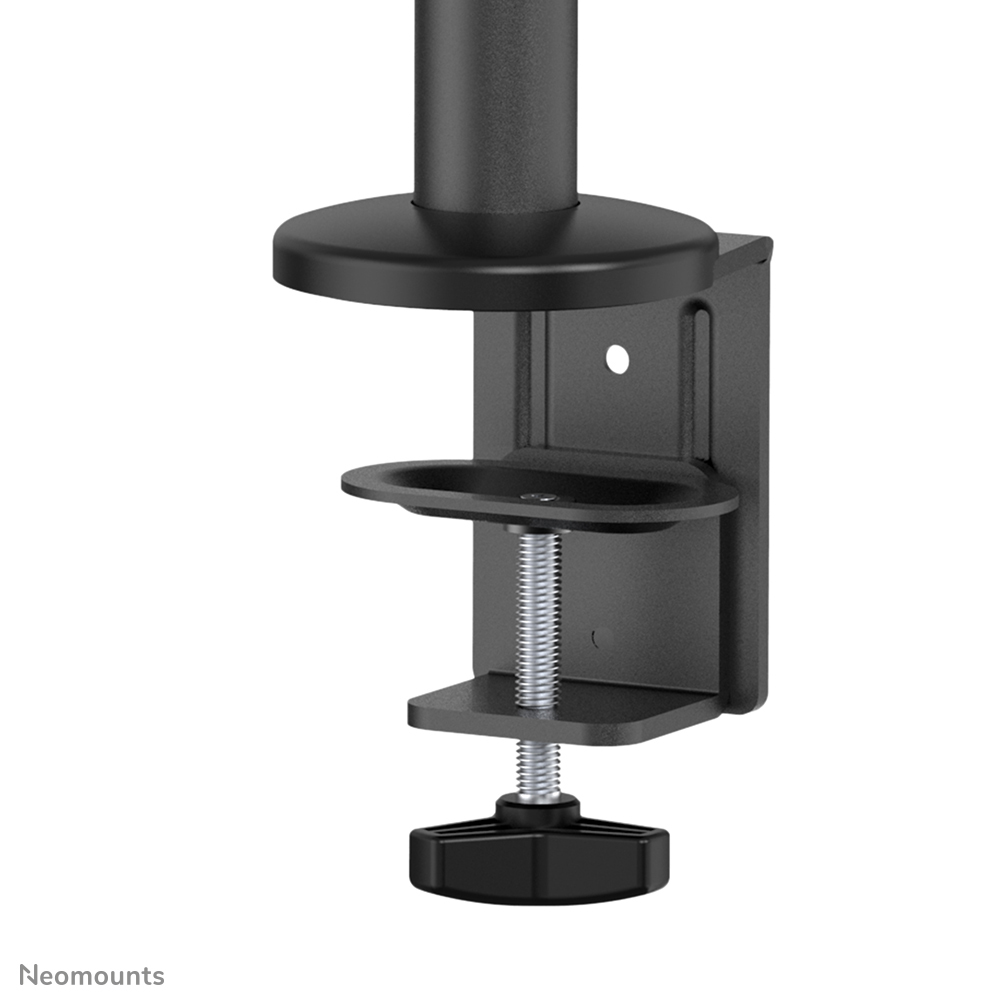

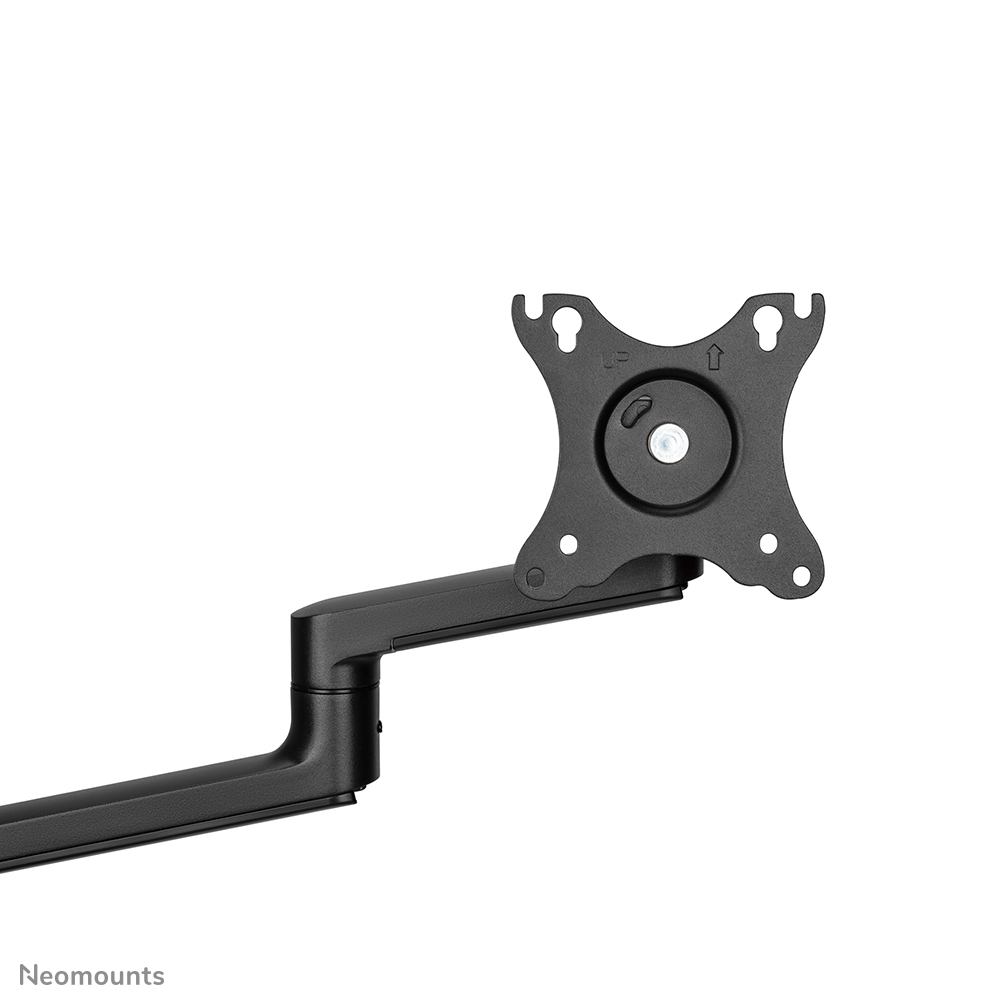

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the DS60-425BL1 is 100% plastic free and entirely made from cardboard and paper.
Hardware
Mount For
Monitor
VESA Maximum
100x100 mm
VESA Minimum
75x75 mm
Screen Size (Inches)
27 - 70
Screens
1
Physical Characteristics
Color
Black
Product Material
Steel
Performance
Flexibility
Tilt & Rotatable
Max. Weight (Kg)
8 kg
Mount On
Desk mounts
Mounting
Maximum weight capacity (per display)
8 kg
Minimum screen size
43.2 cm (17")
Maximum weight capacity
8 kg
Maximum screen size
68.6 cm (27")
Mounting
Clamp/Grommet
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Panel mounting interface
75 x 75 mm
Number of displays supported
1
Desk thickness (min)
1 cm
Desk thickness (max)
8 cm
Clamp mount desk thickness (max)
8 cm
Grommet mount desk thickness (max)
4 cm
Mounting type
Desk

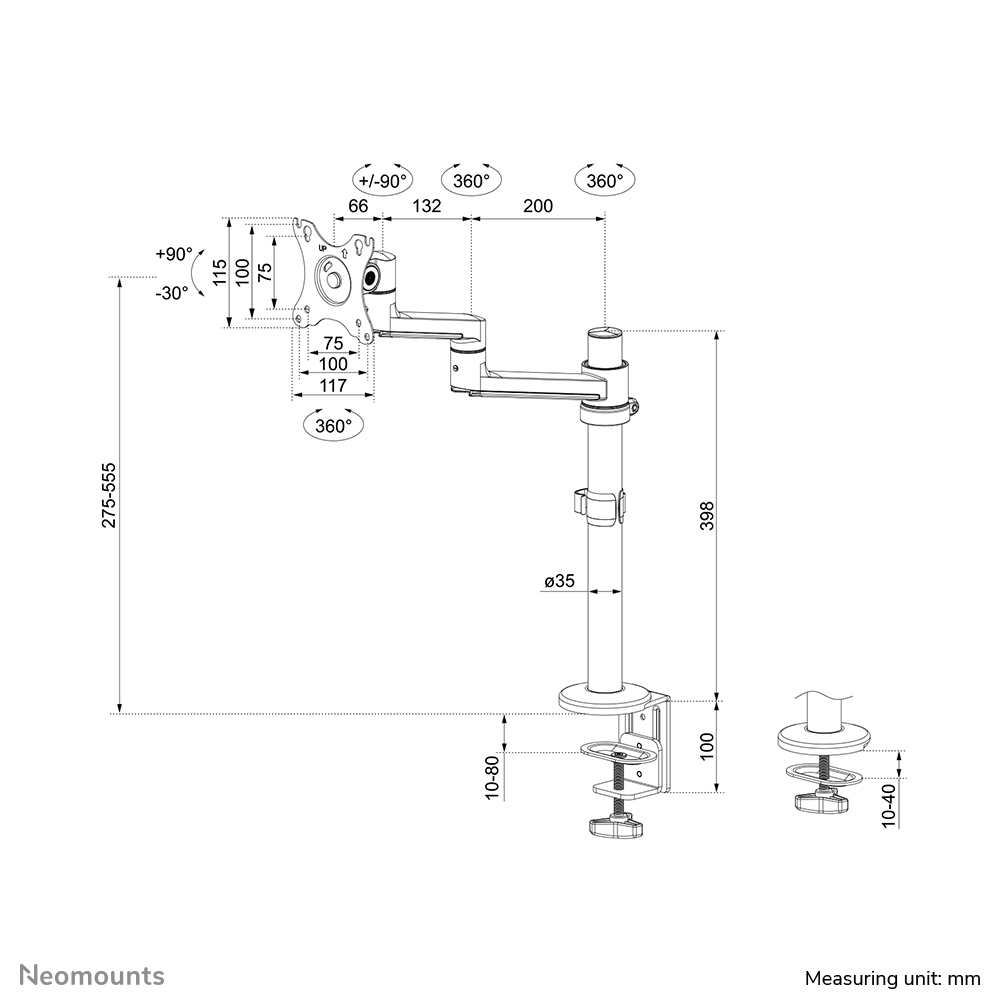

Distance to the wall (min)
12.8 cm
Distance to the wall (max)
45.9 cm
Ergonomics
Width adjustment
33.2 cm
Height adjustment
Yes
Height adjustment type
Manual
Height adjustment range
275 - 555 mm
Adjustable depth
Yes
Depth adjustment range
66 - 398 mm
Tilt angle range
-30 - 90°
Swivelling
Yes
Swivel angle range
-90 - 90°
Angle of rotation
360°
Cable management
Yes
Feet
Yes
Feet colour
Black
Design
Housing material
Steel
Product colour
Black
Orientation
Landscape/Portrait
Accepts padlock
No
Weight & dimensions
Width
453 mm
Depth
459 mm
Height
611 mm
Package width
140 mm
Package depth
103 mm
Package height
440 mm
Package net weight
3 kg
Weight
2.54 kg
Packaging content
Clamp included
Yes
VESA mount included
Yes
Packaging data
Quantity per pack
1 pc(s)
Package weight
3 kg
Logistics data
Master (outer) case width
300 mm
Master (outer) case length
330 mm
Master (outer) case height
455 mm
Products per master (outer) case
6 pc(s)
Master (outer) case net weight
15.2 kg
Harmonized System (HS) code
7326909890
Products per pallet (EU)
120 pc(s)
Master (outer) case gross weight
18.2 kg
Other features
Country of origin
China
Width adjustment range
0 - 332 mm
