Introduction

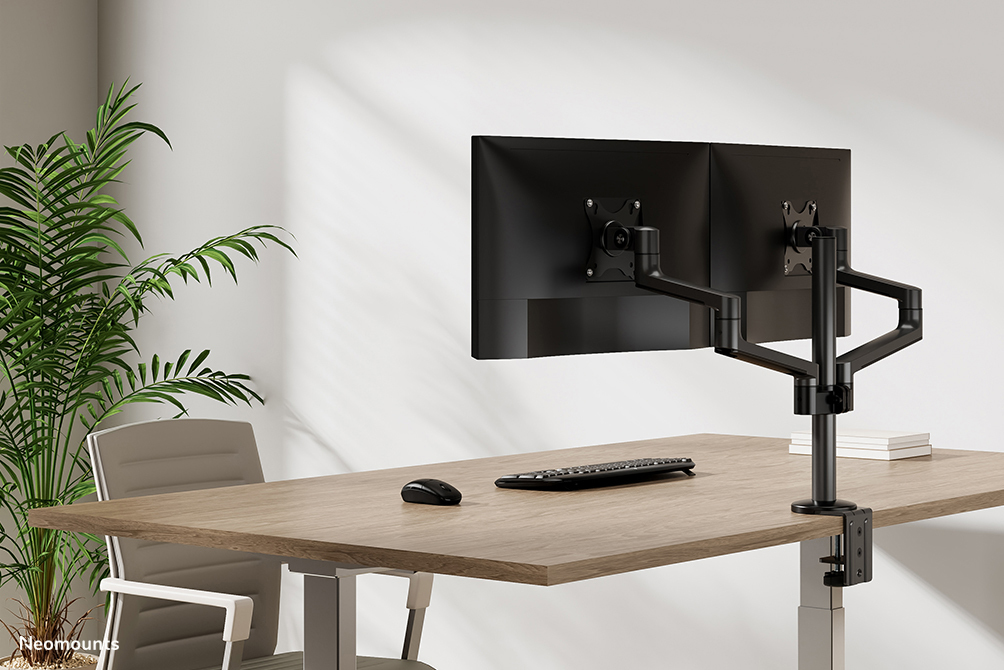

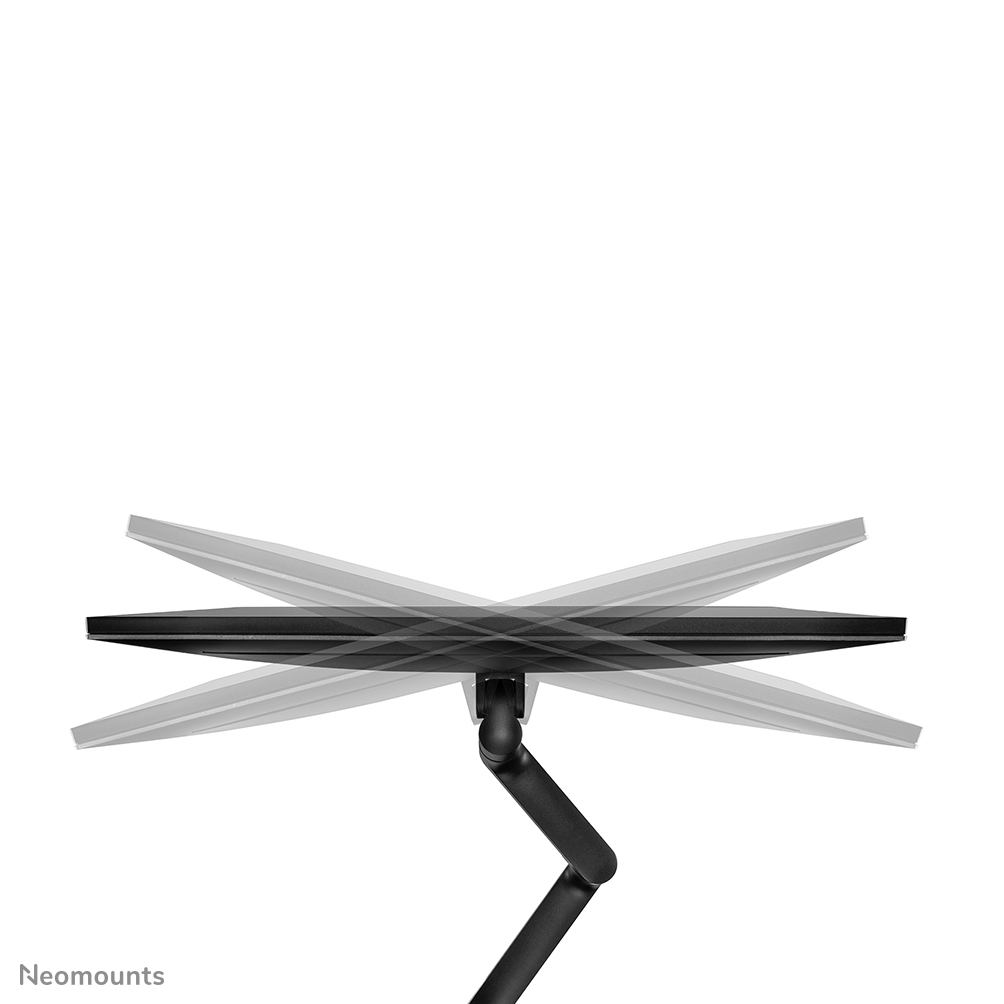

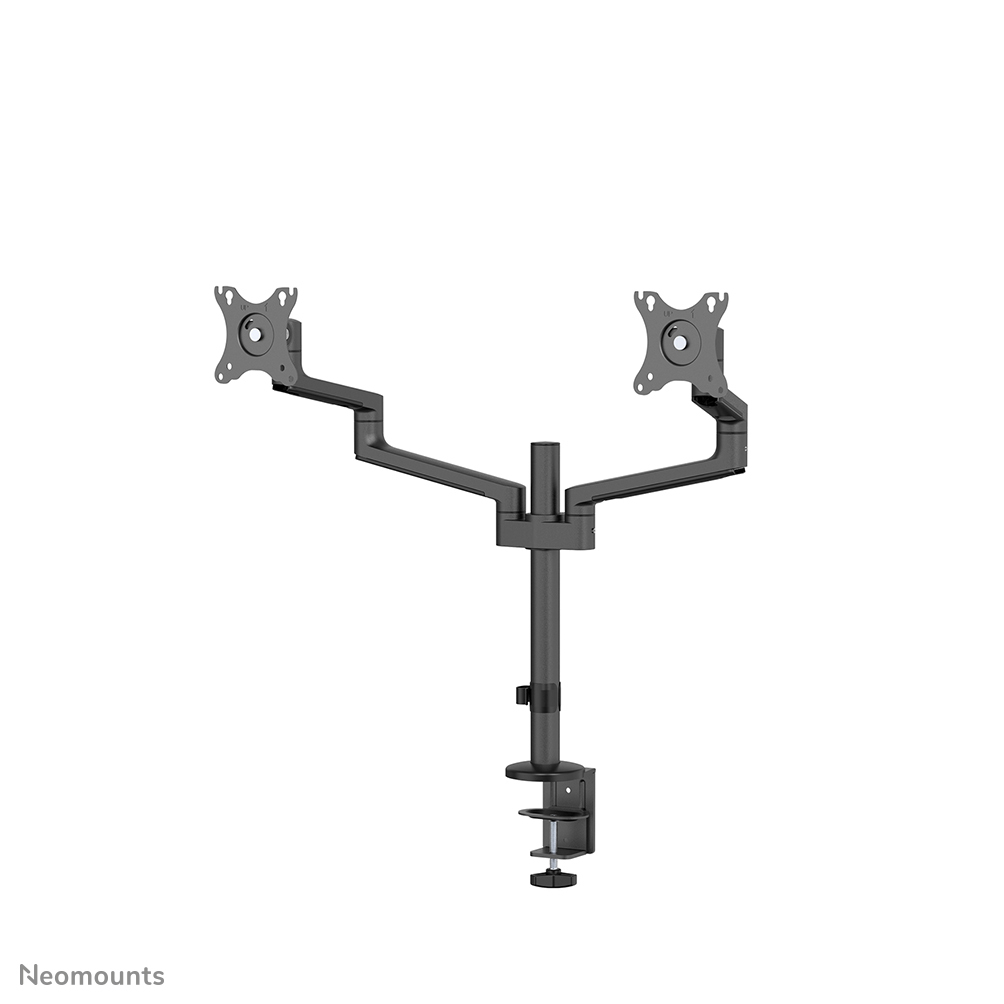

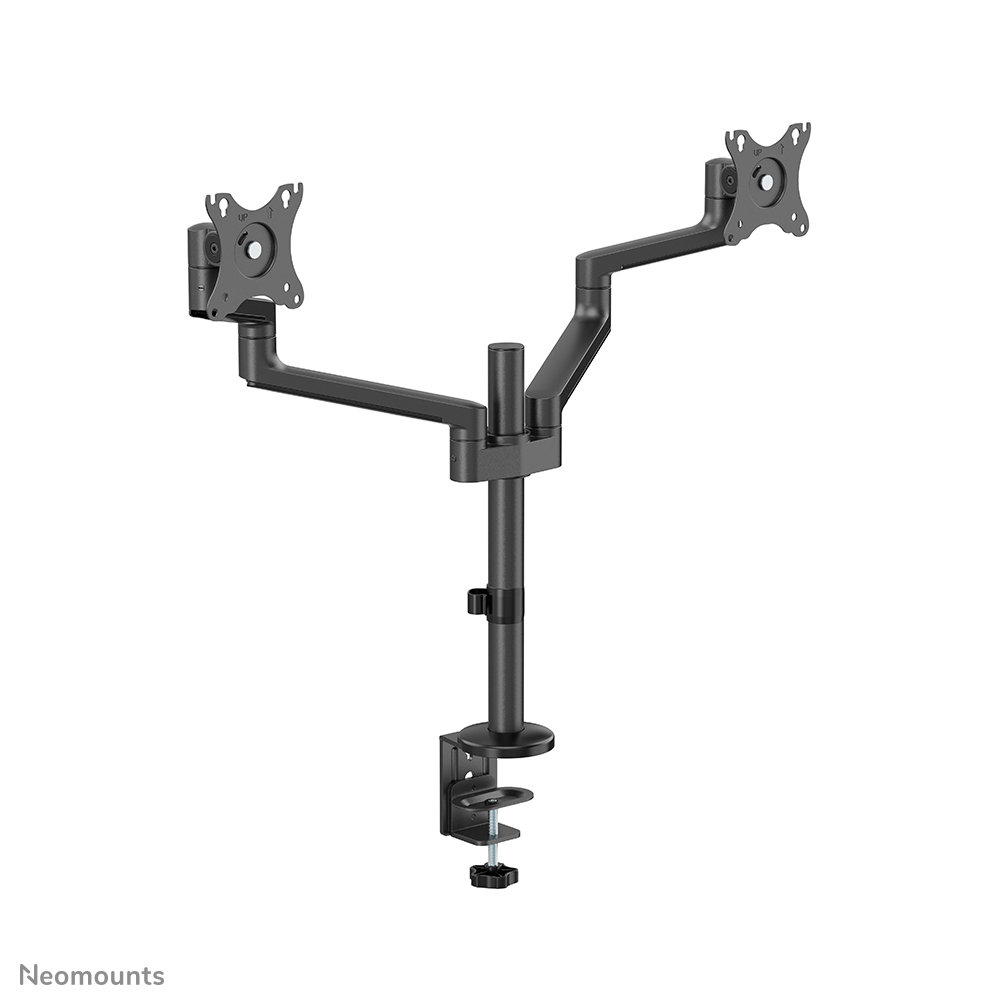

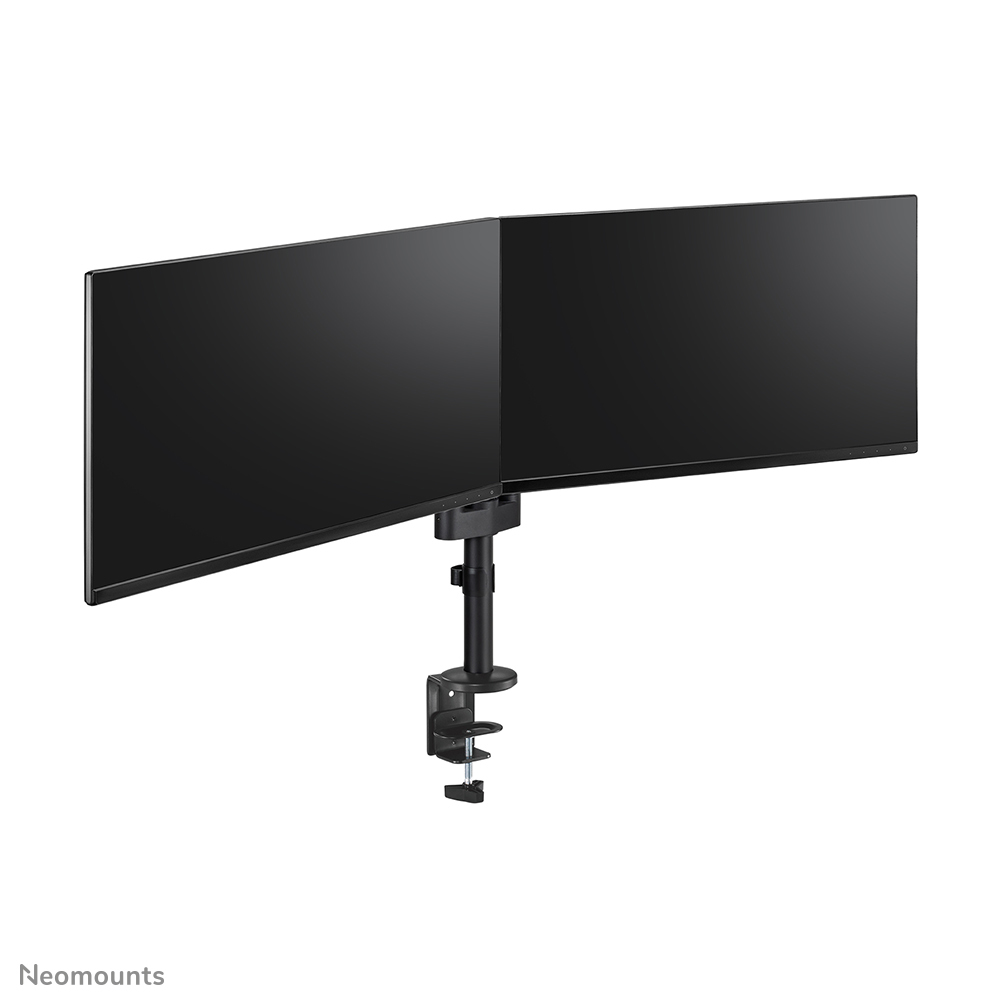

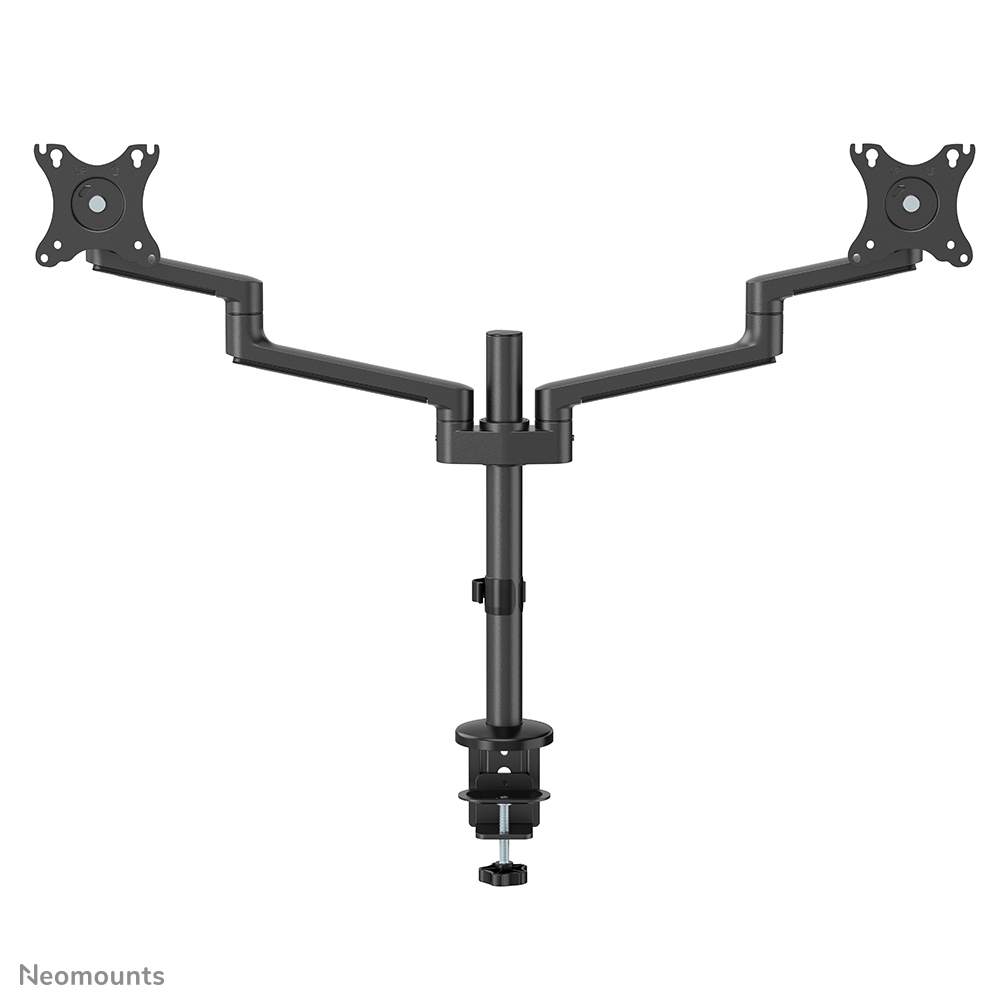

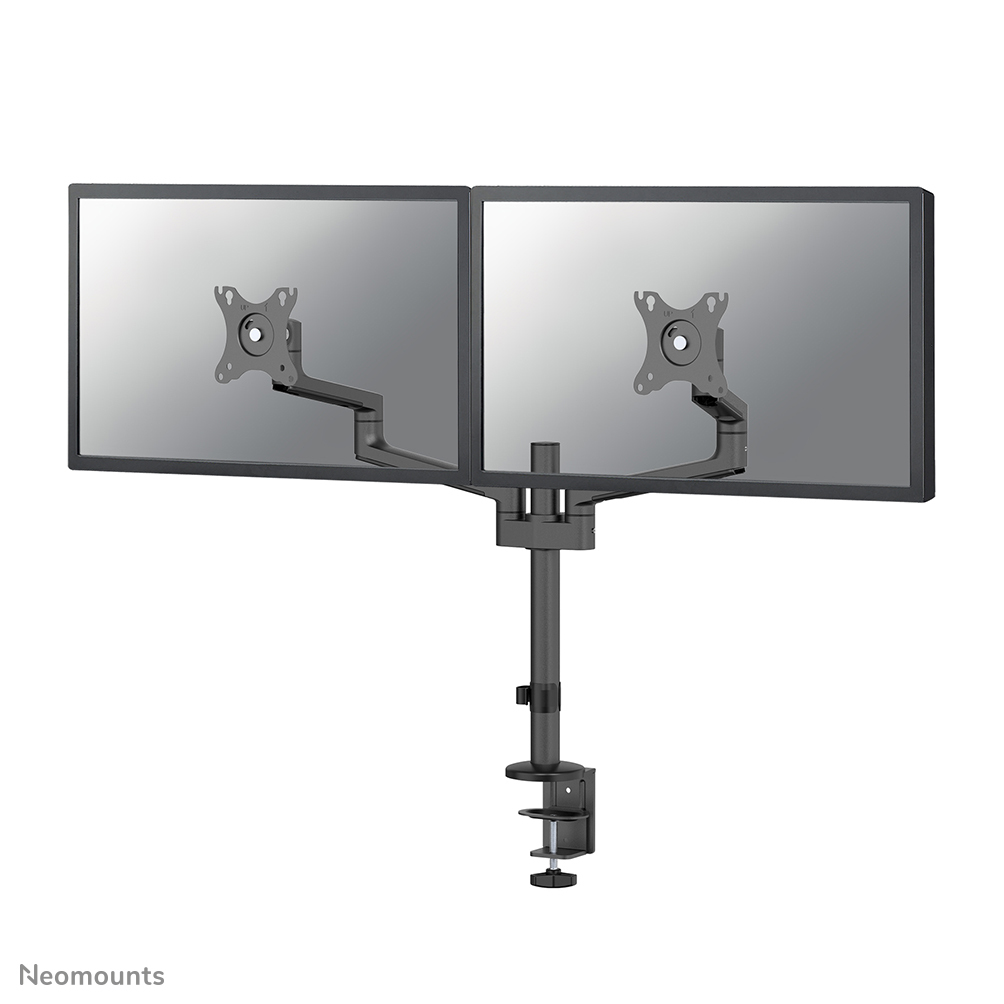

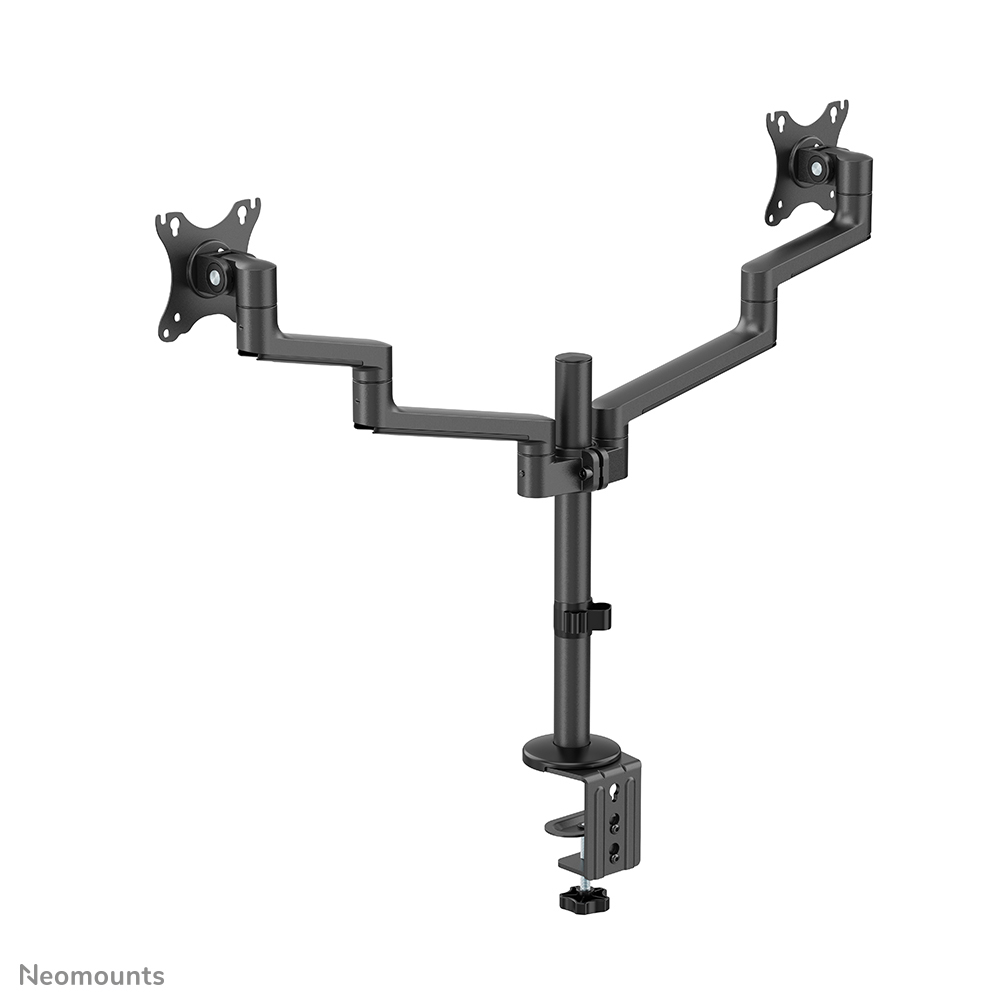

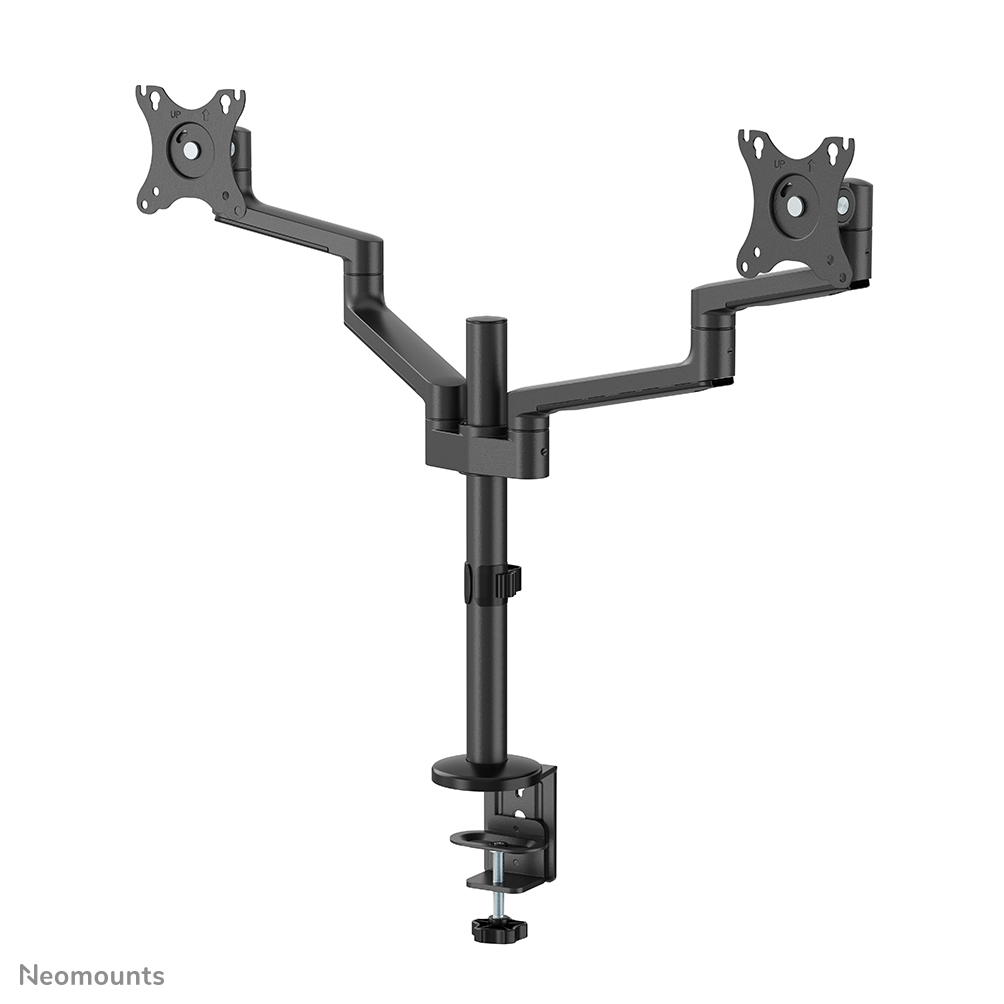

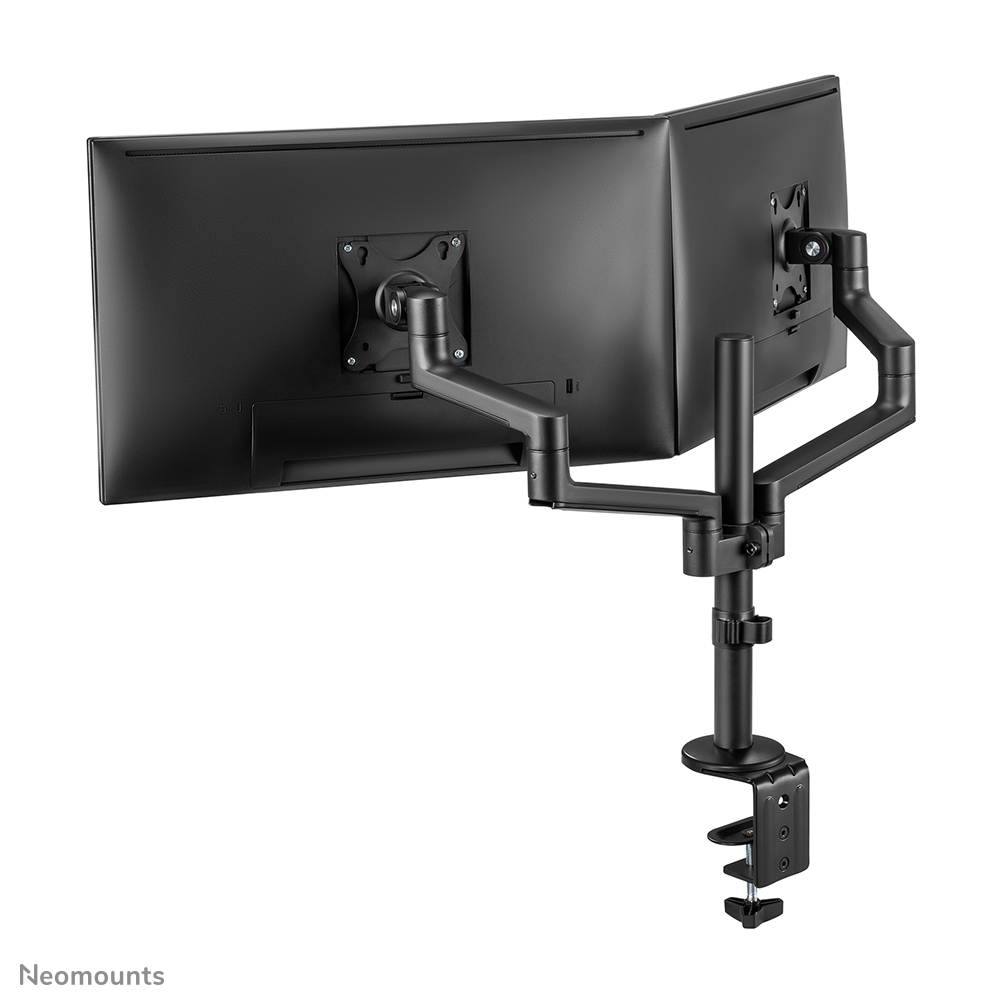

The Neomounts by Newstar DS60-425BL2 is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

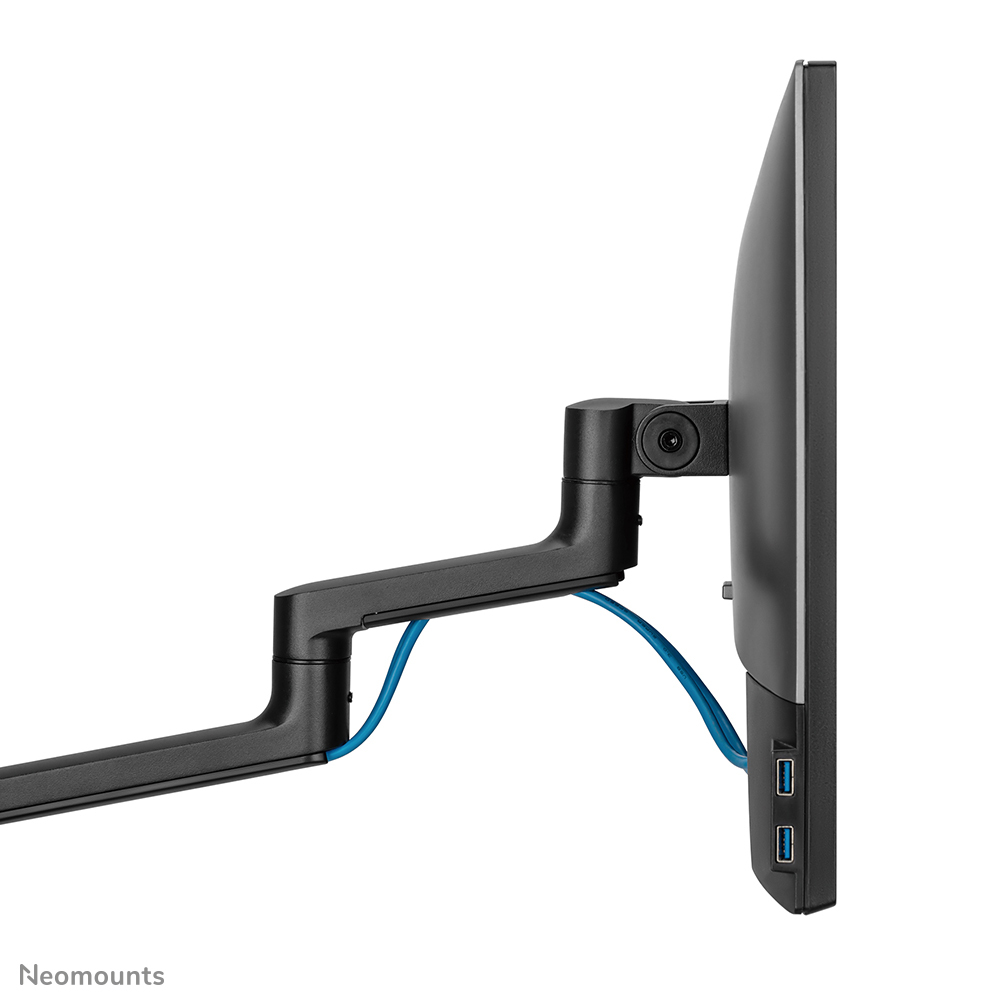

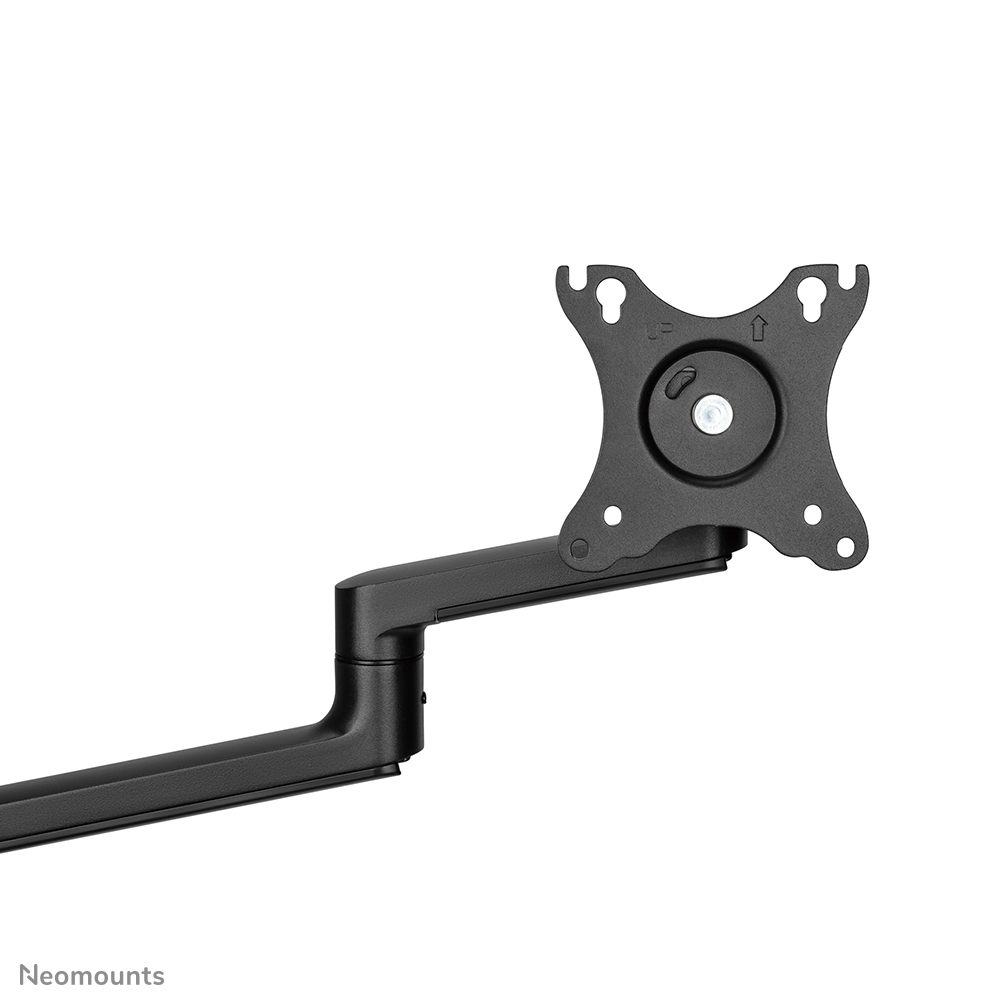

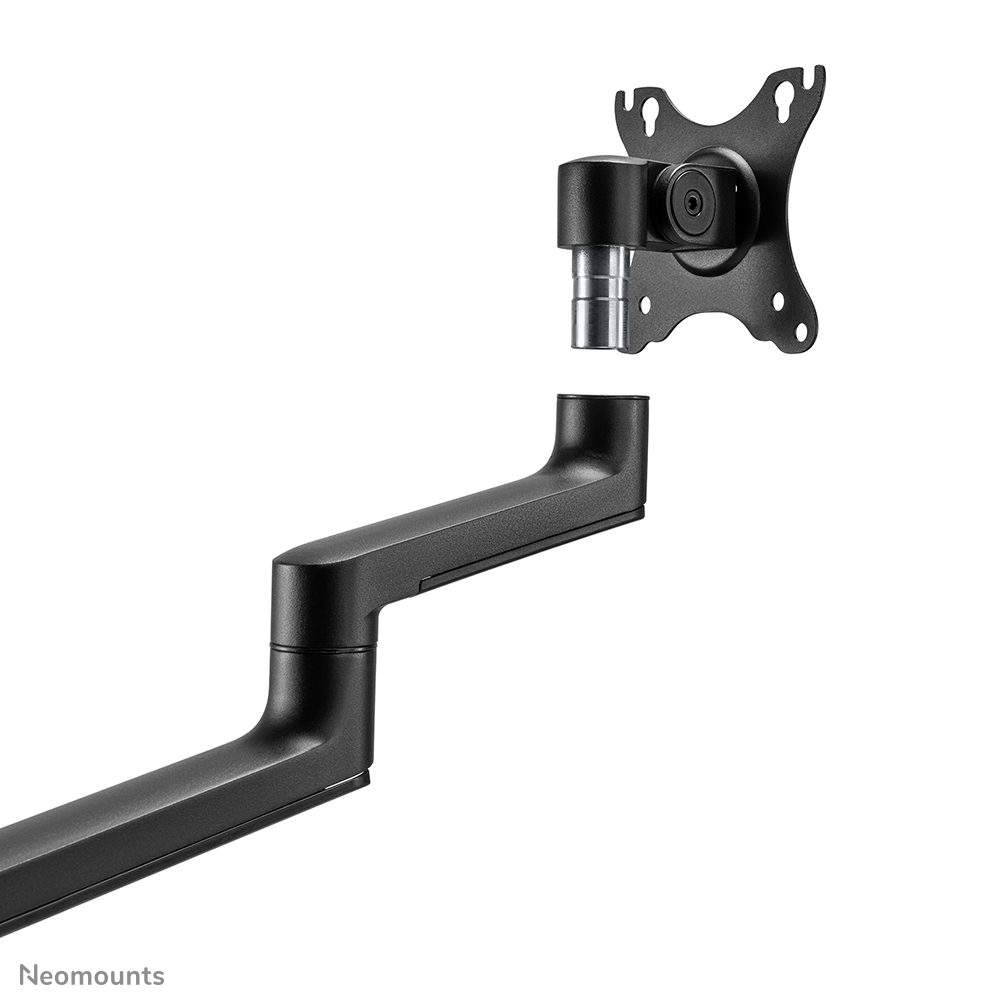

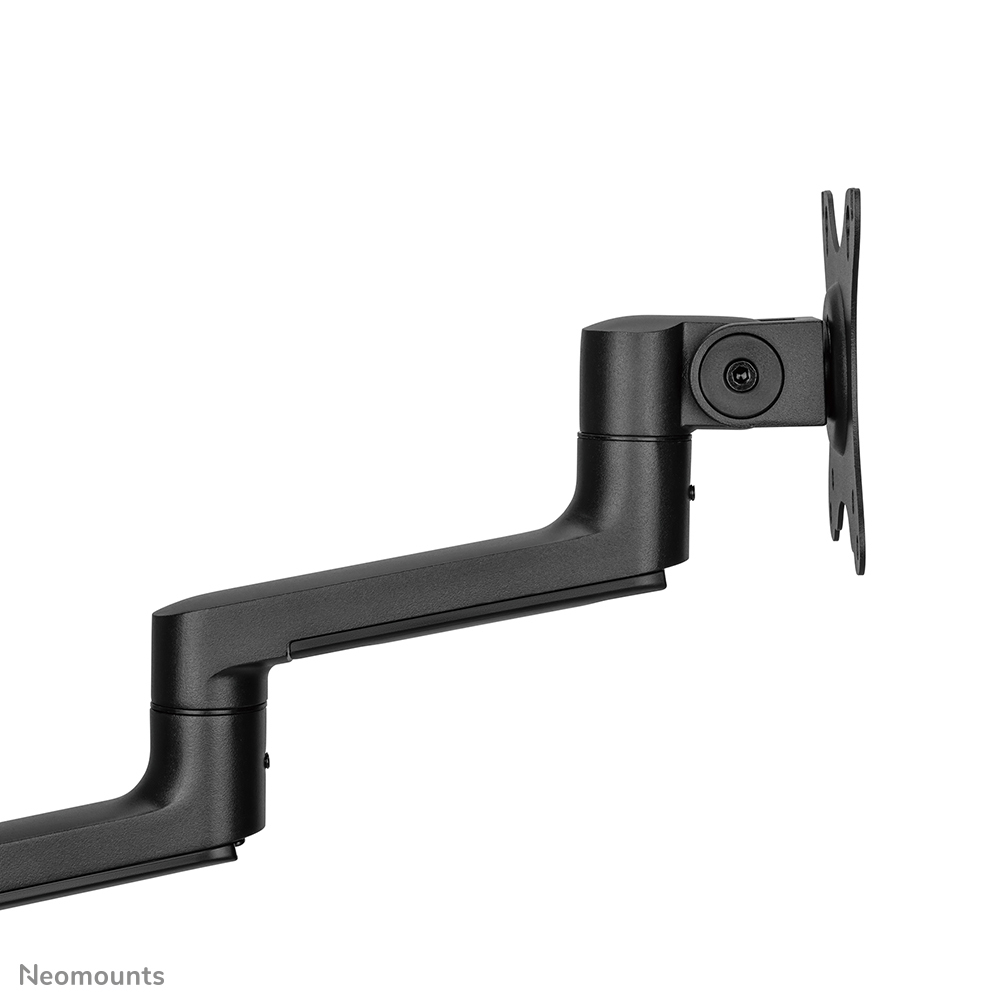

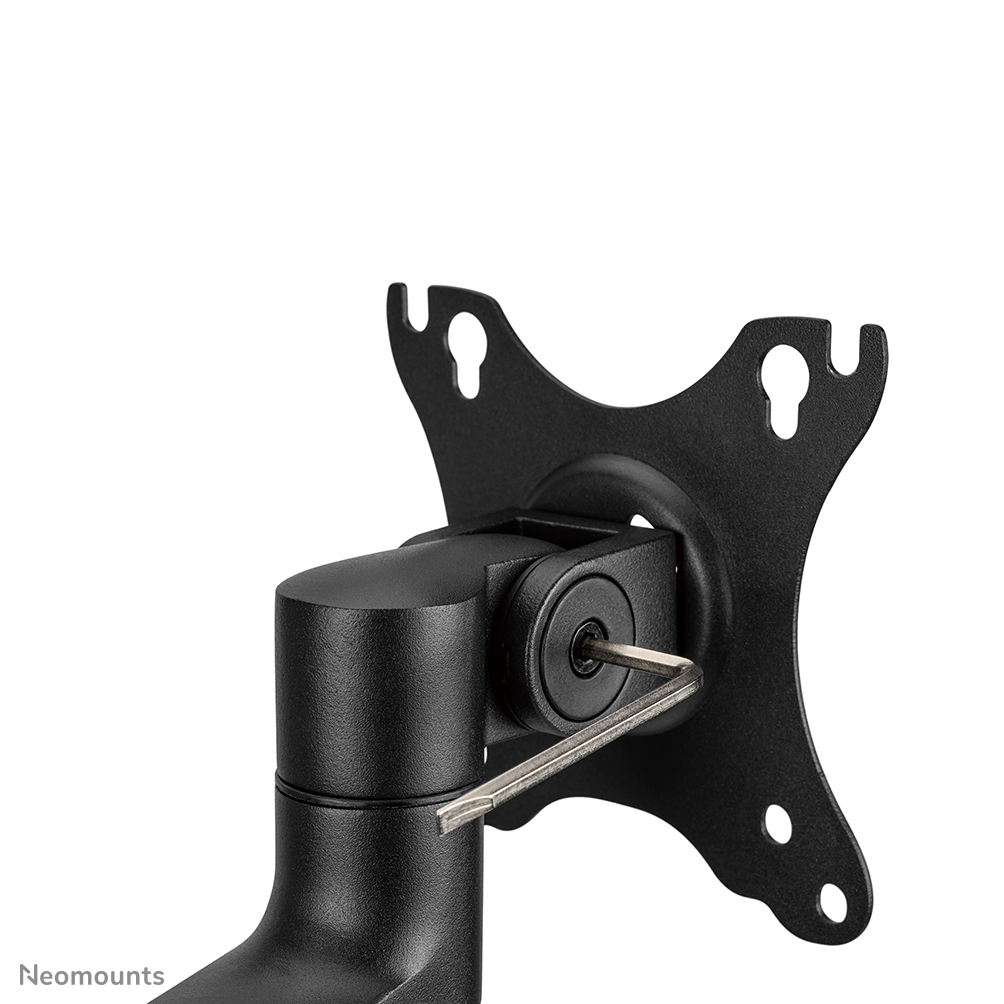

Due to the short T-Rex® upper arms, only minimal depth is required when placed near a wall or separation panel. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the DS60-425BL2 is 100% plastic free and entirely made from cardboard and paper.

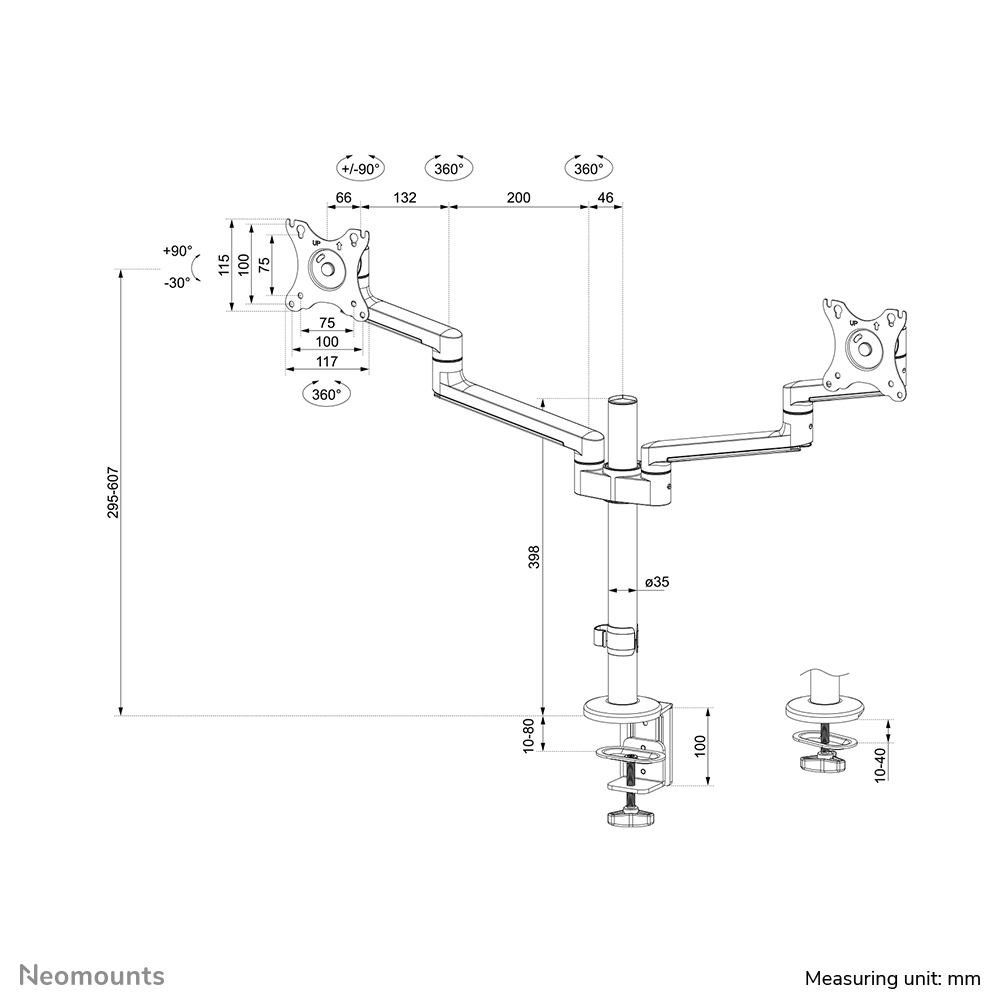

Mounting
Maximum weight capacity
8 kg
Maximum weight capacity (per display)
8 kg
Minimum screen size
43.2 cm (17")
Maximum screen size
68.6 cm (27")
Mounting
Clamp/Bolt-through
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Panel mounting interface
100 x 100 mm
Number of displays supported
2
Desk thickness (min)
1 cm
Desk thickness (max)
8 cm

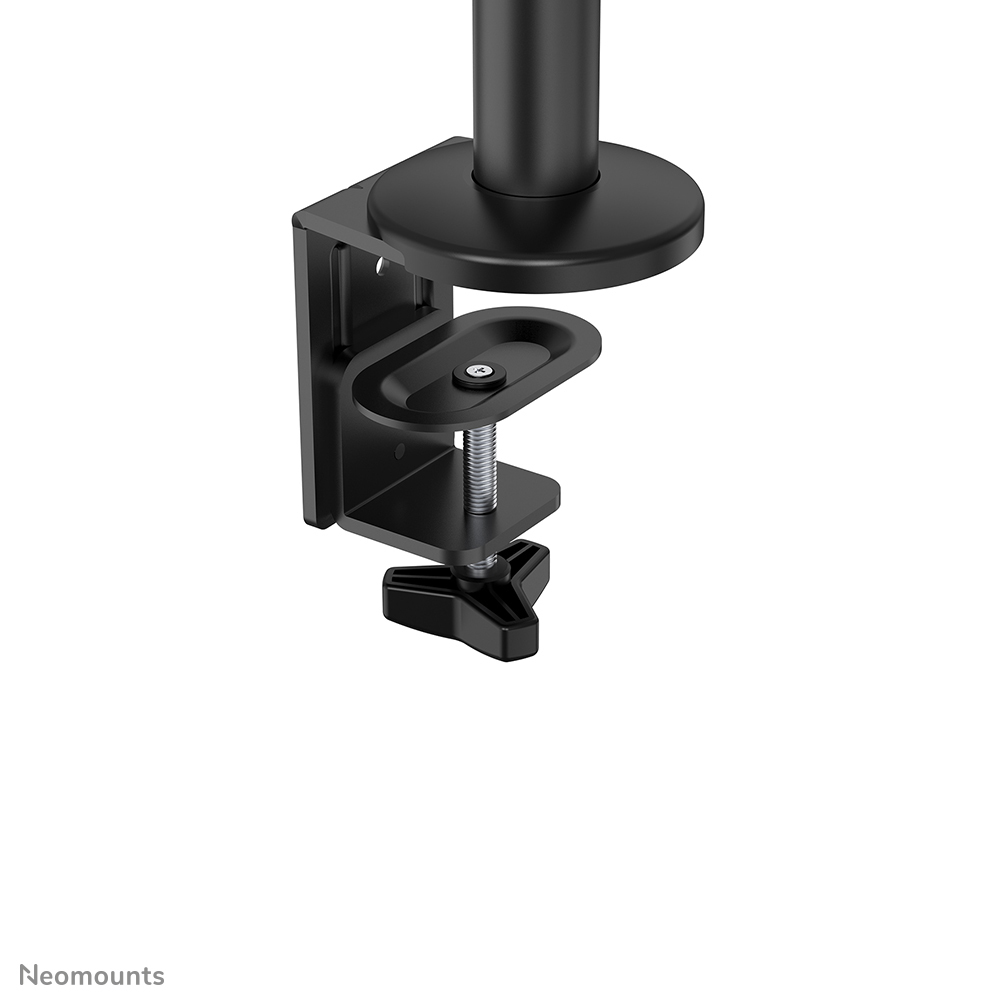

Clamp mount desk thickness (max)
8 cm
Grommet mount desk thickness (max)
4 cm
Mounting type
Desk
Distance to the wall (min)
12.8 cm
Distance to the wall (max)
46 cm
Ergonomics
Width adjustment
33.2 cm

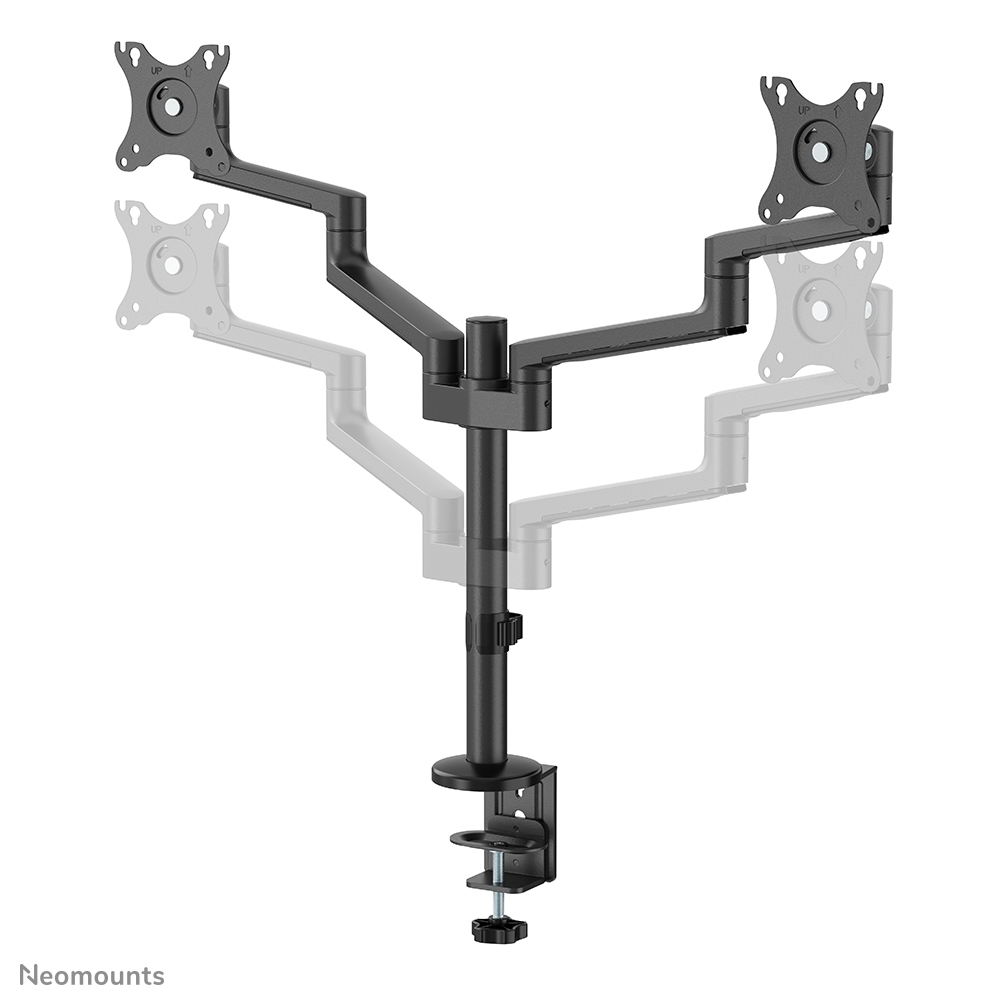

Height adjustment
Y
Height adjustment type
Manual
Height adjustment range
29.5 - 60.7 mm
Adjustable depth
Y
Depth adjustment range
6.6 - 39.8 mm
Tilt angle range
-30 - 90°
Swivelling
Y
Swivel angle range
-30 - 90°
Angle of rotation
360°
Cable management
Y
Feet
Y
Feet colour
Black
Design
Housing material
Steel
Product colour
Black
Orientation

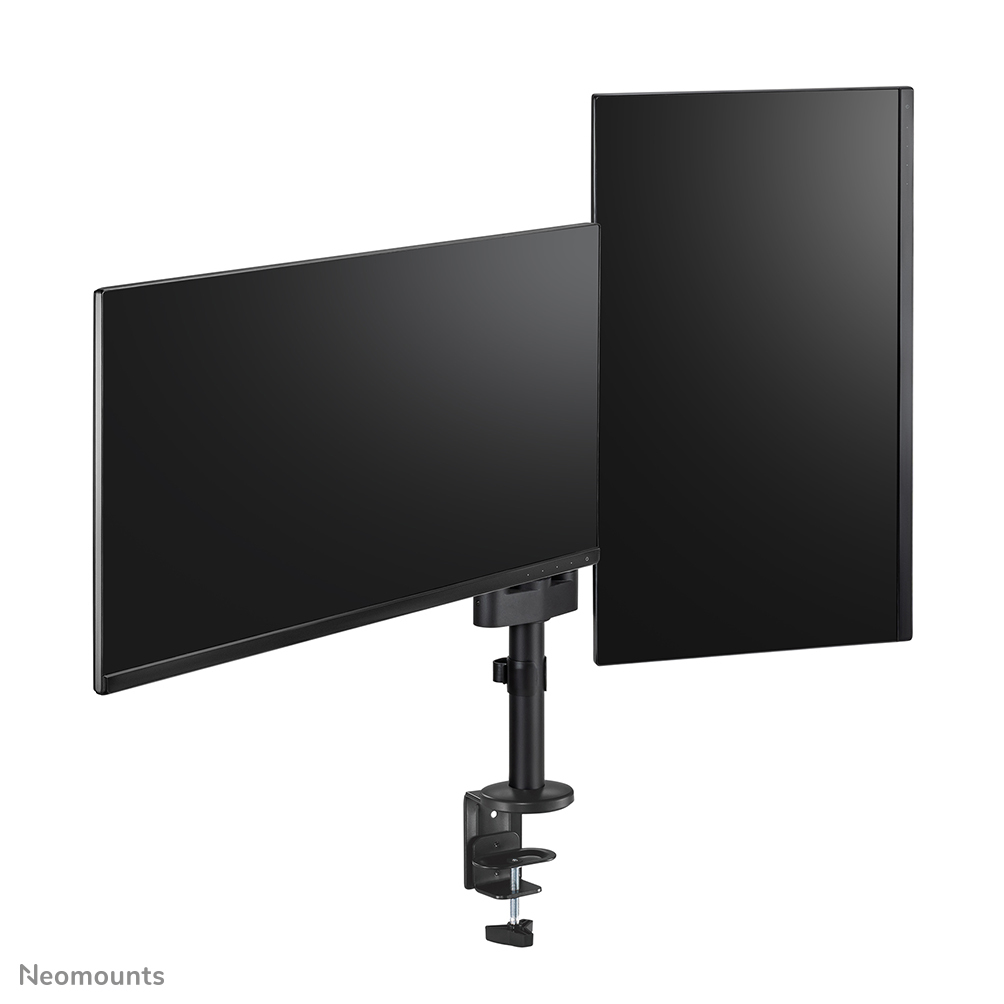

Landscape/Portrait
Accepts padlock
No
Weight & dimensions
Width
888 mm
Depth
460 mm
Height
763 mm
Package width
210 mm
Package depth
105 mm
Package height
440 mm
Package net weight
4.6 kg
Weight
3.78 kg
Packaging content
Clamp included
Y
VESA mount included
Y
Packaging data
Quantity per pack
1 pc(s)
Package weight
4.6 kg
Logistics data
Master (outer) case width
220 mm
Master (outer) case length
435 mm
Master (outer) case height
455 mm
Products per master (outer) case
4 pc(s)
Master (outer) case net weight
15.1 kg
Harmonized System (HS) code
HS7326909890
Products per pallet (EU)
84 pc(s)
Master (outer) case gross weight
18.4 kg
Other features
Country of origin
China
Width adjustment range
0 - 332 mm
