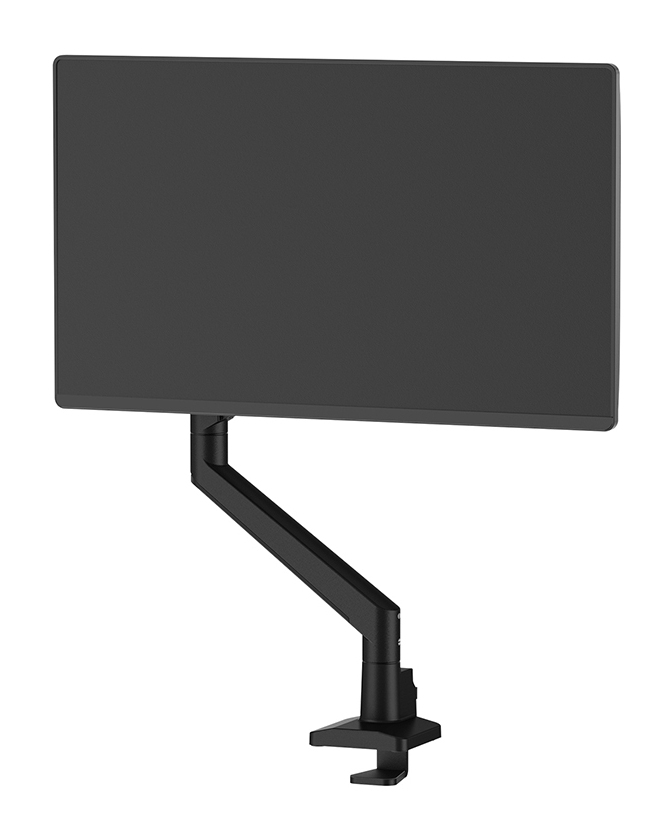

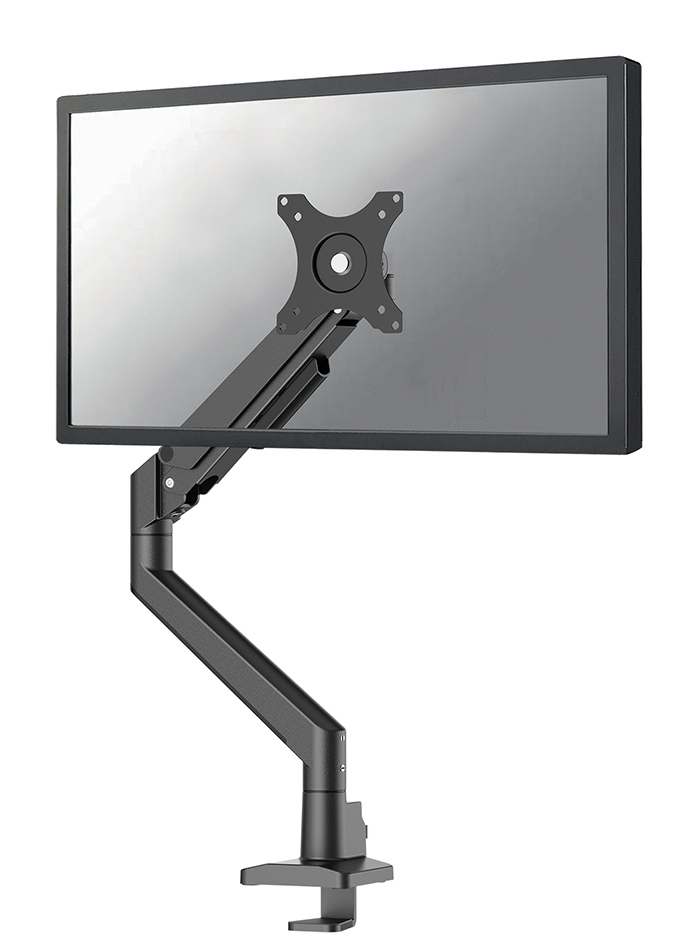

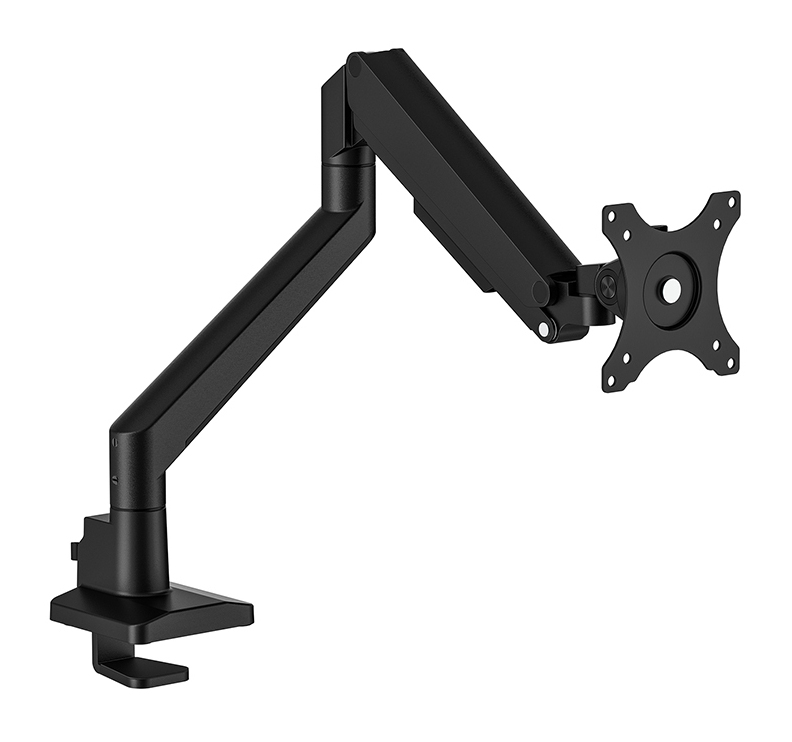

NEOMOUNTS Ds70-250bl1 Full Motion Monitor Arm Desk Mount For 17-35in Screens - Black

£95.66

Part Number: DS70-250BL1
Delivery: 1 - 2 days

Product Details

Introduction

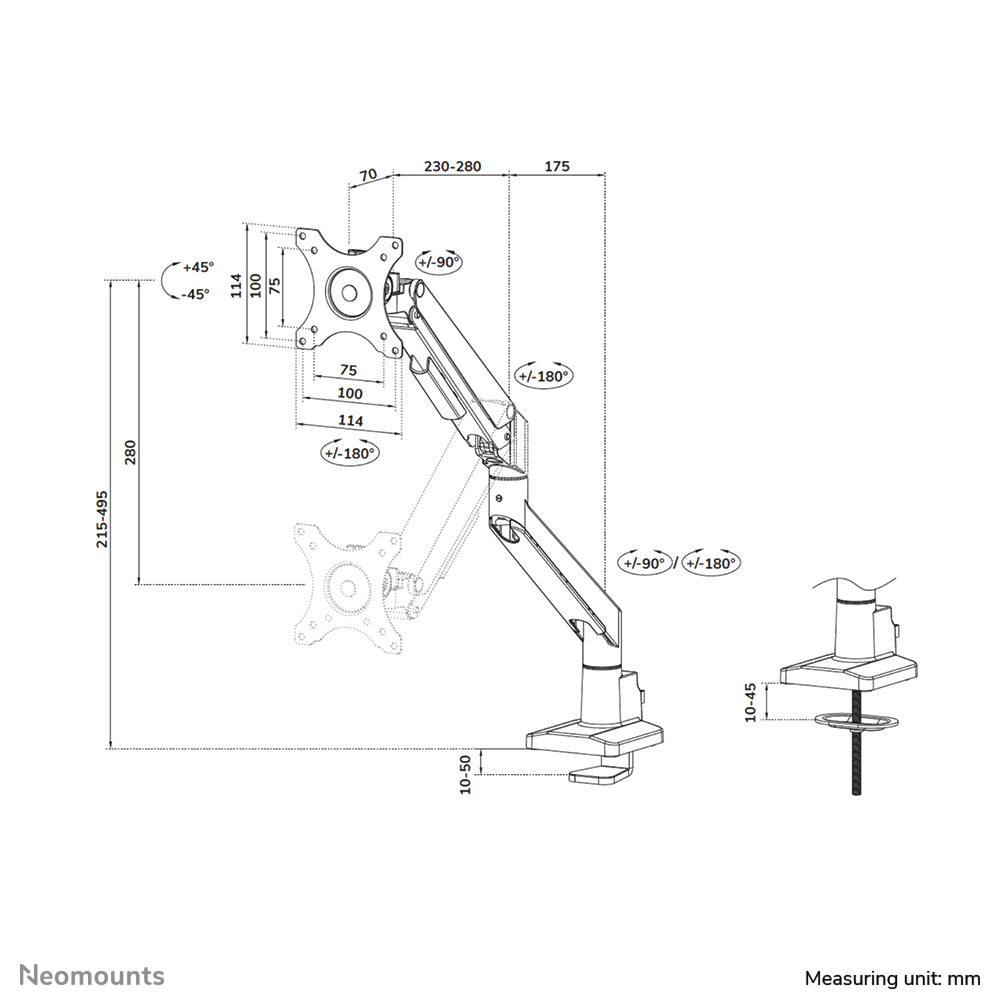

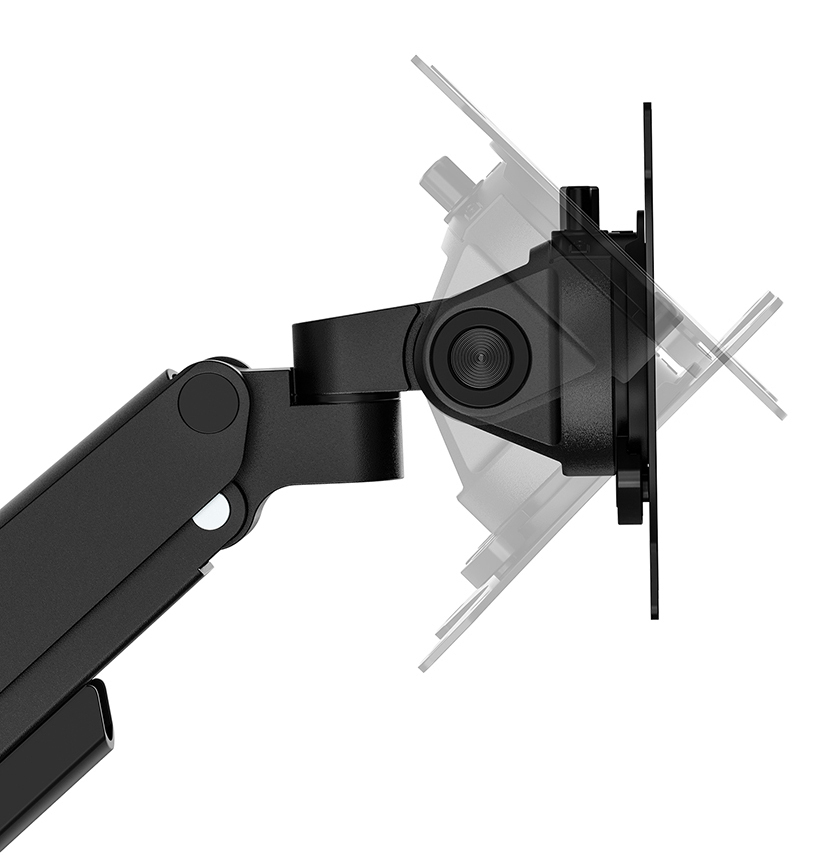

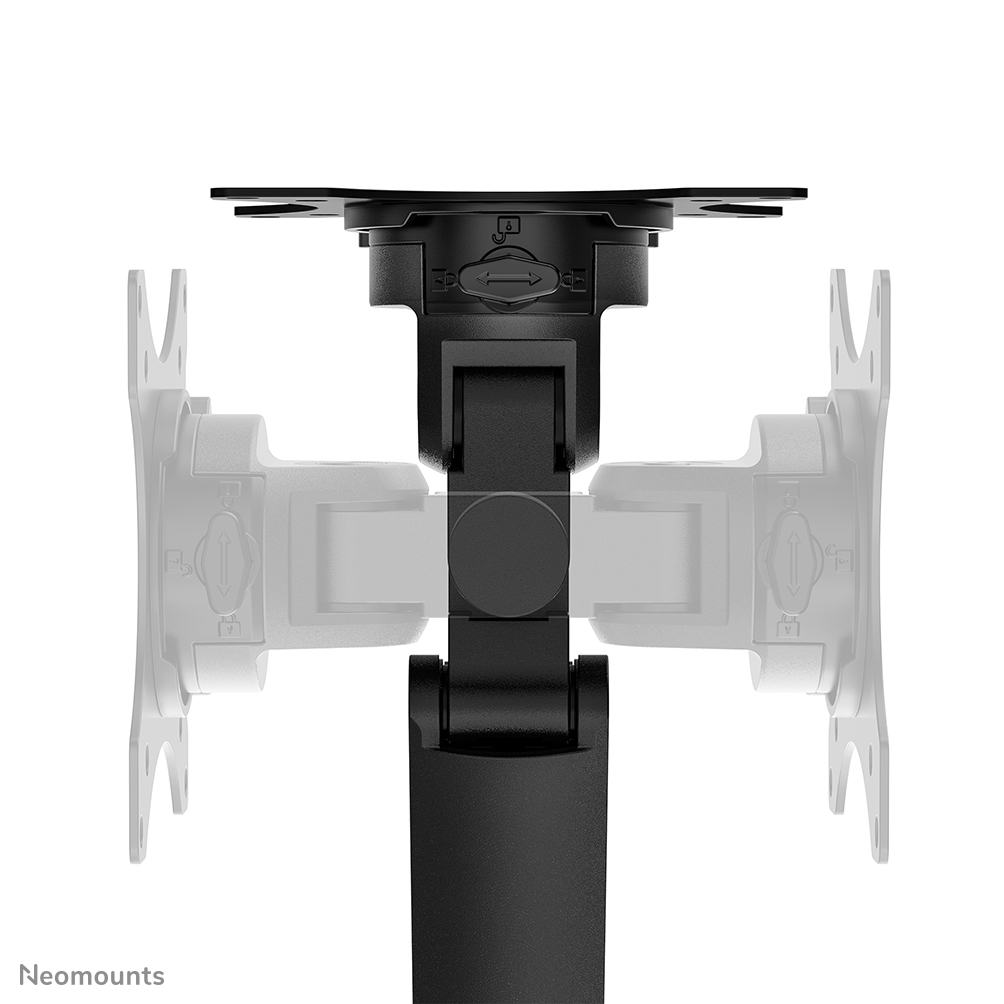

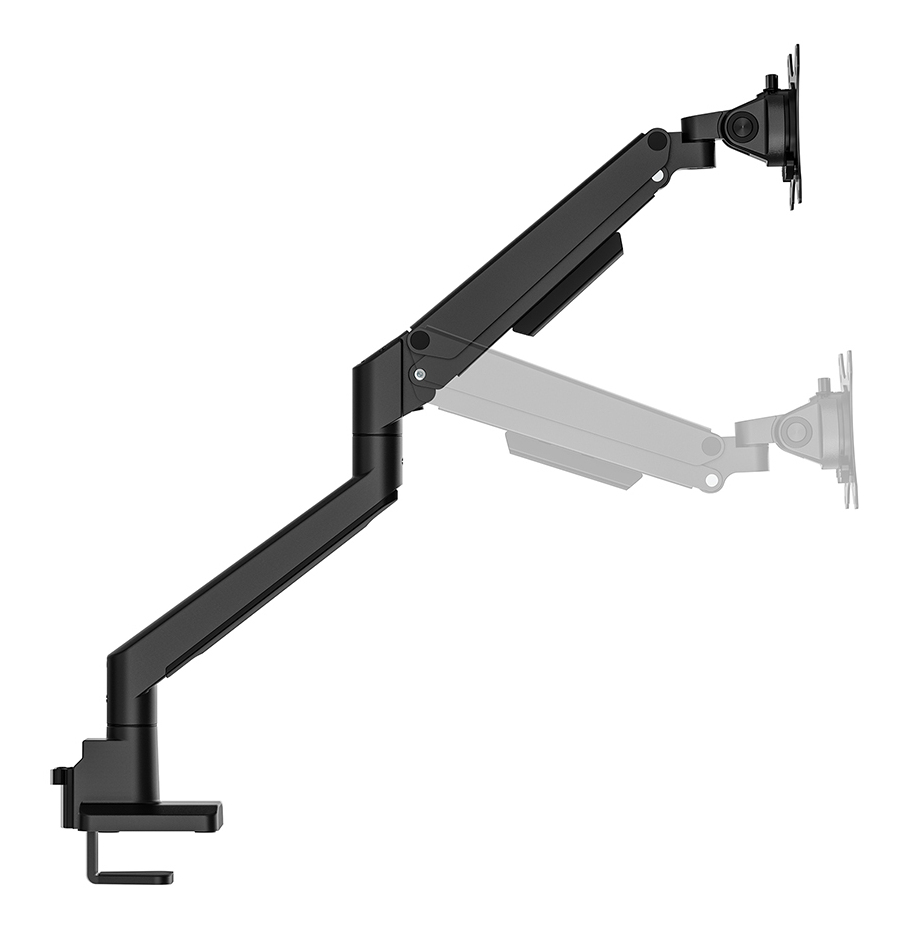

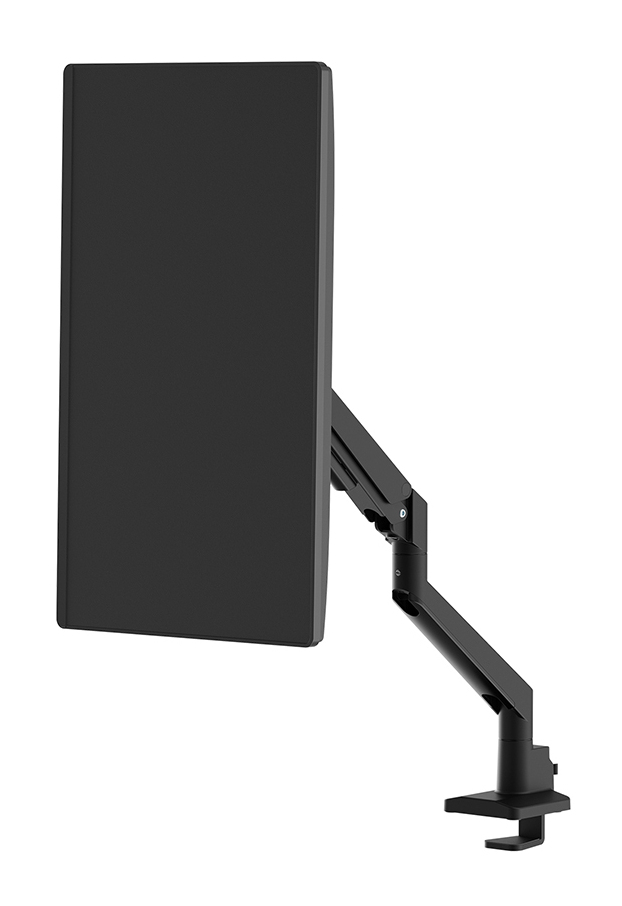

The Neomounts DS70-250BL1 NEXT Slim is a full motion desk mount designed for screens up to 35", boasting a maximum weight capacity of 9 kg suitable for both flat and curved displays. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen?s capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

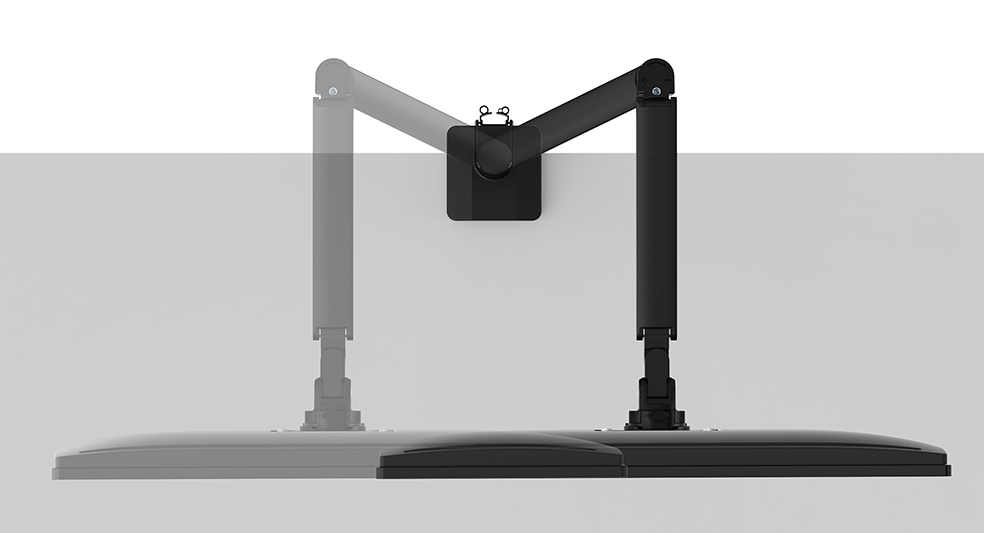

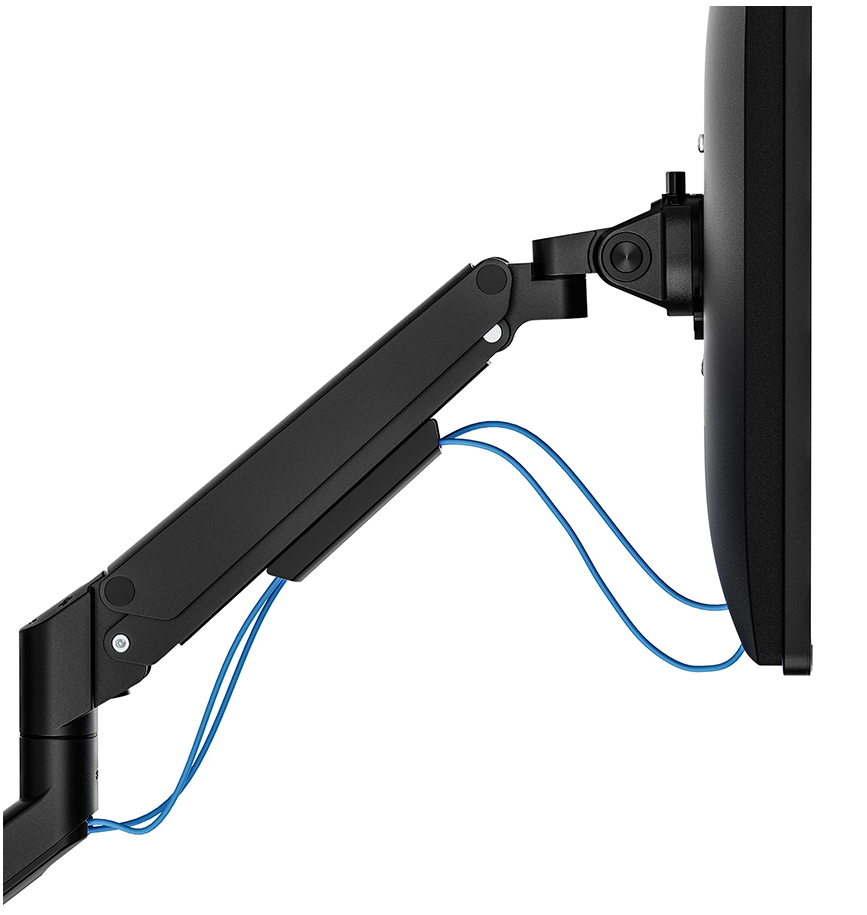

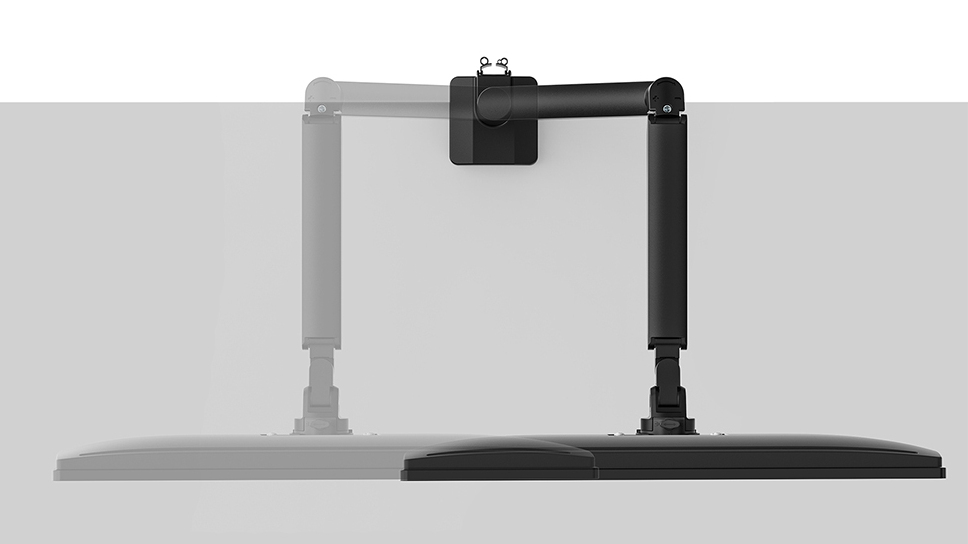

The DS70-250BL1 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

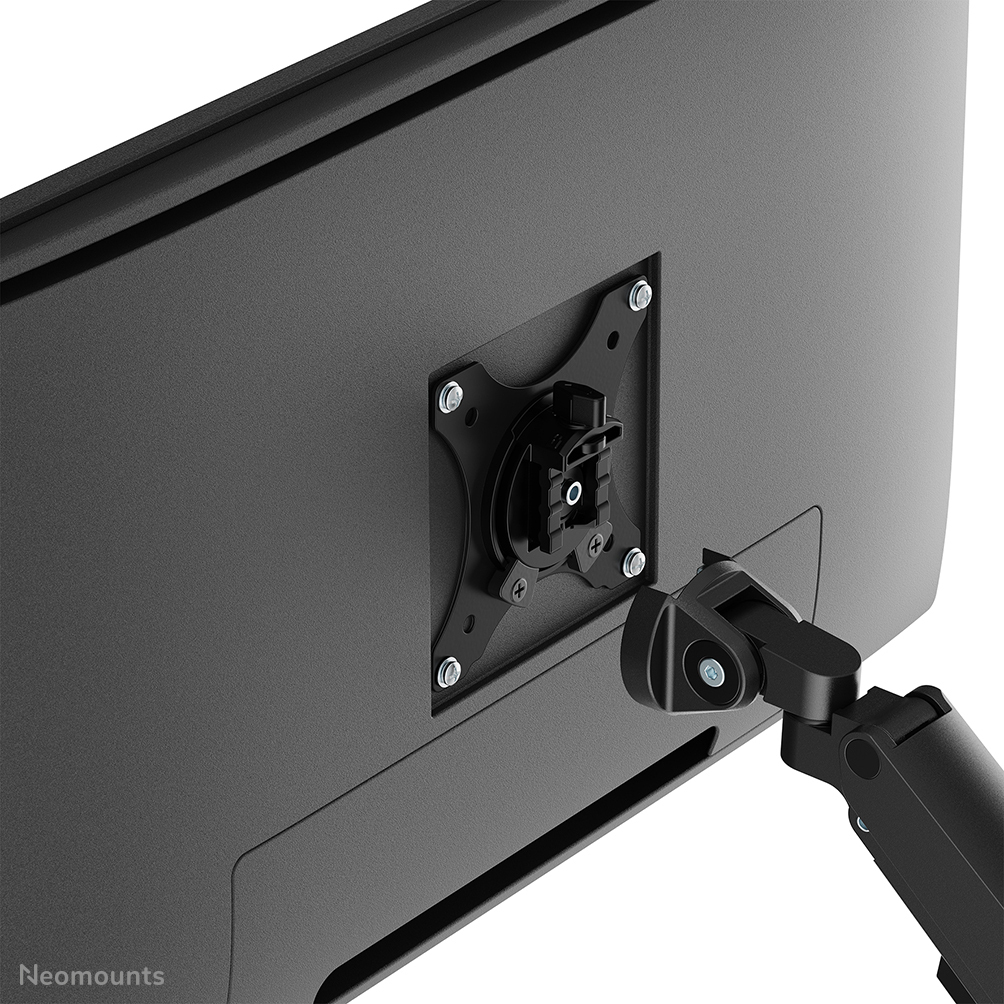

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

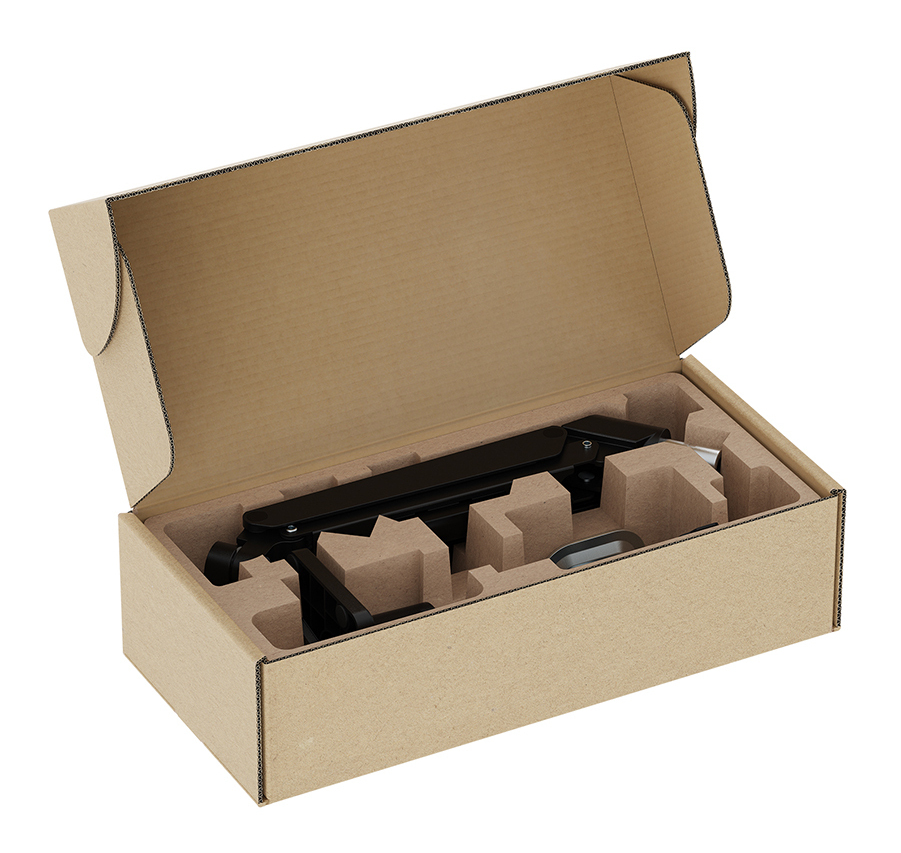

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.

Mounting

Maximum weight capacity (per display) 9 kg
Minimum screen size 43.2 cm (17")
Maximum weight capacity 9 kg
Maximum screen size 88.9 cm (35")
Mounting Clamp/Grommet
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Panel mounting interface 75 x 75,75 x 100,100 x 100,100 x 75
Number of displays supported 1
Mounting type Desk
Distance to the wall (min) 12.5 cm
Distance to the wall (max) 58 cm
Maximum weight capacity (per curved/ultra-wide display) 8 kg
Desk thickness (min) 1 cm
Desk thickness (max) 5 cm

Ergonomics

Width adjustment 91 cm
Pivot angle -180 - 180°
Height adjustment Yes

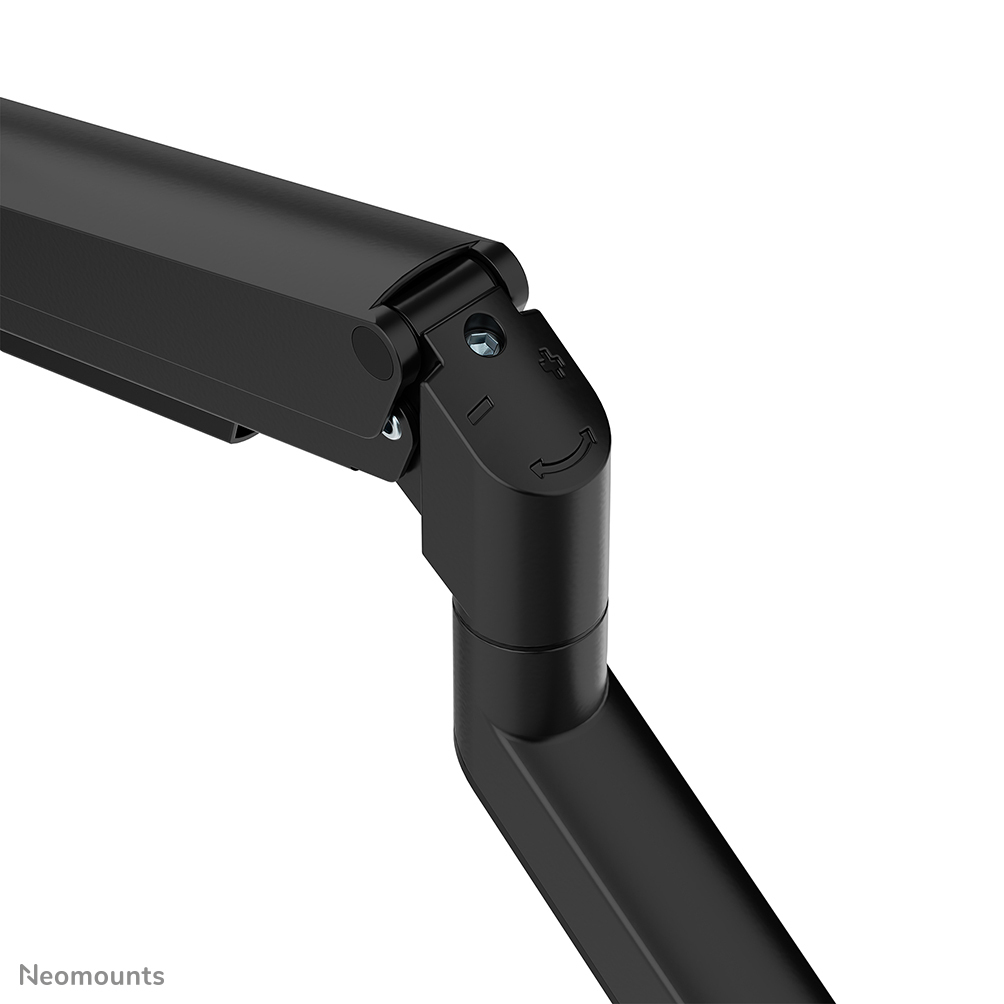

Height adjustment type Gas spring
Height adjustment range 215 - 495 mm
Adjustable depth Yes
Depth adjustment range 70 - 525 mm
Tilt angle range -45 - 45°
Swivelling Yes
Swivel angle range -90 - 90°
Angle of rotation 180°
Rotating Yes
Tilt adjustment Yes
Cable management Yes

Design

Housing material Aluminium
Product colour Black
Accepts padlock No

Packaging data

Package weight 2.9 kg
Package width 198 mm
Package depth 108 mm
Package height 428 mm

Technical details

Warranty period 5 year(s)

Weight & dimensions

Width 114 mm
Depth 580 mm
Height 552 mm
Weight 2.3 kg

Other features

Minimum weight 1 kg
Width adjustment range 0 - 910 mm

Logistics data

Master (outer) case width 410 mm
Master (outer) case length 345 mm
Master (outer) case height 445 mm
Master (outer) case gross weight 18.3 kg
Products per master (outer) case 6 pc(s)
Country of origin China
Master (outer) case net weight 13.8 kg
Harmonized System (HS) code 7326909890
Products per pallet (EU) 84 pc(s)
