Introduction

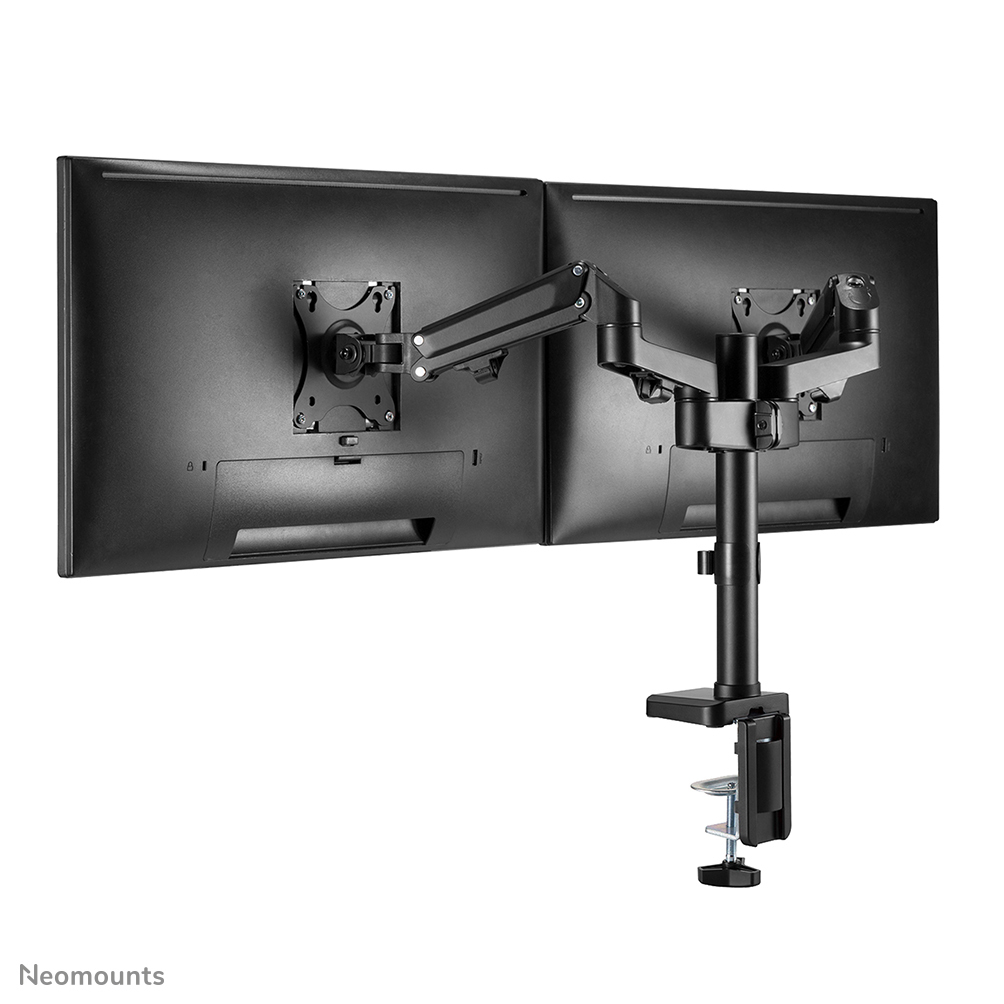

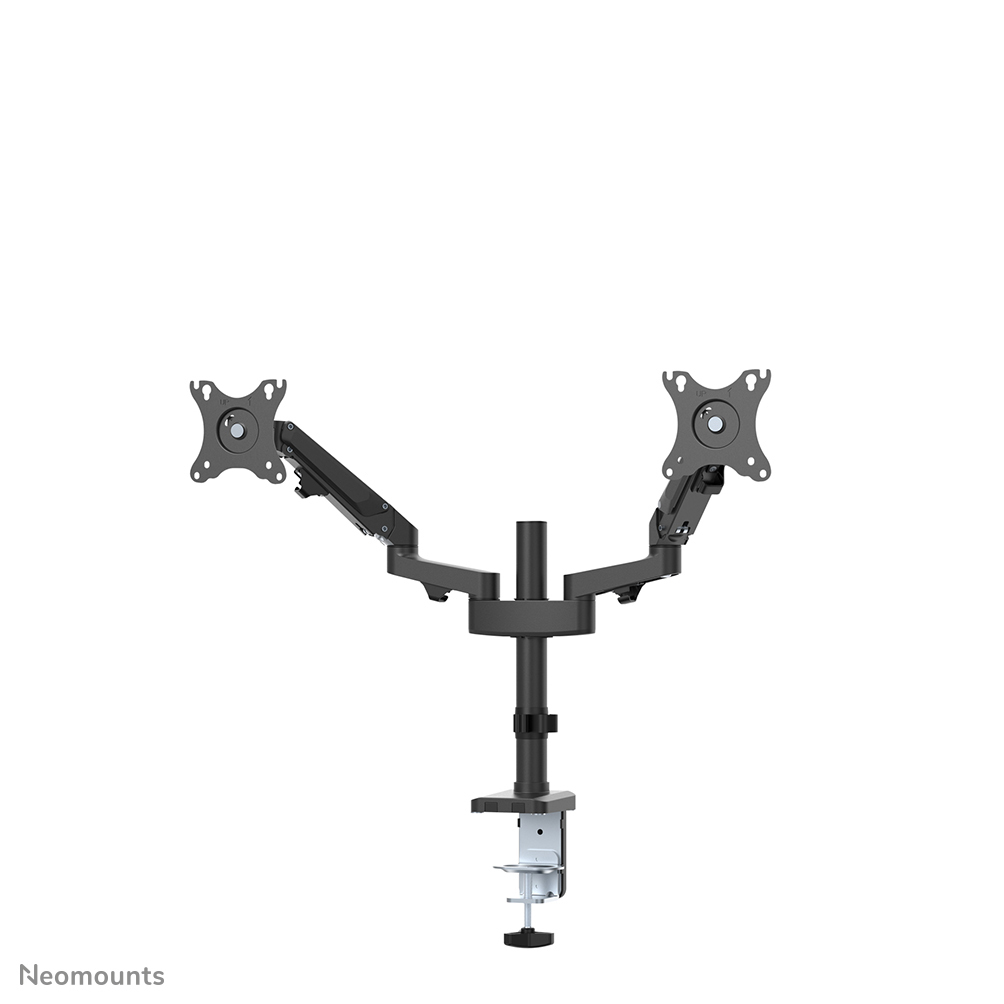

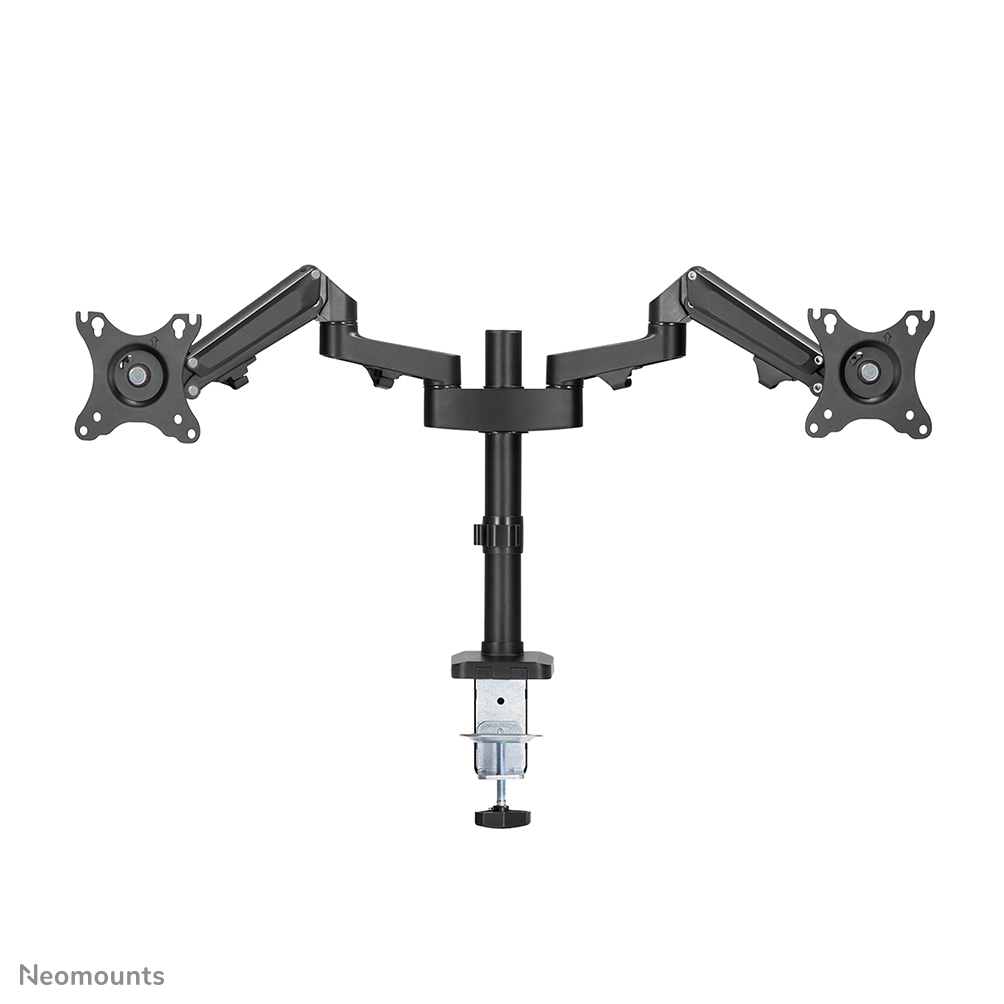

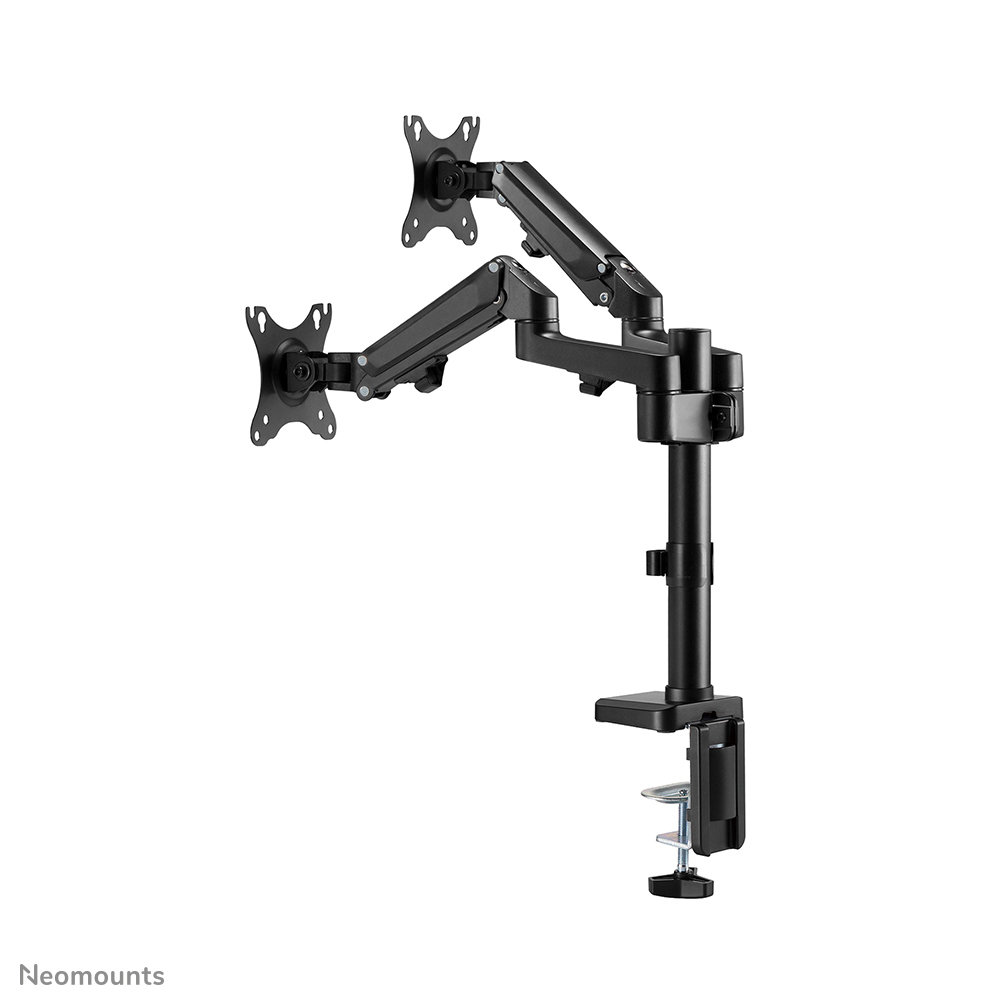

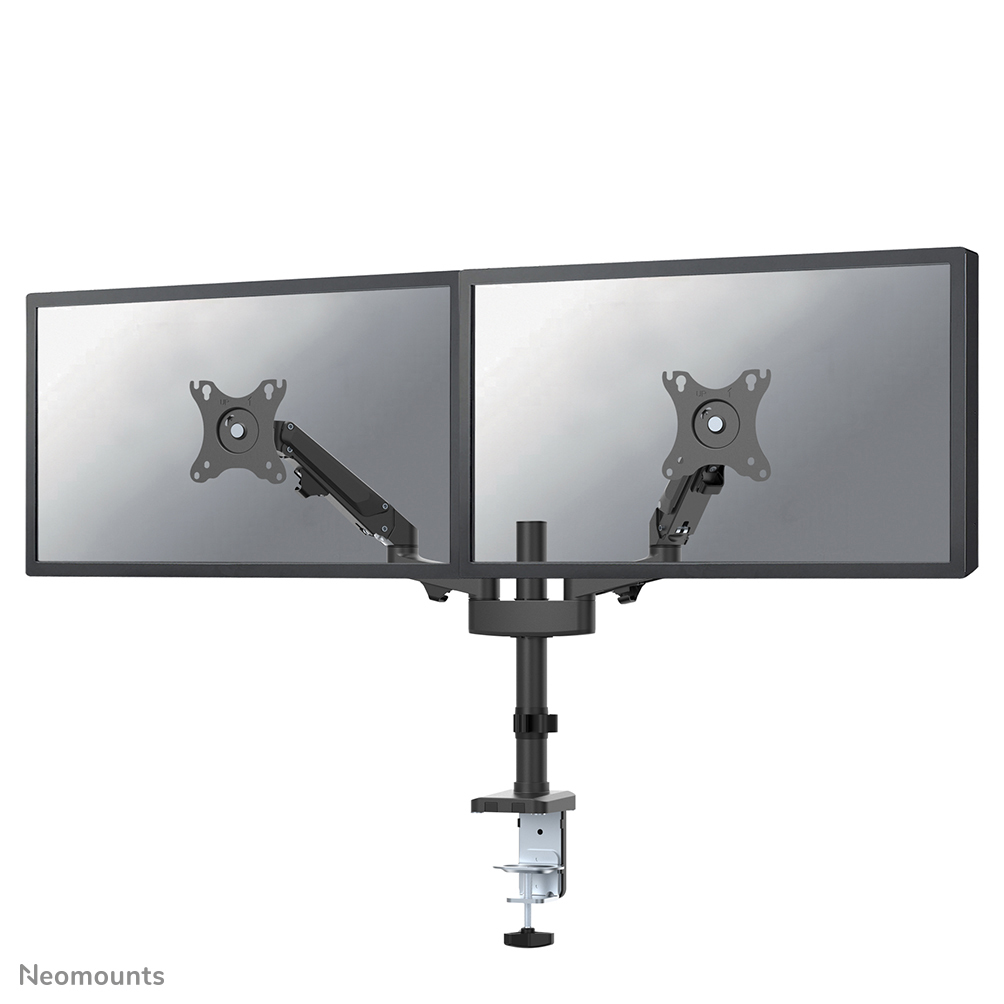

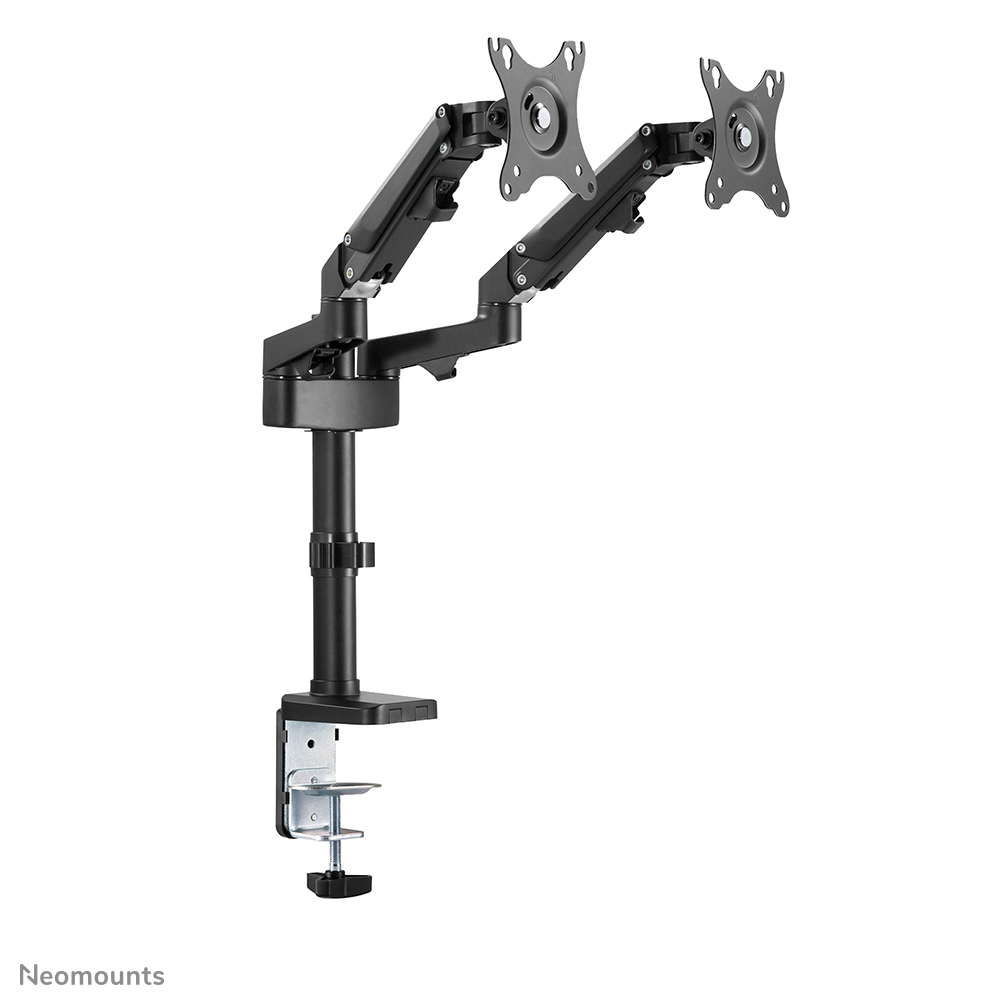

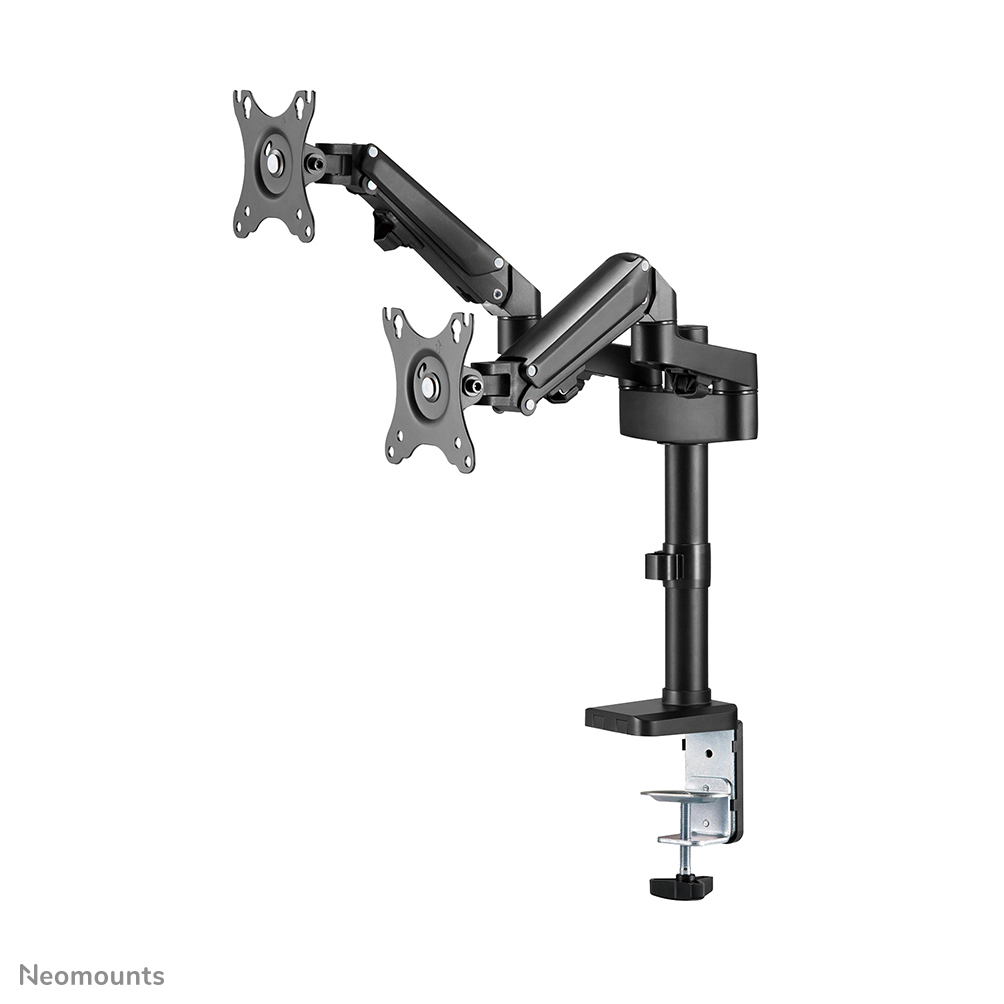

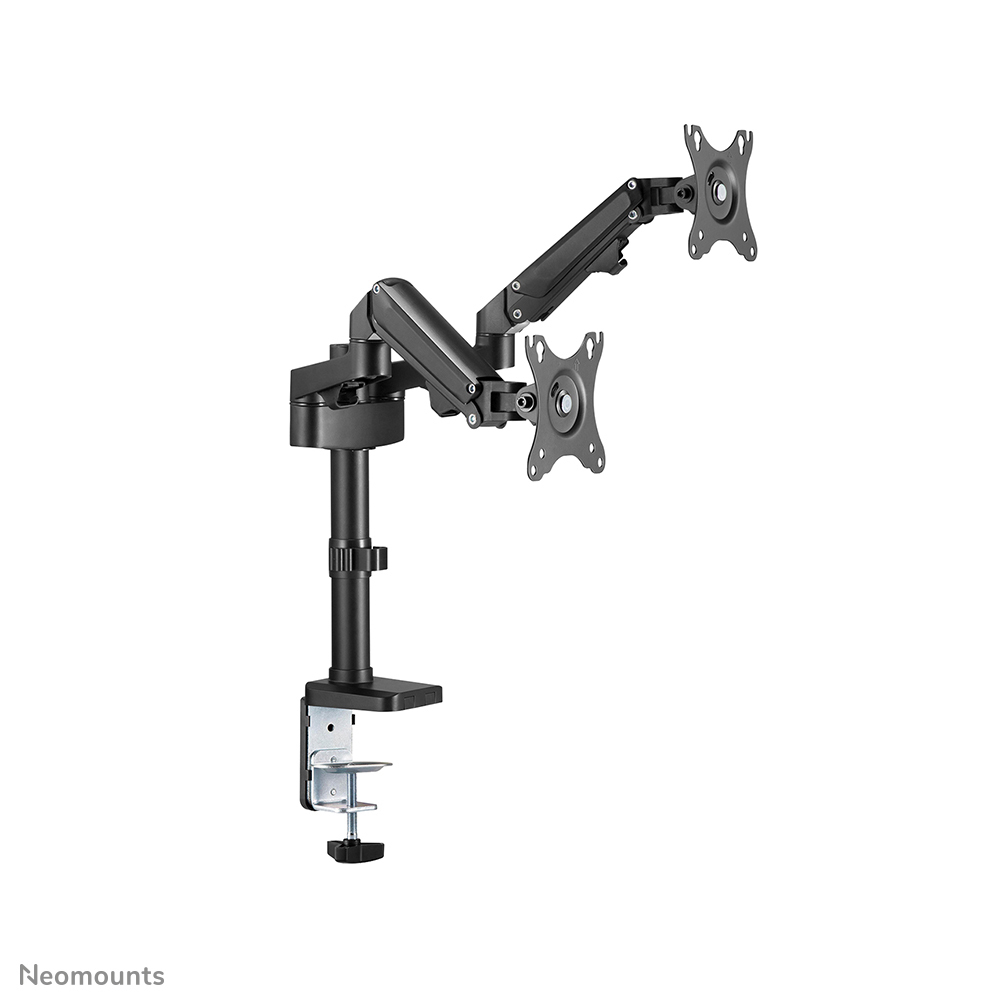

The Neomounts by Newstar DS70-750BL2 is a full motion desk mount for two flat screens up to 27" with a maximum weight capacity of 7 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.

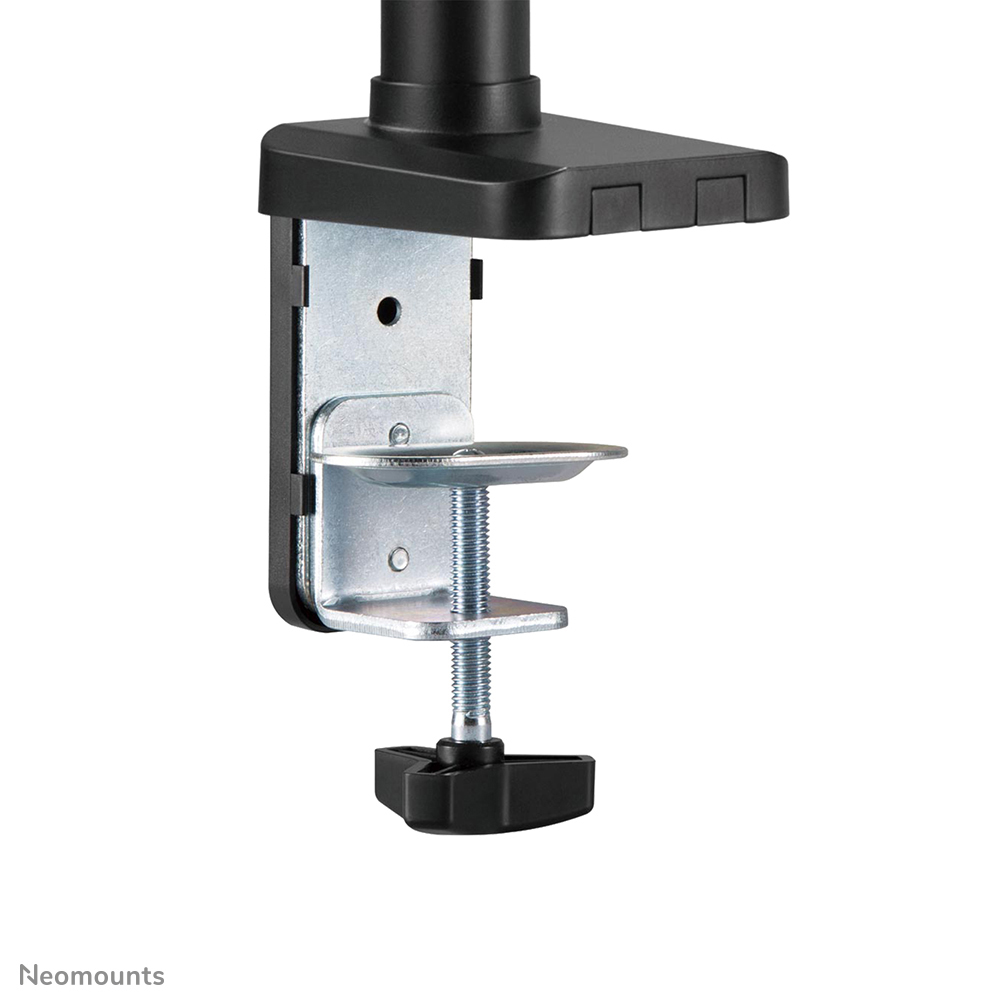

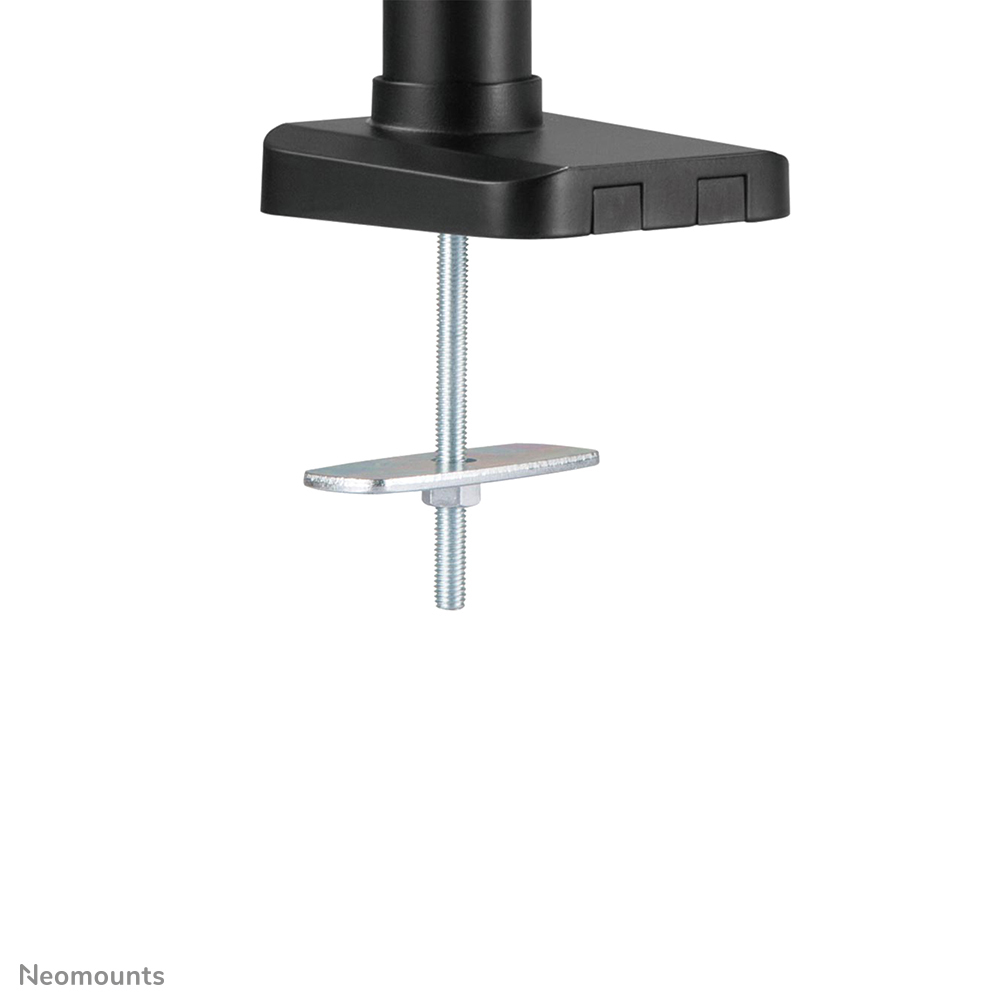

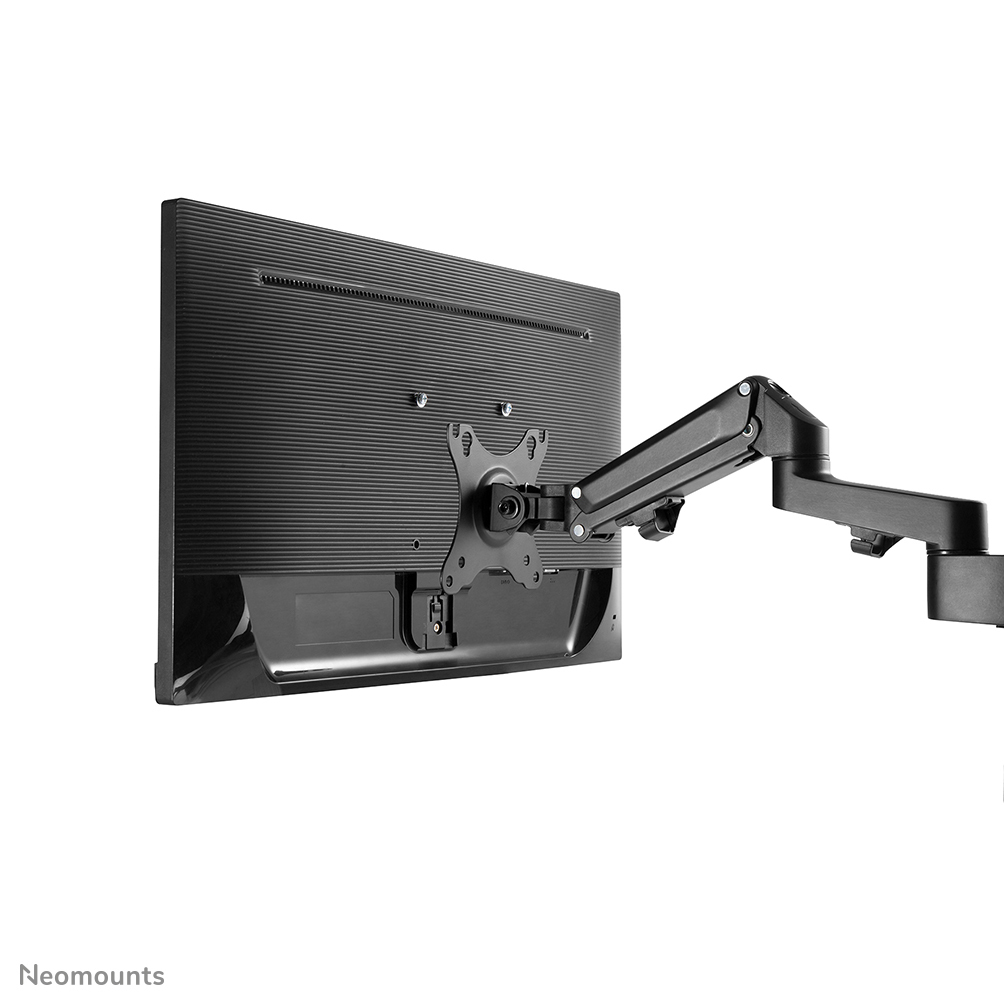

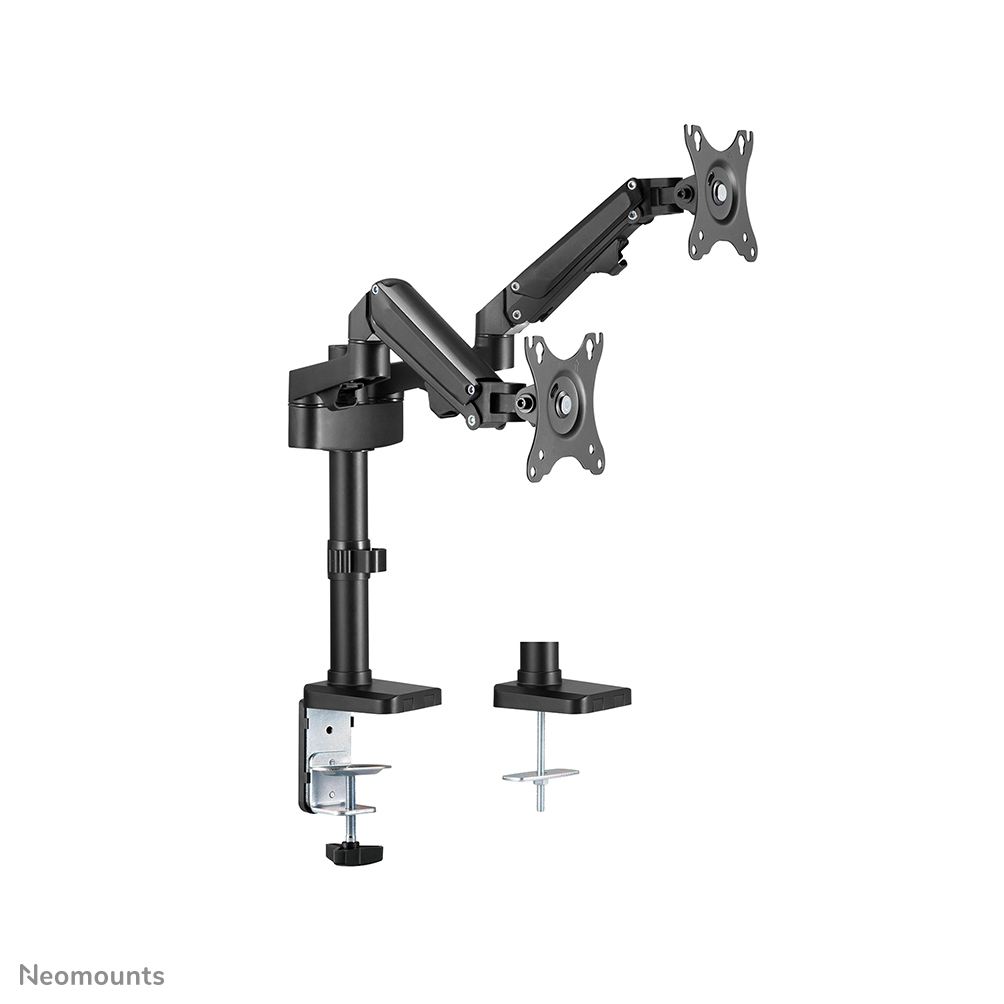

The DS70-750BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The DS70-750BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
Mounting
Maximum weight capacity
7 kg
Maximum weight capacity (per display)
7 kg
Minimum screen size
43.2 cm (17")
Maximum weight capacity
7 kg
Maximum screen size
68.6 cm (27")
Mounting
Clamp/Bolt-through
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Panel mounting interface
75 x 75,100 x 100 mm
Number of displays supported
2
Mounting type
Desk
Desk thickness (min)
1 cm
Desk thickness (max)
8.5 cm
Ergonomics
Pivot angle
-180 - 180°
Height adjustment
Y

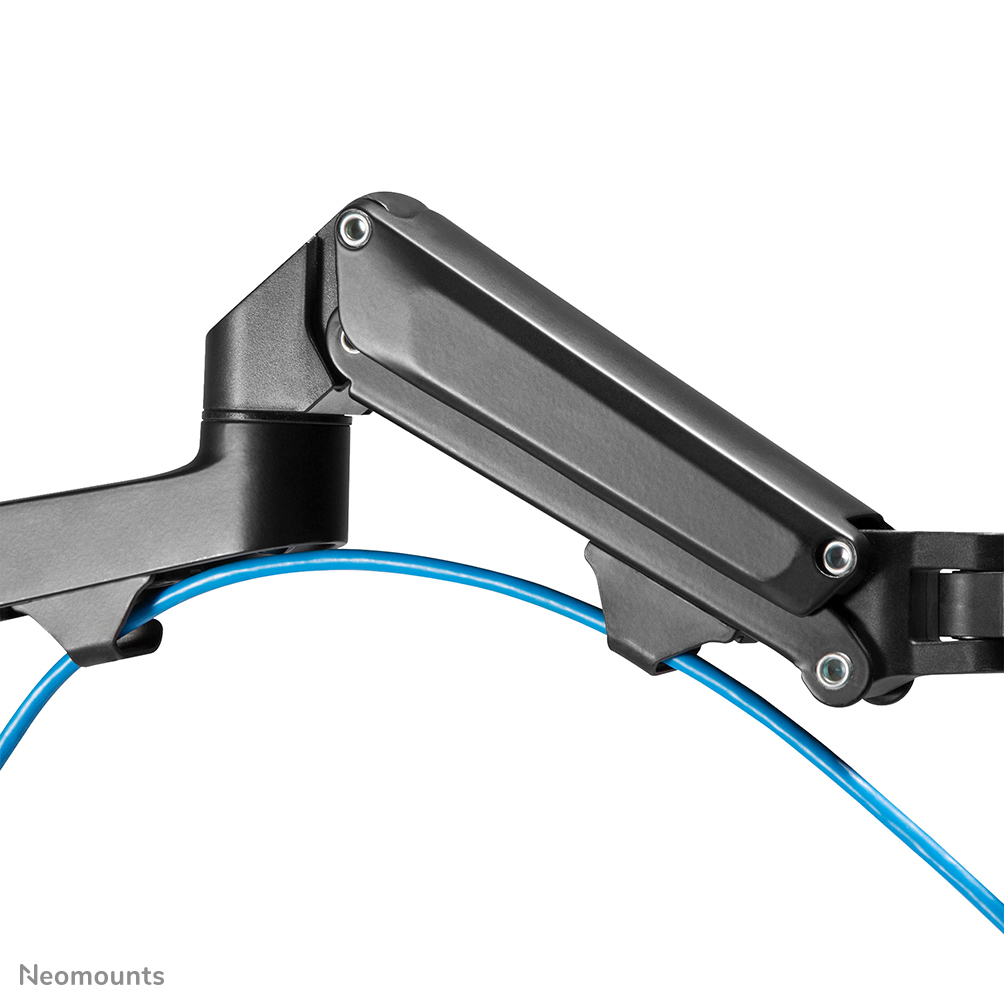

Height adjustment type
Gas spring
Height adjustment range
73 - 481 mm
Adjustable depth
Y
Depth adjustment range
0 - 378 mm
Tiltable
Y
Tilt angle range
-45 - 45°
Swivel angle range
-90 - 90°
Angle of rotation
180°

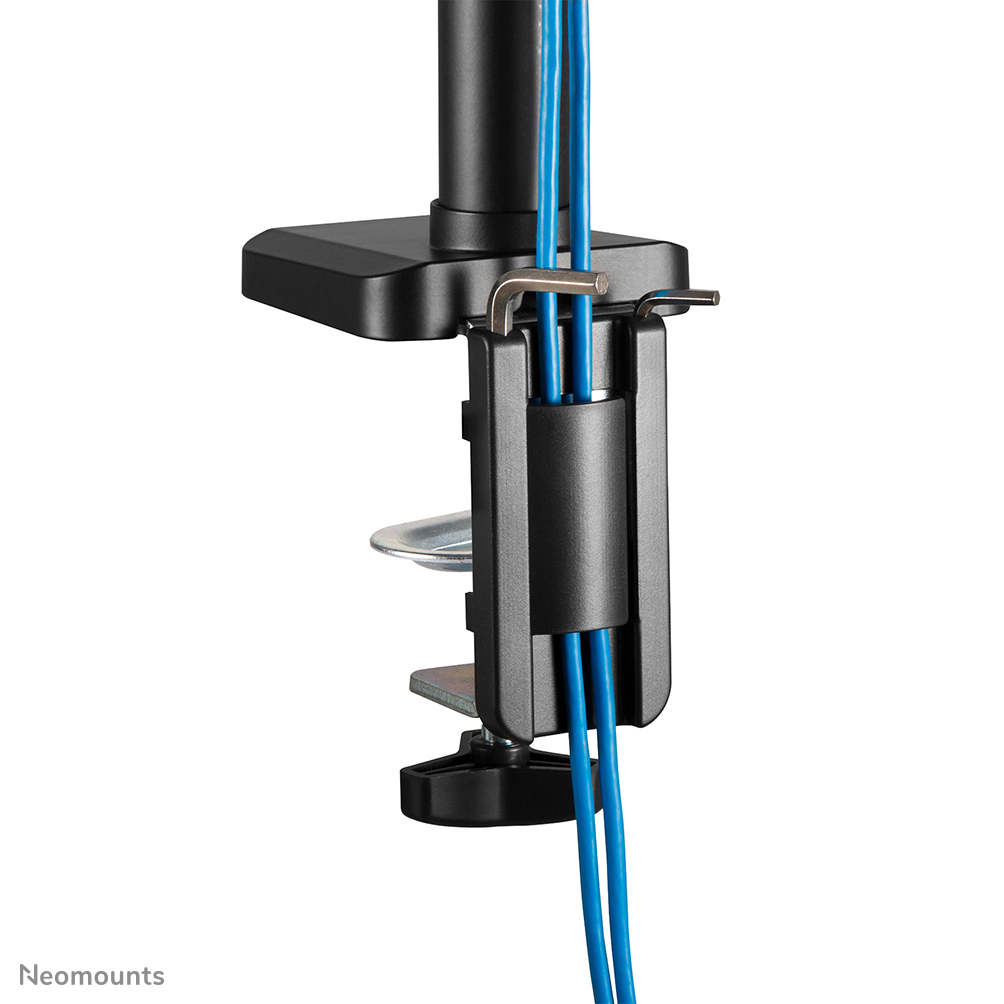

Cable management
Y
Rotating
Y
Swivelling
Yes
Design
Product colour
Black

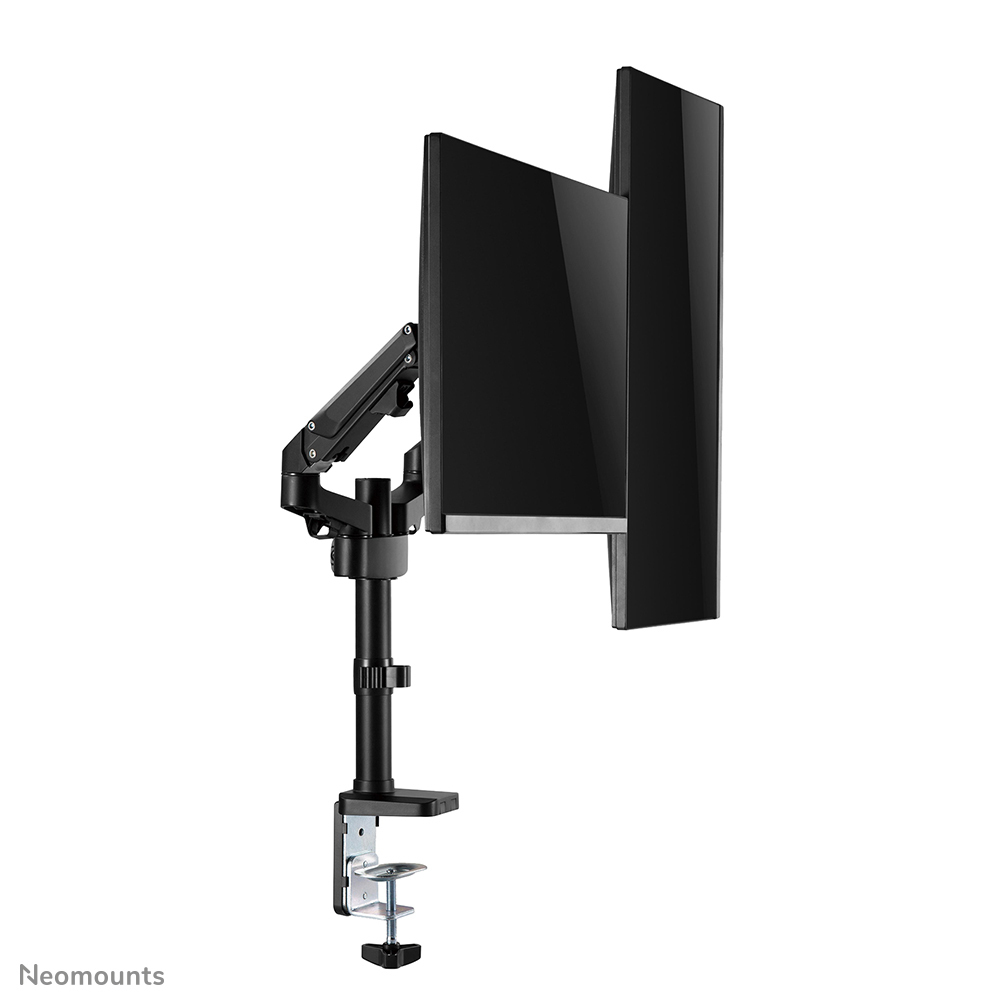

Orientation
Landscape/Portrait
Housing material
Steel
Weight & dimensions
Width
825 mm
Depth
440 mm
Height
679 mm
Package width
266 mm
Package depth
132 mm
Package height
425 mm
Package net weight
4.4 kg
Weight
3.6 kg
Packaging data
Quantity per pack
1 pc(s)
Package weight
4.4 kg
Logistics data
Master (outer) case width
440 mm
Master (outer) case length
280 mm
Master (outer) case height
550 mm
Products per master (outer) case
4 pc(s)
Master (outer) case net weight
14.4 kg
Harmonized System (HS) code
85299097
Products per pallet (EU)
64 pc(s)
Master (outer) case gross weight
18.2 kg
Other features
Country of origin
China
Minimum weight
2 kg
Width adjustment range
0 - 825 mm
