Introduction

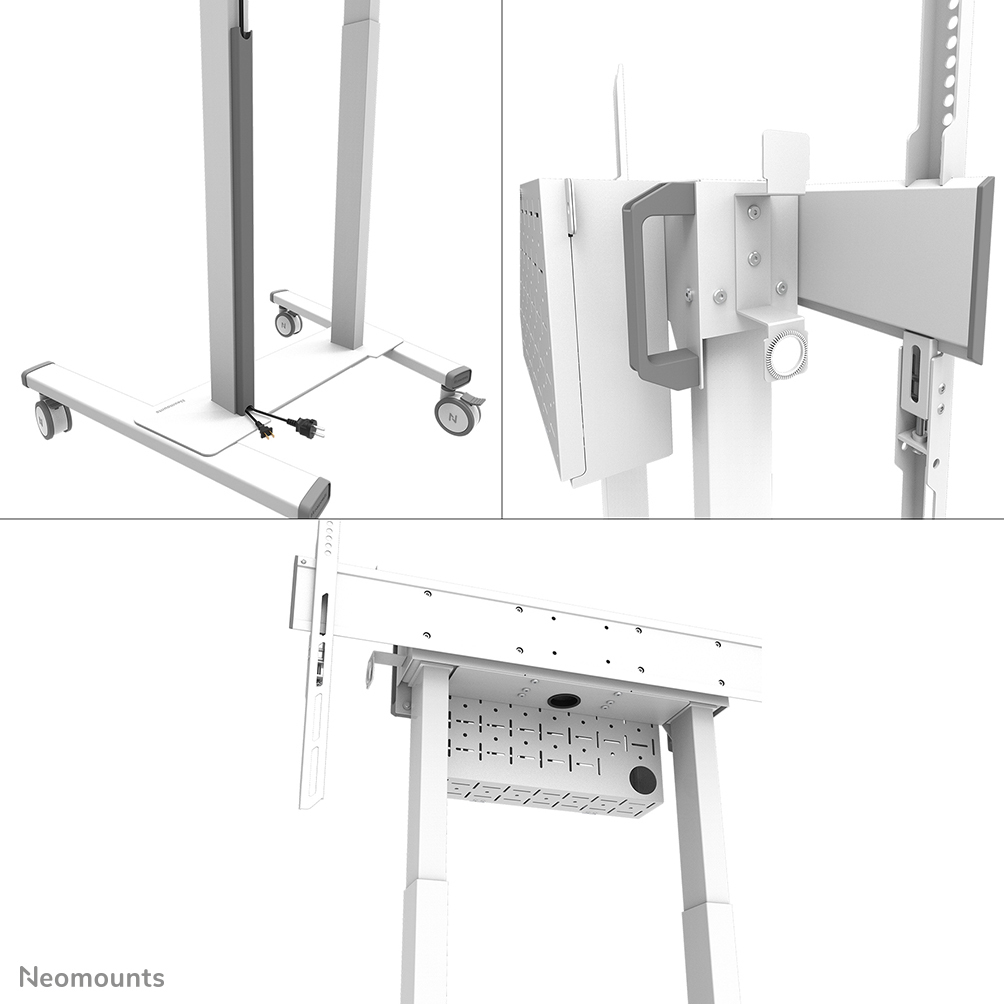

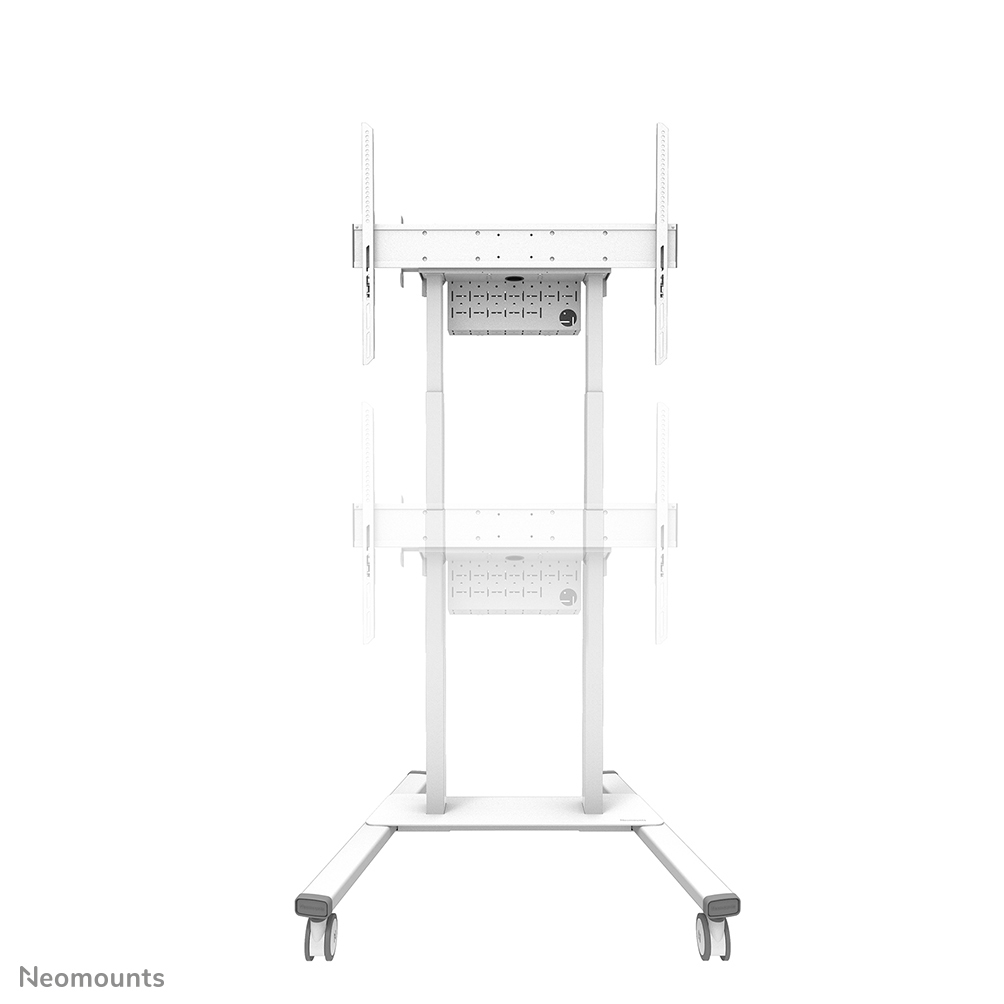

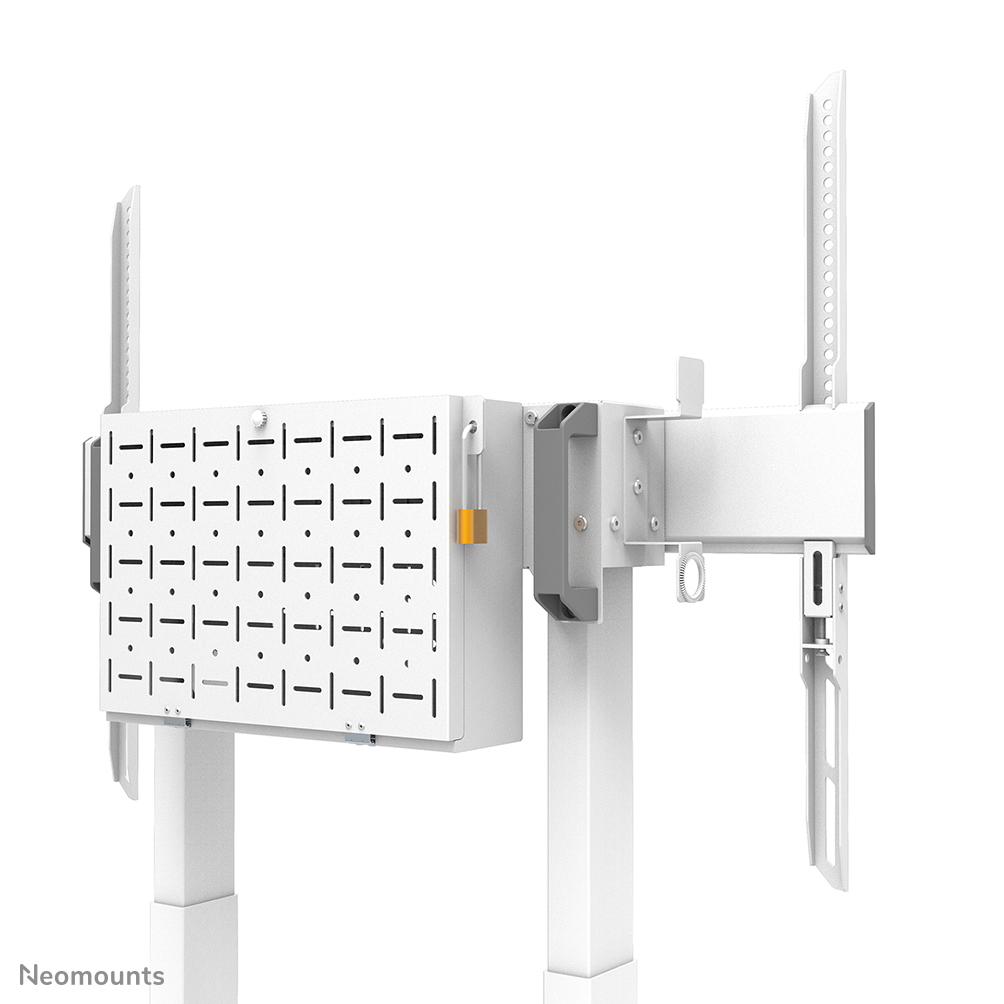

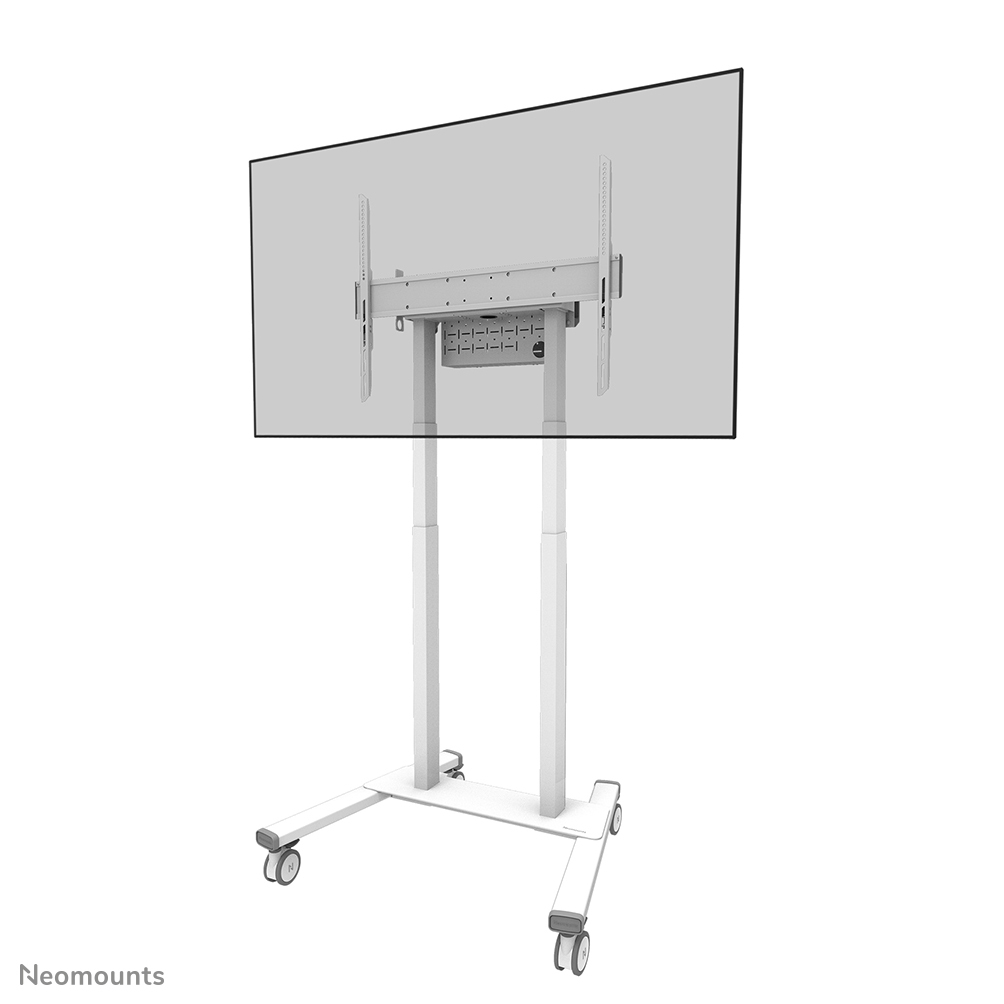

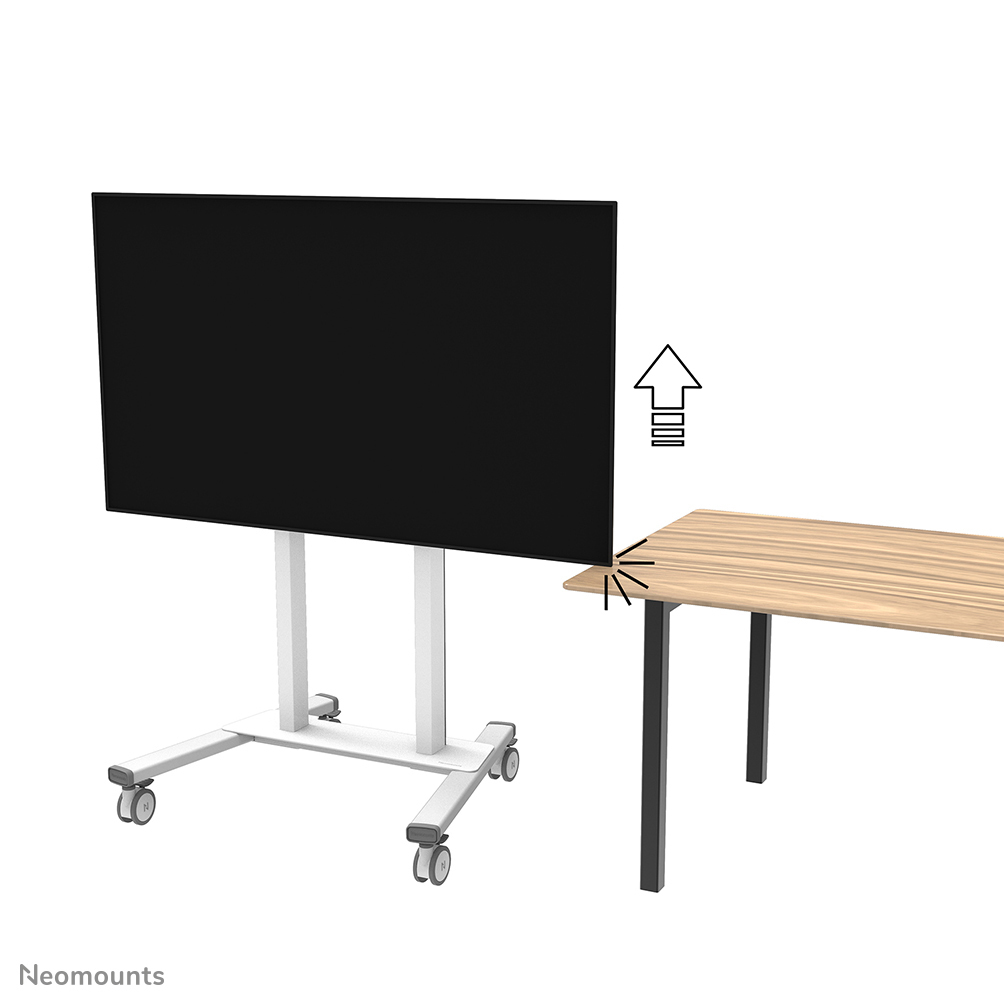

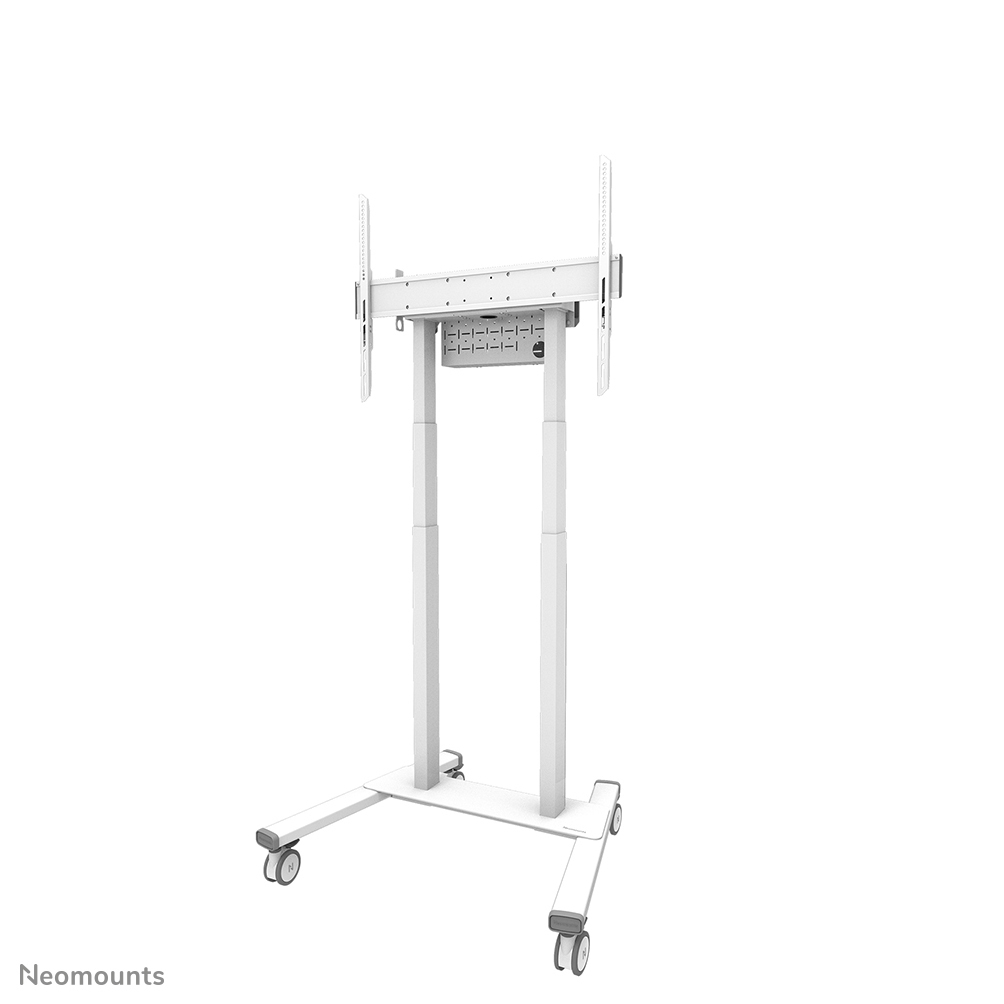

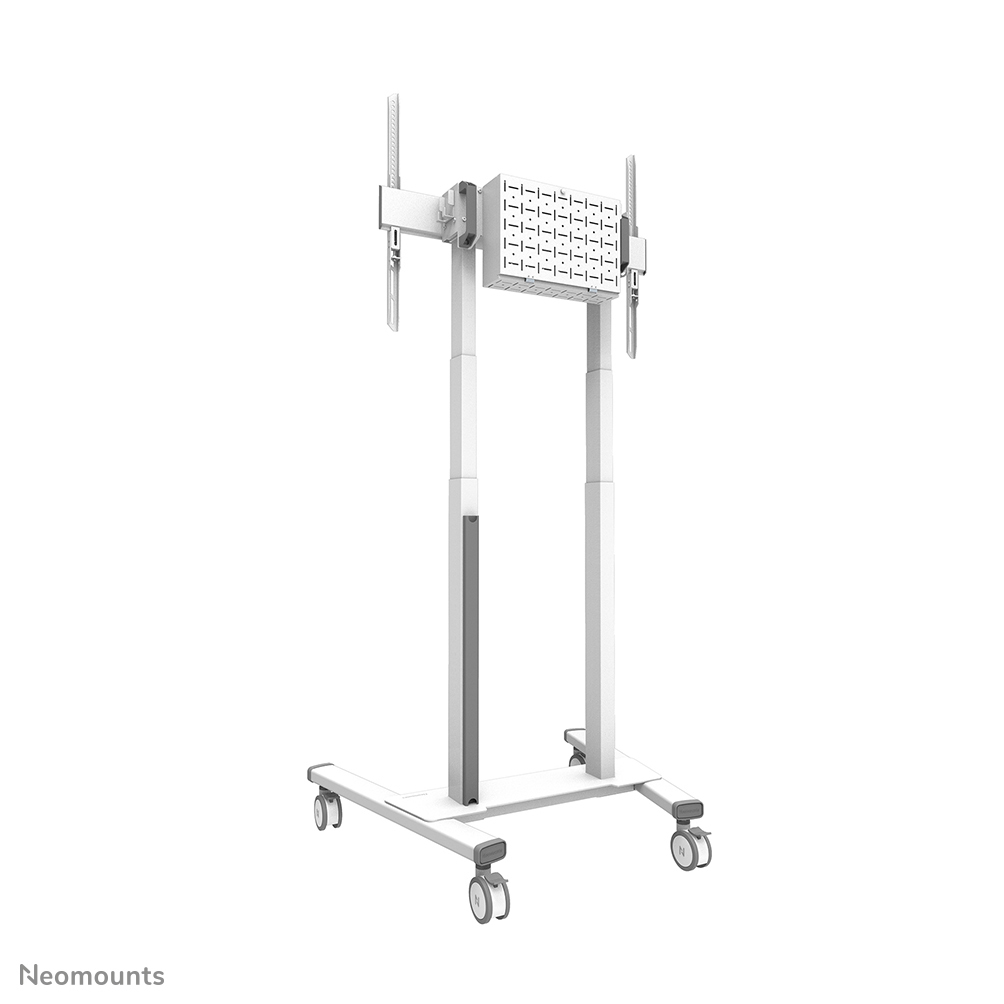

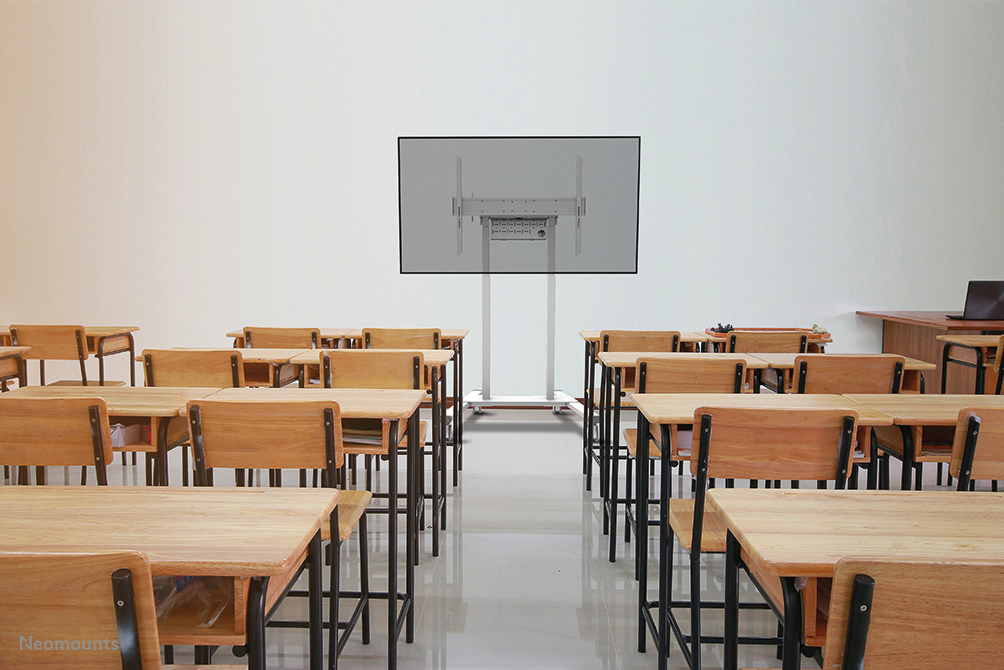

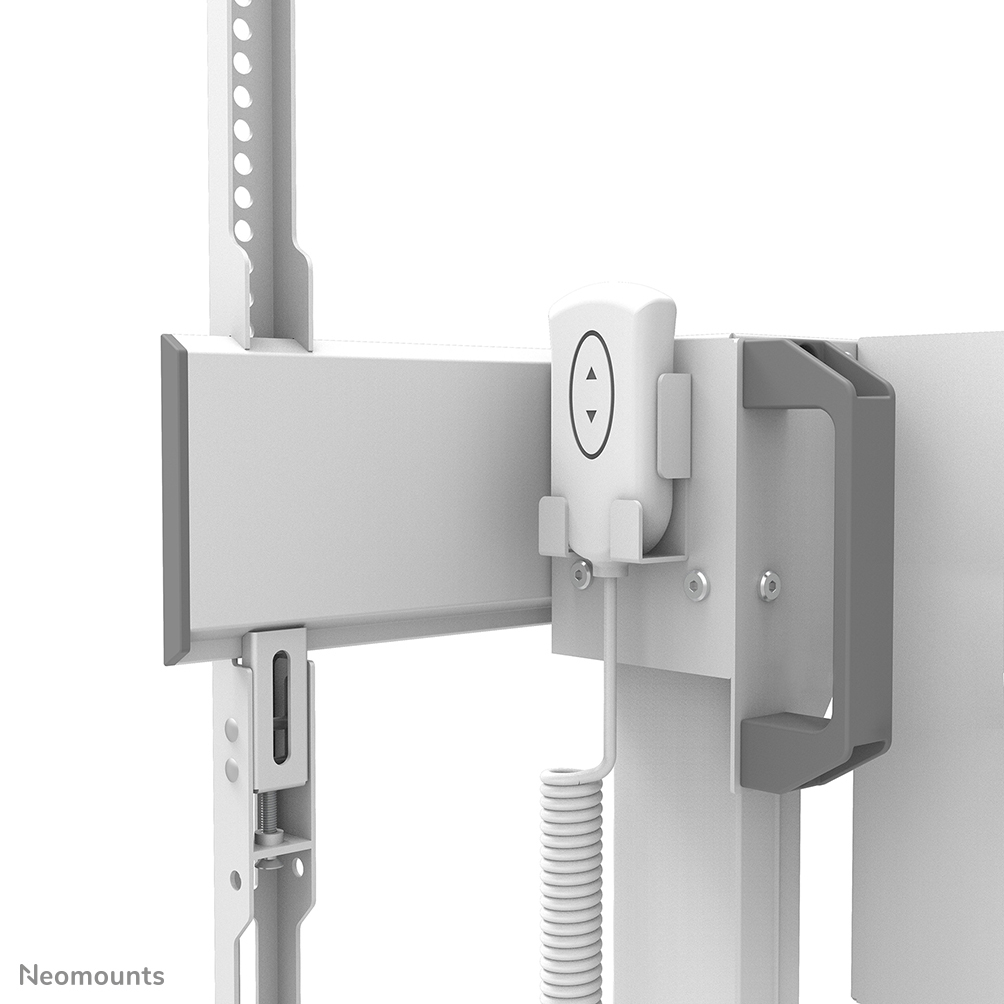

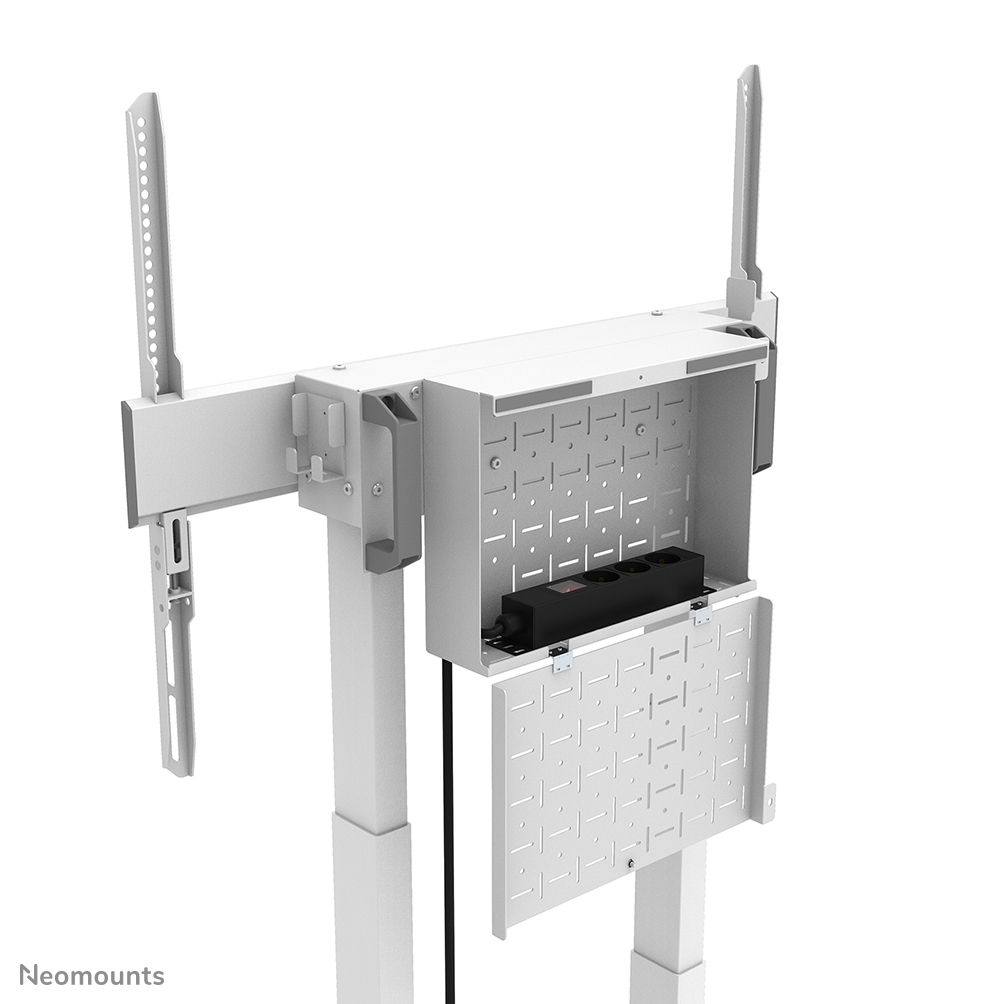

The Neomounts by Newstar FL55-875WH1 is a mobile floor stand for displays up to 100" with a maximum weight capacity of 110 kg. The trolley has 65 cm motorized height adjustment (35 mm/second), is operated with a wired remote control and features an anti-collision system for extra safety. A lockable, ventilated hardware compartment with cable opening is included and optional for installation.

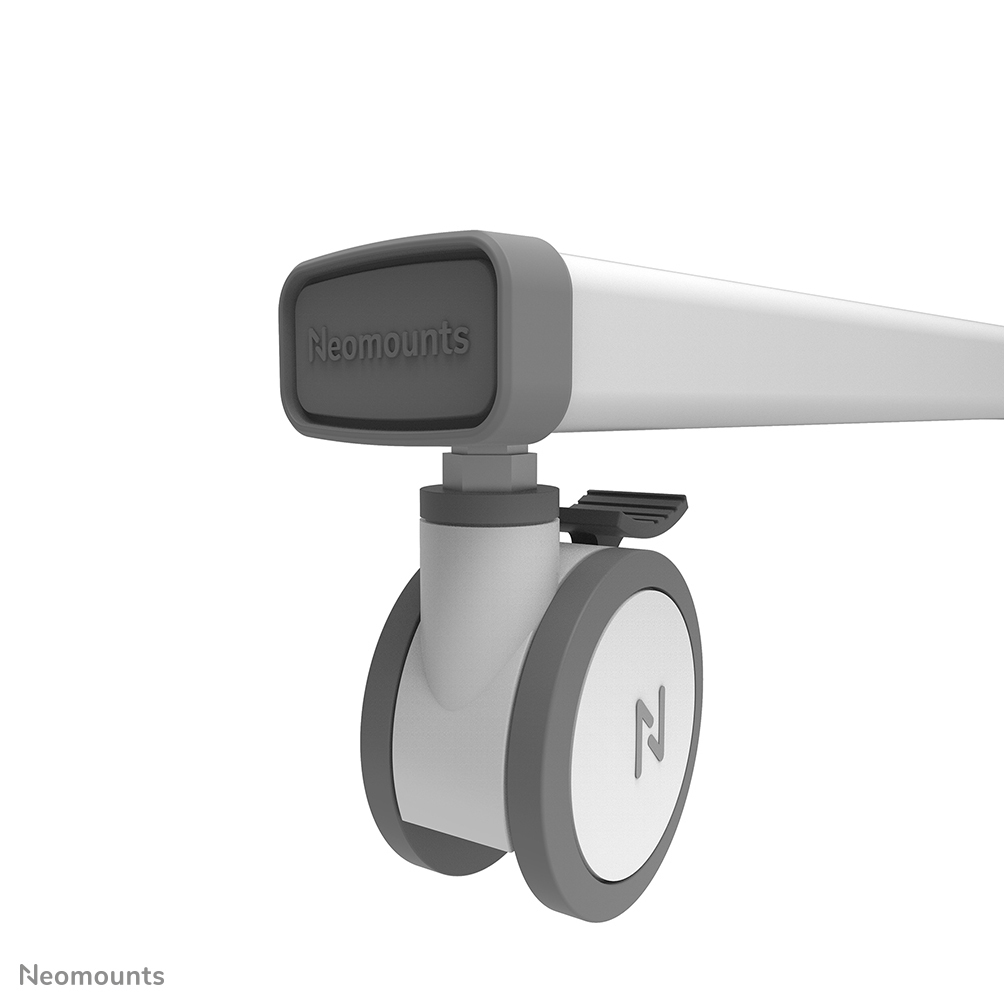

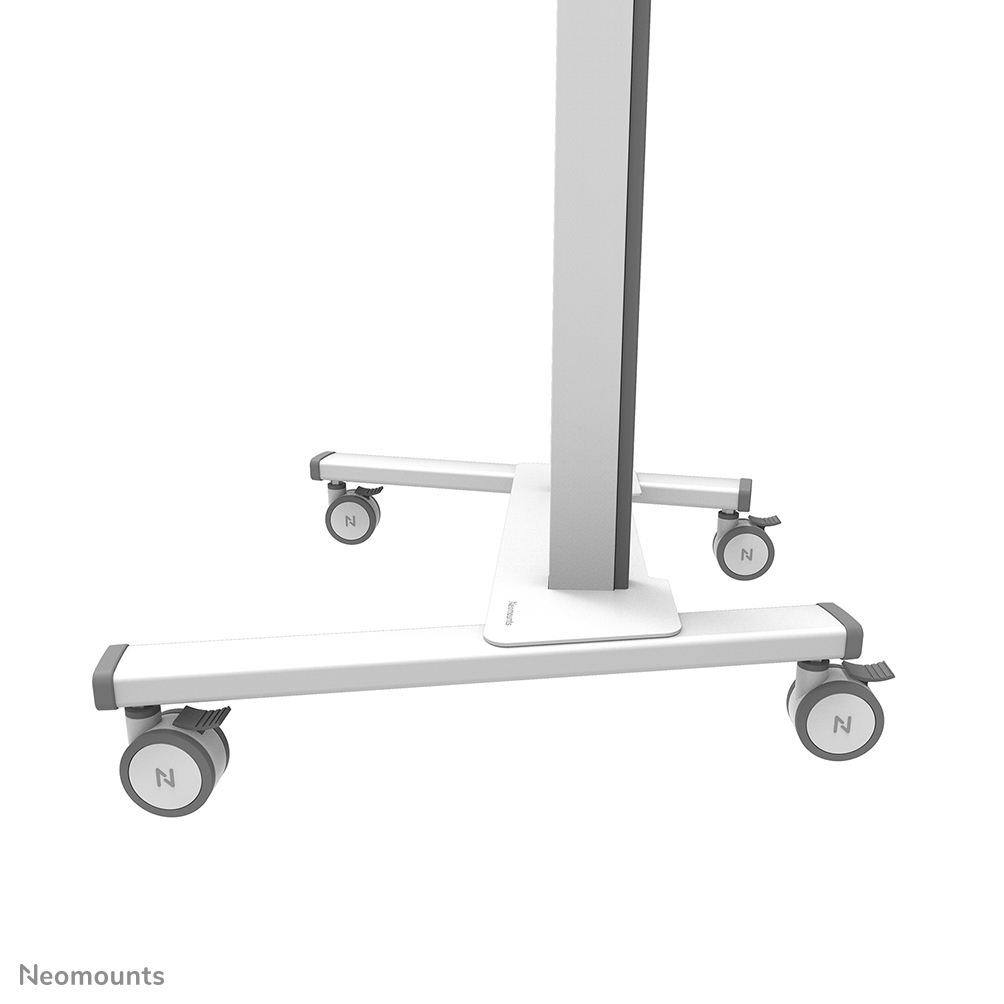

The trolley features practical handles and four solid 10 cm double locking caster wheels that allow you to move and use the floor stand wherever you like. Due to the large caster wheels, thresholds or carpets are no challenge to the FL55-875WH1. The open design wheelbase allows easy access to the (touch) display and enables easier movement around objects. The included cable duct, optional to install, conceal and route cables from floor stand to screen. A practical cable management bracket at the back of the trolley ensure easy and safe relocation. Additionally, at the bottom of the trolley a space with tie wrap holes is available to install a power strip.

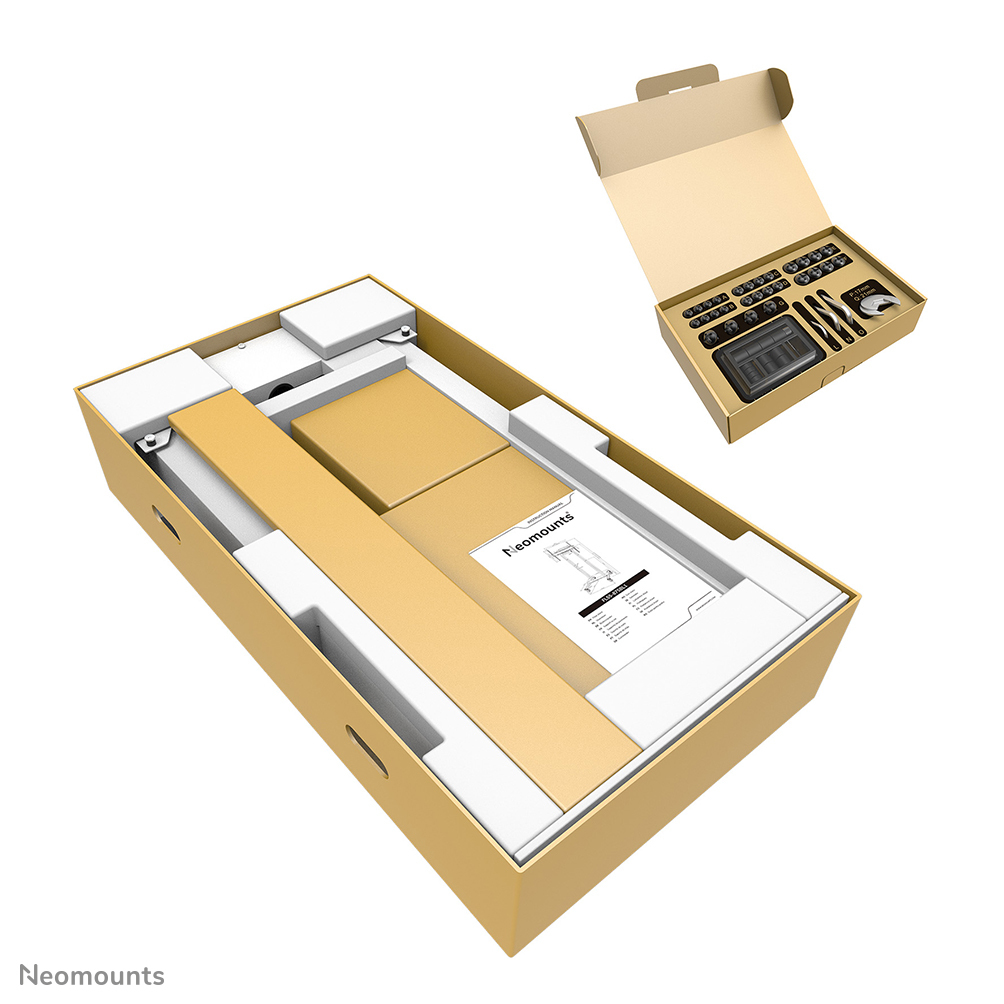

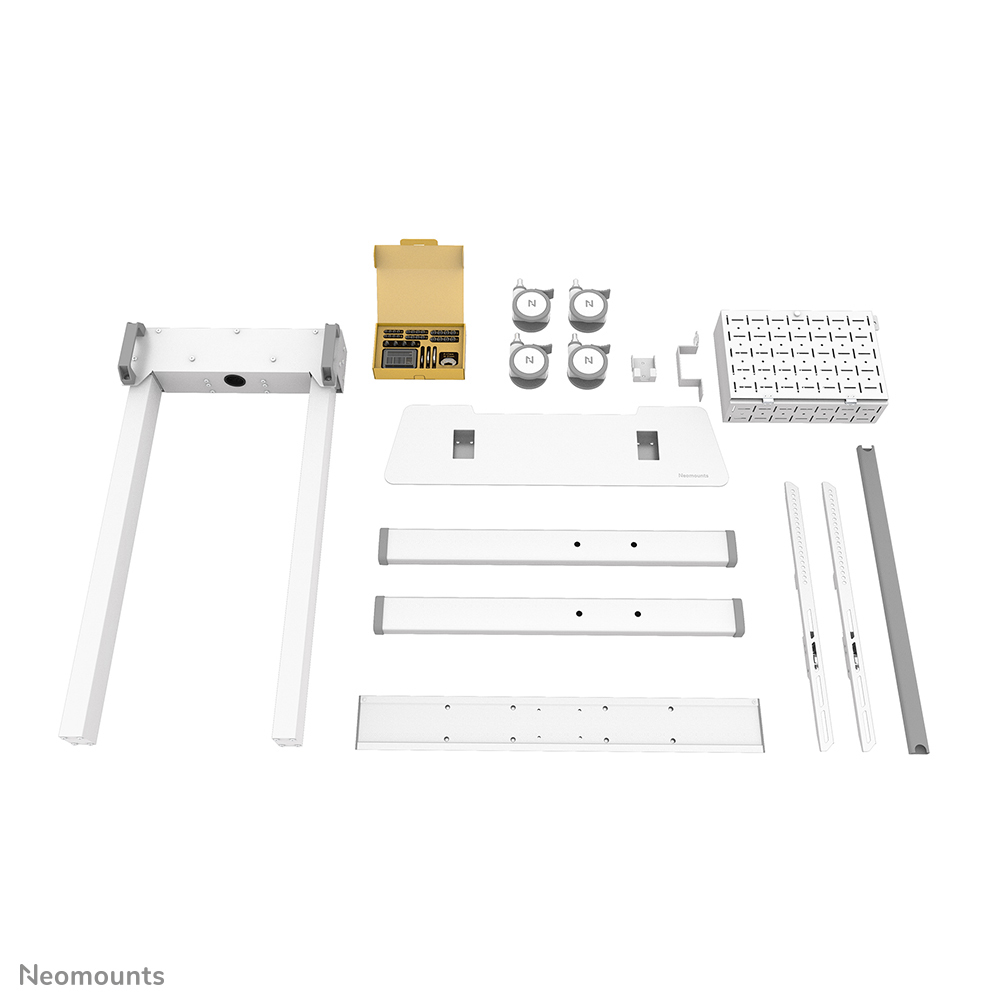

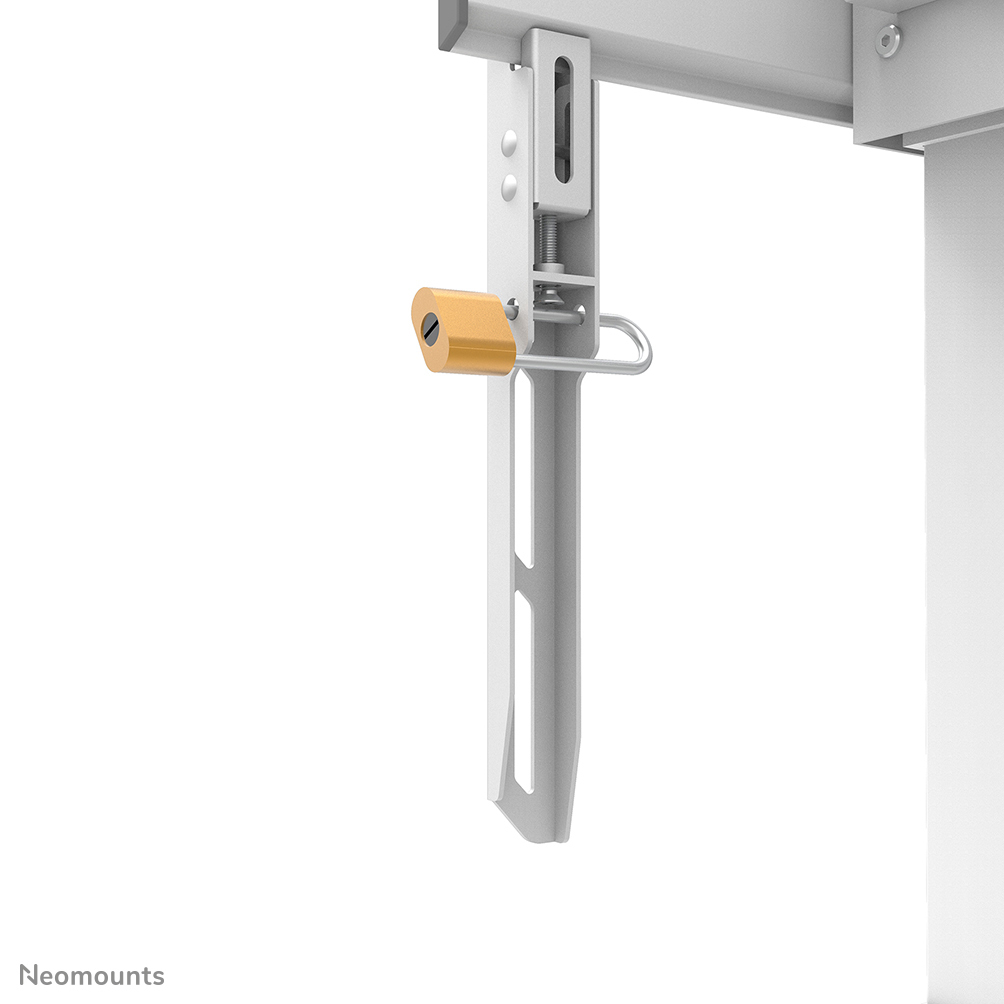

The floor stand is packed partially pre-assembled, to ensure fast and easy installation. The display can be secured by locking the brackets using a padlock (not included). Additionally, the FL55-875WH1 is compactly packed for optimized transportation and storage.

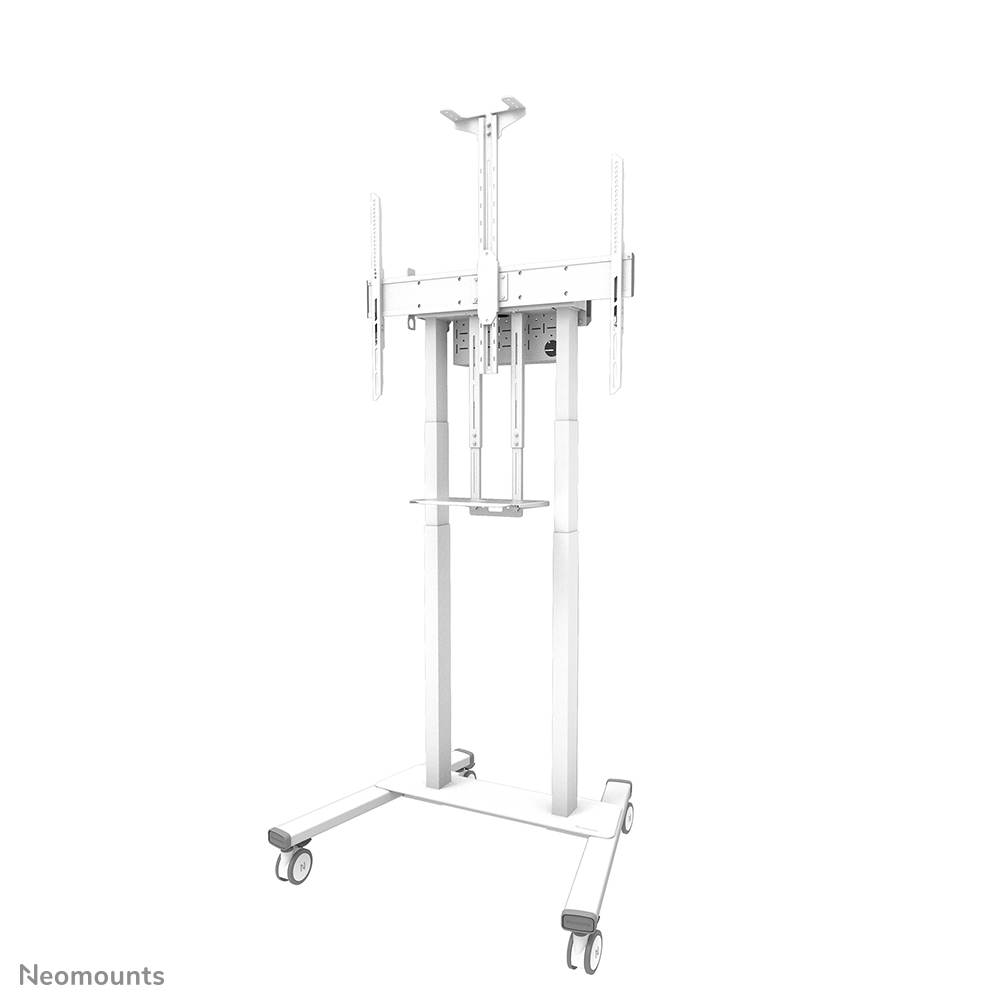

The AFL-875WH1 videobar & multimedia kit is optionally available and enables the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kit is an adapter for the Logitech Rally Bar (Mini). In addition, the multimedia shelf is suitable for installation of i.a. the Logitech Tap.
Features
Product colour
White
Material
Steel
Type
Fixed floor stand
Maximum weight capacity
110 kg
Number of displays supported
1
Minimum screen size
139.7 cm (55")
Maximum screen size
2.54 m (100")
Panel mounting interface
100 x 200,100 x 100,100 x 150,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600
Number of wheels
4 wheel(s)
Height adjustment
Yes
Height adjustment type
Electric
Cable management
Yes

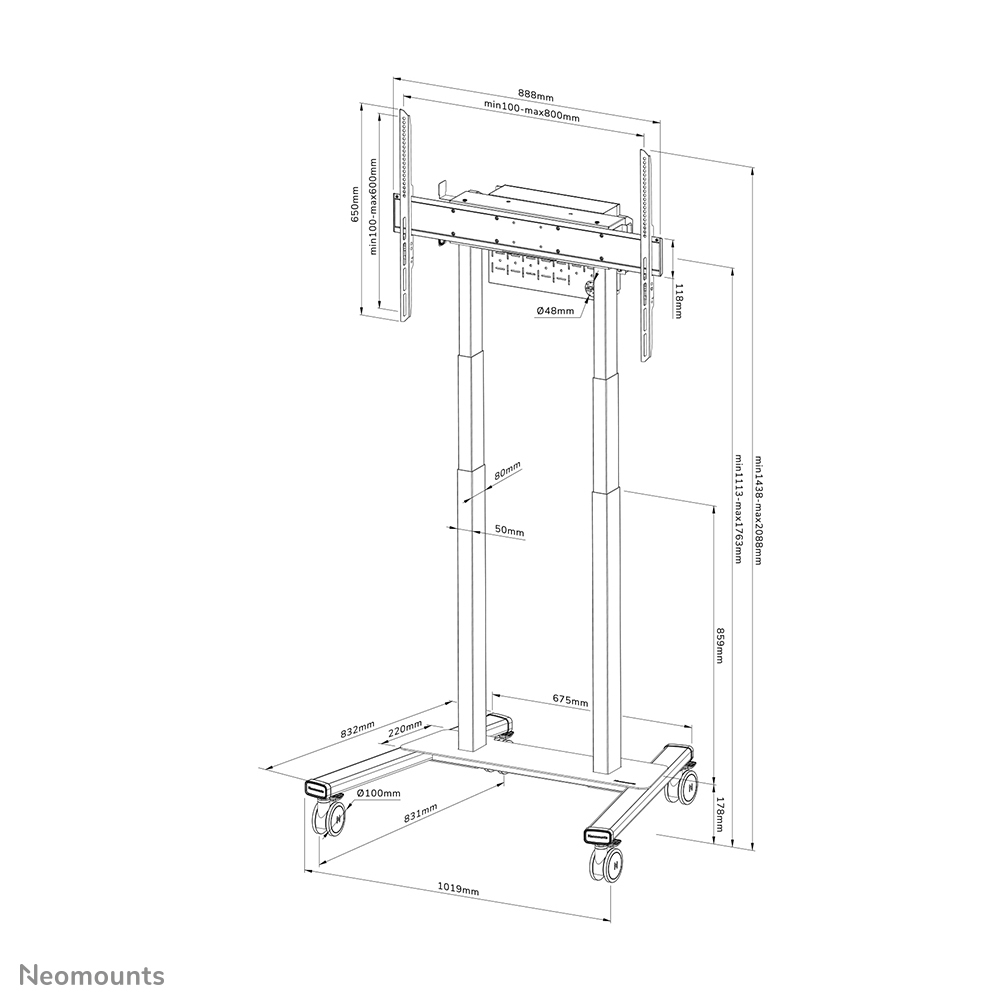

Weight & dimensions
Height
2088 mm
Width
1019 mm
Depth
831 mm
Weight
44.3 kg
Weight
44.3 kg
Width
1019 mm
Depth
831 mm
Height
2127 mm
Packaging data
Package width
598 mm
Package depth
221 mm
Package height
1102 mm
Package weight
50.5 kg
Package net weight
50.5 kg
Package weight
50.5 kg
Package width
598 mm
Package depth
221 mm
Package height
1102 mm
Other features
Warranty period
5 year(s)
Country of origin
China
Country of origin
China
Logistics data
Master (outer) case width
598 mm
Master (outer) case length
221 mm
Master (outer) case height
1102 mm
Master (outer) case gross weight
50.5 kg
Products per master (outer) case
1 pc(s)
Master (outer) case net weight
44.3 kg
Products per pallet (EU)
7 pc(s)
Harmonized System (HS) code
9403109800
Master (outer) case net weight
44.3 kg
Harmonized System (HS) code
HS7326909890
Products per pallet (EU)
7 pc(s)
Master (outer) case width
598 mm
Master (outer) case length
221 mm
Master (outer) case height
1102 mm
Products per master (outer) case
1 pc(s)
Quantity per master (outer) case
1 pc(s)
Master (outer) case gross weight
50.5 kg
Mounting
Minimum screen size
94 cm (37")
Maximum weight capacity
110 kg
Maximum screen size
2.54 m (100")
Mounting type
Floor
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
800 x 600 mm
Panel mounting interface
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 600,600 x 500,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600
Number of displays supported
1
Ergonomics
Height adjustment
Y
Height adjustment type
Electric
Height adjustment range
115.2 - 180.2 mm
Wheels
Y
Number of wheels
4 wheel(s)
Cable management
Y
Design
Product colour
White
Housing material
Steel
Base type
H-shaped
Accepts padlock
Y
Type
Fixed floor stand
Power
Technical details
Package net weight
50.5 kg
Warranty period
5 year(s)
