Product Details
Introduction

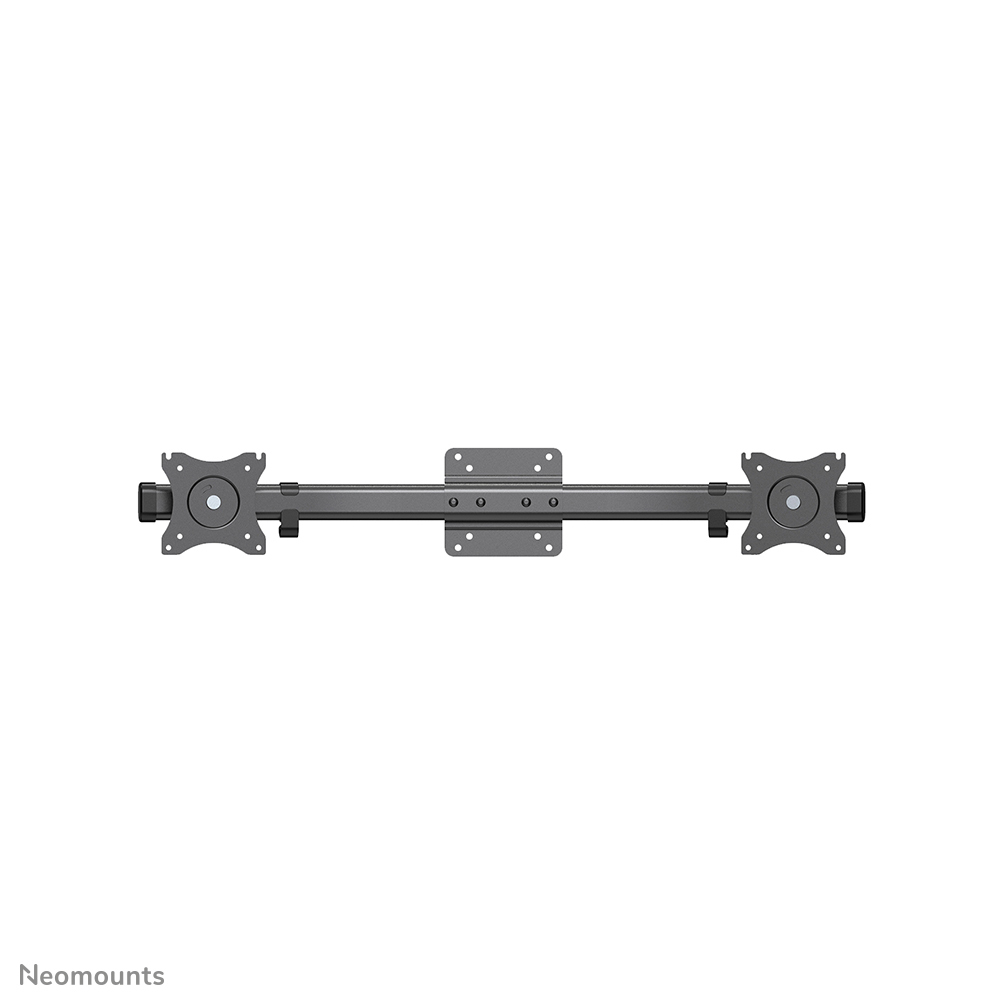

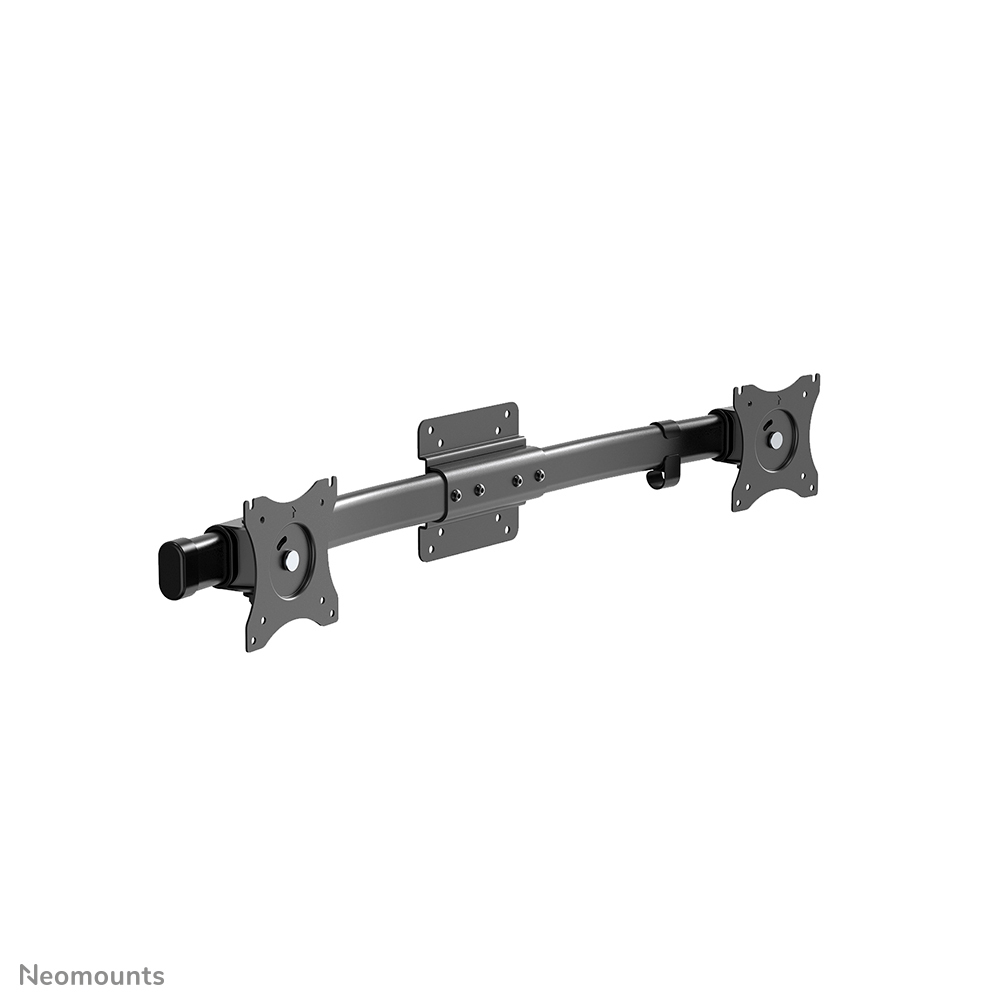

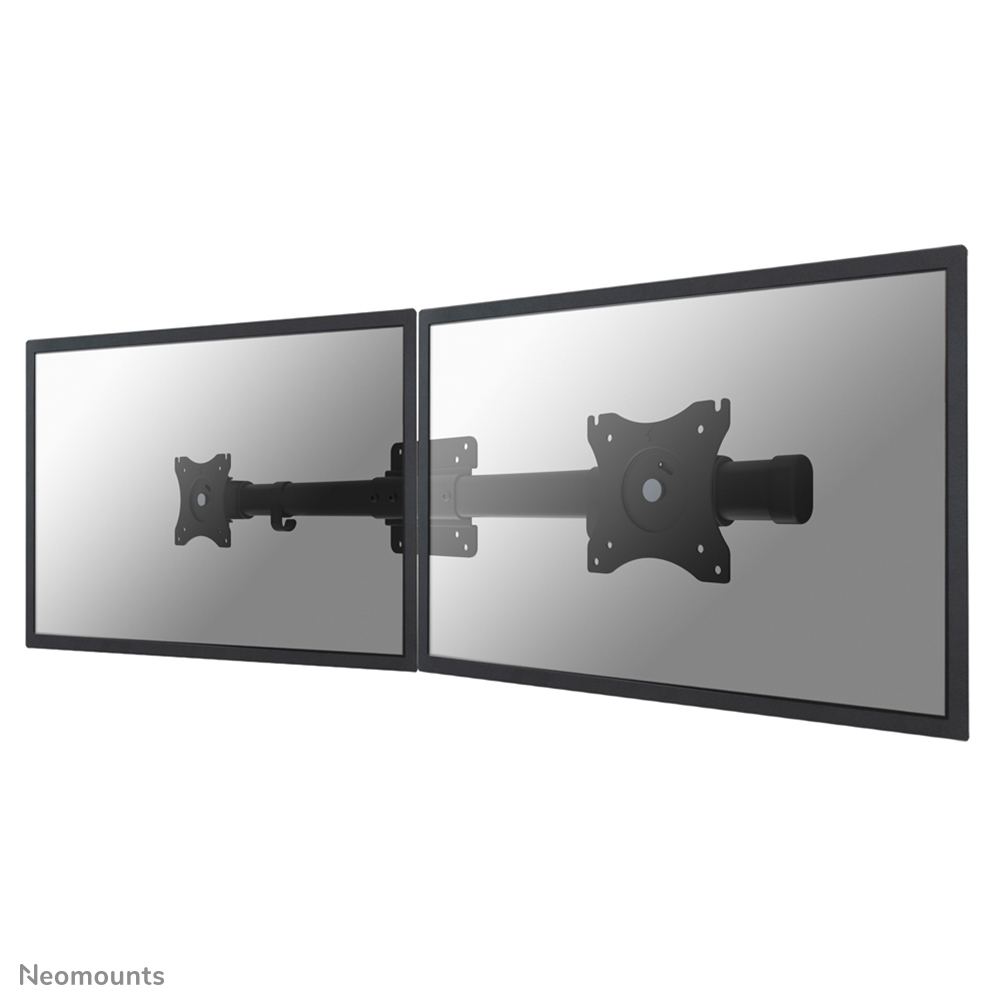

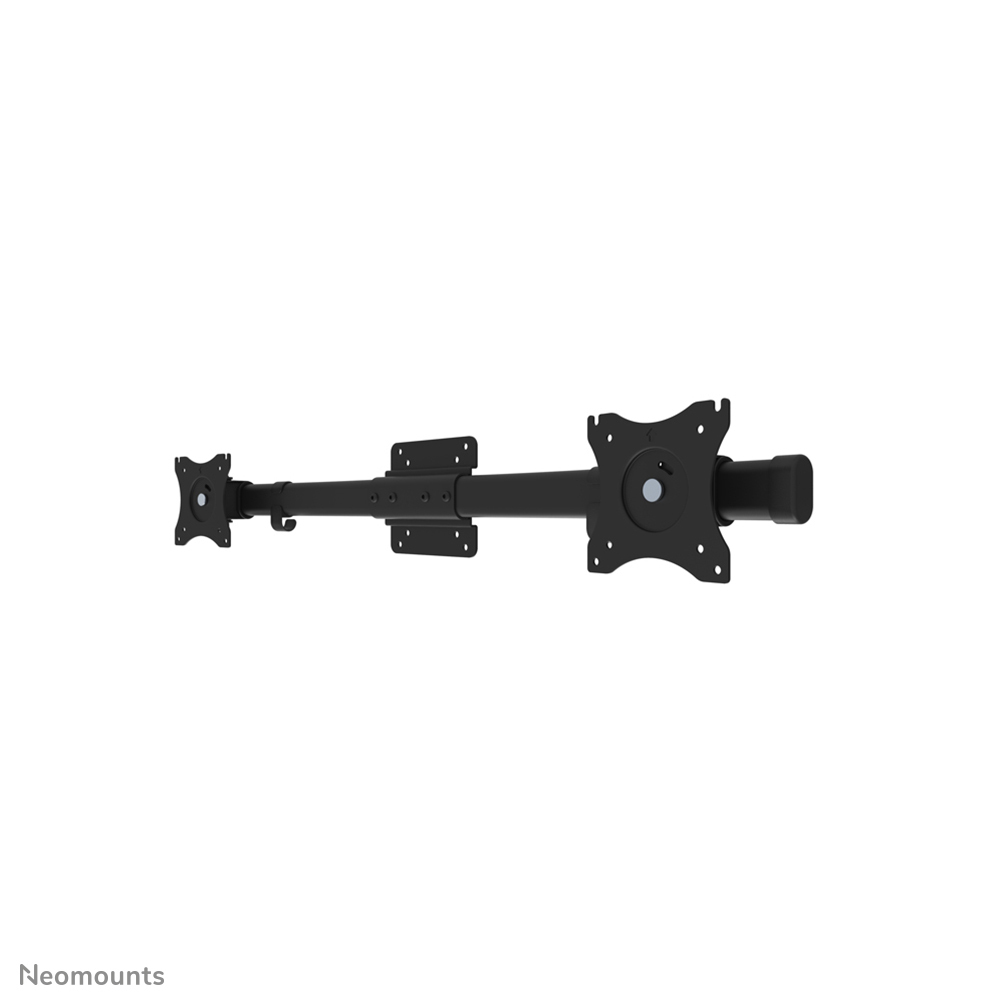

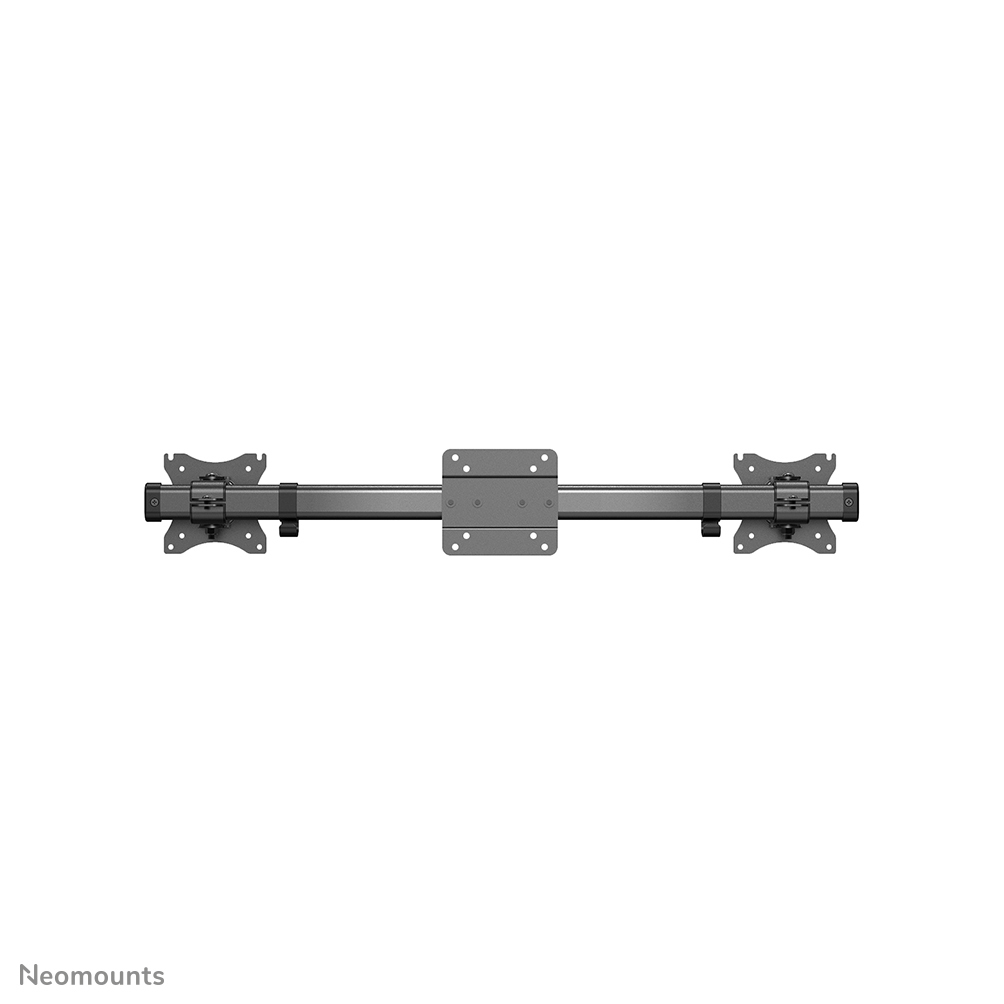

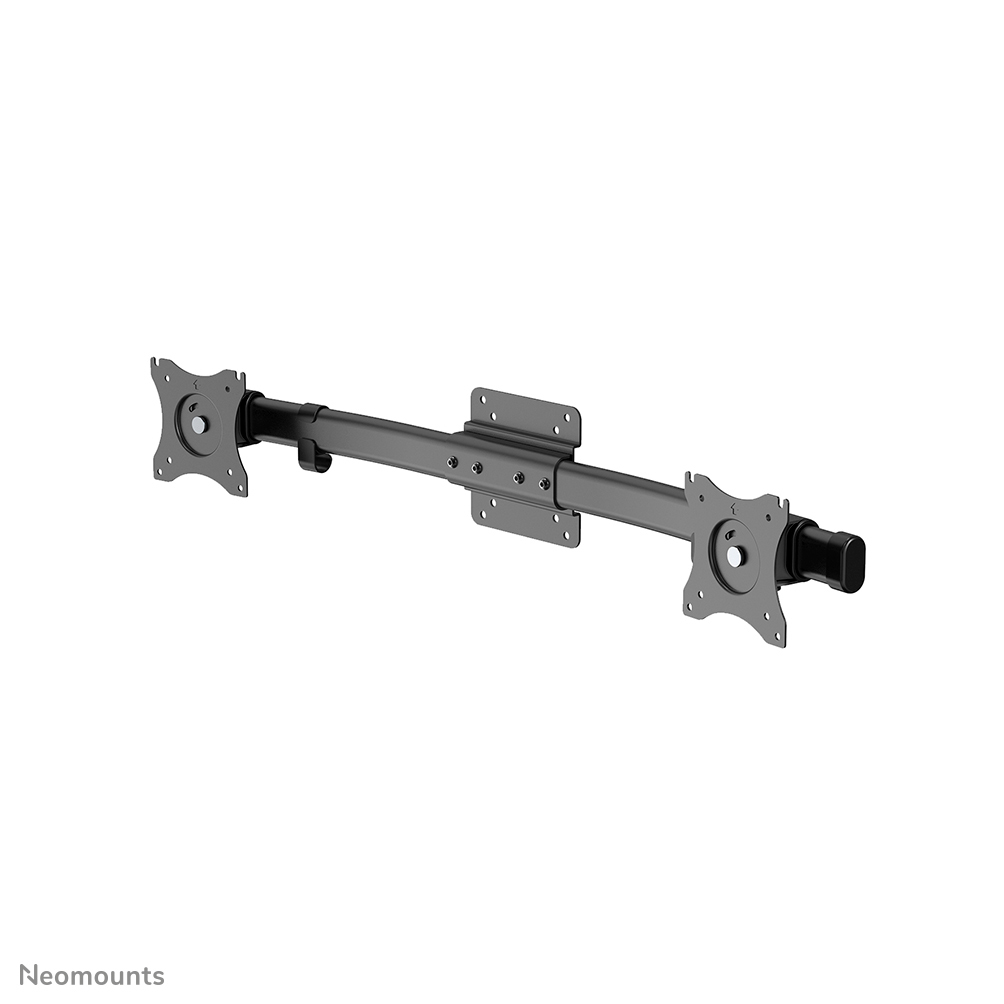

The Neomounts by Newstar dual monitor adapter, model FPMA-CB100BLACK is a twin screen mounting rail allowing two monitors/flatscreens to be mounted on one flatscreen mount. Slide screens from left to right to fit side-by-side display. Provides independent screen adjustments and freely move the monitors along the horizontal rail without using tools.

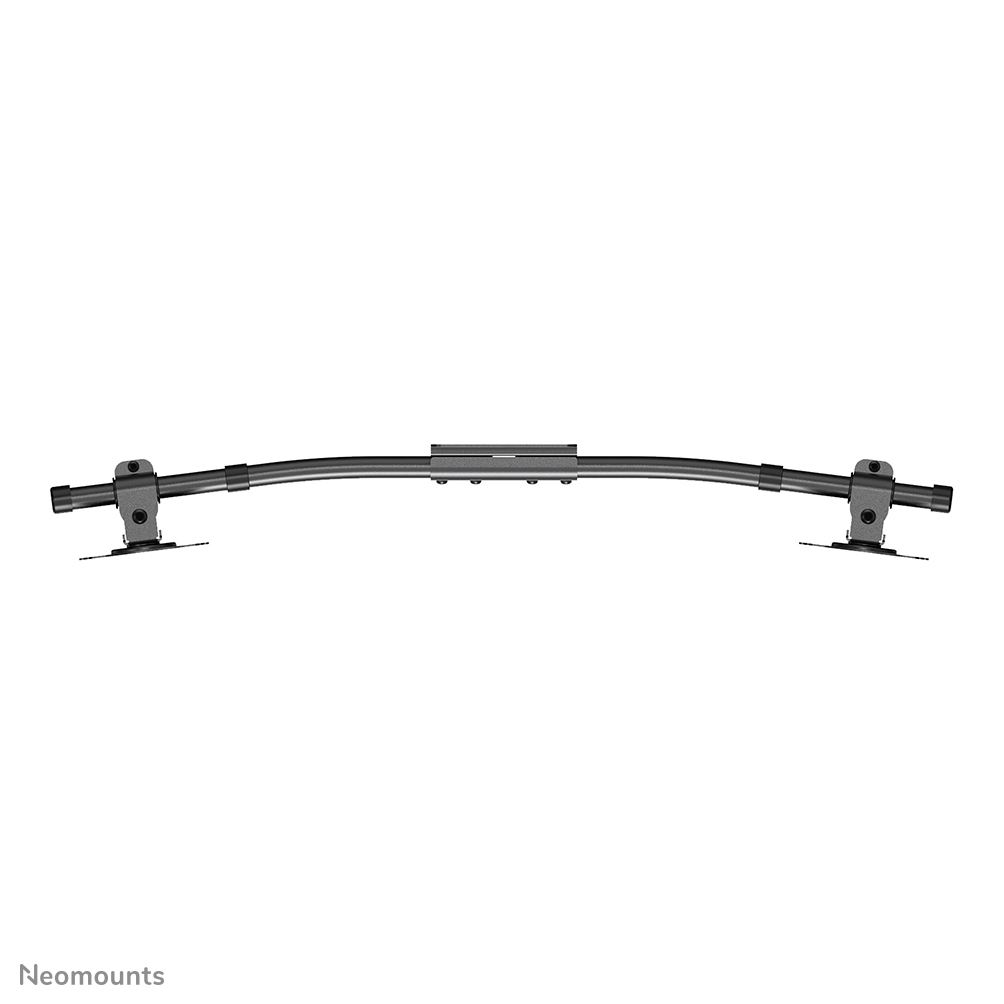

- Curved horizontal rail for improved viewing position
- Compatible with VESA 75x75 and 100x100 mounting interface
- Cable clips keep cables organized and protected
All installation material is included with the product.
Mounting
Maximum weight capacity (per display)
10 kg
Maximum weight capacity
10 kg
Panel mounting interface
75 x 75 mm
Minimum screen size
25.4 cm (10")
Maximum weight capacity
10 kg
Maximum screen size
68.6 cm (27")
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Number of displays supported
2
Mounting type
Wall
Features
Product colour
Black
Housing material
Steel
Maximum weight capacity
10 kg
Mounting type
Wall
Panel mounting interface
100 x 100,75 x 75 mm
Maximum screen size
68.6 cm (27")
Minimum screen size
25.4 cm (10")
Number of displays supported
2
Tilt angle range
-45 - 45°
Angle of rotation
360°
Swivel angle
30°

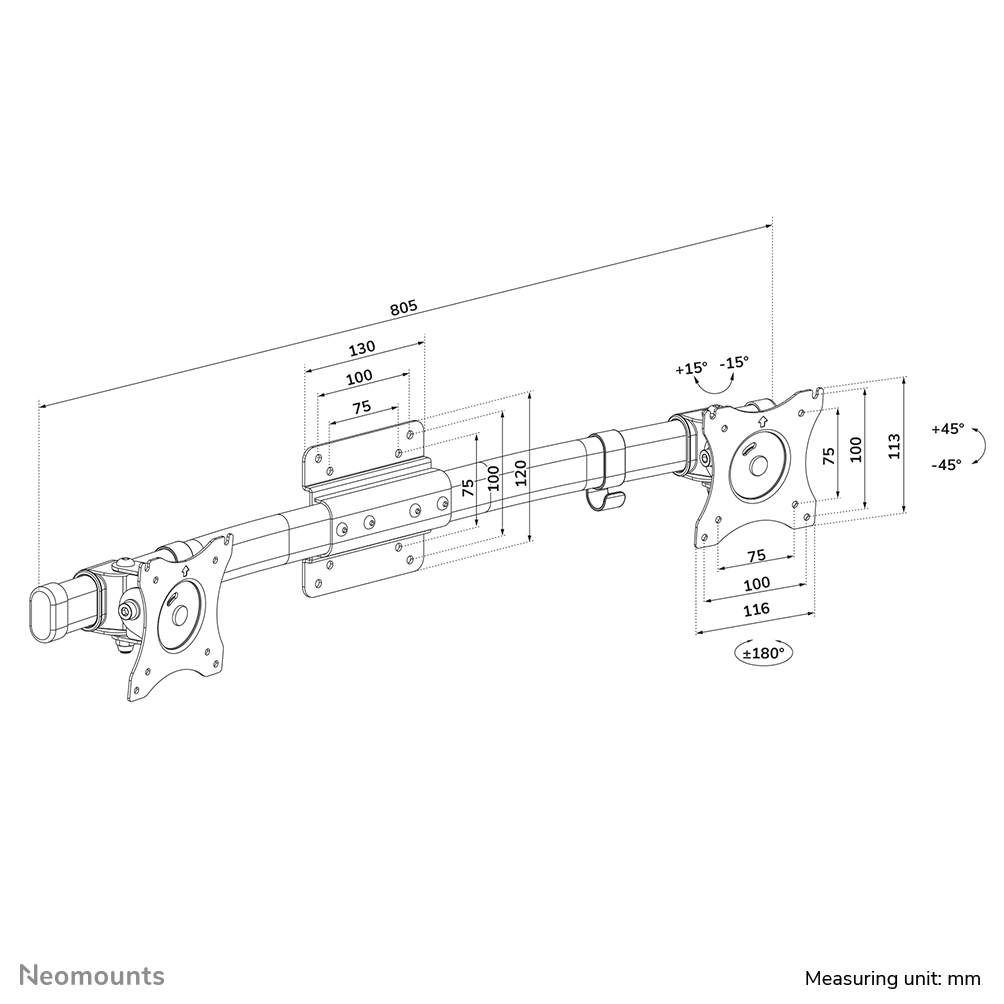

Width adjustment range
0 - 805 mm
Maximum VESA mount
100 x 100 mm
Swivel angle range
0 - 30°
Packaging data
Package weight
2.4 kg
Package height
410 mm
Package width
130 mm
Package depth
90 mm
Package net weight
2.44 kg
Package weight
2.4 kg
Weight & dimensions
Weight
2.44 kg
Width
805 mm
Weight
2.44 kg
Width
805 mm
Package width
130 mm
Package depth
90 mm
Package height
410 mm
Package net weight
2.44 kg
Technical details
Country of origin
China
Logistics data
Master (outer) case net weight
14.6 kg
Harmonized System (HS) code
7326909890
Master (outer) case width
425 mm
Master (outer) case length
360 mm
Master (outer) case height
275 mm
Master (outer) case gross weight
17.2 kg
Products per master (outer) case
6 pc(s)
Products per pallet (EU)
144 pc(s)
Master (outer) case width
425 mm
Master (outer) case length
360 mm
Master (outer) case height
275 mm
Master (outer) case gross weight
17.2 kg
Products per master (outer) case
6 pc(s)
Master (outer) case net weight
14.6 kg
Harmonized System (HS) code
HS83025000
Products per pallet (EU)
144 pc(s)
Ergonomics
Tilt adjustment
Yes
Tilt angle range
-45 - 45°
Swivelling
Yes
Rotating
Yes
Swivel angle
30°
Angle of rotation
360°
Design
Housing material
Steel
Product colour
Black
Other features
Width adjustment range
0 - 805 mm
Country of origin
China
Information
| Part Number: | FPMA-CB100BLACK |
