Introduction

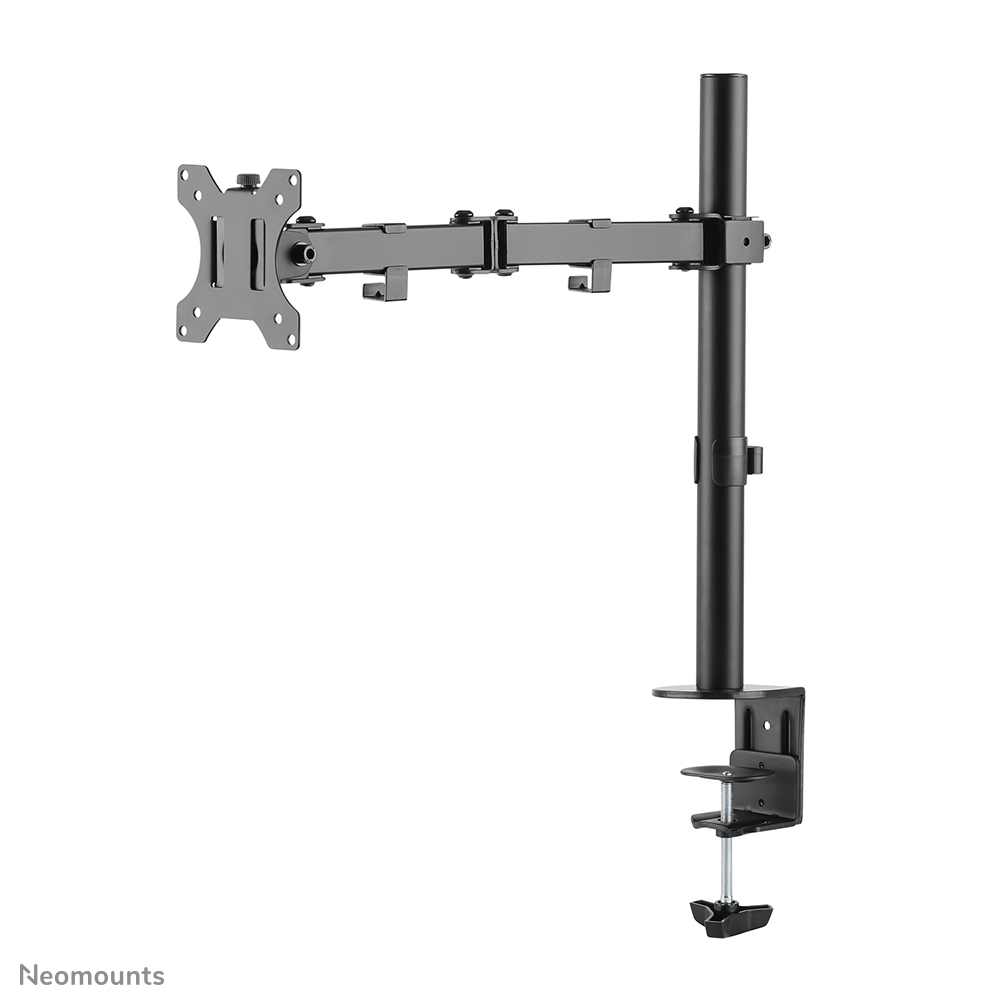

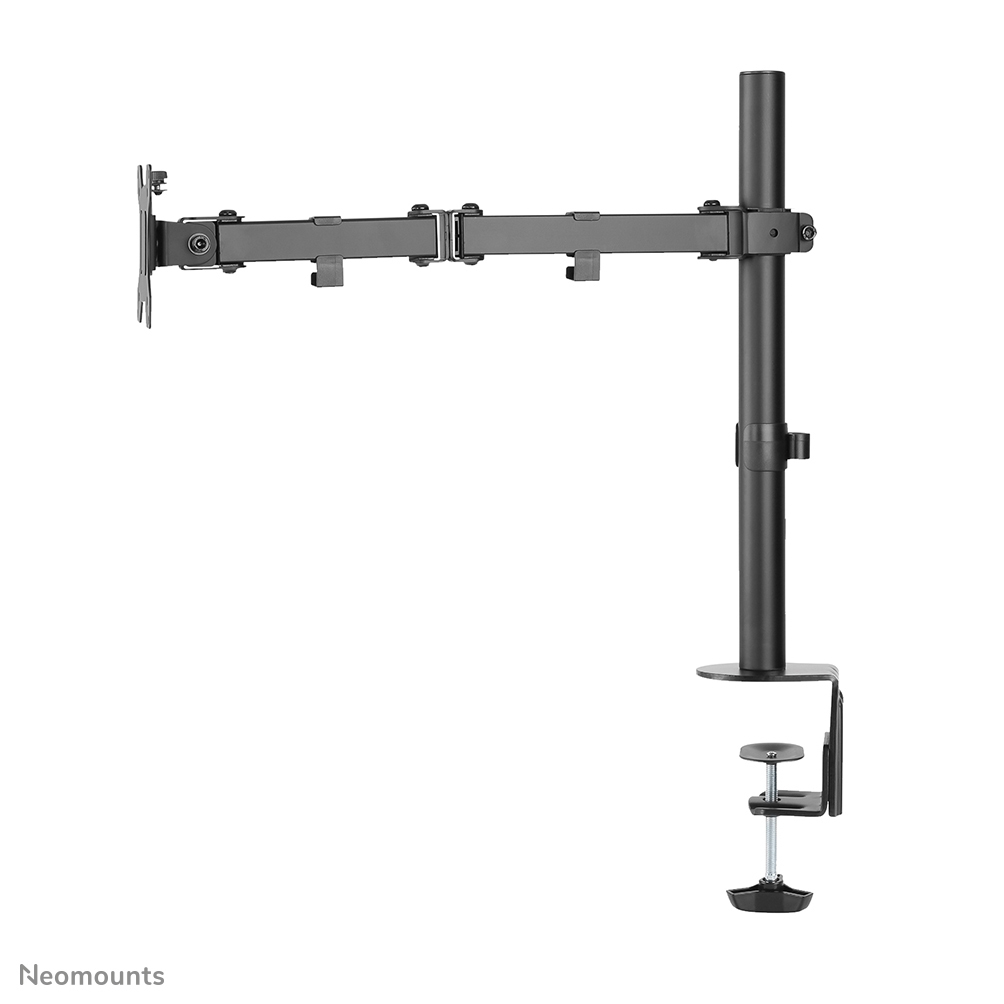

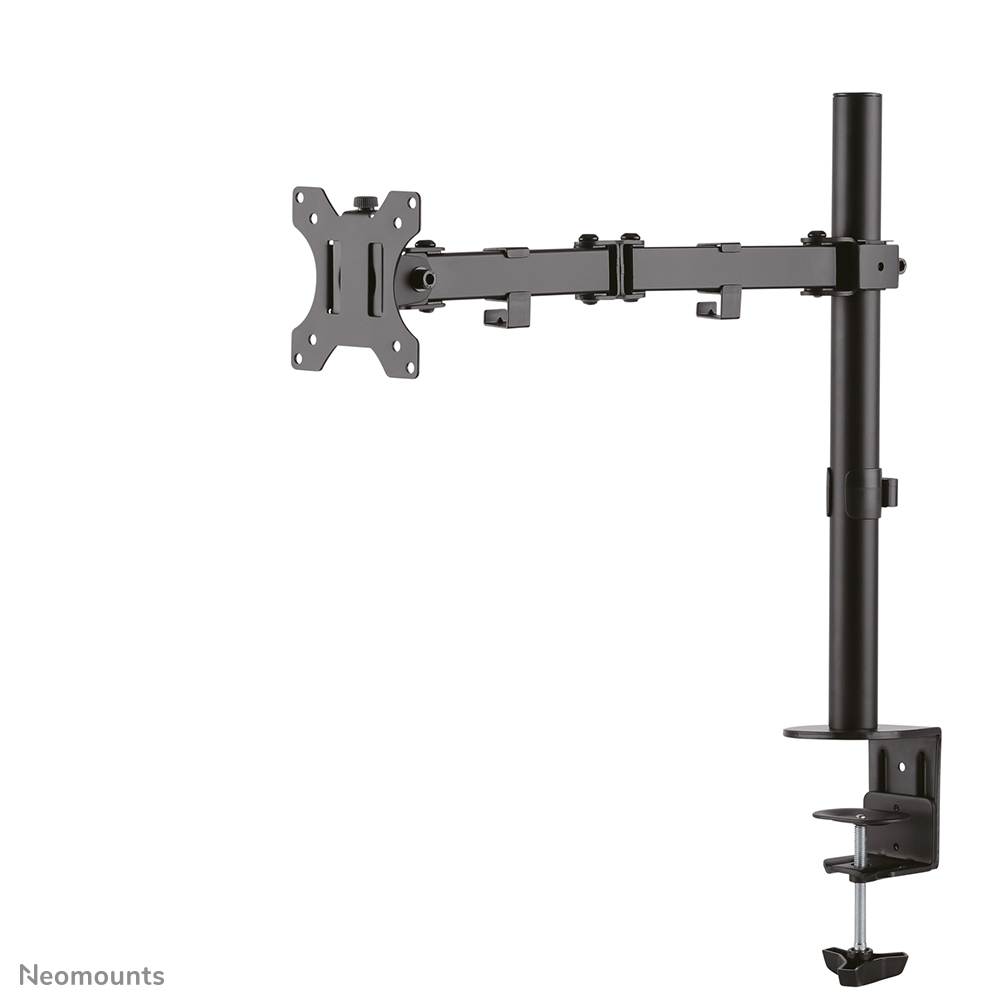

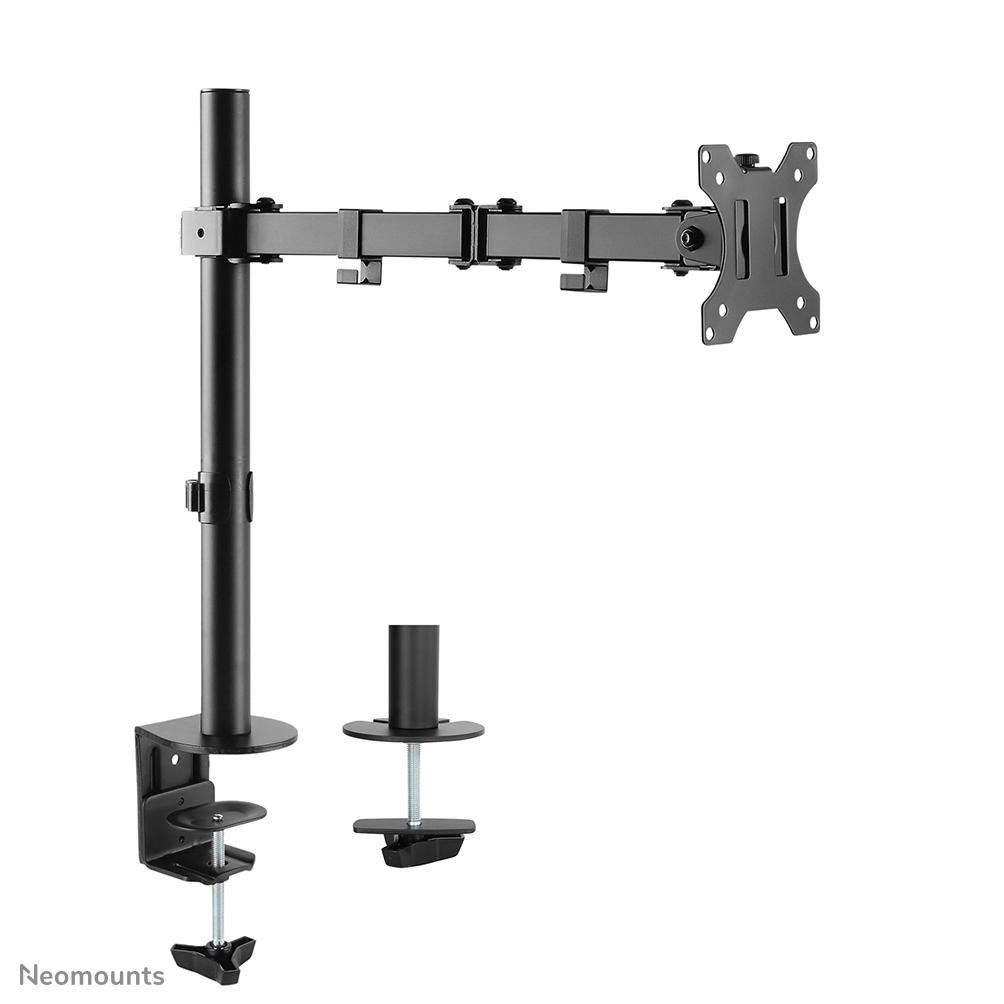

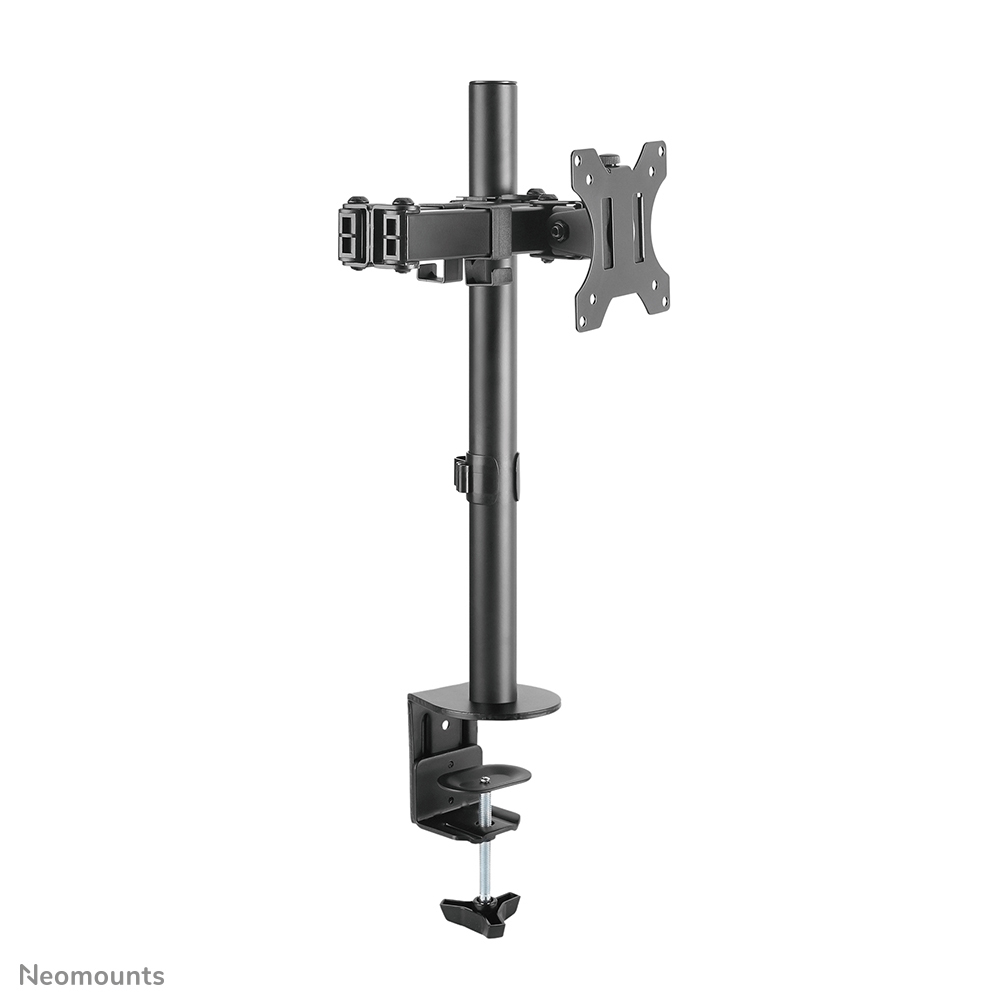

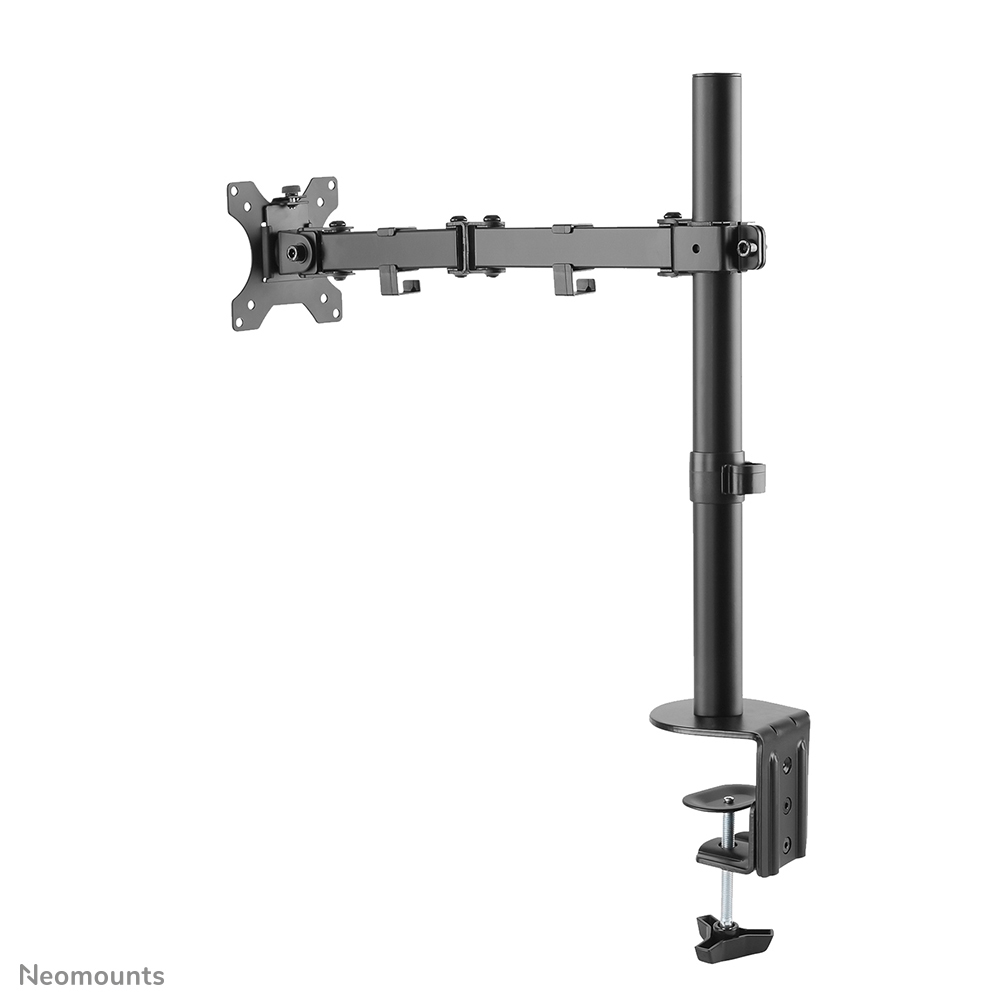

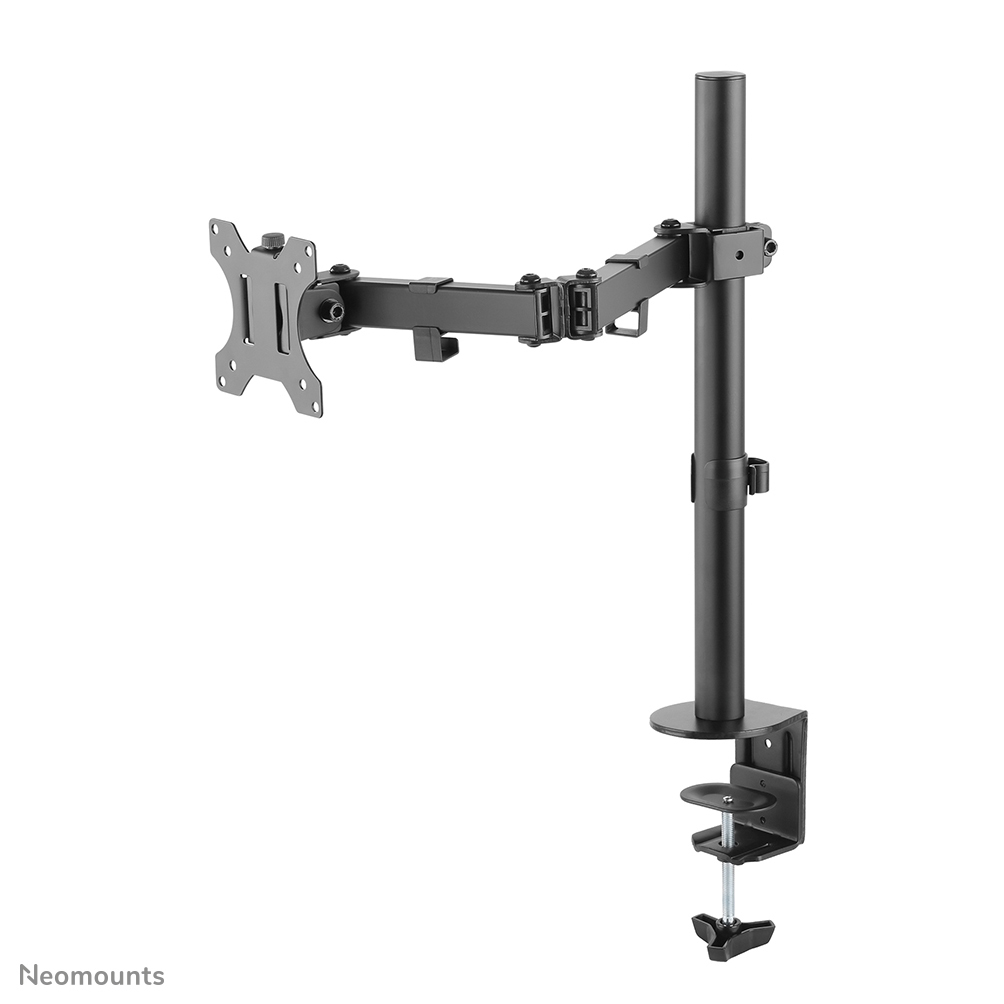

The Neomounts by Newstar desk mount, model FPMA-D550BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

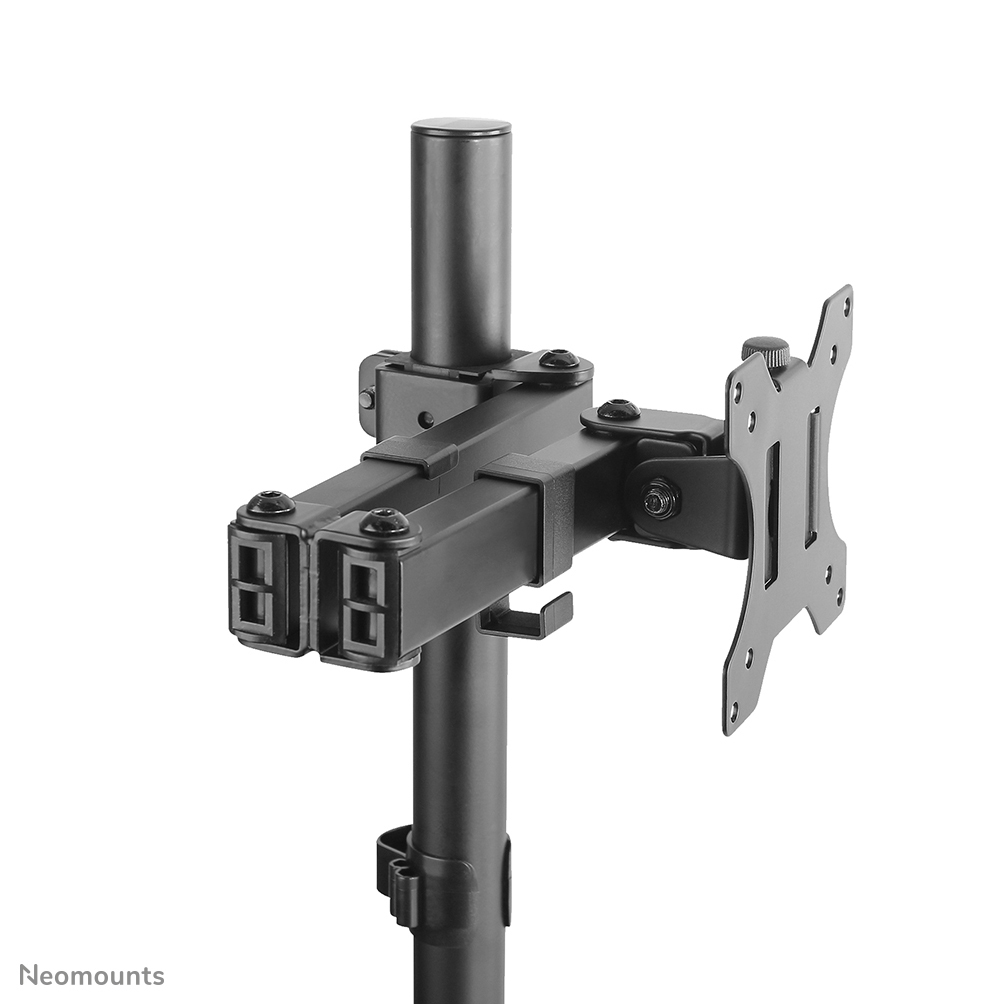

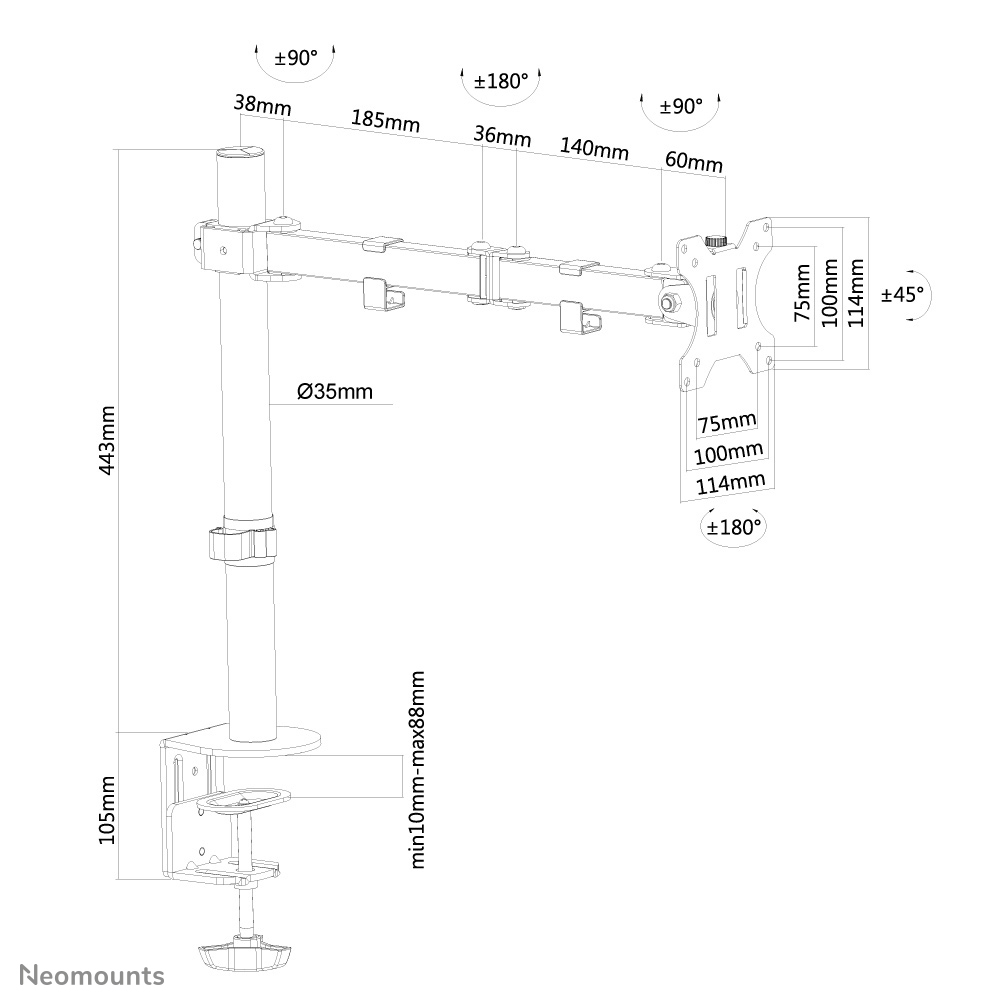

Neomounts' versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 46 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

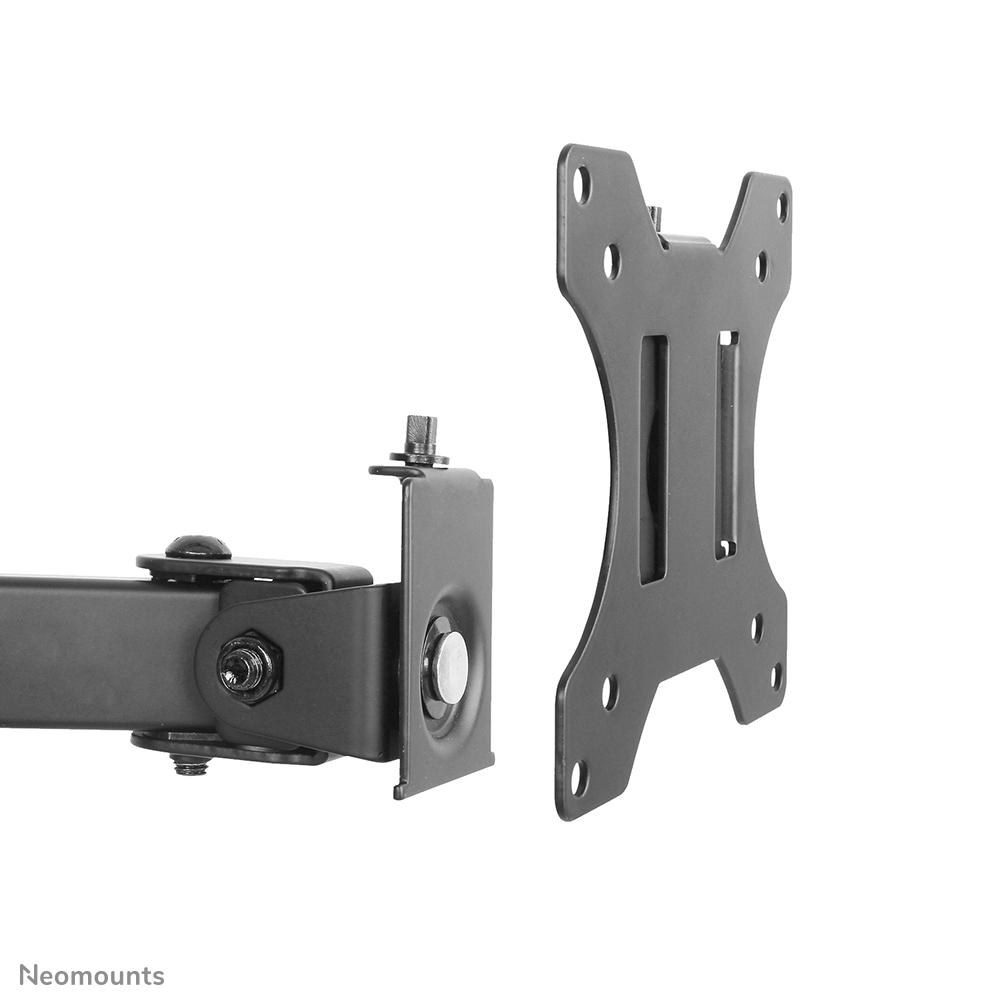

Neomounts FPMA-D550BLACK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Mounting
Maximum weight capacity
8 kg
Minimum screen size
25.4 cm (10")
Number of displays supported
1
Maximum weight capacity (per display)
8 kg
Maximum screen size
81.3 cm (32")
Mounting
Clamp/Grommet
Mounting type
Desk
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Panel mounting interface
100 x 100,75 x 75 mm
Desk thickness (min)
1 cm
Desk thickness (max)
8.8 cm
Distance to the wall (min)
4 cm
Distance to the wall (max)
46 cm
Ergonomics
Height adjustment
Yes
Height adjustment range
0 - 440 mm
Adjustable depth
Yes
Tilt angle range
0 - 90°
Swivelling
Yes
Swivel angle
180°
Angle of rotation
360°
Cable management
Yes
Depth adjustment range
40 - 460 mm
Swivel angle range
0 - 180°
Design
Housing material
Steel
Product colour
Black
Packaging data
Package weight
3.8 kg
Package width
180 mm
Package depth
120 mm
Package height
489 mm
Package weight
3.8 kg
Package height
489 mm
Package width
180 mm
Package depth
120 mm
Features
Maximum VESA mount
100 x 100 mm
Housing material
Steel
Panel mounting interface
75 x 75 mm
Adjustable depth
Yes
VESA mounting
Yes
Product colour
Black
Mounting type
Desk
Maximum weight capacity
8 kg
Maximum screen size
81.3 cm (32")
Minimum screen size
25.4 cm (10")
Number of displays supported
1
Cable management
Y
Tilt angle range
0 - 90°
Angle of rotation
360°
Swivel angle
180°
Height adjustment
Y
Height adjustment range
0 - 440 mm
Weight & dimensions
Depth
40 mm
Height
548 mm
Weight
3.32 kg
Weight
3.32 kg
Depth
460 mm
Height
548 mm
Distance to the wall (min)
4 cm
Distance to the wall (max)
46 cm
Other features
Logistics data
Master (outer) case width
375 mm
Master (outer) case length
260 mm
Master (outer) case height
505 mm
Master (outer) case gross weight
15.2 kg
Products per master (outer) case
4 pc(s)
Country of origin
China
Master (outer) case net weight
2.8 kg
Harmonized System (HS) code
7326909890
Products per pallet (EU)
96 pc(s)
Master (outer) case net weight
2.8 kg
Master (outer) case gross weight
15.2 kg
Harmonized System (HS) code
HS83025000
Master (outer) case width
448 mm
Master (outer) case length
225 mm
Master (outer) case height
135 mm
Products per master (outer) case
4 pc(s)
Products per pallet (EU)
96 pc(s)
