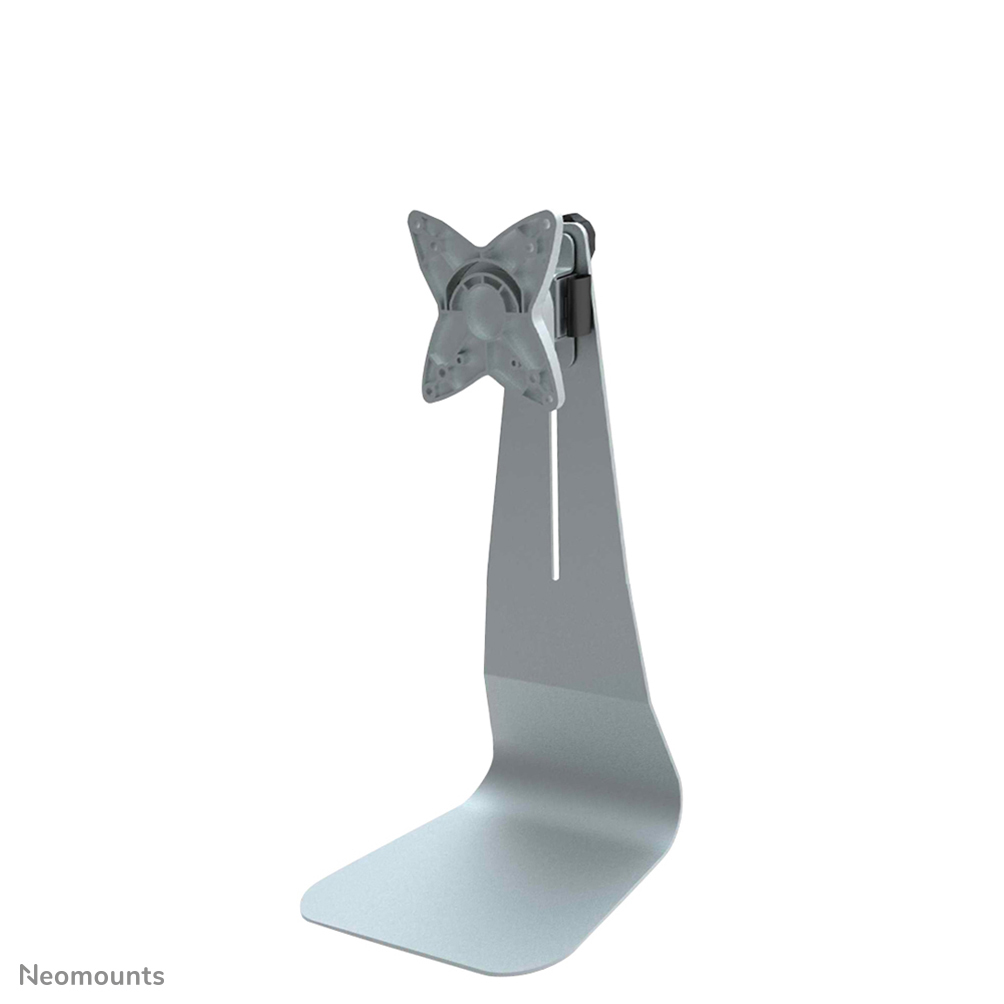

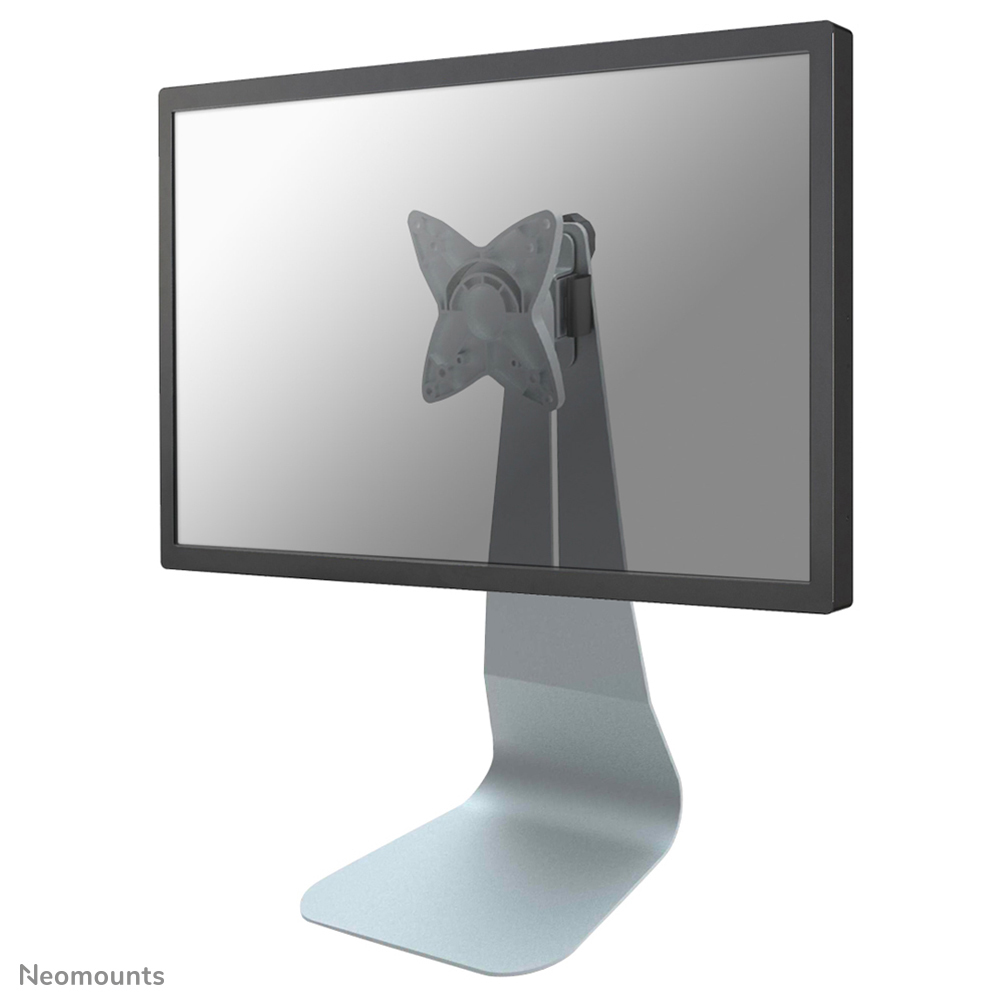

NEOMOUNTS LCD Monitor Arm (fpma-d800) Desk Stand Mount 210-370mm Hight Silver

£42.88

Part Number: FPMA-D800
Delivery: 1 - 2 days

Product Details

Introduction

The Neomounts by Newstar desk mount, model FPMA-D800 is a tilt-, swivel and rotatable desk mount for flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk stand.

Neomounts by Newstar's versatile tilt (30°), rotate (360°) and swivel (45°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 21 to 37 centimetres. Depth 6 centimetres.

Neomounts by Newstar FPMA-D800 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Mounting

Maximum weight capacity (per display) 10 kg
Panel mounting interface 75 x 75 mm
Minimum screen size 25.4 cm (10")
Maximum weight capacity 10 kg
Maximum screen size 68.6 cm (27")
Mounting Freestanding
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Number of displays supported 1
Mounting type Desk

Ergonomics

Swivel angle range 0 - 60°
Depth adjustment range 0 - 60 mm
Tilt adjustment Yes
Swivelling Yes
Rotating Yes
Height adjustment Y
Height adjustment type Manual
Height adjustment range 210 - 370 mm
Tilt angle range 0 - 180°
Swivel angle 60°
Angle of rotation 360°

Packaging data

Package weight 2.5 kg

Design

Housing material Steel
Product colour Silver

Weight & dimensions

Weight 2.5 kg
Depth 60 mm
Height 370 mm
Package width 215 mm
Package depth 430 mm
Package height 260 mm

Logistics data

Master (outer) case gross weight 12.5 kg
Master (outer) case net weight 10 kg
Master (outer) case width 540 mm
Master (outer) case length 320 mm
Master (outer) case height 445 mm
Products per master (outer) case 4 pc(s)
Harmonized System (HS) code HS83025000
Products per pallet (EU) 60 pc(s)

Other features

Compatibility LCD/TFT/LED TVs
Mounting interface VESA 75 x 75mm, 100 x 100mm
Country of origin China
