Introduction
The Neomounts by Newstar pole mount, model FPMA-WP200BLACK is a tilt-, swivel and rotatable pole mount for flat screens up to 30" (76 cm).
Ideal to mount screens up to 30" (76 cm) to any pole with a diameter between 35 and 60mm. This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless position the display in almost any direction.

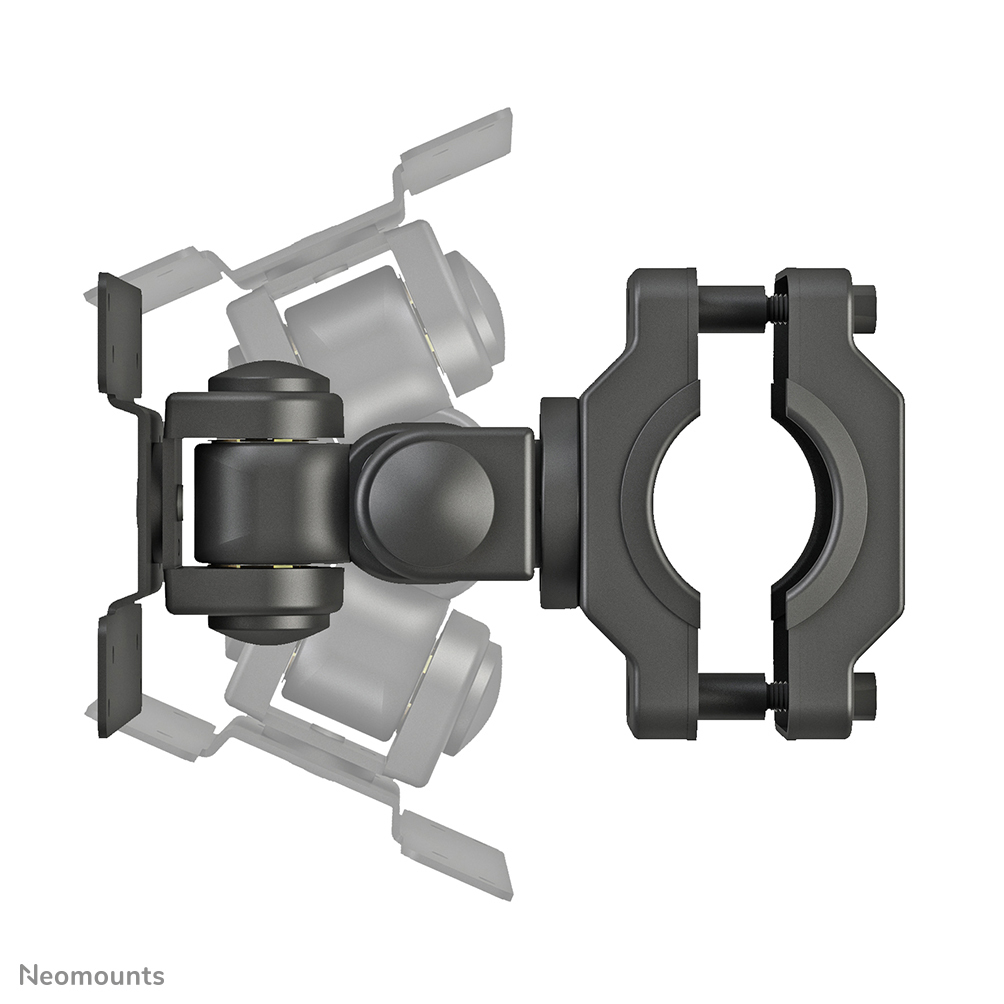

Neomounts by Newstars' tilt- (180°), rotate (360°) and swivel (180°)technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 14 centimetres. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
Neomounts by Newstar FPMA-WP200BLACK has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 and 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
Mounting
Maximum weight capacity (per display)
10 kg
Maximum weight capacity
10 kg
Minimum screen size
25.4 cm (10")
Number of displays supported
1
Maximum weight capacity (per display)
10 kg
Maximum screen size
76.2 cm (30")
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Panel mounting interface
100 x 100,75 x 75 mm
Mounting type
Pole
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Minimum screen size
25.4 cm (10")
Maximum weight capacity
10 kg
Maximum screen size
76.2 cm (30")
Panel mounting interface
75 x 75,100 x 100 mm
Number of displays supported
1
Mounting type
Pole clamp
Packaging data
Package weight
0 g
Package width
209 mm
Package depth
136 mm
Package height
124 mm
Package weight
0 g
Ergonomics
Tilt adjustment
Yes
Tilt angle range
0 - 180°
Swivelling
Yes
Swivel angle
180°
Swivel angle range
0 - 180°
Rotating
Yes
Angle of rotation
360°
Depth adjustment range
0 - 140 mm
Tilt adjustment
Yes
Swivelling
Yes
Rotating
Yes
Tilt angle range
0 - 180°
Swivel angle
180°
Swivel angle range
0 - 180°
Angle of rotation
360°
Design
Product colour
Black
Housing material
Steel
Compatibility
10 - 30"
Housing material
Steel
Product colour
Black
Technical details
Country of origin
Taiwan
Package net weight
1.2 kg
Weight & dimensions
Width
60 mm
Depth
140 mm
Width
60 mm
Depth
140 mm
Package width
209 mm
Package depth
136 mm
Package height
124 mm
Package net weight
1.2 kg
Logistics data
Master (outer) case width
440 mm
Master (outer) case length
320 mm
Master (outer) case height
315 mm
Master (outer) case gross weight
12.3 kg
Master (outer) case net weight
11.4 kg
Products per master (outer) case
8 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
144 pc(s)
Master (outer) case width
440 mm
Master (outer) case length
320 mm
Master (outer) case height
315 mm
Master (outer) case gross weight
12.3 kg
Products per master (outer) case
8 pc(s)
Master (outer) case net weight
11.4 kg
Harmonized System (HS) code
HS83025000
Products per pallet (EU)
144 pc(s)
Other features
Width adjustment range
35 - 60 mm
Depth adjustment range
0 - 140 mm
Width adjustment range
35 - 60 mm
Compatibility
10 - 30"
Country of origin
Taiwan
