Introduction

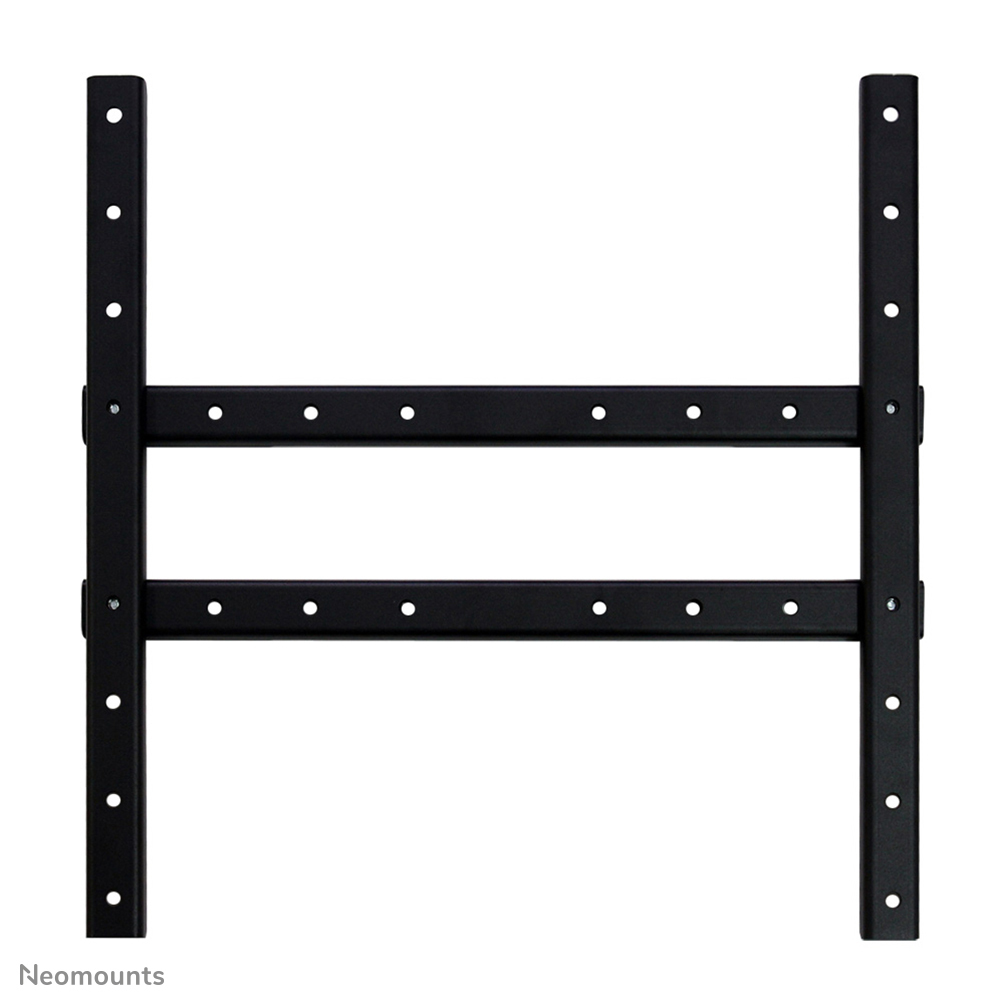

The Neomounts by Newstar VESA adapter, model FPMA-VESA425 allows a VESA mount with 100x100 interface to be used with displays with VESA hole patterns up to 400x400mm. Ideal when flat screen needs different VESA pattern to select wall-, desk- or ceiling mount.

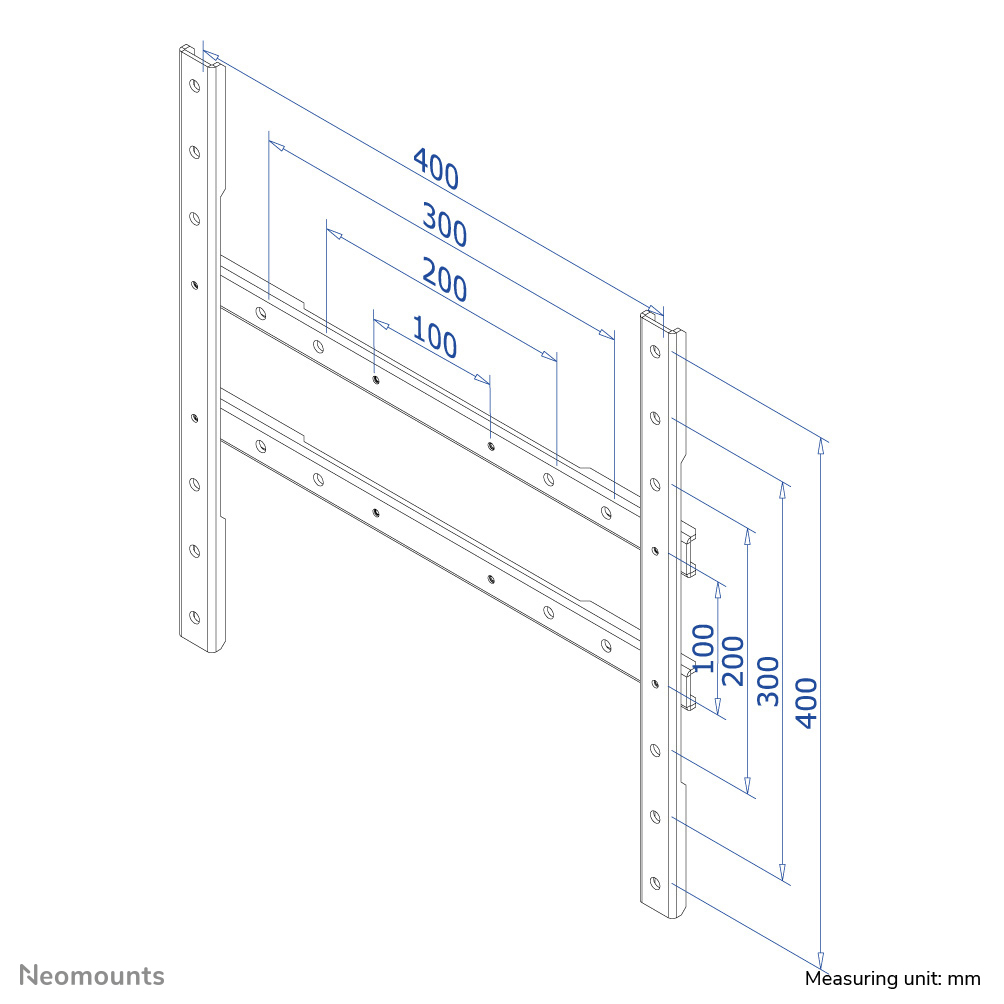

Neomounts by Newstar FPMA-VESA425 is suitable for screens up to 60" (152 cm). The weight capacity of this product is 20 kg each screen. Depth of this adapter is 3 millimetres only. The adapter is suitable for screens that meet VESA hole pattern 100x200, 100x300, 100x400, 200x200, 200x300, 200x400, 300x300, 300x400, 400x400 mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.
All installation material is included with the product.
Features
Product colour
Black
Housing material
Steel
Maximum weight capacity
20 kg
Panel mounting interface
100 x 200,100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400
Maximum screen size
152.4 cm (60")
Minimum screen size
68.6 cm (27")
Number of displays supported
1
VESA mounting
Yes
Maximum VESA mount
400 x 400 mm
Packaging data
Package weight
2.2 kg
Package height
55 mm
Package width
80 mm
Package depth
515 mm
Package net weight
2.2 kg
Package weight
2.2 kg
Package width
80 mm
Package depth
515 mm
Package height
55 mm
Weight & dimensions
Weight
2.01 kg
Weight
2.01 kg
Technical details
Country of origin
Taiwan
Material
Steel
Product colour
Black
Maximum weight capacity
20 kg
Screen size compatibility
685.8 - 1524 mm (27 - 60")
Package net weight
2.2 kg
Country of origin
Taiwan
VESA mounting
Y
Panel mounting interface
100 x 100,400 x 400 mm
Logistics data
Harmonized System (HS) code
7326909890
Products per master (outer) case
6 pc(s)
Products per pallet (EU)
96 pc(s)
Products per master (outer) case
6 pc(s)
Harmonized System (HS) code
HS83025000
Products per pallet (EU)
96 pc(s)
Other features
Number of displays supported
1
