Introduction

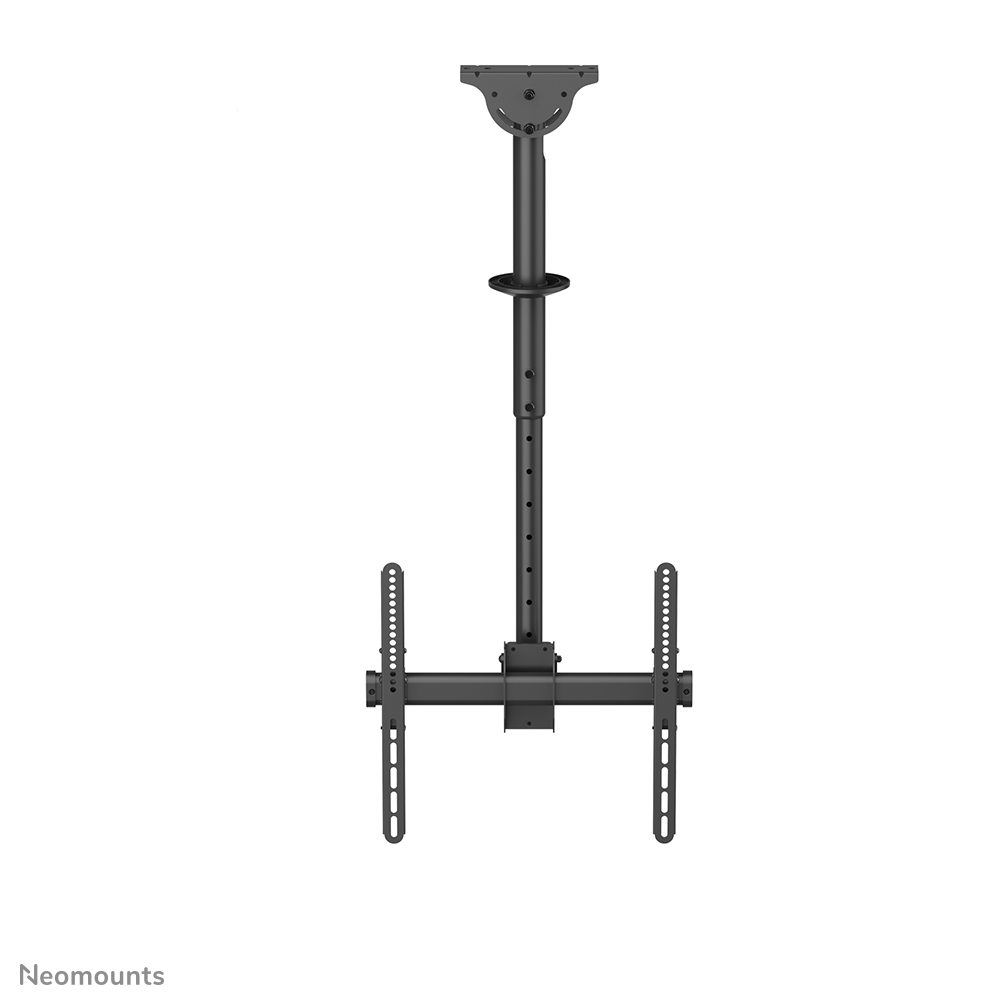

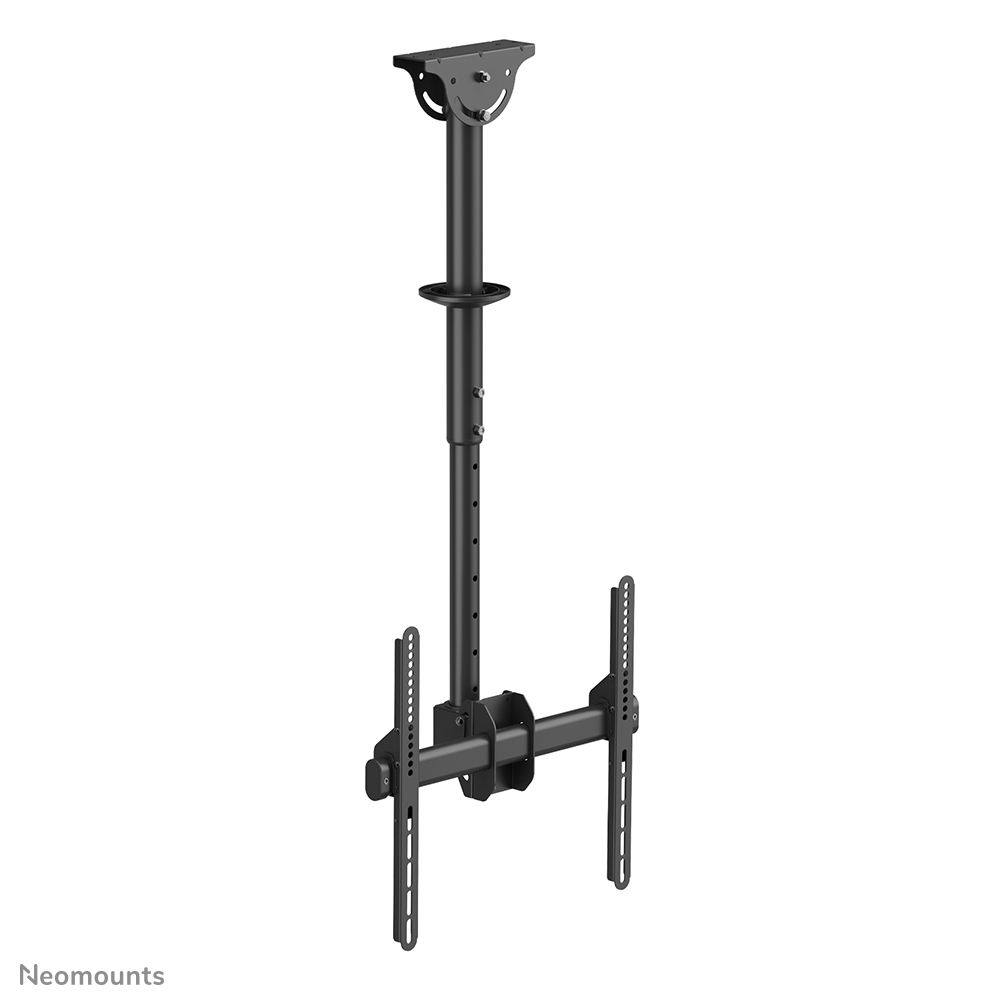

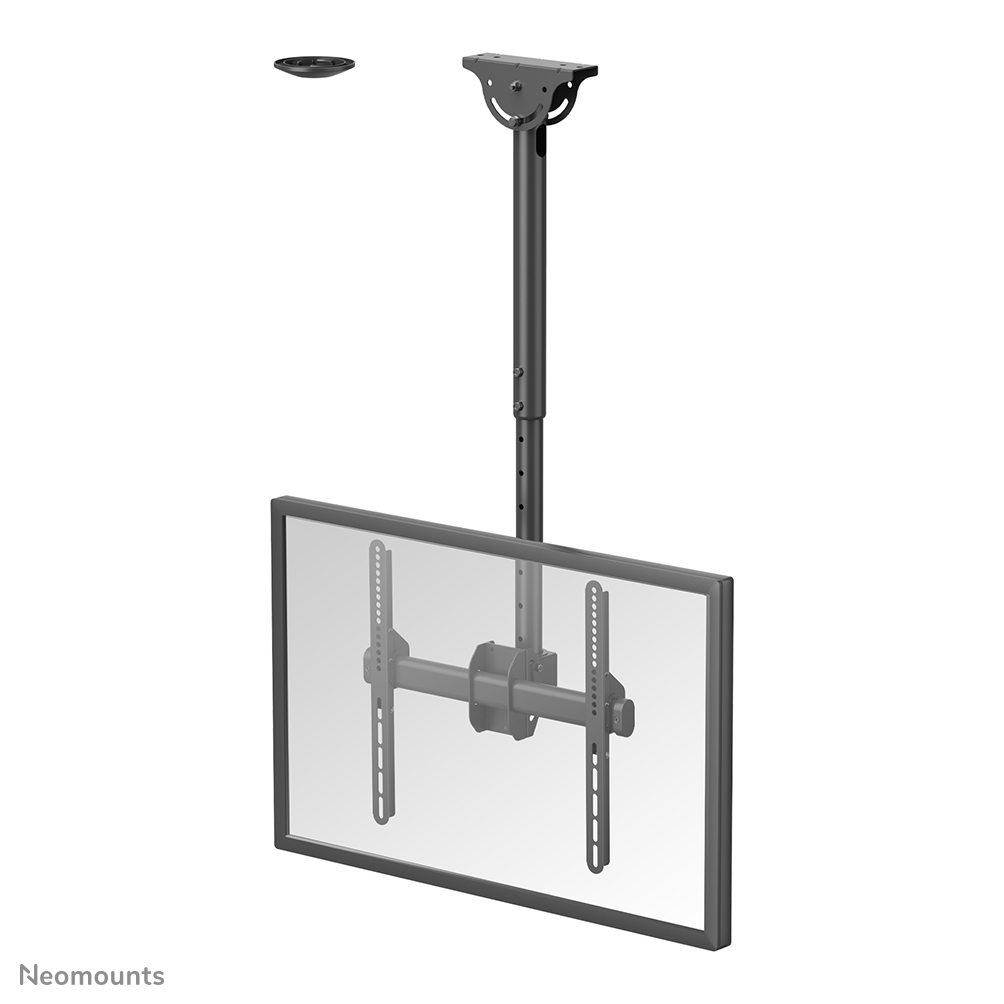

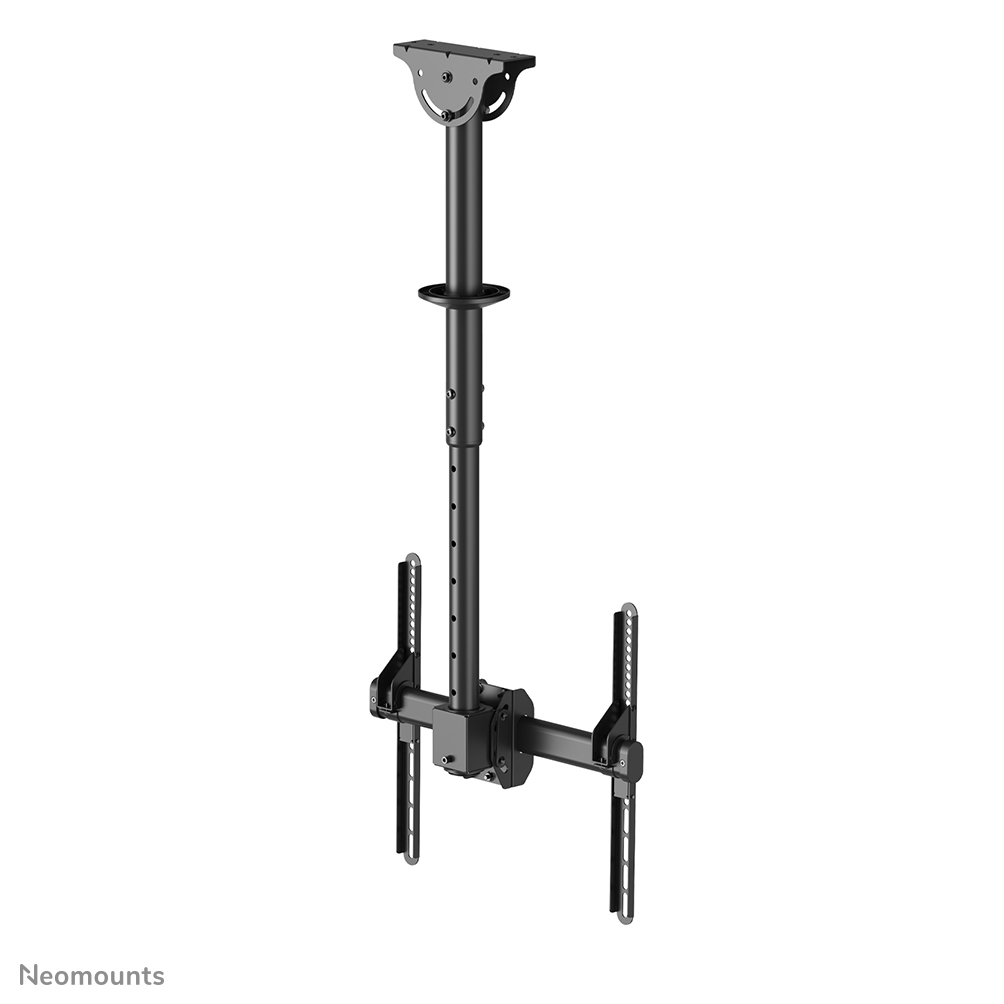

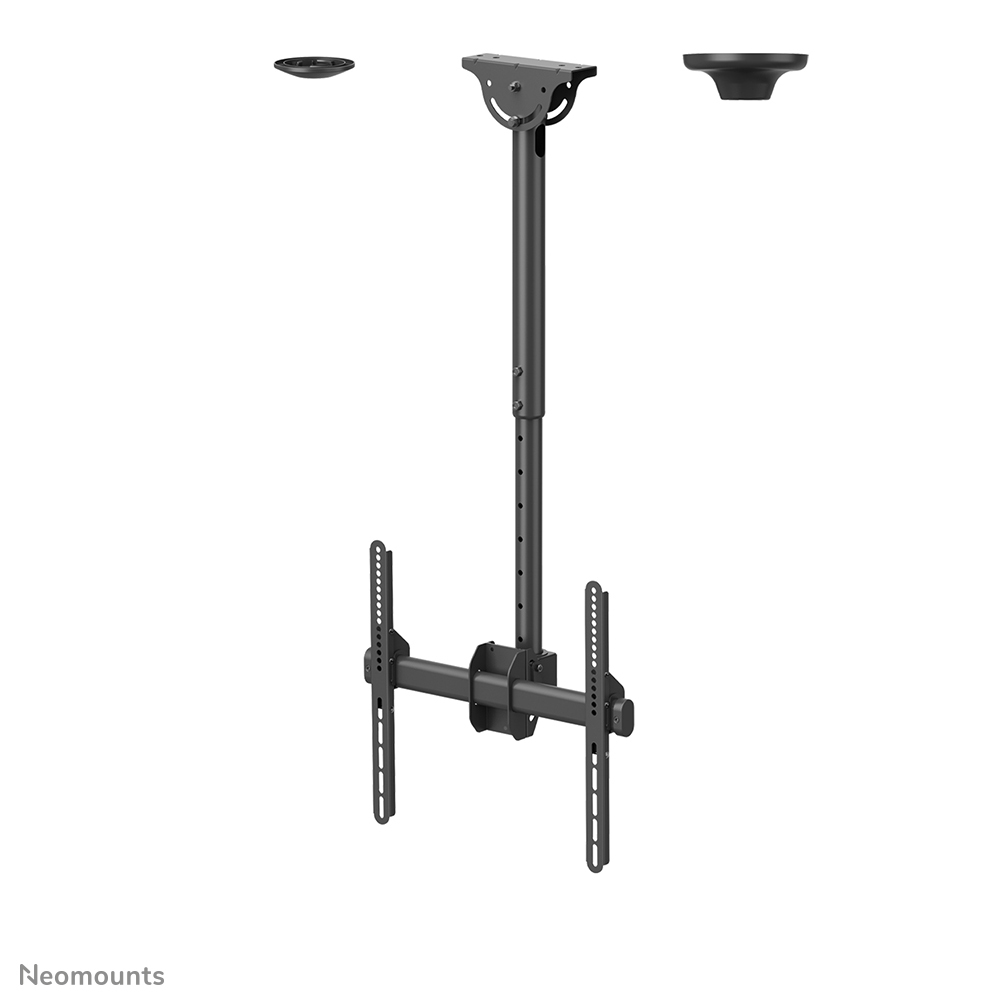

The Neomounts Select ceiling mount, model NM-C440BLACK is a tilt- and swivel ceiling mount for flat screens up to 60". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

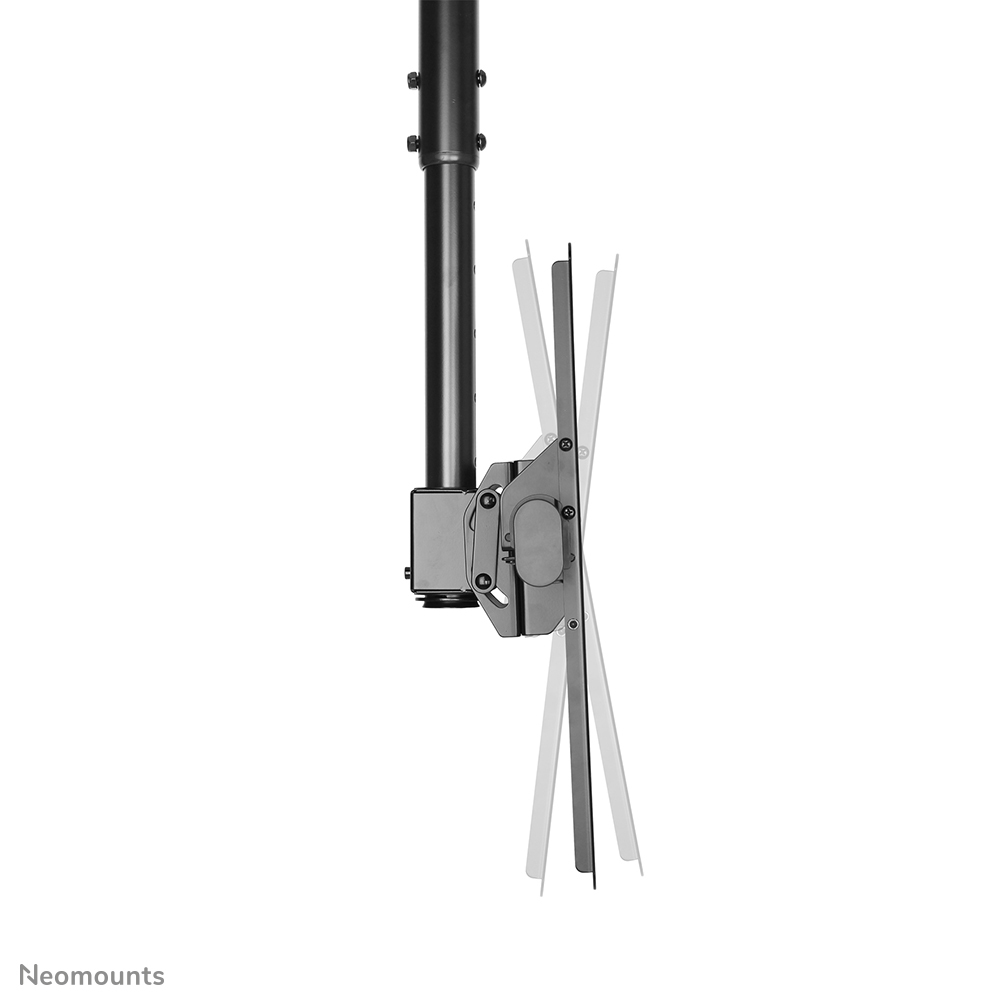

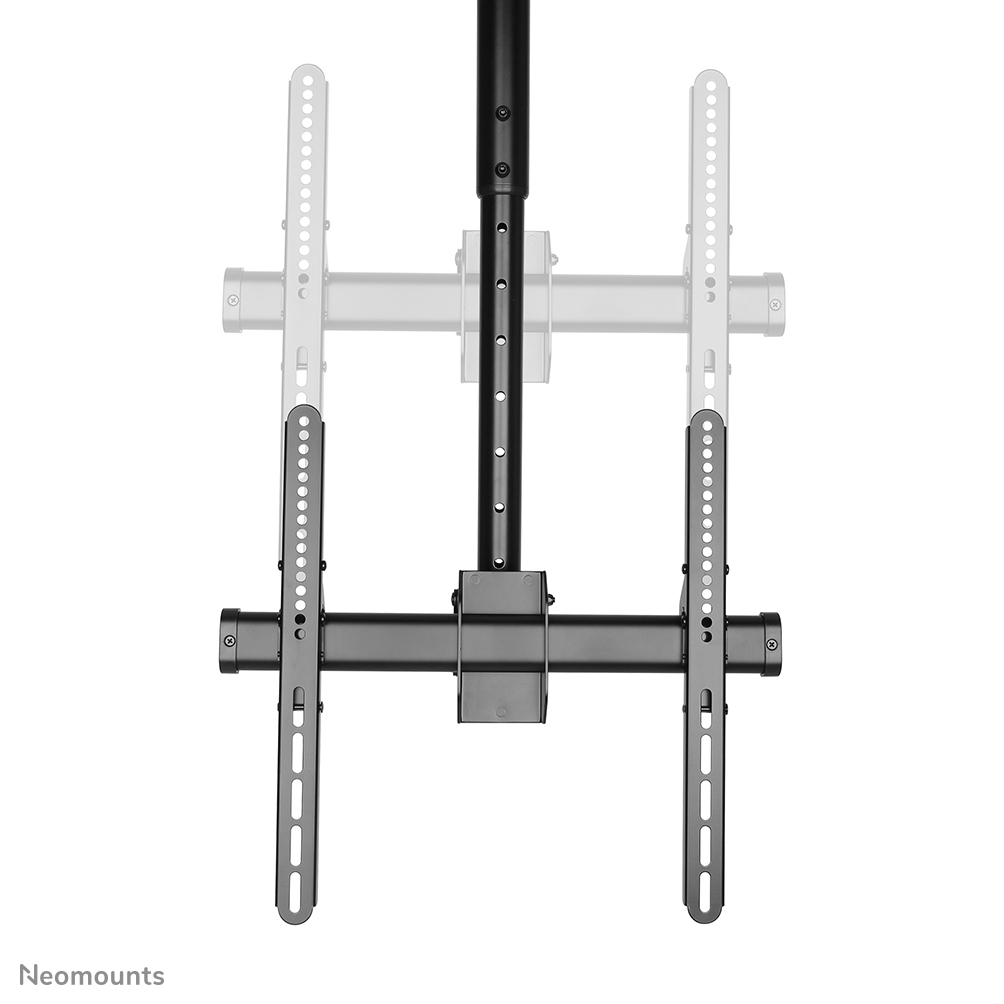

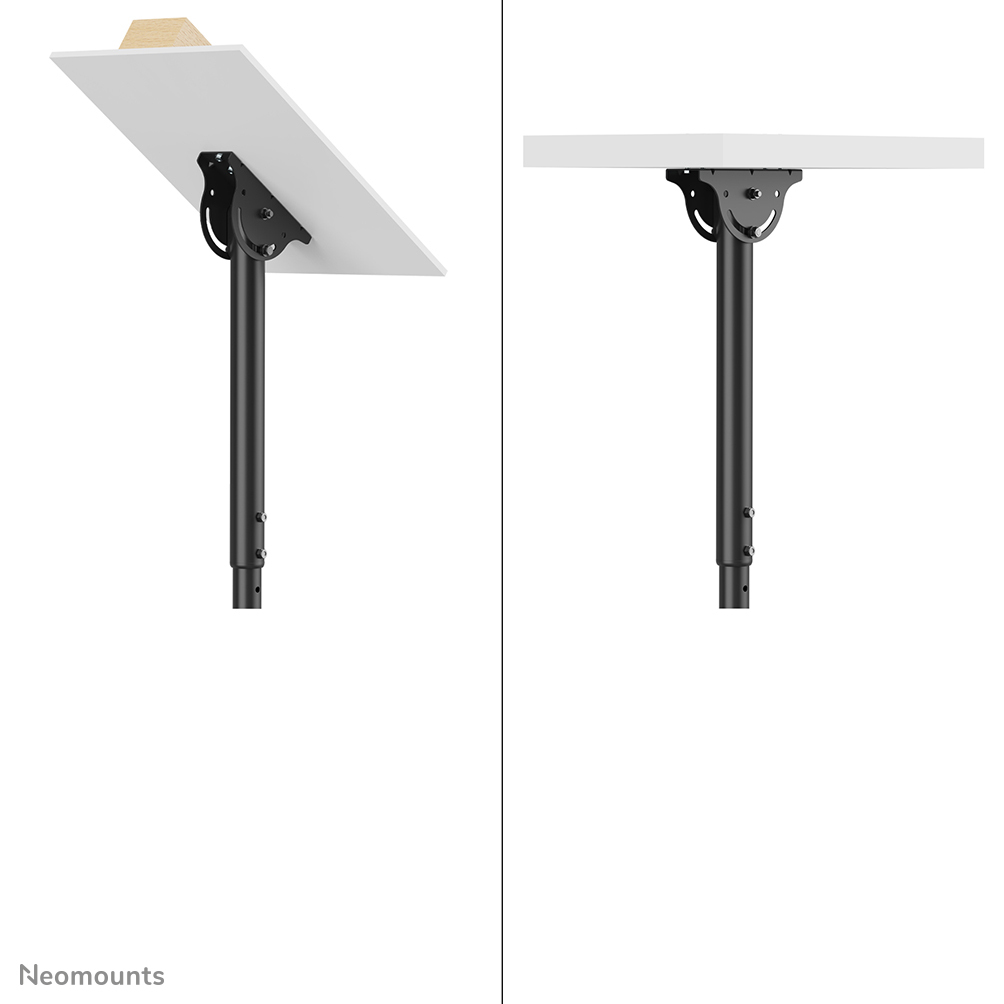

Neomounts Selects' unique tilt (25°) and rotation (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 56 to 91 centimeters*. A unique cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

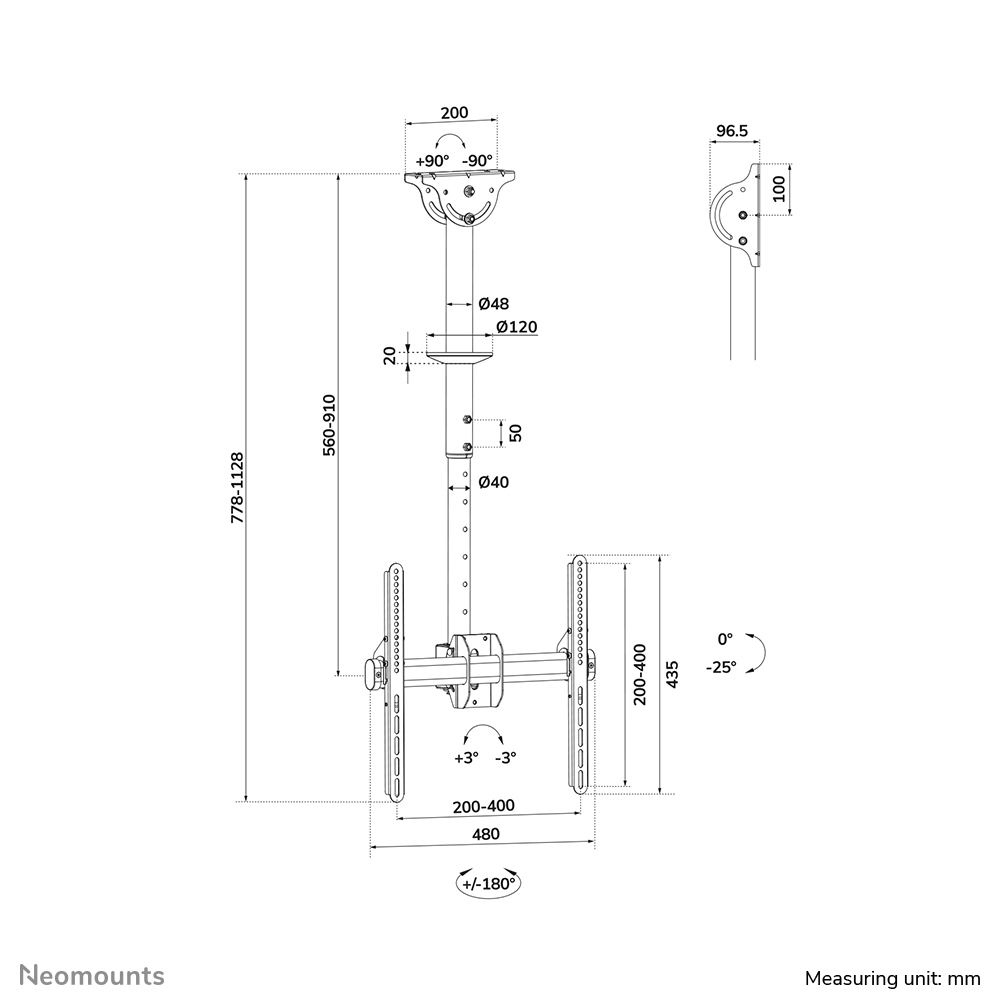

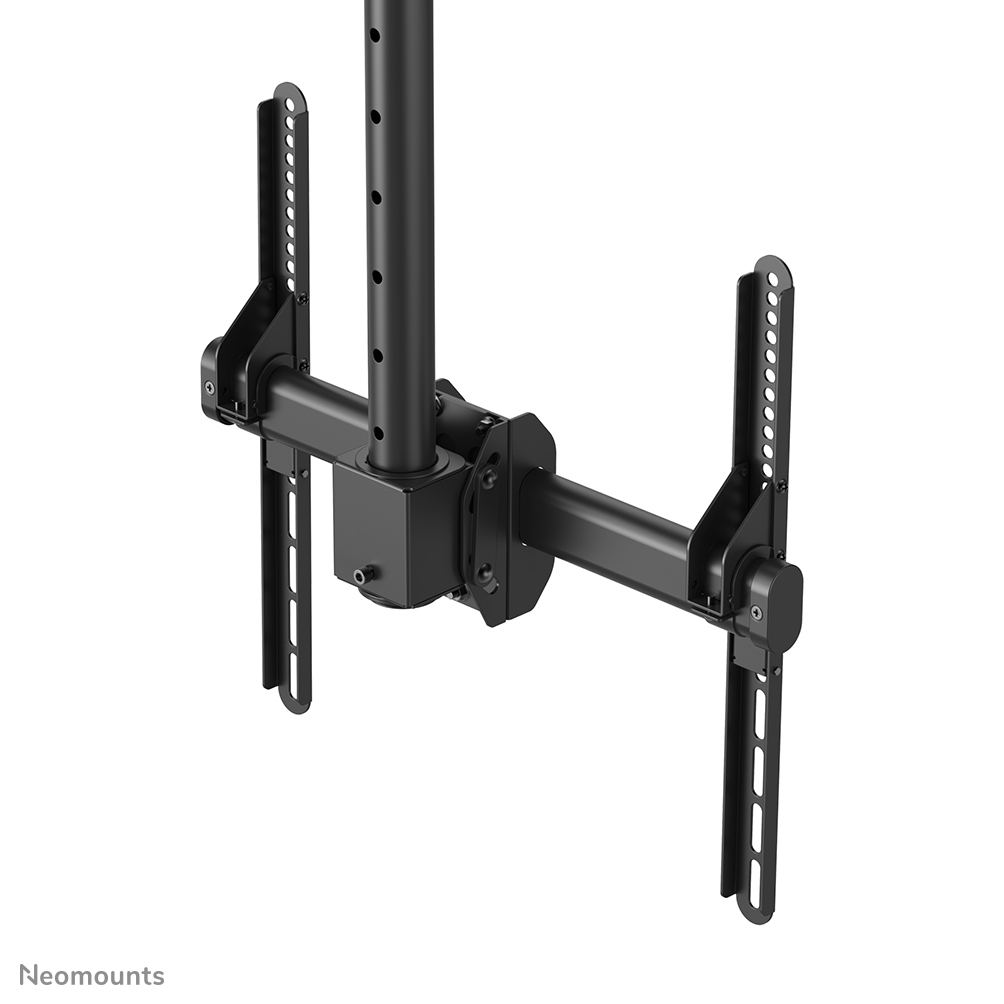

Neomounts Select NM-C440BLACK has two pivot points and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 50 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 200x200 to 400x400mm.
All installation material is included with the product.
* The Neomounts by Newstar NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK and FPMA-C340BLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with and extra 107,5 cm.
Packaging data
Package weight
5.8 kg
Package width
310 mm
Package depth
145 mm
Package height
610 mm
Package weight
5.8 kg
Package width
310 mm
Package depth
145 mm
Package height
610 mm
Mounting
Maximum weight capacity
50 kg
Minimum screen size
81.3 cm (32")
Number of displays supported
1
Maximum weight capacity (per display)
50 kg
Maximum screen size
152.4 cm (60")
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
400 x 400 mm
Panel mounting interface
200 x 200,200 x 300,200 x 400,300 x 300,400 x 200,400 x 300,400 x 400
Mounting type
Ceiling
Maximum weight capacity (per display)
50 kg
Panel mounting interface
400 x 400 mm
Minimum screen size
81.3 cm (32")
Maximum weight capacity
50 kg
Maximum screen size
152.4 cm (60")
Mounting type
Ceiling
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
400 x 400 mm
Number of displays supported
1
Ergonomics
Height adjustment
Yes
Height adjustment type
Manual
Height adjustment range
560 - 910 mm
Tilt adjustment
Yes
Tilt angle range
0 - 25°
Swivelling
Yes
Swivel angle
360°
Rotating
Yes
Angle of rotation
6°
Pivot angle
-3 - 3°
Tilt angle
25°
Distance to the wall (max)
8 cm
Pivot angle
-3 - 3°
Swivel angle range
-180 - 180°
Swivelling
Yes
Rotating
Yes
Tilt adjustment
Yes
Tilt angle
25°
Depth adjustment
8 cm
Height adjustment
Y
Height adjustment type
Manual
Height adjustment range
560 - 940 mm
Tilt angle range
0 - 25°
Swivel angle
360°
Angle of rotation
6°
Distance to the wall (max)
8 cm
Design
Product colour
Black
Housing material
Steel
Housing material
Steel
Product colour
Black
Technical details
Weight & dimensions
Depth
80 mm
Height
910 mm
Weight
5.83 kg
Weight
5.83 kg
Depth
80 mm
Height
910 mm
Logistics data
Master (outer) case width
630 mm
Master (outer) case length
455 mm
Master (outer) case height
330 mm
Master (outer) case gross weight
19.5 kg
Master (outer) case net weight
18 kg
Products per master (outer) case
3 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
36 pc(s)
Quantity per master (outer) case
3 pc(s)
Master (outer) case net weight
18 kg
Harmonized System (HS) code
HS83025000
Products per pallet (EU)
36 pc(s)
Master (outer) case width
630 mm
Master (outer) case length
455 mm
Master (outer) case height
330 mm
Master (outer) case gross weight
19.5 kg
Products per master (outer) case
3 pc(s)
Other features
Depth adjustment range
0 - 80 mm
Country of origin
China
