NEOMOUNTS Flat Screen Desk Mount (10-49i) Desk Clamp/grommet Black

£164.32

Part Number: NM-D775BLACKPLUS
Delivery: 1 - 2 days

Product Details

Introduction

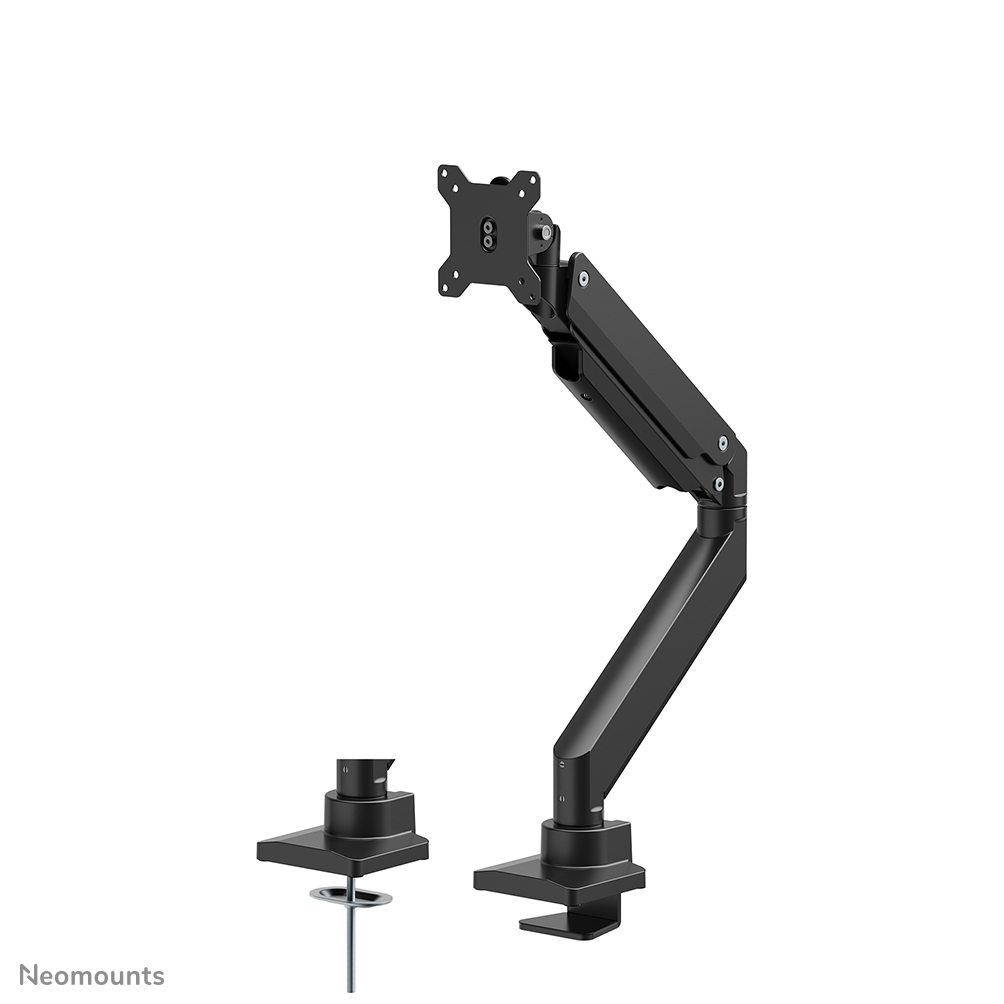

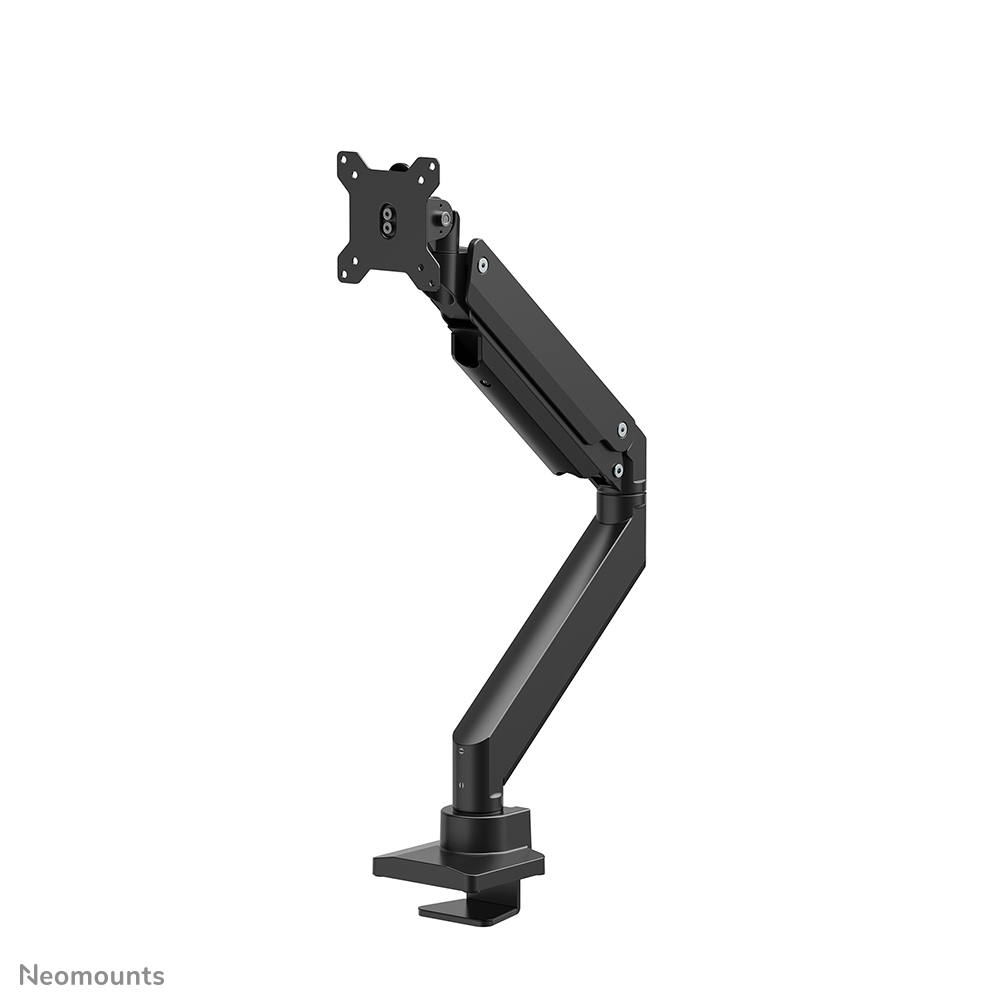

The Neomounts Select NM-D775BLACKPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.

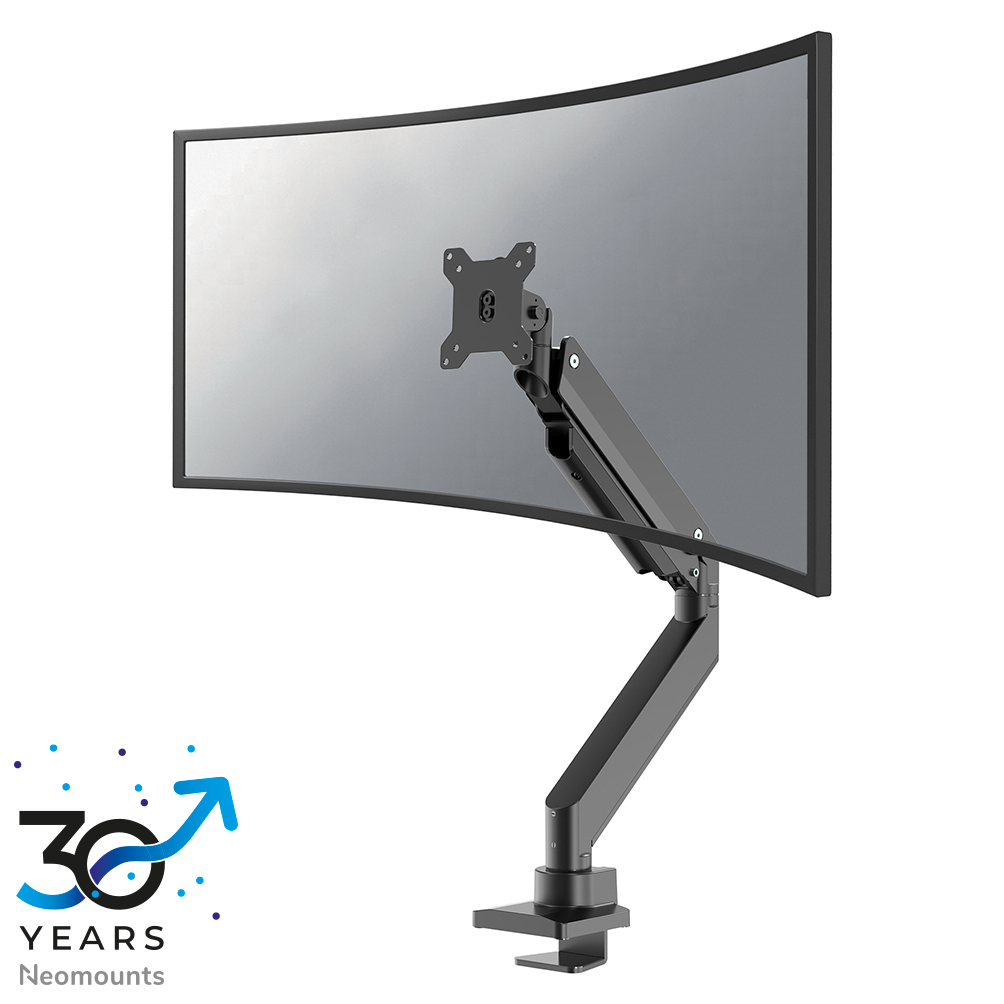

The NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.

Neomounts Select's unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 59 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.

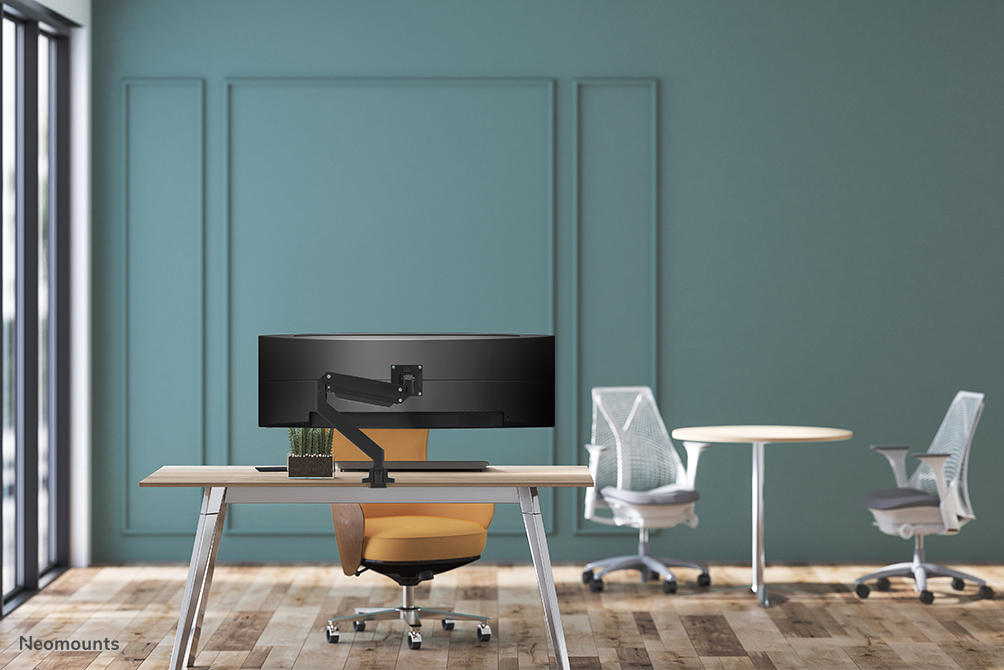

A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas.

All installation material is included with the product.

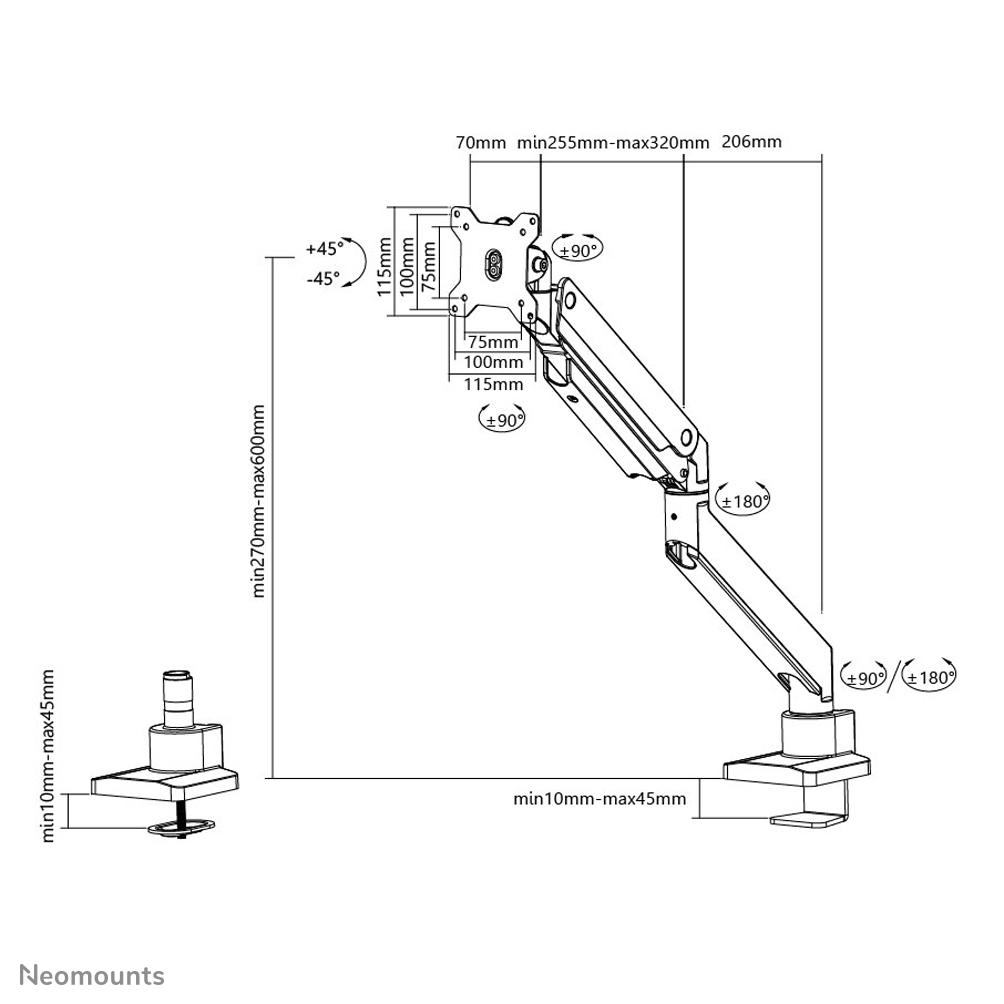

Mounting

Maximum weight capacity (per display) 18 kg
Maximum weight capacity (per curved/ultra-wide display) 14 kg
Desk thickness (min) 1 cm
Desk thickness (max) 4.5 cm
Minimum screen size 25.4 cm (10")
Maximum weight capacity 18 kg
Maximum screen size 124.5 cm (49")
Mounting Clamp/Bolt-through
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Panel mounting interface 75 x 75,100 x 100 mm
Number of displays supported 1
Mounting type Desk

Ergonomics

Swivel angle range 0 - 360°
Tilt adjustment Yes
Swivelling Yes
Rotating Yes
Height adjustment Y
Height adjustment type Gas spring
Height adjustment range 270 - 600 mm
Adjustable depth Y
Depth adjustment range 0 - 630 mm
Tilt angle range 0 - 90°
Swivel angle 360°
Angle of rotation 180°
Cable management Y

Packaging data

Package weight 5.2 kg

Design

Housing material Steel
Product colour Black

Weight & dimensions

Weight 3.91 kg
Depth 630 mm
Height 600 mm
Package width 240 mm
Package depth 123 mm
Package height 555 mm
Package net weight 5.2 kg

Other features

Minimum weight 1 kg
Country of origin China

Logistics data

Master (outer) case width 500 mm
Master (outer) case length 265 mm
Master (outer) case height 575 mm
Master (outer) case gross weight 5.2 kg
Products per master (outer) case 4 pc(s)
Master (outer) case net weight 4.6 kg
Harmonized System (HS) code HS83025000
Products per pallet (EU) 72 pc(s)

Information

Part Number: NM-D775BLACKPLUS
