Product Details
Introduction

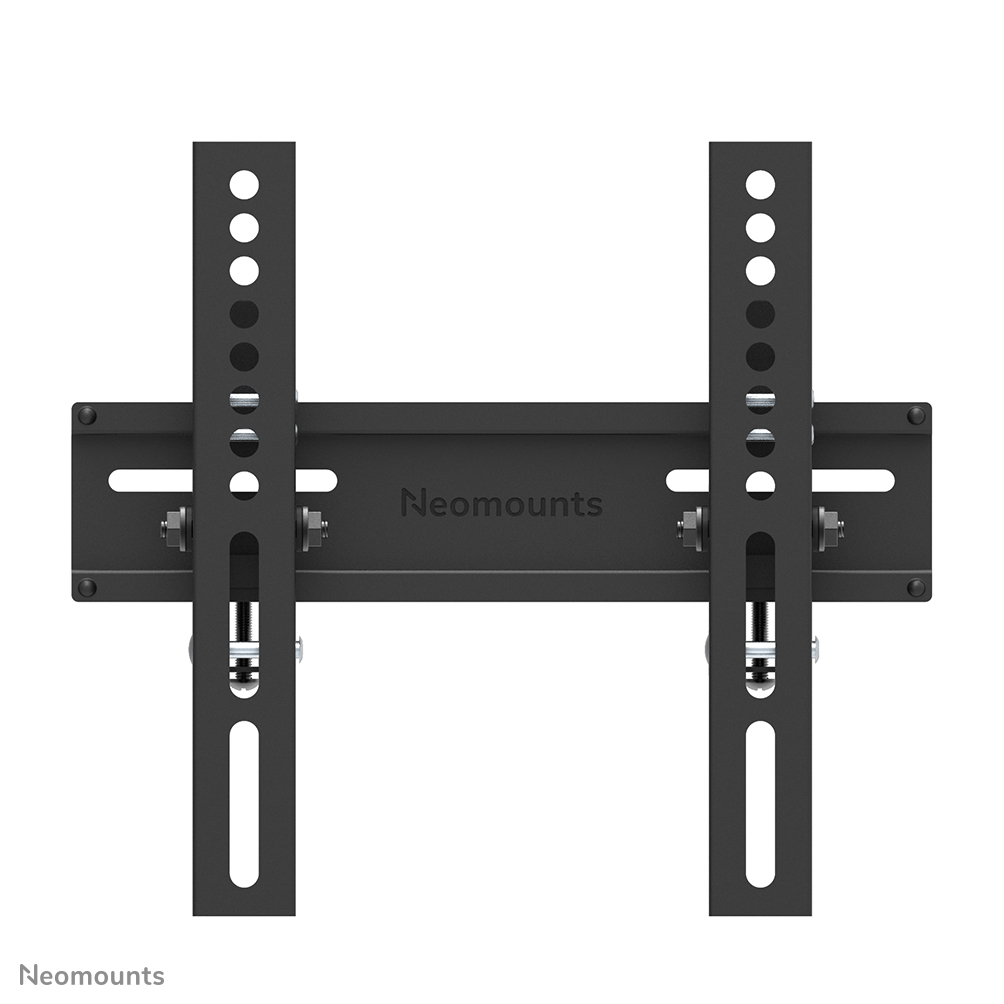

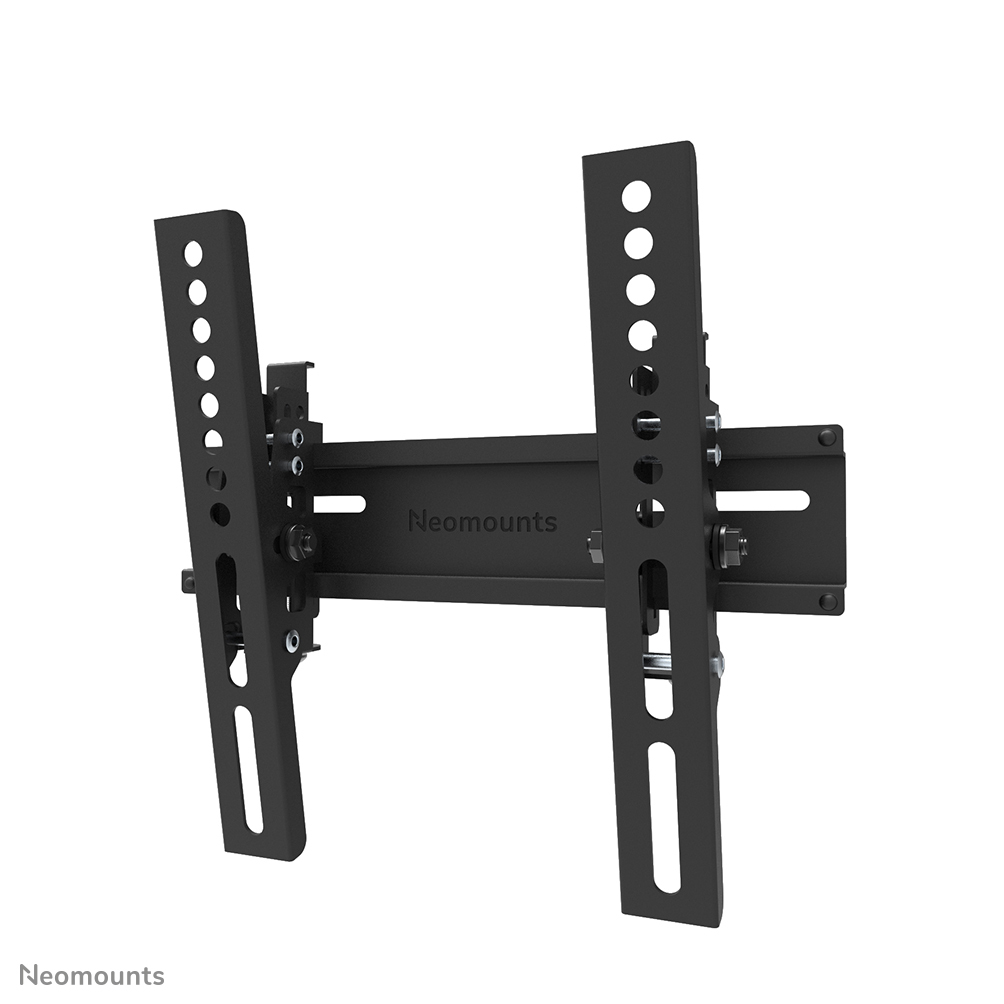

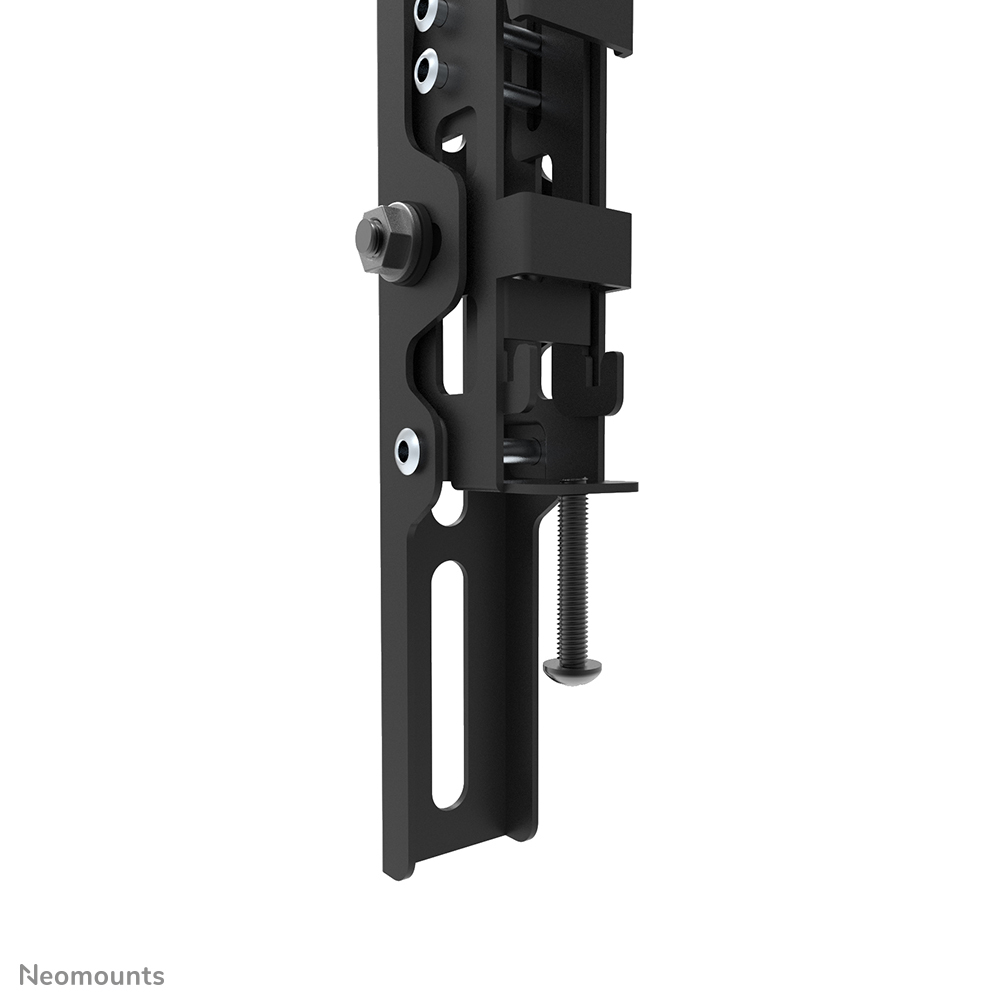

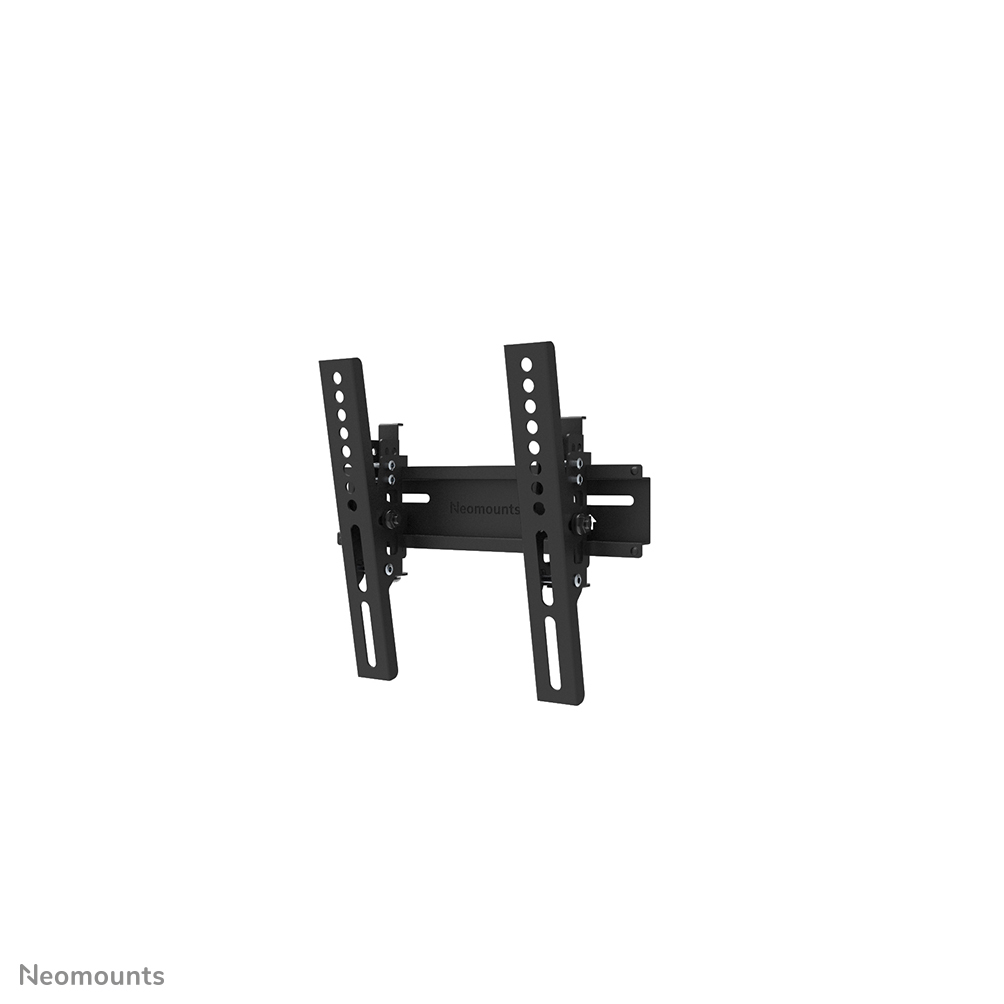

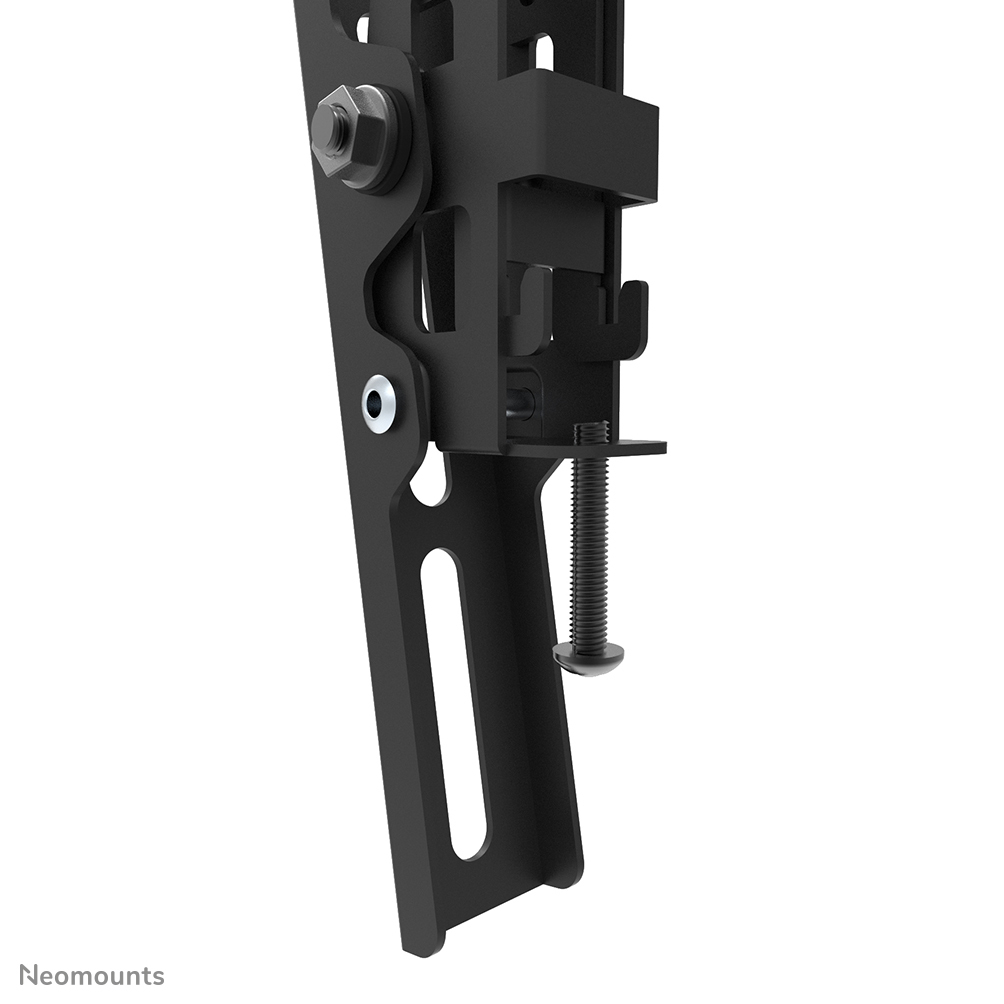

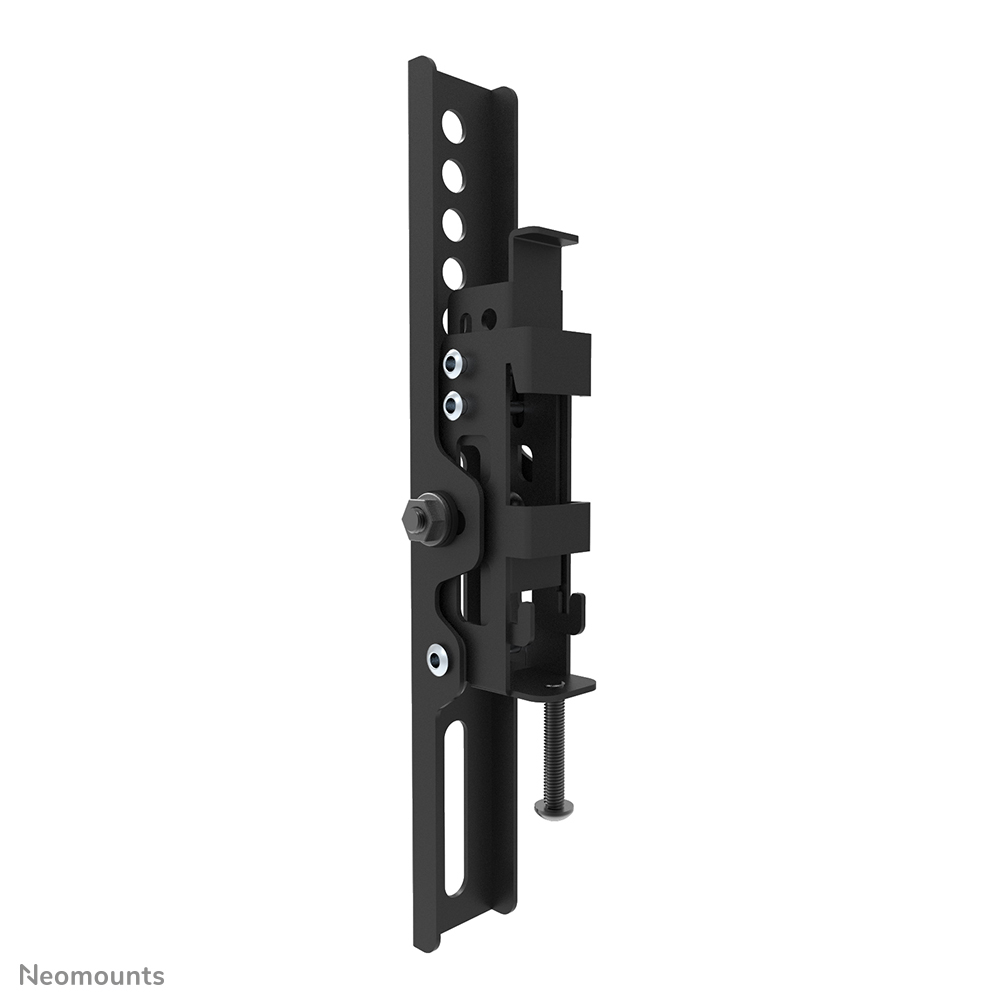

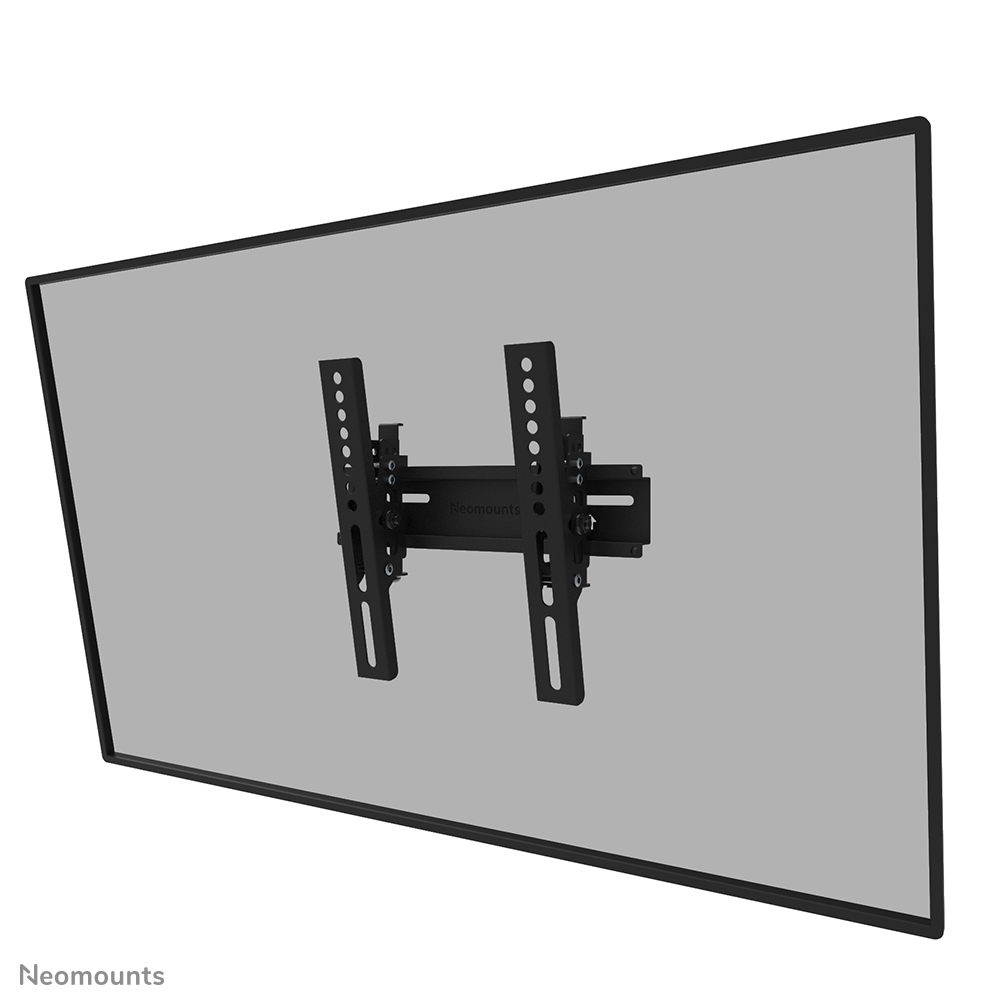

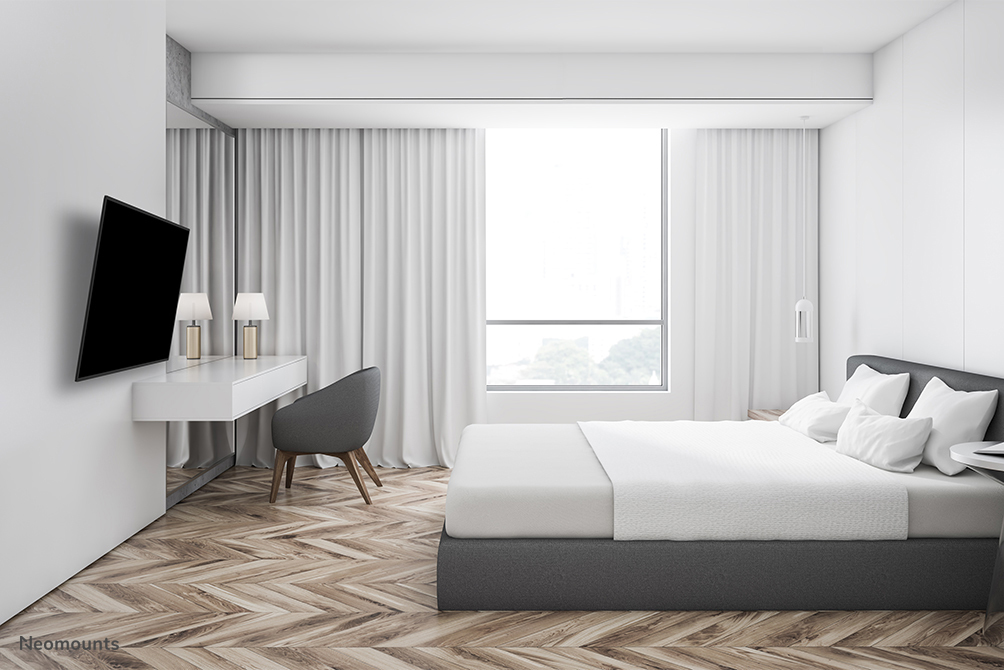

The Neomounts by Newstar WL35-350BL12 is a tiltable wall mount for flat screens up to 55" with a maximum weight capacity of 25 kg. The versatile tilt technology (14°), allows you to create the optimum viewing angle.

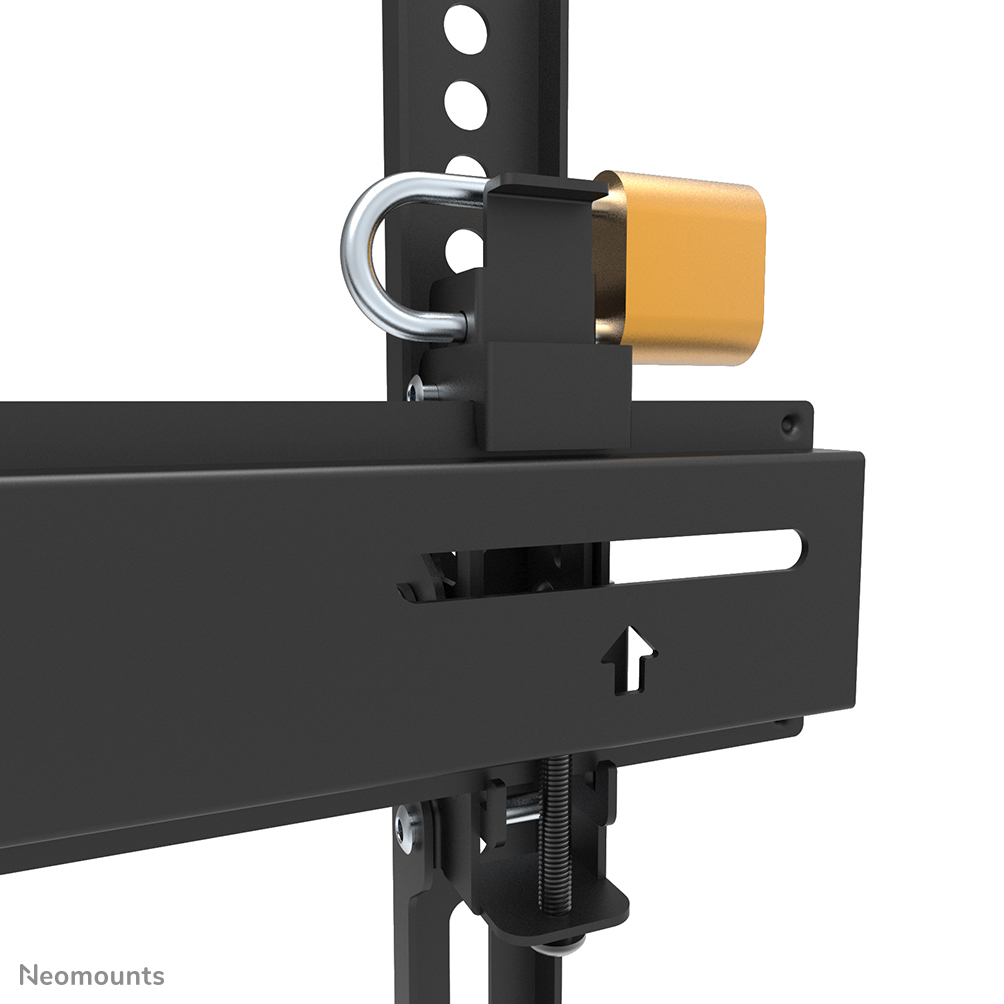

The WL30-350BL12 has a depth of 4,6 cm and is suitable for screens that meet VESA hole pattern 50x50 to 200x200 mm. It is possible to lock the individual brackets of the mount using a padlock (not included).

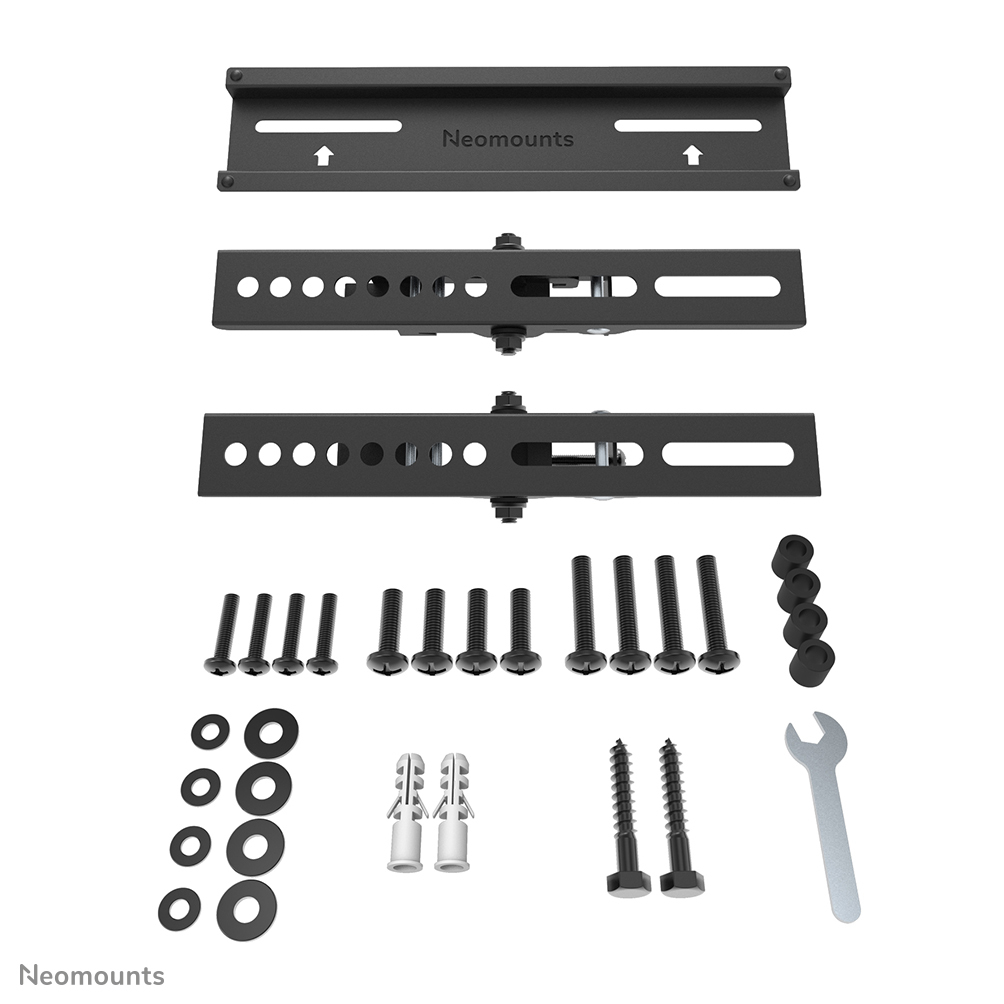

A practical bolt bag is included in the packaging, for quick and easy installation.
Mounting
Maximum weight capacity (per display)
25 kg
Maximum weight capacity
25 kg
Minimum screen size
61 cm (24")
Number of displays supported
1
Maximum weight capacity (per display)
25 kg
Maximum screen size
139.7 cm (55")
Minimum VESA mount
50 x 50 mm
Maximum VESA mount
200 x 200 mm
Panel mounting interface
100 x 200,100 x 100,100 x 150,100 x 75,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,50 x 50,75 x 75,75 x 100,75 x 200
Mounting type
Wall
Minimum screen size
61 cm (24")
Maximum weight capacity
25 kg
Maximum screen size
139.7 cm (55")
Suitable for TV
Y
Minimum VESA mount
50 x 50 mm
Maximum VESA mount
200 x 200 mm
Panel mounting interface
50 x 50,75 x 75,75 x 100,75 x 200,100 x 100,100 x 150,100 x 200,100 x 75,120 x 120,200 x 100,200 x 200
Number of displays supported
1
Mounting type
Wall
Distance to the wall (max)
4.6 cm
Ergonomics
Tilt adjustment
Yes

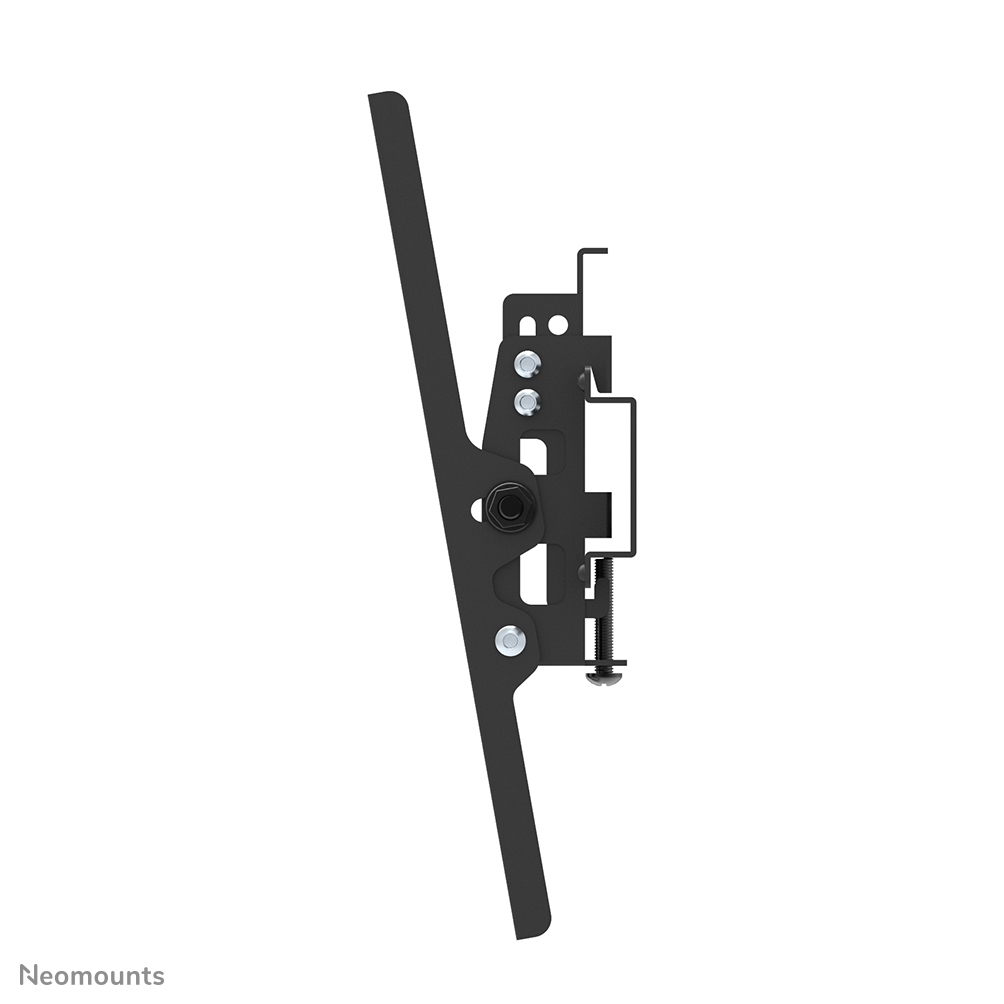

Tilt angle range
-2 - 10°
Cable management
No
Distance to the wall (max)
4.6 cm
Tilt angle range
-2 - 10°
Cable management
N
Tilt adjustment
Y
Technical details
Lockable
Padlock not included
Country of origin
China
Package net weight
1 kg
Warranty period
5 year(s)
Warranty period
5 year(s)
Design
Product colour
Black
Housing material
Steel
Accepts padlock
Yes
Housing material
Steel
Product colour
Black
Accepts padlock
Y

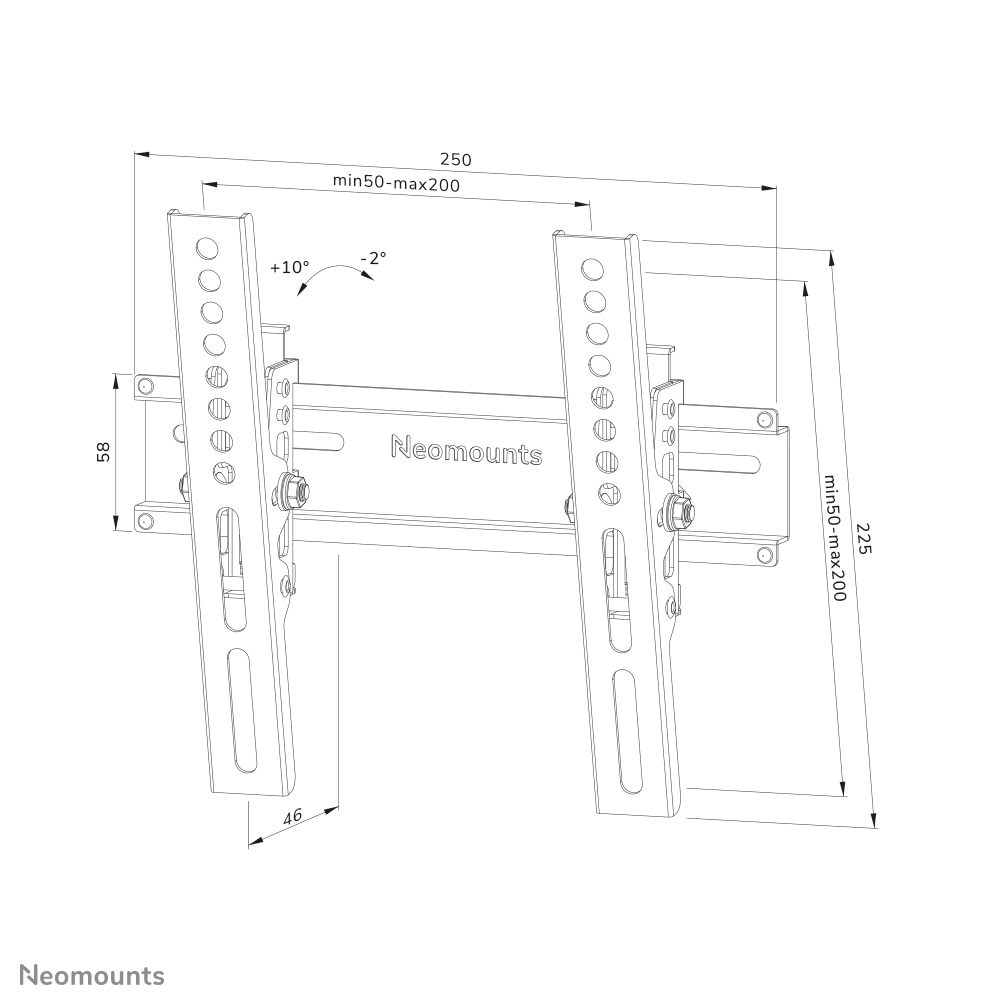

Weight & dimensions
Width
250 mm
Depth
46 mm
Depth (max)
4.6 cm
Height
225 mm
Weight
650 g
Weight
650 g
Width
250 mm
Depth
46 mm
Height
225 mm
Package width
63 mm
Package depth
55 mm
Package height
360 mm
Package net weight
1 kg
Packaging data
Package width
63 mm
Package depth
55 mm
Package height
360 mm
Package weight
1 kg
Package weight
1 kg
Logistics data
Master (outer) case width
236 mm
Master (outer) case length
210 mm
Master (outer) case height
380 mm
Master (outer) case gross weight
11.7 kg
Master (outer) case net weight
7.8 kg
Products per master (outer) case
12 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
720 pc(s)
Master (outer) case width
236 mm
Master (outer) case length
210 mm
Master (outer) case height
380 mm
Products per master (outer) case
12 pc(s)
Master (outer) case net weight
7.8 kg
Harmonized System (HS) code
HS7326909890
Products per pallet (EU)
720 pc(s)
Master (outer) case gross weight
11.7 kg
Other features
Country of origin
China
Information
| Part Number: | WL35-350BL12 |
