Introduction

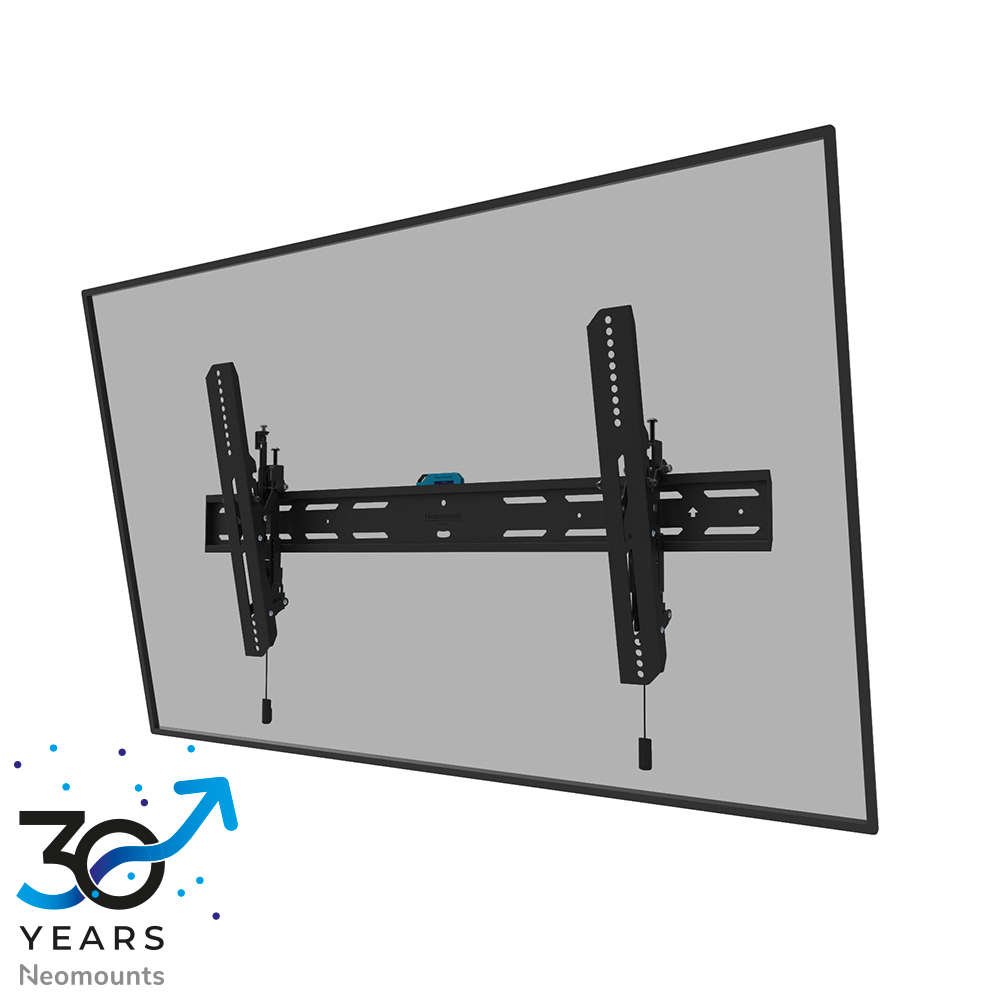

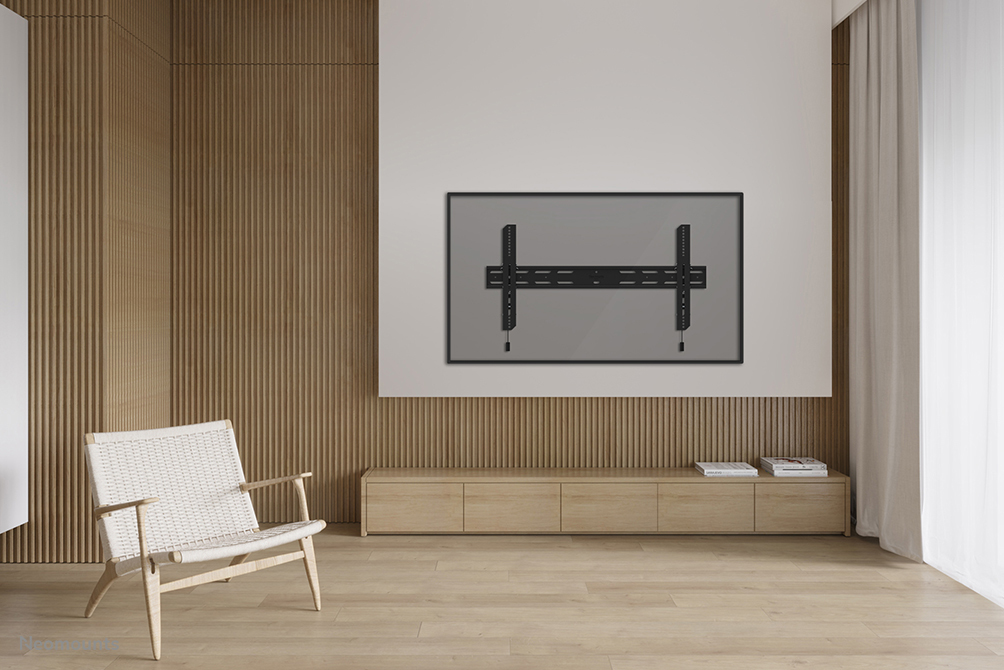

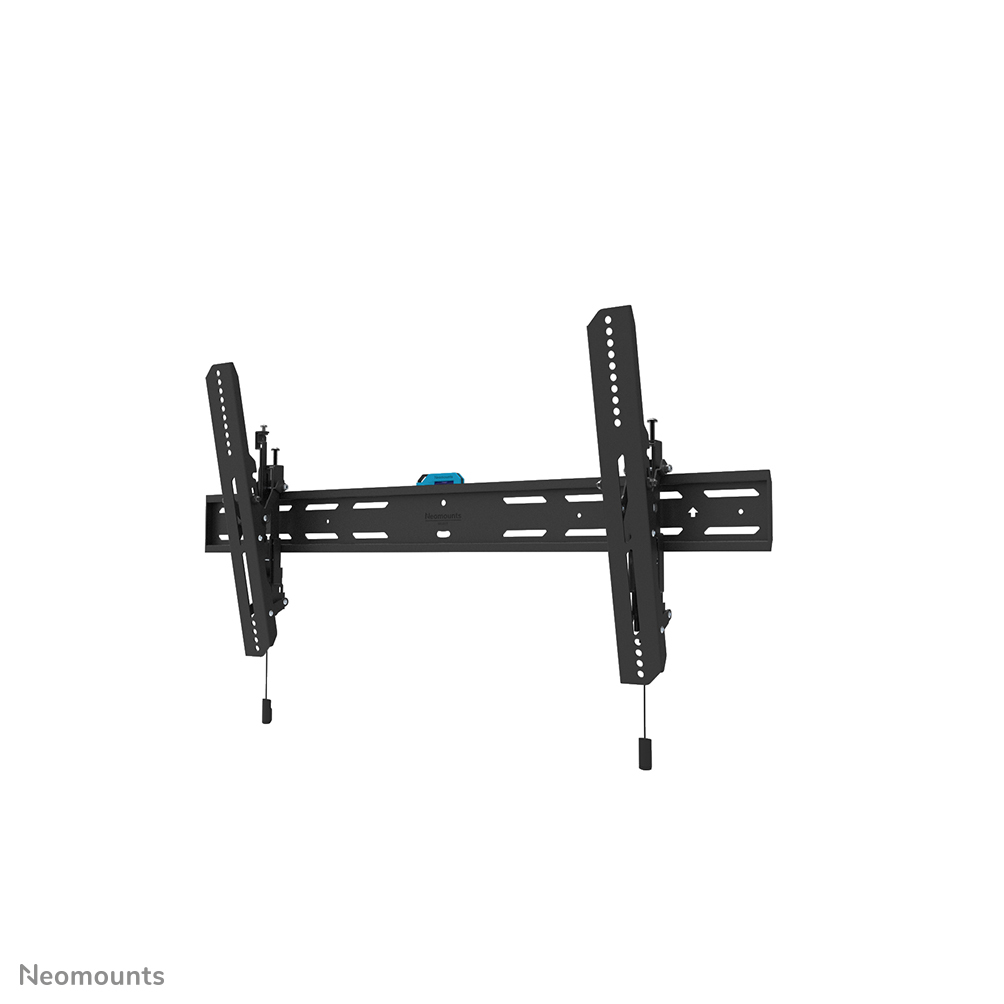

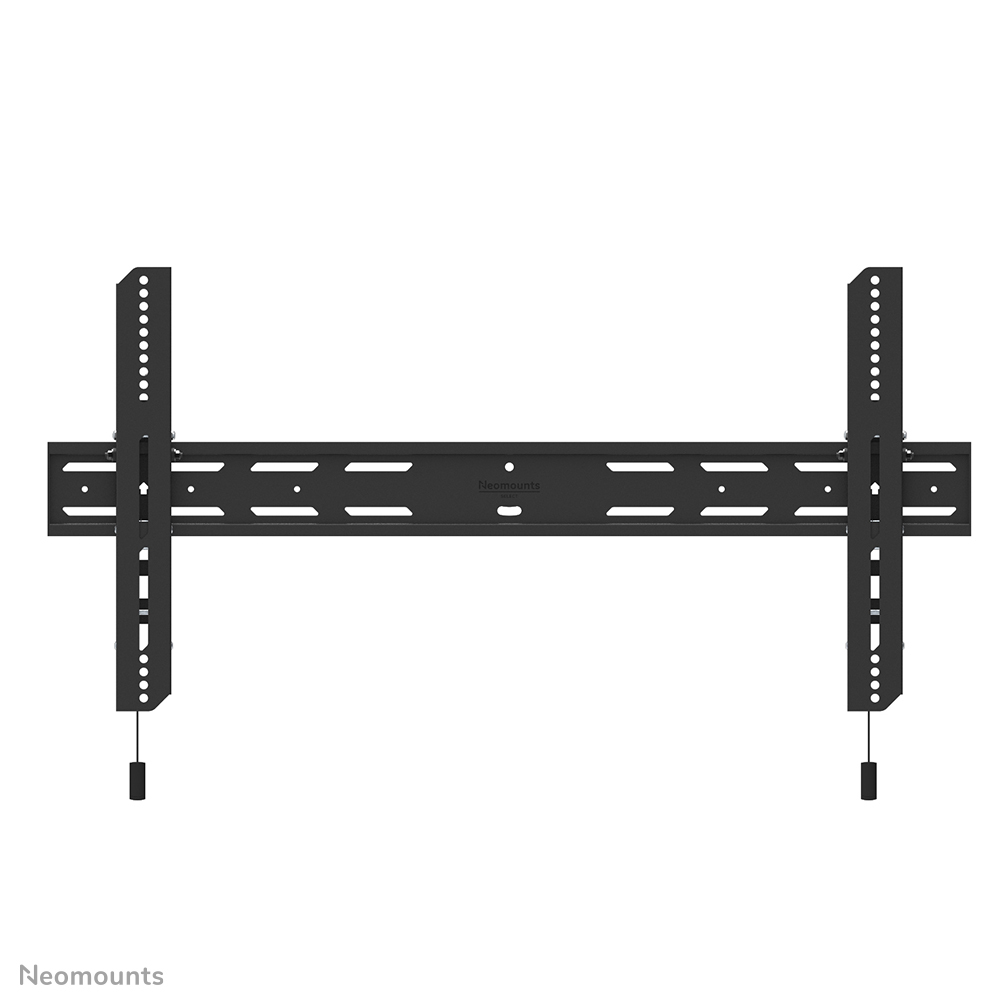

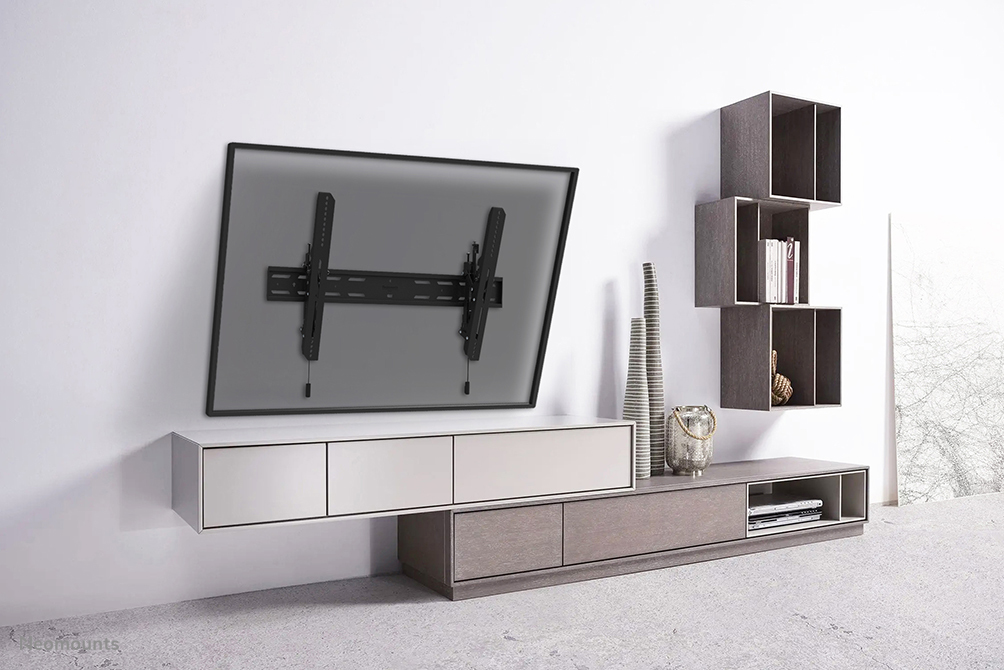

The Neomounts Select WL35S-850BL18 is a tiltable wall mount for flat screens up to 98" with a maximum weight capacity of 100 kg. Height and level adjustment is available for the perfect installation.

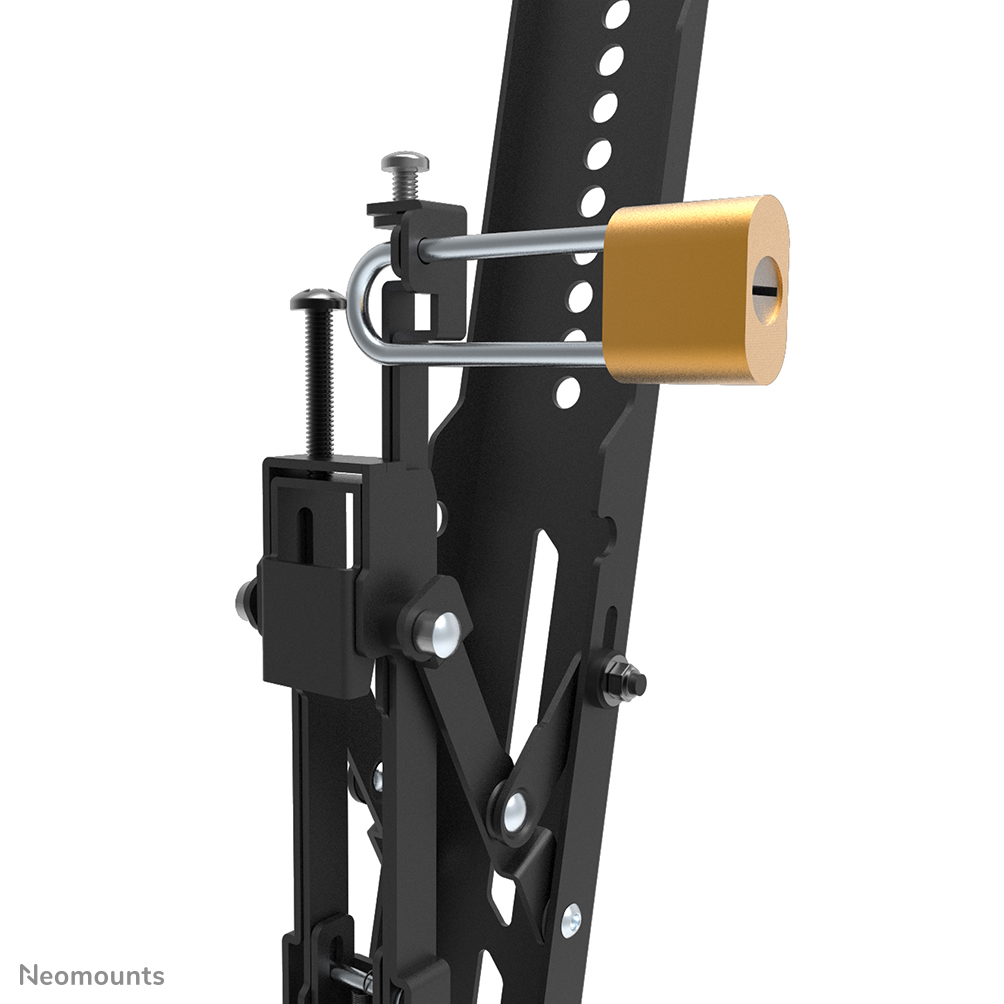

The WL35S-850BL18 has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).

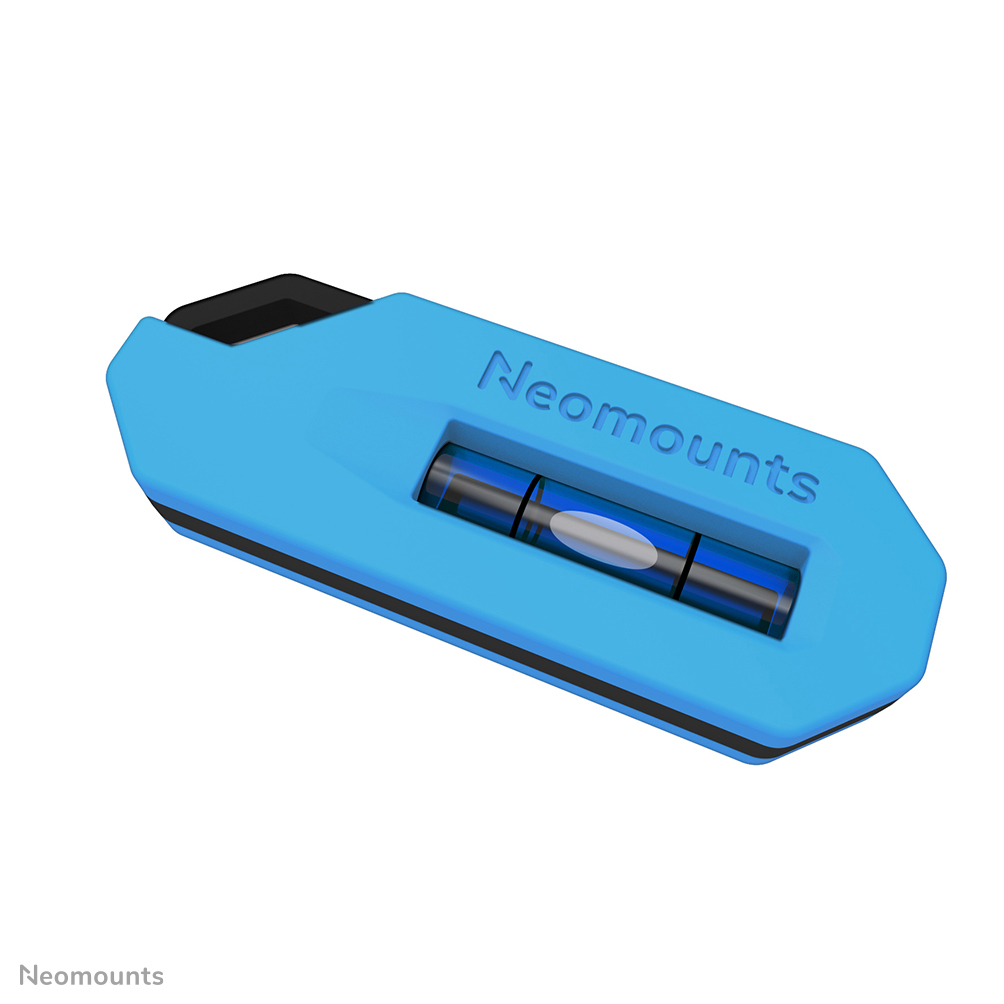

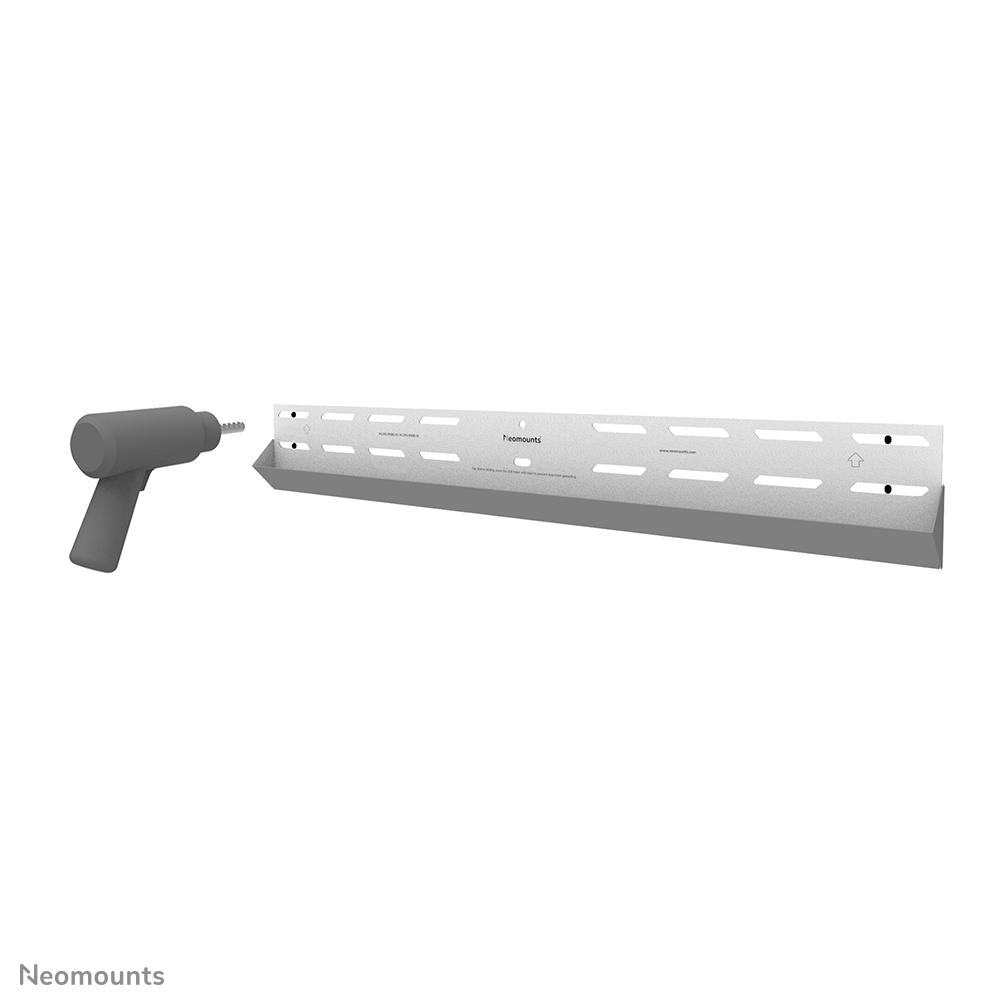

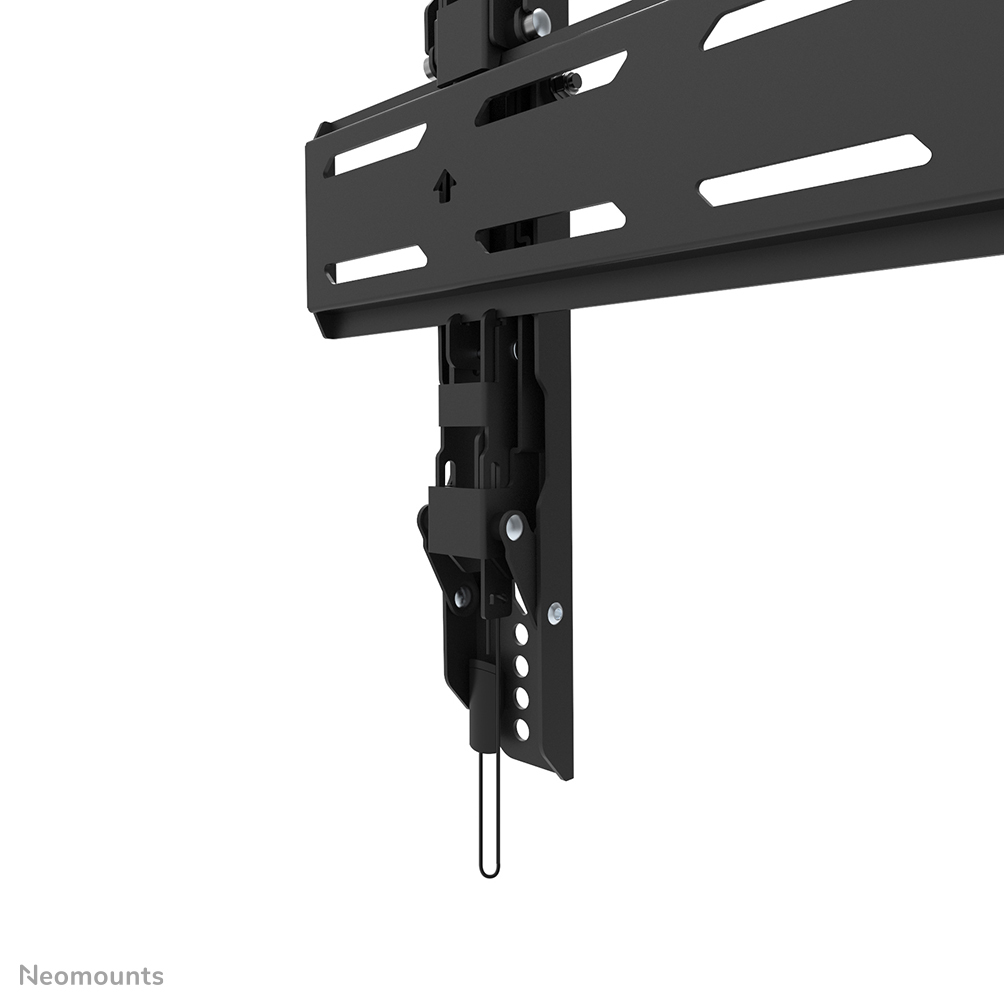

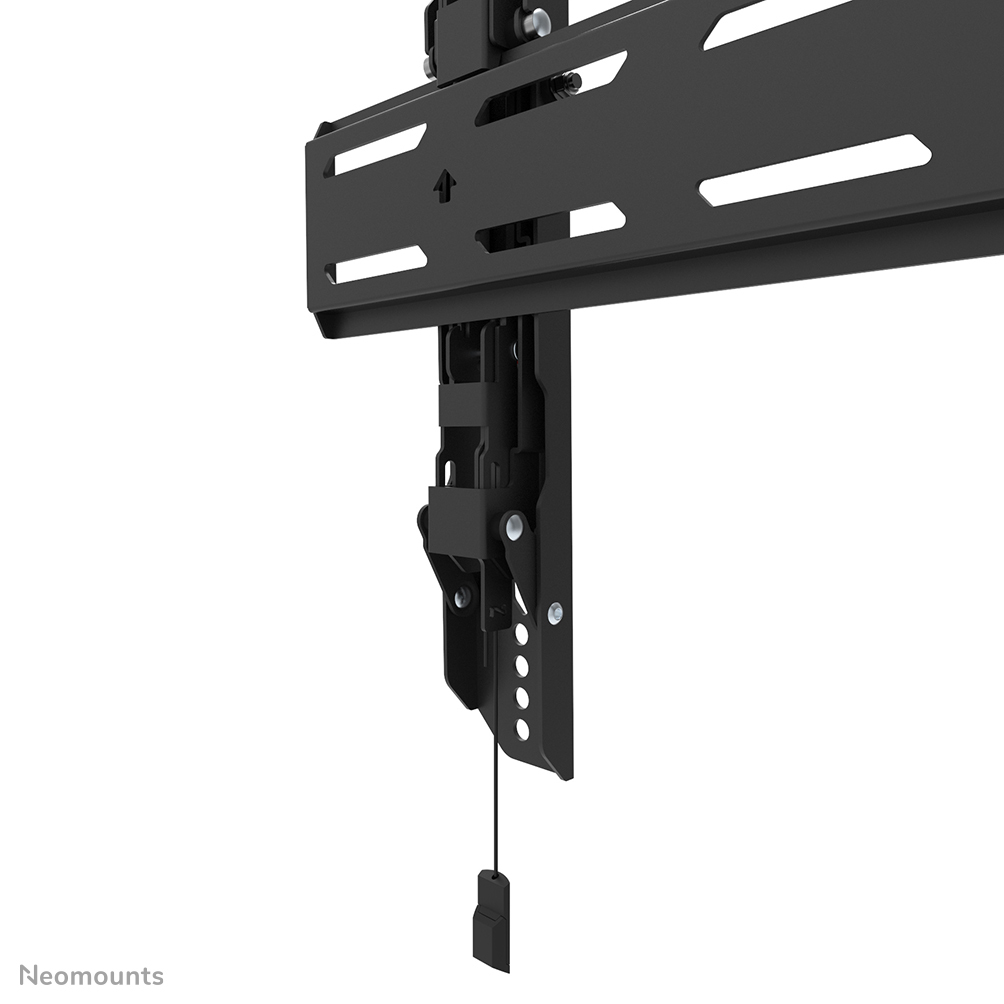

The mount features a nifty magnetic pull %26 release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull %26 release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.
Mounting
Maximum weight capacity (per display)
60 kg
Minimum screen size
109.2 cm (43")
Maximum weight capacity
100 kg
Maximum screen size
2.49 m (98")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
800 x 400 mm
Panel mounting interface
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 100,300 x 200,350 x 350,400 x 200,400 x 400,400 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400
Number of displays supported
1
Mounting type
Wall
Weight & dimensions
Depth (max)
3.5 cm
Weight
3.15 kg

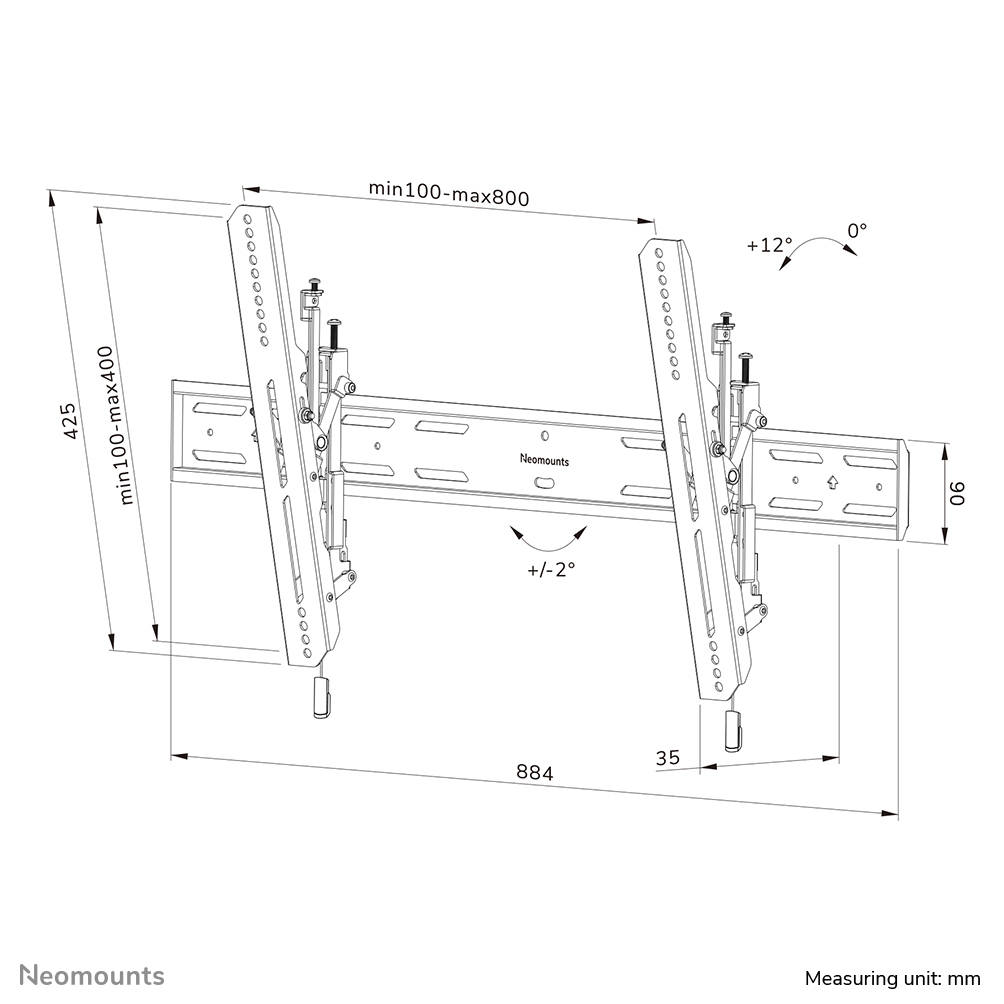

Width
884 mm

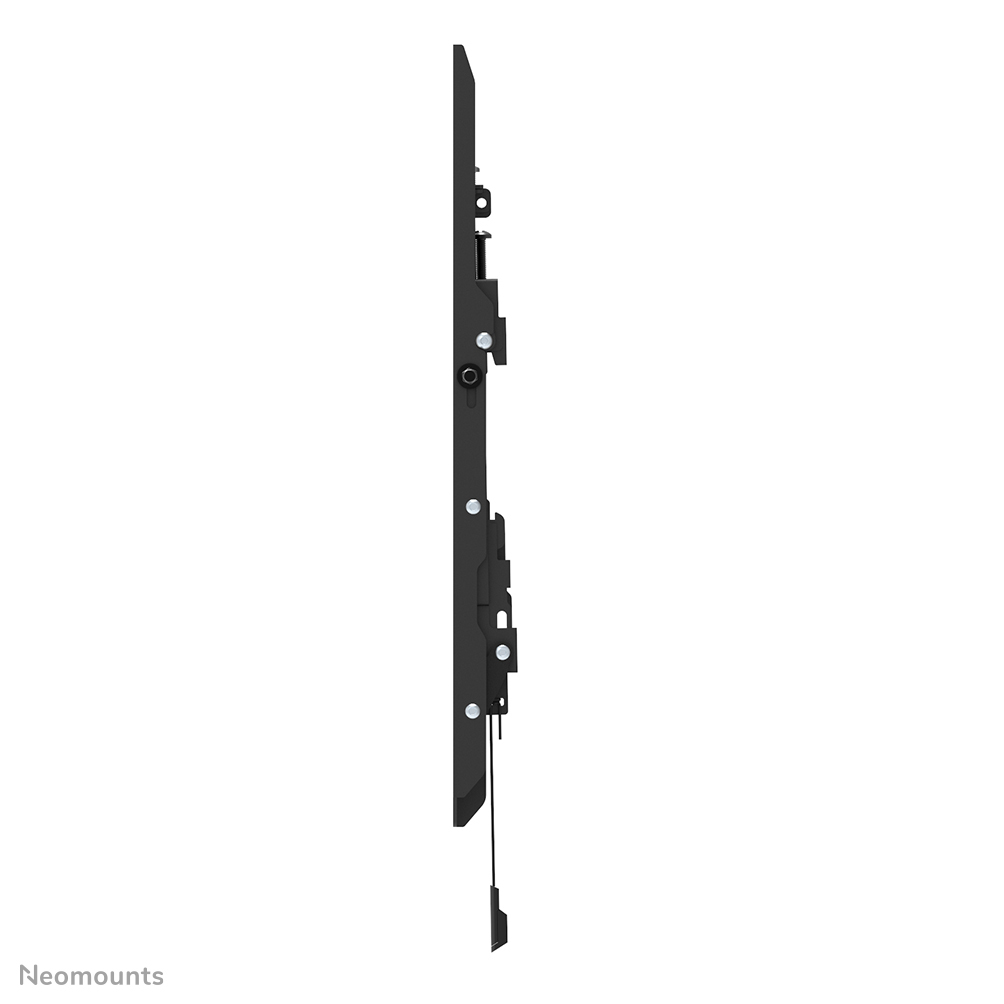

Depth
35 mm
Height
425 mm
Packaging data
Package weight
4.5 kg
Package width
904 mm
Package depth
158 mm
Package height
74 mm
Ergonomics
Height adjustment range
0 - 20 mm
Tilt adjustment
Yes
Height adjustment
N

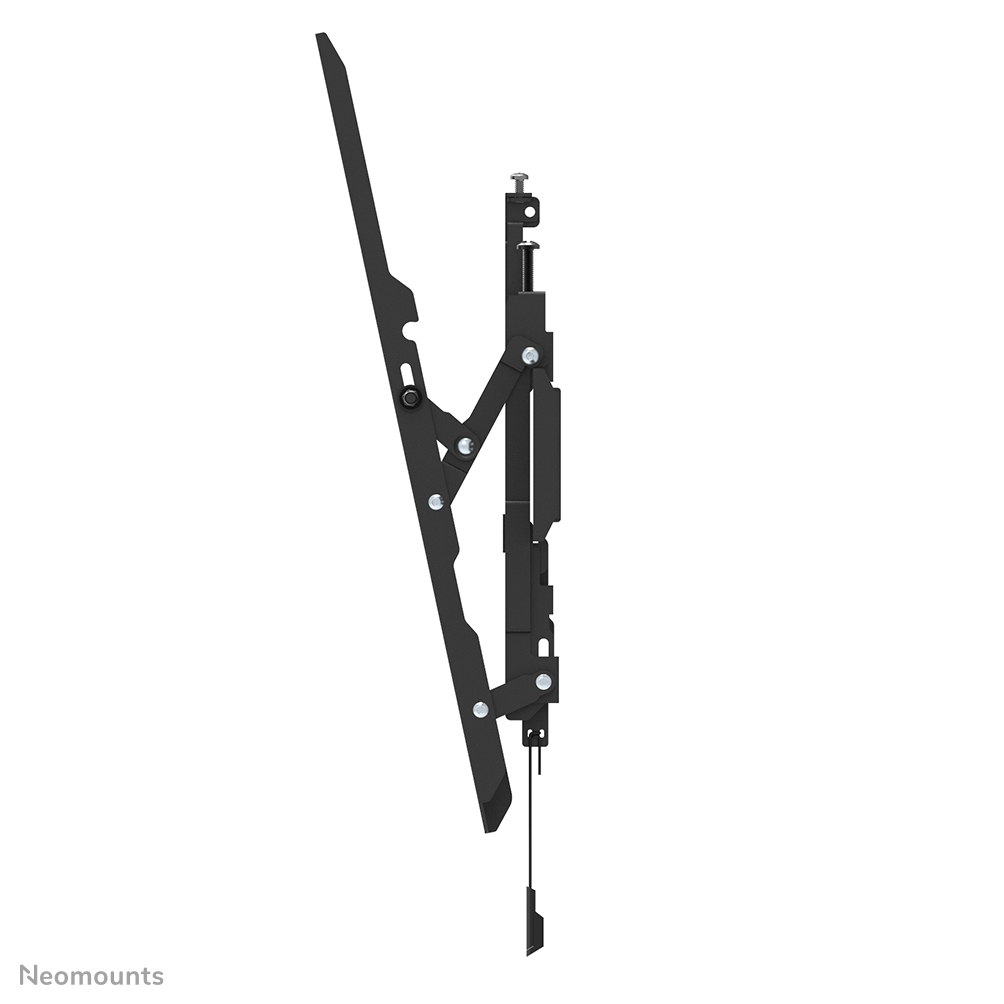

Tilt angle range
0 - 12°
Distance to the wall (max)
3.5 cm
Design
Housing material
Steel
Product colour
Black
Technical details
Lockable
Security screw included
Package net weight
4.5 kg
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case gross weight
18.5 kg
Master (outer) case width
924 mm
Master (outer) case length
315 mm
Master (outer) case height
180 mm
Master (outer) case net weight
14.8 kg
Products per master (outer) case
4 pc(s)
Harmonized System (HS) code
HS83025000
Products per pallet (EU)
60 pc(s)
