Introduction

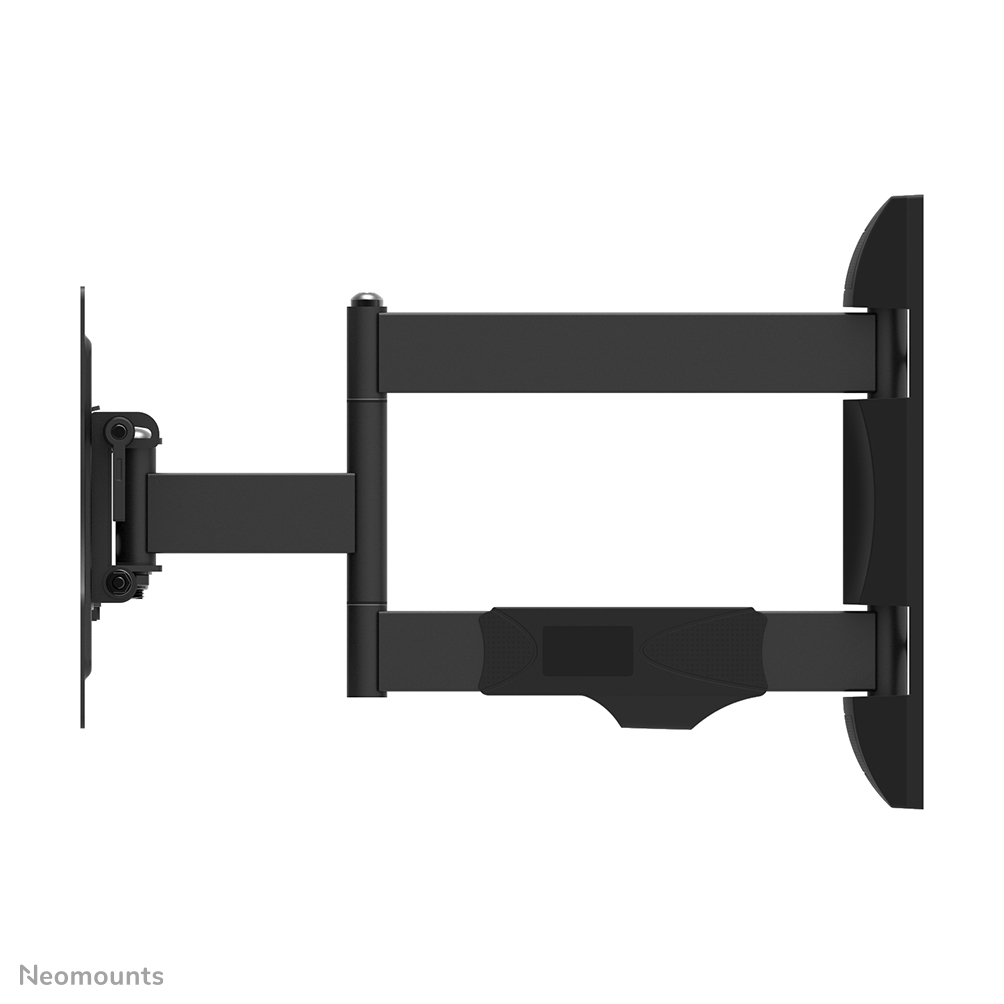

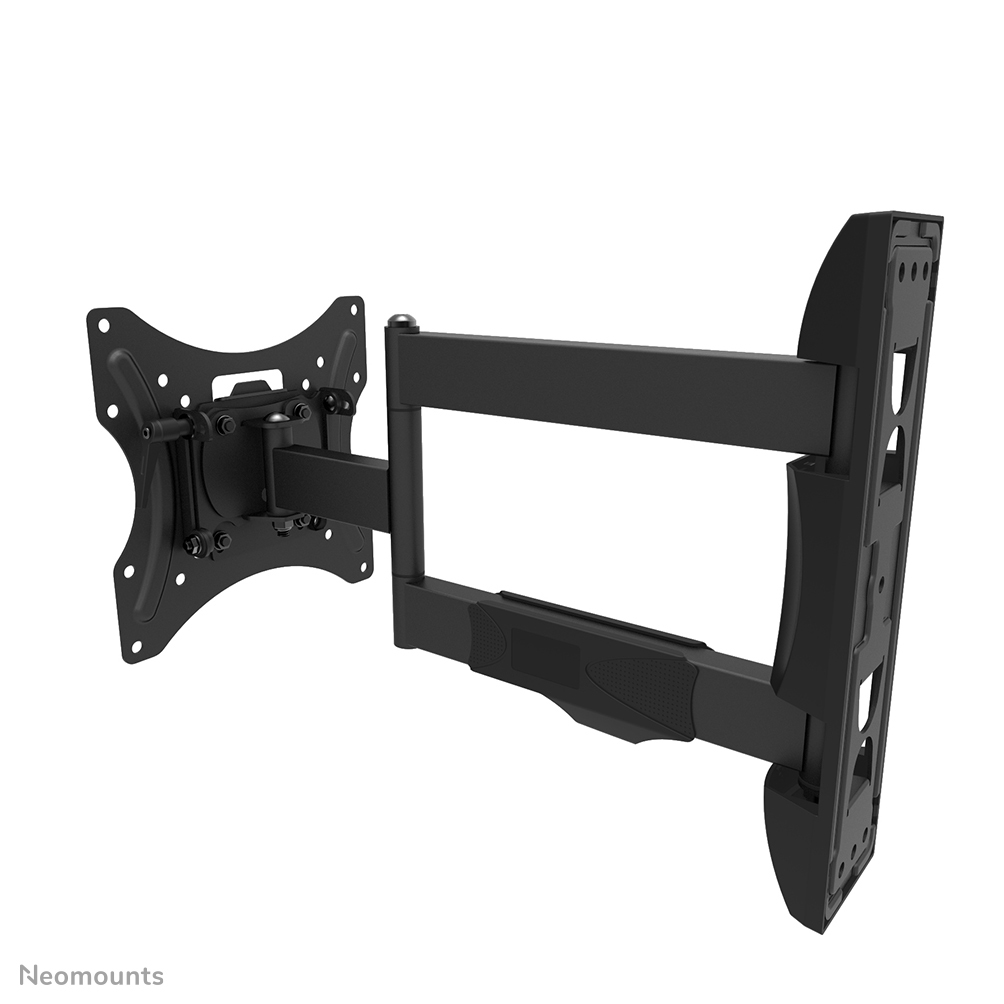

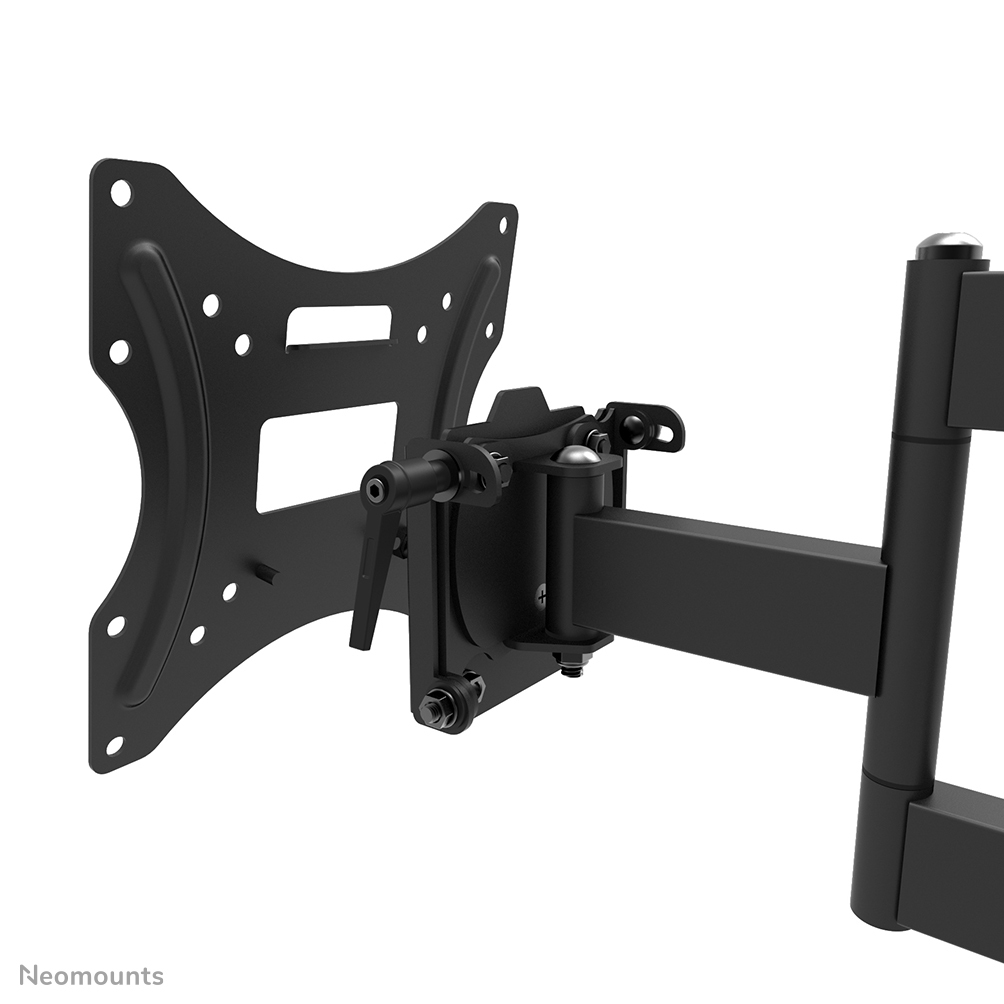

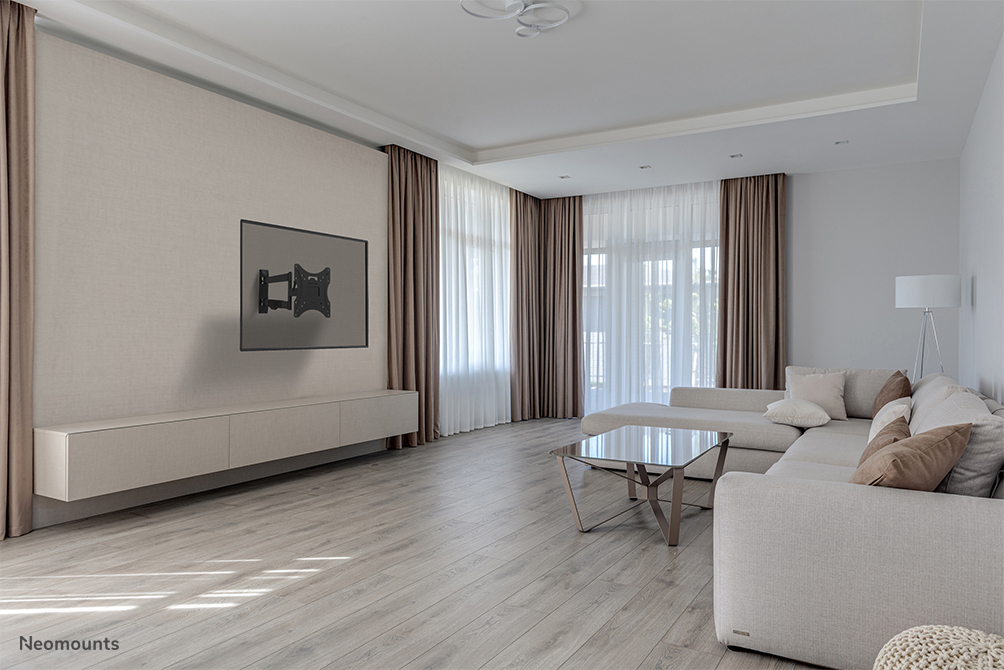

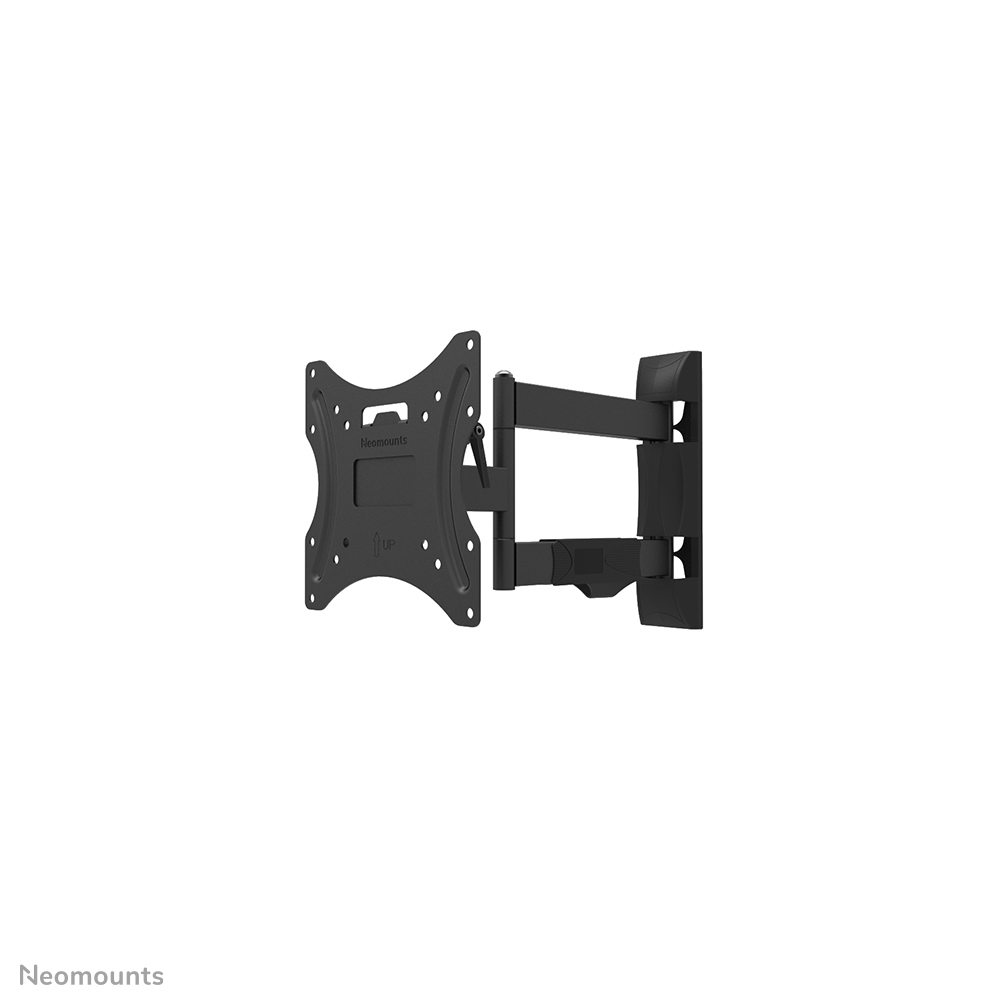

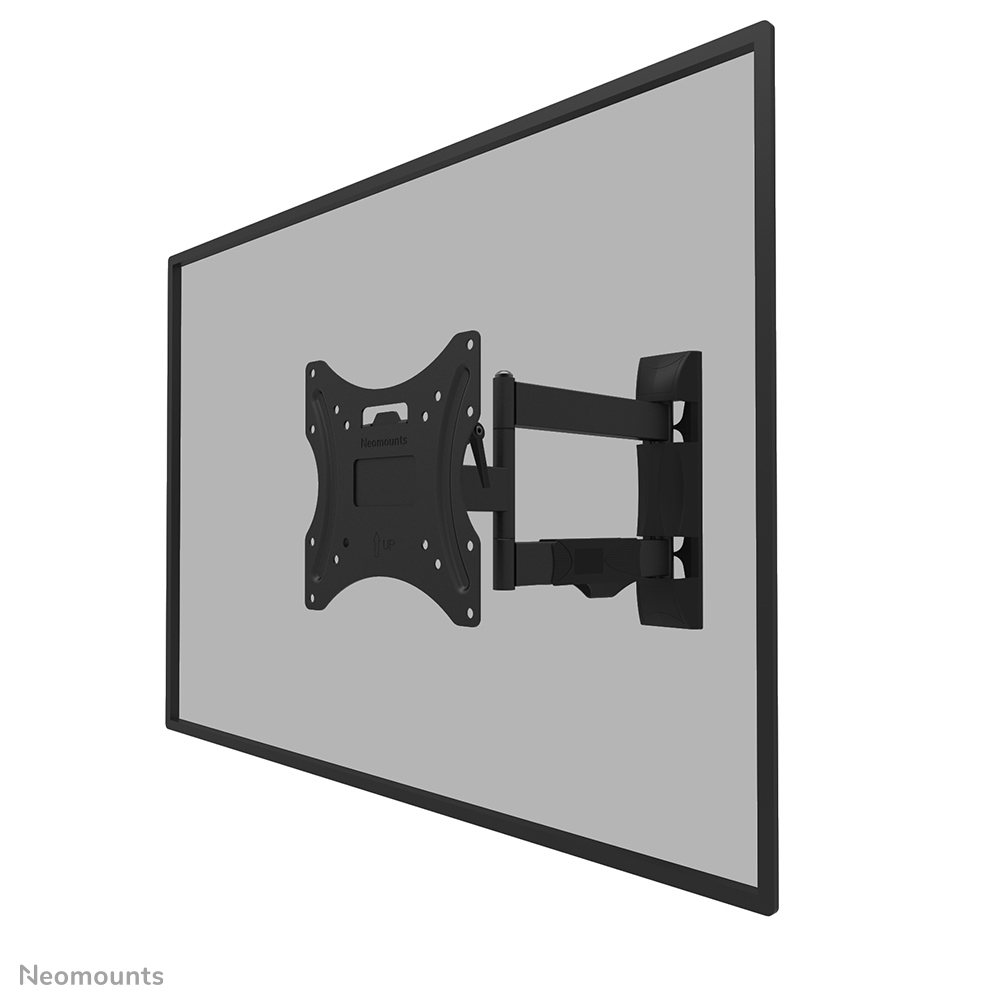

The Neomounts by Newstar WL40-550BL12 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 35 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The WL40-550BL12 has a depth of 4,5-42 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200 mm.

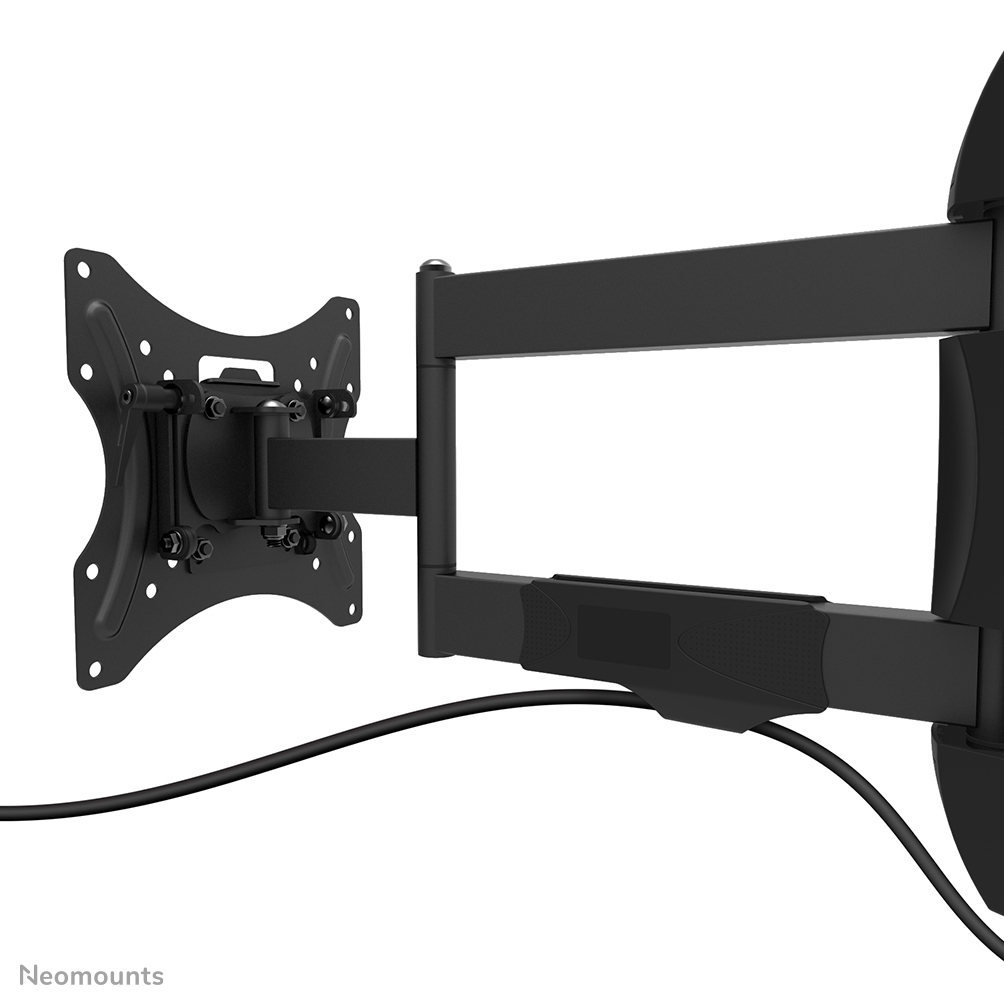

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Mounting
Minimum screen size
81.3 cm (32")
Maximum weight capacity
35 kg
Maximum screen size
139.7 cm (55")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
200 x 200 mm
Panel mounting interface
100 x 100,200 x 100,200 x 200
Number of displays supported
1
Mounting type
Wall
Maximum weight capacity (per display)
35 kg
Ergonomics
Height adjustment
N
Tiltable
Y
Tilt angle range
-2 - 12°
Swivel angle
40°
Cable management
Y
Distance to the wall (max)
42 cm
Distance to the wall (min)

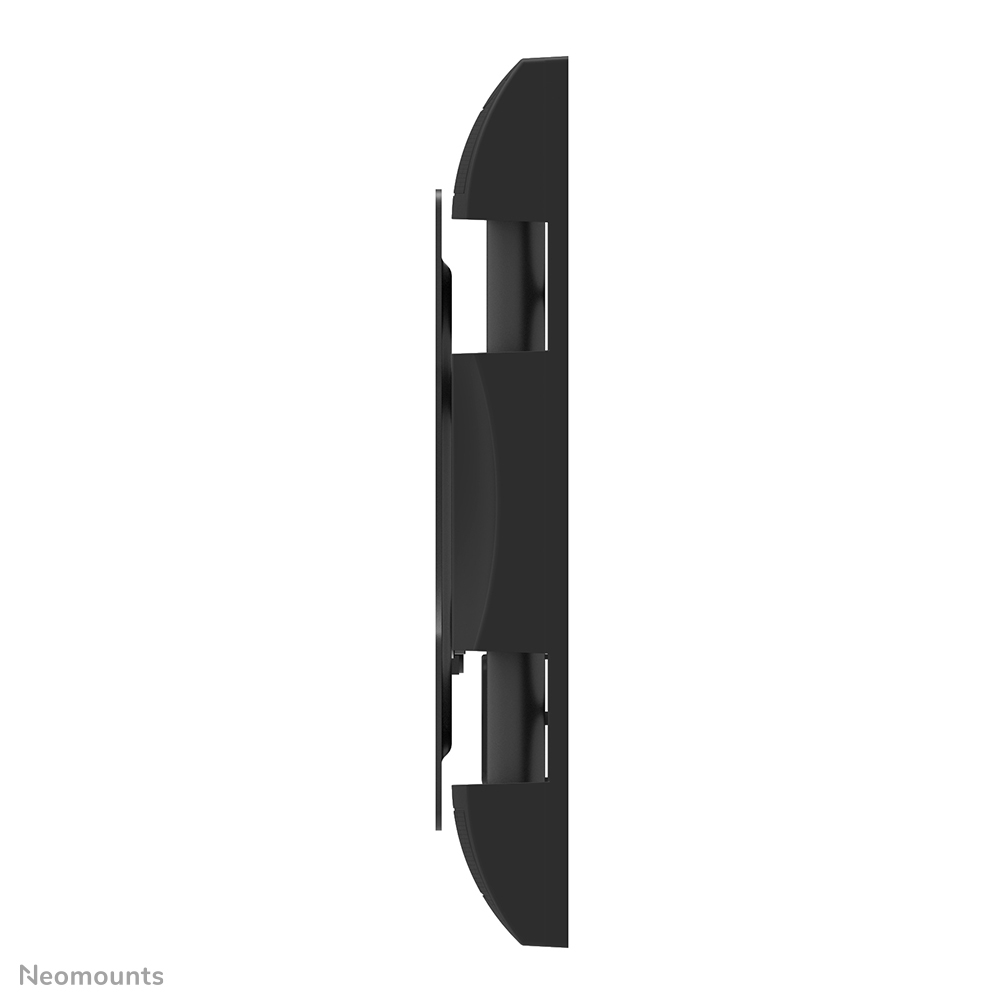

4.5 cm
Angle of rotation
6°
Pivot angle
-3 - 3°
Swivelling
Yes
Swivel angle range
0 - 40°
Rotating
Yes
Type
Full motion
Design
Product colour
Black
Housing material
Steel
Weight & dimensions
Depth (max)
4.5 cm
Width
220 mm
Depth
45 mm
Height
306 mm
Weight
3.25 kg
Technical details
Package net weight
3.9 kg
Quantity per pack
1 pc(s)
Lockable
Not lockable
Packaging content

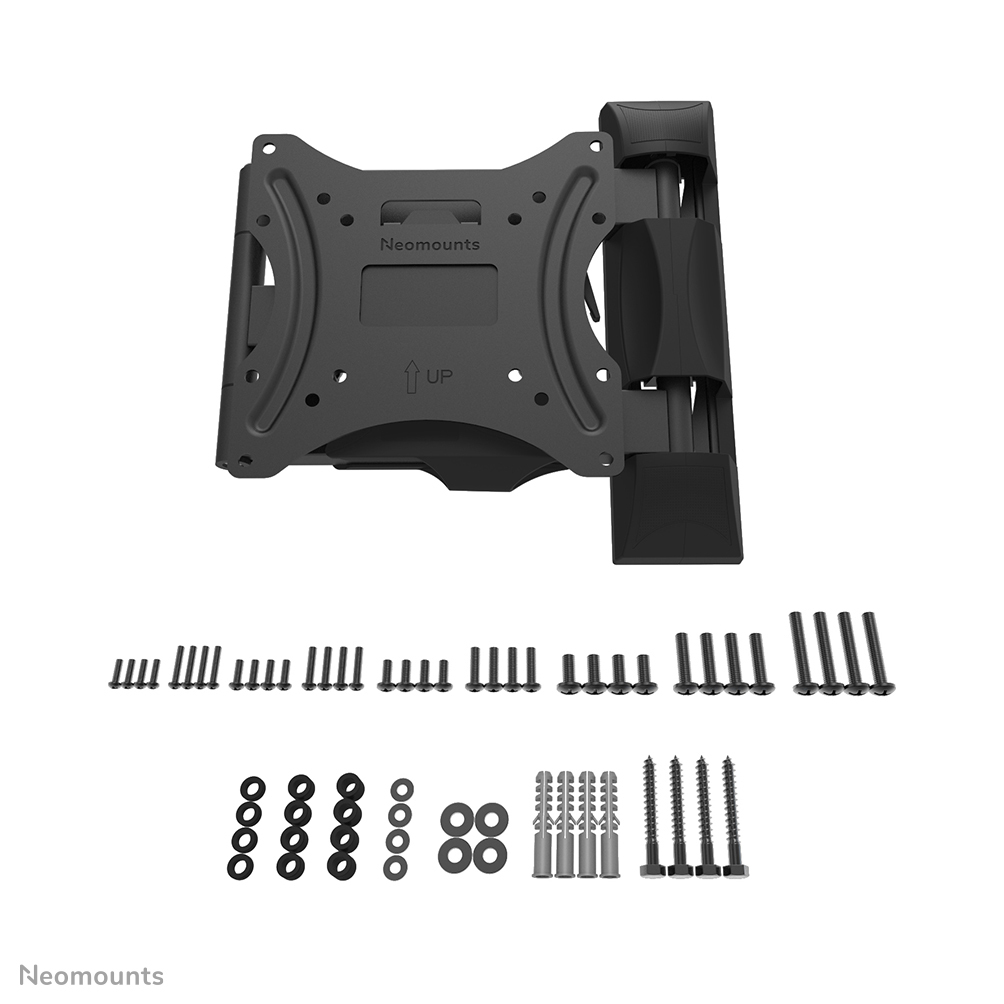

Mounting kit
Y
Packaging data
Package width
329 mm
Package depth
310 mm
Package height
55 mm
Package weight
3.9 kg
Logistics data
Master (outer) case width
349 mm
Master (outer) case length
295 mm
Master (outer) case height
330 mm
Master (outer) case net weight
18.3 kg
Products per master (outer) case
5 pc(s)
Harmonized System (HS) code
HS83025000
Products per pallet (EU)
160 pc(s)
Master (outer) case gross weight
19.9 kg
Other features
Country of origin
China
Information
| Part Number: | WL40-550BL12 |
