Introduction

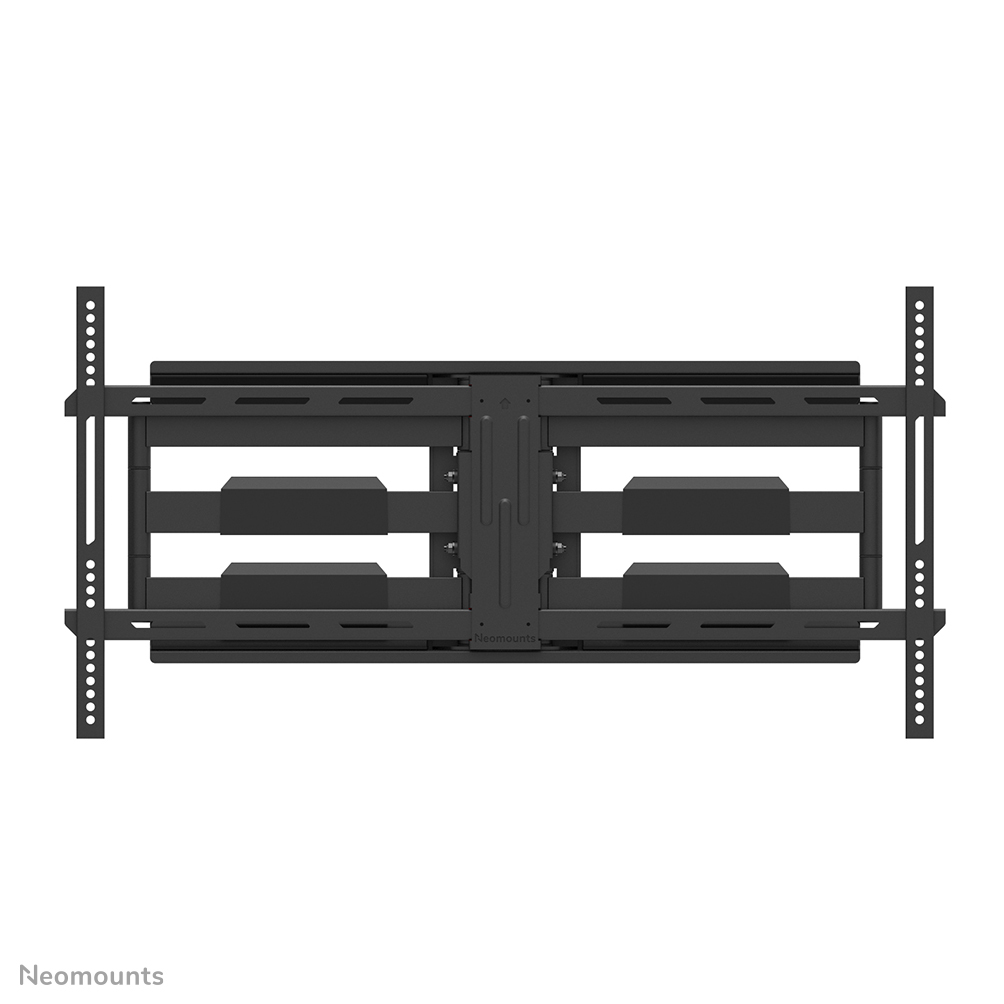

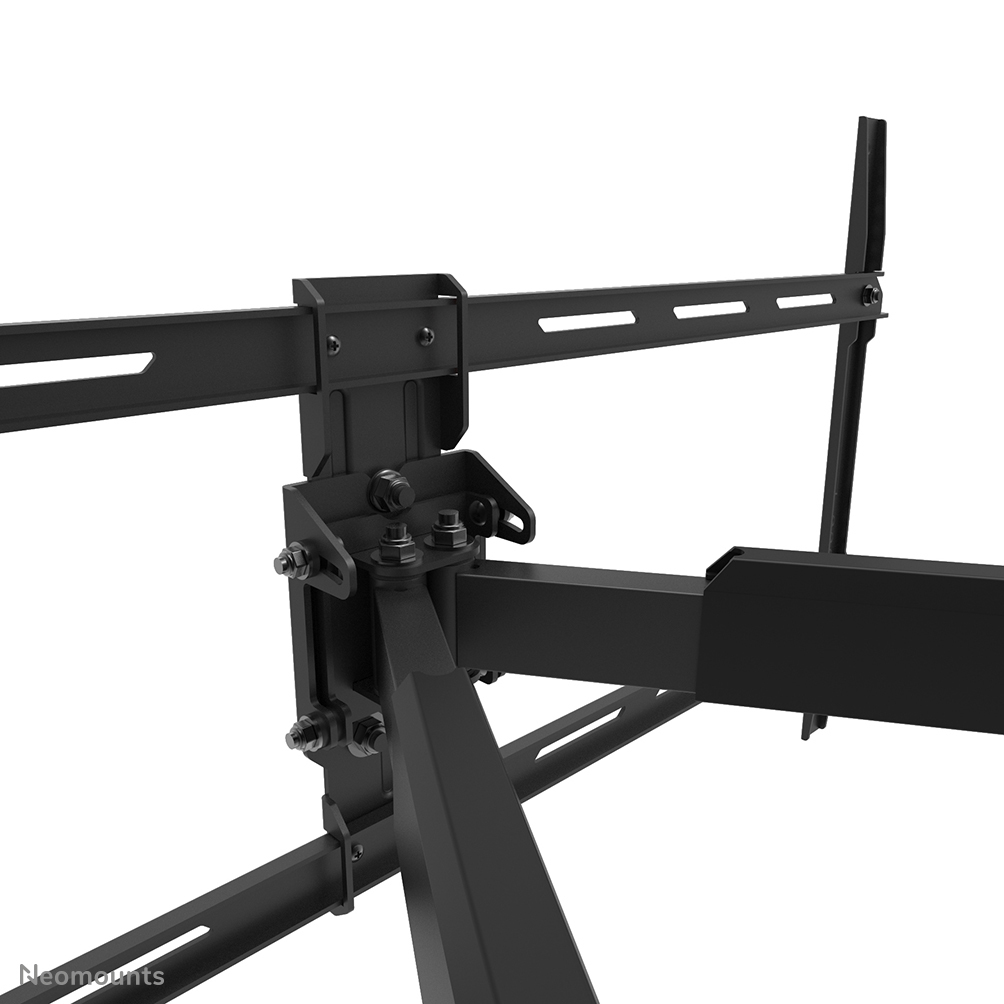

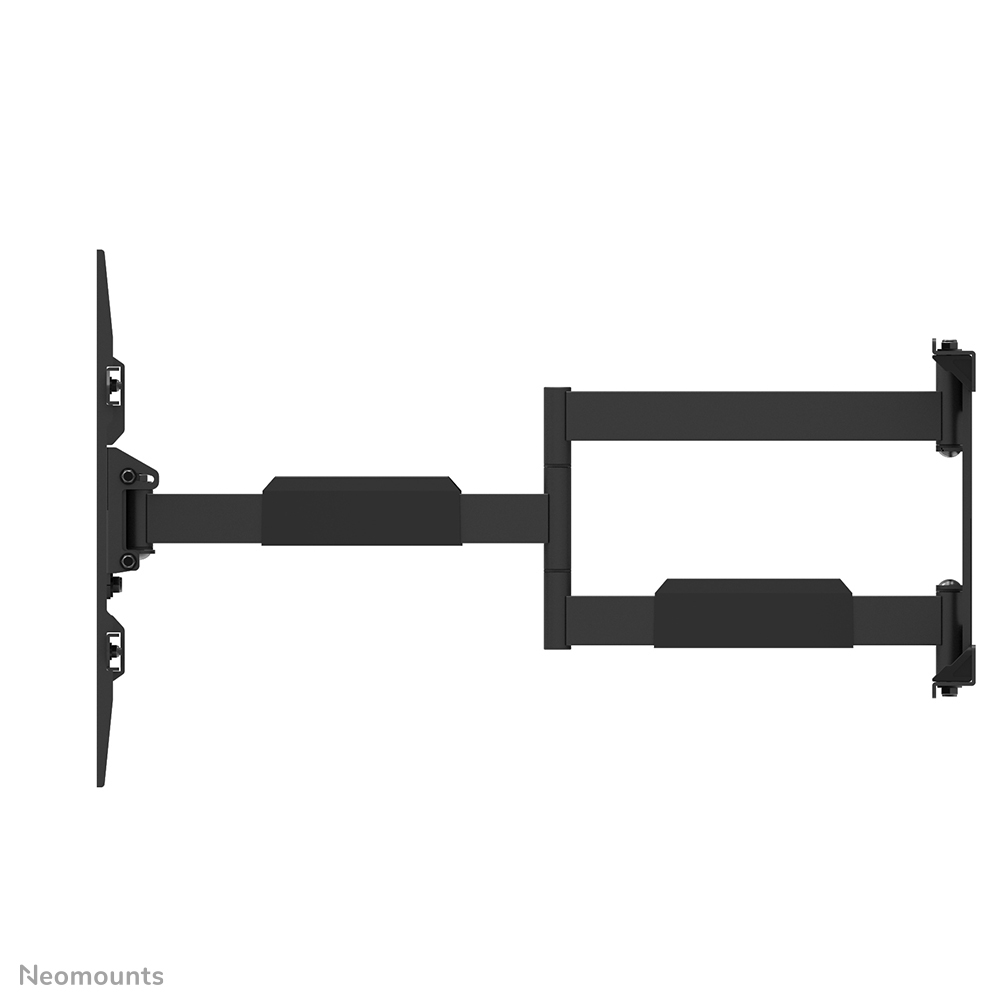

The Neomounts by Newstar WL40-550BL18 is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

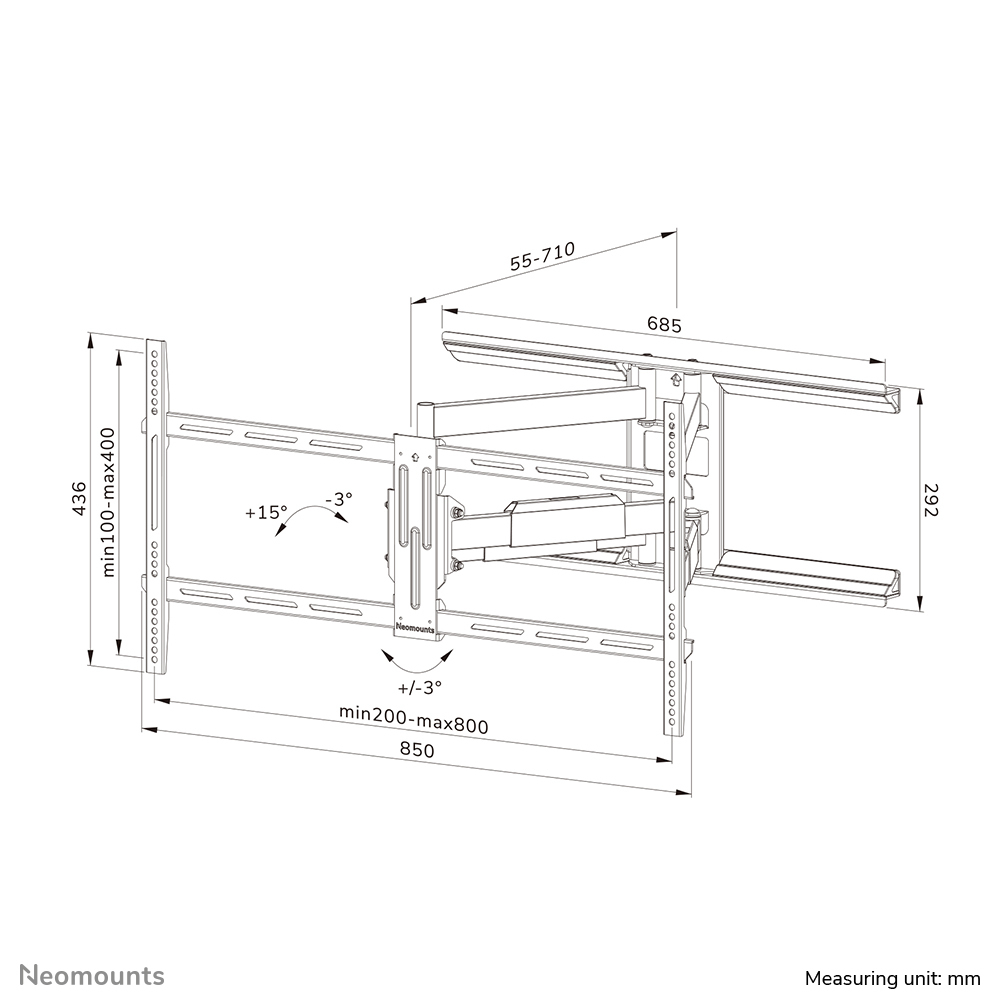

The WL40-550BL18 has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400 mm.

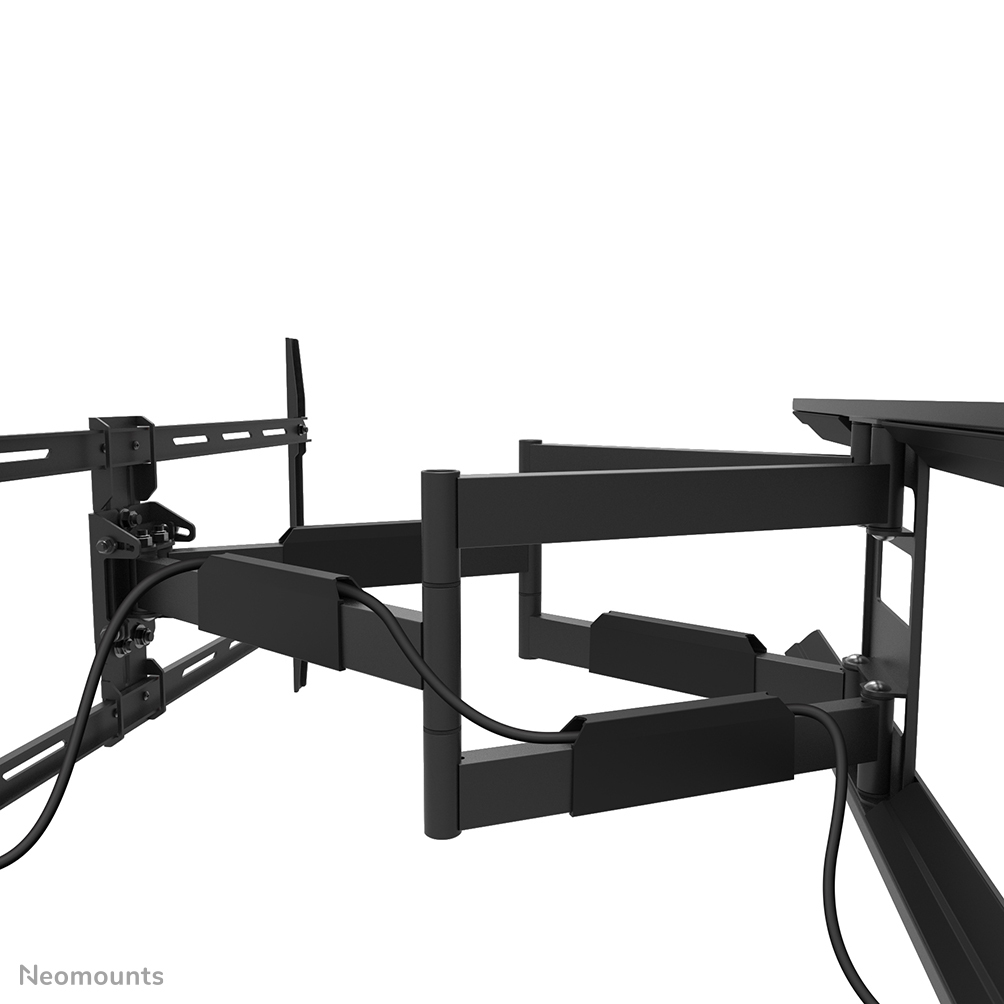

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Mounting
Minimum screen size
109.2 cm (43")
Maximum weight capacity
45 kg
Maximum screen size
190.5 cm (75")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
800 x 400 mm
Panel mounting interface
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,350 x 350,400 x 200,400 x 400,400 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400
Number of displays supported
1
Mounting type
Wall
Maximum weight capacity (per display)
45 kg
Ergonomics
Height adjustment
N
Tiltable
Y
Tilt angle range
-3 - 15°
Swivel angle
54°
Cable management
Y
Distance to the wall (max)
71 cm
Distance to the wall (min)
5.5 cm
Angle of rotation
6°
Pivot angle
-3 - 3°
Swivelling
Yes
Swivel angle range
0 - 54°
Rotating
Yes
Type
Full motion
Design
Product colour
Black
Housing material
Steel
Technical details
Package net weight
11.7 kg
Quantity per pack
1 pc(s)
Lockable
Not lockable

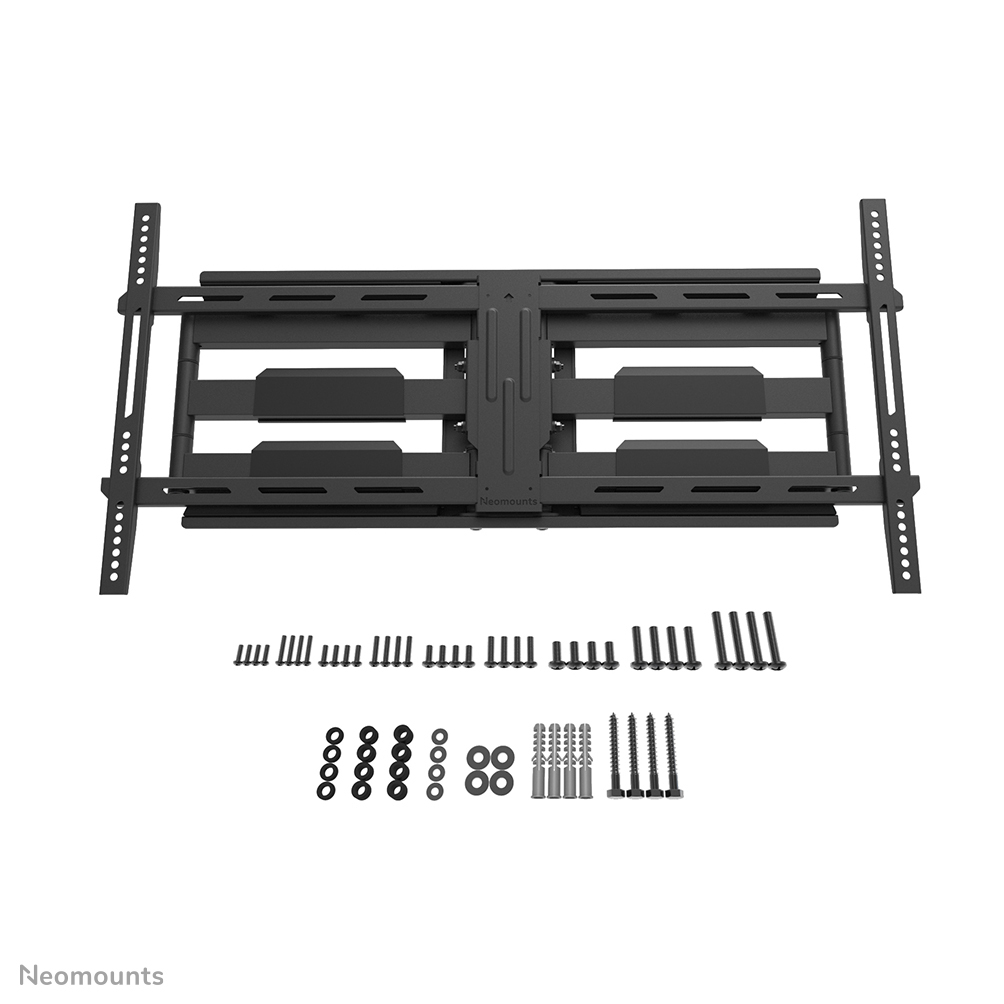

Packaging content
Mounting kit
Y
Weight & dimensions
Width
850 mm
Depth
55 mm
Height
436 mm
Depth (max)
5.5 cm
Weight
9.9 kg
Packaging data
Package width
882 mm
Package depth
340 mm
Package height
65 mm
Package weight
11.7 kg
Logistics data
Master (outer) case width
902 mm
Master (outer) case length
145 mm
Master (outer) case height
360 mm
Master (outer) case net weight
22.1 kg
Products per master (outer) case
2 pc(s)
Harmonized System (HS) code
85299097
Products per pallet (EU)
40 pc(s)
Master (outer) case gross weight
24 kg
Other features
Country of origin
China
Information
| Part Number: | WL40-550BL18 |
