Introduction

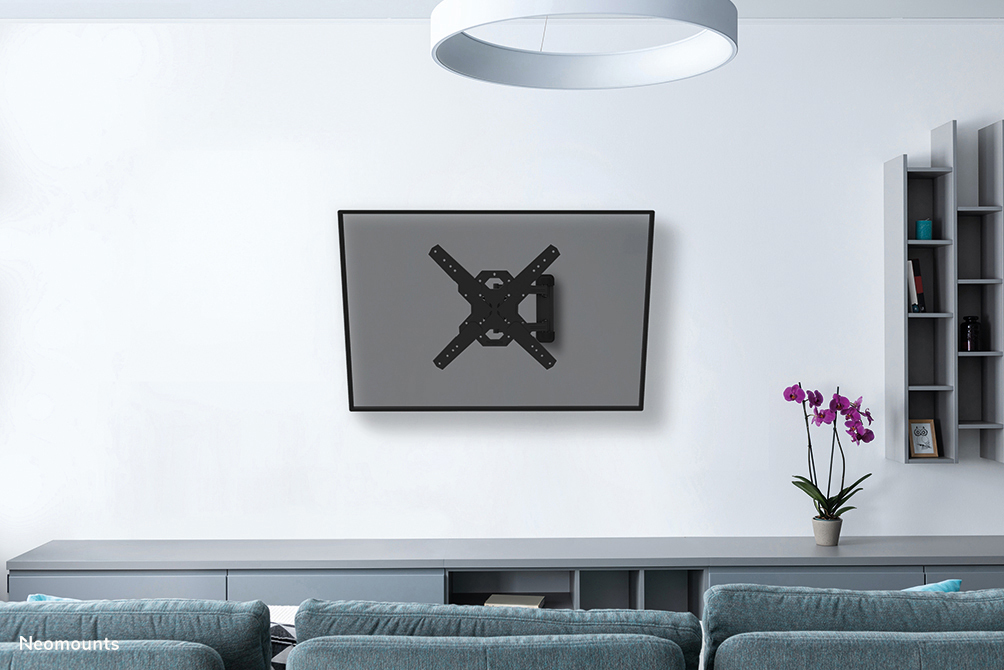

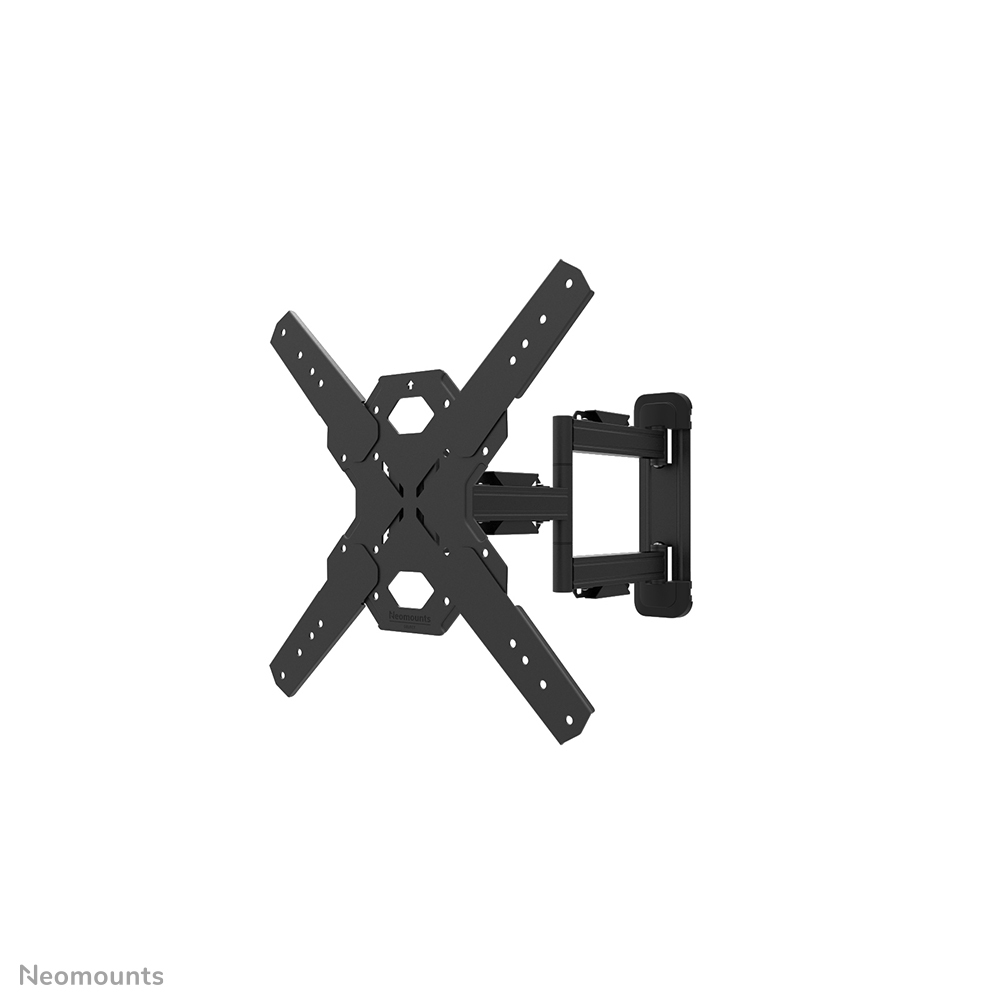

The Neomounts Select WL40S-850BL14 is a full motion wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (45°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The WL40S-850BL14 has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm.

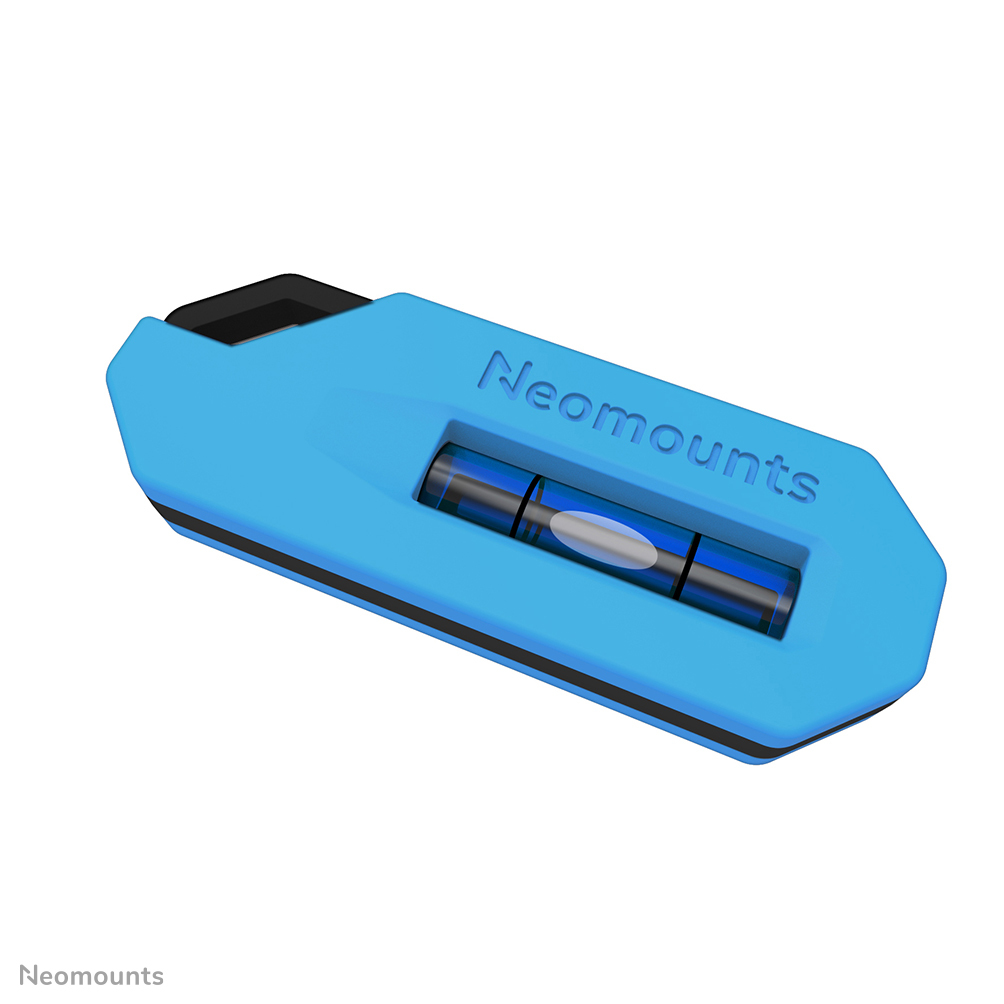

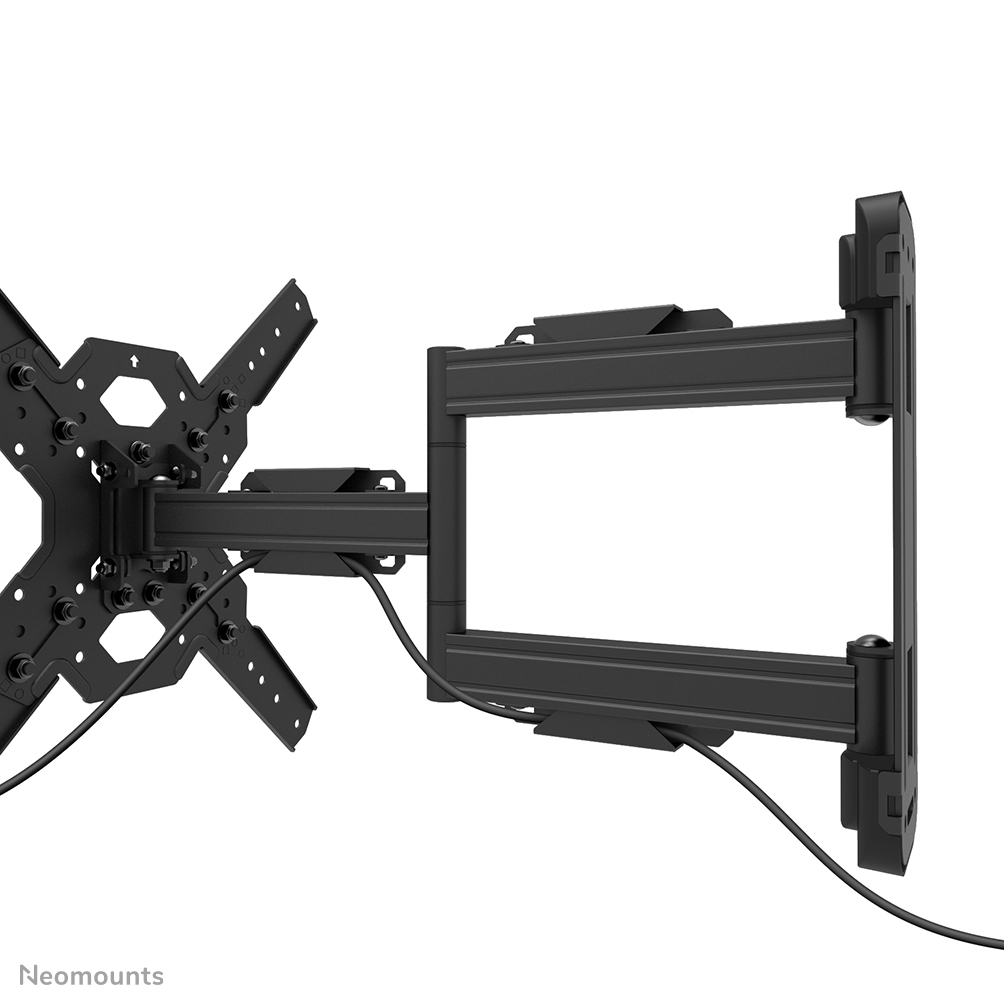

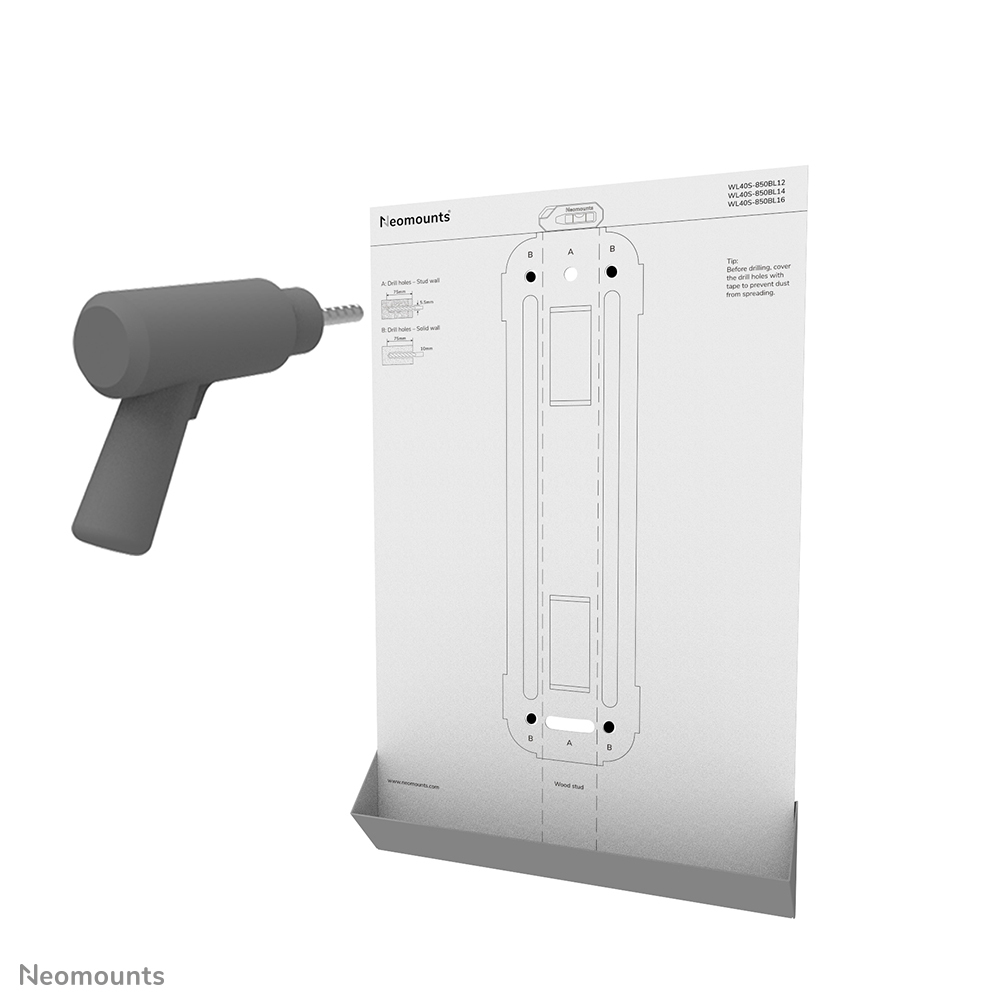

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
Ergonomics

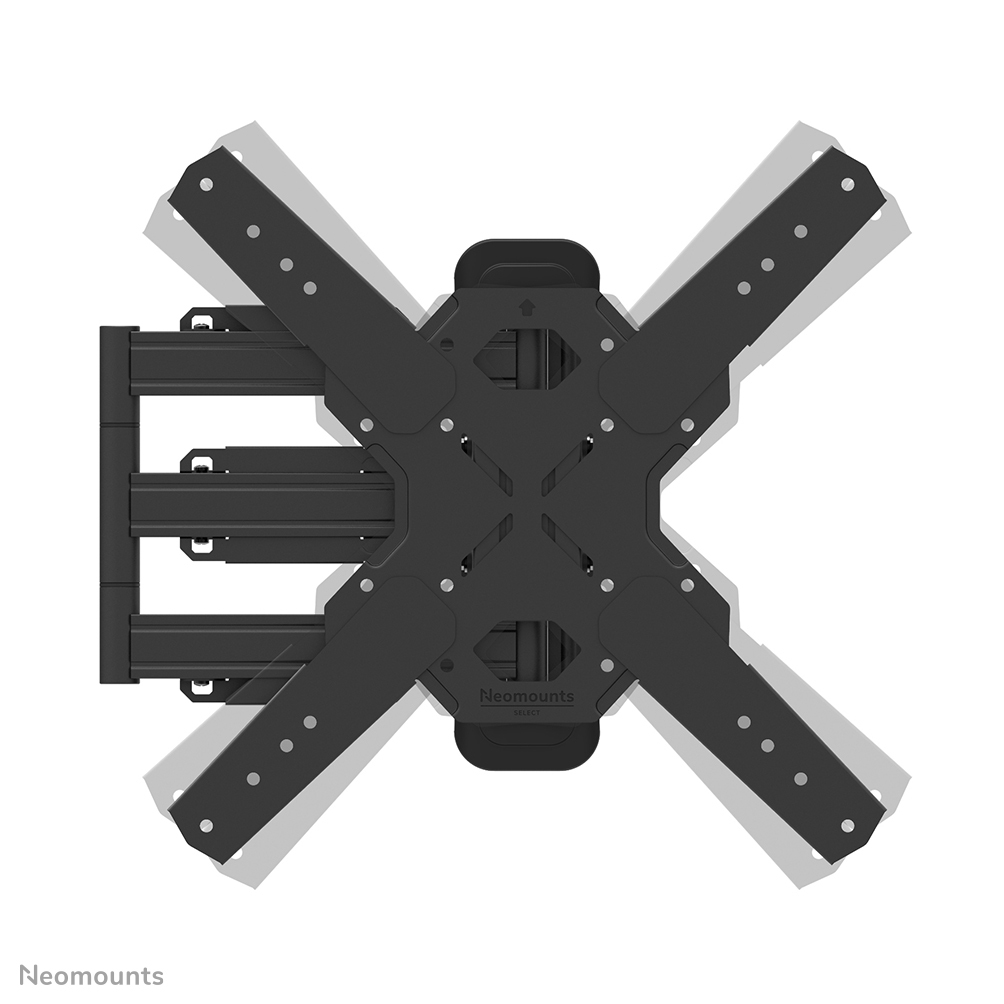

Angle of rotation
6°
Pivot angle
-3 - 3°
Swivelling
Yes
Swivel angle range
0 - 45°
Rotating
Yes
Type
Full motion
Height adjustment
N
Tiltable
Y
Tilt angle range
-2 - 12°
Swivel angle
45°
Cable management
Y
Distance to the wall (max)
55.5 cm
Distance to the wall (min)
4.7 cm
Mounting
Maximum weight capacity (per display)
40 kg
Minimum screen size
81.3 cm (32")
Maximum weight capacity
40 kg
Maximum screen size
165.1 cm (65")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
400 x 400 mm
Panel mounting interface
100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300
Number of displays supported
1
Mounting type
Wall
Weight & dimensions
Depth (max)
4.7 cm
Weight
5.9 kg
Width
449 mm
Depth
47 mm
Height
449 mm
Packaging data
Package weight
7 kg
Package width
503 mm
Package depth
342 mm
Package height
62 mm
Design
Housing material
Steel
Product colour
Black
Technical details
Lockable
Not lockable
Package net weight
7 kg
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case gross weight
21.4 kg
Master (outer) case width
523 mm
Master (outer) case length
204 mm
Master (outer) case height
362 mm
Master (outer) case net weight
18.3 kg
Products per master (outer) case
3 pc(s)
Harmonized System (HS) code
HS83025000
Products per pallet (EU)
84 pc(s)

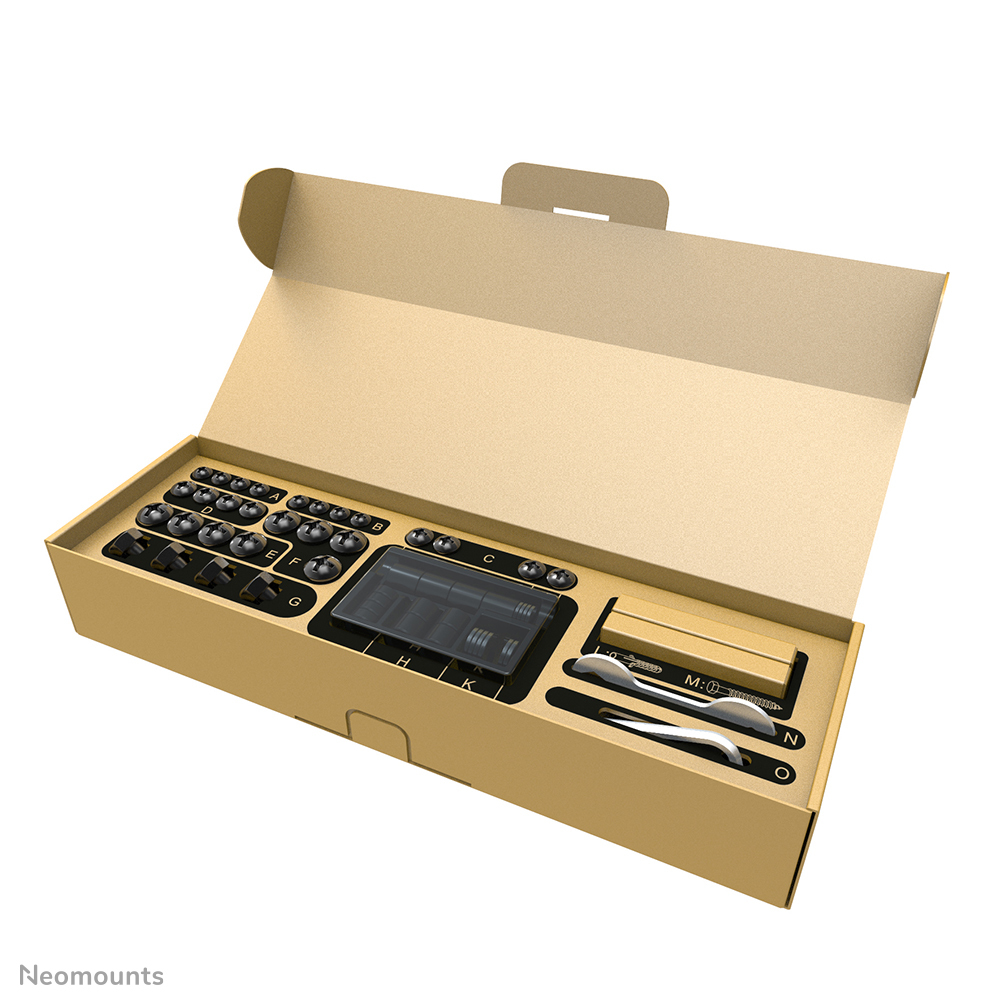

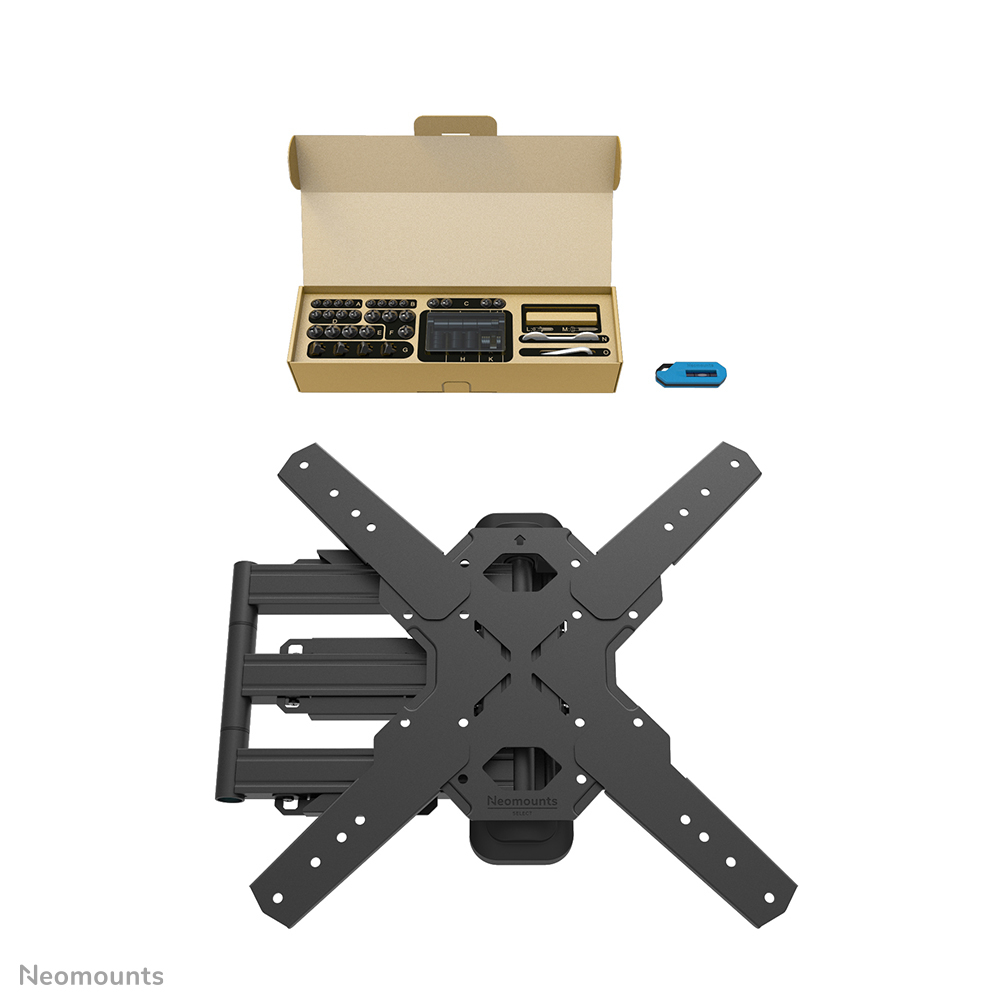

Packaging content
Mounting kit
Y
Number of wrenches included
1
Hex key included
Y
