Introduction

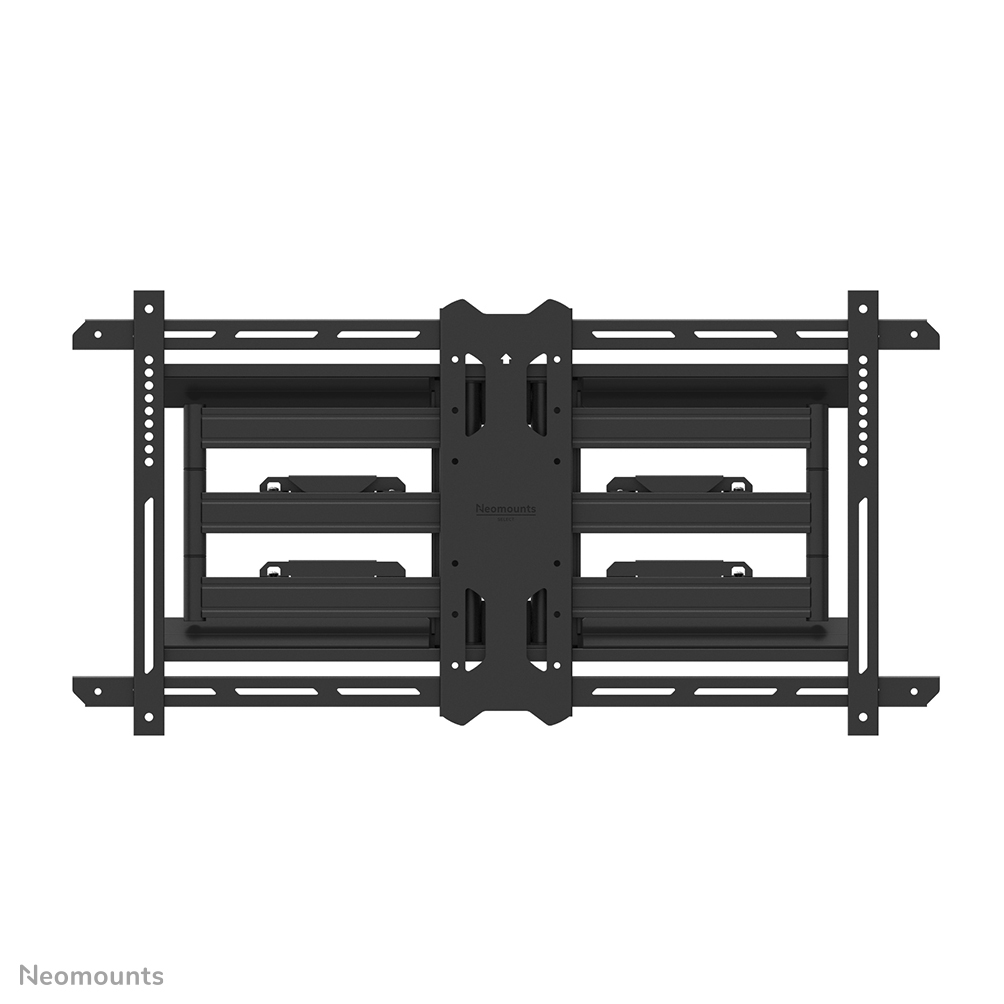

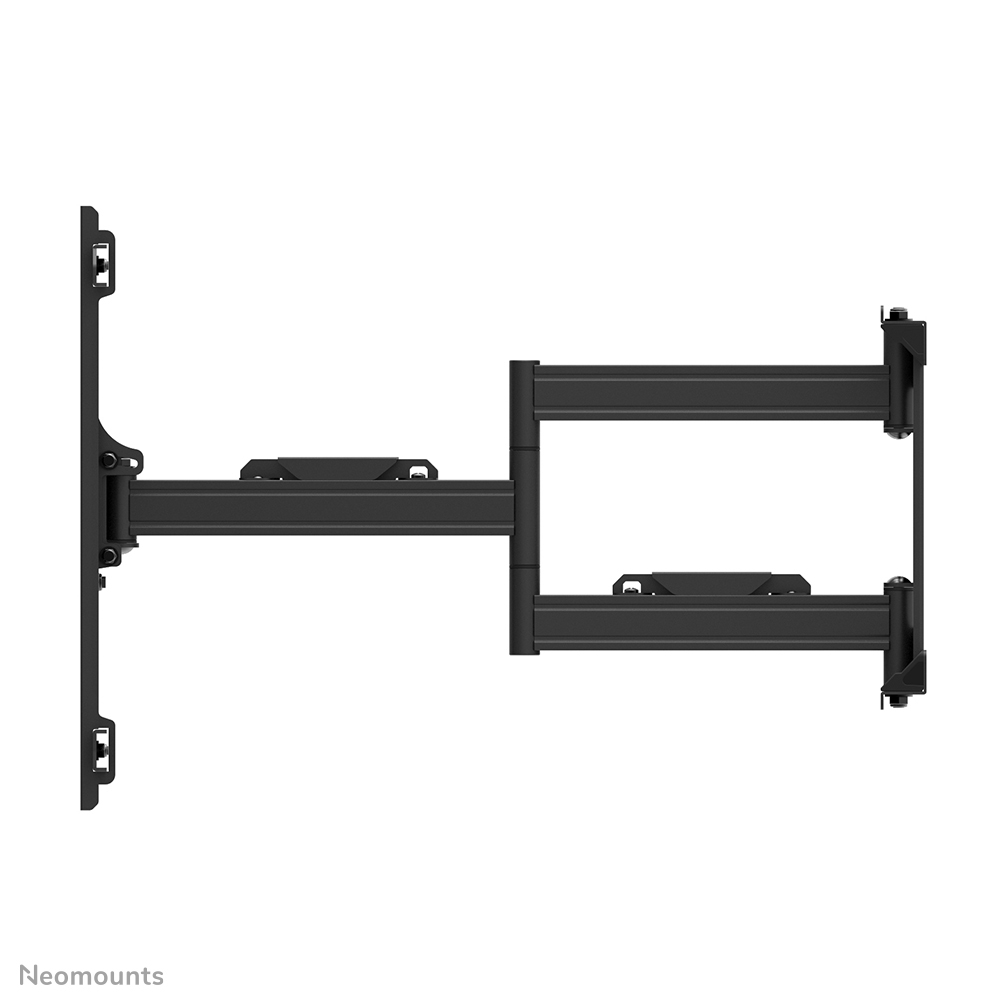

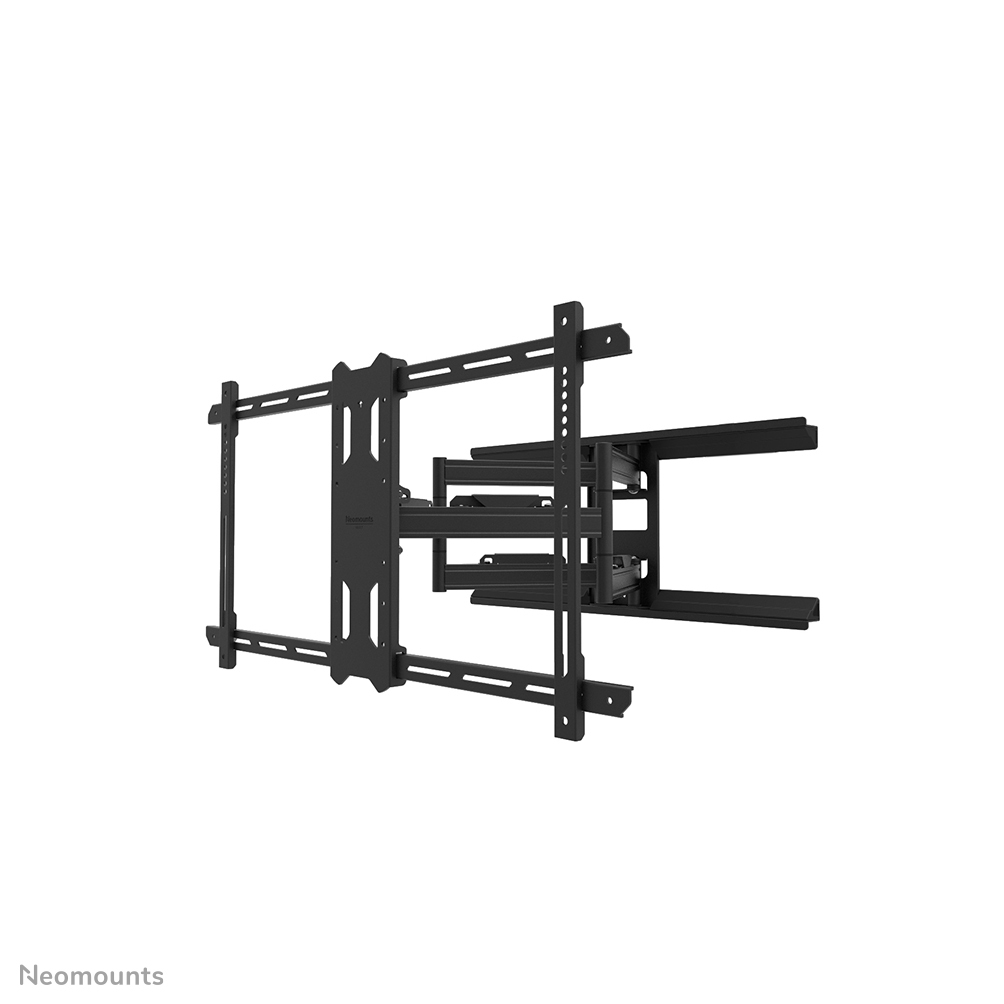

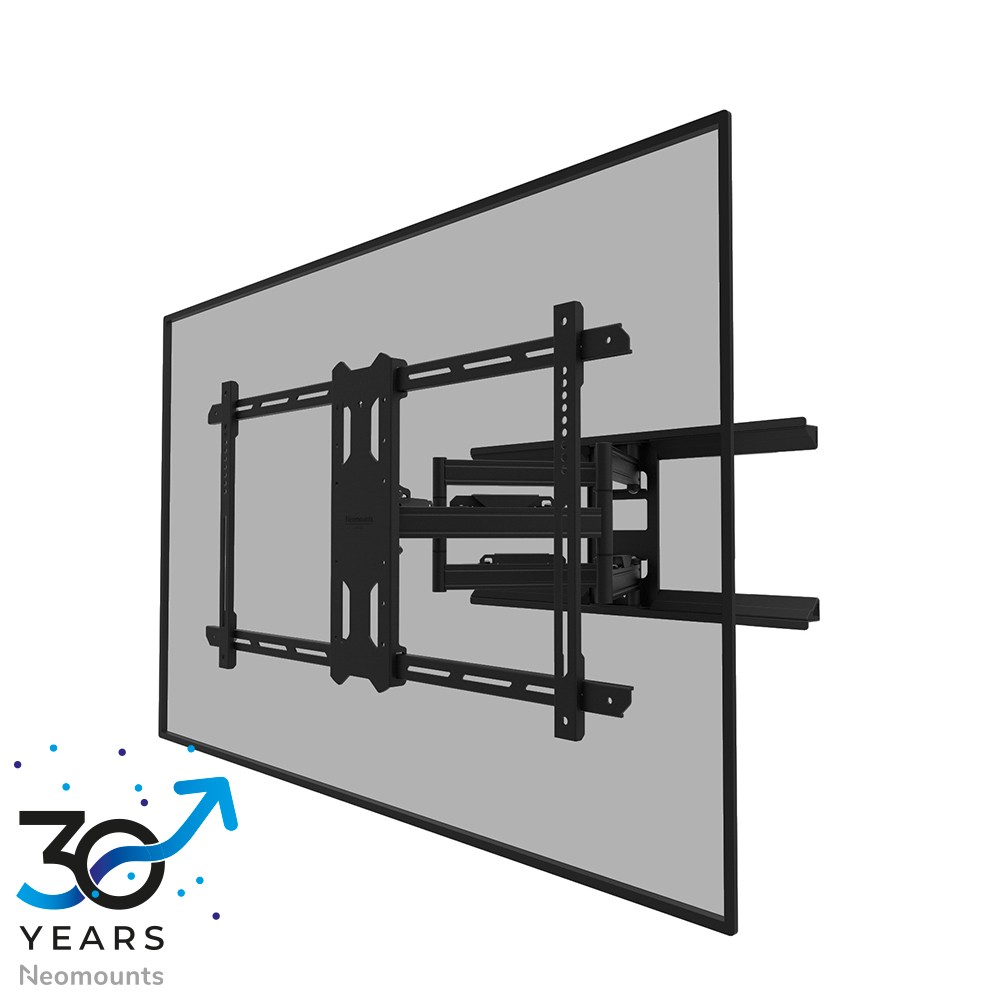

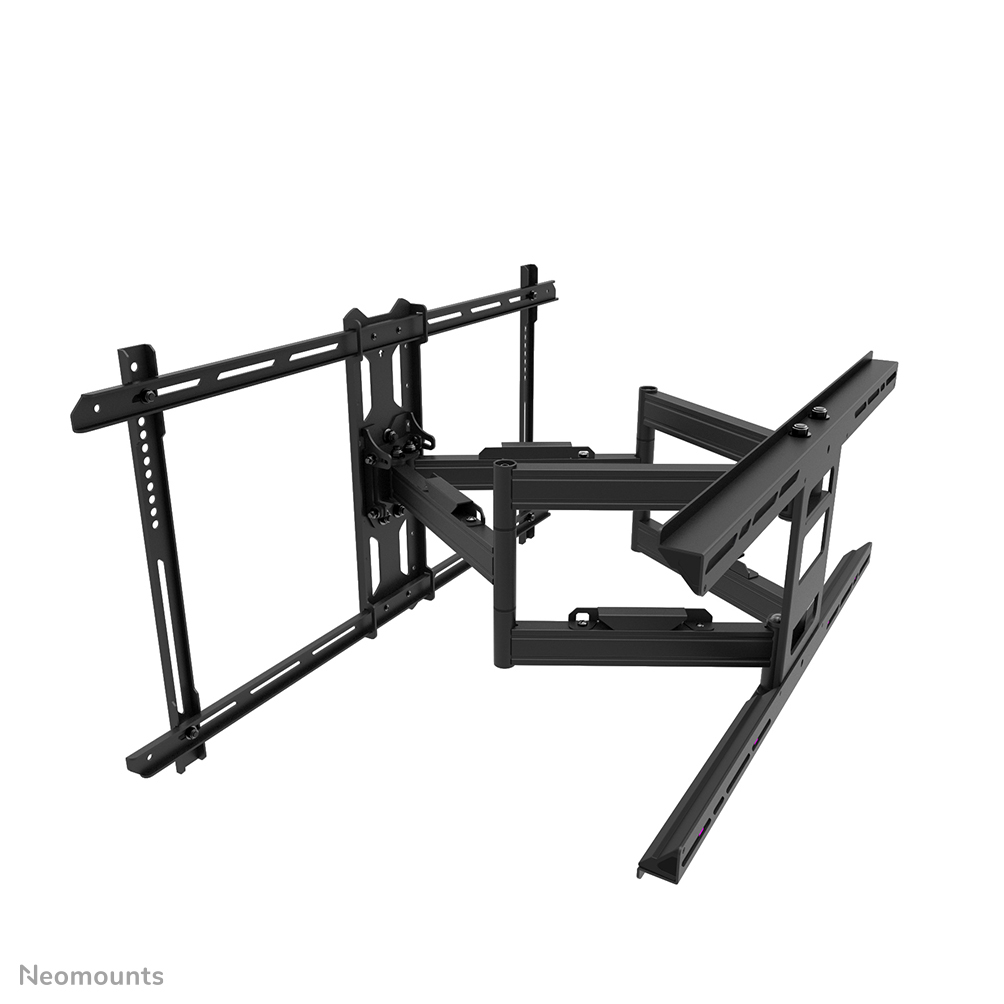

The Neomounts Select WL40S-850BL18 is a full motion wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. The versatile tilt (18°) and swivel (35°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The WL40S-850BL18 has a depth of 5-61 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400mm.

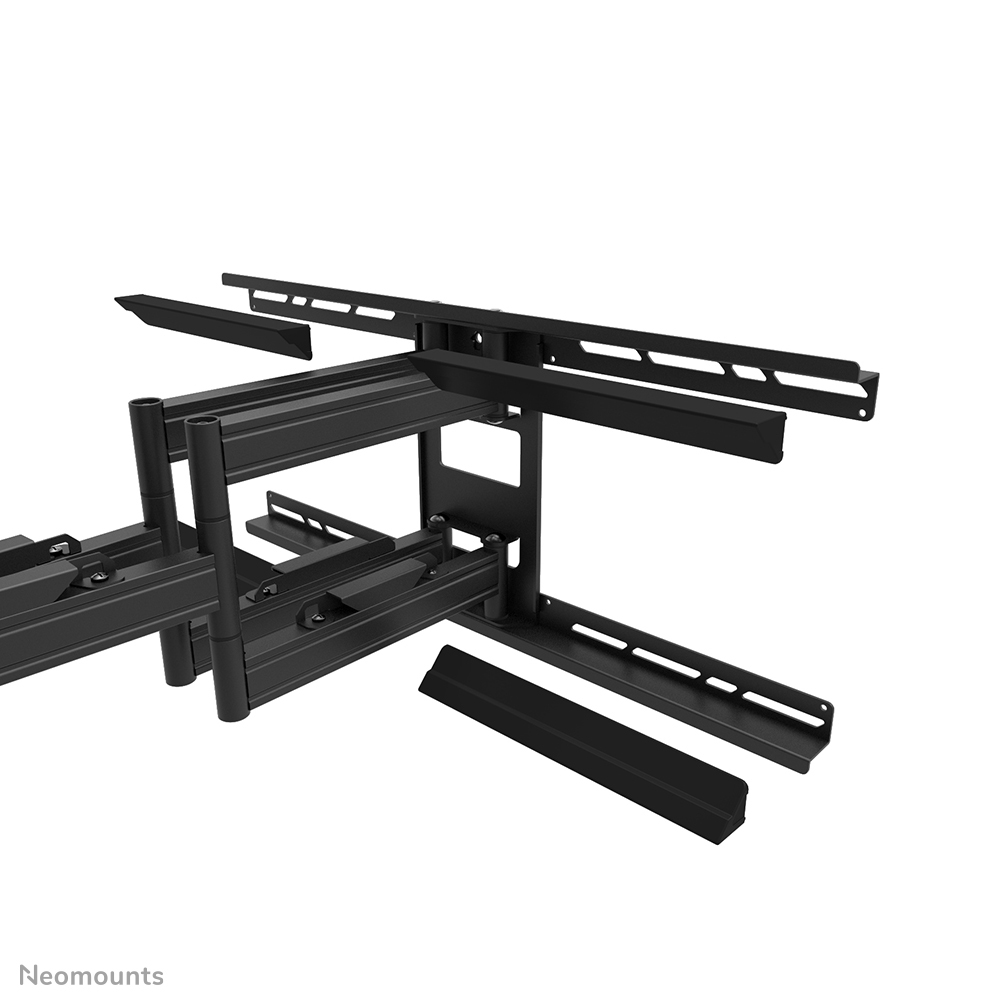

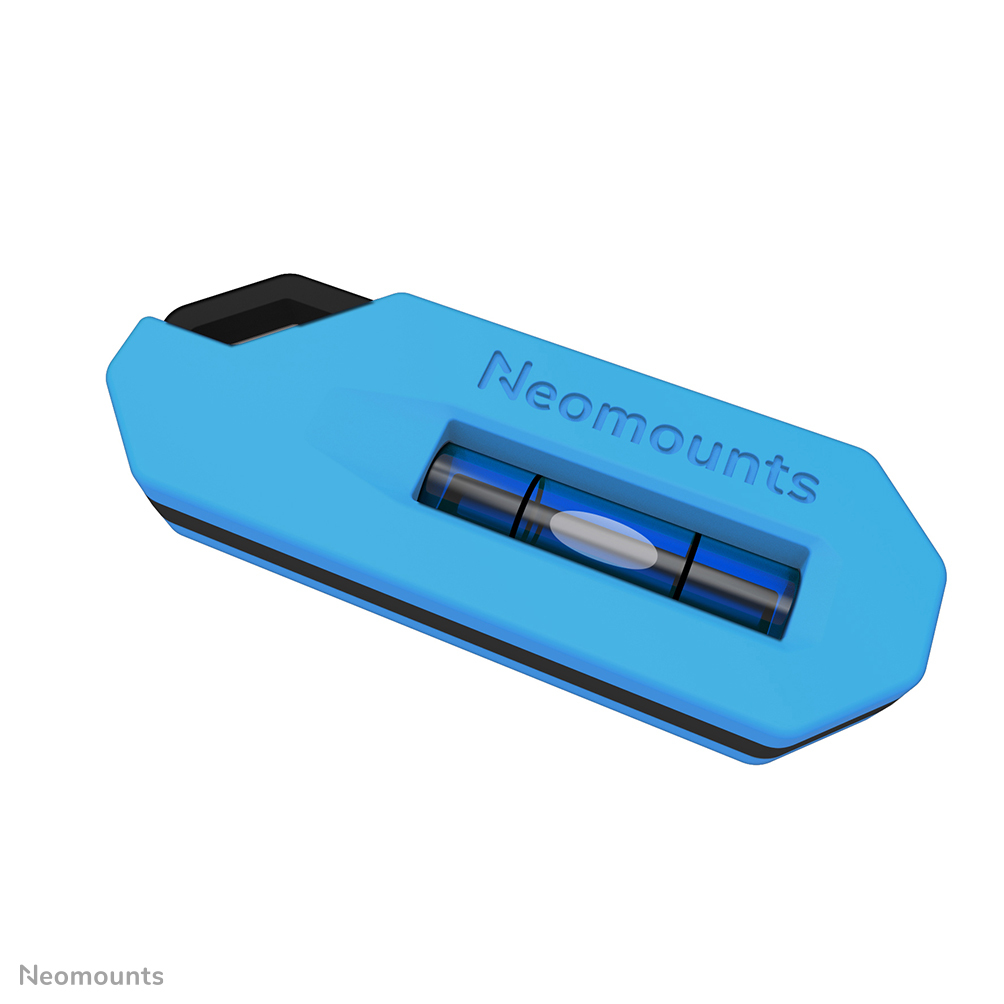

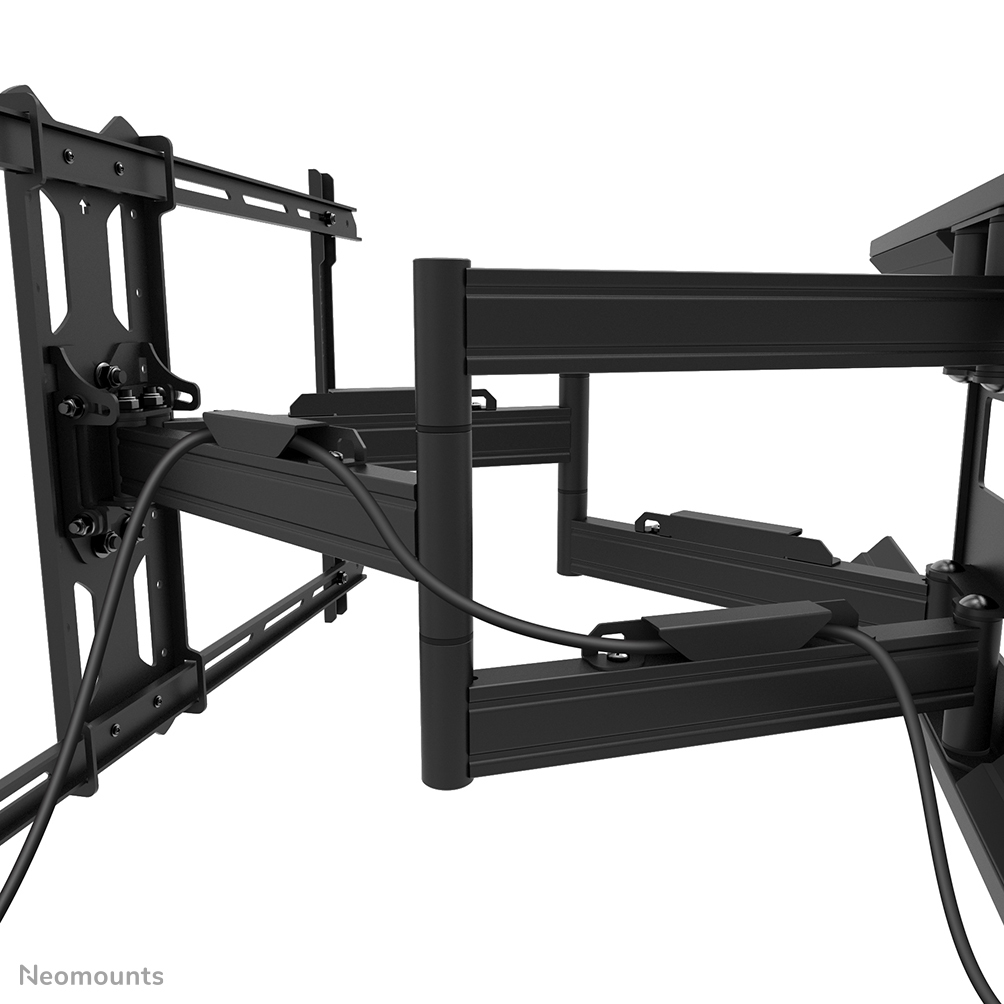

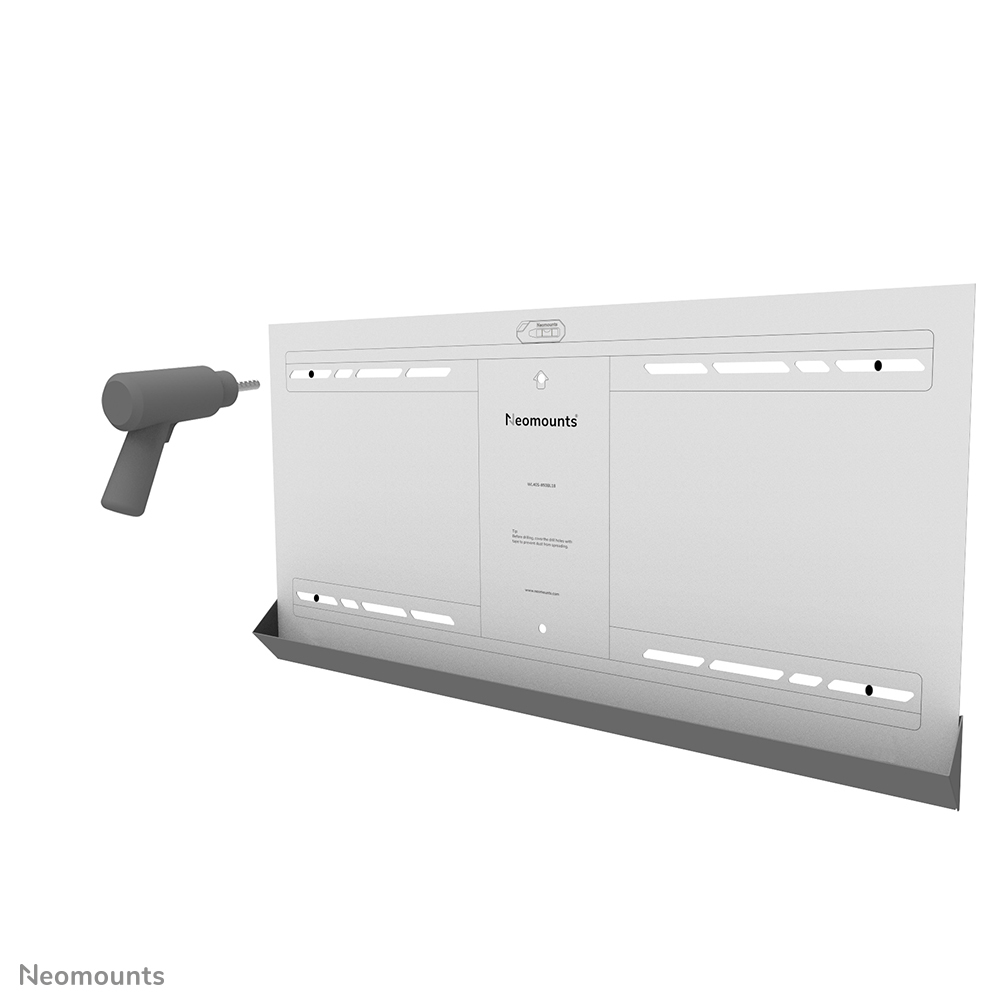

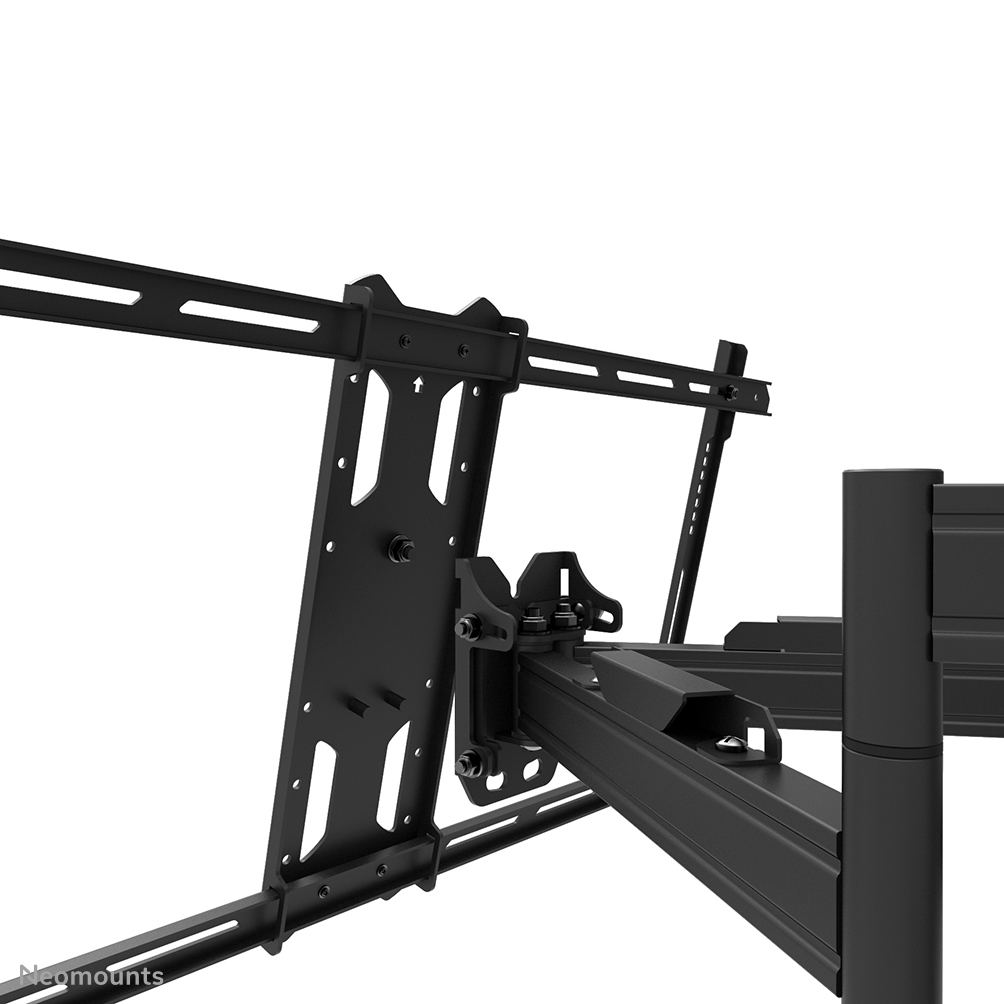

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
Mounting
Minimum screen size
109.2 cm (43")
Maximum weight capacity
60 kg
Maximum screen size
2.18 m (86")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
800 x 400 mm
Panel mounting interface
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 100,300 x 200,400 x 200,400 x 400,400 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400
Number of displays supported
1
Mounting type
Wall
Maximum weight capacity (per display)
60 kg
Ergonomics
Height adjustment
N
Tiltable
Y
Tilt angle range
-3 - 15°
Swivel angle
35°
Cable management
Y
Distance to the wall (max)
61 cm

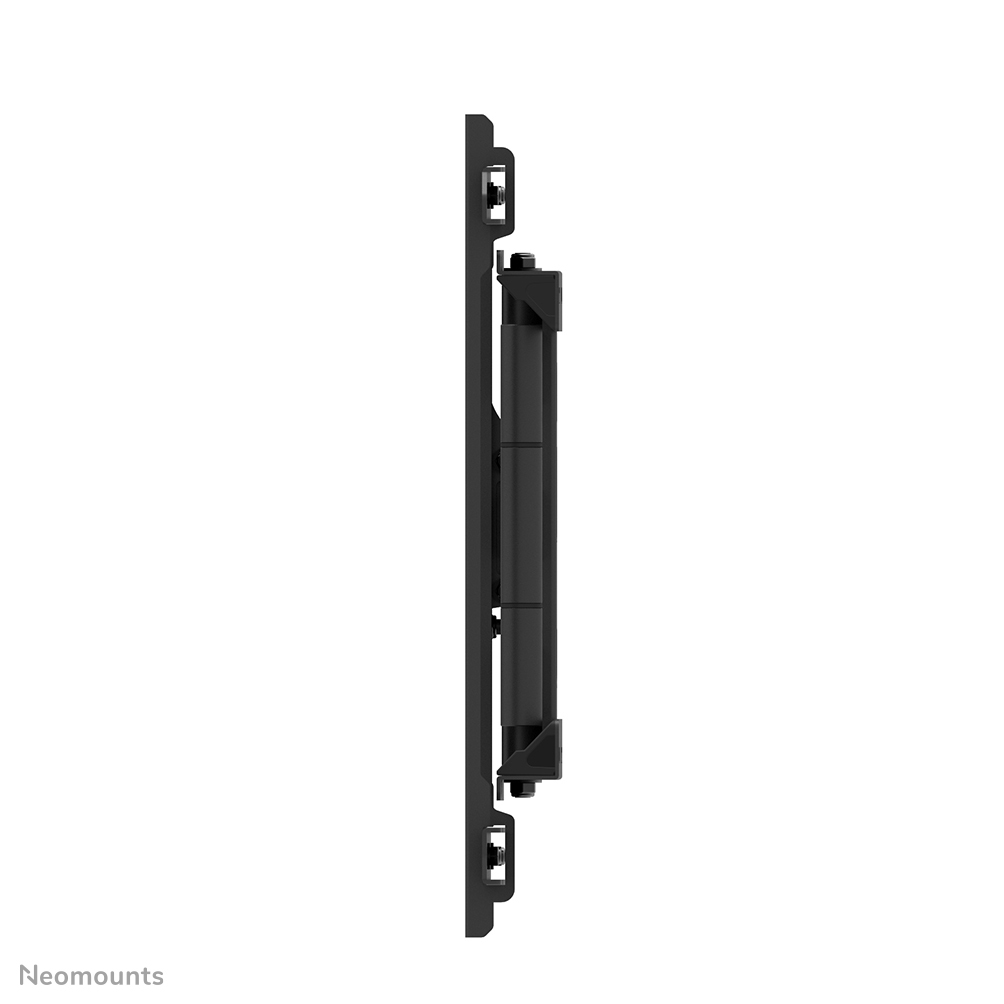

Distance to the wall (min)
5 cm
Angle of rotation
6°

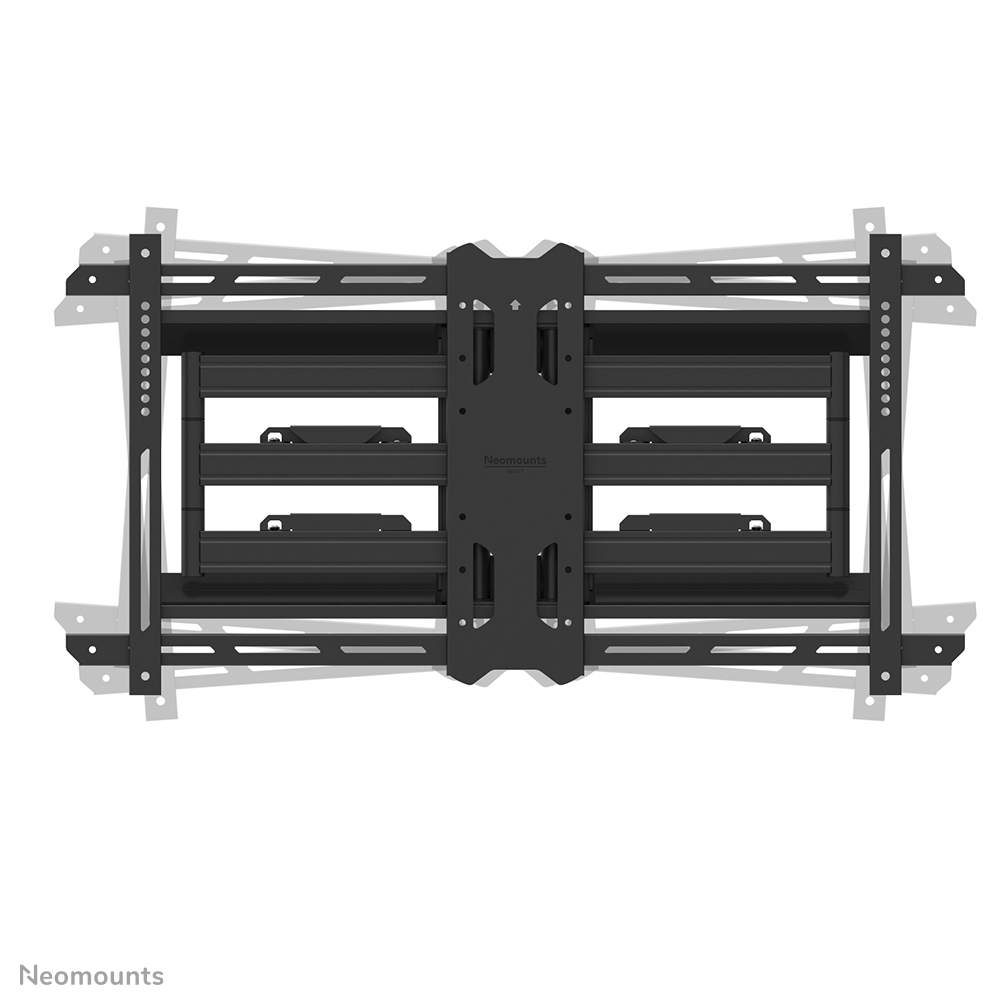

Pivot angle
-3 - 3°
Swivelling
Yes
Swivel angle range
0 - 35°
Rotating
Yes
Type
Full motion
Design
Product colour
Black
Housing material
Steel
Technical details
Package net weight
12.7 kg
Quantity per pack
1 pc(s)
Lockable
Not lockable

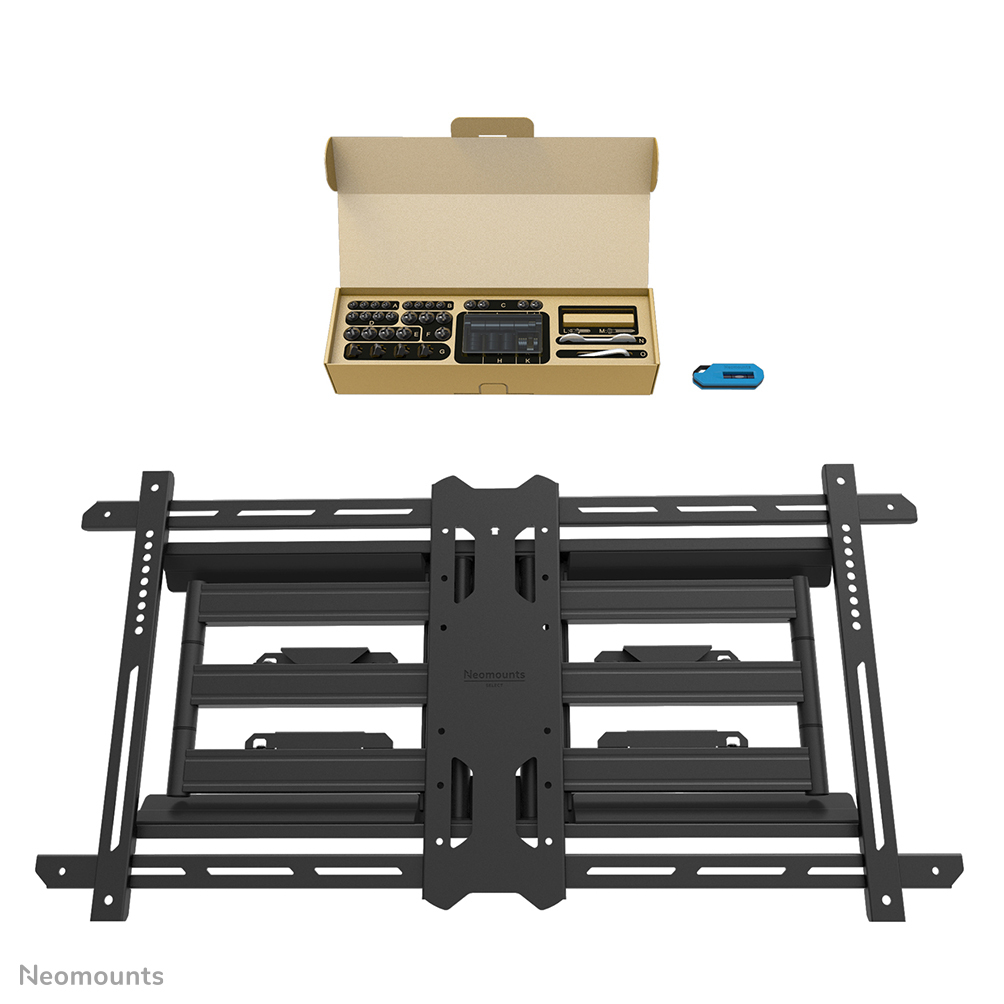

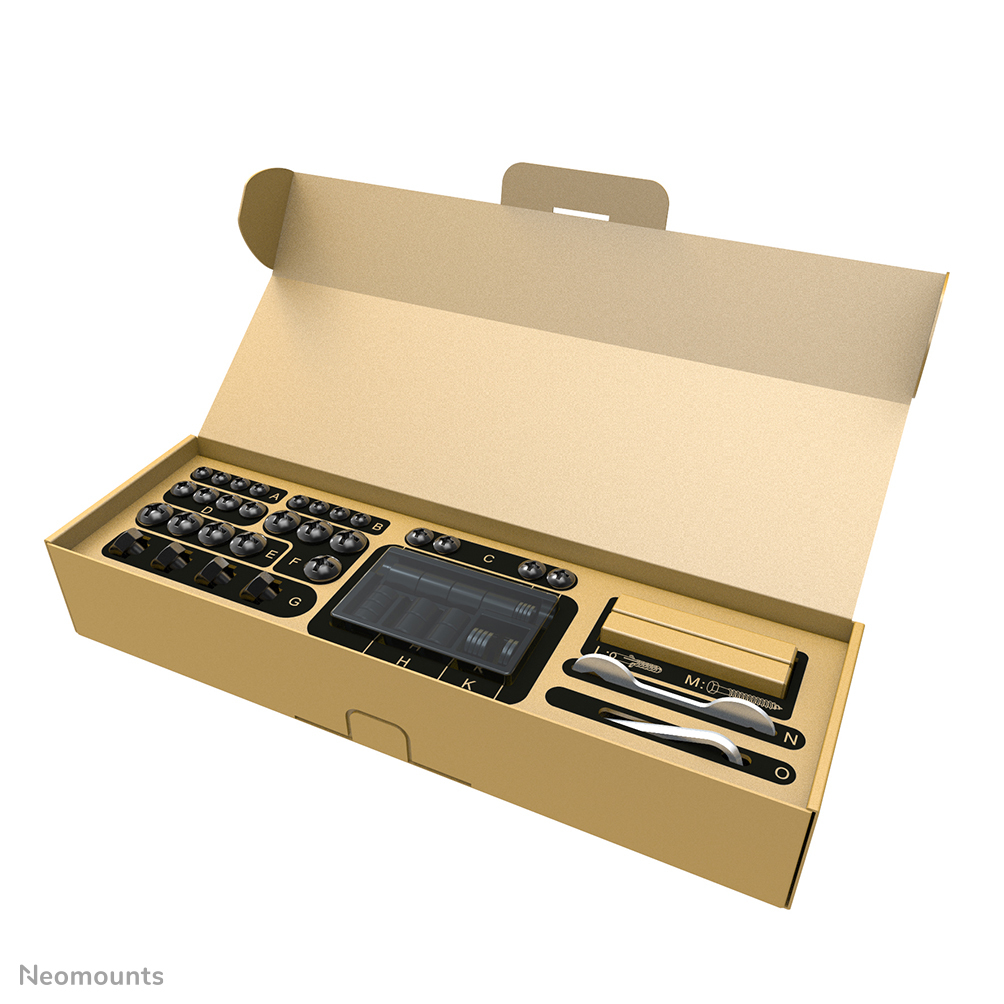

Packaging content
Mounting kit
Y
Number of wrenches included
1
Hex key included
Y

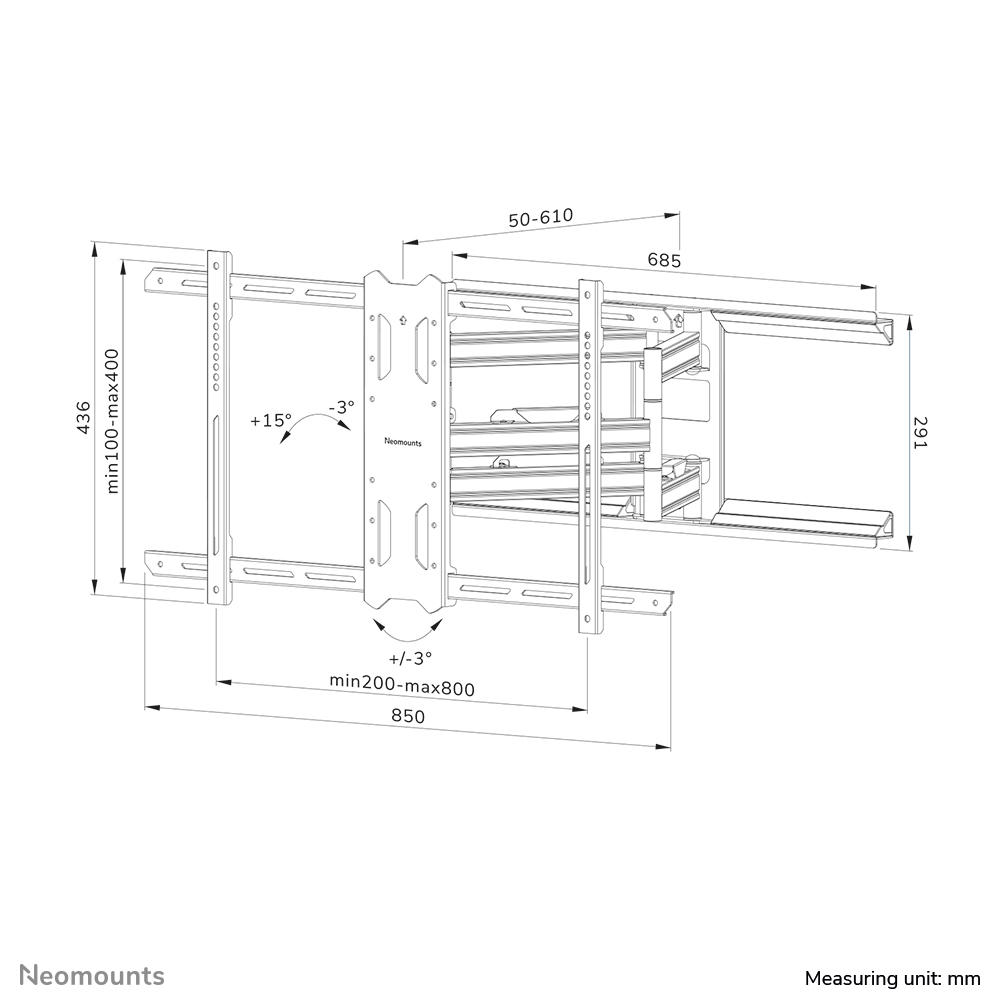

Weight & dimensions
Width
850 mm
Depth
50 mm
Height
436 mm
Depth (max)
5 cm
Weight
10.4 kg
Packaging data
Package width
882 mm
Package depth
311 mm
Package height
90 mm
Package weight
12.7 kg
Logistics data
Master (outer) case width
902 mm
Master (outer) case length
195 mm
Master (outer) case height
330 mm
Master (outer) case net weight
21 kg
Products per master (outer) case
2 pc(s)
Harmonized System (HS) code
85299097
Products per pallet (EU)
30 pc(s)
Master (outer) case gross weight
26.1 kg
Other features
