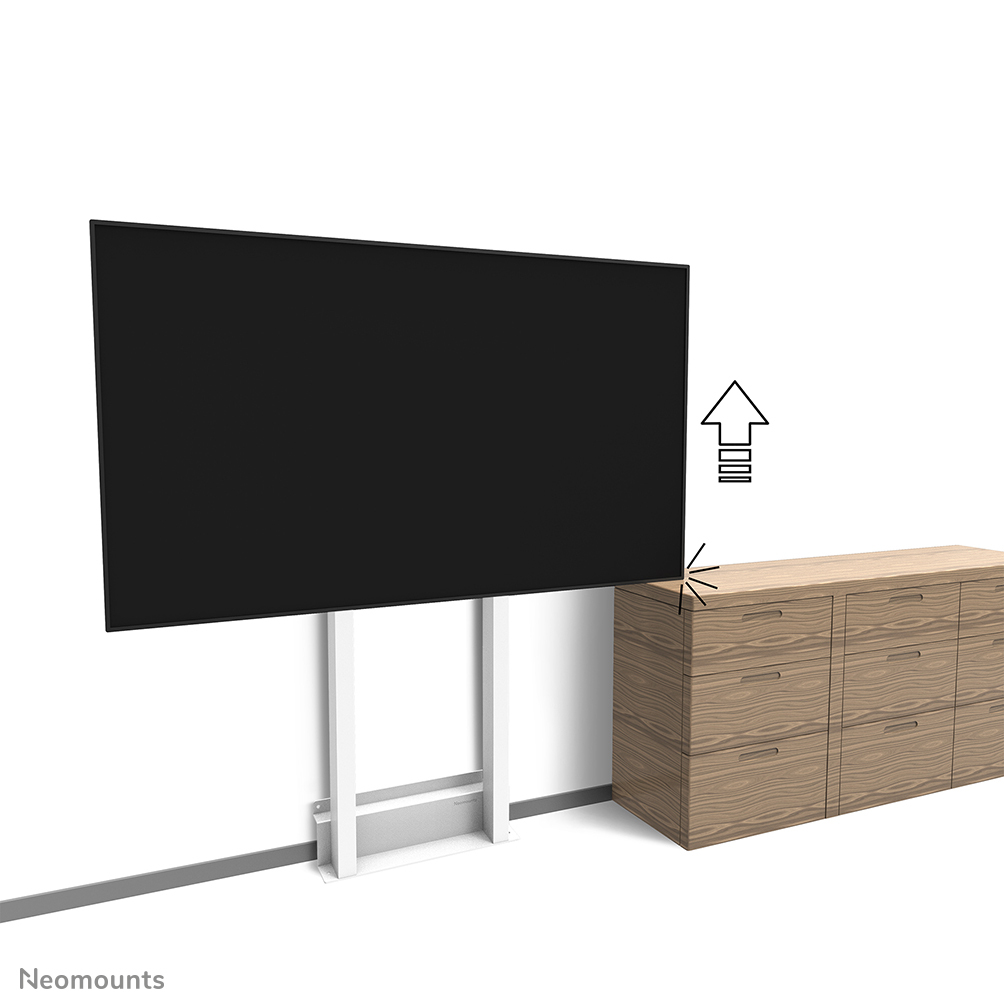

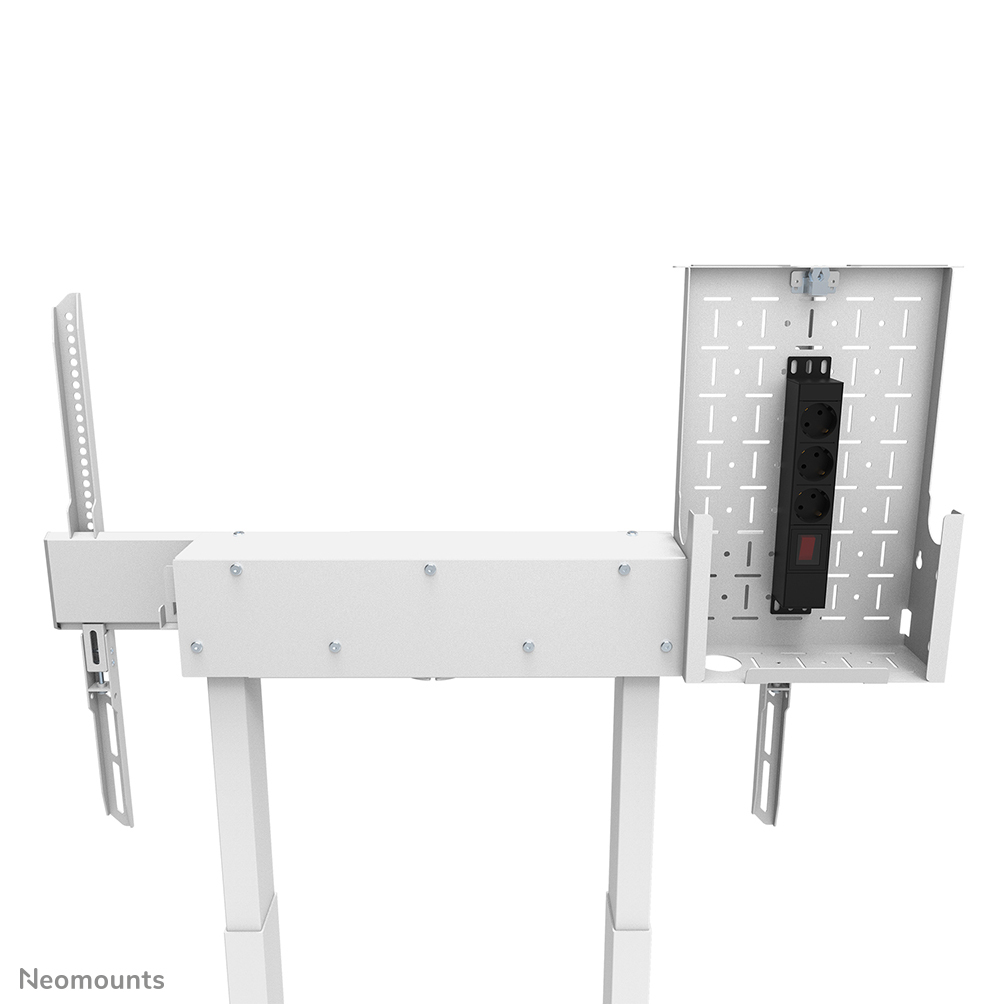

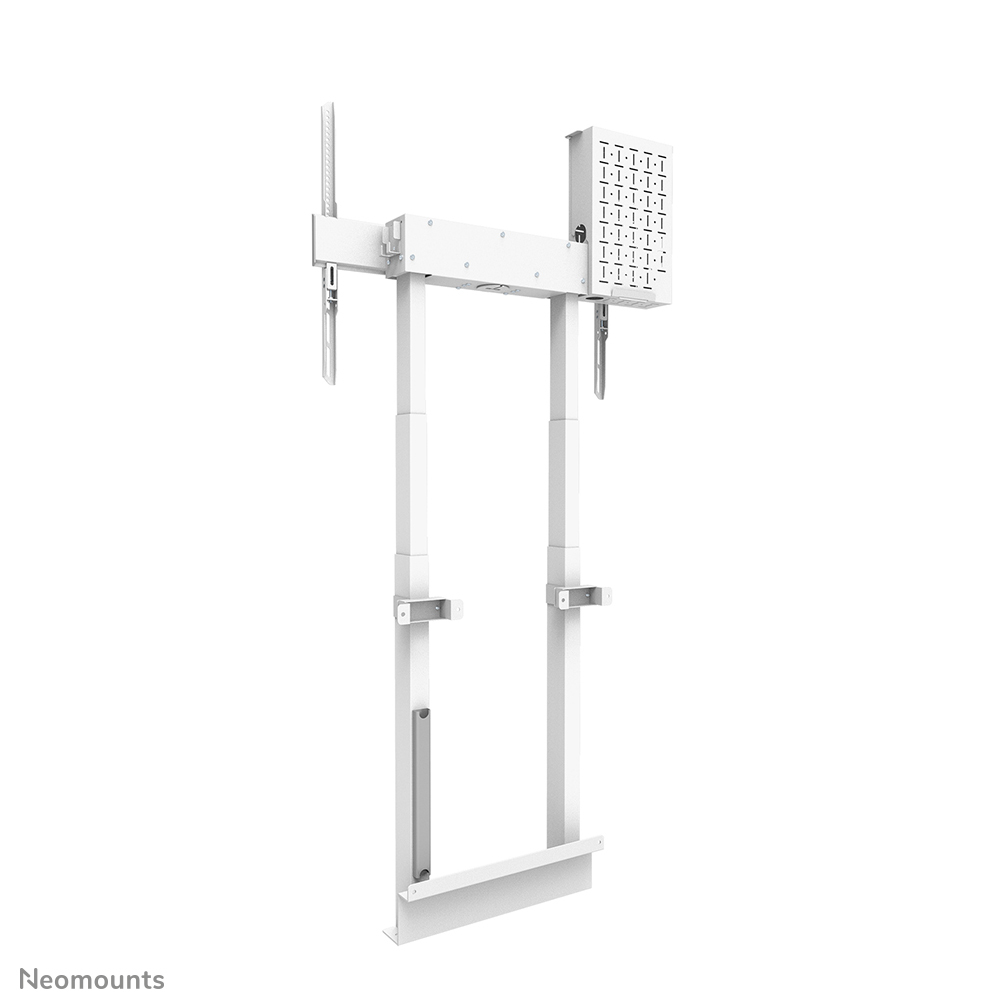

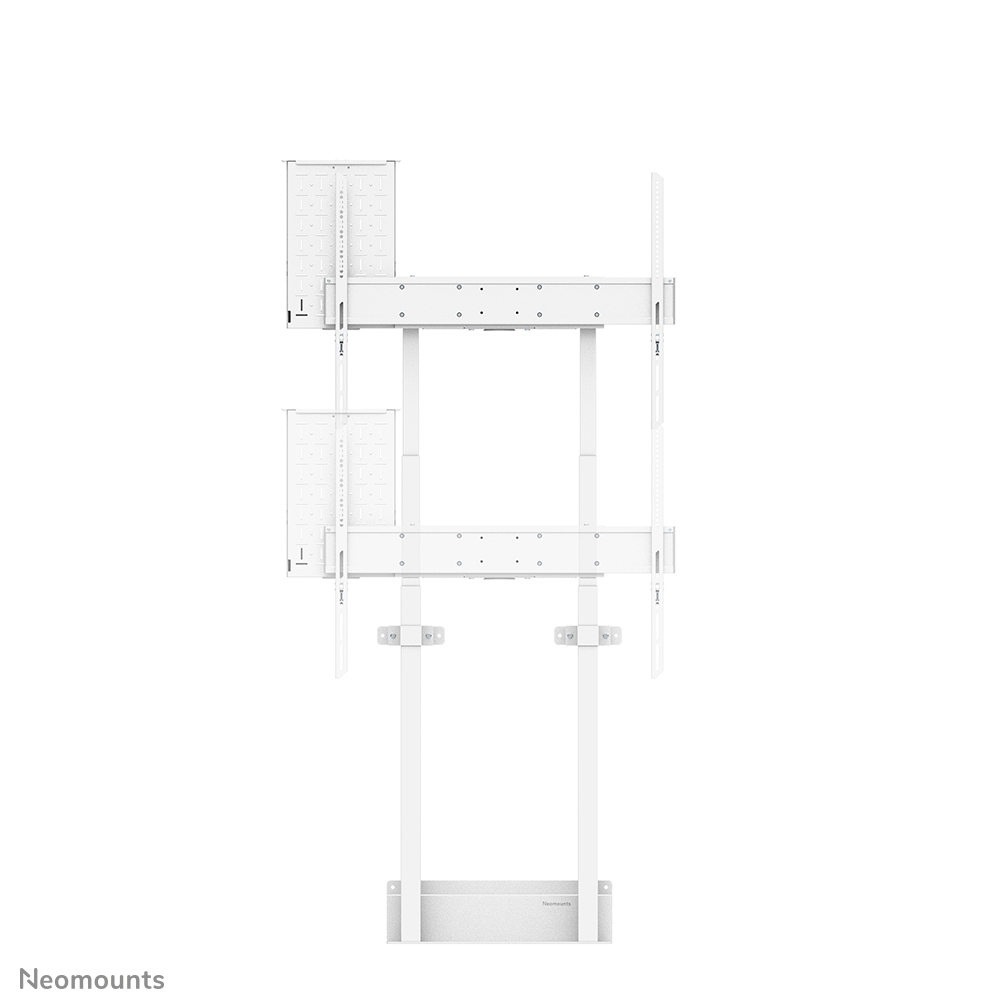

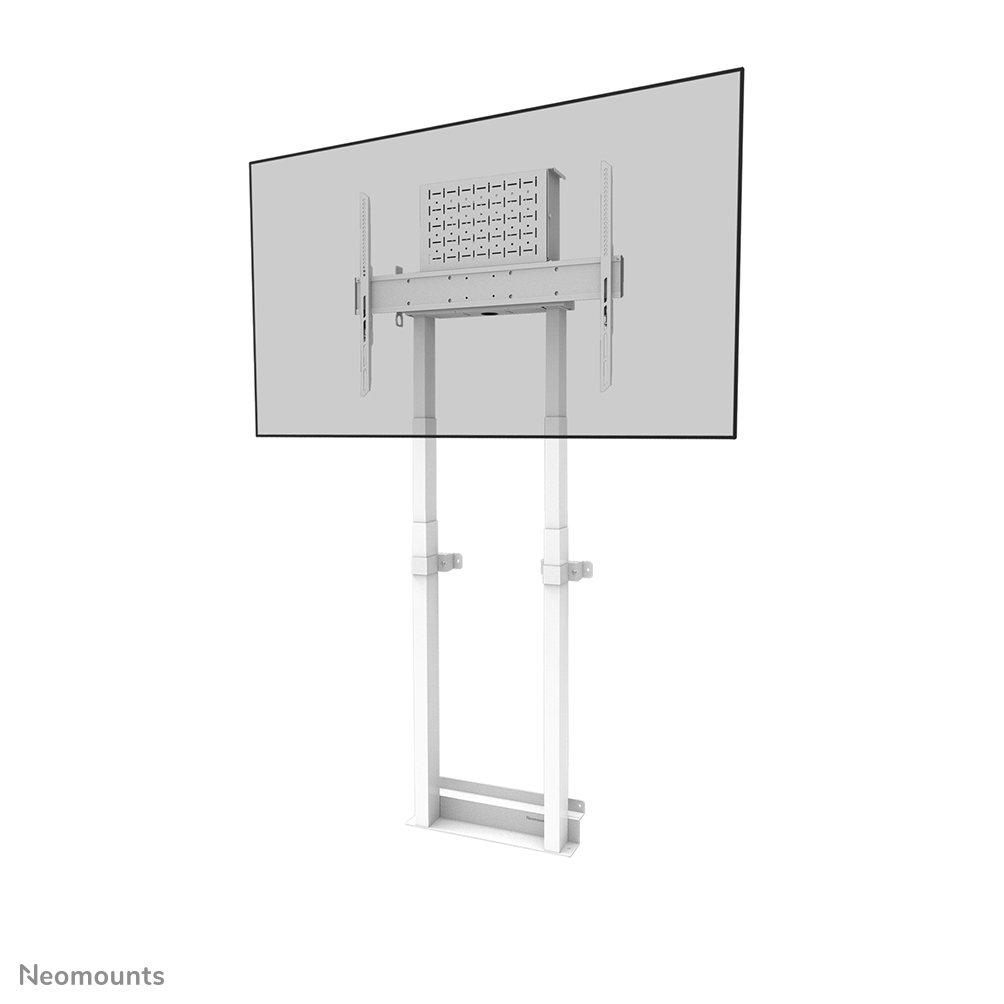

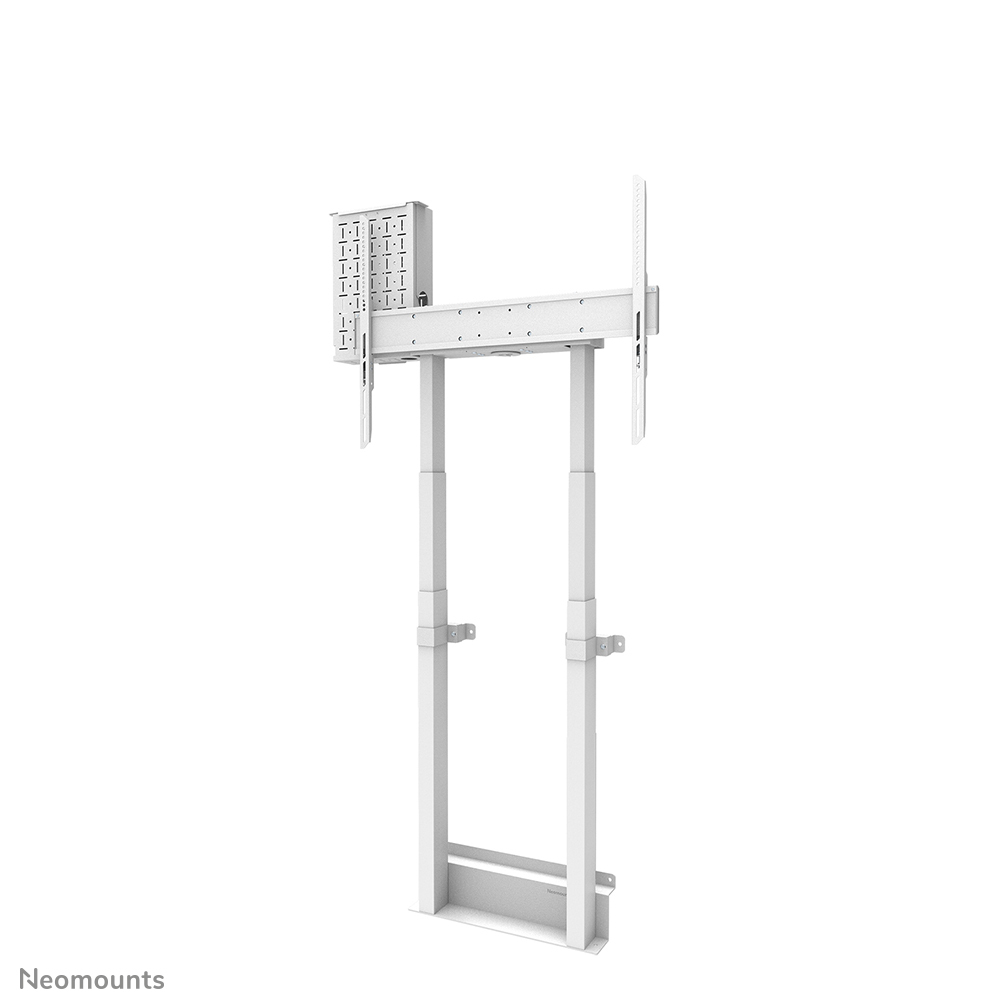

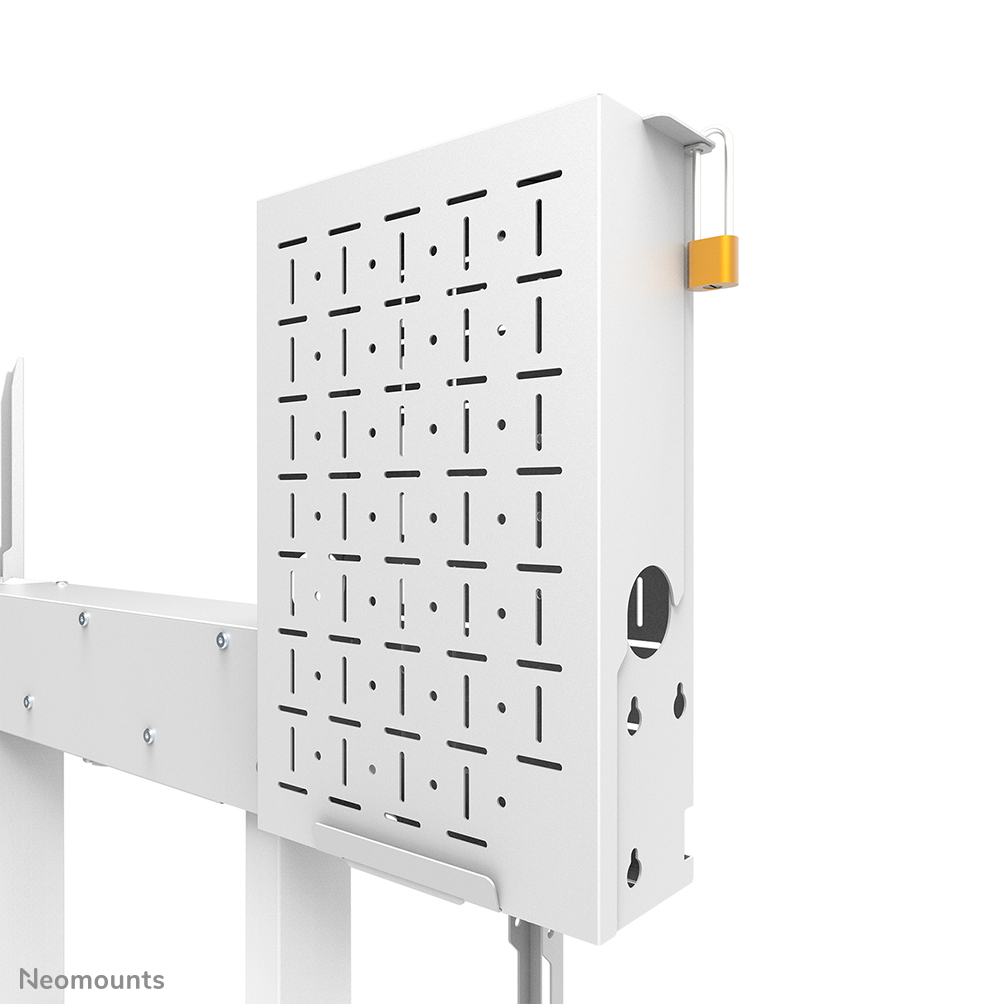

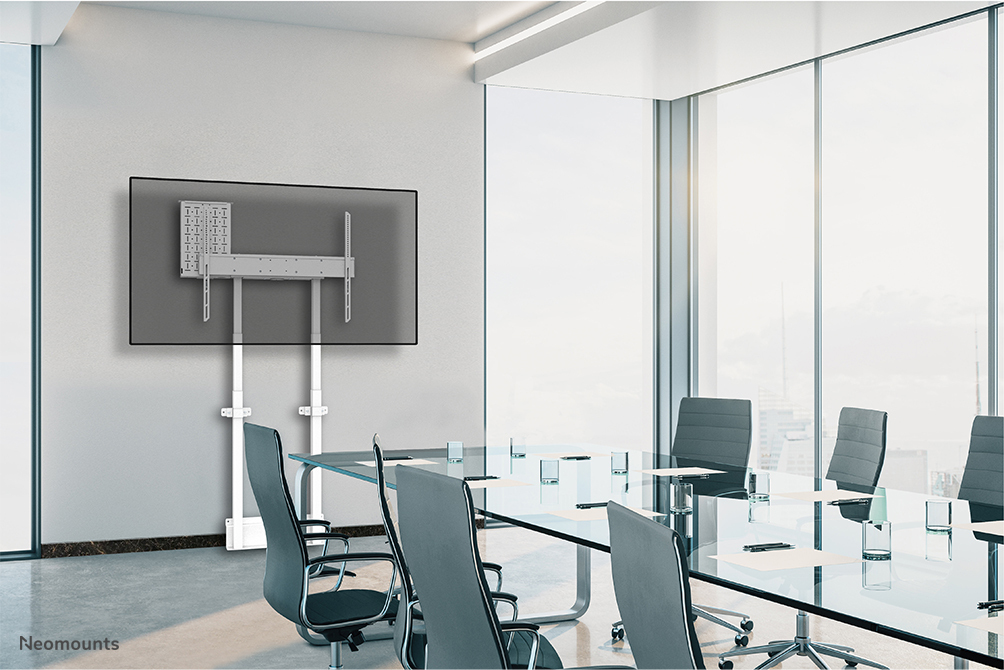

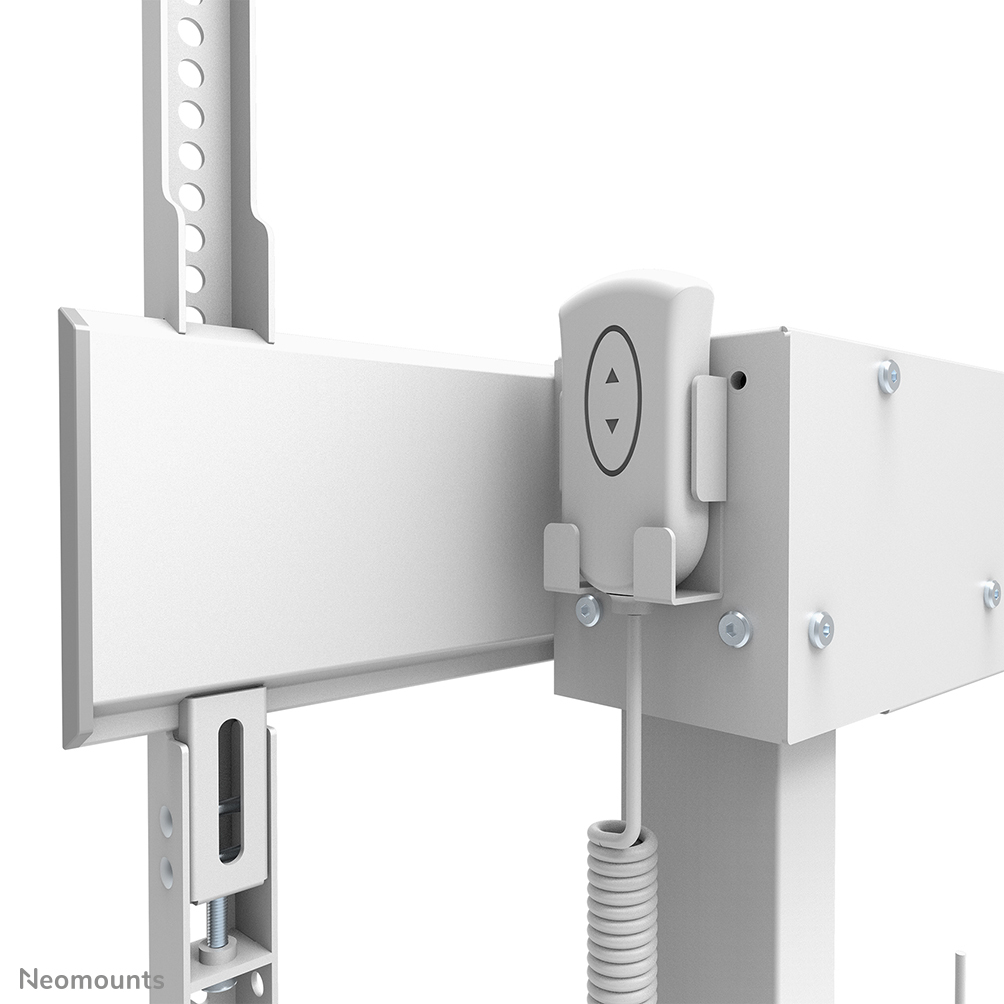

The Neomounts by Newstar WL55-875WH1 is a wall mount for displays up to 100" with a maximum weight capacity of 110 kg. The mount has 65 cm motorized height adjustment (35 mm/second), is operated with a wired remote control and features an anti-collision system for extra safety. A lockable, ventilated hardware compartment with cable opening is included and optional for installation.

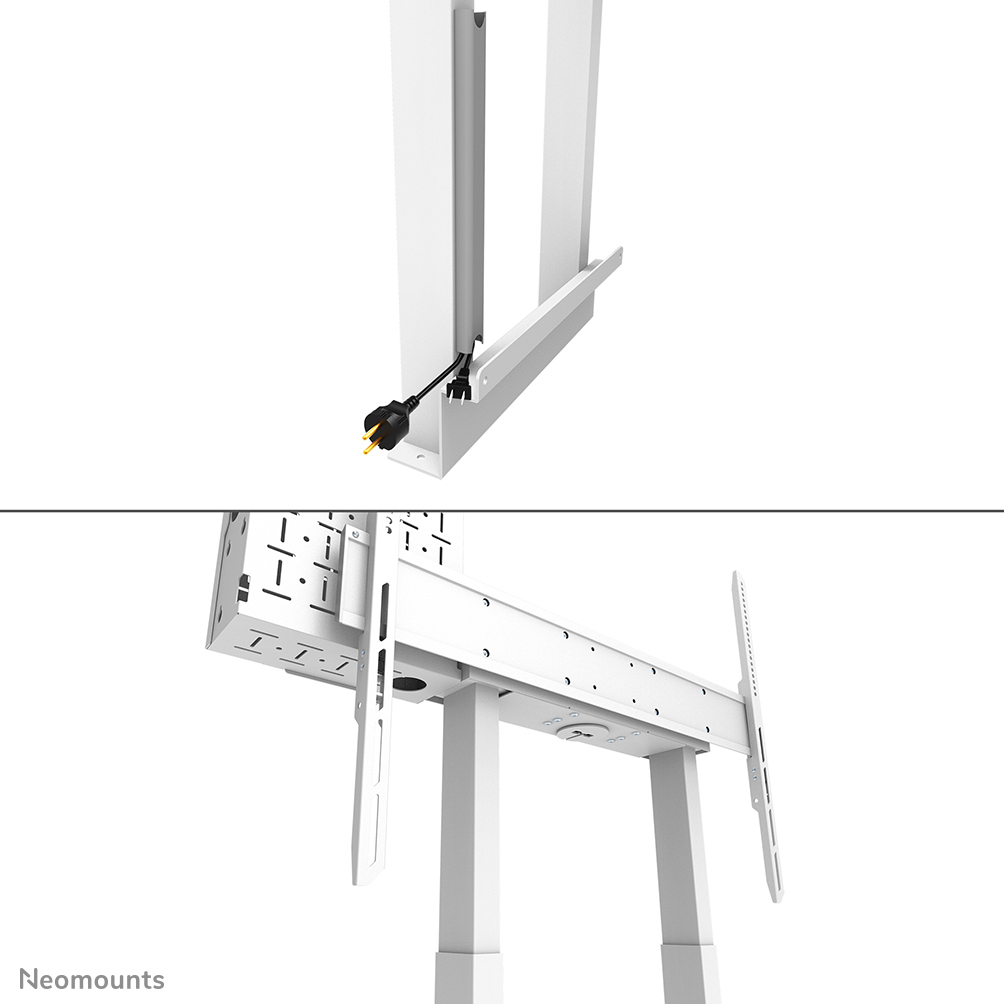

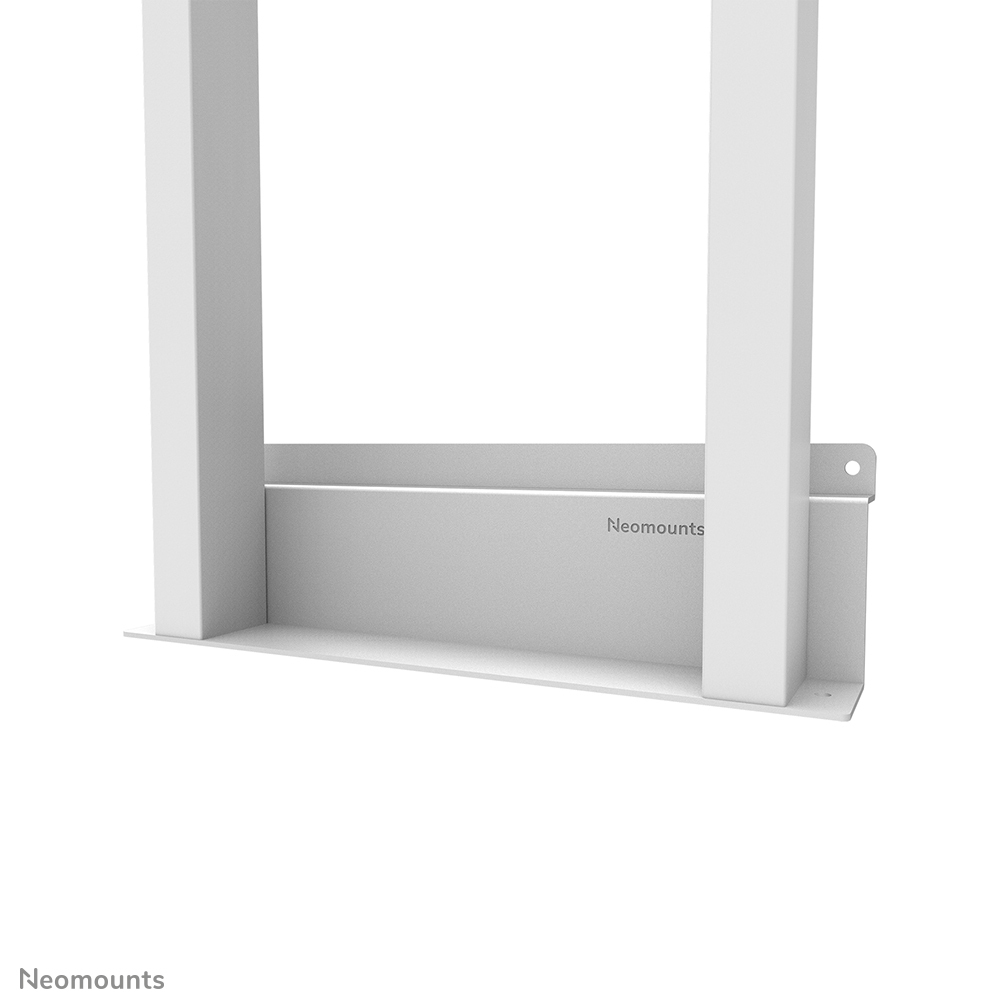

The floor plate of the mount, with space for floor baseboards, ensures solid and secure installation. The included cable duct, optional to install, conceal and route cables from wall mount to screen.

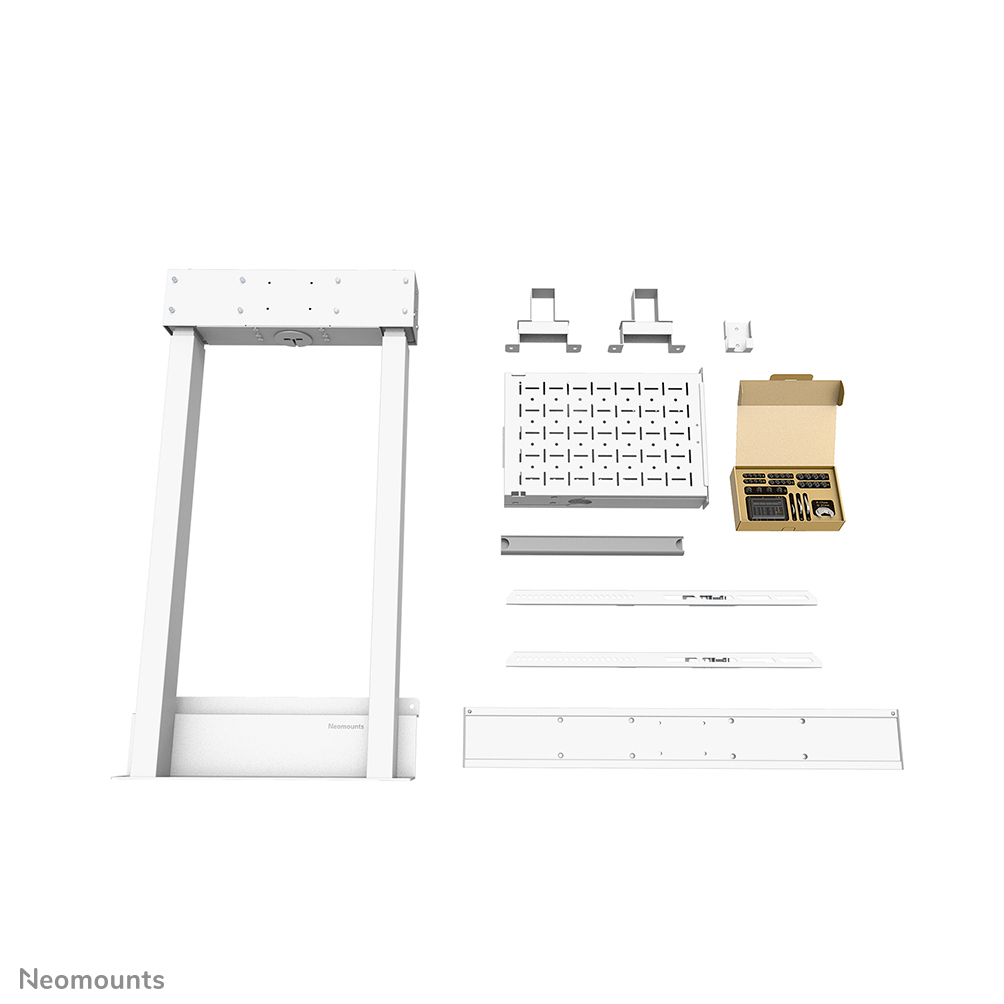

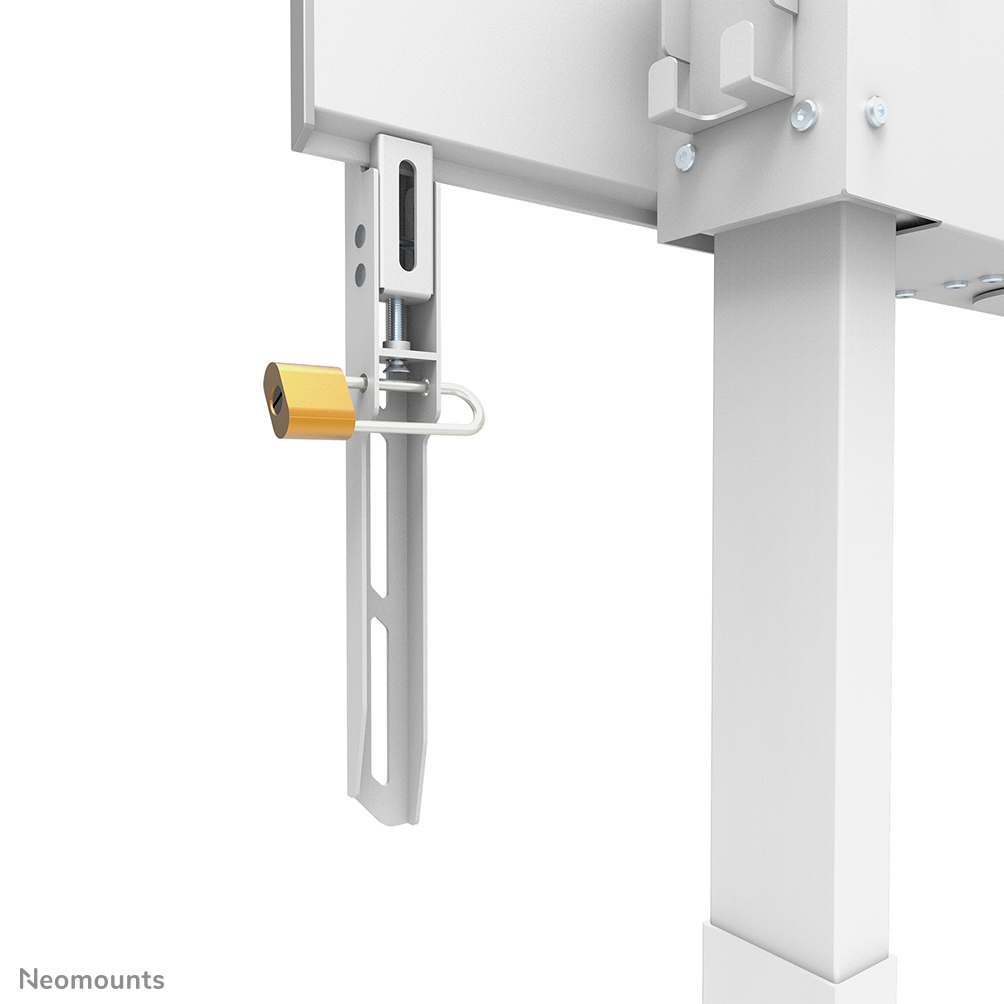

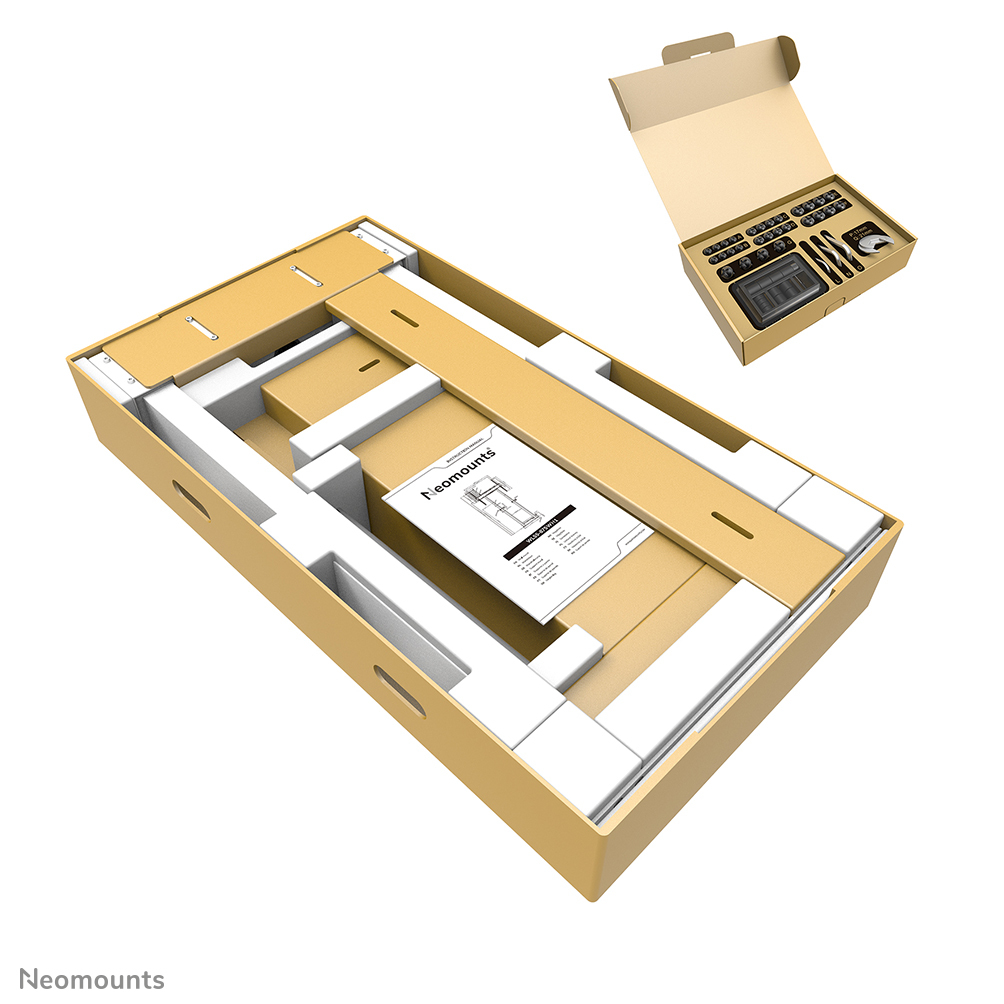

The wall mount is packed partially pre-assembled, to ensure fast and easy installation and can be locked using a padlock (not included). Additionally, the WL55-875WH1 is compactly packed for optimized transportation and storage.

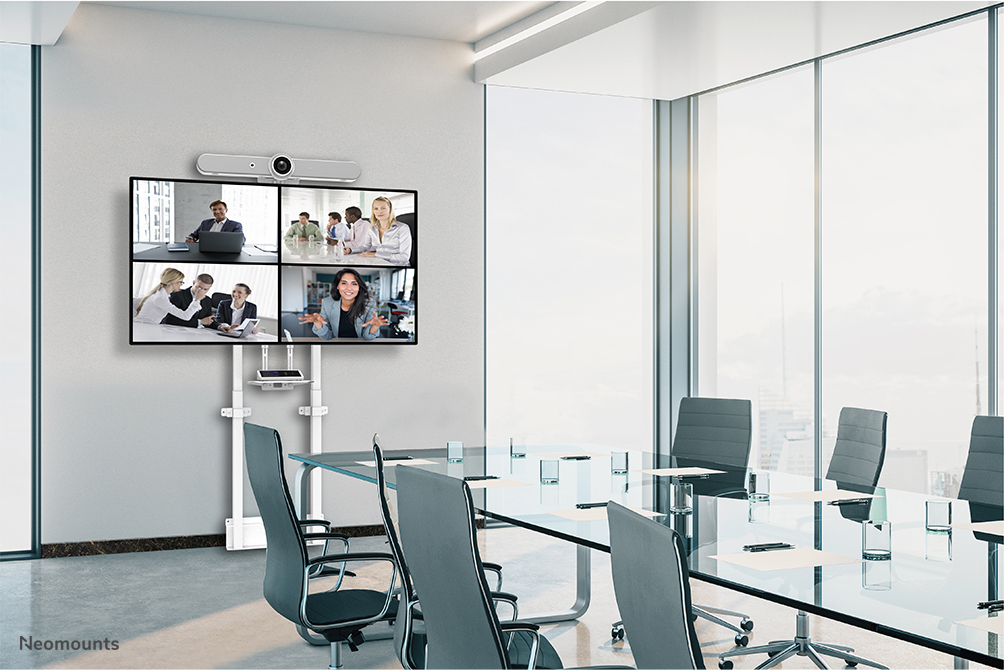

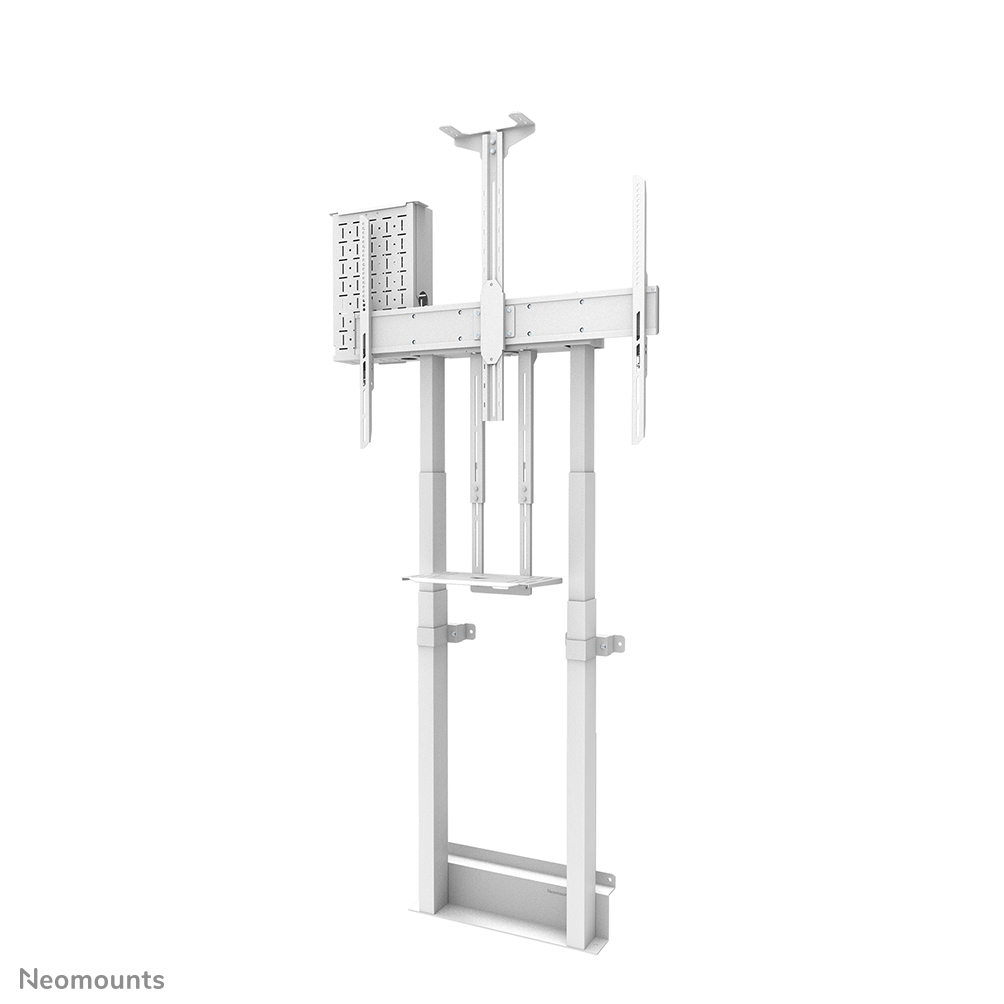

The AFL-875WH1 videobar & multimedia kit is optionally available and enables the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kit is an adapter for the Logitech Rally Bar (Mini). In addition, the multimedia shelf is suitable for installation of i.a. the Logitech Tap.
Maximum weight capacity
110 kg
Minimum screen size
139.7 cm (55")
Number of displays supported
1
Maximum weight capacity (per display)
110 kg
Maximum screen size
2.54 m (100")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
800 x 600 mm
Panel mounting interface
100 x 200,100 x 100,100 x 150,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600
Mounting type
Wall
Maximum weight capacity (per display)
110 kg
Minimum screen size
94 cm (37")
Maximum weight capacity
110 kg
Maximum screen size
2.54 m (100")
Mounting type
Wall
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
800 x 600 mm
Panel mounting interface
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 600,600 x 500,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600
Number of displays supported
1
Master (outer) case width
604 mm
Master (outer) case length
166 mm
Master (outer) case height
1104 mm
Master (outer) case gross weight
38 kg
Master (outer) case net weight
33.9 kg
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
9403109800
Products per pallet (EU)
9 pc(s)
Master (outer) case net weight
33.9 kg
Harmonized System (HS) code
HS7326909890
Products per pallet (EU)
9 pc(s)
Master (outer) case width
604 mm
Master (outer) case length
166 mm
Master (outer) case height
1104 mm
Products per master (outer) case
1 pc(s)
Quantity per master (outer) case
1 pc(s)
Master (outer) case gross weight
38 kg
