Introduction

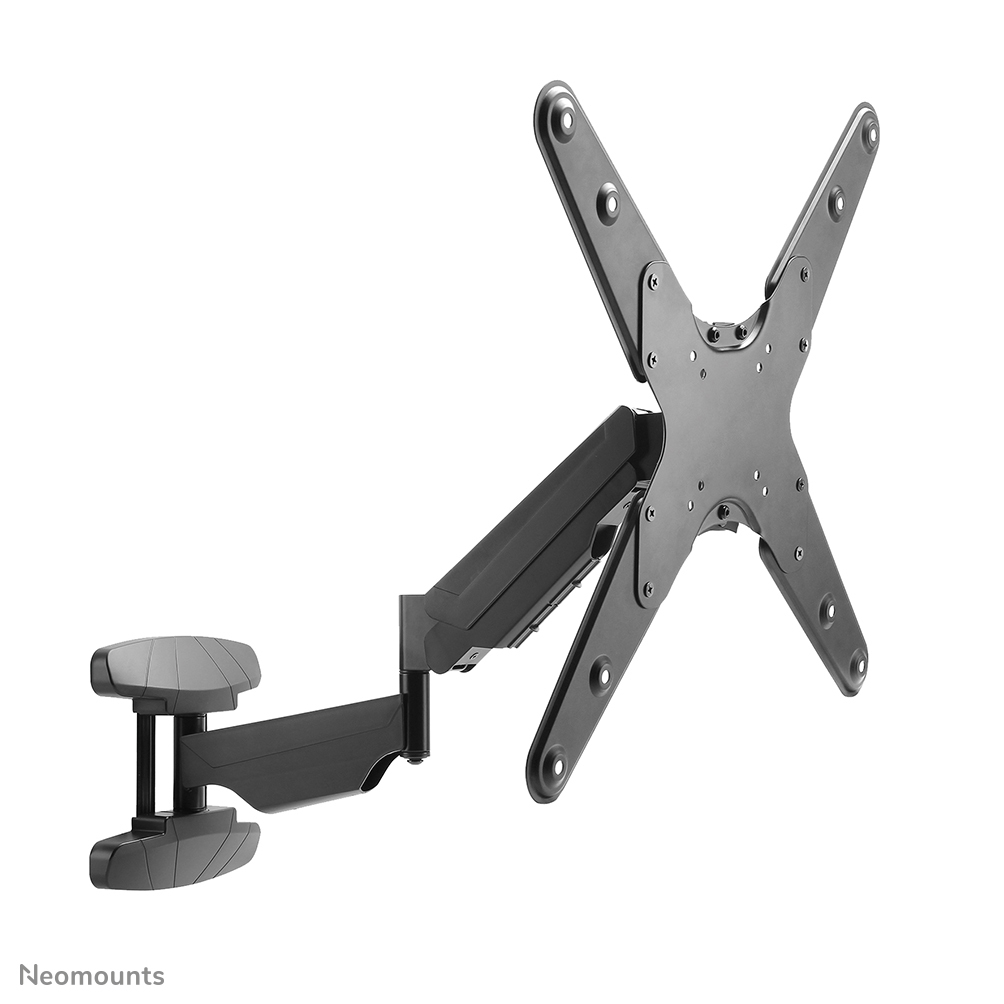

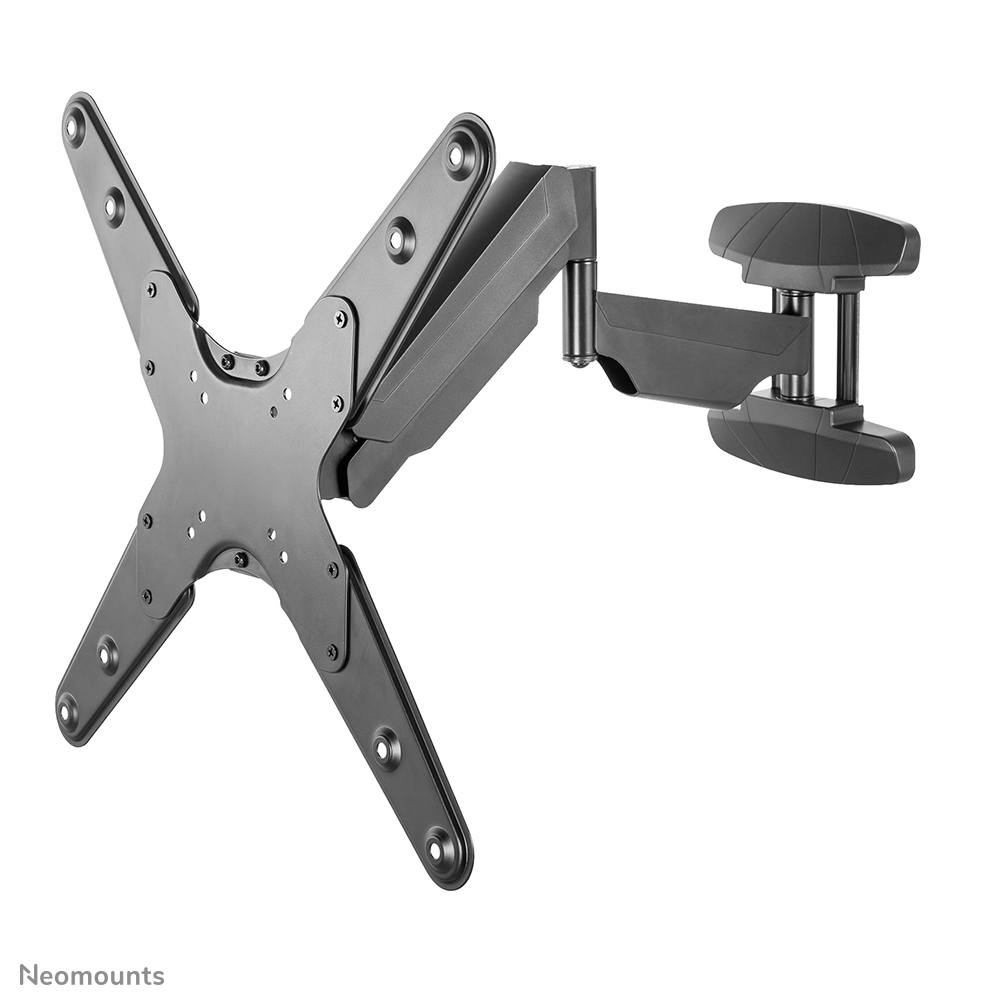

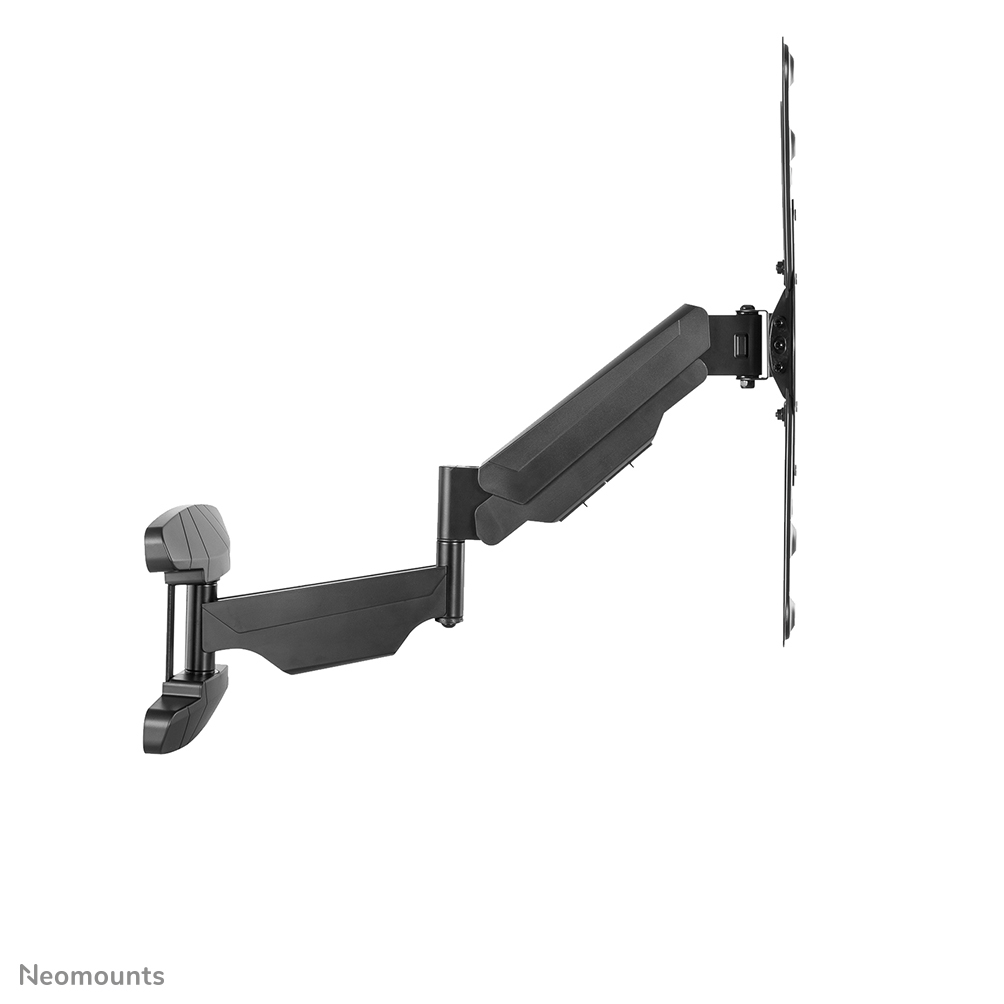

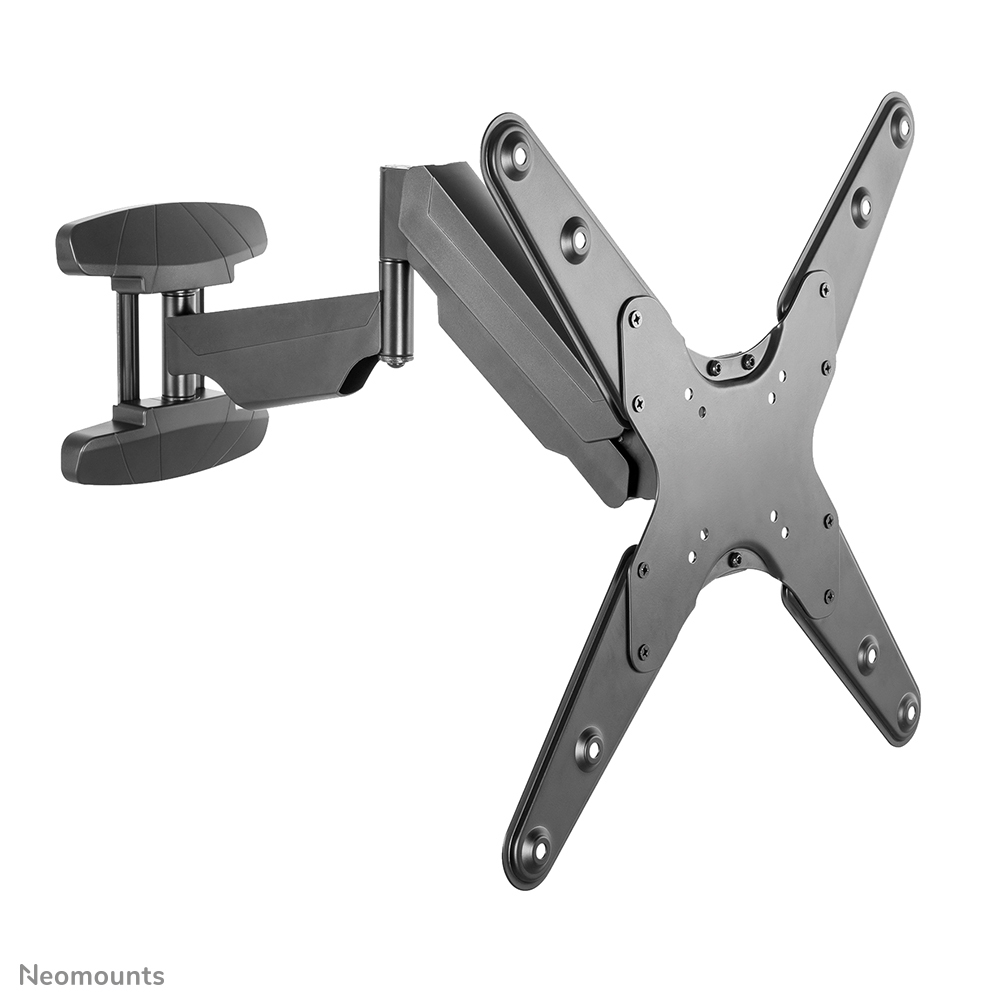

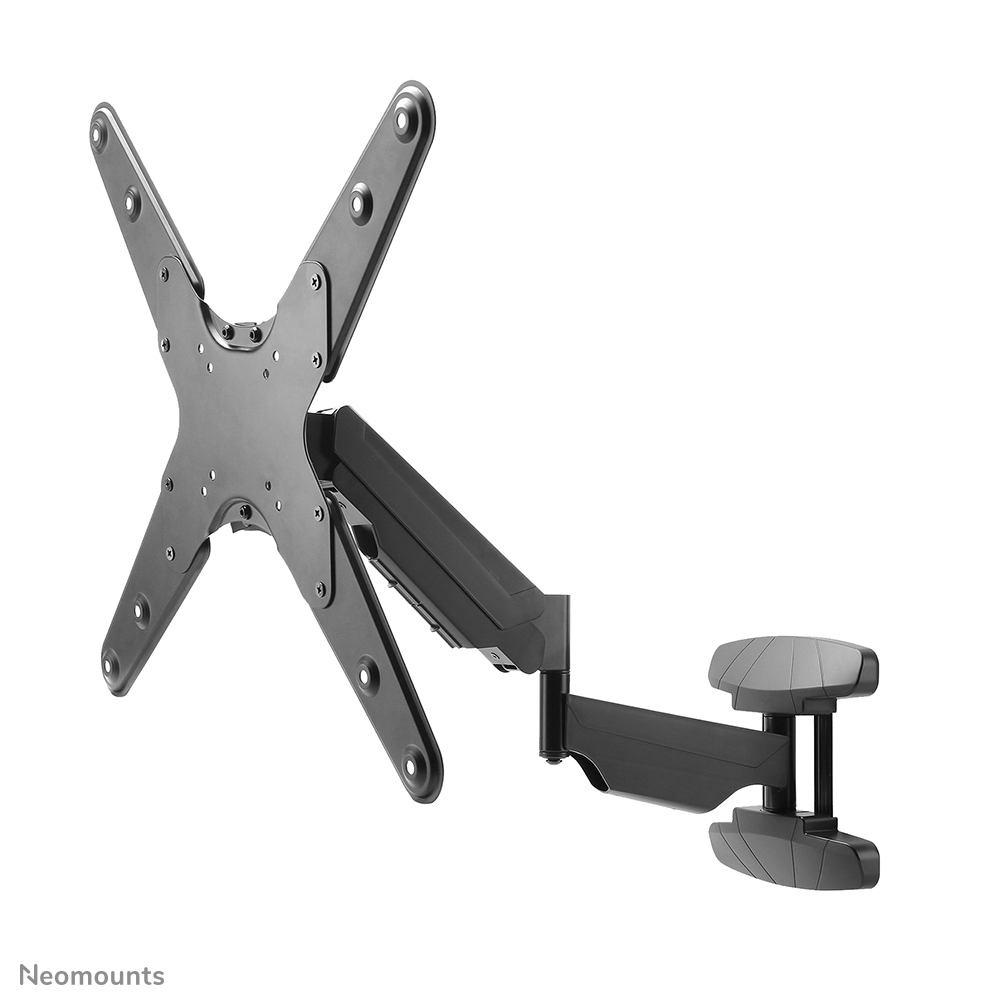

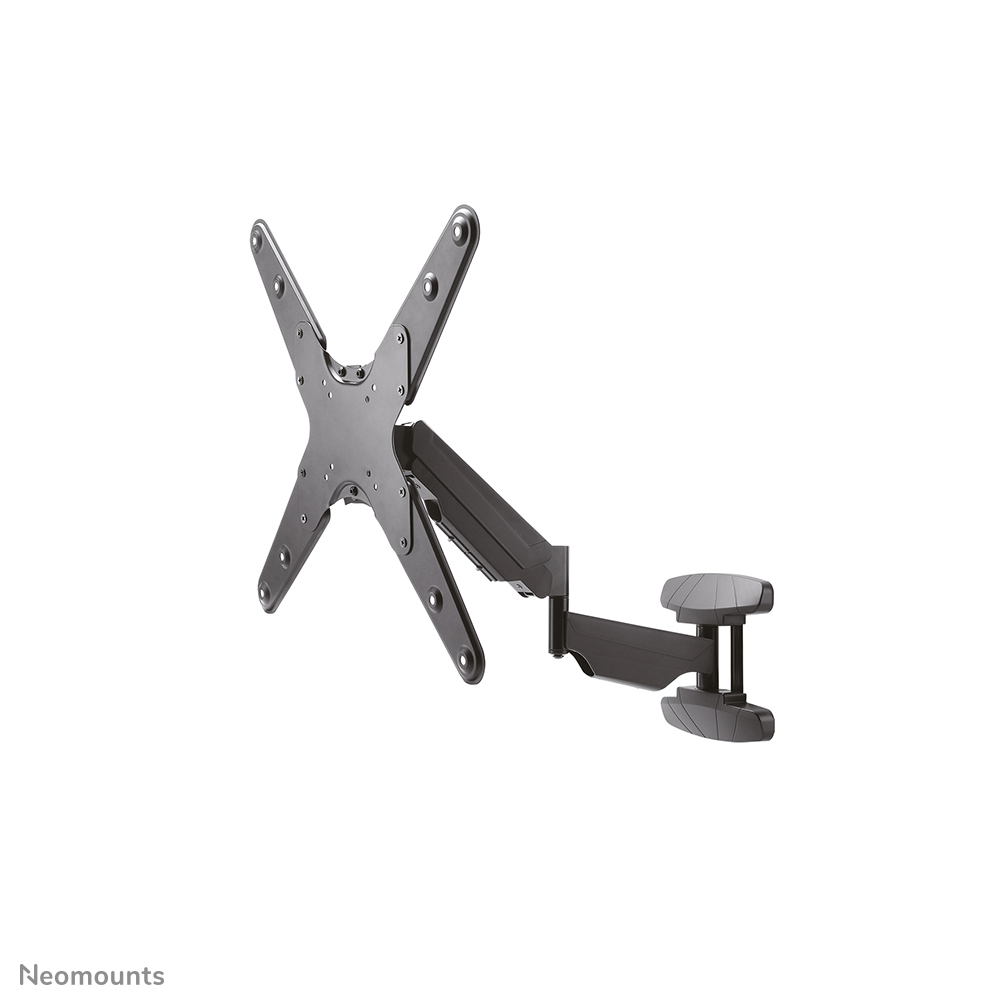

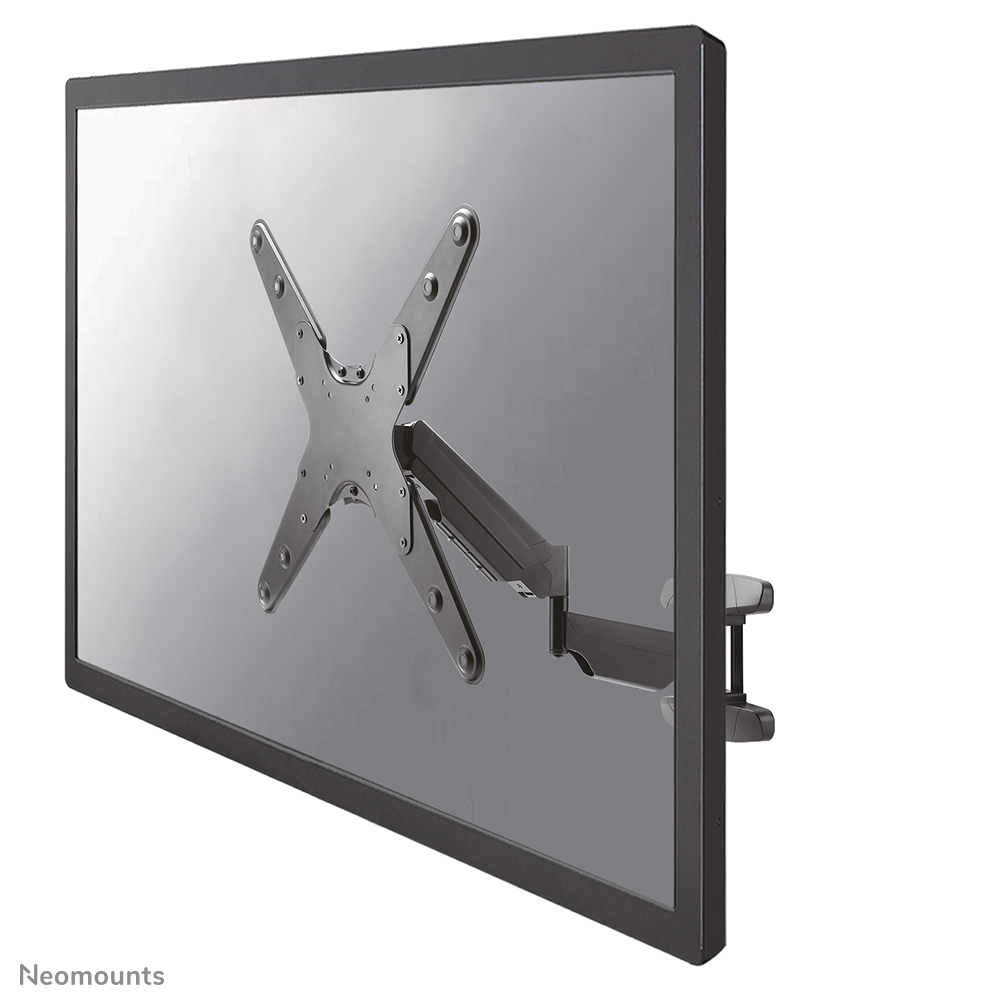

The Neomounts by Newstar WL70-550BL14 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

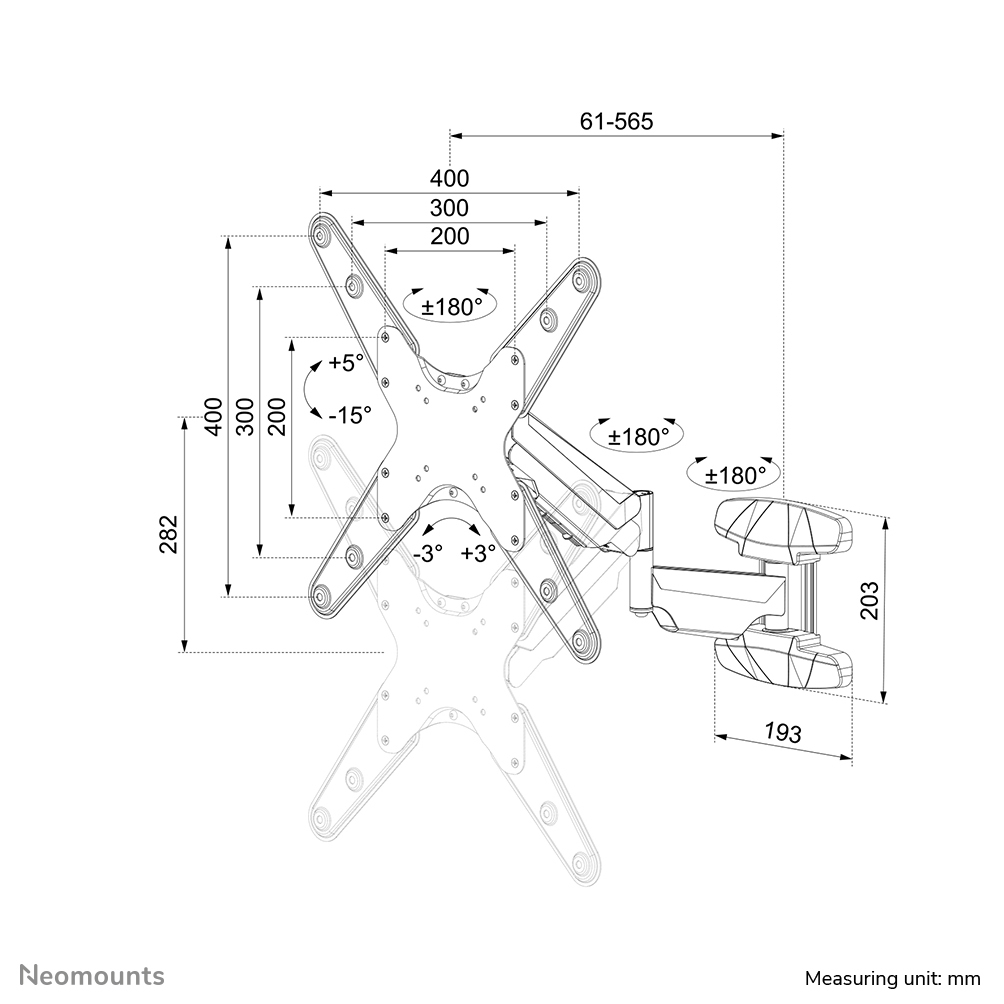

The WL70-550BL14 has a depth of 6,1-56,5 cm and is suitable for screens that meet VESA hole pattern 75x75 to 400x400 mm.

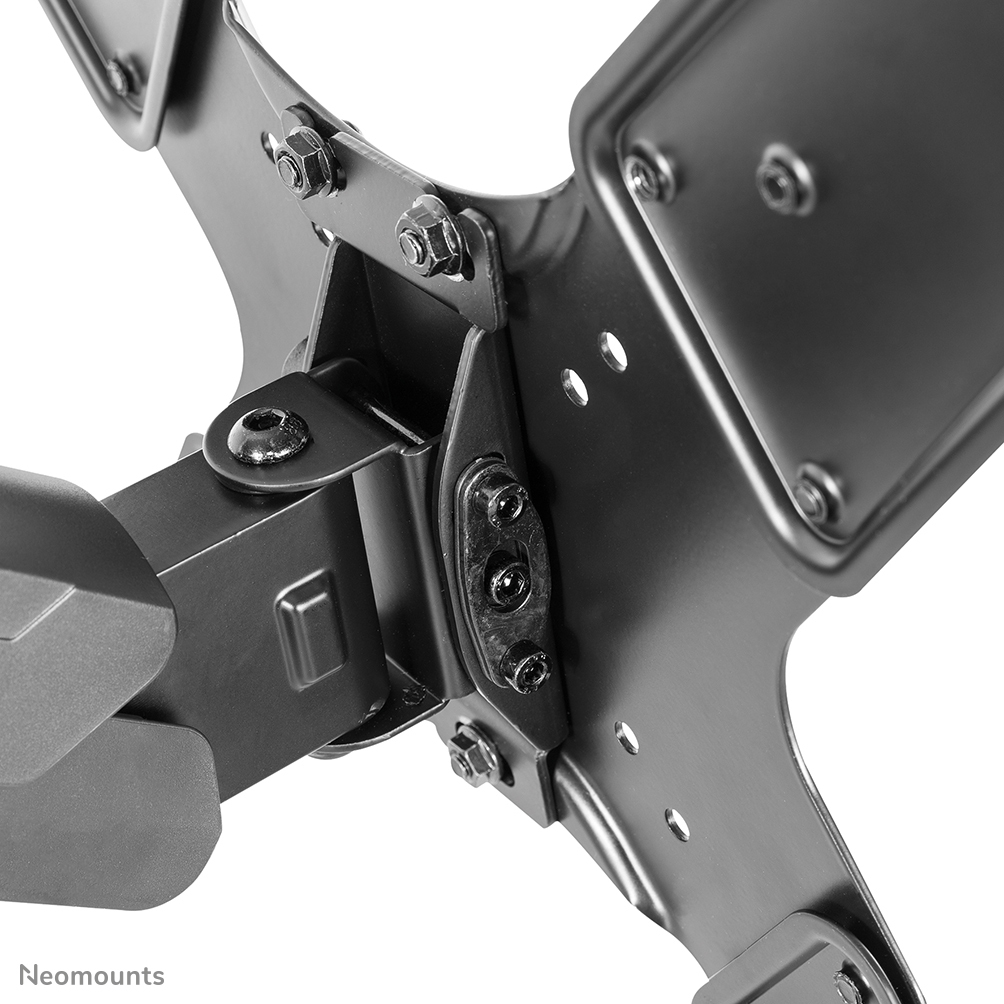

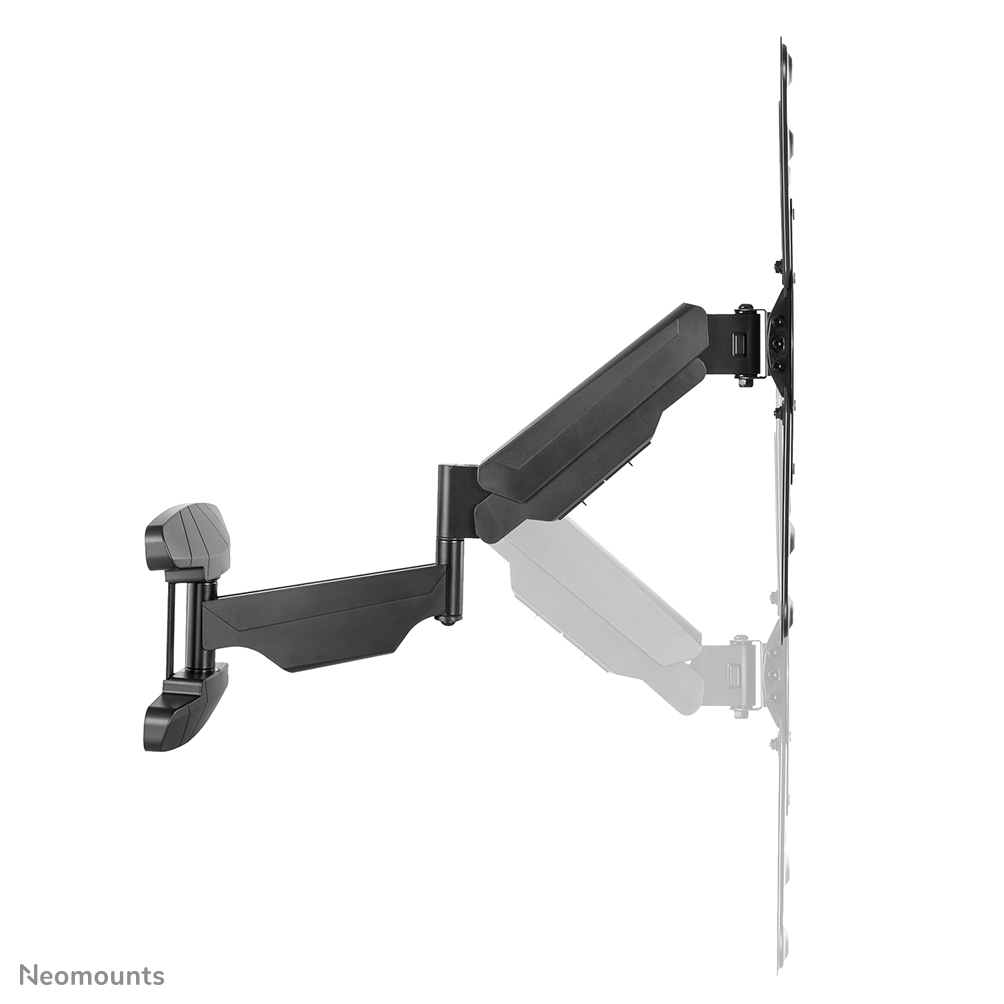

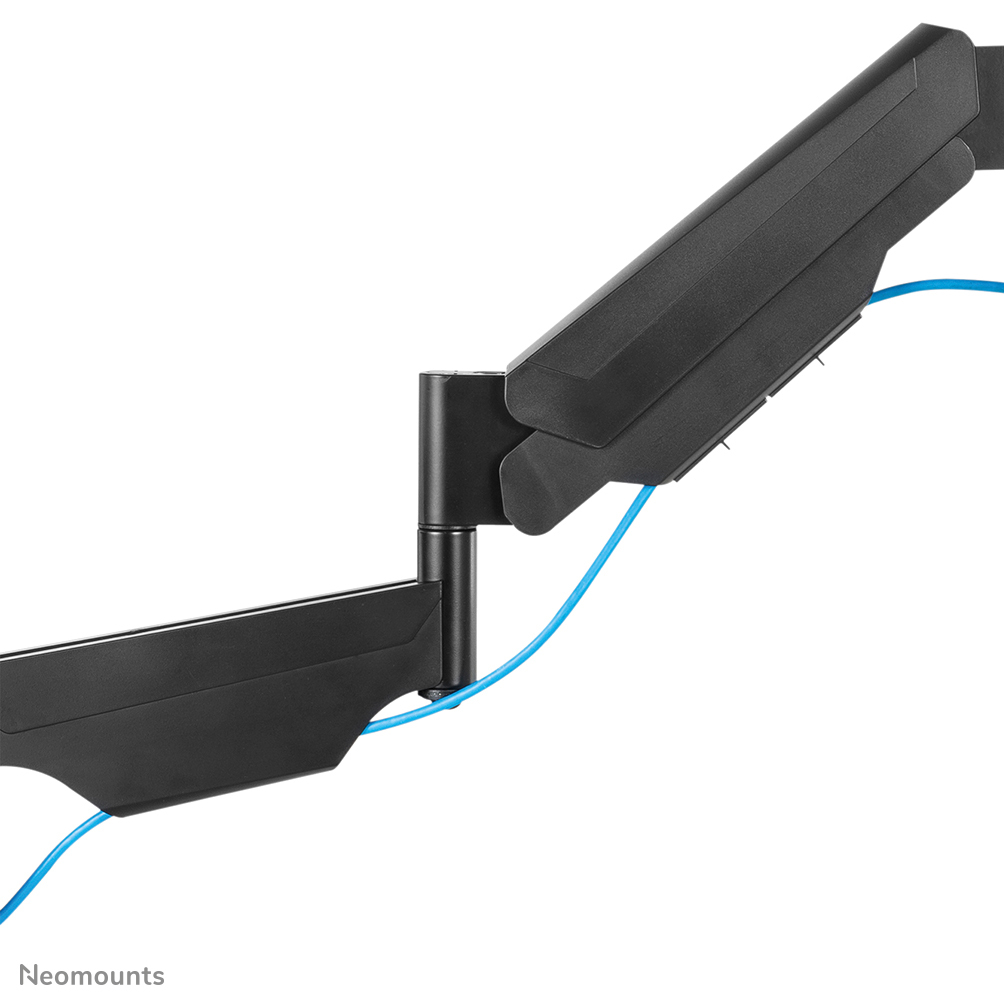

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
Mounting
Maximum weight capacity (per display)
30 kg
Maximum weight capacity
30 kg
Minimum screen size
81.3 cm (32")
Number of displays supported
1
Maximum weight capacity (per display)
30 kg
Maximum screen size
139.7 cm (55")
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
400 x 400 mm
Panel mounting interface
100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400,75 x 75
Mounting type
Wall
Minimum screen size
81.3 cm (32")
Maximum weight capacity
30 kg
Maximum screen size
139.7 cm (55")
Mounting
Screws
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
400 x 400 mm
Panel mounting interface
75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Number of displays supported
1
Mounting type
Wall
Distance to the wall (min)
6.1 cm
Distance to the wall (max)
56.5 cm
Ergonomics
Pivot angle
-3 - 3°
Height adjustment
Yes
Height adjustment type
Gas spring
Height adjustment range
45 - 327 mm
Tilt adjustment
Yes
Tilt angle range
-15 - 5°
Swivelling
Yes
Swivel angle
180°
Rotating
Yes
Angle of rotation
6°
Pivot angle
-3 - 3°
Cable management
Yes
Distance to the wall (max)
56.5 cm
Distance to the wall (min)
6.1 cm
Height adjustment
Y
Height adjustment type
Gas spring
Height adjustment range
0 - 282 mm
Tiltable
Y
Tilt angle range
-15 - 5°
Swivel angle
180°
Angle of rotation
3°
Cable management
Y
Swivel angle range
0 - 180°
Swivelling
Yes
Rotating
Yes
Design
Product colour
Black
Housing material
Steel
Product colour
Black
Housing material
Steel
Weight & dimensions
Width
450 mm
Depth
565 mm
Height
450 mm
Package width
365 mm
Package depth
505 mm
Package height
75 mm
Package net weight
5.5 kg
Width
450 mm
Depth
565 mm
Depth (max)
56.5 cm
Height
450 mm
Weight
4.53 kg
Weight
4.53 kg
Packaging data
Quantity per pack
1 pc(s)
Package width
365 mm
Package depth
505 mm
Package height
75 mm
Package weight
5.5 kg
Package weight
5.5 kg
Logistics data
Master (outer) case width
380 mm
Master (outer) case length
520 mm
Master (outer) case height
345 mm
Products per master (outer) case
3 pc(s)
Master (outer) case net weight
13.8 kg
Harmonized System (HS) code
85299097
Products per pallet (EU)
72 pc(s)
Master (outer) case width
380 mm
Master (outer) case length
520 mm
Master (outer) case height
345 mm
Master (outer) case gross weight
17.5 kg
Master (outer) case net weight
13.8 kg
Products per master (outer) case
3 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
72 pc(s)
Master (outer) case gross weight
17.5 kg
Other features
Country of origin
China
Mounting
Screws
Minimum weight
5 kg
Minimum weight
5 kg
Technical details
Country of origin
China
Package net weight
5.5 kg
Quantity per pack
1 pc(s)
Information
| Part Number: | WL70-550BL14 |
