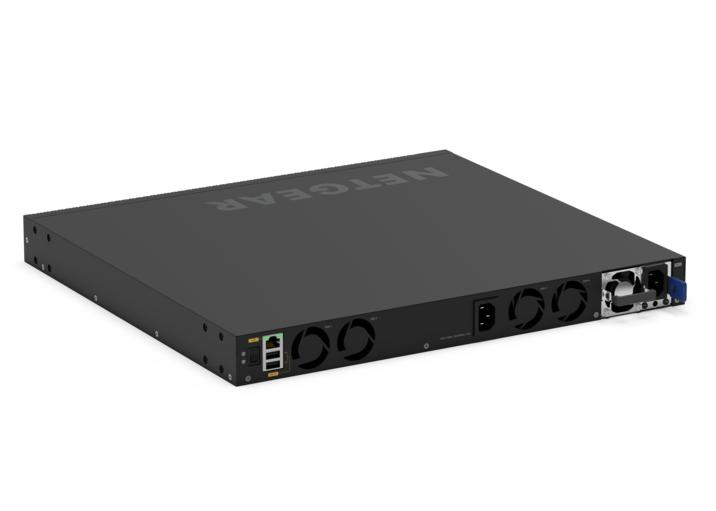

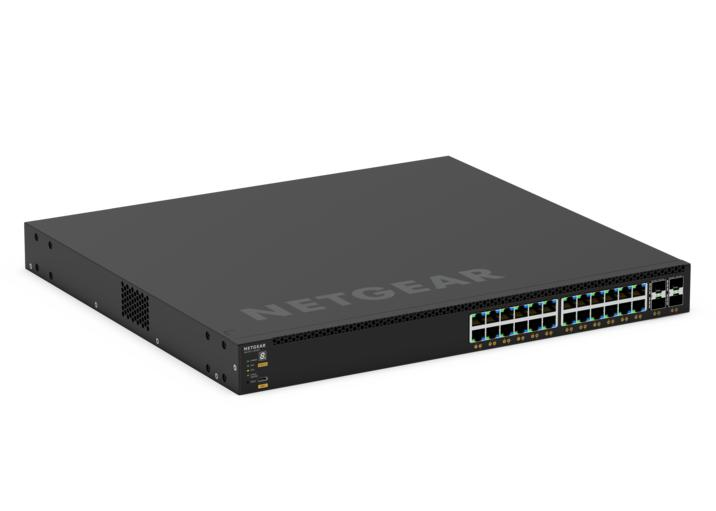

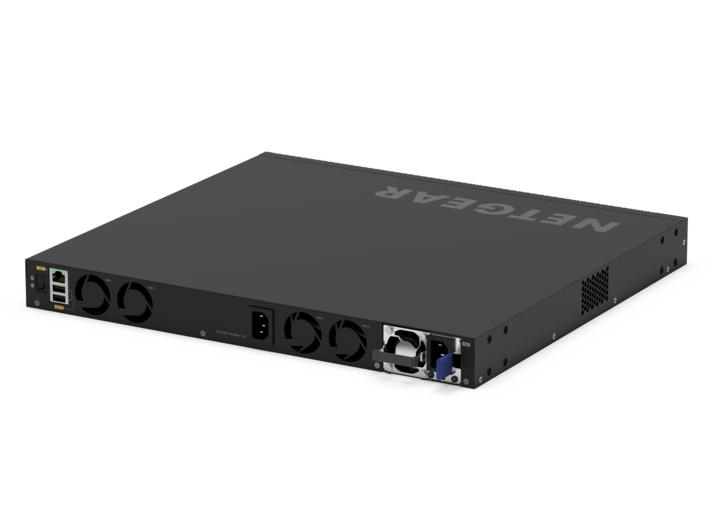

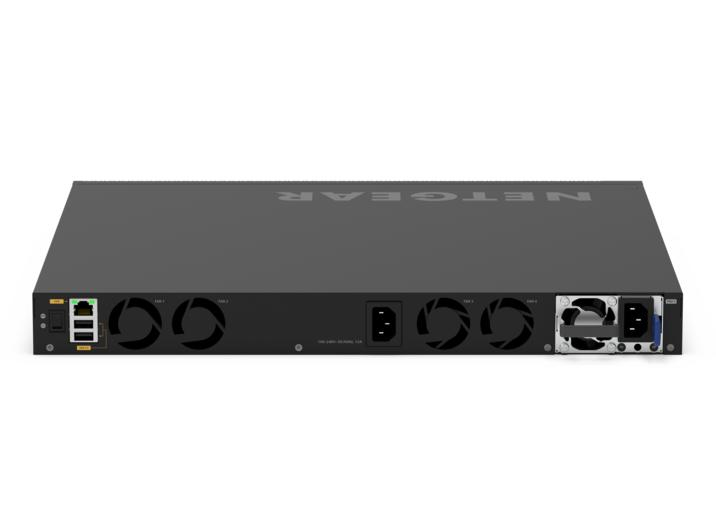

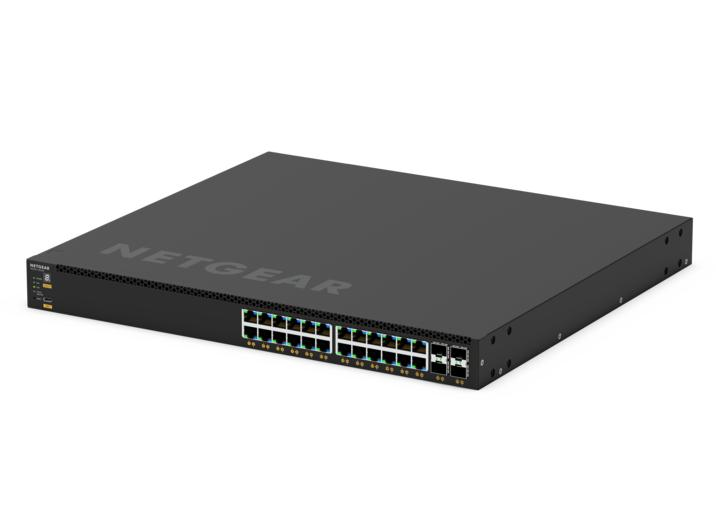

NETGEAR GSM4328 - M4350-24G4XF Fully Managed Switch with 24x1G PoE+ (648W Base, up to 720W) and 4xSFP+

NETGEAR GSM4328 - M4350-24G4XF Fully Managed Switch with 24x1G PoE+ (648W Base, up to 720W) and 4xSFP+

£2,593.07 (incl. VAT)

Qty:

Add to basket

Part Number:	GSM4328-100NES
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY
CONFIGURATION
FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Management features

Switch type Managed

Switch layer L3

Quality of Service (QoS) support Yes

Web-based management Yes

Traffic shaping Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity 4

Network

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

10G support Yes

VLAN support Yes

Number of VLANs 4093

Data transmission

Switching capacity 128 Gbit/s

Throughput 95.23 Mpps

MAC address table 16000 entries

Packet buffer memory 16 MB

Security

DHCP features DHCP server, DHCP snooping, DHCPv6 snooping

Design

Rack mounting Yes

Stackable Yes

Form factor 1U

Product colour Black

Performance

Noise level 52 dB

Power

Power source AC

Power supply included Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 24

Power over Ethernet (PoE) power per port 30 W

Total Power over Ethernet (PoE) budget 648 W

Operational conditions

Operating temperature (T-T) 0 - 45 °C

Storage temperature (T-T) -20 - 70 °C

Weight & dimensions

Width 440 mm

Depth 400 mm

Height 43.2 mm

Weight 6.41 kg

Information

Part Number:

GSM4328-100NES
