Introduction

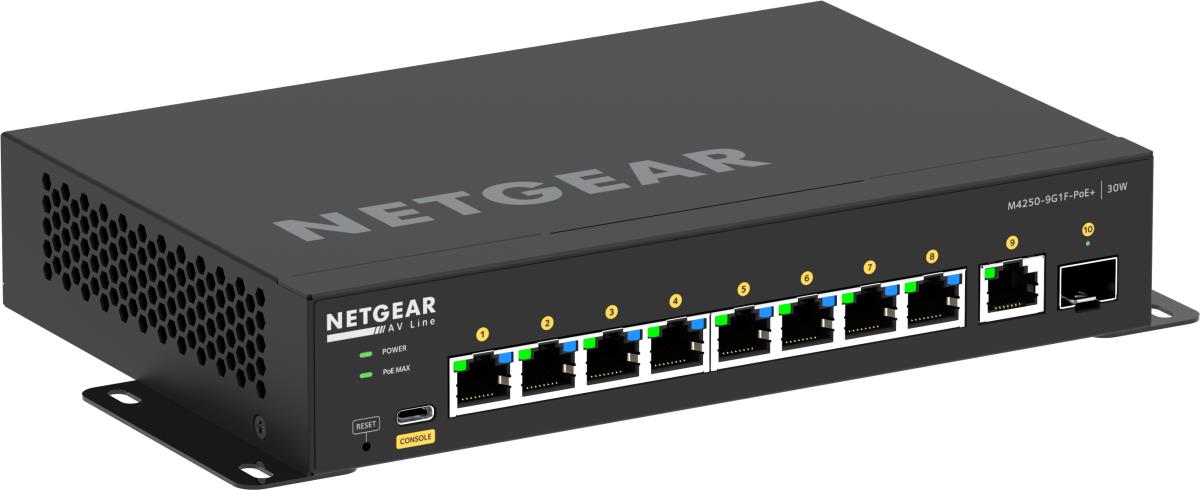

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster

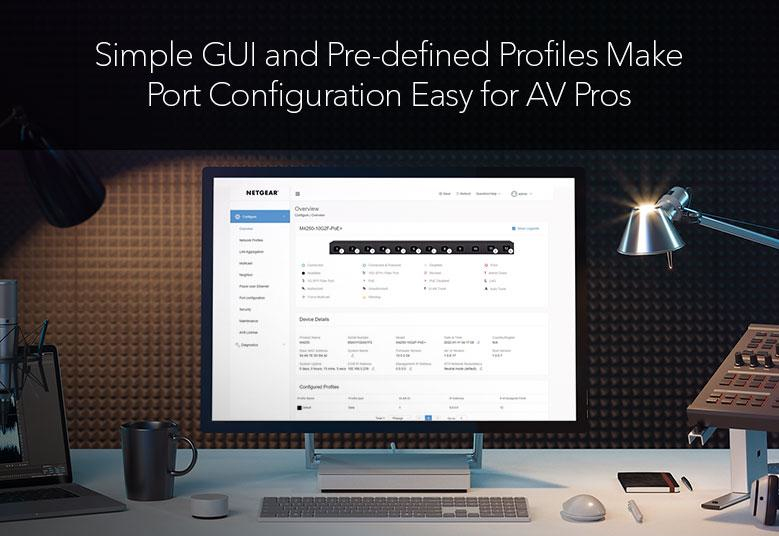

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

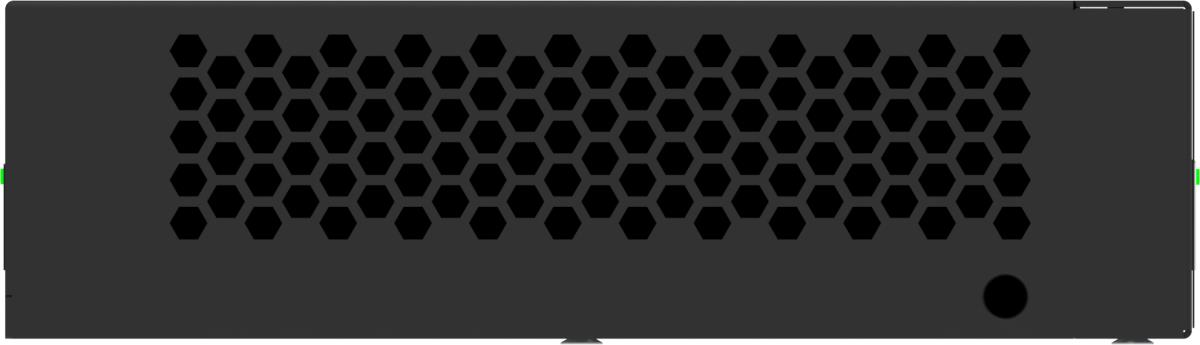

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes

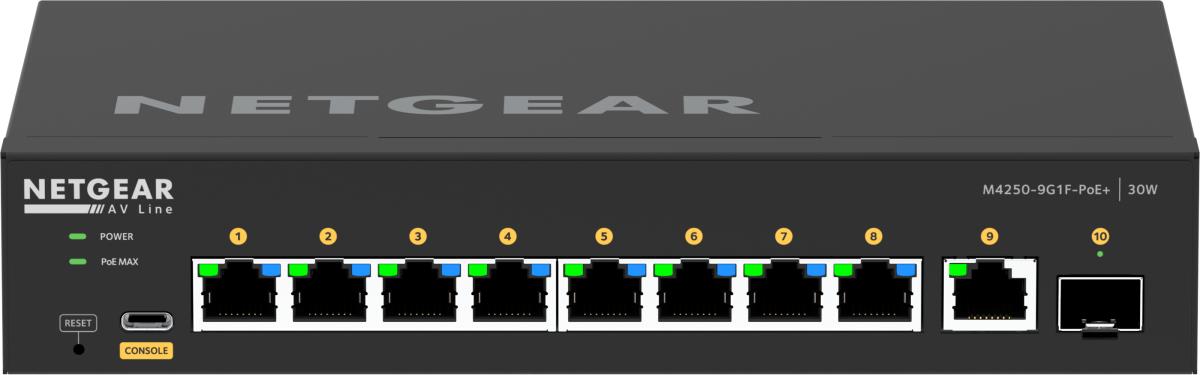

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Data transmission
Switching capacity
24 Gbit/s
MAC address table
16000 entries
Store-and-forward
Yes
Security
DHCP features
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication
Authentication type
RADIUS
Multicast features
Multicast support
Yes
IPv4 multicast entries
2000
Design
Rack mounting
Yes
Product colour
Black
LED indicators
PoE, Power, Status
Performance
Built-in processor
Yes
Processor model
ARM Cortex-A9
Processor frequency
1250 MHz
Internal memory
2048 MB
Noise level
30.06 dB
Power
Power source
AC/DC
Power supply included
Yes
AC input voltage
220 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
110 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Heat dissipation
559.555 BTU/h
Weight & dimensions
Width
210 mm
Depth
140 mm
Height
40 mm
Weight
967 g
Packaging content
User guide
Yes
Manual
Yes
