Product Details
Introduction

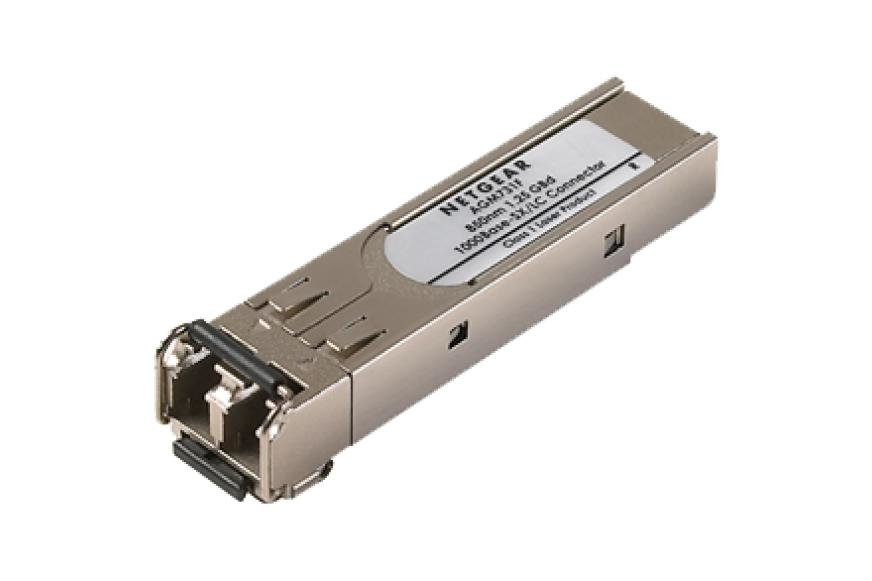

The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Multi-mode fiber (MMF) supported
Y
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
SFP transceiver standard
SX
Maximum transfer distance
1000 m
Wavelength
850 nm
Ethernet LAN
Y
Networking standards
IEEE 802.3z
Fiber ethernet cabling technology
1000BASE-SX
Duplex system
Full
Features
Product colour
Silver
Housing material
Metal
Mean time between failures (MTBF)
87658 h
Safety
UL 1950, CSA 22.2 No.60 950
Power
Input voltage
3.3 V
Power consumption (typical)
0.5 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
57 mm
Depth
13.8 mm
Height
8.5 mm
Packaging data
Number of products included
1 pc(s)
Technical details
Sustainability certificates
CE, RoHS
Information
| Part Number: | AGM731F |
