Introduction

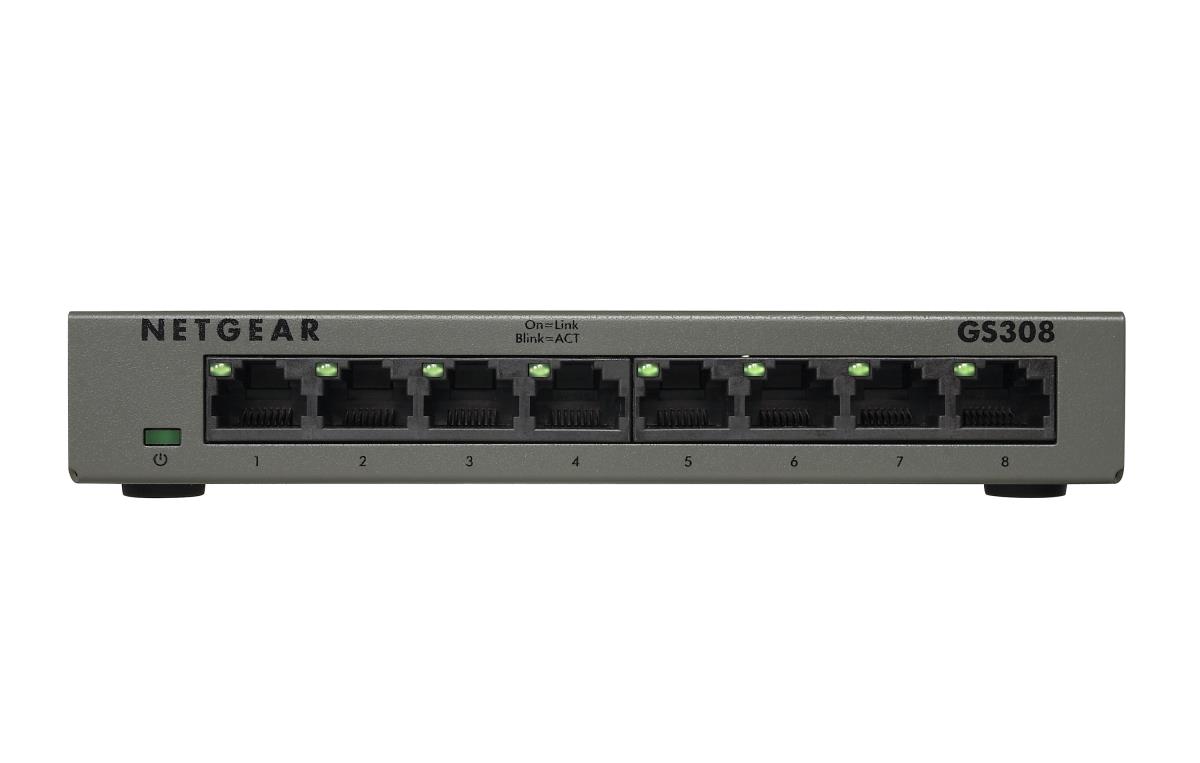

SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks
The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Network
Networking standards
IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support
Y
Full duplex
Y
Auto MDI/MDI-X
Y
Data transmission
Switching capacity
16 Gbit/s
MAC address table
2000 entries
Latency (1 Gbps)
2.6 µs
Jumbo frames support
Y
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
0.128 MB
Security
Queue scheduling algorithms
Weighted Round Robin (WRR)
Design
Rack mounting
N
Stackable
N
Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, Power
Wall mountable
Y
Certification
CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC, CB, CE LVD
Performance
Fanless
Y
Mean time between failures (MTBF)
3711898 h
Power
DC input voltage
12 V
Input current
0.5 A
Power consumption (max)
3.04 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Heat dissipation
10.4 BTU/h
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
29 mm
Weight
390 g
Packaging data
Package width
192 mm
Package depth
228 mm
Package height
60 mm
Package weight
648 g
