Introduction

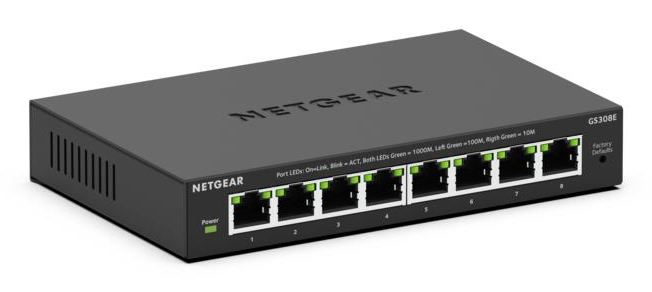

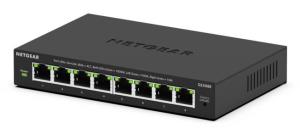

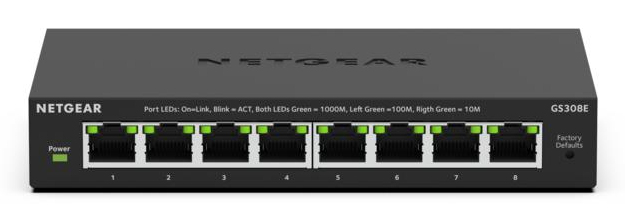

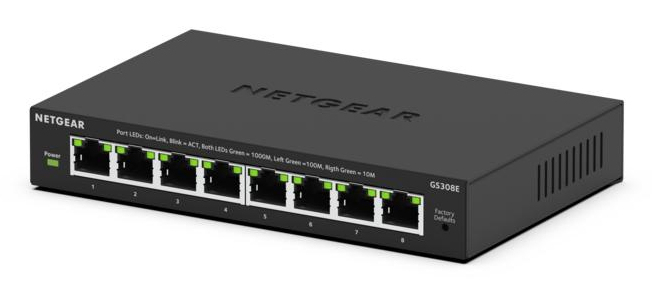

8-Port Gigabit Ethernet Plus Switch
The NETGEAR 8-Port Gigabit Ethernet Plus Switch provides exceptional value to businesses looking to increase network visibility and control while enjoying plug-and-play connectivity.
Gigabit Ethernet
8 ports provide gigabit Ethernet connectivity to your devices
Energy-Efficient
This switch is designed to optimize power usage, lowering cost of operation as a result
No Crossover Cables
Auto-MDI/MDIX eliminates the need for crossover cables
Auto-Negotiation
Automatic connection at the highest common speed between the switch and an end device
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
MIB support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af
10G support
No
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Ethernet LAN data rates
1000 Mbit/s
VLAN support
Yes
Data transmission
Switching capacity
16 Gbit/s
MAC address table
4000 entries
Jumbo frames support
Yes
Jumbo frames
9216
Security
DHCP features
DHCP client
IGMP snooping
Yes
Loop protection
Yes
Multicast features
Design
Product colour
Black
LED indicators
Yes
Power
Power source
DC
Power supply included
Yes
DC input voltage
12 V
Input current
1.5 A
Input voltage
12 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
29 mm
Weight
500 g
Packaging content
Other features
Warranty period
5 year(s)
Technical details
Shipping (inner) case height
24.5 cm
Shipping (inner) case width
34.3 cm
Shipping (inner) case length
27.9 cm
Shipping (inner) case net weight
5.72 kg
Products per shipping (inner) case
6 pc(s)
