Introduction

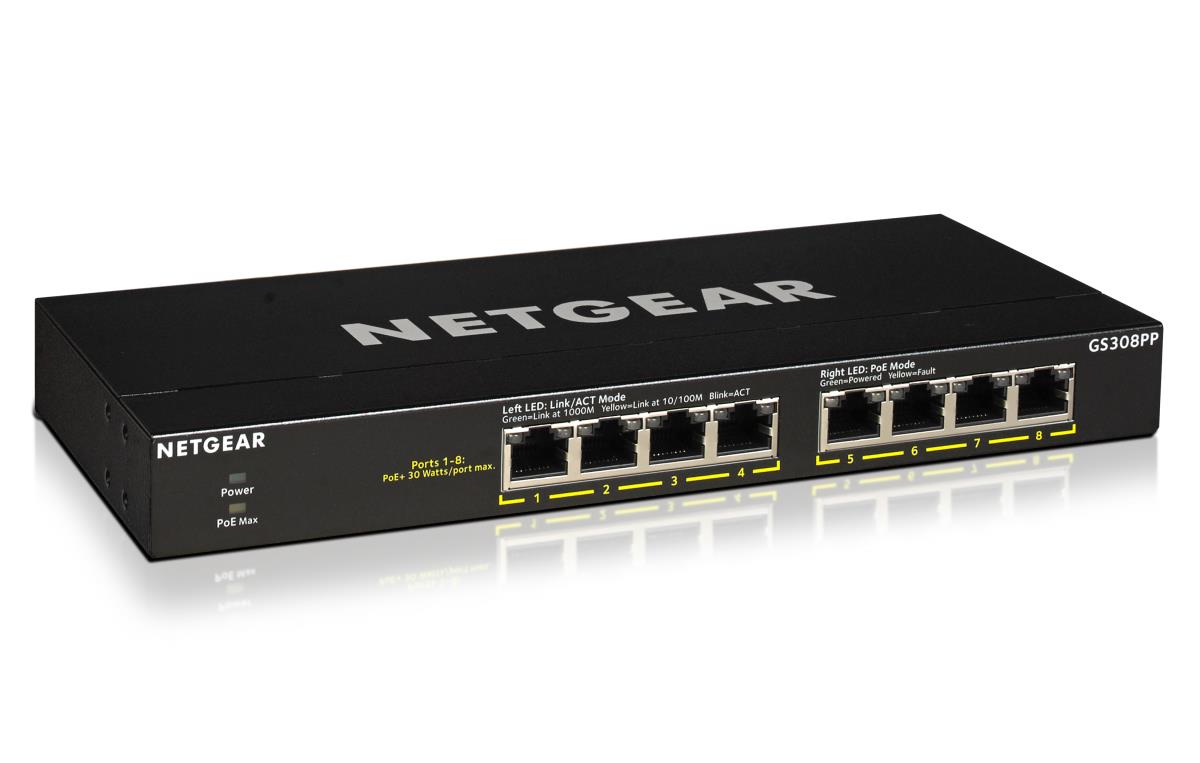

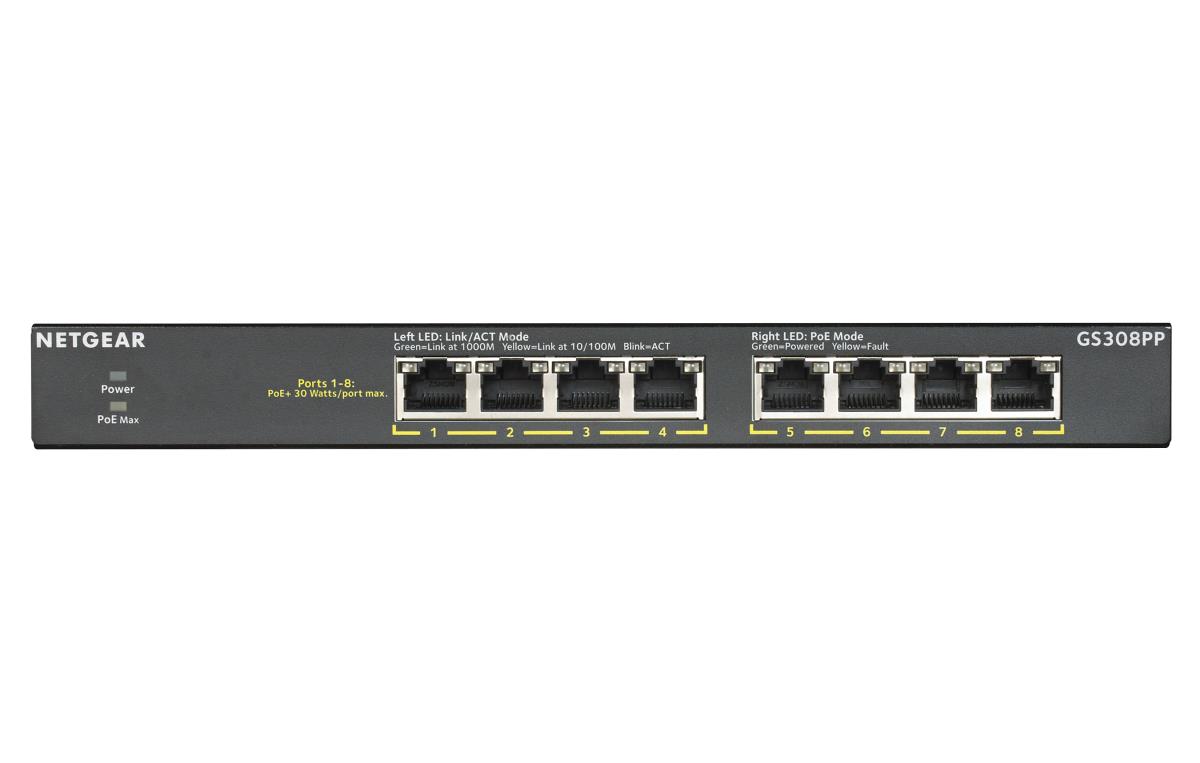

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR's unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support
N
Full duplex
Y
Flow control support
Y
Auto MDI/MDI-X
Y
Auto-sensing
Y
Auto-negotiation
Y
Data transmission
Switching capacity
16 Gbit/s
MAC address table
4000 entries
Latency (1 Gbps)
3 µs
Jumbo frames support
Y
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
0.192 MB
Design
Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, PoE, Power, Speed
Wall mountable
Y
Certification
CE Mark,
FCC Part 15
Class A,
IC Class A,
RCM,
VCCI,
BSMI,
KC
Performance
Mean time between failures (MTBF)
2752476 h
Power
DC input voltage
54 V
Input current
1.66 A
Power consumption (max)
87.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
130 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 3000%
Heat dissipation
300.6 BTU/h
Weight & dimensions
Width
236 mm
Depth
102 mm
Height
27 mm
Weight
600 g
